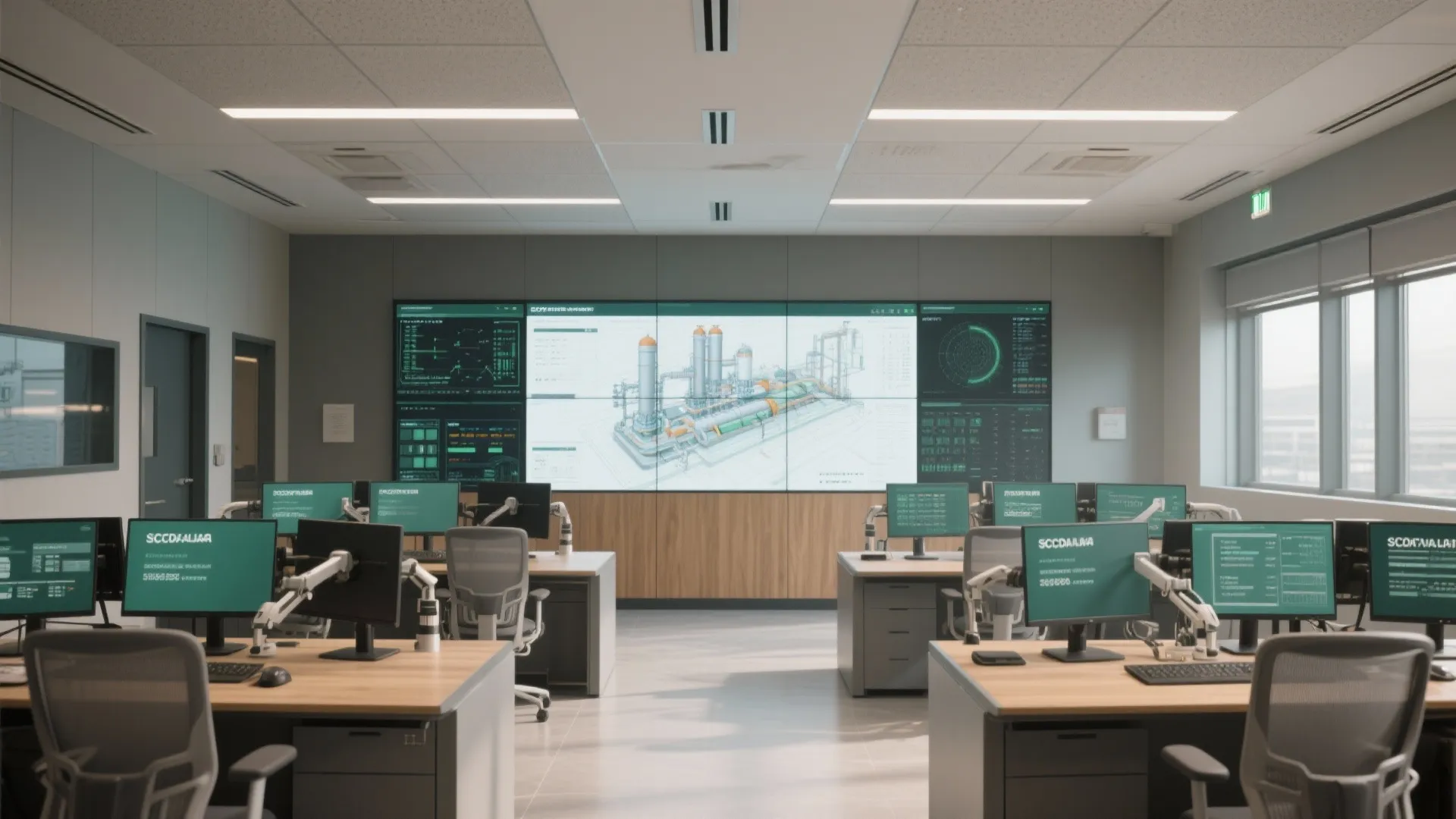

SCADA Room Design: Essential Tips for Optimal Control Spaces: Fast-Track Guide to Creating a Functional and Secure SCADA Room

I’ve planned and delivered control rooms for utilities, transport, manufacturing, and data infrastructure, and the same principle always proves true: a SCADA environment succeeds when operators can see, hear, and act without friction. The following guidance blends human factors, lighting standards, acoustics, and workflow logic to help you shape an optimal SCADA room that supports uninterrupted, mission-critical work.

Design Objectives Anchored in Human Performance

Operator alertness, reaction speed, and situational awareness drive every design decision. Research consistently shows the workplace environment affects cognition and error rates. The WELL Building Standard v2 highlights the role of controllable lighting, acoustic dampening, and ergonomics in reducing fatigue and improving performance, with its Light concept targeting glare, flicker, and circadian alignment. Steelcase research reports that visual distractions and poor sightlines correlate with increased task-switching and reduced focus; minimizing interruptions in control rooms is directly tied to safety and uptime. I plan SCADA rooms so each station sustains focus for long spans without sensory overload.

Visual Hierarchy and Display Strategy

SCADA operators juggle alarms, trends, and maps. Large-format walls should prioritize primary process overviews at the center, secondary diagnostics to the flanks, and contextual information on operator stations. Maintain a consistent grid with clear typographic hierarchy; critical KPIs belong within the central cone of vision (about 30–40° horizontally). Steelcase research notes that workstation placement influencing sightlines can reduce micropauses—small attentional breaks that accumulate—by streamlining visual scanning patterns. Keep alarm colors restrained: reserve red and amber strictly for exception states, with neutral palettes for normal conditions to prevent alarm fatigue.

Lighting That Protects Focus and Accuracy

Lighting should support long-duration screen work while preserving contrast and legibility. The Illuminating Engineering Society (IES) recommends horizontal illuminance for computer tasks around 300–500 lux and vertical illuminance near 150–300 lux, depending on age and task criticality, with unified glare ratings (UGR) kept low to avoid discomfort. Indirect, dimmable ambient lighting paired with localized task lights keeps luminance ratios balanced (ideally 3:1 between task and surrounding surfaces). I favor 3500–4000K for general ambient light and ~3000K for evening task lighting to reduce melatonin suppression while maintaining alertness.

Glare Control and Screen Readability

Place luminaires to avoid specular reflections on displays. Use matte finishes on desks and low-reflectance wall paints (LRV 40–60) to prevent reflected glare. If video walls are present, avoid downlights aimed at the screens; employ wall washers with controlled beam spreads. Provide user-level dimming at each station—the ability to tune light in response to visual load markedly reduces eye strain over long shifts.

Ergonomics and Operator Well-Being

SCADA shifts can run 8–12 hours; ergonomics must adapt throughout the day. WELL v2 emphasizes adjustability across seating, work surface height, and monitor positioning for musculoskeletal comfort. Monitors should be positioned so the top line of text sits at or slightly below eye level, with viewing distances roughly 600–800 mm for multi-monitor arrays. Depth is your friend: allow 900–1200 mm desk depth to avoid neck craning and to accommodate articulated arms. I specify chairs with synchronized tilt, lumbar support, and breathable upholstery; standing options are valuable but secondary to seated stability in high-focus tasks.

Biophilic Touches Without Distraction

Neutral, desaturated palettes calm the visual field. Introducing subtle natural textures—wood veneers with low gloss, plant walls positioned outside primary sightlines—supports mental restoration without clutter. Color psychology suggests muted greens and earth tones promote steadiness; strong chroma is best reserved for wayfinding or zonal accents away from display surfaces.

Acoustic Control: Keeping Noise in Check

Constant low-level hums, HVAC rush, and sporadic alarms quickly degrade concentration. I target a background noise level of NC-25 to NC-30 for SCADA rooms, with wall assemblies achieving STC 45+ along noisy corridors. Use acoustic ceilings (NRC 0.75+), absorptive wall panels at first reflection points, and carpet tiles with dense underlayment to suppress footfall. Zonal separation keeps collaboration areas away from primary operator banks; anterooms or acoustically treated vestibules prevent corridor spill.

Workflow Zoning and Sightline Logic

Plan the room around response speed: operators need unimpeded views to master displays and quick reach to supervisors. I group stations by process zone and escalation pathway, placing lead operators central with uninterrupted views. Circulation paths should never cross the primary sightlines between operators and the main display wall. When modeling layouts or testing visual angles, a room layout tool helps simulate workstation spacing, sightlines, and walk-time to critical panels.

room layout tool

Alarm Management and Cognitive Load

Alarm resolution depends on clarity. Use tiered visual and auditory cues with consistent thresholds and suppress nuisance alarms via rationalization. Keep audible alerts within comfortable SPLs (typically under 85 dB peak) and avoid tonal overlap with speech frequencies. Provide quick-reference SOPs at each station; I often integrate low-profile shelves for binders or place QR-accessible digital manuals within reach to cut search time during incidents.

Redundancy, Resilience, and Power Management

Design for failure. Dual power feeds with UPS, isolated circuits for video walls and servers, and clearly segregated cable trays reduce downtime. Labeling must be legible and standardized. Environmental monitoring—temperature, humidity, and particulate—near racks preserves equipment longevity. Access panels and service corridors should not invade operational zones; nothing interrupts concentration like maintenance crossing critical sightlines.

HVAC, Thermal Comfort, and Air Quality

Operators maintain alertness within a stable thermal band. Aim for 21–23°C with minimal drafts, and distribute supply diffusers to avoid cold dumps on shoulders or hands. Dedicated return paths reduce hot spots around electronics. Filtration and fresh air rates should match occupancy and equipment loads; good IAQ correlates with reduced headaches and eye irritation, supporting longer, steadier shifts.

Security, Access, and Lighting for Shift Transitions

Badge-controlled entries with anti-tailgating measures protect integrity. Provide staging areas just outside the main room for handovers, with writable glass or digital handoff boards. Lighting scenes for shift changes help operators either ramp up or wind down. In 24/7 facilities, dusk and night scenes with reduced blue content support circadian health without compromising visibility.

Furniture, Materials, and Maintainability

Favor durable, cleanable surfaces: high-pressure laminates, compact phenolic for worktops, and stain-resistant textiles. Cable management must be integral, not afterthought. Use rounded edges to prevent wear and accidental snags. Storage should be abundant but concealed—SCADA rooms thrive on visual order.

Testing, Commissioning, and Iteration

Before go-live, run scenario drills with operators: alarm storms, equipment failures, and communication tests. I often adjust monitor angles, add acoustic baffles, or re-specify task lights after these sessions. The best rooms evolve—build feedback loops into maintenance and periodic upgrades.

FAQ

What illuminance levels work best for SCADA operators?

For screen-heavy tasks, target 300–500 lux on the workplane and 150–300 lux vertically. Keep glare low and provide dimming at stations to tailor lighting to visual load.

How should I organize a multi-operator layout?

Cluster by process and escalation paths, keep supervisors central, and avoid circulation crossing key sightlines. Use an interior layout planner to simulate spacing and view angles before construction.

Which color palette helps reduce alarm fatigue?

Use neutral, desaturated bases. Reserve saturated red/amber strictly for alarm states, and apply muted greens or earth tones for calming backgrounds.

What acoustic targets are appropriate?

Aim for NC-25 to NC-30 background levels, STC 45+ partitions, NRC 0.75+ ceilings, and carpeting with underlayment to cut footfall noise.

Are sit-stand desks recommended in control rooms?

Adjustability is useful, but stability and consistent screen ergonomics matter most. Provide seated ergonomics with optional standing breaks at ancillary stations.

How can I reduce cognitive load during incidents?

Tier alarms with clear thresholds, minimize nuisance alarms, maintain consistent visual hierarchy, and keep SOPs accessible within arm’s reach.

What temperature range supports alertness?

Maintain 21–23°C with minimal drafts. Balance supply and return to prevent hot spots around electronics and operator stations.

How do I plan for power resilience?

Use dual feeds, UPS for critical circuits, segregated cable trays, clear labeling, and environmental monitoring near racks to prevent thermal issues.

What’s the best way to manage lighting at night?

Deploy scenes with lower blue content (~3000K) and reduced luminance while keeping task contrast adequate. Provide personal dimming at stations.

How do I validate the design before handover?

Run drills simulating alarm floods and equipment failures; collect operator feedback to fine-tune monitor angles, acoustic treatments, and task lighting.
