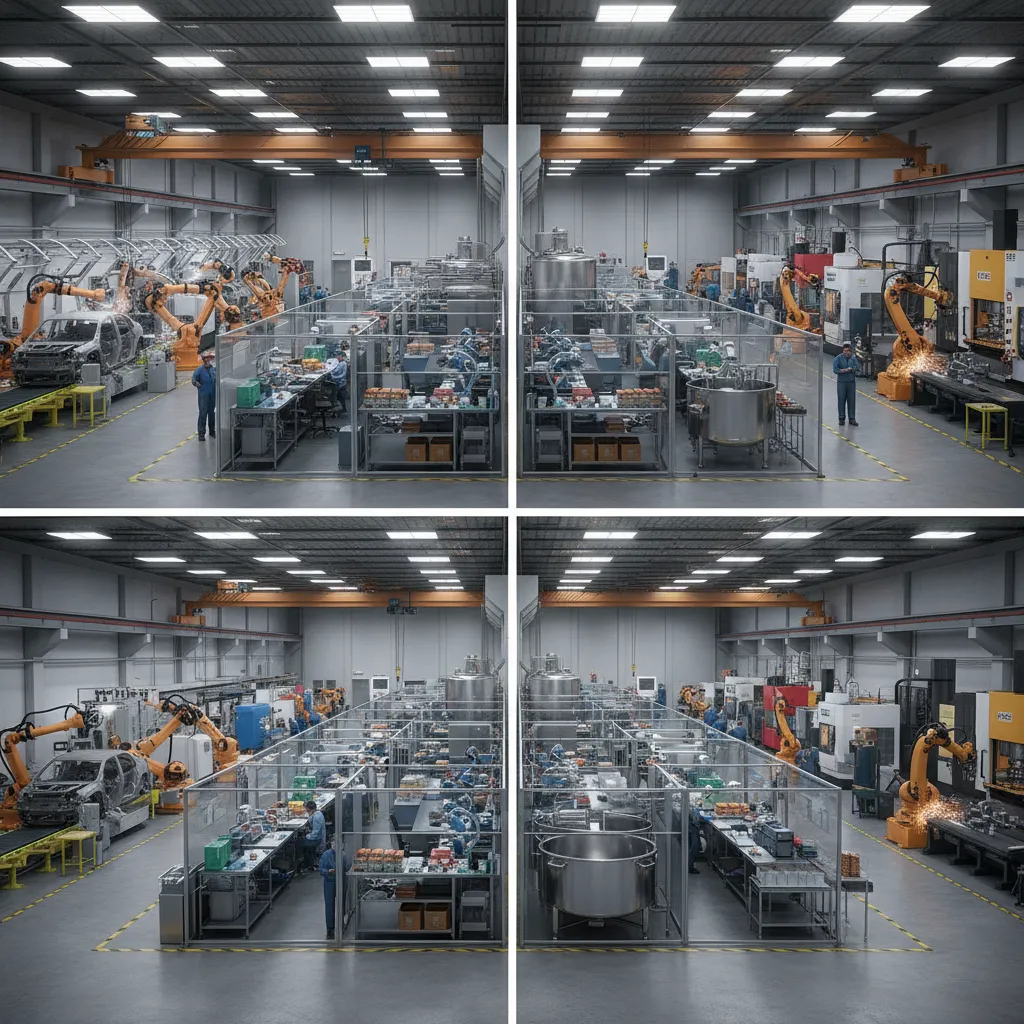

Shop Floor Layout Requirements for Different Manufacturing Industries: Understand how factory layout needs change across automotive, electronics, food processing, and metal fabrication facilities.

Direct Answer

Shop floor layout requirements vary by manufacturing industry because each sector has different production flows, safety regulations, equipment sizes, and material handling needs. Automotive plants prioritize assembly flow and robotics, electronics factories emphasize clean zones and compact workstations, food processing requires strict hygiene separation, and metal fabrication shops need heavy equipment spacing and raw material staging.

Quick Takeaways

1. Automotive plants rely on linear assembly lines optimized for robotic automation.
2. Electronics manufacturing layouts prioritize clean work zones and short component travel paths.
3. Food processing facilities must separate raw and cooked product zones to meet hygiene regulations.
4. Metal fabrication shops require large clearance areas for machinery and material movement.
5. Digital layout planning tools allow manufacturers to test industry‑specific layouts before construction.

Introduction

One mistake I see repeatedly when companies design a new factory is assuming a shop floor layout works the same across industries. After more than a decade working with manufacturing clients and helping visualize production spaces, I can tell you that the requirements for a shop floor layout change dramatically depending on what you build.

An automotive assembly plant moves thousands of components through synchronized lines. An electronics facility may focus on delicate circuit assembly where a few meters of workflow change can affect productivity. A food processing plant has to meet strict sanitation standards that override almost every design decision.

The problem is that many teams start planning without visualizing the production environment properly. In early project stages, I usually recommend teams experiment with a visual workspace layout planning approach used to map equipment and workflowso bottlenecks appear before construction begins.

In this guide, I’ll walk through how shop floor layout requirements differ across several major manufacturing industries and what design decisions matter most in each case.

save pin

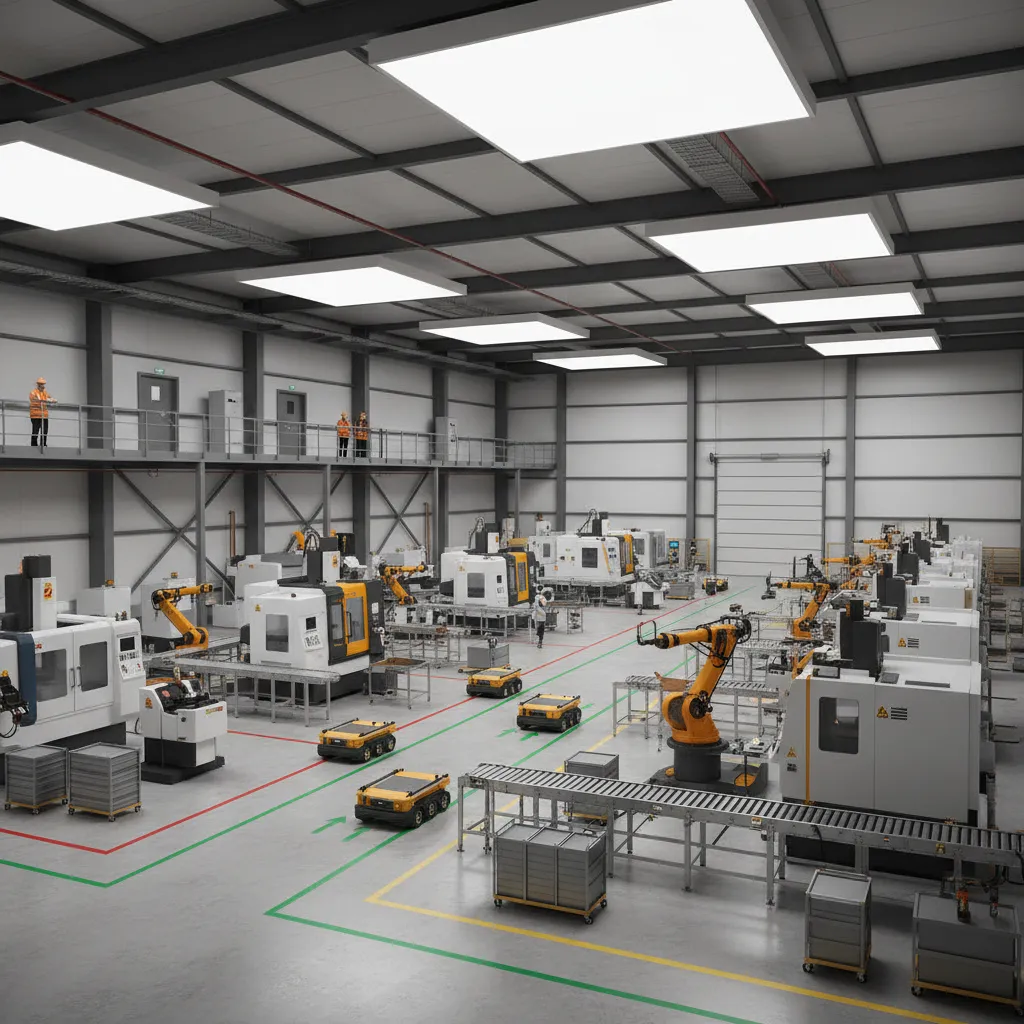

Why Shop Floor Layouts Differ by Industry

Key Insight: Manufacturing layout strategy is driven primarily by production flow, regulatory requirements, and equipment scale.

Two factories with the same square footage can require completely different layouts. The determining factor isn’t building size — it’s the production system.

In my experience reviewing facility plans, the biggest layout variables are:

1. Production workflow structure (line production vs batch manufacturing)
2. Machine footprint and safety clearance
3. Material handling method (manual, conveyor, AGV, forklift)
4. Regulatory compliance and inspection zones
5. Environmental control such as temperature, dust, or cleanroom conditions

According to the Lean Enterprise Institute, inefficient facility layouts can increase internal transportation waste by more than 30%, making layout planning one of the highest‑impact design decisions in manufacturing operations.

This is why modern planning increasingly starts with digital modeling. Teams often experiment with configurations using a digital factory layout simulation workflow before committing to equipment placement.

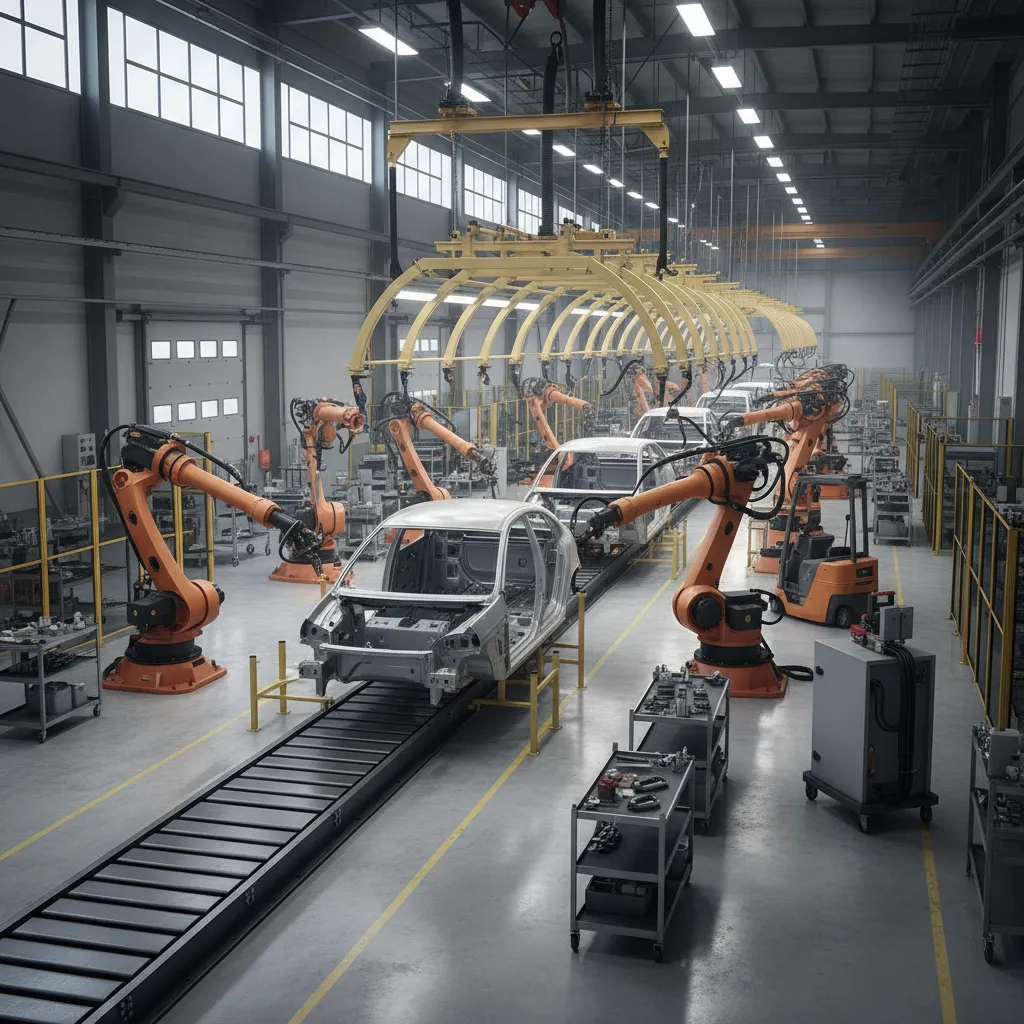

Automotive Manufacturing Layout Considerations

Key Insight: Automotive factories prioritize linear production flow and robotic cell integration.

Automotive manufacturing is one of the most layout‑sensitive industries because thousands of parts must arrive at precise moments during assembly.

Typical automotive layout zones include:

1. Stamping area
2. Body welding lines
3. Paint shop
4. Final assembly lines
5. Quality inspection

Each area connects through controlled logistics systems such as conveyors or automated guided vehicles.

Key design priorities include:

1. Straight assembly lines to reduce handling complexity
2. Robotic safety zones with protective fencing
3. Just‑in‑time parts delivery staging areas
4. Clear forklift and AGV pathways

Automotive plants also allocate large areas for supplier logistics because components arrive continuously from multiple vendors.

save pin

Electronics Assembly Floor Planning Needs

Key Insight: Electronics factories require compact, controlled workstations that minimize contamination and component travel distance.

Unlike automotive manufacturing, electronics production deals with extremely small parts and delicate assemblies.

Typical layout features include:

1. Surface‑mount technology (SMT) production lines
2. Electrostatic discharge safe zones
3. Inspection and testing stations
4. Component storage with humidity control

In several projects I reviewed, inefficient workstation spacing increased operator movement significantly. Even a few extra steps per board assembly multiplied into thousands of wasted labor hours annually.

Common electronics layout principles:

1. U‑shaped or compact assembly cells
2. Short material flow paths
3. ESD‑safe flooring and surfaces
4. Dedicated inspection zones

Because equipment footprints are smaller, electronics plants can often increase output by optimizing workstation density rather than expanding floor space.

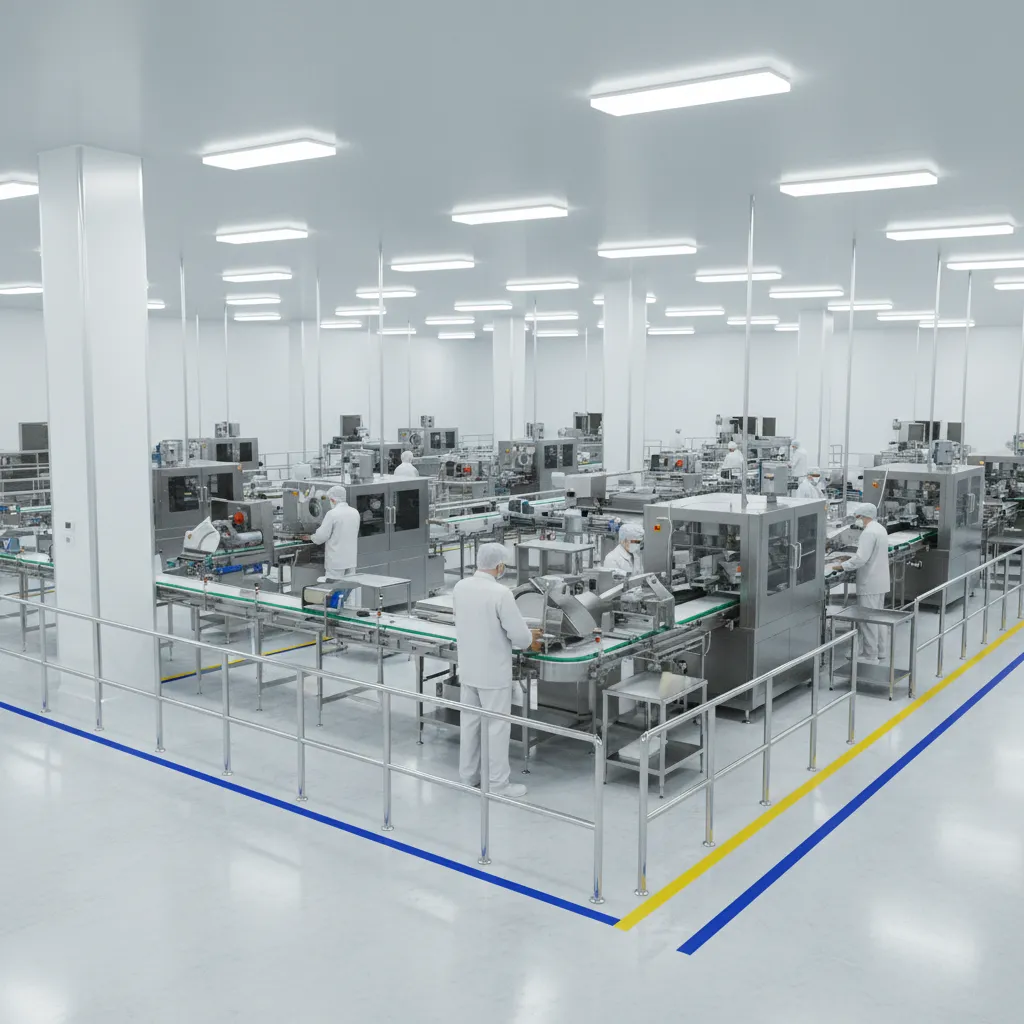

Food Processing Facility Layout Constraints

Key Insight: Food processing layouts are dictated primarily by hygiene zoning and regulatory compliance.

Food facilities are unique because sanitation rules shape the layout more than production efficiency.

Regulatory agencies such as the FDA and USDA require strict separation between different production stages.

Typical zoning structure includes:

1. Raw ingredient receiving
2. Preparation and processing
3. Cooking or treatment zones
4. Packaging
5. Cold storage and shipping

Critical layout requirements include:

1. Unidirectional product flow to avoid contamination
2. Washdown‑compatible equipment spacing
3. Drainage and sanitation corridors
4. Employee hygiene transition areas

A hidden mistake I often see is underestimating sanitation access space. Maintenance and cleaning clearance can add 20–30% more area around equipment.

save pin

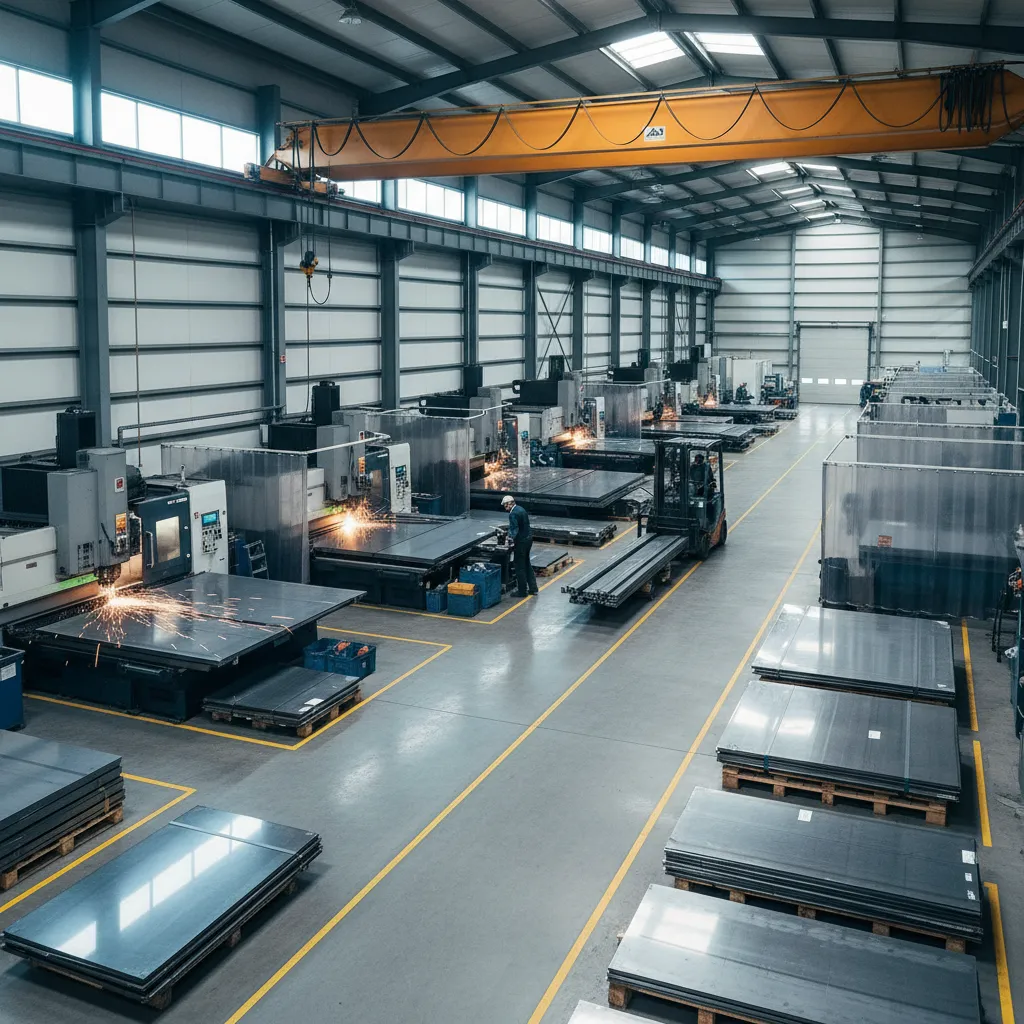

Metal Fabrication Shop Floor Planning

Key Insight: Metal fabrication shops require large open zones for heavy equipment, material staging, and crane movement.

Metal fabrication operations involve large machinery such as:

1. CNC machining centers
2. Laser cutters
3. Press brakes
4. Welding stations
5. Grinding and finishing areas

Layout priorities include:

1. Wide forklift and pallet movement lanes
2. Raw material storage near cutting equipment
3. Overhead crane clearance zones
4. Separate welding and finishing areas

Unlike electronics facilities, metal fabrication layouts must also consider noise isolation and spark safety zones.

Answer Box

The best shop floor layout depends entirely on the industry’s production workflow, equipment footprint, and regulatory constraints. Automotive factories focus on assembly flow, electronics facilities prioritize compact precision workstations, food plants enforce hygiene separation, and metal fabrication shops require large equipment clearance zones.

Adapting Free Layout Tools for Industry Requirements

Key Insight: Modern layout planning tools allow teams to test different factory configurations before building physical infrastructure.

Instead of relying on static drawings, manufacturers increasingly use digital layout models to simulate production environments.

These tools allow teams to test:

1. Machine placement and spacing
2. Worker movement paths
3. Material flow efficiency
4. Safety clearance compliance

For example, some planning teams begin with a simple digital layout workflow for organizing equipment and production zonesbefore moving into advanced simulation tools.

Even basic layout modeling often reveals overlooked issues such as forklift conflicts, inspection bottlenecks, or inefficient storage placement.

save pin

Final Summary

1. Manufacturing layout design varies significantly between industries.
2. Automotive plants rely on linear assembly lines and robotics.
3. Electronics facilities prioritize compact and contamination‑controlled workspaces.
4. Food processing layouts must meet strict hygiene zoning requirements.
5. Digital planning tools help validate layouts before building the factory.

FAQ

What is a shop floor layout in manufacturing?

A shop floor layout is the arrangement of machines, workstations, storage areas, and material flow paths within a manufacturing facility.

Why do factory layouts differ by industry?

Different industries use different production processes, equipment sizes, and regulatory standards, which directly influence layout design.

What layout is commonly used in automotive manufacturing?

Automotive plants usually use long assembly line layouts designed for sequential production and robotic automation.

What is important in electronics manufacturing floor plan design?

Electronics manufacturing floor plan design focuses on compact workstations, electrostatic protection, and minimal component travel distance.

What are food processing plant layout requirements?

Food processing plant layout requirements include hygiene zoning, separate raw and cooked areas, sanitation access, and controlled product flow.

How much space should machines have in a factory layout?

Clearance depends on machine size, maintenance access, and safety rules, but many facilities allocate 20–30% extra space around major equipment.

Can digital tools help design a factory layout?

Yes. Modern layout planning tools allow teams to test machine placement, workflow paths, and space efficiency before building the facility.

What is the biggest mistake in shop floor layout planning?

The most common mistake is ignoring material flow, which leads to congestion, wasted labor movement, and reduced production efficiency.
