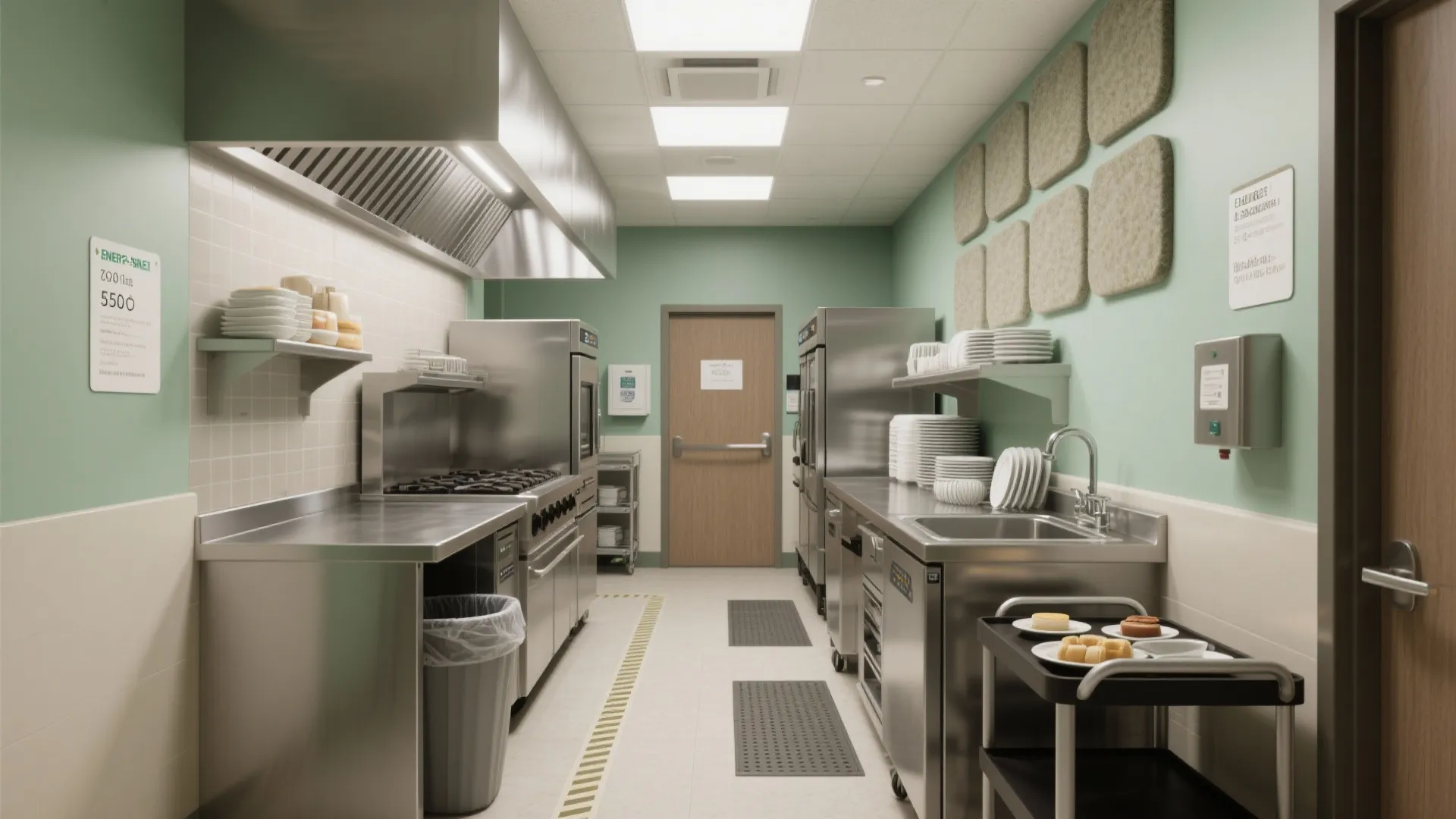

Simple Hotel Kitchen Layout: My Practical Guide: 1 Minute to Visualize and Optimize Your Hotel Kitchen Flow

I’ve laid out dozens of compact hotel kitchens that run breakfast buffets by morning and small plates by evening, all under tight footprints and tighter labor. The goal is simple: safe flow, quick turns, and equipment that earns its keep. Across projects, I keep the working triangle honest, consolidate heat loads, and make cleaning paths as short as the prep lists. In a 400–700 sq ft back-of-house, inches matter more than ideals.

Performance has to be measurable. Gensler’s research notes that well-planned spaces can improve task efficiency by double digits when movement is minimized, a principle that applies just as much behind the line as it does in front of house. And on the health side, WELL v2 requires clear hygienic zoning and handwashing proximity to prep areas; locating a hand sink within 25–30 ft of any food handling point keeps compliance practical while sustaining hygiene discipline (WELL v2 guidelines). Lighting matters too—per IES food prep recommendations, maintain roughly 500 lux on cutting surfaces with 80+ CRI to reduce errors and eye strain (IES standards).

Color and behavior influence output more than most teams expect. Verywell Mind’s color psychology summaries align with what I witness: muted greens and soft neutrals reduce perceived stress and help staff sustain focus during peak periods; avoid saturated reds near expediting where tension already runs high. Add a matte, low-glare paint finish around prep lines to support the specified illuminance without introducing veiling reflections. Acoustic comfort matters as well; when dish and cook lines share a wall, I specify mineral wool (at least 3.5 lb/ft³) in stud cavities and a resilient channel to cut structure-borne clatter that raises cognitive load during rushes.

Core Zoning: Keep the Loop Short

I design around a clean-to-dirty loop: delivery → dry/cold storage → prep → cook → plate → service → buss → dish → waste → back to storage. No crossovers. The key distances: 1) 4–6 ft between cold storage and primary prep to reduce backtracking; 2) 3–4 ft between hot line and pass to prevent crowding; 3) 36 in minimum clear aisle for one-way cook lines; 48 in where carts and two-person passing is routine. If your footprint is long and narrow, make it a single-loaded line with a return corridor rather than forcing a pinch-point in the middle.

Five Functional Blocks That Rarely Fail

1) Receiving & Holding: Put reach-in refrigeration nearest the delivery door, then step into dry. If you have only one reach-in, choose a two-section with independent controllers. Keep a fold-down staging shelf at the entry for quick checks and HACCP logging.

2) Prep & Light Assembly: A continuous, cleanable counter with integrated hand sink at one end. Mount magnetic knife strips above, not on, the splash zone. Under-counter refrigeration for protein, a dedicated produce bin, and one 6–8 in-deep scrap chute leading to a lidded container.

3) Hot Line: Group heat—range, combi, and fryer—under a single hood to simplify duct runs and make-up air balance. Keep fryers outboard to limit oil splatter; place a heat shelf or low-boy warmer near the pass. Use a rail refrigerator for mise, not for long-term storage.

4) Pass & Service: A heated shelf for breakfast plates in the morning and ambient pass for evening service. Ticket rail central, with a small expo station (spoons, garnishes, sanitizer bucket) so the cook doesn’t pivot more than 90 degrees to finish plates.

5) Dish & Waste: Dirty inbound separate from plated outbound. If it’s a single door machine, allow a 30–36 in landing both sides. Waste segregation—recycle, organics, landfill—close to dish drop so bussers don’t wander across the hot line.

Lighting, Visibility, and Glare Control

Meet task illuminance where it counts. Aim 500 lux on prep benches, 300–400 lux at the cook line, and 200–300 lux in storage. Use 3500–4000 K LEDs with 80–90 CRI for accurate food color judgment. Shield fixtures above stainless worktops to avoid mirror glare; baffles or micro-prismatic diffusers help. An emergency night-light circuit along the perimeter aids early-morning setups without waking guests in adjacent corridors.

Ergonomics and Human Factors

Bench height between 34–36 in suits most staff; keep a 12–16 in deep overhead shelf for light items to avoid shoulder strain. Heaviest storage should live between knee and chest height. Foot grates at the cook line reduce fatigue on long shifts. Mount POS and printers at eye height with a tilt to reduce neck flexion. I keep hand sinks touch-free with 10–12 in clearance each side so they don’t become accidental splash points.

Acoustics That Keep Pace During a Rush

Kitchens are hard and reflective by nature, so treat the ceiling with washable acoustic panels above the dish area and the pass. If the kitchen backs a guest corridor, add a double layer of gypsum with Green Glue on the shared wall, plus a solid-core door with perimeter seals. Keep compressors and ice machines on vibration pads; the tonal hum adds fatigue that you only appreciate once it’s gone.

Materials and Cleanability

Non-slip quarry or resinous flooring with coved bases; slope 1:100 toward floor drains near dish and mop areas. Stainless 304 for prep and 316 near high-chemical zones. Specify rounded edges and continuous backsplashes. For walls, a fiber-reinforced panel or high-scrub epoxy paint in splash zones. Choose matte finishes around lighting to keep glare down and visibility up. Where budget allows, pick ENERGY STAR equipment to lower heat load and reduce hood CFM requirements.

Small-Footprint Sample Layout (Approx. 550 sq ft)

- Entry/Receiving (40 sq ft): swing-in door, scale, fold-down table, access to dry.

- Dry Storage (70 sq ft): 24 in aisles, 18 in off floor, high bins for disposables.

- Cold Storage (reach-ins) (35 sq ft): two 2-door units; one for breakfast, one for evening.

- Prep Line (110 sq ft): 12–14 ft continuous counter, undercounter fridge, slicer, hand sink.

- Hot Line (150 sq ft): 8-burner range, combi oven, single fryer, under one hood, with low-boy.

- Pass/Service (45 sq ft): heat shelf, expo, POS, plate warmer if breakfast heavy.

- Dish & Waste (80 sq ft): single-door machine, 3-compartment sink, sorter, mop station adjacent.

Before committing, I run quick layout iterations with a room layout tool to check aisle clearances and service loops without redrawing from scratch.

Safety, Codes, and Air

Leave service clearances per manufacturer specs; too-tight installs become expensive later. For hoods, balance exhaust and make-up air to avoid kitchen depressurization pulling smells into guest areas. Anti-slip mats in front of the fryer and range, and a Class K extinguisher within easy reach. Keep fire suppression nozzles correctly aligned after every equipment swap.

Breakfast-to-Evening Flex

Hotel kitchens live two lives. For breakfast, allocate a mobile cart with toasters, waffle irons, and holders that parks near the pass and docks to a dedicated GFCI circuit. By 11 a.m., it rolls into dry storage. The hot line then takes small plates service, with the combi shouldering both roast and retherm. Label shelving by time-block tasks so staff can flip without guessing.

Staff Flow and Wayfinding

Use floor tape or contrasting bases to mark inbound and outbound routes at the pass and dish. Mount minimal signage—“Prep Only,” “Cook Line,” “Dish Drop”—to cut chatter during onboarding. I avoid convex mirrors over hot zones; instead, keep sightlines clear by lowering shelf lips at corners and keeping tall equipment out of cross-corridors.

Commissioning and Training

Walk the space before opening with a mock service: three people role-play receiving, cooking, and plating. Time the movements. If anyone needs to backtrack more than once per ticket, the flow isn’t right. Adjust shelf heights, move the rail, or swap casters on the most-used cart until the loop is frictionless.

FAQ

Q1: What aisle clearances work best in a compact hotel kitchen?

A: Aim for 36 in minimum for single direction cook lines and 48 in where two-way cart traffic is expected. Keep 60 in in front of the dish machine if the door swings forward.

Q2: How much light should I provide over prep areas?

A: Target about 500 lux at the work surface with 80–90 CRI. Use diffusers or baffles over glossy steel to control glare.

Q3: Where should I put the hand sink?

A: Within a short reach of primary prep—ideally at the end of the prep run—while keeping splash away from food. This aligns with WELL v2 hygiene intent and keeps habits consistent.

Q4: What’s the simplest hot line for a small hotel menu?

A: A four- to eight-burner range, a combi oven, and a single fryer under one hood. Add a rail fridge and a low-boy warmer to support both breakfast and evening service.

Q5: How do I manage noise near guest rooms?

A: Use acoustic ceiling panels over dish, add mineral wool in shared walls with resilient channels, and isolate compressors on vibration pads. Upgrade to a solid-core, sealed door.

Q6: Which materials clean fastest without looking industrial?

A: Resinous or quarry floors with coved bases, stainless for wet and hot zones, and high-scrub epoxy or FRP panels in splash areas. Keep finishes matte to reduce glare.

Q7: How do I keep breakfast changeover smooth?

A: Put small appliances on a mobile cart that docks near the pass mornings and parks in dry storage midday. Label shelves by task block (AM/PM) so staff can flip quickly.

Q8: What’s a good storage split for a 550 sq ft kitchen?

A: Roughly 70 sq ft dry, 35 sq ft reach-in cold, with undercounter refrigeration at prep. Keep disposables high and light; keep heavy goods from knee to chest height.

Q9: Any tips to reduce heat in a tight space?

A: Consolidate hot equipment under one hood, choose ENERGY STAR models where possible, and balance make-up air. Shade the pass with a short canopy to keep the expo zone comfortable.

Q10: How do I plan without full CAD?

A: Start with scaled blocks and iterate quickly using an interior layout planner or a room design visualization tool to test clearances and service loops before committing to equipment orders.
