Single vs Dual Bathroom Fan and Light Switch: Which Is Better?: A practical designer’s guide to choosing the right control setup for bathroom lighting and ventilation.

Direct Answer

A dual bathroom fan and light switch is usually the better option because it allows independent control of ventilation and lighting. However, a single combo switch can be practical in small bathrooms or powder rooms where simplicity and lower installation cost matter more than ventilation control.

Quick Takeaways

1. Dual switches give independent control over bathroom lighting and ventilation.
2. Single combo switches are simpler and often cheaper to install.
3. Separate switches improve moisture control and reduce mold risk.
4. Small guest bathrooms often work perfectly with a combo switch.
5. Large bathrooms benefit from independent fan run time control.

Introduction

In many remodeling projects, homeowners ask the same question: should the bathroom fan and light share a switch or operate separately? The single vs dual bathroom fan switch decision looks minor, but after designing dozens of bathrooms over the past decade, I’ve seen how this tiny detail affects comfort, moisture control, and even long‑term maintenance.

The most common mistake I see during renovations is choosing a switch setup before thinking about how the bathroom is actually used. For example, someone might want light without the fan during quick nighttime visits, or they may want the fan running long after the light is turned off. That’s where the switch configuration becomes important.

When I help clients plan layouts or renovation details—especially when mapping electrical points inside a step‑by‑step bathroom layout planning workflow—switch placement and functionality often show up as small decisions that make a surprisingly big difference.

In this guide, I’ll break down how single combo switches and dual switches actually work, where each option makes sense, and a few hidden trade‑offs most renovation guides never mention.

save pin

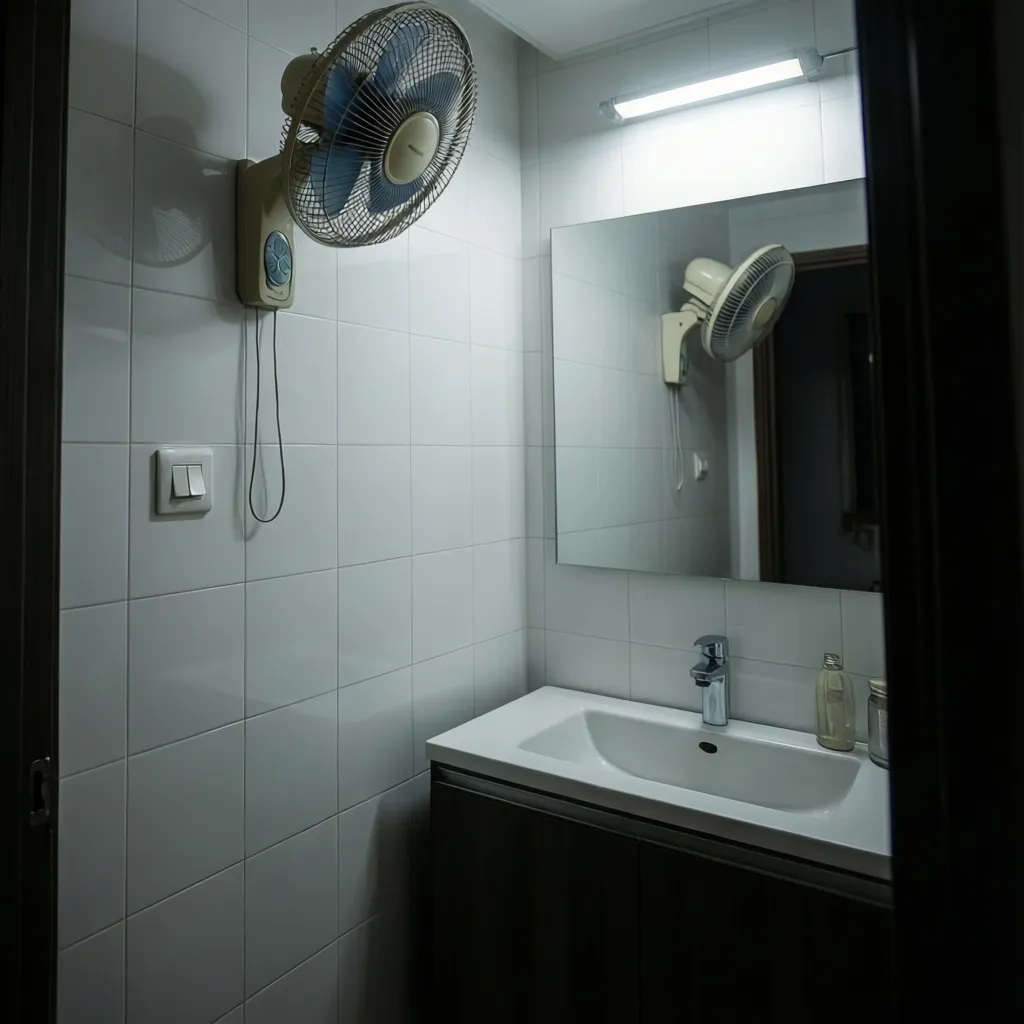

Understanding Single Combo Switches for Fan and Light

Key Insight: A single combo switch turns the bathroom light and fan on at the same time, simplifying wiring but removing independent control.

Single switches are extremely common in older homes and quick renovations. One toggle activates both the light and the exhaust fan simultaneously.

From a contractor’s perspective, the appeal is obvious: fewer wires, simpler installation, and less wall space required. In many small bathrooms, that simplicity works perfectly well.

Typical characteristics of a combo switch:

1. One switch controls both light and exhaust fan
2. Simpler electrical wiring
3. Lower hardware and installation cost
4. Less wall space required

However, the hidden downside shows up in everyday use. If someone turns on the light for a 30‑second visit, the fan runs unnecessarily. Over time, that leads to noise annoyance and wasted energy.

Another issue I’ve seen in real projects: people start avoiding the fan because they only want the light. That defeats the entire purpose of installing ventilation in the first place.

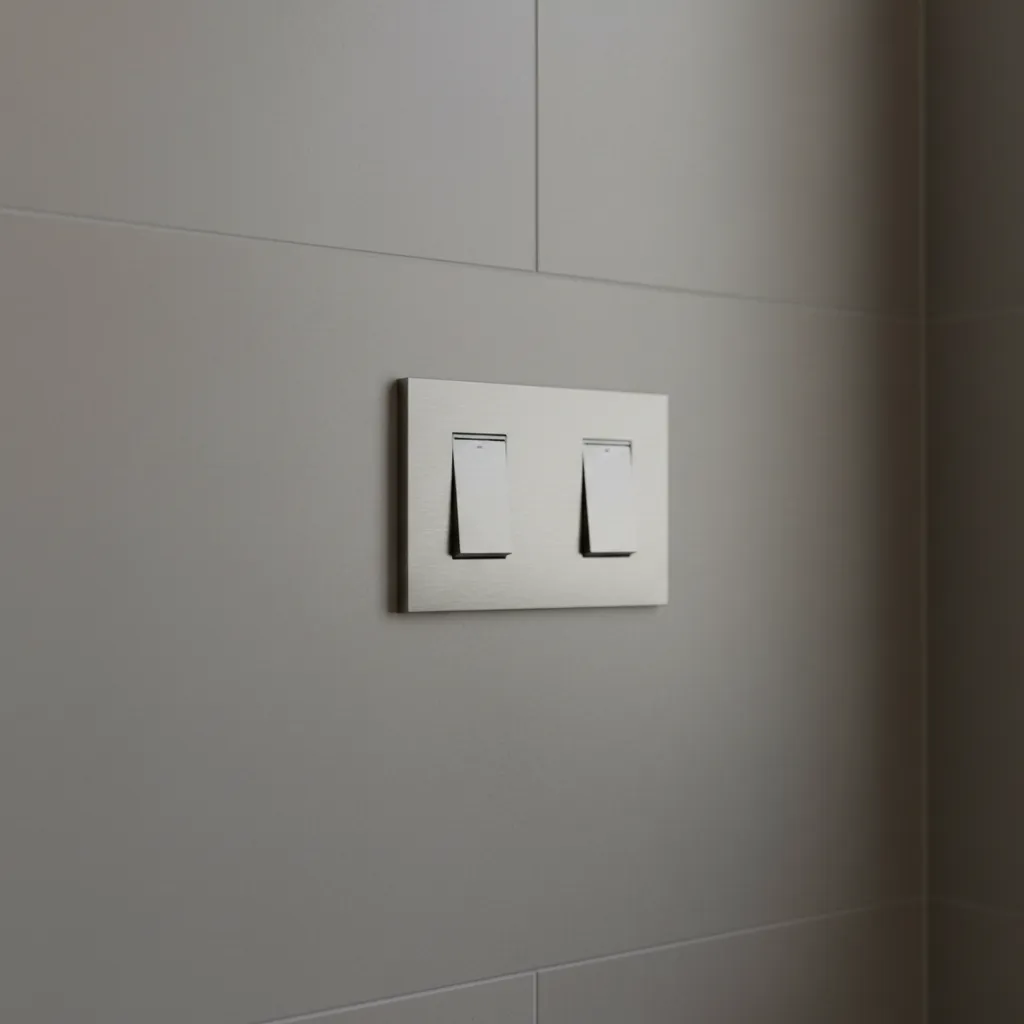

How Dual Switch Controls Work

Key Insight: Dual switches separate the fan and light circuits, allowing each function to operate independently.

A dual switch setup includes two separate toggles on the same wall plate—one for the light and one for the fan. This configuration has become the modern standard in many new builds and renovations.

The real advantage is control. People can turn on lighting without noise, or leave the fan running after a shower.

Typical dual switch configuration:

1. Switch 1: bathroom lighting
2. Switch 2: exhaust fan
3. Independent wiring circuits
4. Optional timer or humidity control upgrades

In newer homes, designers often go one step further and combine a fan switch with a timer. This allows the fan to run 10–20 minutes after showers, improving humidity removal significantly.

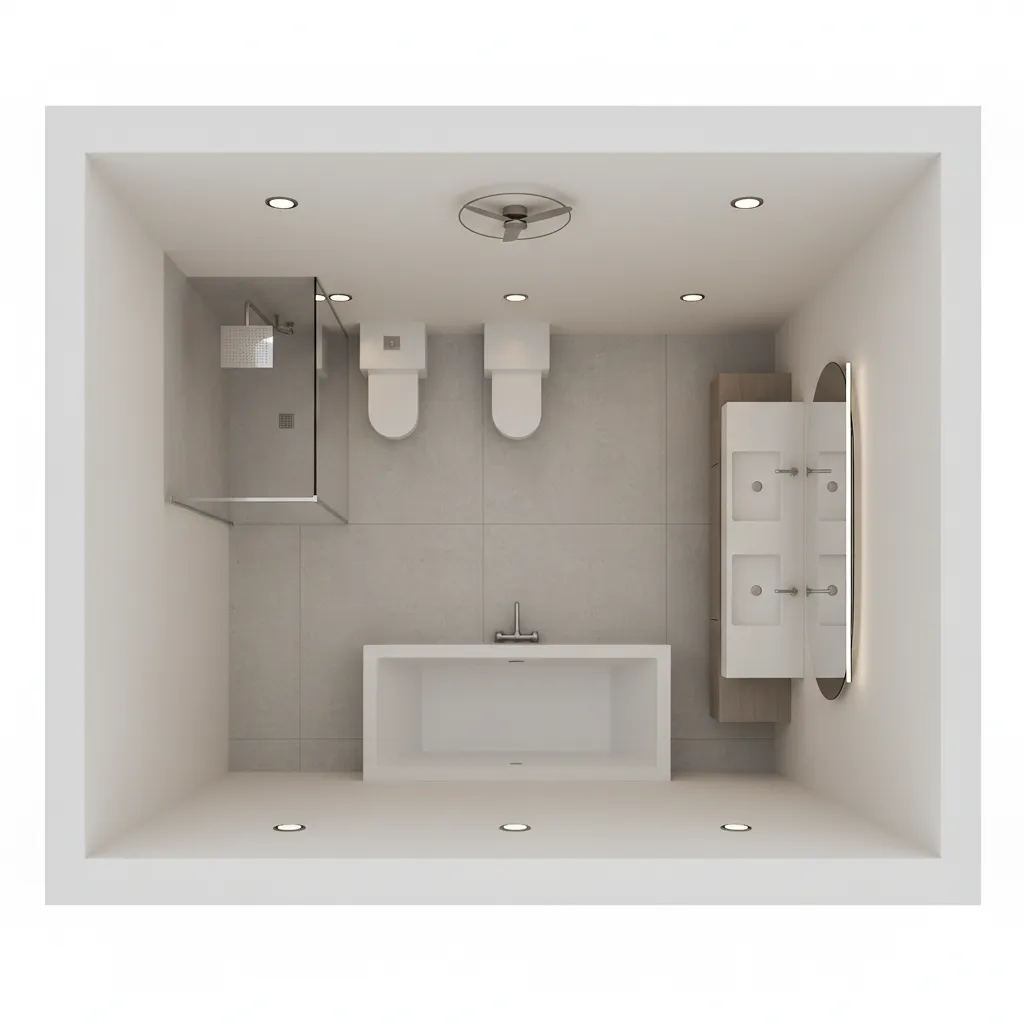

When visualizing fixture placement or ventilation zones during planning, many designers use tools similar to a 3D bathroom layout visualization workflowto confirm the ideal location for switches and airflow paths.

save pin

Pros and Cons of Each Configuration

Key Insight: The best switch setup depends on bathroom size, ventilation needs, and how often the space is used.

Here’s a practical comparison I often explain to clients before finalizing electrical plans.

Single Combo Switch Advantages

1. Simpler installation
2. Lower electrical labor cost
3. Easy for guests to understand
4. Works well in small powder rooms

Single Combo Switch Drawbacks

1. No independent fan control
2. Fan runs unnecessarily
3. Harder to manage humidity properly

Dual Switch Advantages

1. Independent control of light and fan
2. Better humidity management
3. Compatible with timers and smart controls
4. Improves comfort and noise control

Dual Switch Drawbacks

1. Slightly higher installation cost
2. Requires more wiring
3. Needs more wall plate space

save pin

Installation Complexity Comparison

Key Insight: Dual switches require additional wiring but are rarely difficult in modern renovations.

In most remodeling projects, the installation difference is minor if walls are already open.

Typical wiring requirements:

1. Single combo switch: one switched circuit
2. Dual switch: two independent switched circuits

Where it becomes tricky is older homes with limited wiring. Sometimes the fan and light share a single cable run, meaning adding a second switch requires running a new wire.

Still, electricians generally consider this a small upgrade during a full bathroom remodel.

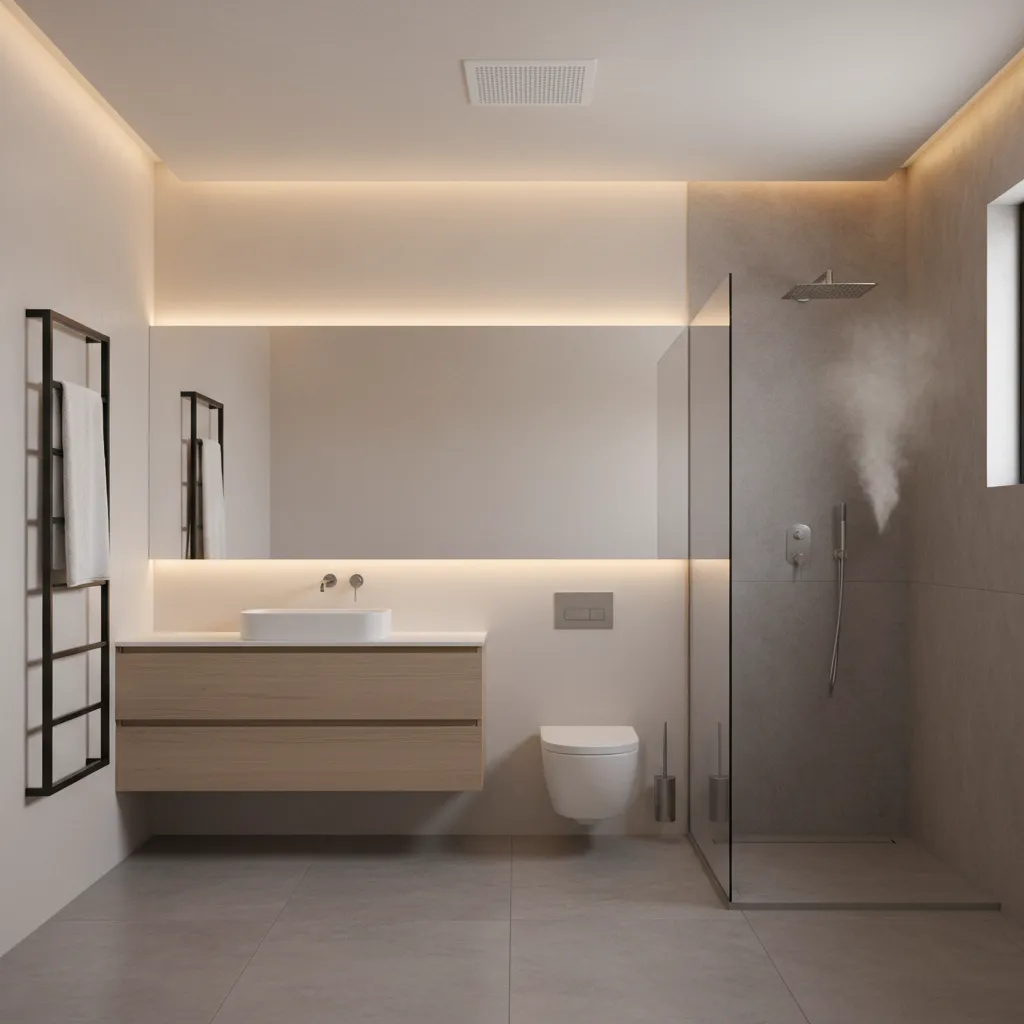

Energy and Ventilation Control Differences

Key Insight: Separate switches significantly improve moisture management, which protects walls, ceilings, and paint.

This is the part most comparison articles ignore. Ventilation is not just about comfort—it directly affects long‑term building health.

The Home Ventilating Institute recommends running bathroom fans for at least 20 minutes after showers. With a combo switch, that rarely happens because people turn off the light and leave.

Ventilation behavior differences:

1. Combo switch: fan stops when light turns off
2. Dual switch: fan can continue running after showers
3. Timer upgrades possible with separate switch

Over the years I’ve inspected multiple bathrooms where poor ventilation led to ceiling mold, peeling paint, and swollen trim. Nearly all of them used combo switches.

save pin

Answer Box

For most modern bathrooms, a dual switch for the fan and light is the better choice because it improves ventilation control and user comfort. A single combo switch is still practical for small powder rooms where simplicity matters more than airflow management.

Best Use Cases for Each Switch Type

Key Insight: Bathroom size and usage frequency determine the ideal switch setup.

After working on many residential layouts, I usually recommend the following guideline.

Choose a Single Combo Switch If:

1. The bathroom is a small powder room
2. The fan is quiet and low power
3. The renovation budget is extremely tight

Choose Dual Switches If:

1. The bathroom includes a shower or bathtub
2. Multiple people use the bathroom daily
3. You want timer or humidity switch upgrades
4. The fan is loud and you want lighting without noise

When planning layouts or remodels, many homeowners map switch placement early using tools that simulate lighting, airflow, and furniture positions—similar to a visual bathroom renovation planning approach used by professional designers.

Final Summary

1. Dual switches provide better ventilation control.
2. Single switches simplify installation and wiring.
3. Bathrooms with showers benefit from independent fan control.
4. Powder rooms can function well with combo switches.
5. Ventilation management prevents long‑term moisture damage.

FAQ

Should bathroom fan and light be on the same switch?

They can be, but separate switches usually offer better ventilation control and flexibility.

Is a dual bathroom fan light switch worth it?

Yes. A dual bathroom fan light switch allows independent operation, improving comfort and moisture control.

Do building codes require separate fan and light switches?

Most building codes allow both setups, but local regulations may recommend independent fan controls.

Does a combo fan light switch waste electricity?

It can. The fan runs every time the light turns on, even when ventilation isn’t needed.

What is the best switch setup for bathroom fan and light?

For most homes, a dual switch or fan timer switch offers the best balance of control and efficiency.

Can I convert a single switch to a dual switch?

Yes, but it usually requires separate wiring for the fan and light circuits.

Are bathroom fan timers better than switches?

Timers are excellent upgrades because they allow the fan to run after showers without manual control.

Is a separate bathroom fan and light switch better for mold prevention?

Yes. Independent switches allow the fan to run longer, reducing humidity and mold risk.
