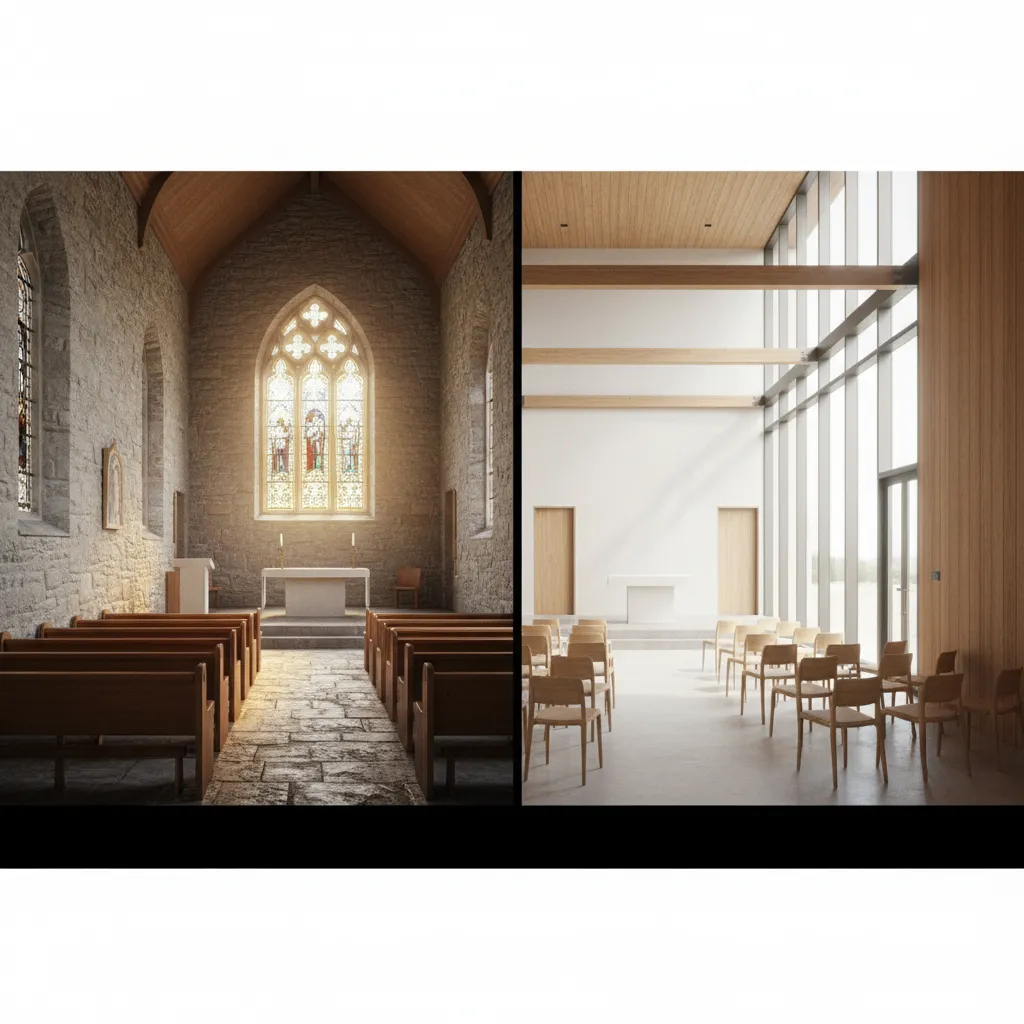

Small Chapel Floor Plan Layouts Compared: Traditional vs Modern Designs: A practical comparison to help you choose the best small chapel design layout for worship, seating flow, and future flexibility.

Direct Answer

Traditional small chapel floor plans use a straight, altar‑focused layout with fixed seating and a clear central aisle. Modern chapel layouts prioritize flexibility, using open seating zones and adaptable space for different worship styles. The best small chapel design layout depends on seating capacity, ceremony type, and how frequently the space needs to be reconfigured.

Quick Takeaways

1. Traditional chapel layouts emphasize symmetry, fixed pews, and a direct visual axis to the altar.
2. Modern layouts prioritize flexible seating, multi‑use areas, and adaptable circulation paths.
3. Small chapels under 1,500 sq ft benefit from simplified circulation and fewer permanent partitions.
4. Choosing the right layout often matters more than total square footage.
5. Designing sightlines and acoustics early prevents costly layout corrections later.

Introduction

In many of the worship projects I’ve worked on over the past decade, the biggest design challenge hasn’t been style—it’s the small chapel floor plan. When space is limited, every decision about seating direction, aisle placement, and altar visibility affects how the room actually feels during a service.

I’ve seen beautiful chapels that felt cramped because the layout ignored circulation, and modest buildings that felt surprisingly spacious simply because the floor plan worked. That’s why comparing different layout approaches early is critical.

If you're still figuring out how the structure itself should look, it helps to first explore how architects organize worship spaces. One of the easiest ways to start is by reviewing examples of visual chapel layout planning examples for early design ideasbefore locking in a final configuration.

In this guide, I’ll break down how traditional and modern chapel layouts differ, where each one works best, and a few hidden design trade‑offs most guides don’t mention.

save pin

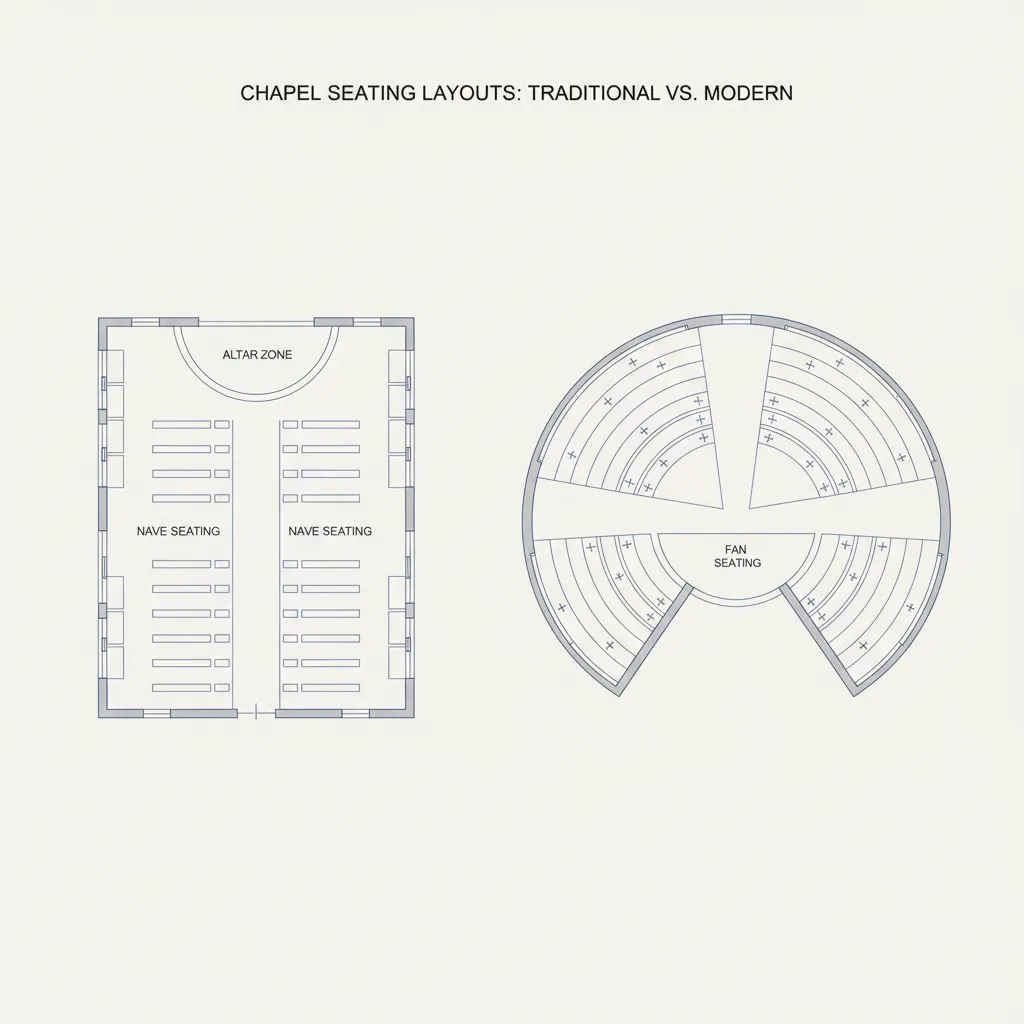

Overview of Small Chapel Floor Plan Styles

Key Insight: Most small chapel layouts fall into two practical categories: linear traditional plans or flexible modern worship layouts.

Although chapels vary in style—from rural wooden structures to contemporary glass buildings—their interior organization usually follows predictable patterns. In my design work, I see two approaches appear again and again because they solve space constraints differently.

1. Traditional Linear Layout – A central aisle leading directly to an altar or pulpit.
2. Fan or Angled Layout – Seating arranged in a shallow arc around the front.
3. Open Multi‑Purpose Layout – Movable chairs and flexible zones.
4. Hybrid Layout – Fixed focal point but adjustable seating.

The main difference comes down to flexibility versus ceremony structure. Traditional plans reinforce ritual and procession, while modern layouts focus on adaptability.

Architectural studies on small worship spaces published by the American Institute of Architects also note that chapels under roughly 120 seats benefit from simplified circulation paths and fewer structural divisions.

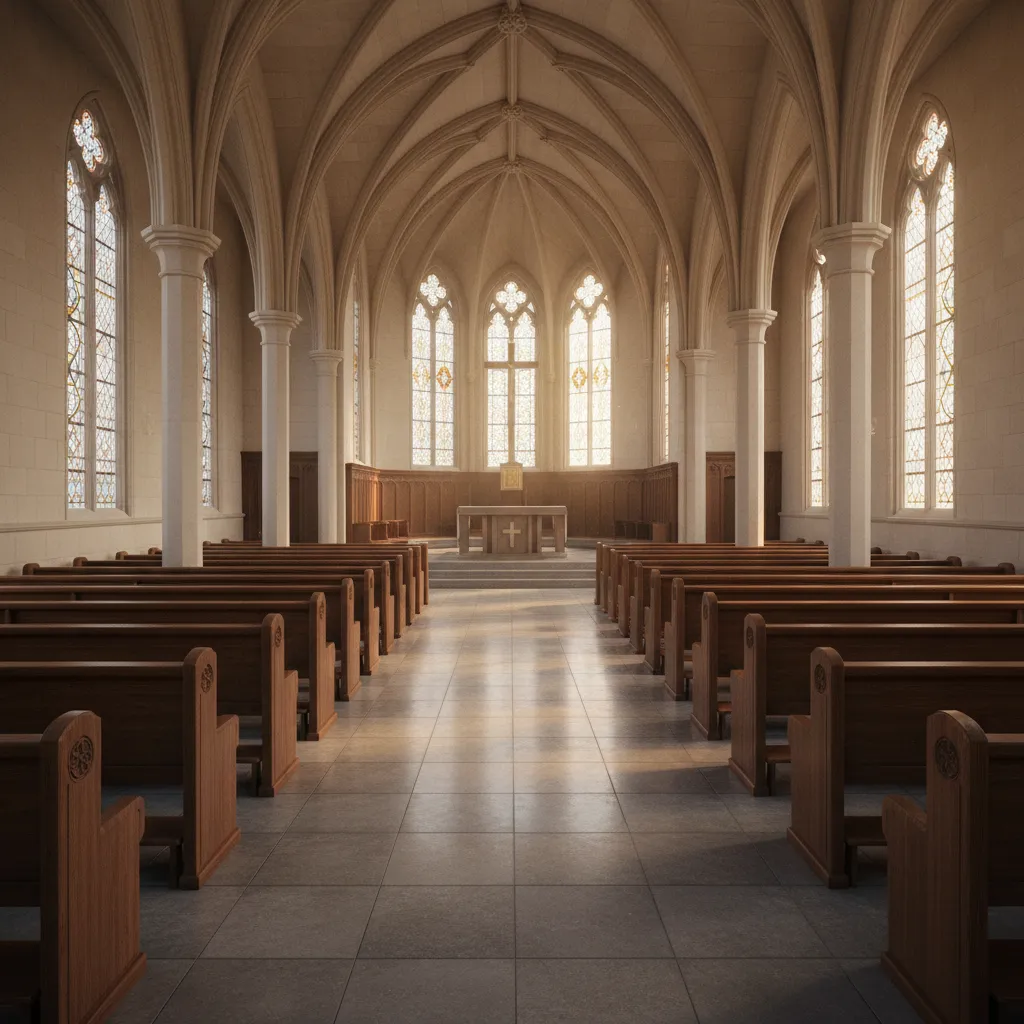

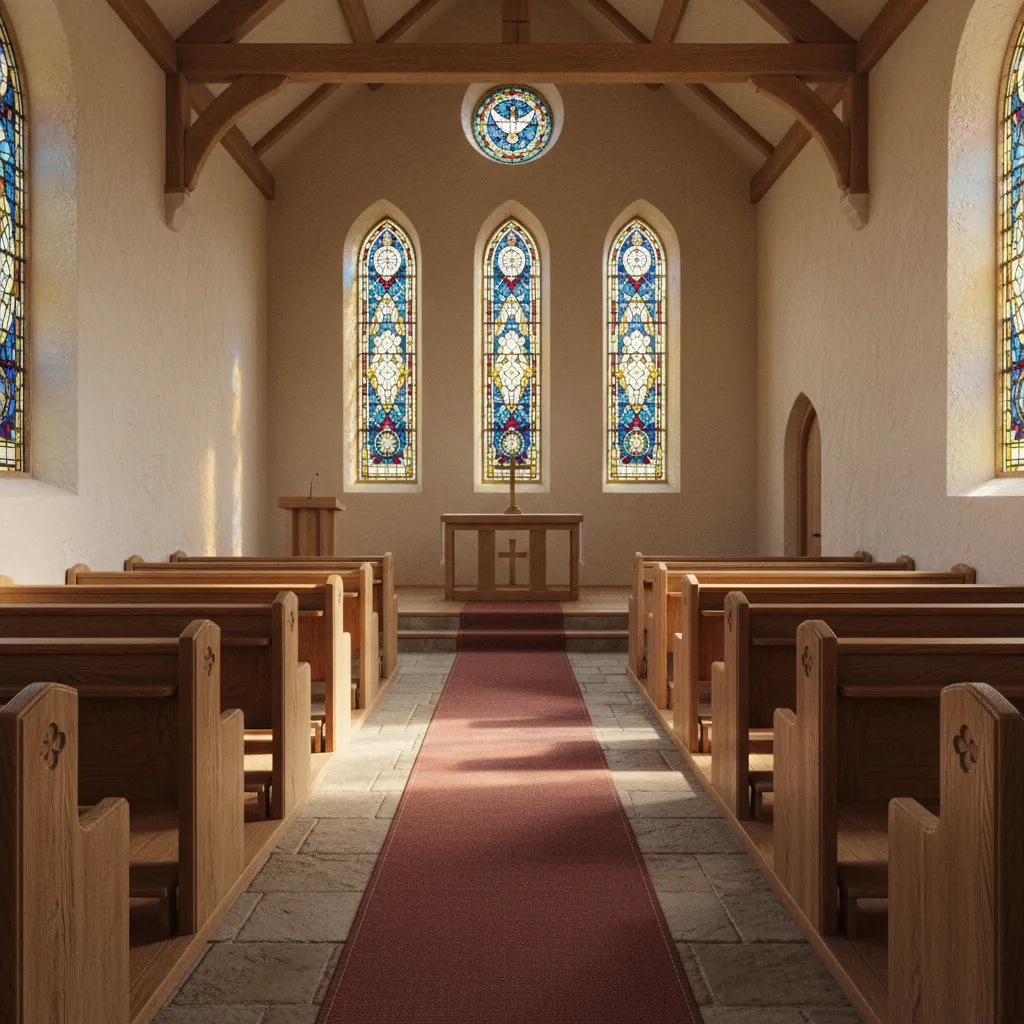

Traditional Linear Chapel Layout Explained

Key Insight: The traditional chapel floor plan works because it aligns architecture, symbolism, and sightlines into a single directional experience.

This is the classic church layout most people picture: a rectangular room with pews arranged in rows facing the altar.

From a design perspective, the layout is extremely efficient for ceremonies with processional movement such as weddings, funerals, and liturgical services.

Typical components include:

1. Central aisle leading to the altar
2. Fixed pew rows on both sides
3. Raised chancel or platform
4. Rear entrance vestibule
5. Clear front focal point

Advantages of the linear plan:

1. Strong visual hierarchy
2. Clear ceremonial procession path
3. Efficient seating density
4. Simple construction geometry

However, after working on several renovations, I’ve noticed a common issue: smaller chapels often feel longer and narrower than intended, especially when pew spacing is tight.

Without careful proportioning, the room can start to resemble a hallway instead of a sanctuary.

save pin

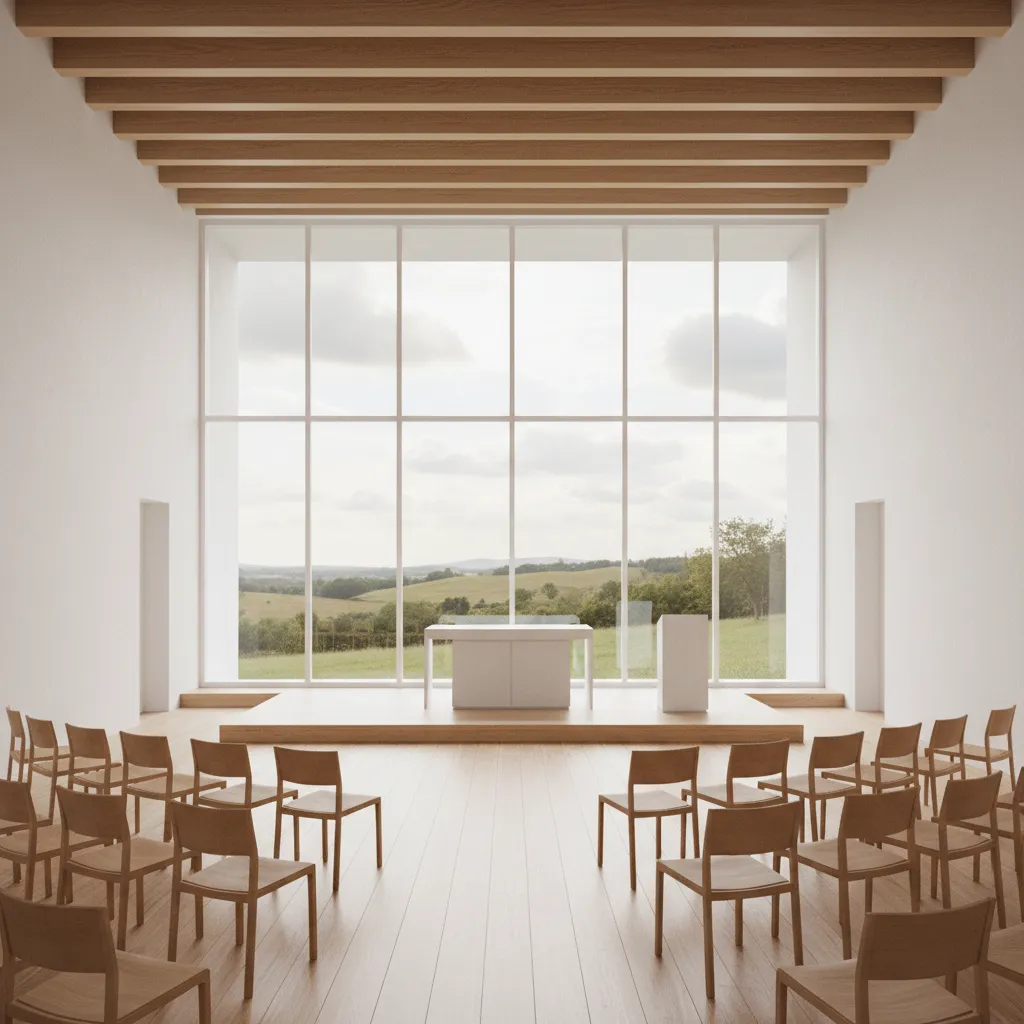

Modern Flexible Worship Space Layout

Key Insight: Modern chapel layouts trade fixed seating for adaptable space, allowing one room to support multiple community functions.

Over the past decade, many newer chapels have moved toward flexible seating arrangements. Instead of permanent pews, chairs or modular seating allow the space to shift between services, gatherings, or small events.

Common layout characteristics include:

1. Semi‑circular seating orientation
2. Movable seating or stackable chairs
3. Multi‑purpose front platform
4. Open circulation paths
5. Minimal interior partitions

This layout is particularly useful for small congregations or community chapels that host lectures, music events, or prayer meetings.

When testing layouts for clients, I often start with quick spatial studies using tools that allow interactive 3D chapel floor layout previews before construction. Seeing seating arcs and aisle widths in three dimensions helps catch awkward sightlines early.

The trade‑off is subtle but important: flexible layouts can sometimes weaken the ceremonial focus that traditional chapels naturally create.

save pin

Pros and Cons of Each Layout Type

Key Insight: The decision between traditional and modern layouts is less about aesthetics and more about how the chapel will actually be used.

Here’s a simplified comparison based on projects I’ve worked on.

1. Traditional Linear LayoutStrong symbolic orientation
2. Higher seating efficiency
3. Ideal for weddings and formal services
4. Less adaptable for events
5. Modern Flexible LayoutHighly adaptable seating
6. Better for multi‑purpose spaces
7. Encourages community interaction
8. Requires careful acoustic design

A hidden cost many planners overlook is storage. Flexible seating requires dedicated chair storage zones, which must be integrated into the floor plan.

Answer Box

Traditional small chapel floor plans focus on a central aisle and fixed seating facing the altar. Modern chapel layouts prioritize flexibility with movable seating and open space. The right choice depends on ceremony style, seating capacity, and how frequently the space needs to change function.

Choosing the Best Layout for Your Chapel Size

Key Insight: Smaller chapels benefit more from layout clarity than architectural complexity.

For chapels under 1,000 square feet, complicated layouts often waste space. A simple seating plan with efficient aisles usually performs better.

Recommended seating guidelines:

1. Minimum aisle width: 4–5 feet
2. Seat spacing: 36 inches average
3. Clear front viewing angle: under 30 degrees
4. Optimal seating rows: 6–10 rows

In practice, I often sketch several alternatives before choosing one. Visualizing how people move through the room can reveal issues that aren’t obvious in two‑dimensional drawings.

save pin

Key Design Factors That Influence Layout Choice

Key Insight: The most successful chapel floor plans are driven by experience flow, not just seating capacity.

Several overlooked design factors strongly influence which layout performs best.

1. Sightlines

Everyone should clearly see the altar or focal point without obstruction.

2. Natural Light Orientation

Windows behind the altar can create glare that affects visibility.

3. Acoustics

Hard surfaces in narrow chapels amplify echo unless ceiling shapes are considered.

4. Entry Transition

A small vestibule improves the sense of arrival and reduces noise.

If you're still evaluating design options, reviewing practical room layout experiments for small worship spaces can help test seating density and aisle positioning before committing to construction drawings.

Final Summary

1. Traditional chapel layouts emphasize ceremony, symmetry, and strong visual focus.
2. Modern layouts prioritize flexibility and multi‑purpose use.
3. Smaller chapels benefit from simplified circulation and fewer fixed elements.
4. Sightlines, acoustics, and storage influence layout success more than decoration.
5. Testing multiple floor plan options early prevents costly redesigns.

FAQ

What is the most common small chapel floor plan?

The traditional rectangular layout with a center aisle and altar at the front remains the most common small chapel floor plan.

How many seats fit in a small chapel?

Most small chapels seat between 40 and 120 people depending on pew spacing and aisle width.

Is a modern chapel layout better than a traditional one?

Not necessarily. Modern layouts are flexible, but traditional layouts often create stronger ceremonial focus.

What is the ideal aisle width for a chapel?

A central aisle of 4–6 feet allows comfortable processions and movement during services.

Can a chapel have movable seating?

Yes. Many modern small chapel designs use movable chairs instead of pews for flexible layouts.

How do you design good sightlines in a chapel?

Arrange seating within a 30‑degree viewing angle toward the altar and elevate the platform slightly.

What shape works best for small church layouts?

Rectangular plans typically maximize seating efficiency and maintain clear focal orientation.

What factors affect a small chapel floor plan layout comparison?

Seating capacity, ceremony style, acoustics, circulation paths, and flexibility needs all influence layout choice.
