Small Full Bathroom Dimensions: 5 Smart Layouts: Real-world tips from a designer for maximizing tiny full bathrooms with practical dimension guides

Once I nearly installed a bathtub that wouldn’t fit through the door — true story. I learned the hard way that measurements, circulation space and a little creativity save both dignity and renovation budgets. Small spaces can spark the best ideas, and tiny full bathrooms force you to be clever about every inch.

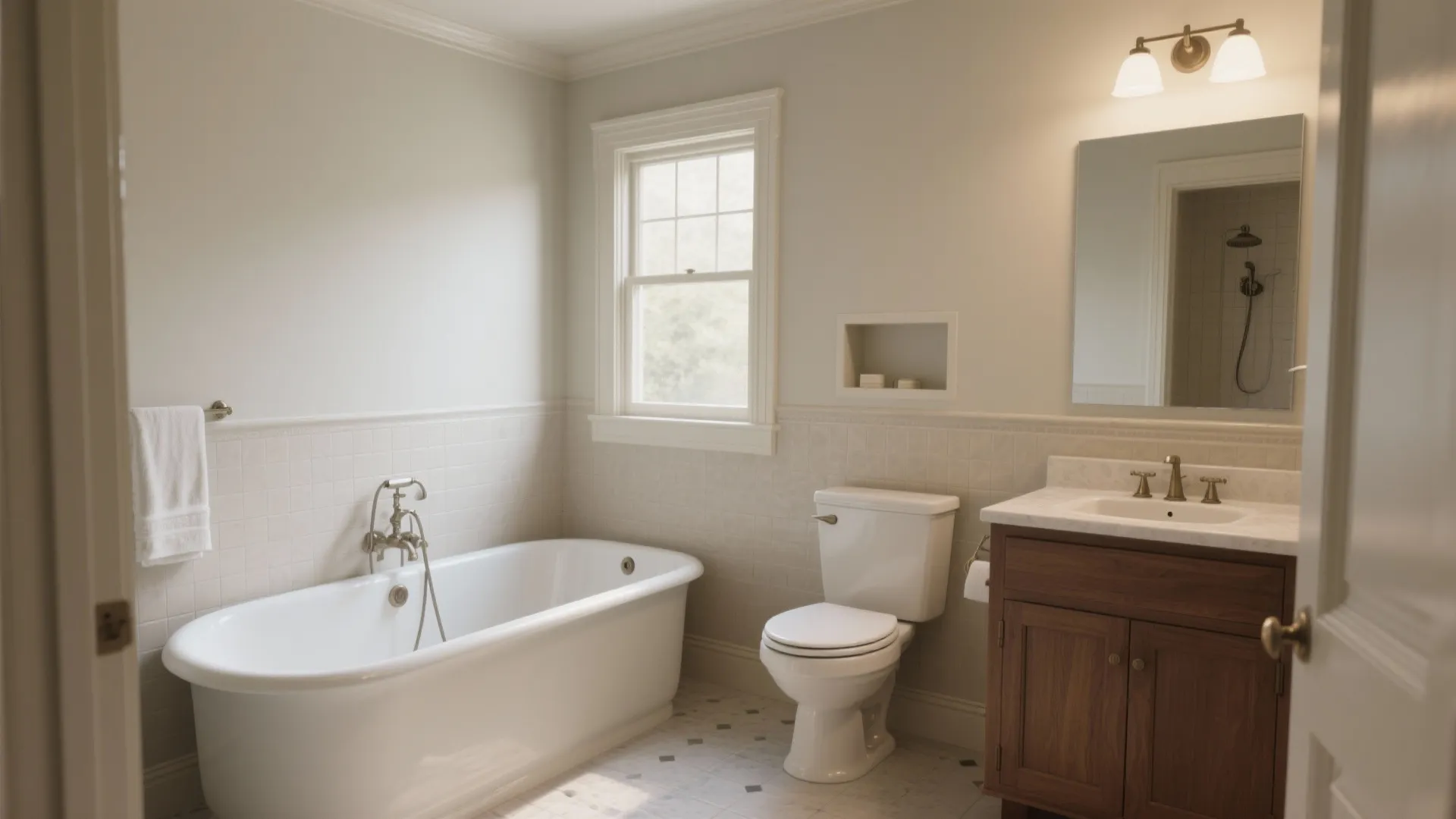

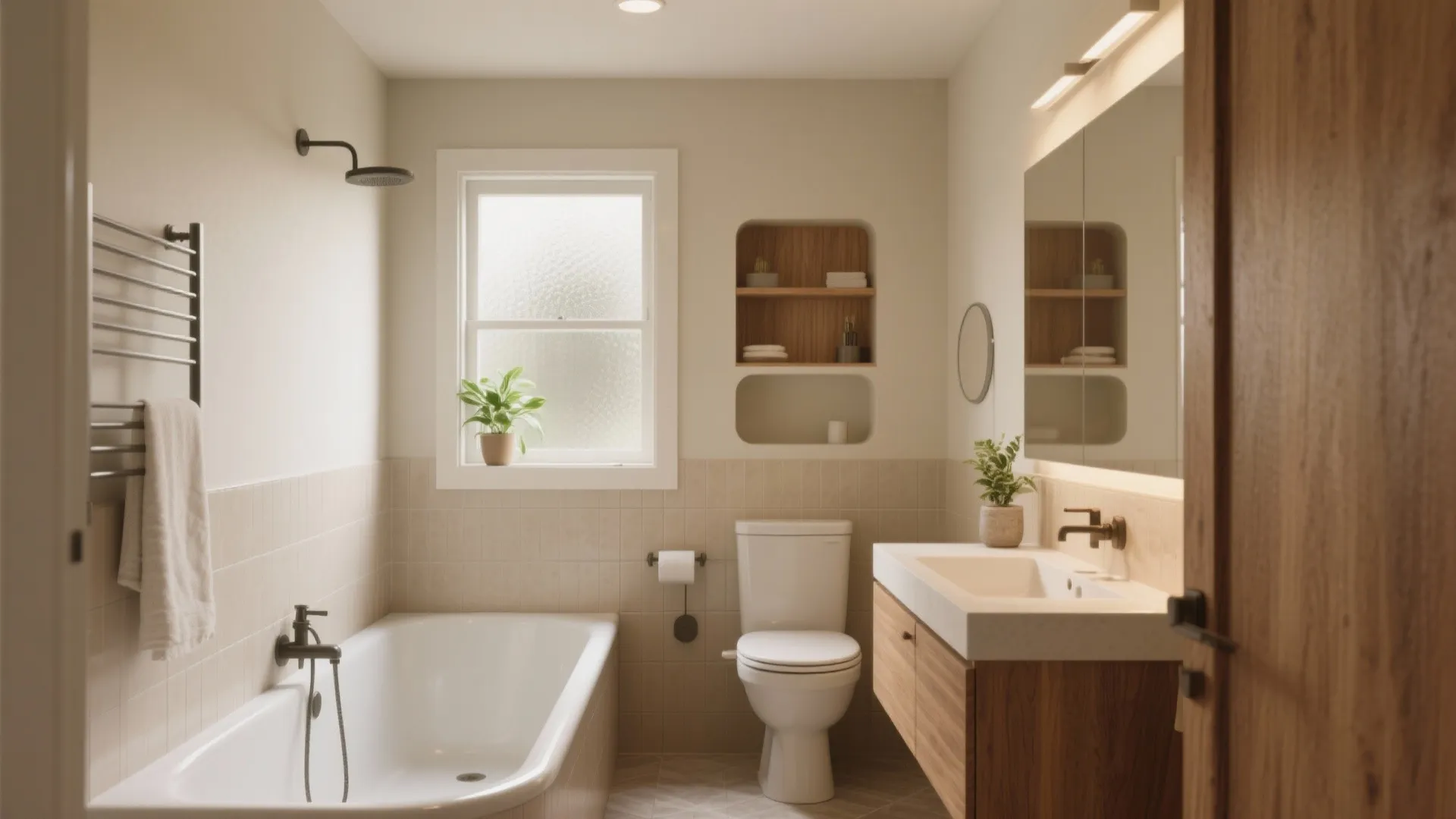

1. 5’ x 8’ Classic Full Bath

The 5' x 8' (1.5m x 2.4m) layout is my go-to for small full bathrooms because it comfortably fits a standard tub, toilet and single vanity. I like this plan when clients insist on a tub for resale value — the tub sits on the short wall, toilet next to it, and a compact vanity across from the tub. Advantage: familiar plumbing locations and good resale appeal. Challenge: storage is limited, so add recessed niches or a medicine cabinet.

save pin

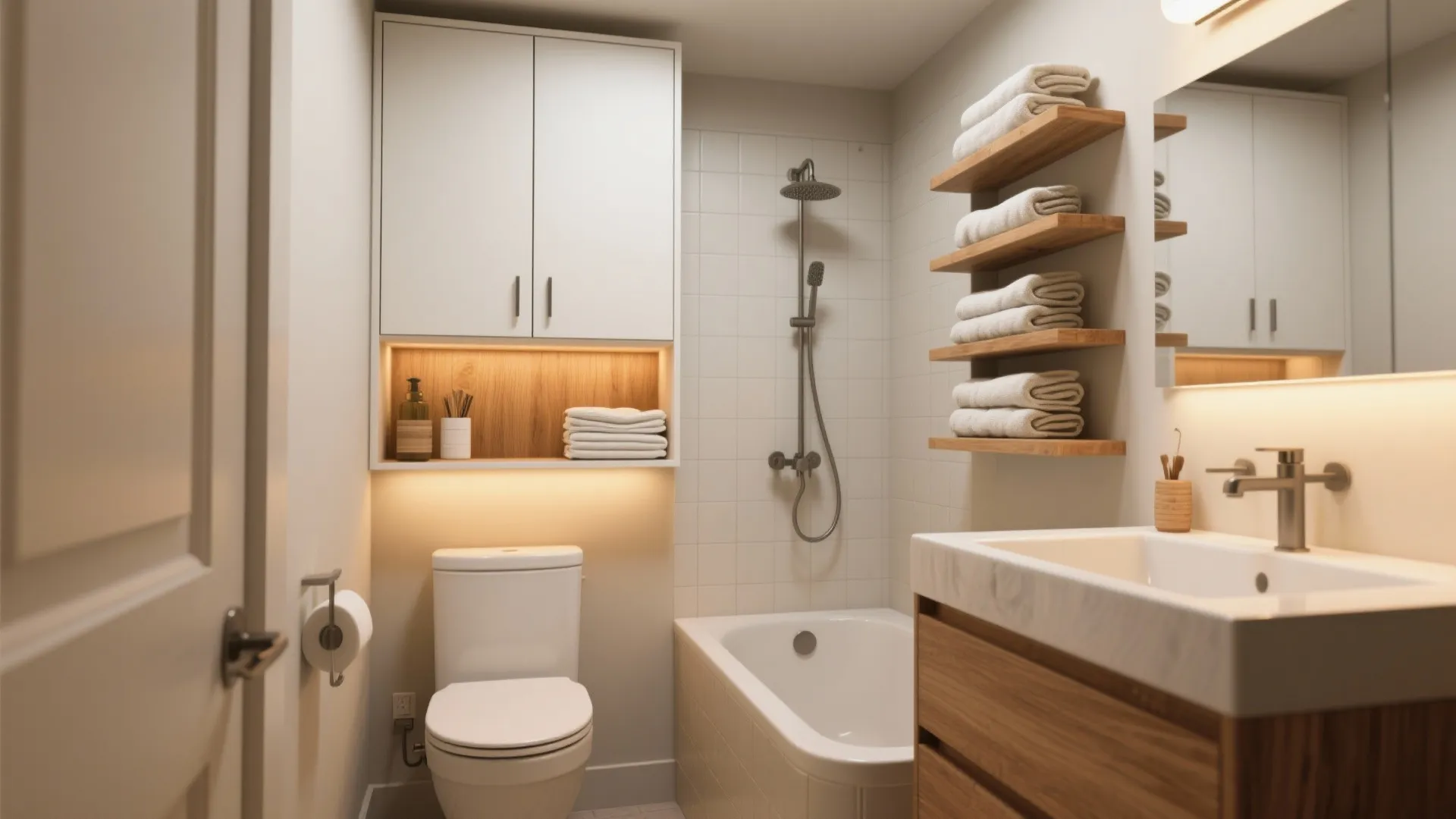

2. 5’ x 9’ with Extra Storage

Bumping one foot to 5' x 9' gives you room for a linen cabinet or a slightly larger vanity. I did this in an apartment renovation where we carved out built-in shelving above the toilet; it blew the homeowners away. Advantage: better storage and slightly more comfortable circulation. Minor downside: you might need to reroute plumbing if the tub location changes.

save pin

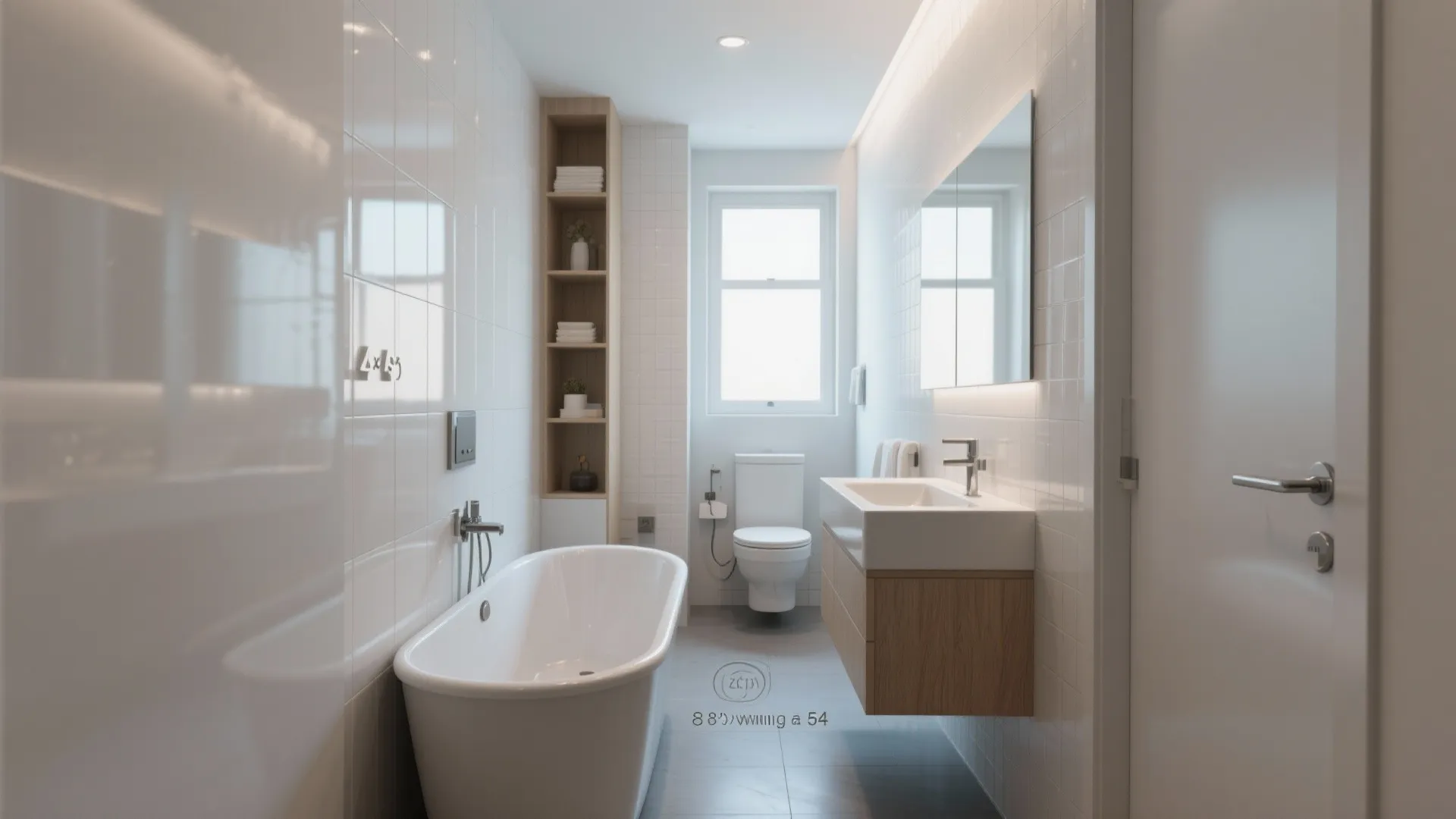

3. 4’11" x 8’ Narrow Full Bath

If you’re constrained to about 59" wide, the 4'11" x 8' full bath works with a 54" tub and a compact toilet. I used this in a rowhouse project — tight but perfectly functional. Tip: choose a pedestal or wall-mounted sink to visually open the floor area. The trade-off is fewer countertop options and less under-sink storage.

save pin

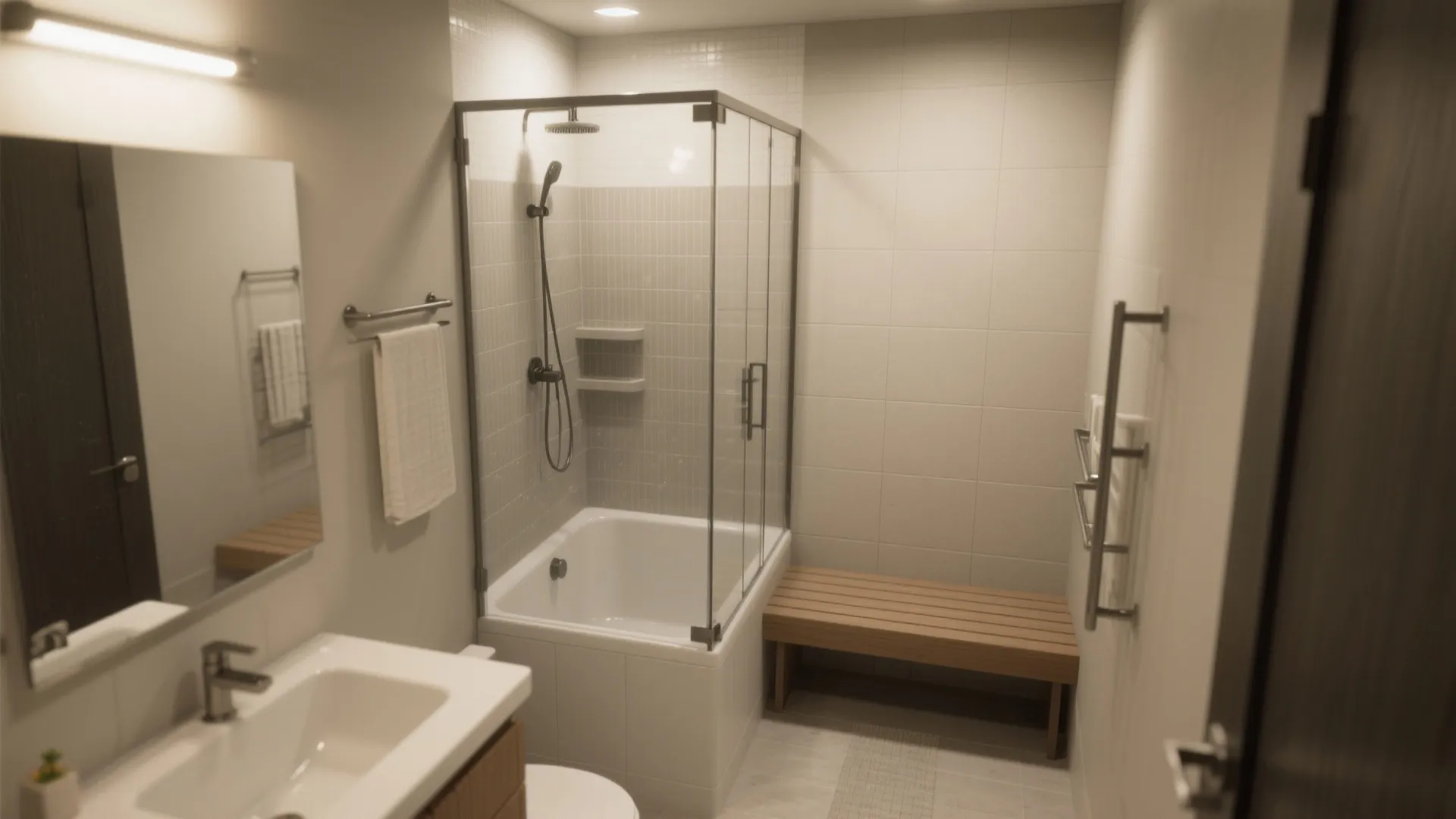

4. 6’ x 7’ Compact Comfort

A 6' x 7' footprint lets you install a 60" shower-tub combo or a generous shower with a bench. I recommended this to a family who wanted a walk-in shower without losing a tub — we installed a sliding glass door to save swing space. Advantage: feels roomier and allows design flexibility. Challenge: may not fit in very narrow floor plans.

save pin

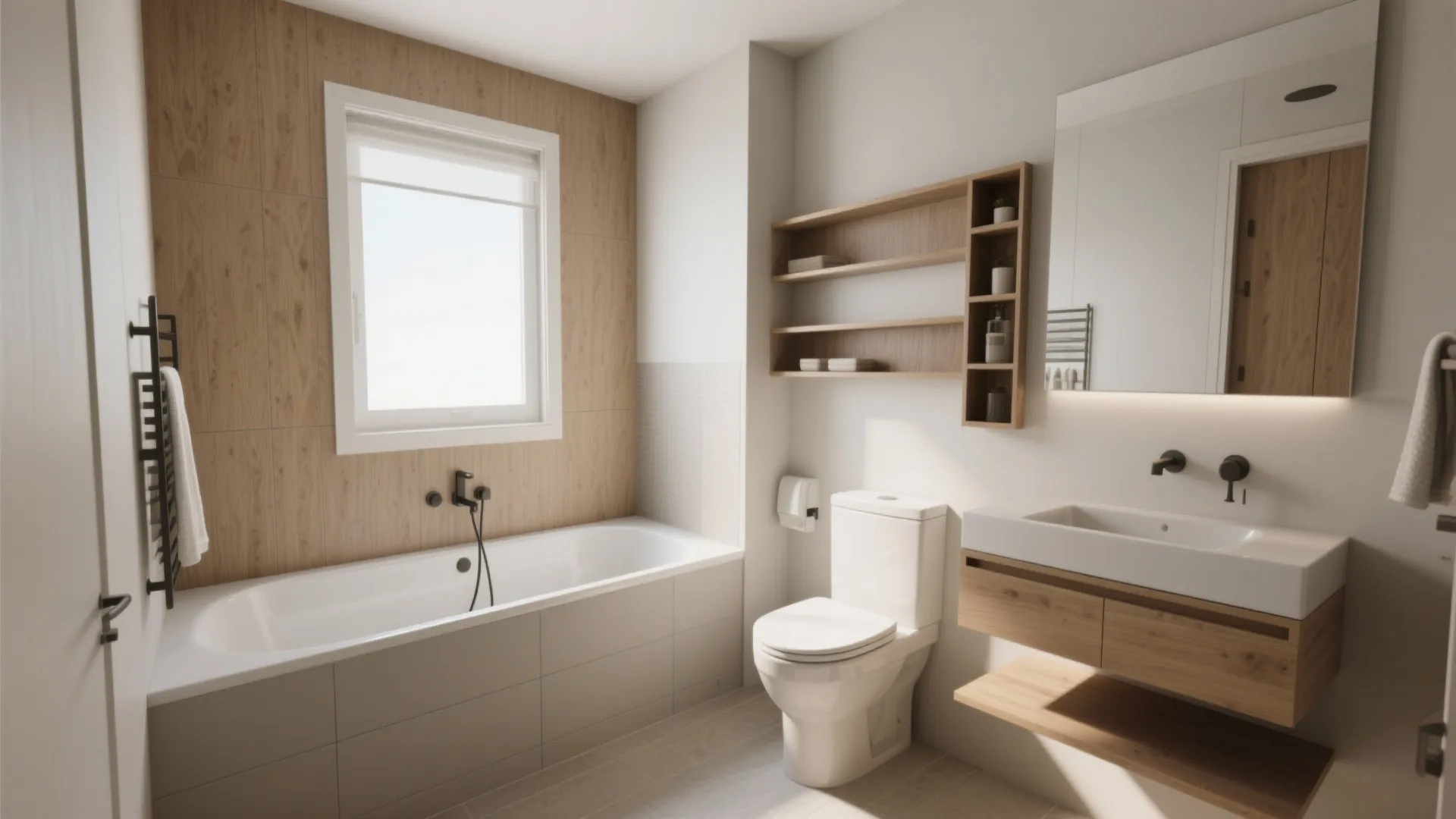

5. 5’ x 7’ Efficient Full Bath

The 5' x 7' room is a smart compromise: you can fit a 54" tub, a toilet, and a small vanity with streamlined storage. I used this in a guest-floor renovation where every square foot was precious. It’s budget-friendly and efficient, though you’ll want to be choosy about fixture depths to avoid a cramped feel.

save pin

Helpful Dimension Tips

Always leave at least 21" clear in front of the toilet and 24" for sink clearance; these simple numbers keep a small bathroom usable. Consider a pocket door or sliding barn door to reclaim swing space — I’ve saved more than a few projects by switching to a pocket door at the planning stage. Also, vertical storage and wall-mounted fixtures make a huge visual difference in tight rooms.

save pin

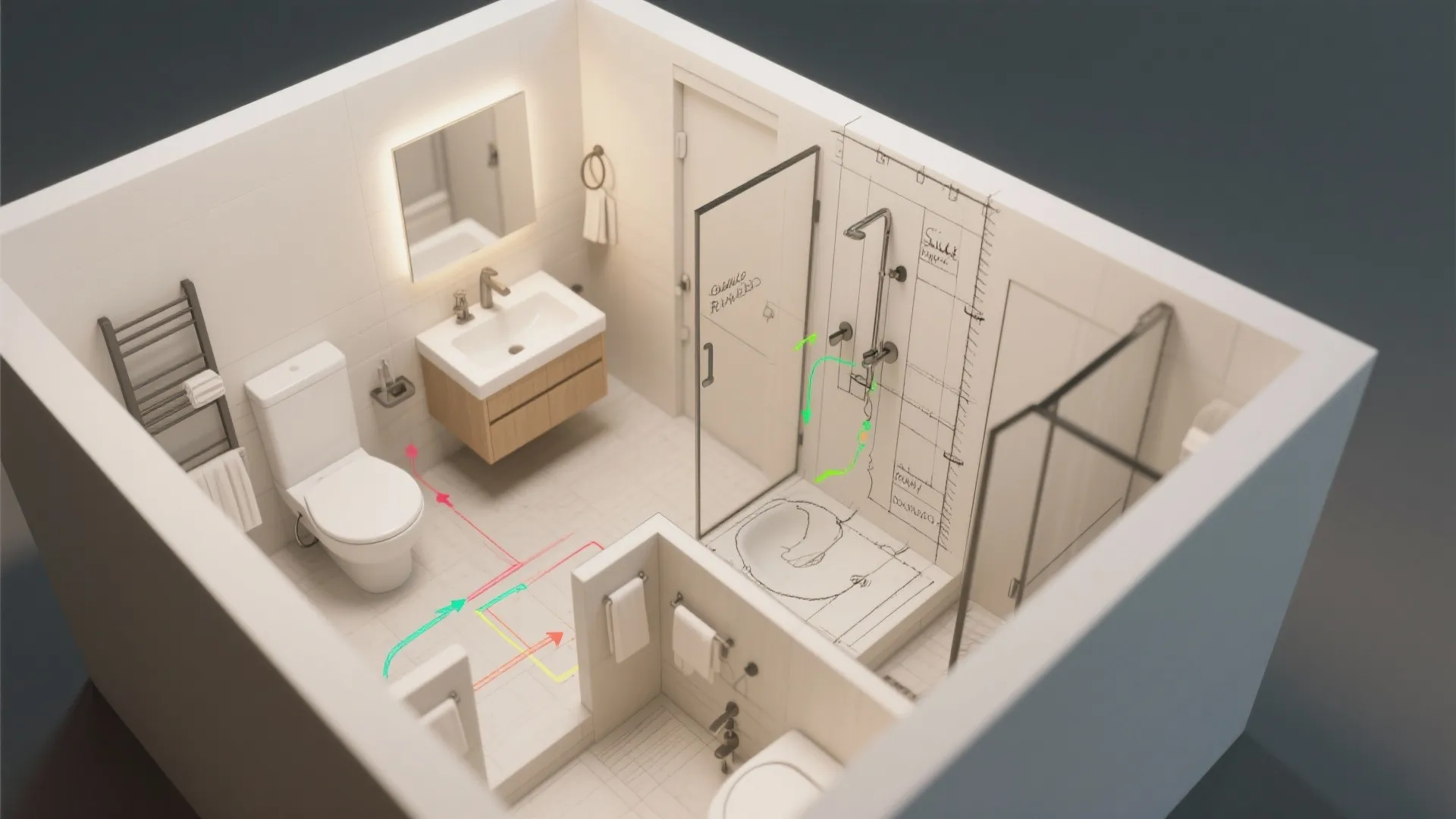

Visual Planning

When clients struggle to imagine their small bath, I sketch quick plans or use an online 3D tool to show realistic layouts — seeing the space in 3D calms most anxieties and uncovers constraints early. If you want to experiment yourself, try a room planner to test fixture placements and circulation before committing.

save pin

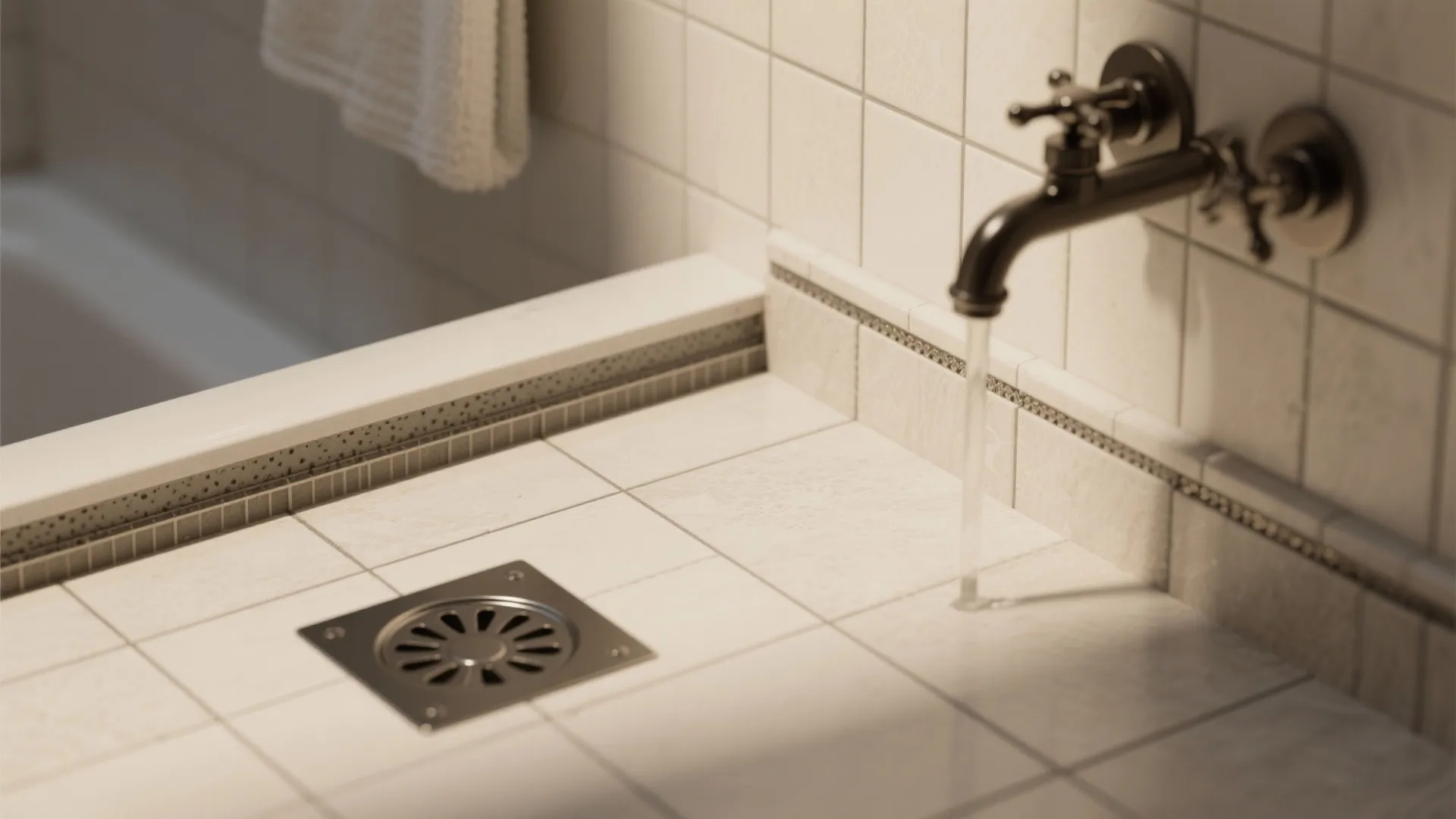

Costs and Practical Choices

Expect modest baths to run lower on materials but higher on clever carpentry and plumbing if layouts change. My advice: prioritize waterproofing, quality drains and good lighting. Small high-quality touches beat cheap finishes that look tired fast.

save pin

FAQ

Q: What is the minimum size for a full bathroom? A: The practical minimum I use is about 5' x 7' to comfortably include a tub, toilet and sink, though 5' x 8' is more common and comfortable.

Q: Can a full bathroom fit in 5’ x 5’? A: Fitting a full tub in 5' x 5' is very tight and uncommon; you’d likely need a specialized compact tub or choose a shower instead.

Q: How much clearance do I need in front of fixtures? A: Aim for 21" clearance in front of toilets and at least 24" for sinks to maintain usability.

Q: Are pocket doors worth it in small bathrooms? A: Yes — pocket doors reclaim swing space and often improve circulation, though they add some construction complexity.

Q: What fixtures save the most space? A: Wall-mounted toilets and vanities, corner sinks, and sliding doors save floor space and create a cleaner visual flow.

Q: How to plan plumbing in a small full bath? A: Keep fixtures on shared walls when possible to minimize rerouting costs; moving drains is one of the pricier parts of a remodel (source: International Association of Certified Home Inspectors - https://www.nachi.org).

Q: Best lighting for a small bathroom? A: Layered lighting — bright task lighting around the mirror plus softer ambient light — makes the room feel larger and more comfortable.

Q: Can small bathrooms have good storage? A: Absolutely — use recessed medicine cabinets, over-toilet shelving, and tall slim cabinets to maximize vertical space.
