Small Kitchen Floor Plans with Dimensions — 5 Layouts: Practical small kitchen floor plans with dimensions and layout ideas I use as a designer

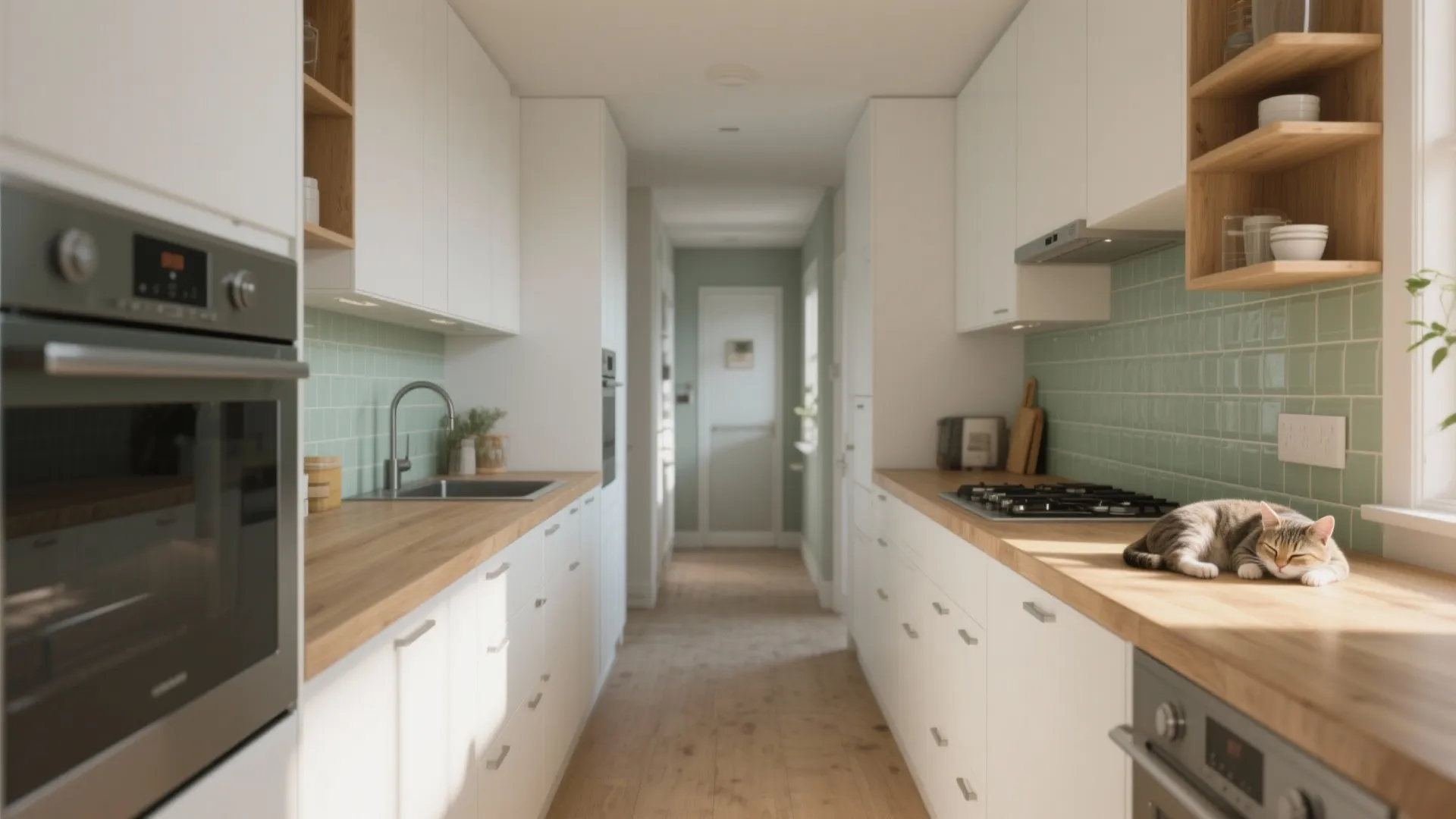

I once had a client insist their microwave had to be exactly at elbow height because their cat liked to nap on the counter below — true story that made me rethink practical vs. personal in kitchen layouts. Tiny kitchens force you to prioritize; that’s where creativity shines. If you’re hunting for small kitchen floor plans with dimensions, I’ll walk you through five realistic layouts I use in my projects, with pros, pitfalls and quick sizing tips.

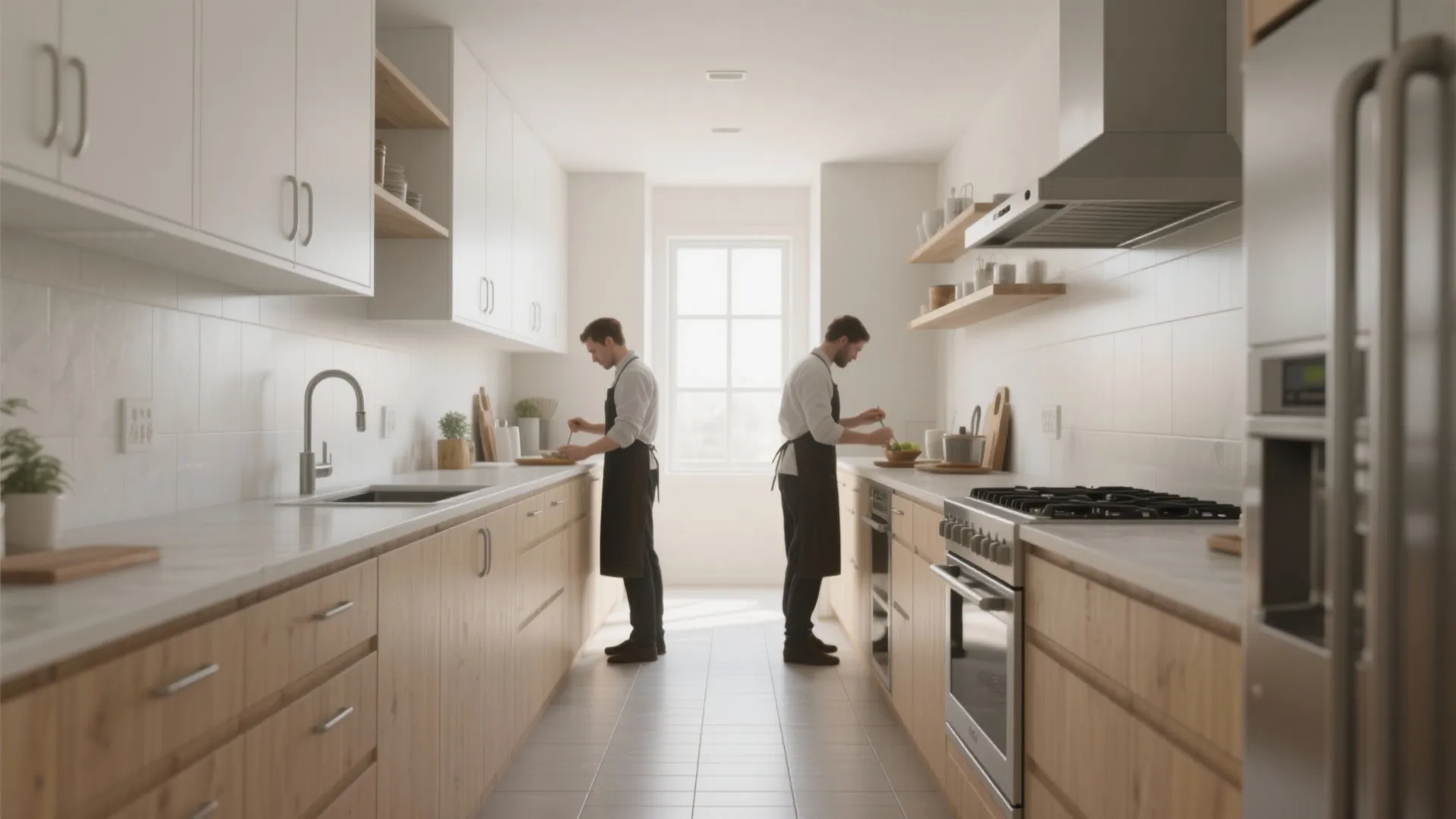

1. Classic Galley — 7–8 ft clear aisle

Galley kitchens are my go-to when walls face each other. Aim for 42–48 inches (about 107–122 cm) of clear aisle for two cooks, or 36–40 inches (91–102 cm) for single-cook setups. They’re efficient, cheap to build, and great for linear workflows, but feel narrow if you don’t use light finishes and open shelving.

save pin

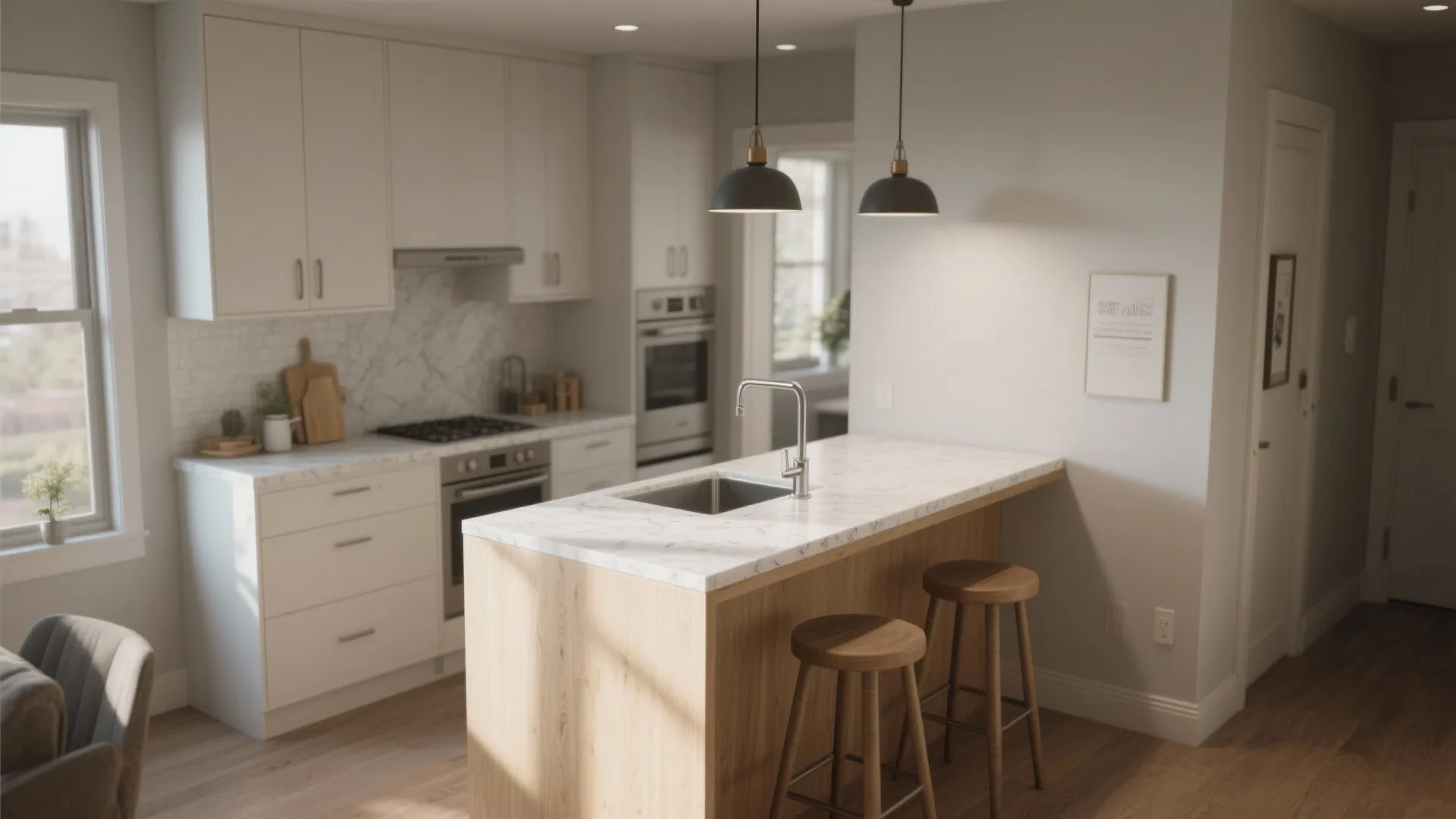

2. Compact L-shaped with mini island — 4 ft deep island

For a small corner footprint, an L-shape plus a 4-foot (120 cm) deep narrow island gives extra prep space and casual seating. Keep clearances of 42–48 inches between island and cabinets. The tradeoff is circulation: choose a slim island or a movable cart to avoid a cramped traffic pattern.

save pin

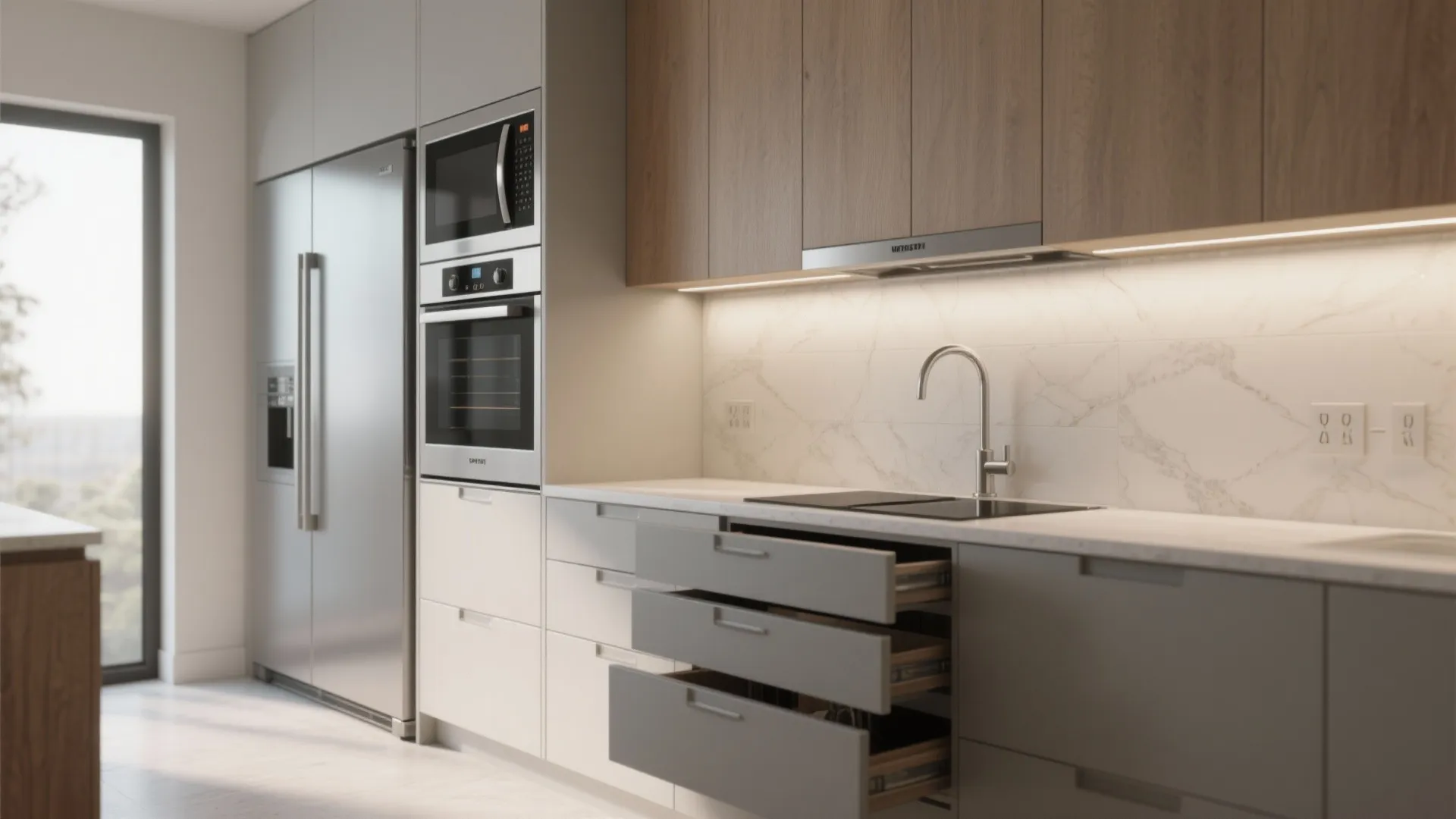

3. Single-wall with smart storage — 8–10 ft wall run

When the kitchen must sit along one wall, pack a full run of 8–10 feet (2.4–3 m) with a 24-inch depth counter and stacked appliances. Use deep drawers, integrated fridge panels, and tall pull-outs to maximize storage. These layouts need creative planning to keep prep, cook, and clean zones functional; that’s where good small kitchen floor plans and careful cabinet planning pay off.

save pin

4. Corner peninsula — saves space, adds seating

A peninsula is a great compromise when an island feels too bulky: a 36–42 inch (91–107 cm) deep peninsula provides seating and prep while keeping the open feel. It introduces a corner workstation which can be tricky for appliance placement, but thoughtful drawer organizers and a lazy Susan can turn that corner into gold.

save pin

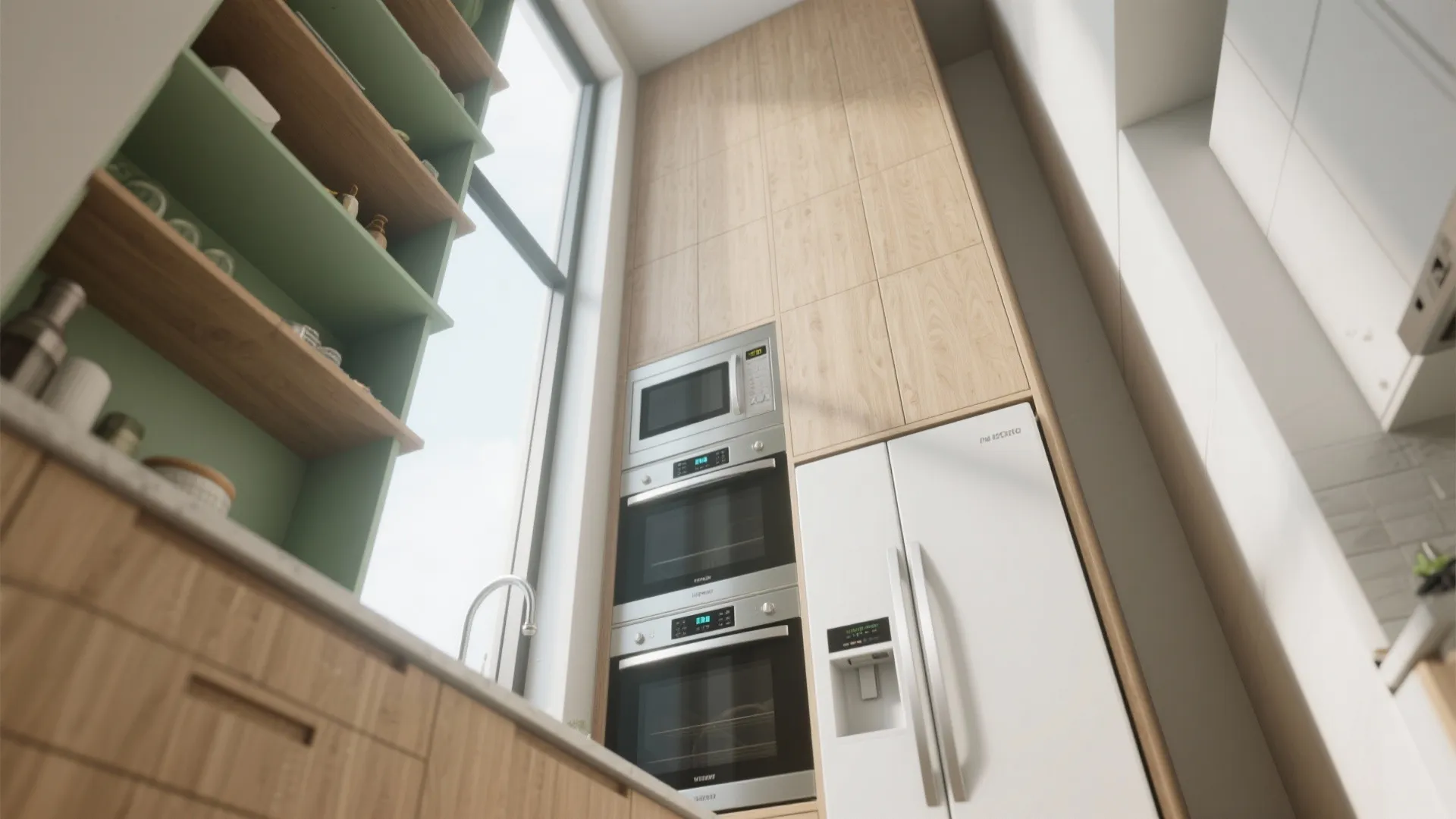

5. Vertical kitchen — stack and slim down

If floor area is minimal, go tall: stack microwave over oven, use a 24-inch-depth fridge, and extend cabinets to the ceiling to gain hidden storage. I sketch a quick 3D view to make sure sightlines aren’t claustrophobic — a simple 3D floor plan helps sell the idea to clients. Vertical solutions are budget-friendly but expect slightly higher cabinetry costs if you need custom tall units.

save pin

Implementation tips from my projects

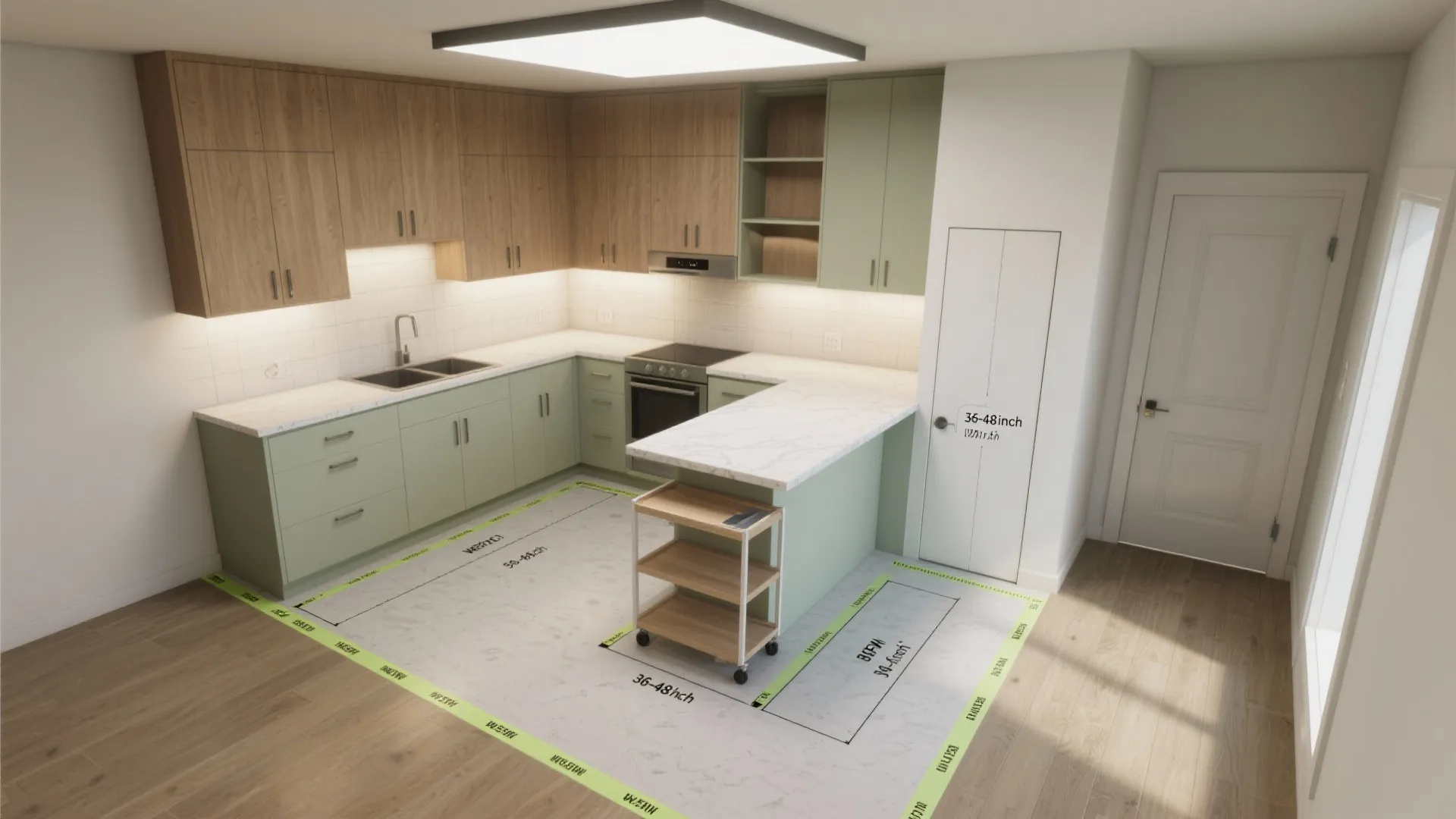

Measure twice, mock up once: I often tape out the cabinet footprints and walk the space for a day to catch real-life pinch points. If you’re experimenting, try some quick kitchen layout ideas in a planner before committing. Small changes—lower cabinet pull-outs, a 2-inch narrower fridge, or swapping a hinged door for a pocket door—can free surprising amounts of usable space.

save pin

FAQ

Q1: What minimum aisle width should I plan in a small kitchen?

A1: For one cook, 36 inches (91 cm) can work; for comfortable two-person use, aim for 42–48 inches (107–122 cm). Keeping those clearances makes the kitchen safer and more functional.

Q2: What is the smallest workable kitchen layout?

A2: A single-wall kitchen as small as 5–6 feet (1.5–1.8 m) can work for basic needs if you use compact appliances and efficient storage solutions.

Q3: How much counter space do I need?

A3: I recommend at least 36 inches (91 cm) of continuous prep space; more is better if you cook frequently. Adding a narrow island or cart can provide extra surface when needed.

Q4: Are custom cabinets worth it in a tiny kitchen?

A4: Custom cabinets maximize awkward corners and full-height storage, but they cost more. Consider semi-custom for a balance of fit and budget.

Q5: Can I fit an island in a small kitchen?

A5: Yes, if you maintain 42 inches (107 cm) between the island and surrounding cabinets. Otherwise, choose a slim or mobile island to preserve flow.

Q6: What lighting works best?

A6: Layered lighting—task lights under cabinets, a bright ceiling fixture, and accent lights inside or above cabinets—prevents the space from feeling cramped and makes work zones clear.

Q7: Any authoritative spacing guidelines I should follow?

A7: Yes—organizations like the National Kitchen & Bath Association (NKBA) publish ergonomic guidelines and recommended clearances; their resources are a solid reference (https://www.nkba.org/).

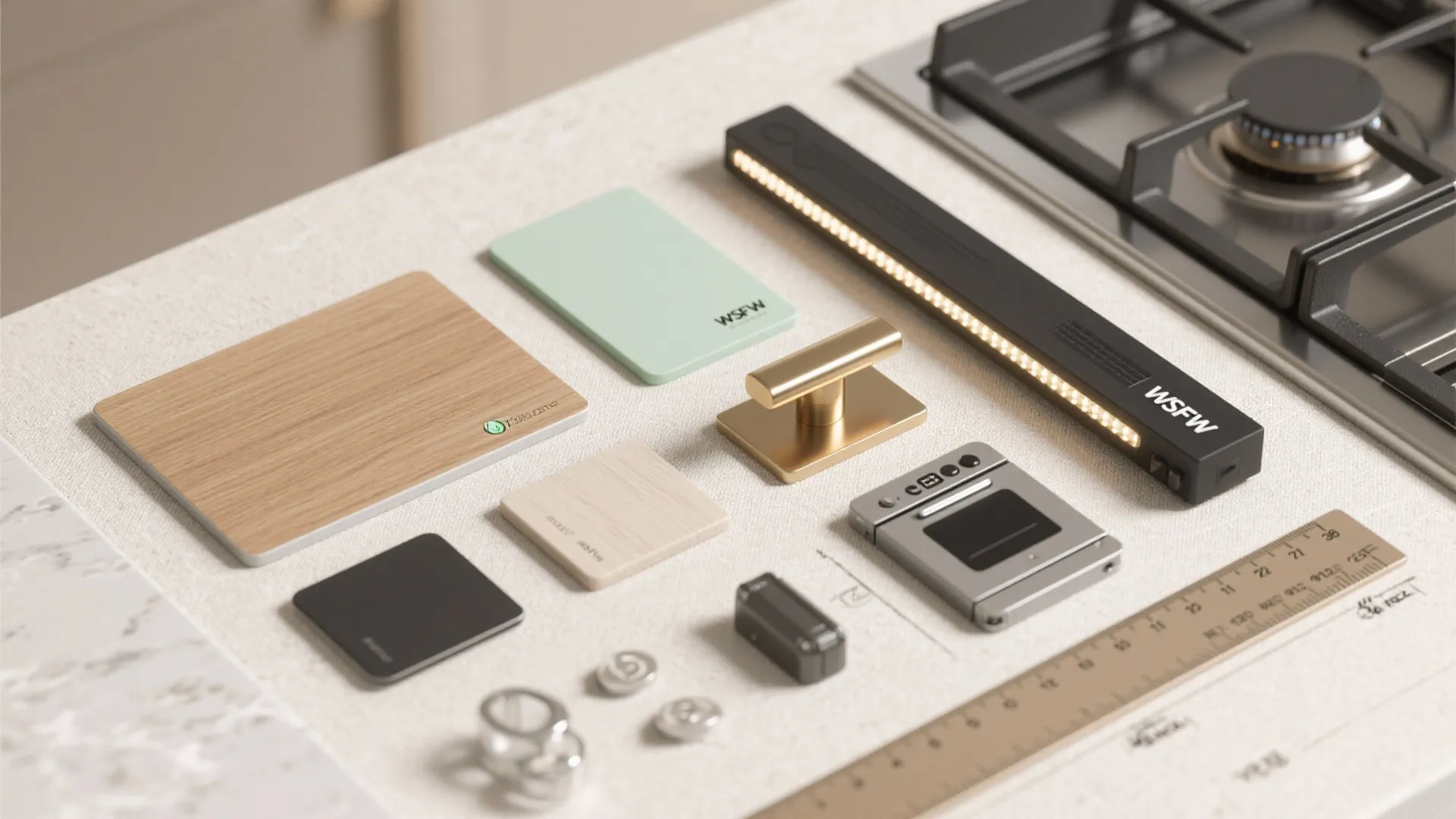

Q8: How do I choose finishes for a small kitchen?

A8: Light, reflective surfaces and consistent tones visually expand the room; add contrast with hardware and a textured backsplash to keep things interesting without cluttering the look.
