Small Kitchen with Wall Oven: Maximizing Every Inch: Fast-Track Guide to Smart Small Kitchen Layouts

I’ve planned dozens of compact kitchens where a wall oven unlocks storage and workflow efficiency that a freestanding range can’t. In tight footprints, verticality is everything: stacking a wall oven with a microwave or warming drawer keeps hot and cold prep zones distinct, shortens reach paths, and frees counter space for food prep. The goal is a kitchen that feels larger because it works smarter.

Real-world data consistently backs smarter layouts. Steelcase notes that well-organized task zones reduce cognitive load and errors in repetitive workflows, a principle that translates neatly to cooking sequences (prep, cook, plate). Meanwhile, WELL v2 suggests maintaining 300–500 lux on task counters for safe food handling, with glare control to reduce visual fatigue; in practice I target ~400 lux on prep and ~200–300 lux for ambient fill, complemented by 2700–3000K warm white to render food naturally. For those exploring ergonomic baselines, Herman Miller’s research on posture and reach zones reinforces keeping frequent-use appliances between 28–48 inches above the floor to minimize bending and shoulder elevation.

Color and perception also help small kitchens feel bigger. Verywell Mind’s color psychology guidance highlights that cool, light tints enhance a sense of openness; I often specify soft gray-green or pale blue at 60–70% lightness, then anchor with mid-tone wood for warmth. To reduce spatial clutter, material palettes stay within three finishes: one cabinet color, one counter, one accent metal. This keeps visual rhythm calm and the eye moving.

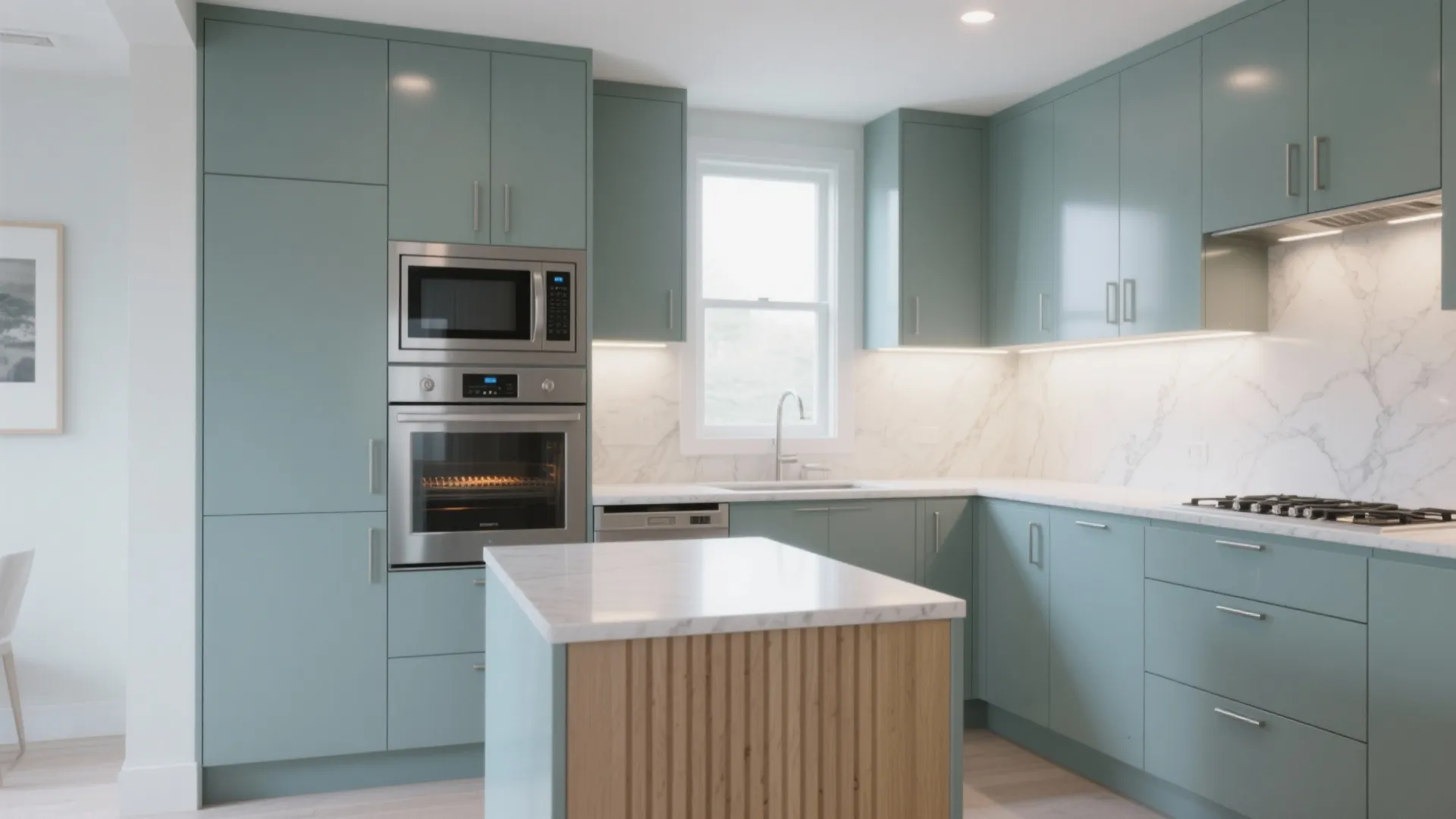

Plan the Vertical Stack

Wall ovens shine when stacked intelligently. A typical centerline at 42–48 inches places the oven door within comfortable reach for most users, avoiding deep bending while keeping hot trays away from faces. Above, a speed oven or microwave sits at 54–60 inches; below, a warming drawer or deep pan storage. This vertical stack compresses the hot zone, shortening the distance to the cooktop and reducing cross-traffic. If you’re testing adjacency—oven beside pantry or opposite an island—use a layout simulation tool to visualize door swing conflicts and tray landing zones before committing.

Right-Size the Landing Zones

Every oven needs landing space. I aim for at least 12 inches of clear counter adjacent to the oven and 16–24 inches on the nearest prep surface. If the oven sits at the end of a run, a slim pull-out shelf can serve as emergency landing. In micro kitchens, a 24–27 inch deep island (or peninsula overhang) aligned with the oven creates a safe place to drop trays, keeping paths short.

Refine the Work Triangle for Compact Footprints

Classic triangles still apply, but scaled. In small kitchens, keep the sink–cooktop leg under 6 feet, and the oven–landing zone under 3 feet to reduce hot-item travel. Store baking sheets and oven-safe pans within 1 arm’s reach of the oven; heavy Dutch ovens work best in a drawer below or adjacent cabinet at knee height. If traffic passes behind the oven door, shift the oven slightly off the main aisle or rotate the stack toward a cul-de-sac to avoid collisions.

Lighting and Glare Control Around the Oven

Task lighting should strike the counter at ~400 lux per WELL v2, delivered via under-cabinet LEDs with 90+ CRI to keep food tones accurate. Avoid placing downlights directly in front of glossy oven doors; instead, offset cans 12–16 inches from the cabinet face to reduce reflected glare. Pair warm ambient (2700–3000K) with neutral task (3000–3500K) to improve contrast without harshness. For evening baking, dim-to-warm fixtures ease eye strain and help circadian wind-down.

Ventilation and Heat Management

In tight spaces, heat builds quickly. Provide clear air paths: a properly sized hood or downdraft at the cooktop handles smoke, while the wall oven’s built-in cooling should vent without obstructing adjacent doors. Keep at least 3 inches of clearance to tall panels for airflow. If the oven sits within a tall cabinet bank, specify thermal insulation panels and confirm manufacturer ventilation cutouts. Store heat-sensitive items (oils, chocolates) away from oven towers to maintain quality.

Ergonomic Handles, Doors, and Safety

Choose handles that allow a full hand grip with wet mitts; D pulls outperform knobs for oven doors and adjacent storage. Side-swing wall ovens can be safer in very small kitchens because the door doesn’t project downward; if using drop-down doors, confirm at least 18–24 inches clear floor space for a safe stance when loading. Consider an anti-slip runner in front of the oven zone and keep the primary traffic path behind the user, not between oven and landing counter.

Storage That Works Hard

Put the heavy hitters closest: sheet pans, racks, roasting pans, and casserole dishes belong in the tower or adjacent base drawers. Vertical dividers tame pans and cooling racks. A shallow drawer just above a warming drawer is perfect for mitts and thermometers. Tall pull-outs near the oven store oils and vinegars, while a narrow spice pull-out lands beside the prep counter so flavors stay within reach but away from heat.

Material Choices for Compact Calm

Light, matte finishes reduce glare and amplify space. Satin cabinet paints or thermofoil with low sheen keep fingerprints manageable. Pair quartz or sintered stone counters in mid-tone, slightly veined patterns to add subtle movement without visual noise. Stainless ovens sit comfortably with brushed nickel or stainless hardware; if you prefer brass, keep it soft-satin to avoid overly reflective surfaces. Sustainable choices—FSC-certified wood, low-VOC finishes—support indoor air quality and durability.

Fine-Tune the Color Strategy

Use a two-tone approach: light uppers to lift the ceiling, slightly deeper lowers to ground the space. Cool-based neutrals (blue-gray, pale sage) expand perceived breadth; a warm metallic accent (brass rail, copper pot) adds richness. Limit contrast at busy intersections—oven tower corners, appliance garage doors—to maintain visual cohesion and reduce decision fatigue.

Smart Layout Moves for Micro Spaces

• Slide the oven tower to the end of a run to protect the core prep area.

• Align oven centerline with an island endcap for a tight handoff to landing.

• If using a galley, stagger oven and sink opposite each other to avoid simultaneous door conflicts.

• Test 24-inch appliance depths and slim panels to preserve aisle width; 36–42 inches clearance works in single-cook kitchens.

Acoustics and Appliance Noise

Baking nights can resonate in small homes. Soft-close hinges on the oven tower, felt cabinet bumpers, and absorbent rugs curb clatter. If you bake late, select appliances with lower dB ratings and place the oven away from bedroom-adjacent walls. Sound-absorbing panels or cork underlayment beneath flooring reduce airborne and impact noise.

Budget Priorities

Invest in the oven’s ergonomics and lighting first. Under-cabinet LEDs with proper diffusion, a high-quality dimmer, and a reliable oven with accurate temperature control deliver everyday gains. Save on decorative panels by using consistent, simple door profiles and a restrained hardware set. Spend on drawers over doors; they transform access in tight kitchens.

Research and Standards to Reference

For illumination targets and visual comfort, WELL v2 provides a practical baseline for residential task areas. Steelcase’s research into workflow and cognitive load offers insight into how micro-optimizations (shorter reach, clearer zones) reduce mistakes and stress during cooking. These sources help anchor design decisions with measurable outcomes.

FAQ

Q1: What oven height is most ergonomic in a small kitchen?

A: For most users, placing the oven centerline around 42–48 inches minimizes bending and keeps hot trays within safe reach. Tall users can push toward 48–50 inches; shorter users may prefer 40–42 inches.

Q2: How much task lighting do I need above prep counters?

A: Target around 400 lux at the cutting plane with 90+ CRI LED strips. Pair with 200–300 lux ambient fill at 2700–3000K to keep the space warm and comfortable per WELL v2 guidance.

Q3: What landing zone should I plan next to the wall oven?

A: Aim for 12 inches minimum of adjacent counter, with 16–24 inches nearby for trays. If space is tight, add a pull-out shelf or align the oven with an island end for direct handoff.

Q4: Is a side-swing door better than a drop-down in micro kitchens?

A: Side-swing doors reduce forward reach and can be safer in narrow aisles. If using a drop-down, ensure at least 18–24 inches clear floor space in front of the oven to load safely.

Q5: Which colors make a small kitchen feel larger?

A: Light, cool neutrals (soft blue-gray, pale sage) enhance spaciousness. Keep finishes matte or satin to limit glare and visual noise, and use a restrained palette of two to three materials.

Q6: How do I control glare on shiny oven doors?

A: Offset ceiling downlights 12–16 inches from cabinet faces, use under-cabinet task lighting with diffusion, and specify satin finishes to tame reflections.

Q7: What aisle width works with an oven tower?

A: In single-cook kitchens, 36–42 inches functions well. If the oven faces an island, confirm door swing plus standing room doesn’t block circulation during use.

Q8: Where should I store heavy cookware?

A: Keep Dutch ovens and roasting pans in deep drawers at knee height adjacent to the oven. Use vertical dividers for sheet pans and racks within one reach of the oven.

Q9: How do I handle ventilation around a wall oven?

A: Follow manufacturer vent clearances, maintain at least 3 inches to tall panels for airflow, and rely on the cooktop hood for smoke while the oven’s cooling system manages its own heat.

Q10: Can I integrate a microwave with the wall oven in a small kitchen?

A: Yes—stack the microwave above the oven around 54–60 inches for comfortable reach. Keep a landing zone nearby and ensure clear sightlines from the primary prep area.
