Small Wine Making Room Layout vs Large Home Winery Layout: How space size changes workflow, equipment placement, and efficiency when designing a home winery.

Direct Answer

A small wine making room layout focuses on efficiency, compact equipment placement, and multi‑purpose work zones, while a large home winery layout prioritizes workflow separation, production scalability, and dedicated areas for fermentation, aging, and bottling. The best choice depends on production volume, available space, and how often you make wine.

Quick Takeaways

1. Small wine rooms prioritize vertical storage and multi‑function work surfaces.
2. Larger winery spaces allow safer workflow separation between fermentation and bottling.
3. Compact layouts reduce cost but demand careful equipment placement.
4. Large home wineries improve production capacity and long‑term storage.
5. Most home winemakers succeed with 80–150 sq ft if the layout is optimized.

Introduction

When people plan a home winery, they often assume bigger automatically means better. After working on dozens of residential cellar and hobby winery projects, I’ve found the opposite can be true. A well‑planned small wine making room layout vs large winery layout comparison often reveals that efficiency matters more than square footage.

Many home winemakers run into the same problems: fermentation buckets blocking walkways, bottles stacked in unsafe corners, and nowhere to sanitize equipment. These issues usually come from poor layout planning rather than lack of space.

Before designing a production room, I often recommend clients sketch their zones using a simple digital planning tool like this interactive room layout planner for mapping equipment and work zones. Even a quick layout test can reveal workflow bottlenecks before construction starts.

In this guide, I’ll compare small and large winery layouts based on real design experience—covering equipment placement, workflow, costs, and the hidden design trade‑offs most guides never mention.

save pin

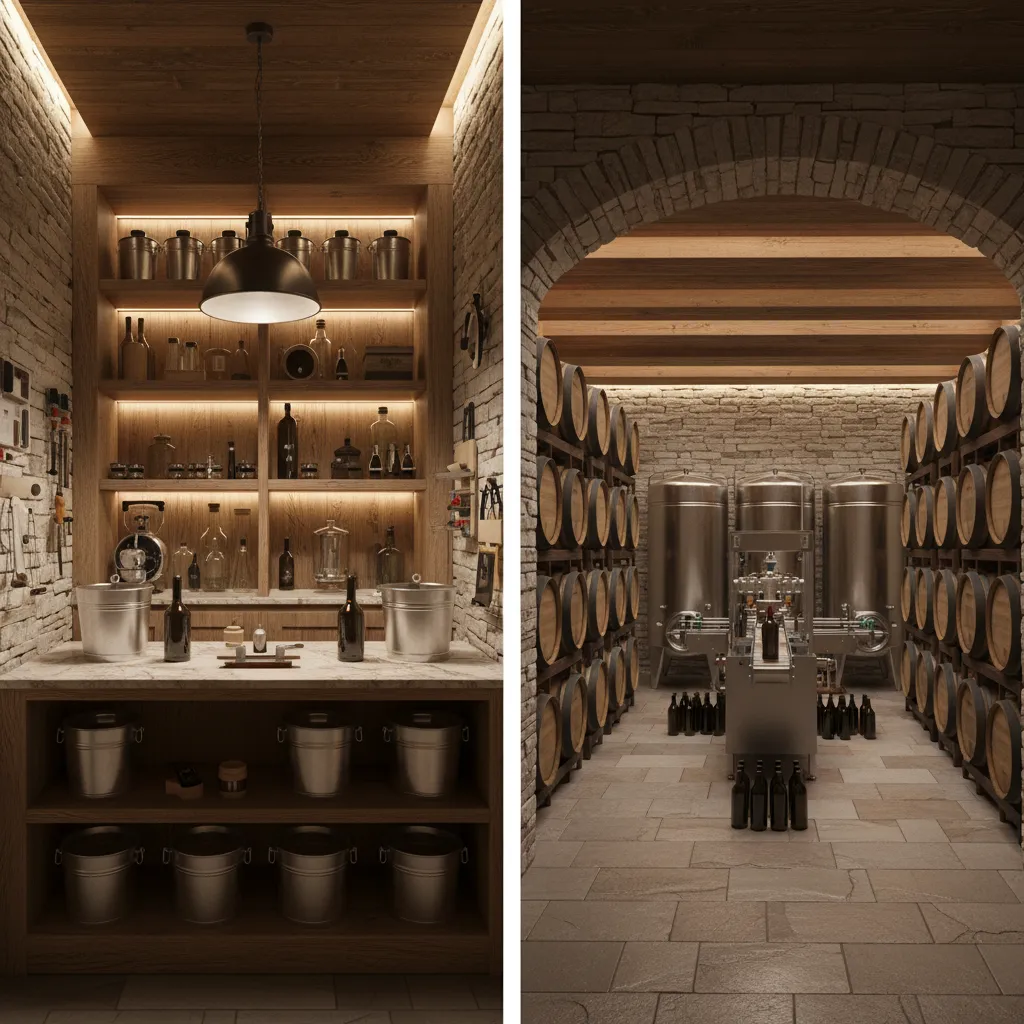

Key Differences Between Small and Large Wine Making Rooms

Key Insight: The biggest difference isn’t capacity—it’s how many production steps can happen simultaneously.

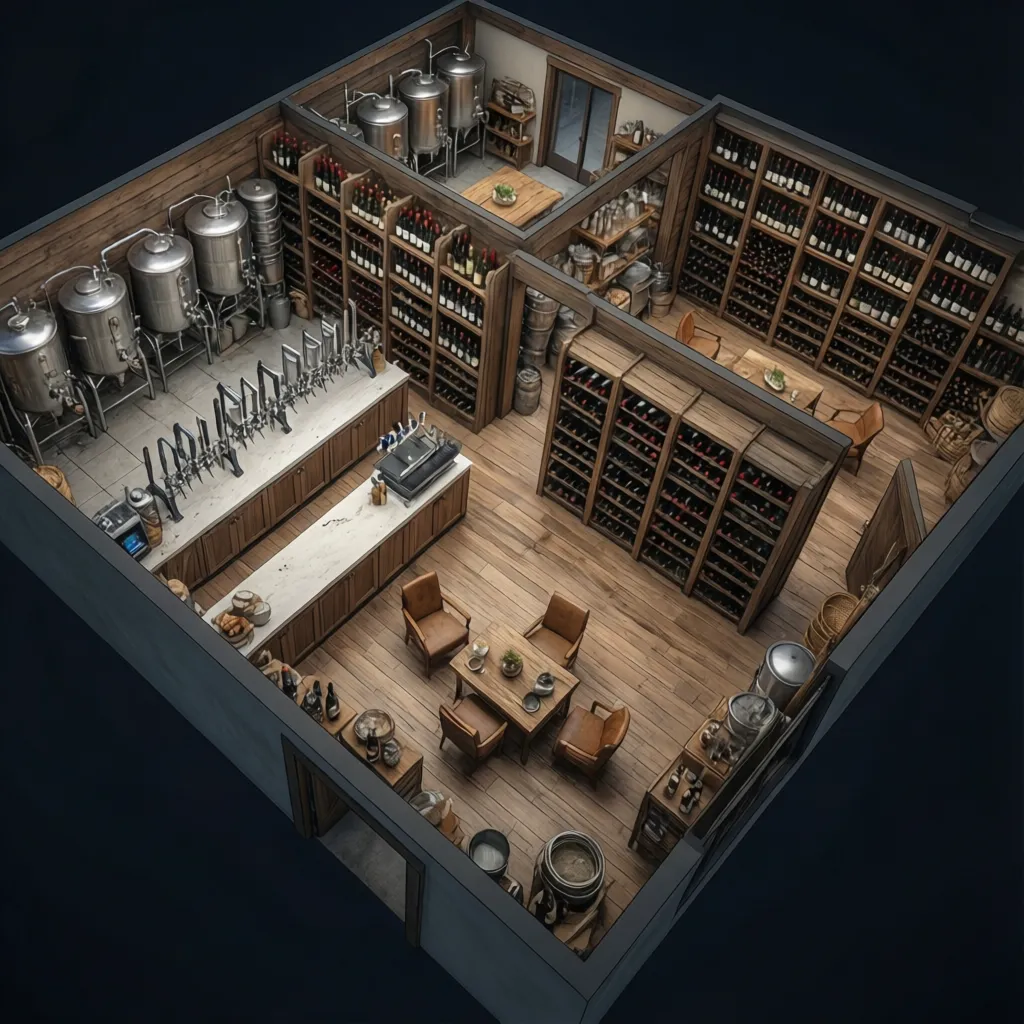

In a small winery room, the same surface may serve three roles: crushing fruit, measuring additives, and bottling wine. Larger winery spaces separate these processes into dedicated zones.

From a design perspective, this changes everything about movement and safety.

1. Small wine making rooms (50–120 sq ft)Shared work surfaces
2. Vertical shelving for carboys
3. Portable equipment storage
4. Limited fermentation capacity
5. Large home winery rooms (200–500+ sq ft)Dedicated fermentation zone
6. Separate bottling station
7. Bulk storage for barrels or racks
8. Better temperature management

The American Association of Wine Economists notes that workflow separation significantly improves production efficiency even in small commercial wineries. The same principle applies at home.

Space Requirements for Fermentation, Storage, and Bottling

Key Insight: Home winemaking needs more floor space for movement than for equipment.

A common mistake I see is planning space based only on the footprint of fermentation vessels. In practice, you also need clearance for lifting carboys, cleaning equipment, and moving cases of bottles.

Typical space planning guidelines I use in residential winery projects:

1. Fermentation area: 20–40 sq ft
2. Bottle storage: 15–30 sq ft
3. Work counter: 6–8 ft surface
4. Movement clearance: 36 inches minimum

If you're planning the footprint, experimenting with a simple floor plan creator for mapping fermentation and storage zonescan quickly reveal whether your workflow fits the room.

save pin

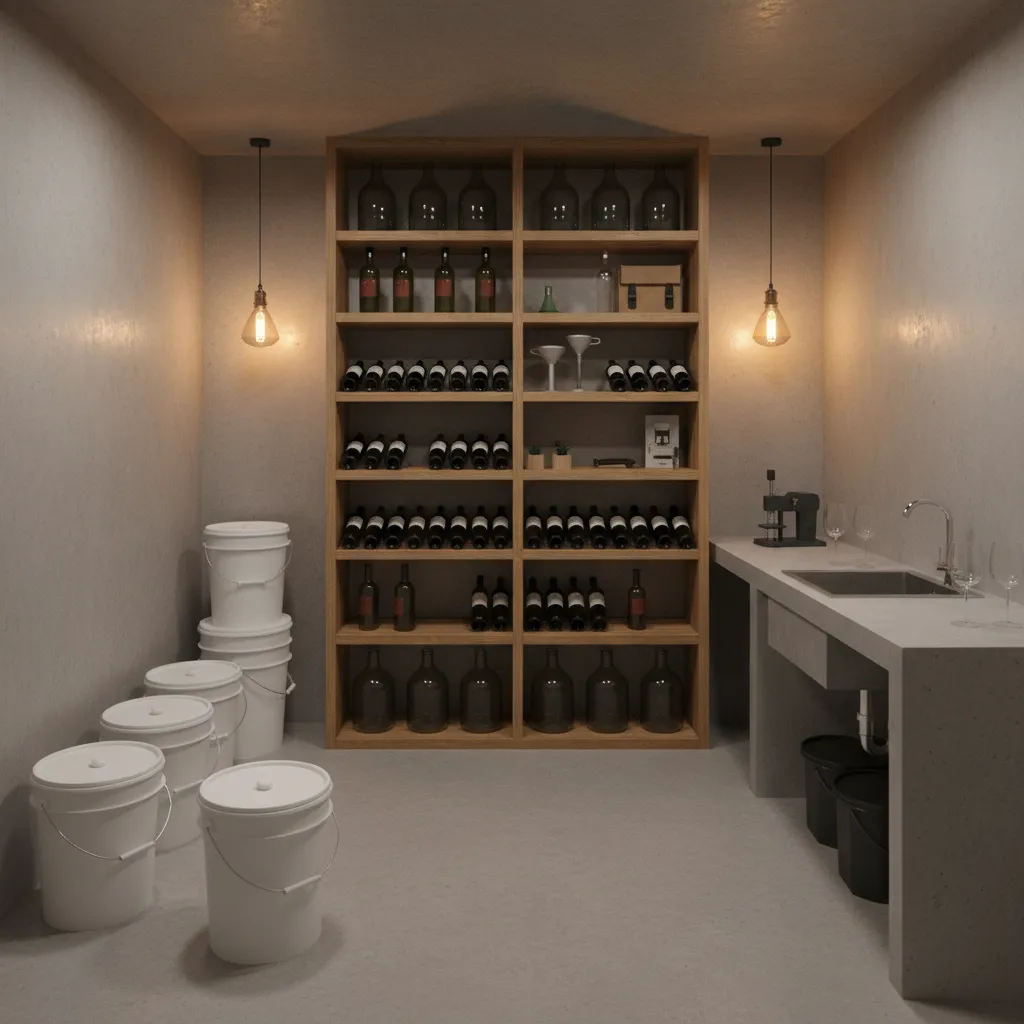

Equipment Placement in Compact Wine Making Rooms

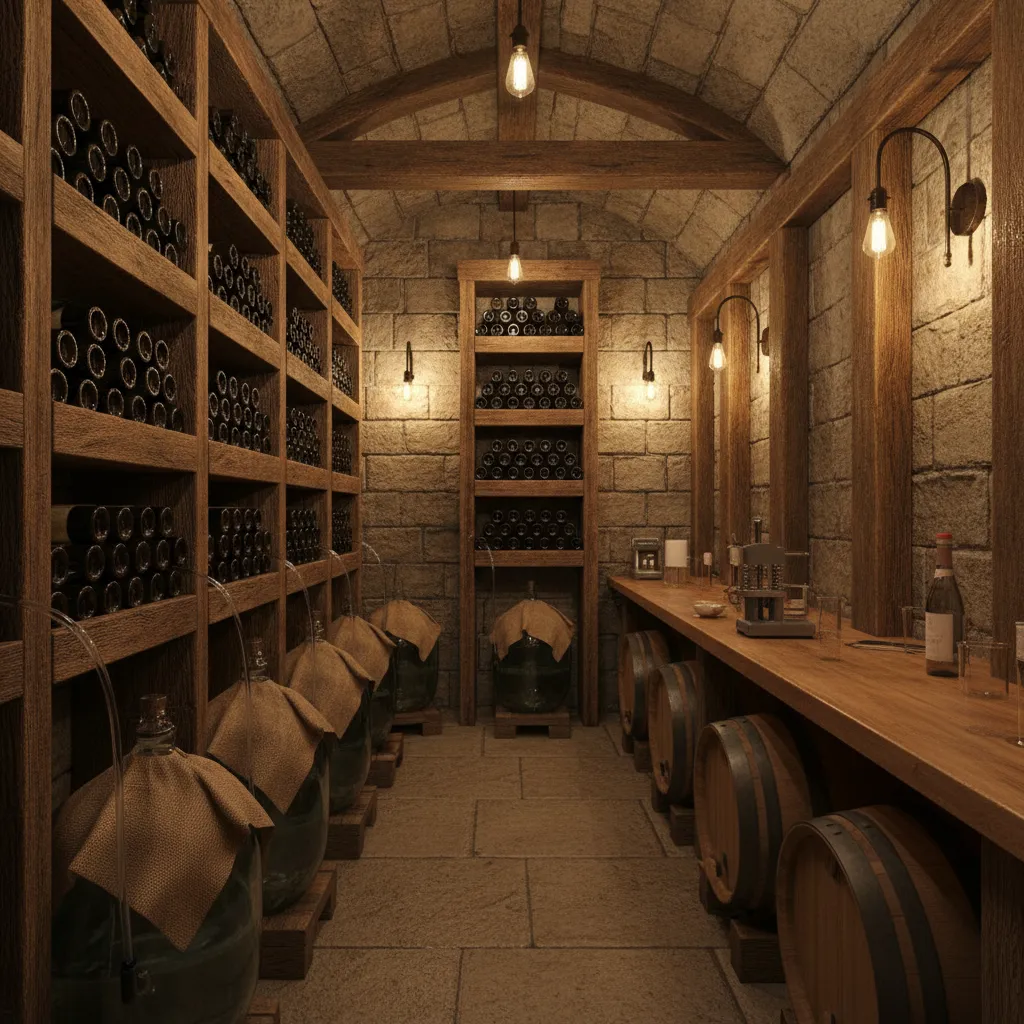

Key Insight: In small winery layouts, vertical organization is more valuable than additional floor space.

The most successful compact wine rooms I’ve designed rely on stacked storage and modular equipment placement.

Smart placement strategies include:

1. Wall‑mounted shelving for small tools and additives
2. Stackable fermentation bins
3. Rolling carts for bottling equipment
4. Ceiling‑height bottle racks

One hidden mistake I often see is placing fermentation containers directly in traffic paths. Fermentation generates heat and CO₂, so airflow and clearance are important even in small spaces.

save pin

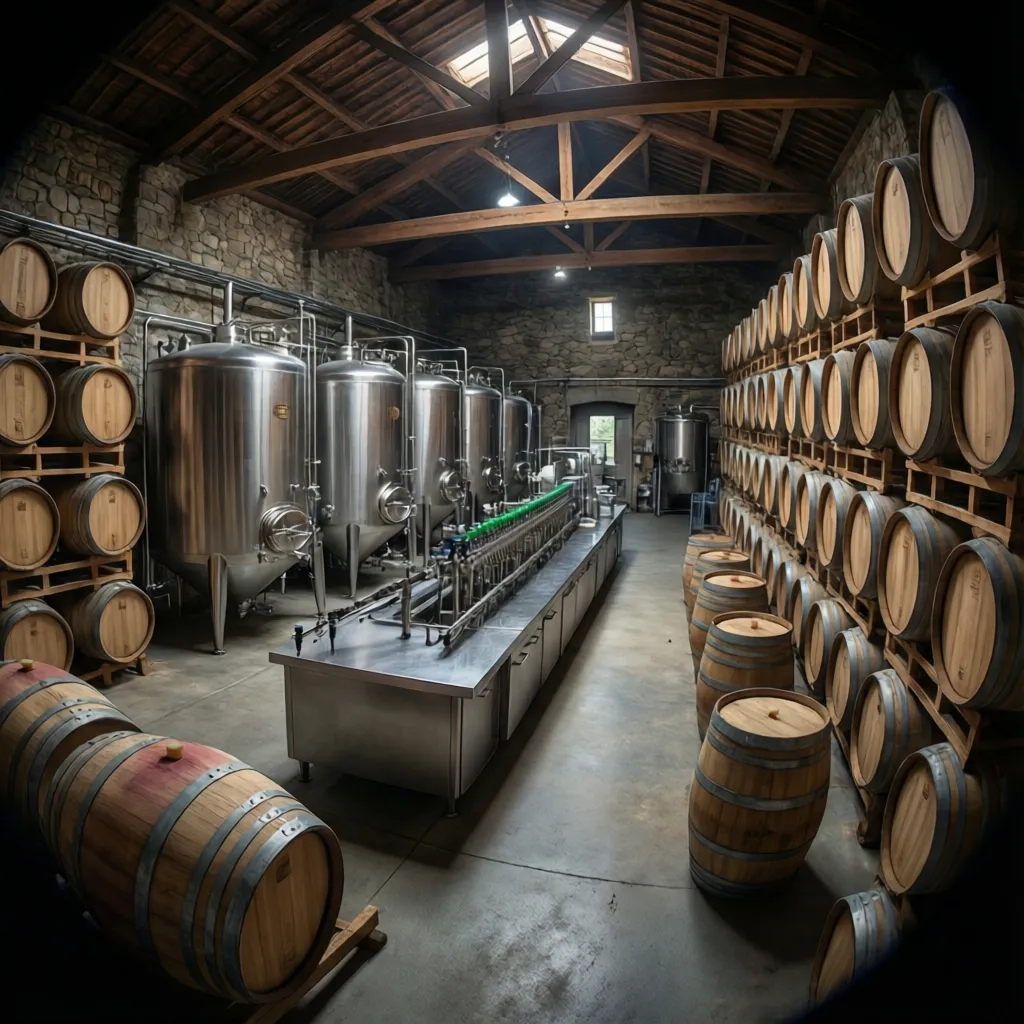

Advantages of Larger Dedicated Winery Spaces

Key Insight: Larger winery layouts increase production quality mainly through environmental control and workflow separation.

When space allows for a dedicated winery room, the design possibilities expand dramatically.

Typical large‑space advantages include:

1. Temperature‑controlled fermentation areas
2. Barrel aging zones
3. Permanent bottling stations
4. Bulk ingredient storage

Large layouts also reduce contamination risk. In several winery design projects I worked on, separating cleaning stations from fermentation equipment significantly improved sanitation workflow.

For planning a larger production space, many designers prototype layouts with a 3D floor planning workflow that visualizes production zones. Seeing circulation paths in 3D often reveals layout issues a flat drawing hides.

save pin

Cost, Efficiency, and Workflow Comparison

Key Insight: Larger winery rooms improve workflow but often introduce hidden costs in climate control and construction.

Many home winemakers underestimate the operational cost difference between compact and large winery spaces.

1. Small wine roomLower construction cost
2. Minimal climate control
3. More manual workflow
4. Large winery roomHigher renovation costs
5. HVAC or temperature control needed
6. Better long‑term production scalability

From experience, hobby winemakers producing under 200 bottles per year rarely need more than a compact room if the layout is optimized.

Answer Box

A small wine making room layout maximizes vertical storage and multi‑use work zones, while a large winery layout improves workflow through separated production areas. Most home winemakers benefit more from smart layout design than simply adding space.

Choosing the Right Layout for Your Home Wine Production

Key Insight: The best layout depends more on production goals than available square footage.

When helping homeowners design winery spaces, I usually start with one question: how many batches per year do you realistically plan to produce?

Use this quick rule of thumb:

1. Occasional hobby (1–3 batches/year): 60–100 sq ft room
2. Regular home production: 120–200 sq ft
3. Serious hobby winery: 250+ sq ft dedicated space

The key is balancing workflow efficiency with budget and maintenance.

Final Summary

1. Small wine making rooms rely on efficient vertical storage.
2. Larger winery layouts allow dedicated fermentation and bottling zones.
3. Workflow separation improves sanitation and production quality.
4. Most home winemakers succeed with compact but well‑planned layouts.
5. Layout planning matters more than total room size.

FAQ

How much space do you need for home winemaking?

Most hobby winemakers need 80–150 square feet for fermentation, bottling, and storage.

Is a small wine making room layout practical?

Yes. With vertical shelving and compact equipment placement, a small wine making room layout can support several fermentation batches.

What size should a home winery be?

A typical home winery ranges from 100 to 300 square feet depending on production volume.

Can you make wine in a small basement room?

Yes. Basements are often ideal due to stable temperatures and low light conditions.

What equipment needs the most space in a winery room?

Fermentation containers and bottle storage usually require the most space.

Do larger home wineries produce better wine?

Not necessarily. Wine quality depends more on process control than room size.

What is the biggest mistake in winery room design?

Ignoring workflow space and planning only around equipment footprints.

What is the difference between a small wine making room layout vs large winery layout?

The main difference is workflow separation. Large layouts allow dedicated zones, while small rooms combine multiple tasks in shared spaces.
