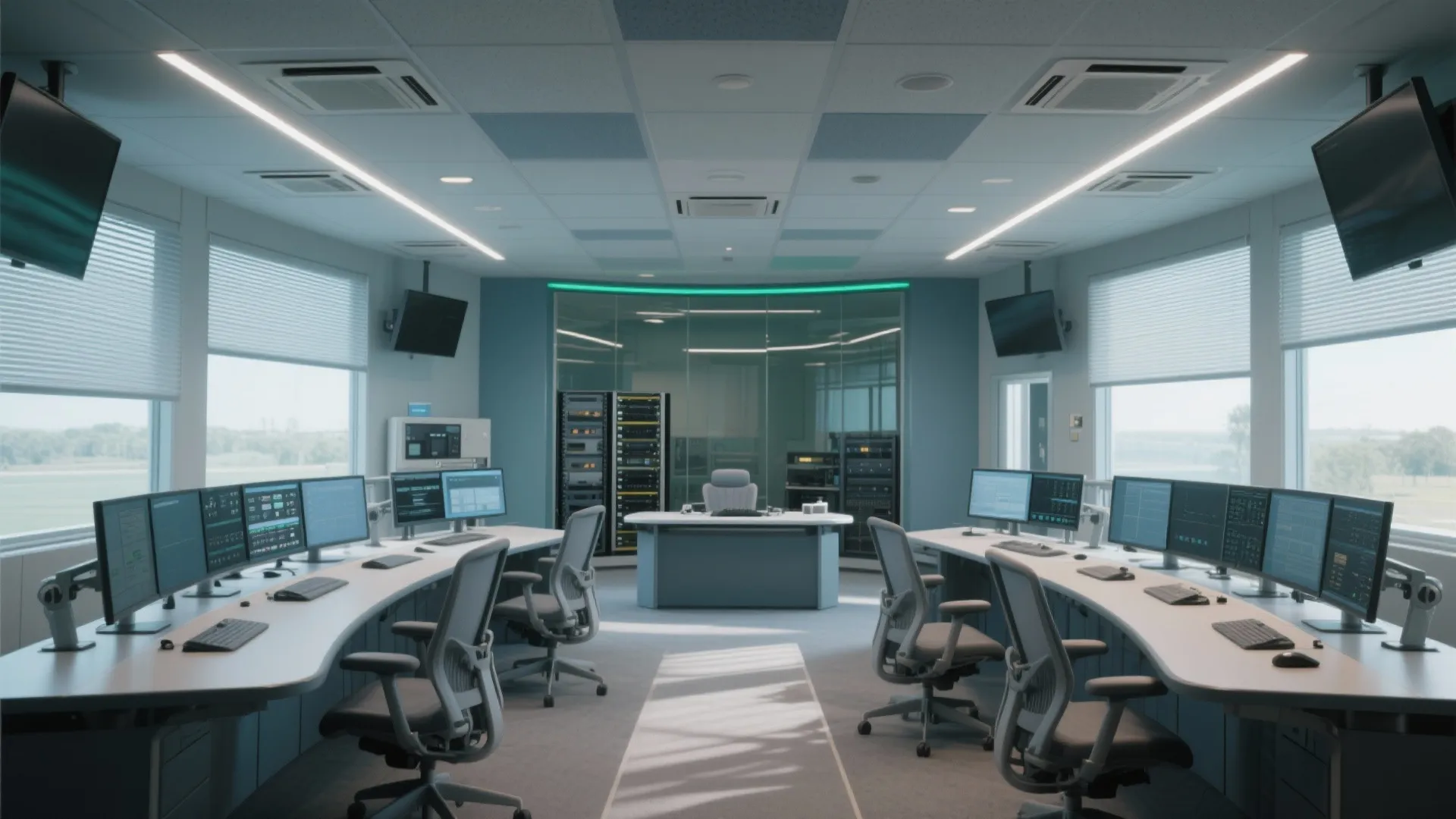

South Region Control Room Design Tips for Smart Spaces: 1 Minute to Master South Region Control Room Setups

Designing a high-performance control room in the southern regions—where heat, humidity, and long daylight cycles intersect—demands nuanced attention to ergonomics, lighting, acoustics, and workflow. I focus on human-factors first, then layer environment, technology, and layout logic so operators stay alert, comfortable, and effective through 24/7 shifts.

Operator performance correlates strongly with environment quality. WELL v2 highlights glare control, circadian lighting, and acoustic comfort as measurable levers that reduce fatigue and improve cognitive performance. Steelcase research shows acoustic disruptions can reduce task performance by up to 10–15%, while poor lighting consistency elevates error rates in high-attention work. Grounding the design in these data points keeps decisions tied to operator health and decision accuracy. I also plan layouts using a lightweight interior layout planner such as a room layout tool to simulate sightlines, reach ranges, and emergency egress before committing to infrastructure.

Thermal realities matter in the South. ASHRAE guidance and regional utility data consistently show prolonged cooling loads and humidity peaks; in control rooms this amplifies fatigue. Herman Miller’s performance studies link microclimate control and ergonomic fit to reduced musculoskeletal complaints and steadier vigilance. In practice, I layer zoned HVAC, task air, and breathable materials so operators avoid hot spots, damp clothes, and the sleepy lull that follows thermal discomfort.

Ergonomic Baselines for 24/7 Operations

Start with adjustable-height consoles (650–1250 mm range) and chairs with dynamic lumbar support and open-hip angles (100–110°) to reduce static load. Maintain primary reach zones within 450–600 mm; anything beyond 750 mm belongs in secondary zones. Screen tops should sit near eye height with 10–15° downward gaze; multi-screen arrays must arc to keep head rotation under 30°. Footrests, wrist-neutral input devices, and cable management prevent micro-strain during long observation windows. I plan these reach envelopes early so technology upgrades don’t break human-fit later.

Lighting That Supports Alertness

Control rooms need stable visual conditions without glare. I target task illuminance at 300–500 lux for console work (aligned with common IES task recommendations), bumping to 500–750 lux in diagnostics zones. Use 3500–4000K for task planes and 3000–3500K for ambient to avoid harsh contrast. A circadian-friendly strategy mixes low-glare indirect lighting with dimmable task lighting, then ramps color temperature modestly across shifts. Glare indices should be managed via cut-off optics and matte finishes; avoid glossy bezels or high-sheen desktops. Position displays perpendicular to windows; add micro-baffle shades to tame high southern sun angles.

Acoustic Control for Decision Accuracy

Keep background noise near 40–45 dBA; use broadband sound masking only where speech privacy is essential. Absorption goes on ceilings (NRC ≥ 0.70), diffusion on rear walls, and isolation along mechanical paths. Separate radio/audio bays from quiet decision zones. I push HVAC velocity down and specify lined ductwork near consoles to prevent tonal noise building up over a shift.

Thermal and Air Quality Strategy in Warm, Humid Climates

Zoned HVAC with demand-controlled ventilation stabilizes microclimates around key stations. Aim for 22–24°C with relative humidity 40–55% to minimize drowsiness and electronics corrosion risk. Task air outlets with laminar flow reduce perceived heat without overcooling the room. Use low-VOC materials and breathable chair fabrics; perforated panels behind operators shed moisture. Place heat-generating racks away from operator backs; decouple equipment rooms with positive pressure and dedicated cooling.

Layout Logic: Sightlines, Workflow, and Egress

In a South Region control room, quick situational awareness beats spectacle. Arrange primary operators in a shallow arc oriented to critical display walls with a 1.2–1.5 m clear aisle. Keep team leads centered or slightly elevated for line-of-sight coordination. Circulation should not cross primary sightlines; plan cross-traffic behind seating. Emergency egress routes must remain unobstructed with 1.1 m minimum clear width. Test variations with an interior layout planner such as a layout simulation tool to confirm visibility, reach ranges, and seat-to-screen distances (generally 1.5–2.0 times diagonal for large-format displays).

Color Psychology and Visual Balance

Use low-saturation, cool-neutral palettes to reduce visual noise and heat perception. Verywell Mind’s color psychology guidance associates cool hues with calm and focus; in practice, I lean into blue-gray and desaturated green accents for wayfinding and hierarchy. High-chroma red belongs only on alarms or emergency cues. Keep reflectance values balanced—ceilings 80–85%, walls 55–65%, work surfaces 20–35%—to preserve contrast without glare.

Technology Integration Without Operator Overload

Cluster critical alerts in a single visual hierarchy. Use tiered display logic—primary operations on center screens, diagnostics to peripheral monitors, and non-time-critical dashboards on secondary walls. Provide quick reconfiguration with KVM extenders and cable raceways that preserve clean ergonomics. Alarms should escalate acoustically and visually in controlled steps; avoid simultaneous multi-modal blasts that spike stress.

Materials, Durability, and Sustainability

High-touch surfaces deserve anti-microbial finishes and cleanability without aggressive gloss. Choose low-VOC, Class A fire-rated panels; use removable acoustic tiles and raised floors for maintainability. In hot, humid zones, specify corrosion-resistant metals and laminate cores rated for moisture. If sunlight is direct, use UV-stable fabrics. Sustainability can be practical: long-life LEDs, demand-based ventilation, and modular components cut energy and waste while keeping operations resilient.

Shift Rhythms and Operator Well-being

Plan micro-break stations within 15–20 m, add hydration points, and provide standing options for brief monitoring. Align lighting scenes to shift changes, and keep thermal drift minimal across the night shift. Provide one quiet room for decompression; errors fall when operators can reset after intense events. I also map walk paths with subtle color cues so movement doesn’t disrupt heads-up work.

Commissioning and Ongoing Calibration

Commission lighting, acoustics, and HVAC with measurable targets: lux maps on task planes, dBA logging over full shifts, and CO2 monitoring near occupied zones. Revisit screen positions and chair settings quarterly. A living room standards sheet—updated after incidents or audits—keeps the space responsive as technology evolves.

FAQ

What illuminance levels work best for control room tasks?

Target 300–500 lux for console work and 500–750 lux for diagnostics zones, with 3500–4000K task lighting and tight glare control via indirect fixtures and matte surfaces.

How do I reduce glare from southern sun exposure?

Orient displays perpendicular to windows, use micro-baffle shades, deepen fixture cut-offs, and specify low-sheen materials. Add layered indirect lighting to stabilize contrast.

What acoustic targets should I set?

Keep ambient noise around 40–45 dBA, use NRC ≥ 0.70 ceiling absorption, isolate mechanical runs, and apply sound masking only where speech privacy is essential.

Which ergonomic dimensions matter most?

Adjustable consoles (650–1250 mm), eye-level screens with 10–15° downward gaze, primary reach 450–600 mm, and chairs with dynamic lumbar and open hip angles.

How can thermal comfort be maintained in warm, humid climates?

Use zoned HVAC, task air diffusers, target 22–24°C and 40–55% RH, and specify breathable materials. Separate heat sources and maintain positive pressure in equipment rooms.

What color palette supports focus?

Low-saturation cool neutrals (blue-gray, desaturated greens) calm the visual field; reserve high-chroma colors for alerts. Balance reflectance values to avoid glare.

How should I organize displays and alerts?

Centralize primary operations, place diagnostics to periphery, and non-time-critical dashboards on secondary walls. Use graduated alarm logic to avoid overload.

What layout principles improve situational awareness?

Shallow operator arcs facing the main display wall, 1.2–1.5 m clear aisles, unobstructed 1.1 m egress, and circulation paths behind seating. Validate with a layout simulation tool.

How often should I recalibrate the environment?

Quarterly checks on screen positions, chair adjustments, and environmental metrics (lux, dBA, CO2). Update standards after audits or incident reviews.

Which materials hold up best to humidity and heavy use?

Moisture-resistant cores, corrosion-resistant metals, UV-stable fabrics, and low-VOC, cleanable finishes. Modular, replaceable acoustic tiles ease maintenance.
