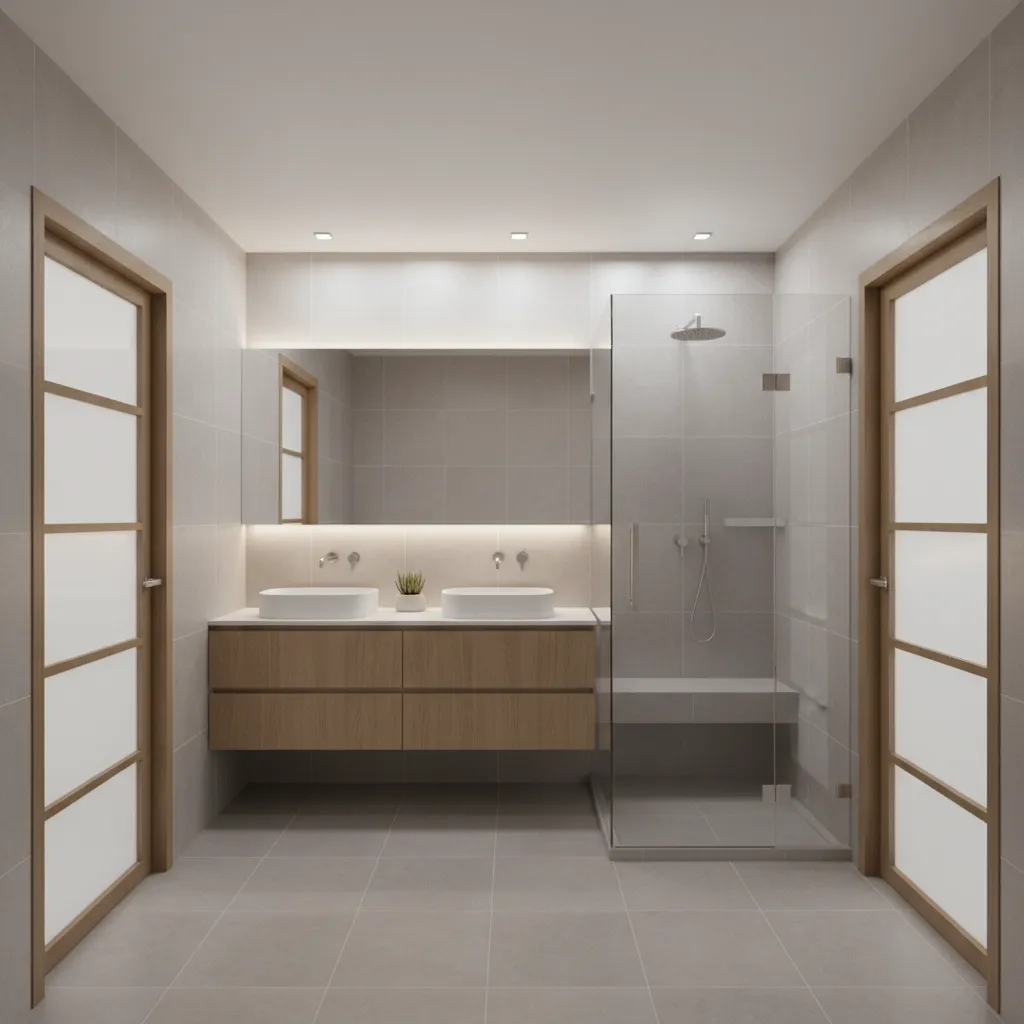

Space Optimization Tips for 8x10 Double Entry Bathrooms: Practical layout strategies designers use to maximize efficiency in compact bathrooms with two entrances

Direct Answer

An 8x10 double entry bathroom can work efficiently if circulation paths stay clear and fixtures are placed along shared plumbing walls. Pocket doors, compact vanities, and corner showers often recover several square feet of usable space. The key is separating movement zones from functional zones so two entrances don’t compete with the toilet, shower, or sink area.

Quick Takeaways

1. Keep the center of the room open so both doors can operate without blocking fixtures.
2. Wall-aligned fixtures reduce plumbing complexity and free up circulation space.
3. Pocket or sliding doors typically reclaim 6–10 square feet of usable space.
4. Floating vanities and corner showers make an 8x10 bathroom feel significantly larger.
5. Lighting and mirror placement can visually expand a dual‑entrance bathroom.

Introduction

Designing an efficient 8x10 double entry bathroom sounds straightforward until you start laying out the doors. I’ve worked on dozens of remodels where two entrances—often from a hallway and a bedroom—create unexpected traffic conflicts. Doors collide with vanities. Toilets end up awkwardly visible from both entries. And the room somehow feels smaller than it should.

The problem usually isn’t the square footage. Eight by ten feet is actually generous for a bathroom. The real challenge is circulation. Two access points mean you’re designing pathways first and fixtures second.

In many projects I start by sketching several movement paths before choosing fixtures. Tools that allow homeowners to experiment with different bathroom traffic flow layouts before constructionoften reveal space conflicts early, which saves expensive redesign later.

Below are the strategies I consistently use to make dual‑entry bathrooms feel organized, spacious, and practical.

save pin

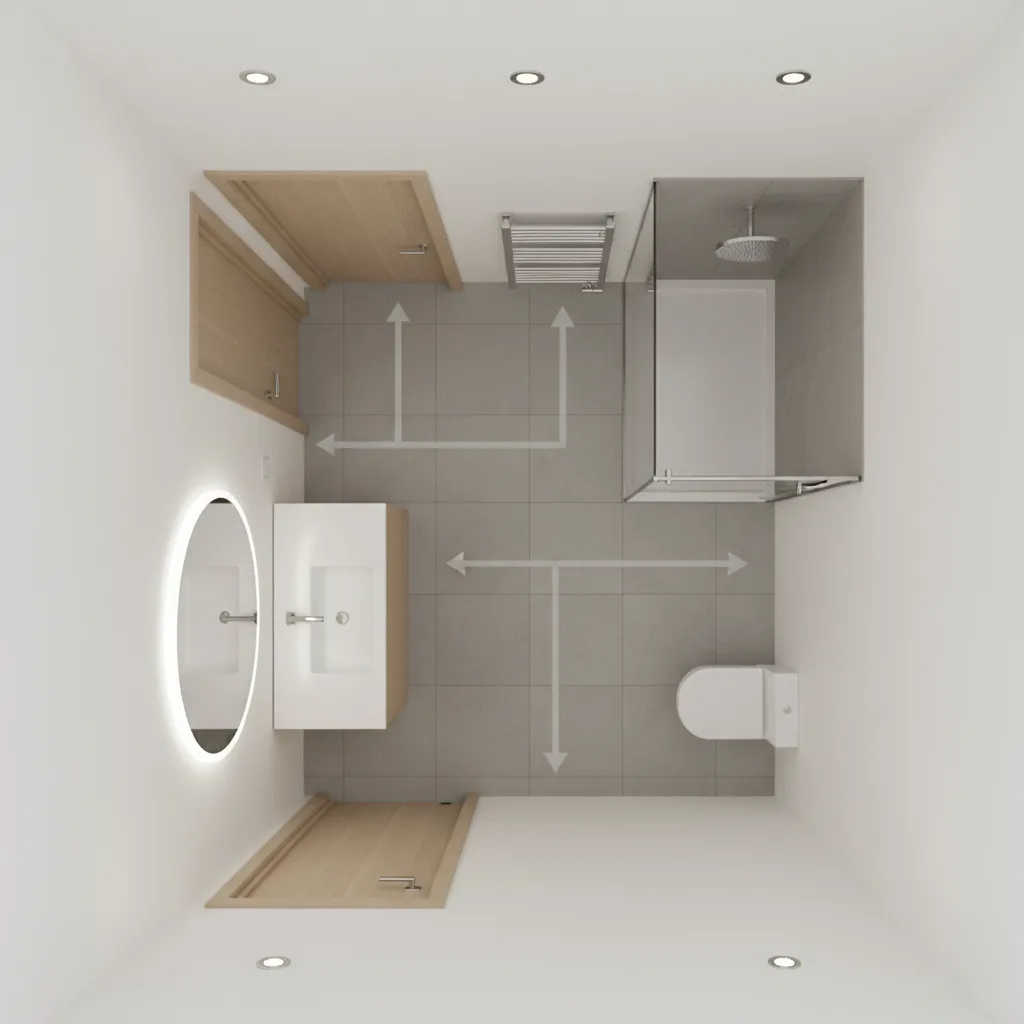

Challenges of Space Efficiency in Double Entry Bathrooms

Key Insight: The biggest problem in a double‑entry bathroom is not fixture size but conflicting circulation paths.

When two doors are introduced into a relatively compact footprint like 8x10, the usable layout shrinks quickly. Every door requires swing clearance, visual privacy, and walking space.

Common layout problems I frequently see during renovation consultations include:

1. Toilets visible from both entrances
2. Vanity corners blocking door swings
3. Dead space between doors that cannot hold fixtures
4. Shower doors colliding with entry doors

A practical way to evaluate the room is to divide the bathroom into three functional zones:

1. Entry circulation zone – walking paths from each door
2. Wet zone – shower or tub area
3. Utility zone – toilet and vanity placement

In successful designs, circulation routes stay along one side of the room while fixtures stay anchored to walls.

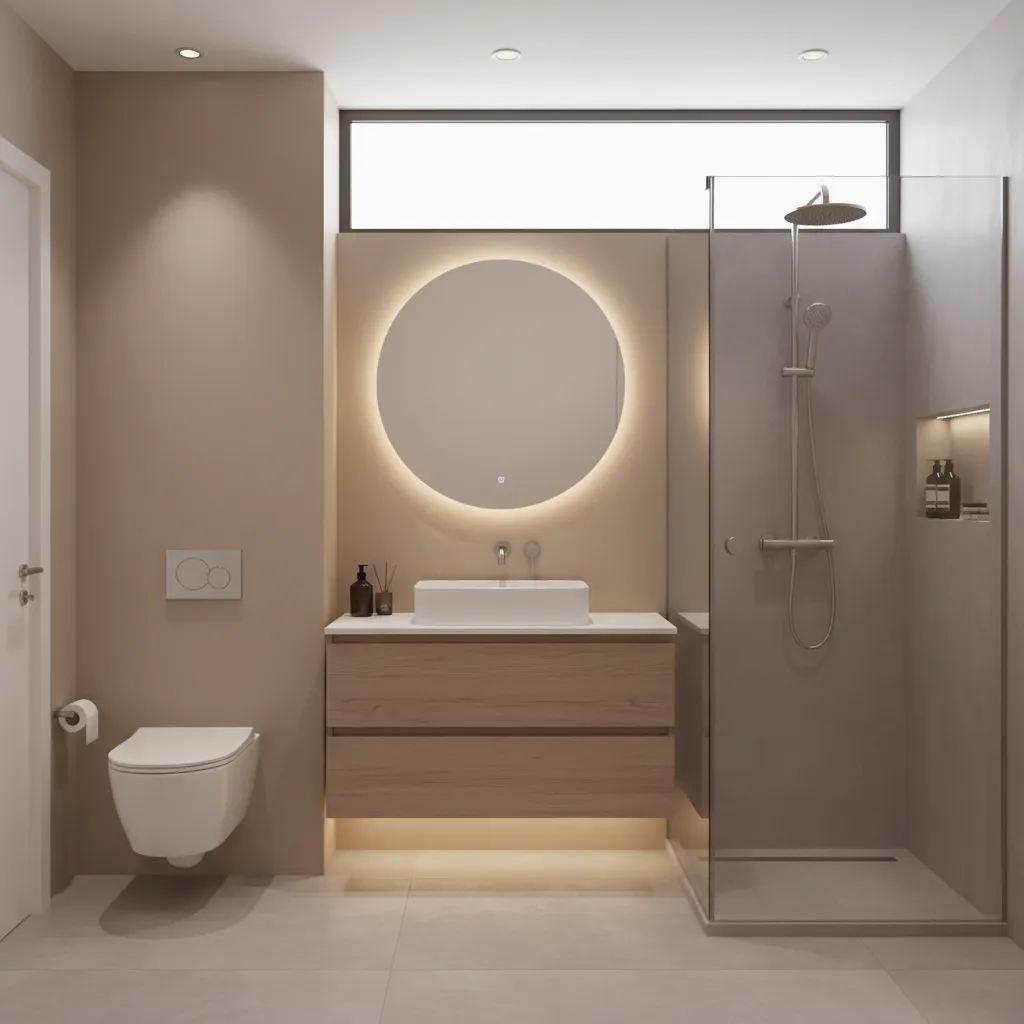

Best Fixture Placement Strategies for an 8x10 Layout

Key Insight: Linear fixture alignment usually works better than symmetrical layouts in bathrooms with two entrances.

A common mistake is trying to center everything. Symmetry works beautifully in single‑door bathrooms, but dual entrances break that balance.

The layout that consistently works best in my projects looks like this:

1. Vanity placed near one entry for quick access
2. Toilet positioned between vanity and shower
3. Shower or tub at the far end of the room

This creates a natural progression from dry zone to wet zone while keeping privacy for the toilet.

Many homeowners test this configuration visually using tools that allow them to visualize bathroom layouts with accurate fixture spacing. Seeing clearances in 3D makes it easier to avoid door collisions.

save pin

Using Sliding or Pocket Doors to Save Space

Key Insight: Replacing swinging doors with pocket or sliding doors is the fastest way to reclaim usable square footage.

A standard interior door requires about 9 square feet of swing clearance. In a double‑entry bathroom, that wasted space doubles.

Door options ranked by space efficiency:

1. Pocket doors – completely disappear into the wall
2. Sliding barn doors – easier to install in remodels
3. Out‑swing doors – push door clearance into the hallway

In one recent remodel, replacing two swing doors with pocket doors freed enough space to upgrade from a 30-inch vanity to a 48-inch double vanity.

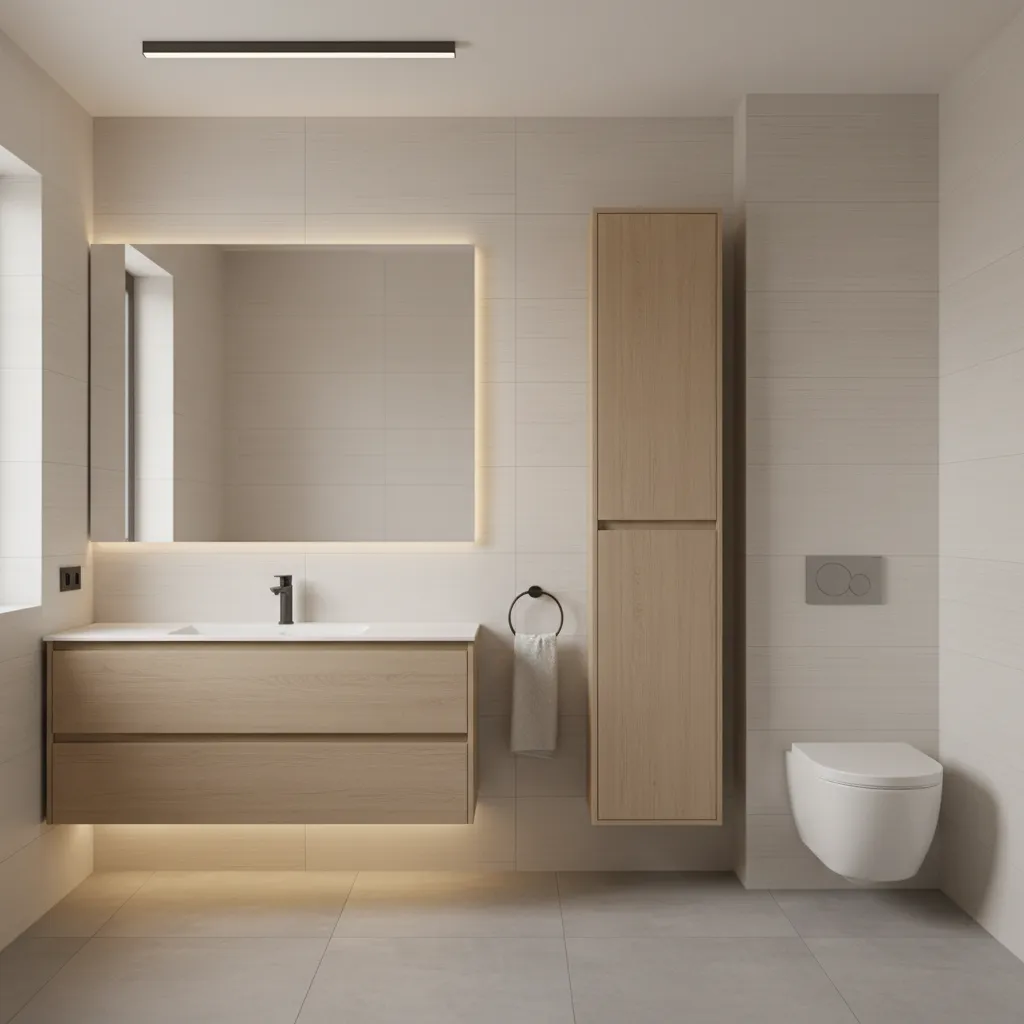

Smart Vanity and Storage Configurations

Key Insight: Floating vanities and vertical storage make compact bathrooms feel dramatically more open.

Traditional floor vanities visually shrink the room because they block sightlines across the floor.

Better alternatives include:

1. Floating vanity with open floor below
2. Narrow depth vanity (16–18 inches)
3. Tall linen cabinet instead of wide storage
4. Recessed medicine cabinets

Another overlooked trick is mirror width. Extending the mirror beyond the vanity width reflects more light and visually stretches the room.

When homeowners want to test storage ideas before remodeling, I often suggest exploring tools that help them experiment with vanity and storage arrangements in a digital bathroom layout. It quickly shows whether cabinets block door paths.

save pin

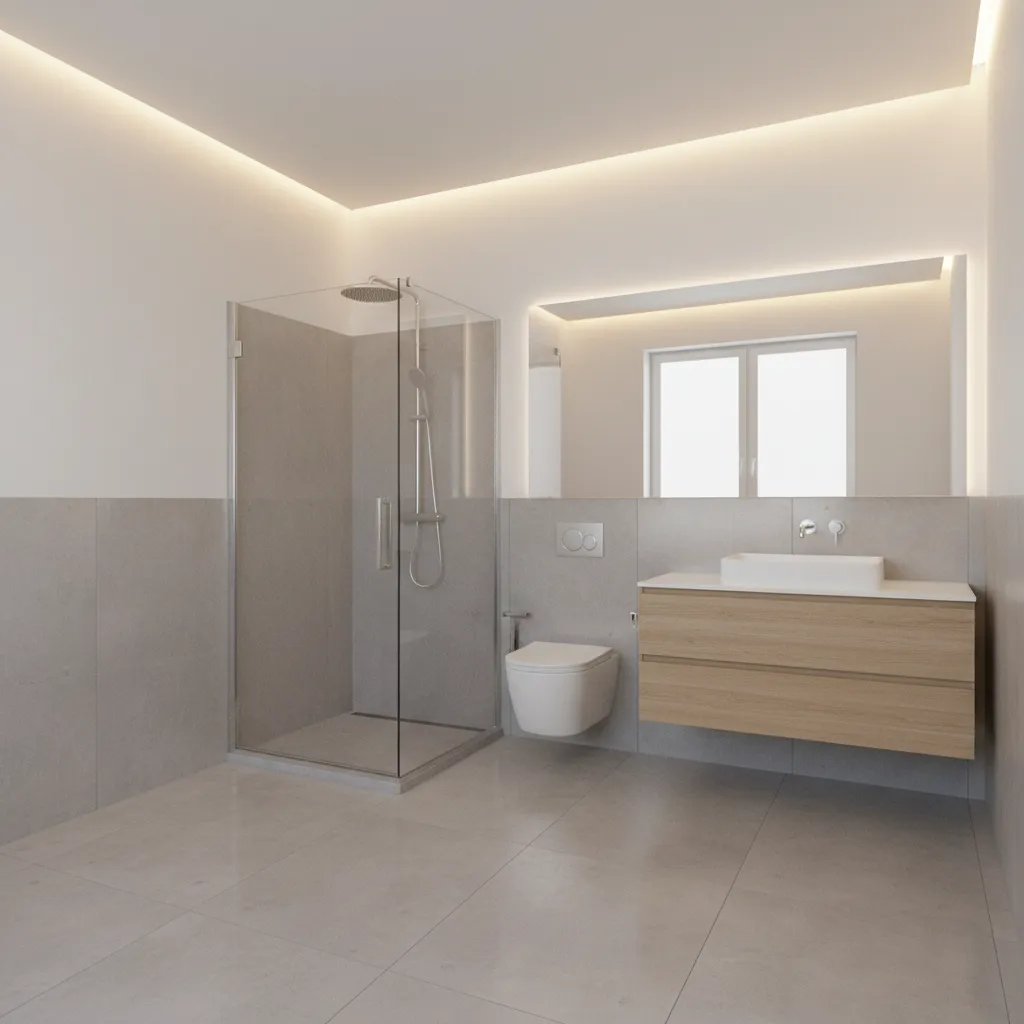

Optimizing Shower and Toilet Placement

Key Insight: Corner showers or walk‑in glass showers preserve circulation space in dual‑entry layouts.

Shower placement should avoid interrupting door pathways.

Best configurations for an 8x10 layout:

1. 36" corner shower enclosure
2. Walk‑in shower with fixed glass panel
3. Tub‑shower combination along the far wall

The toilet should ideally sit behind partial visual shielding such as:

1. A short partition wall
2. The vanity edge
3. A recessed niche area

This prevents the awkward moment where the toilet becomes the first thing visible from both doors.

save pin

Design Tricks That Make Small Bathrooms Feel Larger

Key Insight: Visual expansion techniques often matter as much as physical layout changes.

Some of the most effective visual tricks I use in tight bathrooms include:

1. Large format floor tiles to reduce grout lines
2. Continuous tile into the shower area
3. Wall‑mounted faucets to reduce vanity depth
4. Light reflective surfaces such as quartz or porcelain

Lighting is another overlooked factor. Two entrances often create uneven lighting zones, so layered lighting helps balance the room:

1. Ceiling ambient lighting
2. Vertical mirror lighting
3. Shower niche lighting

Answer Box

The most efficient 8x10 double entry bathroom layouts prioritize circulation first and fixtures second. Pocket doors, wall‑aligned plumbing, and compact vanities typically provide the biggest gains in usable space.

Final Summary

1. Circulation planning is the foundation of a successful double‑entry bathroom.
2. Linear fixture layouts outperform symmetrical layouts in 8x10 spaces.
3. Pocket doors often recover the most usable floor area.
4. Floating vanities and corner showers create visual and physical openness.
5. Lighting and mirror placement dramatically affect perceived space.

FAQ

1. What is the best layout for an 8x10 bathroom with two doors?

A linear layout works best: vanity near one entry, toilet mid‑room, and shower at the far end. This keeps pathways clear.

2. Can an 8x10 double entry bathroom include a double vanity?

Yes, but only if door swings are minimized. Pocket doors and floating vanities usually make this possible.

3. How do you optimize an 8x10 bathroom with two doors?

Focus on clear circulation routes, wall‑aligned fixtures, and compact storage. Avoid placing fixtures in the center of the room.

4. Are pocket doors worth it for small bathrooms?

In most cases yes. They eliminate door swing clearance and improve movement in tight layouts.

5. Should the toilet be visible from both entrances?

Ideally no. Use vanity placement, partitions, or layout shifts to shield the toilet from direct sightlines.

6. What shower size works best in an 8x10 bathroom?

A 36" corner shower or walk‑in shower with a single glass panel fits efficiently without blocking circulation.

7. Does a floating vanity make a bathroom feel bigger?

Yes. Seeing continuous floor space underneath visually expands the room.

8. How can I maximize space in a double entry bathroom?

Maximize space by prioritizing circulation paths, choosing compact fixtures, and using sliding or pocket doors.

References

1. National Kitchen & Bath Association Bathroom Planning Guidelines
2. American Institute of Architects Residential Design Standards
3. Houzz Bathroom Layout Planning Insights
