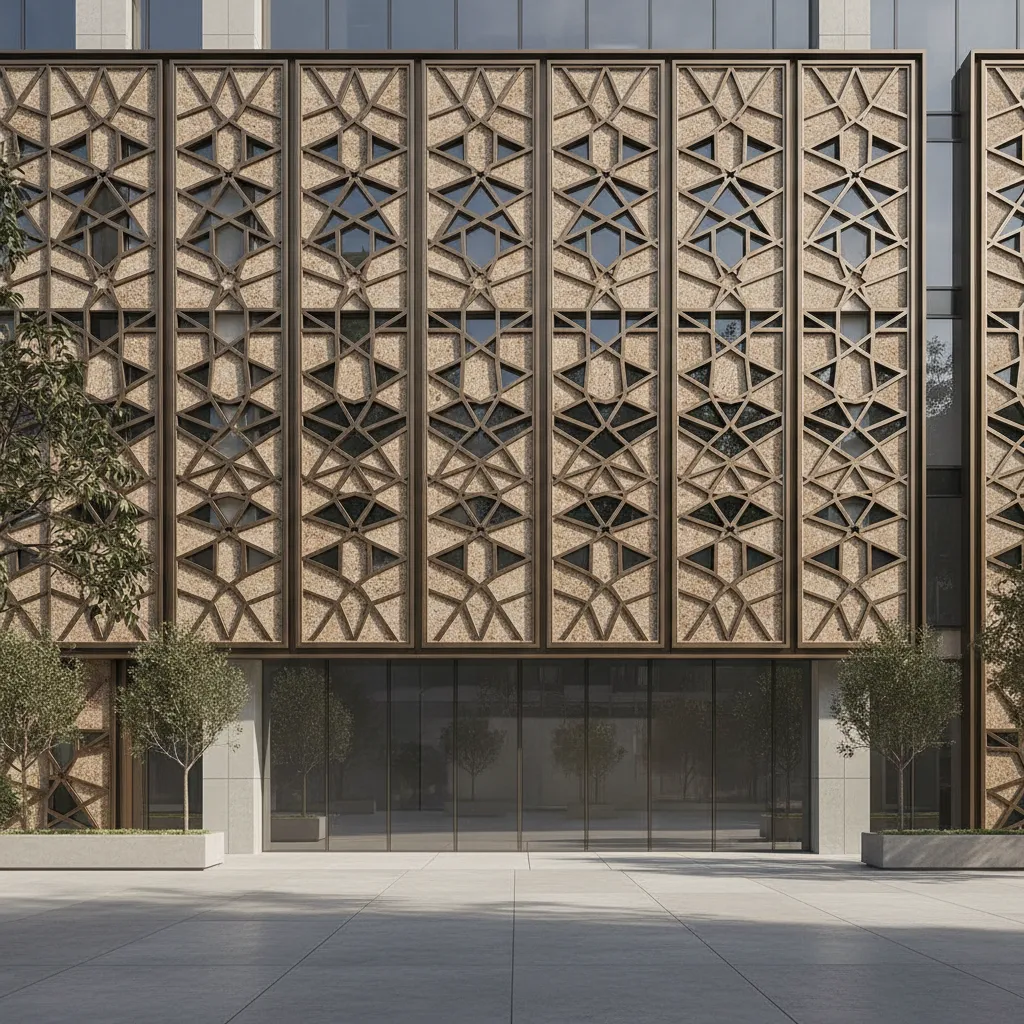

Structural and Fabrication Considerations for 3D Jali Designs: How to ensure digital jali patterns remain strong, manufacturable, and accurate when moving from 3D modeling to real fabrication

Direct Answer

Structural and fabrication considerations for 3D jali designs focus on thickness, material limits, machine constraints, and weak connection points in lattice geometry. A digital jali pattern that looks beautiful on screen may fail during CNC or laser cutting if bridges are too thin or unsupported. Preparing a fabrication ready jali 3D model means designing with structural tolerance, manufacturable spacing, and clean geometry from the start.

Quick Takeaways

1. Many visually complex jali patterns fail during fabrication because of insufficient minimum thickness.
2. Material choice directly changes allowable lattice spacing and structural stability.
3. CNC and laser cutting require clean, watertight geometry with simplified curves.
4. Weak intersections in lattice nodes are the most common structural failure point.
5. Final manufacturing checks should always simulate real material stress and tool paths.

Introduction

In digital design software, creating intricate 3D jali designs feels almost limitless. You can push patterns thinner, denser, and more decorative with just a few clicks. But after working on architectural screens and interior partitions for more than a decade, I've seen a recurring problem: many digital lattice models are simply not buildable.

A beautiful jali pattern that renders perfectly often collapses the moment it reaches fabrication. CNC tools break thin connections. Laser cuts warp fragile bridges. Stone or metal screens crack during installation because the structural logic wasn't considered in the modeling phase.

This is why professional studios increasingly design jali patterns while simultaneously thinking about fabrication constraints. In many of my projects, especially when generating patterns through digital modeling workflows similar to those used in visualizing interior layouts before construction begins, we treat the digital model as a production blueprint rather than a decorative concept.

In this guide, I'll walk through the structural realities behind manufacturing jali screens, including minimum thickness rules, material constraints, CNC preparation, and the hidden weak points that designers often overlook.

save pin

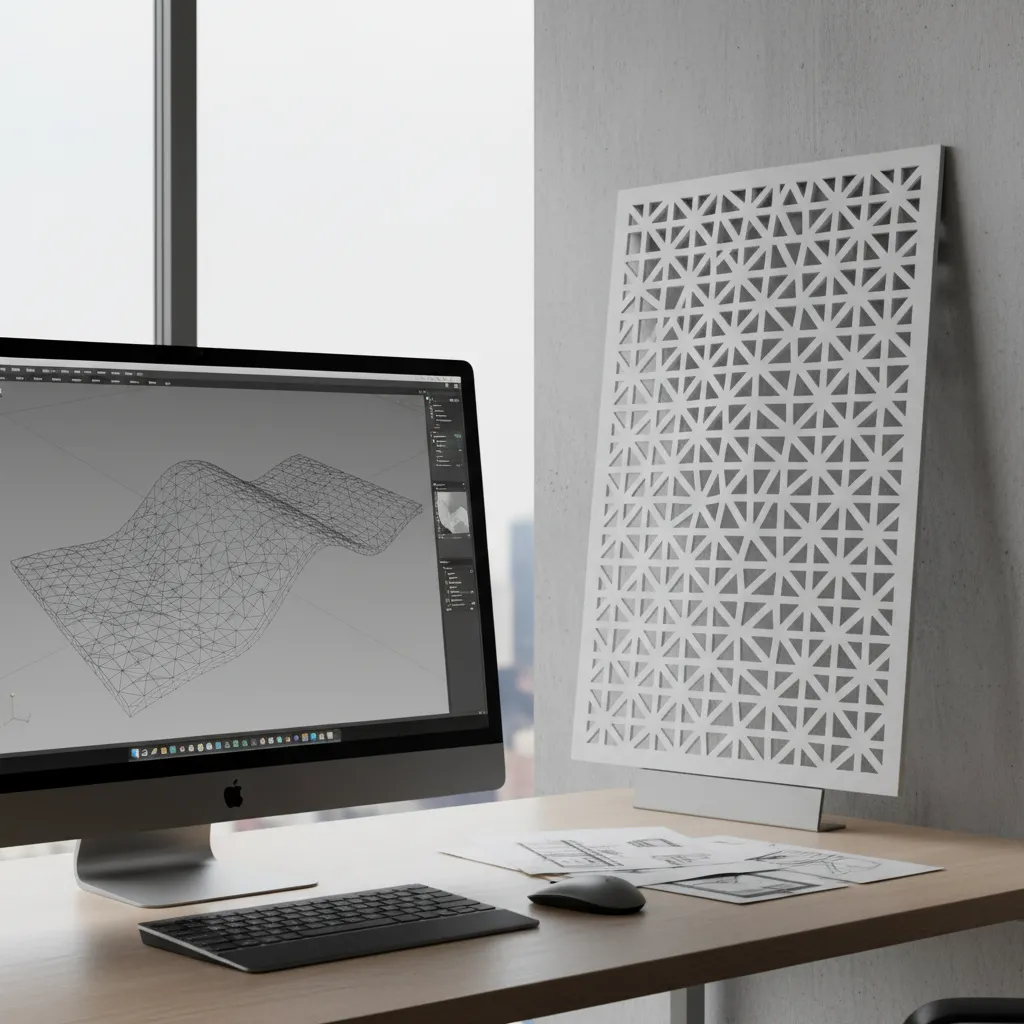

From Digital Jali Model to Physical Fabrication

Key Insight: The biggest mistake in jali design is treating the digital model as artwork instead of as a structural object.

When a lattice pattern moves from software to fabrication, it enters a completely different environment. Machines have tool diameters. Materials have grain direction and tensile limits. Gravity and installation loads suddenly matter.

The transition typically follows this workflow:

1. Concept pattern design
2. Parametric or manual lattice modeling
3. Thickness and spacing optimization
4. Fabrication file preparation
5. CNC or laser cutting
6. Finishing and installation

In practice, about 30–40% of visually complex lattice designs must be simplified before production. Fabricators regularly request thicker bridges or wider pattern spacing because decorative software models ignore real tool limitations.

Architectural manufacturing studies published by the Digital Fabrication Laboratory at ETH Zurich highlight that geometry complexity increases machining error risk unless pattern density aligns with tool diameter.

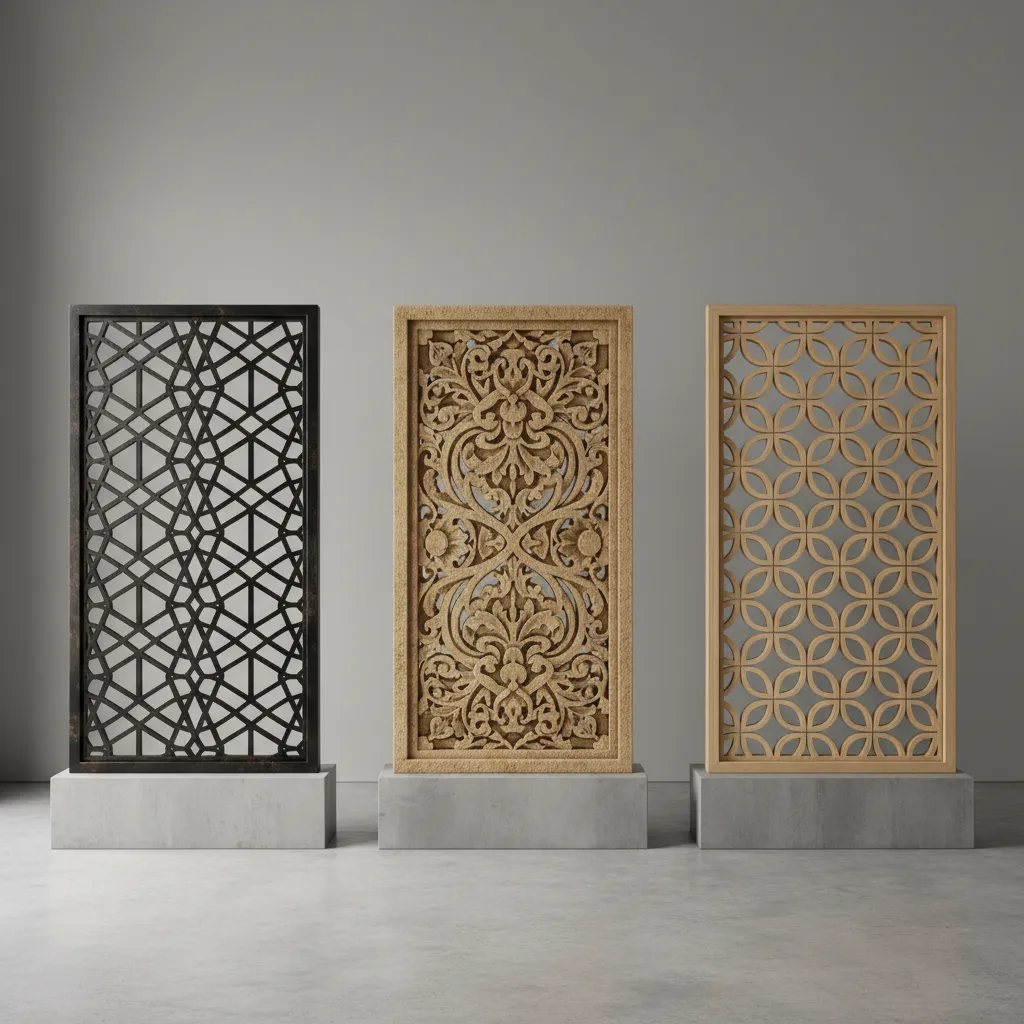

Material Constraints in Jali Screen Production

Key Insight: The same jali pattern behaves completely differently depending on whether it is made from wood, metal, stone, or composite panels.

Designers often copy patterns between materials without adjusting structural parameters. That rarely works.

Here are common material behaviors:

1. Stone or marble – brittle, requires thicker lattice connections
2. Wood – moderate flexibility but affected by grain direction
3. Metal sheets – strong but prone to heat distortion during laser cutting
4. MDF or engineered panels – easier to machine but weaker over large spans

For example, a 6 mm thick aluminum jali panel may safely support extremely dense patterns. A sandstone screen of the same thickness would likely crack at node intersections.

Material testing data from the American Institute of Architects shows that brittle materials require significantly wider node connections in lattice systems to prevent fracture propagation.

save pin

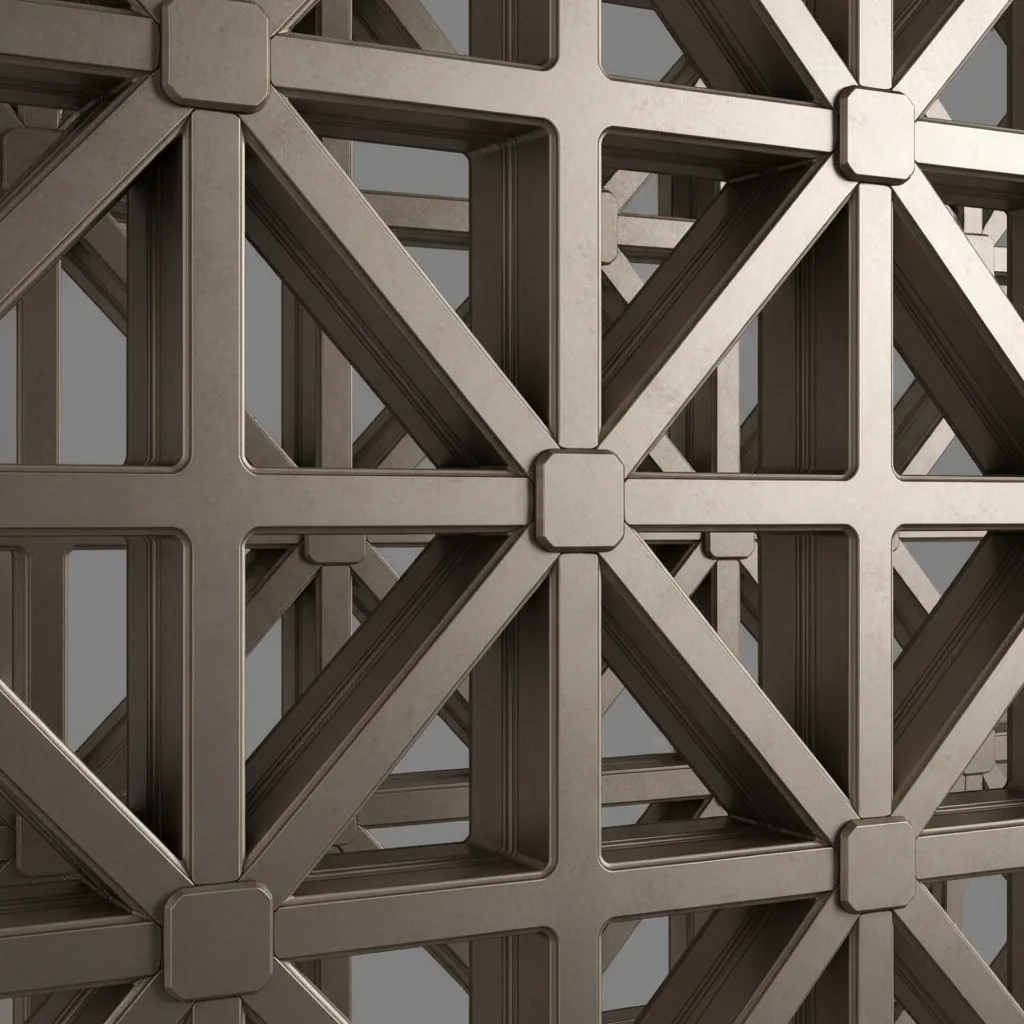

Minimum Thickness and Structural Stability

Key Insight: Minimum thickness rules are the single most important factor in making a fabrication ready jali 3D model.

In lattice design, thin members distribute loads unevenly. When several thin bridges converge at a node, stress multiplies at that intersection.

Typical safe guidelines used by fabricators:

1. Metal laser cut screens: minimum 1.5–2× material thickness
2. Wood CNC jali panels: minimum 5–8 mm bridges
3. Stone jali carving: minimum 12–20 mm structural members
4. Large architectural screens: thicker outer frames for load distribution

A common hidden issue is "node thinning." Designers taper pattern edges to make the lattice look delicate, but this reduces structural strength exactly where forces concentrate.

Experienced fabricators usually reinforce these nodes slightly. Ironically, the final built product often looks better because the pattern reads cleaner from distance.

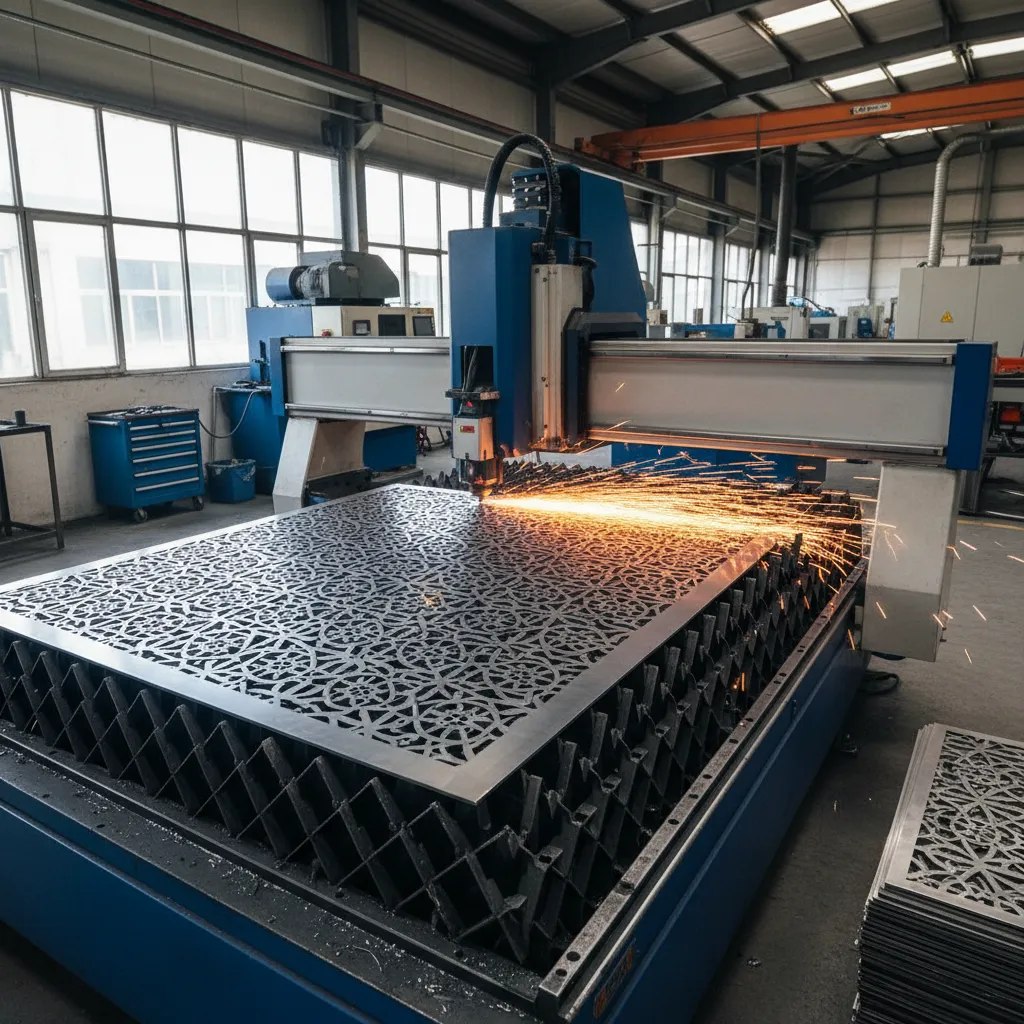

Preparing Jali Models for CNC or Laser Cutting

Key Insight: Clean geometry and tool-aware modeling dramatically reduce fabrication errors.

Before exporting a jali screen for manufacturing, the digital model must be optimized for machining.

Essential preparation steps:

1. Convert all curves to machinable vector paths
2. Remove duplicate edges or overlapping geometry
3. Ensure all cut paths form closed loops
4. Check tool diameter clearance
5. Export in fabrication-ready formats such as DXF or DWG

Design visualization workflows used for architectural planning—similar to processes used when teams generate realistic home renderings before construction decisions—are helpful here because they expose spacing and proportion problems early.

Laser cutting in particular requires clean vector geometry. Any open curves can cause the machine to misread paths, leading to incomplete cuts or warped panels.

save pin

Avoiding Weak Points in Complex Lattice Designs

Key Insight: Most jali screen failures happen at intersections, not along straight members.

Complex lattice patterns often create star nodes where 5–8 members meet. These intersections concentrate force and vibration during machining.

Common structural risks include:

1. Too many branches meeting at one node
2. Sharp internal corners causing stress concentration
3. Uneven member thickness
4. Unsupported long spans between nodes

One practical design technique is "node rounding." Slightly increasing the radius at intersections distributes loads more evenly and improves durability.

When testing screen layouts inside spatial planning workflows—similar to those used when designers experiment with room layout and partition placement—it becomes easier to see how structural frames interact with the surrounding architecture.

save pin

Quality Checks Before Manufacturing

Key Insight: A final structural audit before fabrication prevents costly material waste.

Before sending files to a CNC shop, experienced designers run a checklist.

Pre‑manufacturing verification:

1. Check minimum member thickness
2. Inspect nodes for excessive branching
3. Verify machine tool diameter compatibility
4. Confirm panel frame reinforcement
5. Test scaled prototypes if possible

Fabrication shops often recommend cutting a small 300–500 mm test panel before producing a full architectural screen. This quick prototype reveals weaknesses that software simulation sometimes misses.

Answer Box

The success of 3D jali designs in fabrication depends on respecting material limits, maintaining adequate lattice thickness, and preparing clean machining geometry. Most failures occur because designers prioritize visual complexity over structural logic.

Final Summary

1. Design jali patterns with fabrication constraints in mind from the beginning.
2. Material choice changes allowable lattice thickness dramatically.
3. Node intersections are the most common structural weak points.
4. CNC and laser cutting require clean, closed vector geometry.
5. Prototype testing helps catch structural failures before full production.

FAQ

What is a fabrication ready jali 3D model?

A fabrication ready jali 3D model includes correct thickness, clean geometry, and spacing that matches real machining tools and material strength.

What minimum thickness should a jali lattice have?

It depends on material. Metal can go as low as 2–3 mm, while stone screens may require 12–20 mm structural members.

Can laser cutting produce complex jali patterns?

Yes, but the model must be optimized for laser cutting with closed vector paths and sufficient bridge thickness.

Why do some jali panels break during installation?

Most failures occur at weak node intersections or because the lattice thickness is too thin for the chosen material.

Which material works best for modern jali screens?

Aluminum and mild steel are widely used because they allow thinner patterns while maintaining structural strength.

How do designers avoid weak points in lattice design?

By reducing node complexity, rounding intersections, and maintaining consistent member thickness.

Do CNC machines limit jali pattern detail?

Yes. Tool diameter determines the smallest internal corner radius and spacing that can be machined accurately.

Is simulation necessary before manufacturing jali screens?

It is strongly recommended. Structural simulation or prototype cutting helps verify the stability of complex lattice systems.
