Tool Room Design: Maximize Your Workshop Potential: Fast-Track Guide to Crafting a Functional & Organized Tool Room

I approach a tool room the way I plan a compact lab: clear task zones, intuitive reach, and lighting that makes precision work effortless. The goal is faster setups, safer movement, and fewer wasted steps. In Gensler’s workplace research, people spend up to 40% of their time context-switching in poorly organized environments—layouts that reduce search and travel time measurably improve output. Steelcase research also notes that teams in well-zoned spaces report higher perceived productivity and lower friction. These patterns translate directly to workshops: when your workflow is mapped, throughput increases and error rates fall.

Lighting and ergonomics play outsized roles in a productive tool room. WELL v2 recommends task lighting designed to mitigate glare and shadows; pairing high-CRI (>90) task lights with ambient 3000–4000K yields better color rendition for finishing work. The Illuminating Engineering Society suggests 300–500 lux for general workshop areas and up to 750–1000 lux at precision benches to reduce eye strain during fine assembly (IES task lighting guidance). These are not luxuries—they save time on rework and reduce fatigue across long sessions.

Define the Workflow Before the Walls

I start with a simple sequence: receive, stage, cut/shape, assemble, finish, and store. Sketch the path of materials and tools from entry to exit. Keep backtracking near zero—U-shaped or L-shaped flows generally win in constrained rooms. If you are iterating different arrangements, a lightweight interior layout planner helps simulate clearances, aisle widths, and sightlines before you move a single cabinet. Try a room layout tool from Coohom to visualize equipment footprints and bench spacing: room layout tool.

Right-Size Aisles, Benches, and Clearances

Spatial ratios determine comfort and safety. I maintain 36–42 inches of main aisle width in small rooms; 48 inches if two people commonly pass with carts. Around stationary machines (table saw, bandsaw, drill press), provide 36 inches at sides and no less than 60–72 inches in-feed and out-feed. Workbench height lands between 34–38 inches for general tasks; raise to 38–40 inches for precision work to keep forearms near neutral. For seated detail work, maintain knee clearance of 24–26 inches deep and 27 inches high; a footrest helps sustain neutral posture during long sessions.

Zone Planning: Hot, Warm, and Cold Storage

I divide tools by frequency: hot (daily use), warm (weekly), and cold (occasional). Place hot items within the primary reach envelope (18–22 inches from bench edge, shoulder to mid-thigh vertical span). Warm items live one step away—upper wall cabinets or rolling carts. Cold storage belongs high and low: overhead racks with load-rated anchors, or base cabinets with deep drawers. This hierarchy eliminates decision fatigue and keeps benchtops open for active work.

Lighting Layers That Prevent Mistakes

Layer ambient, task, and accent. Ambient: uniform 300–500 lux using diffused LEDs to keep contrast even. Task: articulated arms over vises, sharpening stations, and soldering mats, 750–1000 lux, CRI ≥90, and 3000–4000K to balance warmth and detail. Accent: linear LEDs under shelves to avoid shadow bands. Keep Unified Glare Rating low—baffle or shield fixtures near reflective surfaces. Place switches at logical transitions: entry, bench zone, and machine cluster. Add occupancy sensors where hands are often full.

Acoustic Comfort Around Loud Equipment

Noise steals focus. I break the room into a loud zone (saws, routers, compressors) and a quiet bench zone. Use rubber isolation pads under machines, lined doors on compressor closets, and mineral wool panels on the first reflection points of hard walls. A simple rule: treat 15–25% of wall surface with absorptive material to cut flutter echo without deadening the room. Store impact tools away from benches to keep peak dB events at a distance.

Dust, Power, and Safe Movement

Good dust management is non-negotiable. Position a central extractor with short, straight duct runs; use blast gates and keep flex hose lengths minimal. Run a separate shop-vac at benches for fine cleanup. Power should be plentiful and reachable: quad outlets every 4–6 feet along benches, ceiling drops for mobile tools, and dedicated 20A circuits for dust collection and table saws. Mark safe lanes on the floor if multiple users share the room; high-contrast edges reduce trips when carrying large stock.

Storage That Works as Hard as You Do

Drawer-first storage beats open shelving for small parts: full-extension slides, shallow drawers for bits and blades, deeper drawers for routers or sanders. French cleat walls are excellent for evolving tool collections—label zones so hooks and holders return to the same place. Use transparent bins for consumables and barcode or color-code frequently replenished items. Heavy items belong between knee and hip height to reduce lift risk.

Color and Visual Rhythm

Color affects attention and fatigue. Neutral mid-values on large surfaces reduce glare; use a slightly warm gray for benches to make metal shavings and fasteners visible, with a matte finish to cut specular highlights. Reserve saturated colors for tool faces or safety edges to create instant visual priority. Principles from color psychology suggest blues and desaturated greens support focus, while strategic high-chroma accents guide wayfinding without visual noise.

Material Selection and Durability

Benchtops: laminated birch ply or hardwood for impact zones; HPL on MDF for glue-ups and easy scrape-downs. Floors: sealed concrete with anti-fatigue mats at long-stand stations or rubber tiles in drop zones. Casework: plywood over particleboard for screw-holding strength. Choose finishes with low VOCs to keep indoor air quality stable, and specify wipeable, matte surfaces where adhesives and finishes are common.

Ergonomics and Human Factors

Sustained comfort dictates bench height, lighting, and handle selection. Keep the most-used tools between 24–60 inches from the floor to minimize awkward reaches. Use pulls large enough for gloved hands. For repetitive tasks (sanding, assembly), rotate stations so no single posture dominates more than 20–30 minutes. Where seated work occurs, choose adjustable stools (seat height 22–30 inches) and provide foot rings or rests to maintain neutral lumbar curves.

Planning for Growth and Modularity

Workshops evolve. I prefer modular base cabinets on leveling feet, locking casters on carts, and perforated uprights that accept shelves, bins, or tool mounts as needs shift. Leave a clear 6–12 inches behind benches for cable and hose routing. Keep a spare 20% storage capacity to avoid overflowing drawers and emergency piles on work surfaces.

Safety and Visual Controls

Post simple visual standards: labeled zones, pictograms for PPE, and color-coded bins. Mount a first-aid kit and fire extinguisher at the exit door, not hidden inside. Keep a shadow board for the top ten hand tools that wander the most. Add a small disposal station for blades and sharps. When more than one person uses the room, a whiteboard with job tickets and machine status cuts confusion.

Example Layouts for Different Room Sizes

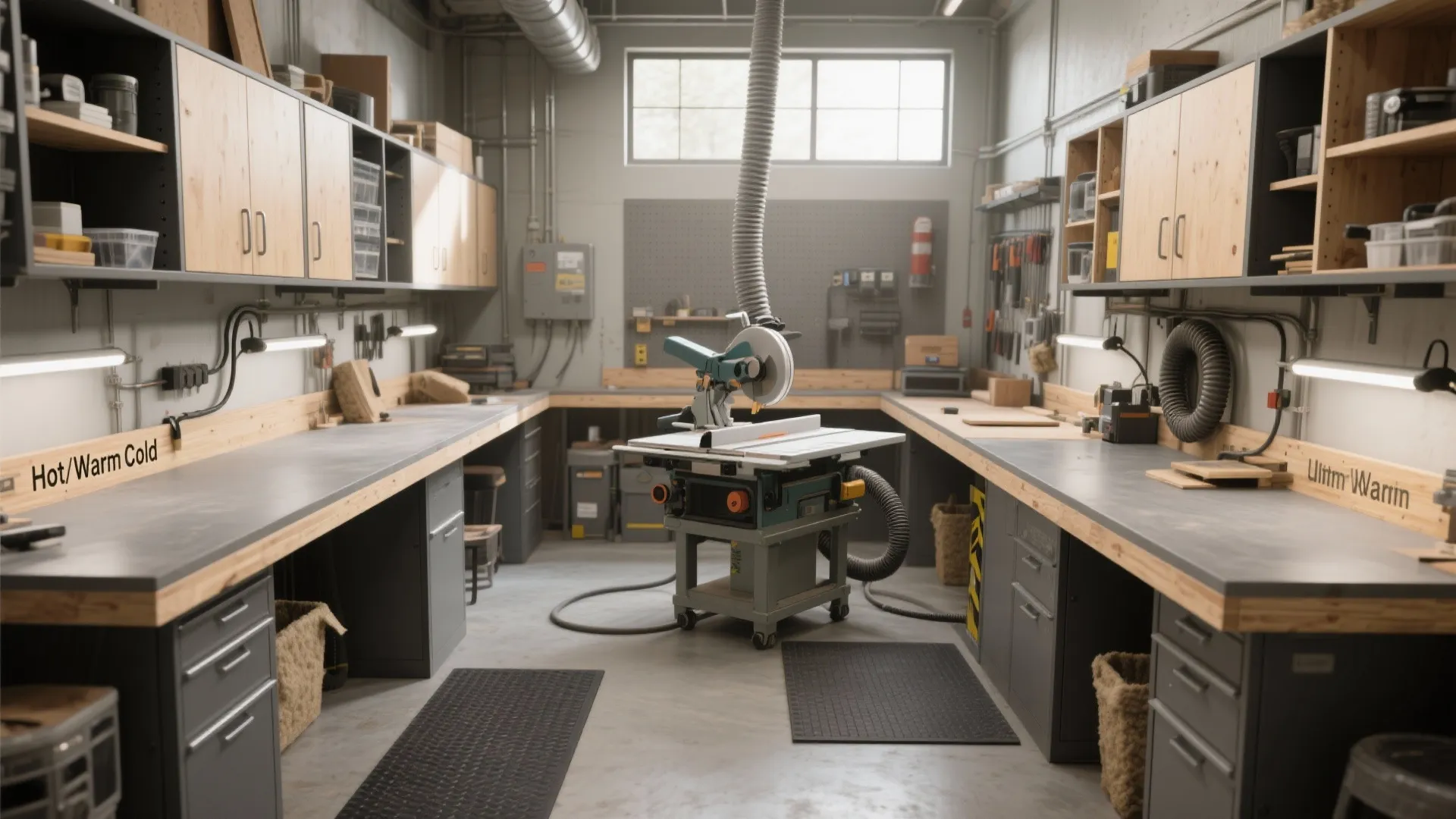

Small single-car bay (10×18 ft): wall-mounted fold-down bench opposite a compact machine wall; mobile cart becomes secondary bench; compressor in an insulated corner closet; central extractor against the short wall. Medium room (12×20 ft): U-shaped benching with assembly table floating center; table saw on a mobile base aligned with a clear out-feed lane; warm storage in upper cabinets; cold storage overhead. Large shop (20×24 ft): zoned islands—cut/shape cluster, dedicated finishing room with separate filtration, and a rolling hardware wall for fast picking.

Commissioning Checklist

- Verify 300–500 lux ambient and 750–1000 lux task lighting with a meter

- Test in-feed/out-feed clearances on all stationary tools with your longest workpiece

- Label and populate hot/warm/cold storage zones

- Balance dust collection gates and check for leaks at fittings

- Map the power panel and label dedicated circuits

- Trial a full build from receive to store and note any backtracking

FAQ

How much lighting do I need at my main workbench?

Aim for 750–1000 lux at the bench with CRI ≥90 and 3000–4000K color temperature. Keep ambient at 300–500 lux to reduce contrast and shadows.

What is the ideal aisle width in a compact tool room?

Maintain 36–42 inches for single-user flow; increase to 48 inches if two users or carts regularly pass.

How should I place my table saw for safe material handling?

Provide 60–72 inches of in-feed and out-feed clearance, keep the fence side away from obstructions, and align an out-feed table with the saw surface to prevent tipping.

Is a French cleat wall better than pegboard?

For heavier tools and evolving layouts, French cleats offer stronger, flexible support. Pegboard works for lightweight, frequently changed hand tools in high-visibility zones.

What color scheme improves visibility without glare?

Use mid-value neutral walls and benchtops in matte finishes. Add high-contrast edges on hazards and saturated accents for quick tool recognition.

How do I reduce noise from a compressor?

Place it in a lined closet with intake ventilation, mount it on vibration-isolating pads, and use flexible hose connections to decouple vibration from structure.

What storage works best for small parts?

Shallow, full-extension drawers with dividers, labeled bins, and transparent lids. Keep the most-used fasteners within arm’s reach of assembly benches.

How can I plan the layout before moving heavy cabinets?

Use an interior layout planner to test machine spacing, aisle widths, and clearances virtually. A room layout tool lets you simulate flows and avoid costly rework: room layout tool.

Do I need dedicated circuits for dust collection?

Yes. High-amperage tools and dust collectors should run on separate 20A circuits to avoid nuisance trips and dimming.

What bench height reduces back strain?

General tasks feel right around 34–38 inches; precision and light assembly benefit from 38–40 inches to keep the spine neutral and elbows near 90 degrees.
