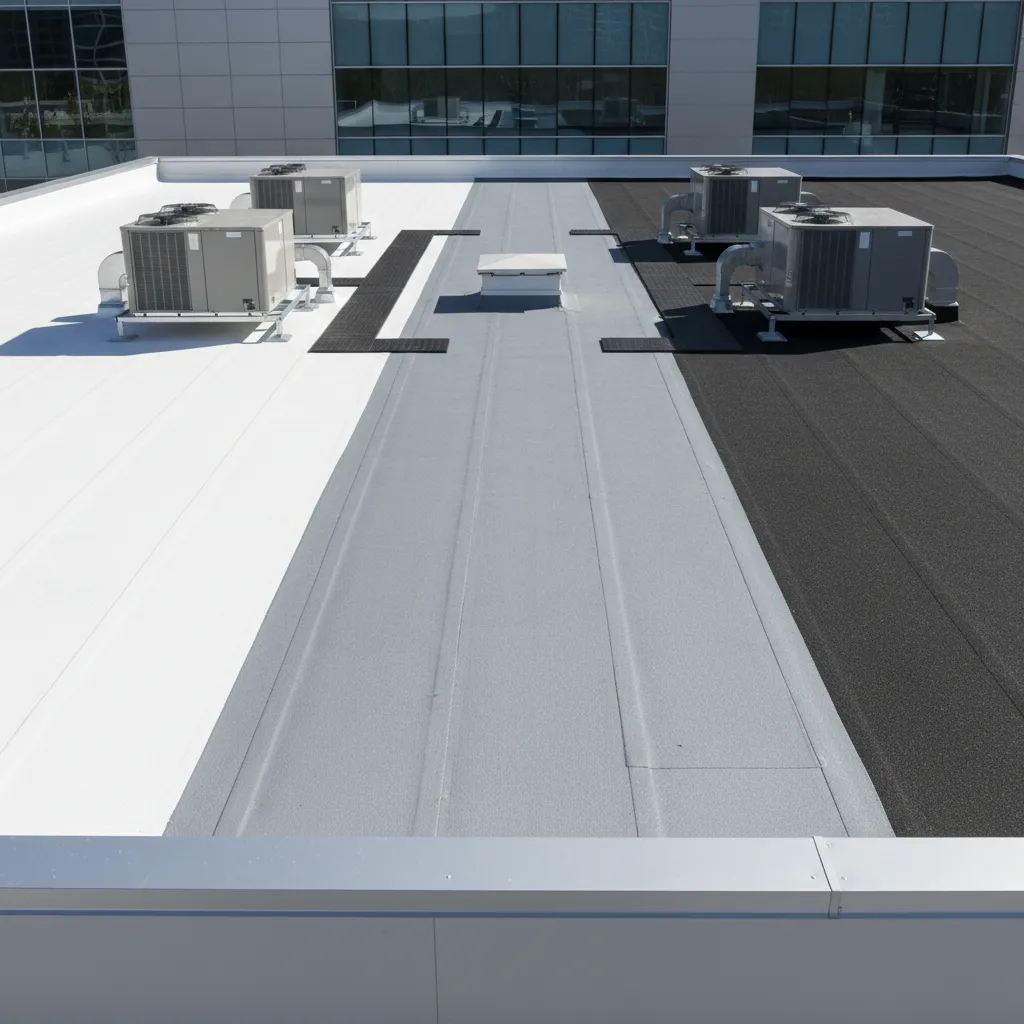

TPO vs PVC vs EPDM: Which Flat Roof Is Safest for Foot Traffic?: A practical durability and safety comparison of the three most common flat roof membranes used on commercial buildings.

Direct Answer

Among TPO, PVC, and EPDM roofing membranes, PVC generally handles frequent foot traffic the best due to its reinforced structure and strong seam welding. TPO performs well for occasional maintenance traffic, while EPDM is more vulnerable to punctures and typically requires walk pads in high‑traffic areas.

For commercial buildings with technicians regularly accessing rooftop equipment, reinforced PVC or protected TPO systems are usually the safest choices.

Quick Takeaways

1. PVC membranes usually offer the best durability for repeated rooftop maintenance traffic.
2. TPO roofs tolerate occasional walking but benefit from designated walk pads.
3. EPDM membranes are flexible but more susceptible to puncture damage.
4. Slip resistance varies widely depending on membrane texture and moisture conditions.
5. Proper traffic pathways matter more than the membrane type alone.

Introduction

After working on dozens of commercial roof design and renovation projects, one question comes up surprisingly often: which membrane actually holds up to people walking on it? The debate around TPO vs PVC vs EPDM usually focuses on energy efficiency or installation cost, but building owners often overlook something practical—foot traffic.

Maintenance technicians, HVAC contractors, solar installers, and inspectors walk across flat roofs constantly. Even a well-installed system can fail prematurely if the material isn't suited for regular access.

In projects where rooftop equipment is dense—restaurants, office buildings, and mixed-use developments—we often design traffic routes the same way we design interior circulation. In fact, many architects start by mapping access paths the same way they would when visualizing circulation paths in a 3D floor planning layout, then translate that thinking to rooftop zones.

In this guide, I'll break down how TPO, PVC, and EPDM actually behave under foot traffic, what most comparisons miss, and which system tends to perform best in real maintenance conditions.

save pin

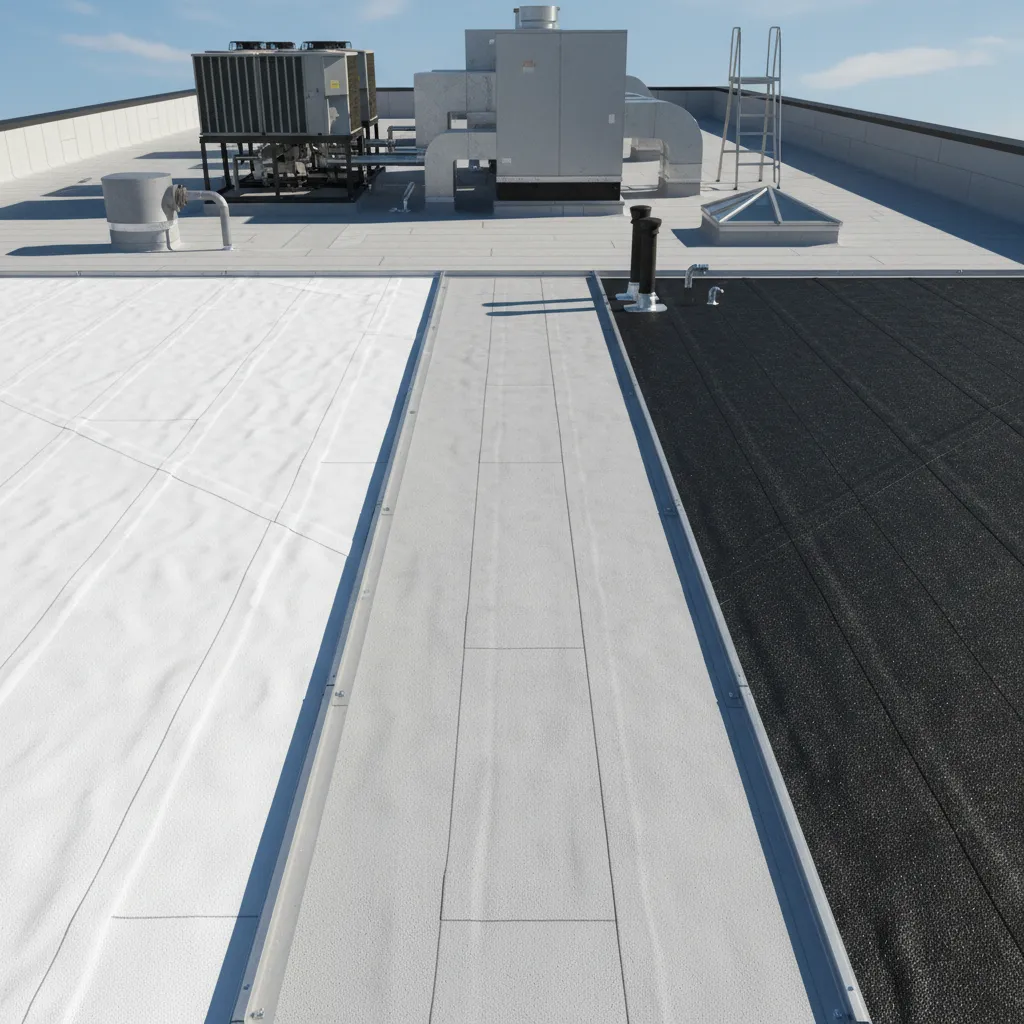

Overview of TPO, PVC, and EPDM Roofing Systems

Key Insight: TPO, PVC, and EPDM are all single‑ply membranes, but their reinforcement structure and surface properties create very different durability profiles.

Although these materials often appear interchangeable in specification sheets, their physical behavior under stress varies significantly. The main difference lies in reinforcement layers, plasticizers, and seam technology.

1. TPO (Thermoplastic Polyolefin): Heat‑welded seams, reflective surface, moderate puncture resistance.
2. PVC (Polyvinyl Chloride): Reinforced with polyester scrim, highly durable seams, excellent chemical resistance.
3. EPDM (Ethylene Propylene Diene Monomer): Rubber membrane, extremely flexible, seams typically adhered rather than welded.

Industry guidance from the National Roofing Contractors Association (NRCA) notes that reinforced thermoplastic membranes—particularly PVC—generally show higher puncture resistance than unreinforced rubber systems.

This structural difference becomes critical when technicians repeatedly walk the same path across a roof.

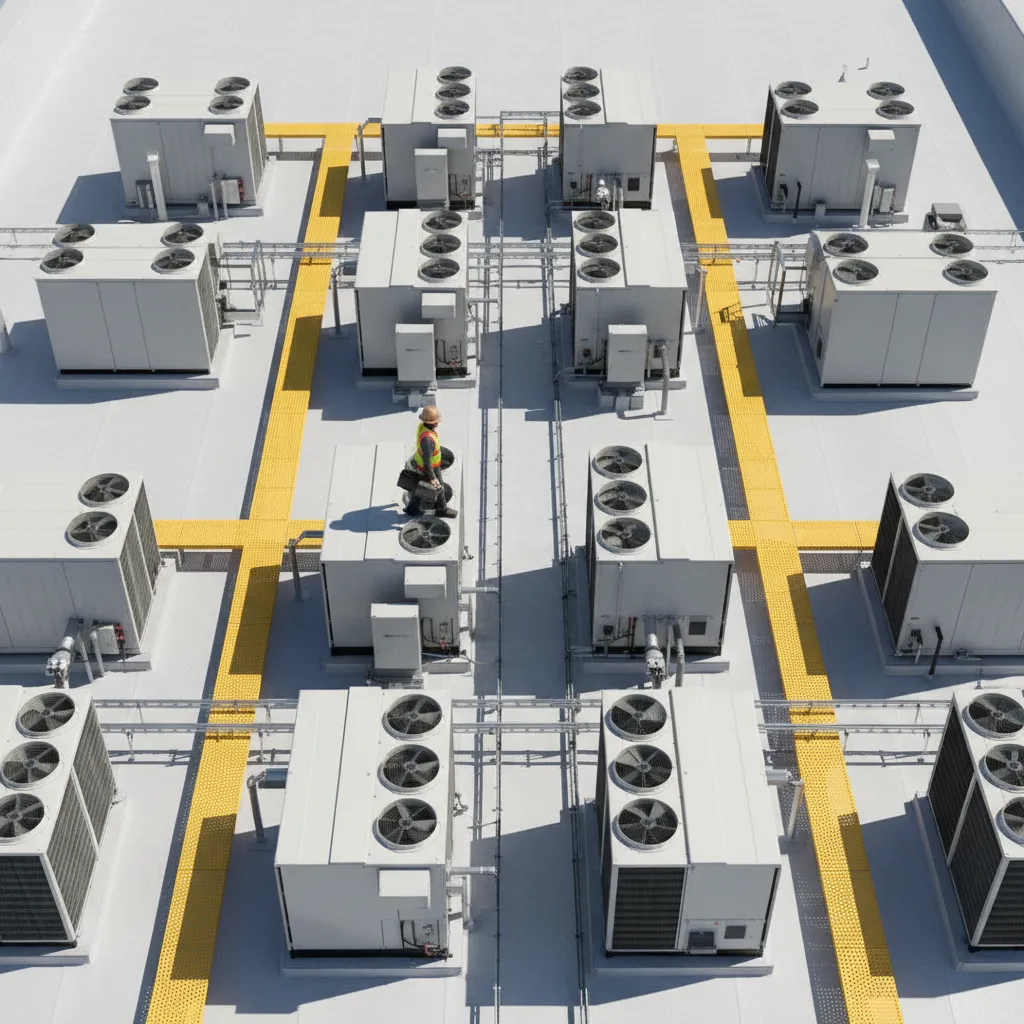

How Foot Traffic Affects Single-Ply Membranes

Key Insight: Most membrane failures from foot traffic occur at concentrated pressure points rather than general wear.

Foot traffic rarely damages a roof through simple walking. Instead, damage occurs when tools, ladder legs, or repeated pivoting motions concentrate force on a small area.

Common traffic-related stress points include:

1. Access ladders and roof hatches
2. HVAC service zones
3. Solar inverter maintenance areas
4. Drain inspection points

When planning rooftop mechanical zones, many teams first map maintenance paths similarly to how they would organize circulation routes in a functional workspace layout. That mindset helps reduce random walking patterns that accelerate membrane wear.

Without planned traffic routes, technicians naturally choose the shortest path—which often crosses seams, insulation joints, or vulnerable flashing details.

save pin

Durability Comparison Under Regular Maintenance Traffic

Key Insight: PVC generally provides the best puncture resistance under repeated traffic, followed by TPO, with EPDM requiring the most protection.

Based on manufacturer testing and field experience, the membranes perform differently under repeated service access.

1. PVC: Reinforced scrim improves tear resistance and seam durability.
2. TPO: Strong seams but slightly lower puncture resistance depending on thickness.
3. EPDM: Highly elastic but easier to puncture with tools or sharp edges.

In buildings with heavy rooftop equipment—like data centers or hospitals—I rarely see EPDM installed without extensive walk pad systems. TPO and PVC, on the other hand, can handle moderate access zones with fewer reinforcements.

Thickness also matters. A 60‑mil TPO membrane behaves very differently from a 45‑mil version when subjected to repeated foot traffic.

Answer Box

PVC membranes typically perform best for roofs with frequent foot traffic because of reinforced construction and strong heat‑welded seams. TPO handles moderate maintenance traffic well, while EPDM requires additional protection such as walk pads to prevent punctures.

Slip Resistance and Safety Considerations

Key Insight: Slip resistance depends more on surface texture and moisture conditions than the membrane type itself.

One of the biggest misconceptions in roofing is assuming material automatically determines safety. In reality, wet conditions and algae buildup influence traction more than whether the roof is TPO, PVC, or EPDM.

Typical traction characteristics:

1. TPO: Slightly textured surface offers moderate grip.
2. PVC: Smooth surface but consistent traction when dry.
3. EPDM: Rubber texture provides good grip but can accumulate dirt.

For rooftop terraces or service-heavy roofs, we sometimes model walking routes and equipment spacing using tools similar to those used for planning functional room circulation and equipment placement. The same concept—clear paths and logical zones—reduces slip hazards.

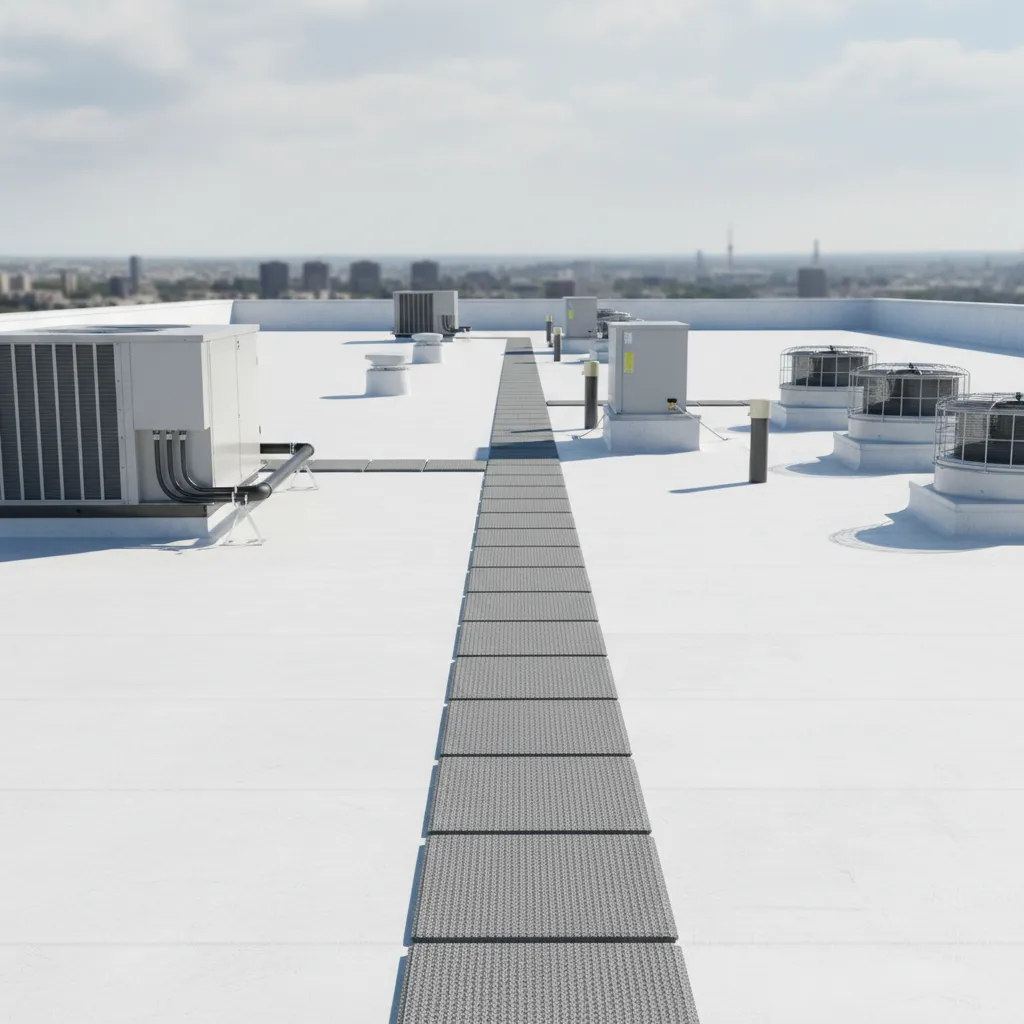

Adding dedicated walkway pads, pavers, or service corridors dramatically improves safety regardless of membrane type.

save pin

Maintenance Requirements for Each Roof Type

Key Insight: Maintenance demands vary more by traffic control strategy than by membrane material.

Many building owners assume upgrading materials eliminates traffic damage. In practice, poor maintenance planning causes most wear.

Recommended maintenance practices:

1. Install walkway pads around rooftop equipment.
2. Schedule annual membrane inspections.
3. Keep service paths clean and dry.
4. Limit contractor access to designated routes.

Facilities managers who implement defined access routes often extend roof life by several years, regardless of whether the membrane is TPO, PVC, or EPDM.

Which Roofing Material Is Best for High-Traffic Rooftops

Key Insight: For roofs with constant technician access, reinforced PVC usually provides the safest long-term performance.

Based on field experience and industry guidance, the best choice depends on traffic frequency.

1. Light traffic (occasional inspections): TPO performs well.
2. Moderate service access: Reinforced TPO or PVC.
3. Heavy maintenance traffic: PVC with designated walkways.
4. Budget-focused projects: EPDM with protective pads.

The hidden factor many comparisons ignore is service density. A roof with three HVAC units behaves very differently from a roof with twenty.

In those cases, designing traffic zones and installing reinforced paths often matters more than the membrane itself.

Final Summary

1. PVC membranes typically handle repeated foot traffic better than TPO or EPDM.
2. TPO works well for occasional maintenance access.
3. EPDM needs protective walk pads in high‑traffic areas.
4. Planned service paths dramatically reduce roof damage.
5. Roof traffic design is as important as membrane selection.

FAQ

Can you walk on a TPO roof safely?

Yes. TPO roofs can handle occasional maintenance traffic, but repeated walking should be limited to designated paths or walkway pads.

Is PVC roofing stronger than TPO?

In many cases yes. PVC membranes often have reinforced scrim layers that improve puncture resistance and seam strength.

Can you walk on EPDM roofing?

Yes, but EPDM is more vulnerable to punctures. Contractors usually install walk pads near equipment to protect the membrane.

Which roof membrane handles foot traffic best?

PVC typically performs best for repeated maintenance access due to reinforcement and durable welded seams.

Does roof thickness affect walkability?

Absolutely. A 60‑mil membrane is significantly more resistant to punctures than thinner systems.

Are rooftop walk pads necessary?

For buildings with regular maintenance visits, walk pads are strongly recommended regardless of membrane type.

Do TPO roofs get slippery?

They can become slippery when wet or dirty, similar to most roofing membranes.

What is the best flat roof membrane for foot traffic?

For heavy service access, reinforced PVC is widely considered the most durable option.
