Tree CAD Blocks for Landscape Architecture Projects: Practical vegetation CAD block strategies landscape architects use for clearer site plans and faster documentation.

Direct Answer

Tree CAD blocks for landscape architecture are standardized vegetation symbols used in site plans, master plans, and presentation drawings. They help designers communicate canopy size, planting density, and spatial relationships quickly while keeping drawings clean and readable. The best blocks combine accurate scale, consistent graphic style, and easy integration into professional CAD workflows.

Quick Takeaways

1. Tree CAD blocks help landscape architects communicate planting layout, canopy spread, and spatial hierarchy in site plans.
2. Simple, consistent vegetation symbols improve drawing readability more than overly detailed tree graphics.
3. Most professional workflows combine lightweight 2D CAD trees for plans and 3D vegetation for visualization.
4. Organized block libraries dramatically reduce drafting time in large landscape architecture projects.
5. Using scalable blocks aligned to canopy diameter prevents common planting plan mistakes.

Introduction

Tree CAD blocks are one of the most frequently used elements in landscape architecture drawings. After working on residential communities, public plazas, and campus-scale landscape plans for over a decade, I can confidently say that vegetation symbols often determine whether a drawing feels professional or chaotic.

Most young designers focus on the wrong thing: they search for highly detailed tree graphics. In real projects, clarity matters more than decoration. Contractors, city reviewers, and clients all need to read planting layouts quickly.

In practice, a well-built CAD tree library saves hours during every revision cycle. It also keeps canopy sizes consistent across site plans, sections, and presentations. If you're building a landscape documentation workflow, it helps to understand how professionals structure their vegetation symbols and where they fit within larger digital planning tools like a workflow for quickly generating scaled site layouts and floor plans.

In this guide I'll break down how tree CAD blocks are actually used in landscape architecture projects, what types professionals rely on, and the workflow tricks that make large planting plans manageable.

save pin

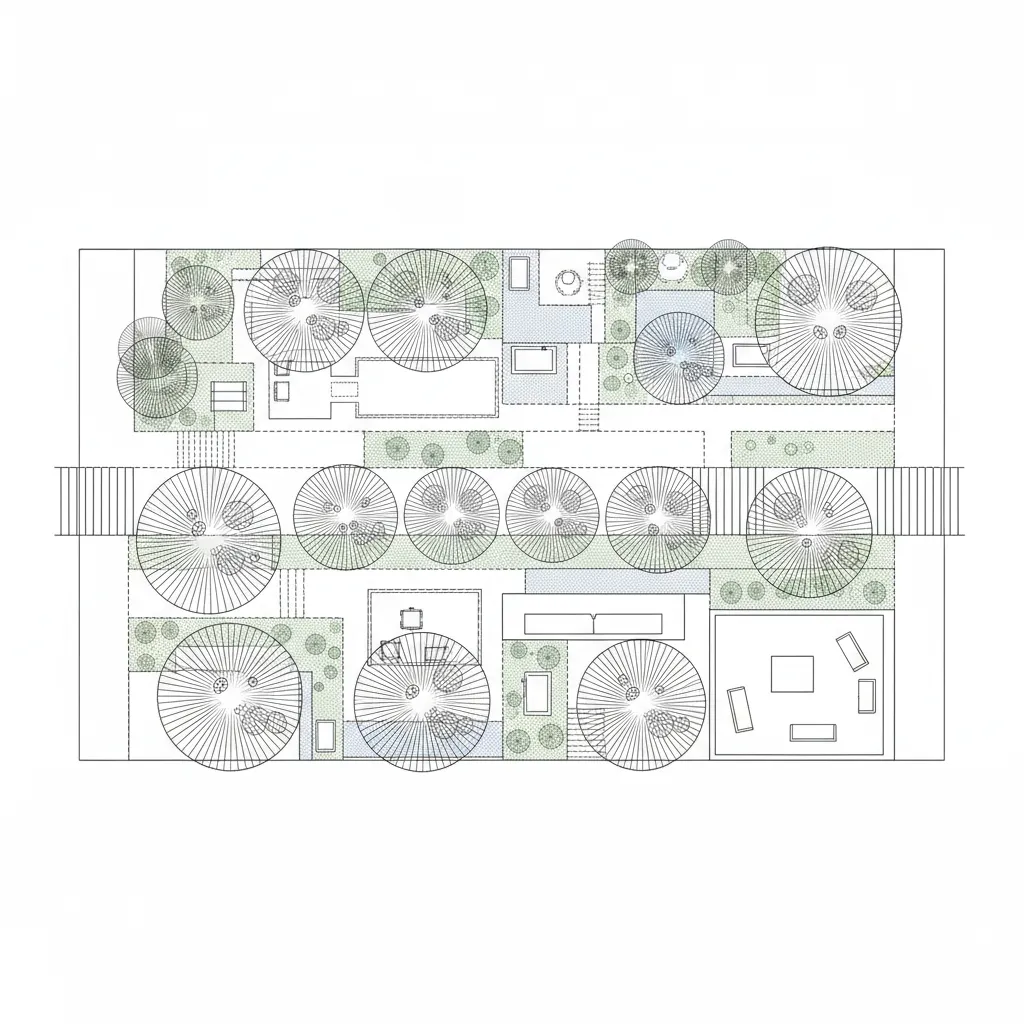

Role of Tree CAD Blocks in Landscape Architecture Drawings

Key Insight: Tree CAD blocks function as spatial planning tools, not just decorative symbols.

In landscape architecture, every tree symbol communicates several layers of information simultaneously: canopy diameter, planting spacing, and visual hierarchy within the landscape.

In construction documents, tree blocks usually represent:

1. Canopy spread at maturity
2. Tree type categories (deciduous, evergreen, palm)
3. Spacing relationships between plantings
4. Shading coverage across plazas or pathways

One mistake I see often in junior drawings is using the same symbol size for every tree. In real planting plans, canopy diameter must match the species specification listed in the plant schedule.

For example:

1. Small ornamental trees: 12–15 ft canopy
2. Medium street trees: 20–30 ft canopy
3. Large shade trees: 40–60 ft canopy

Landscape architecture programs like those at Harvard GSD and UC Berkeley emphasize this early because canopy planning affects shade coverage, microclimate design, and pedestrian comfort.

What Types of Tree Symbols Are Used in Landscape Plans?

Key Insight: Professional landscape drawings rely on a small set of standardized vegetation symbols rather than hundreds of unique graphics.

Most landscape architecture firms categorize tree CAD blocks into a few consistent types.

Common categories include:

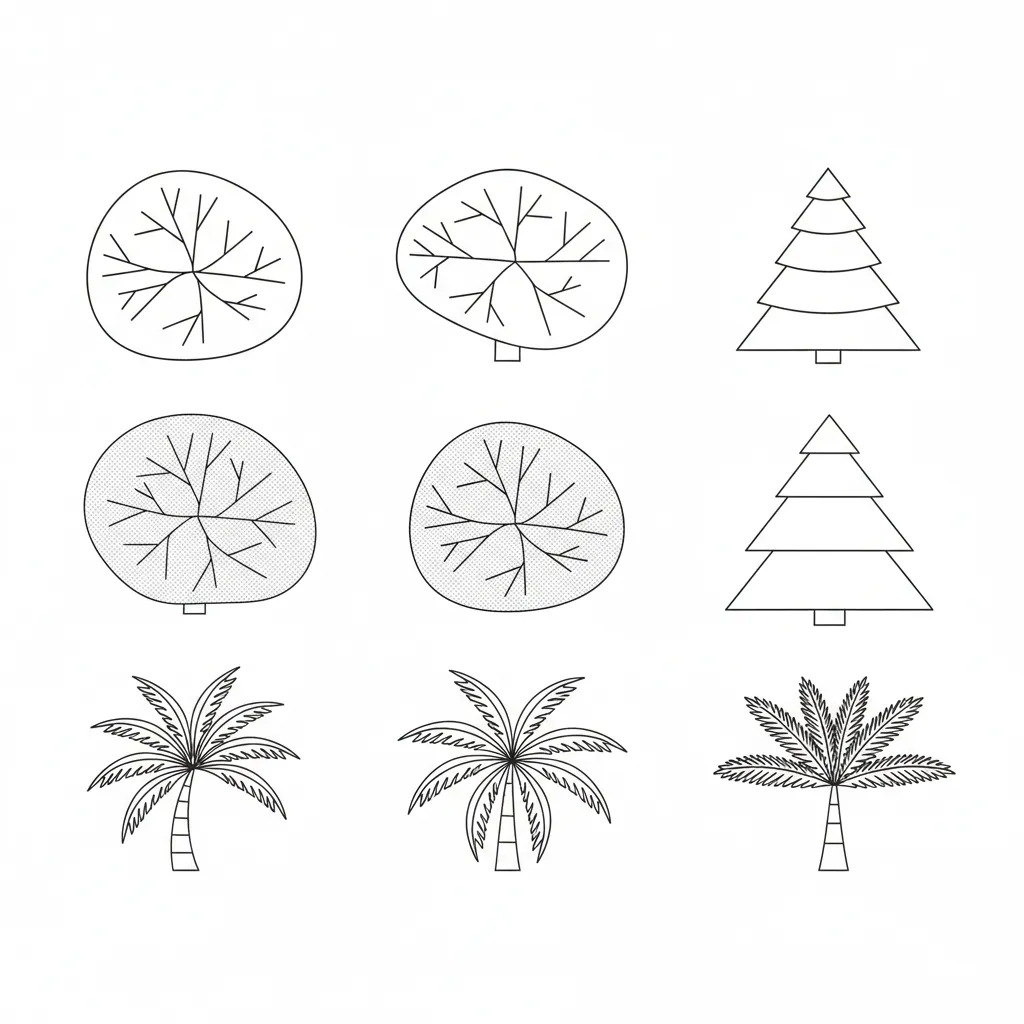

1. Deciduous tree plan symbol
2. Evergreen tree symbol
3. Palm tree symbol
4. Existing tree symbol
5. Tree to be removed
6. Mass planting canopy groups

These symbols are typically stored as scalable blocks so canopy diameter can be adjusted quickly.

For presentation drawings, some designers layer a textured canopy hatch over the base symbol. This keeps construction plans simple while allowing marketing visuals to look richer.

save pin

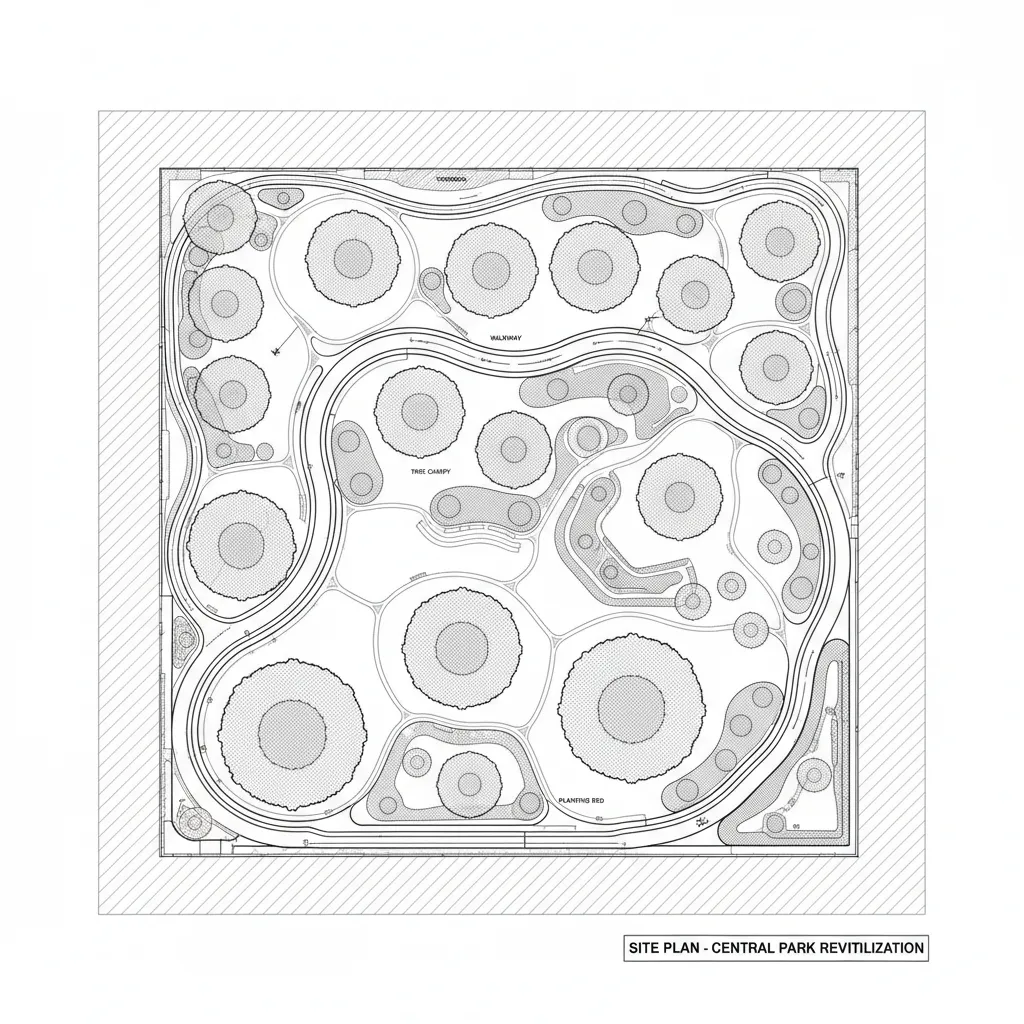

2D vs 3D Vegetation Blocks for Landscape Projects

Key Insight: 2D tree CAD blocks remain essential for documentation, while 3D vegetation models are mainly used for visualization.

There is a common misconception that 3D models replace 2D CAD trees. In reality, both serve different purposes.

2D CAD vegetation blocks

1. Used in planting plans
2. Lightweight and fast to edit
3. Essential for permit drawings
4. Easy to scale for canopy size

3D vegetation models

1. Used in renderings and presentations
2. Helpful for shadow studies
3. Important for client visualization

Many designers combine CAD drawings with visualization workflows that generate perspective images or site views using tools similar to those used in high‑quality architectural visualization and rendering workflows.

The key is keeping documentation layers lightweight while separating visualization assets.

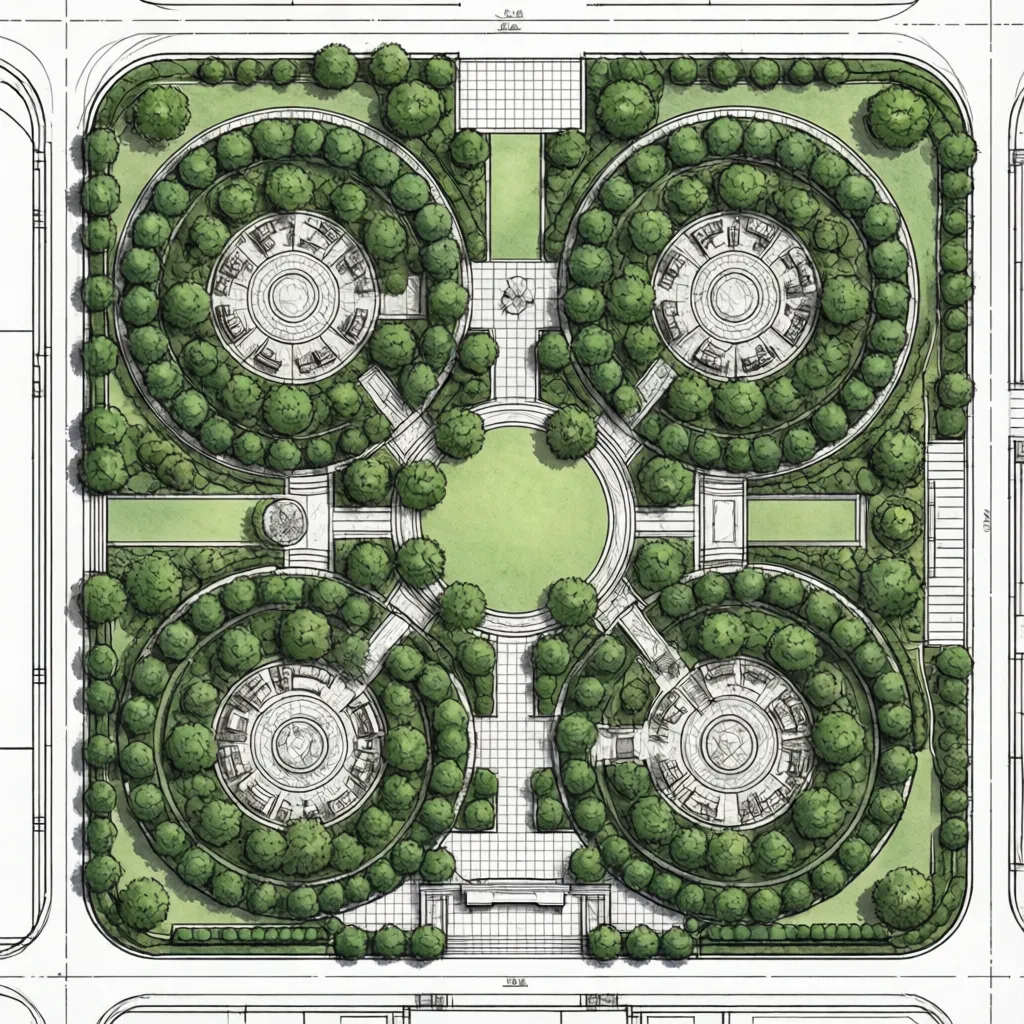

Integrating Tree Blocks into Site Plans and Master Plans

Key Insight: The biggest efficiency gain comes from organizing tree blocks around canopy size rather than species.

Early in my career I tried organizing blocks by species name. That sounds logical, but it slows down drafting.

Experienced landscape architects usually organize tree blocks by canopy diameter instead.

Example library structure:

1. Tree_15ft_canopy
2. Tree_25ft_canopy
3. Tree_35ft_canopy
4. Tree_50ft_canopy

Then species information is handled inside the plant schedule, not the block itself.

This approach works particularly well for large-scale landscape master plans where hundreds of trees must be placed quickly while maintaining spacing logic.

save pin

Answer Box

The most effective tree CAD blocks prioritize scalability, clear canopy representation, and organized libraries. Landscape architects rely on lightweight 2D vegetation symbols for planning and documentation, while 3D vegetation models are used mainly for visualization and presentations.

Recommended Tree CAD Resources for Landscape Designers

Key Insight: High-quality tree CAD libraries save more time than any other drafting asset in landscape projects.

Reliable vegetation CAD blocks typically come from three sources:

1. Professional landscape architecture libraries
2. University landscape design resources
3. Architectural CAD platforms

When evaluating a tree CAD library, I usually check three things:

1. Consistent graphic style
2. Multiple canopy sizes
3. Clean linework with minimal file weight

Many designers also combine CAD vegetation symbols with broader planning tools used for spatial layout and conceptual planning such as interactive digital tools for planning large site and floor layouts.

This hybrid workflow speeds up early-stage design while keeping CAD documentation precise.

Workflow Tips for Large Landscape Projects

Key Insight: Large landscape projects fail when vegetation libraries become disorganized.

Projects like parks, campuses, and mixed-use developments may include thousands of trees. Without a structured workflow, drawings become slow and error-prone.

Here are a few practices used in professional landscape studios:

1. Create a dedicated vegetation block library file
2. Separate existing trees from proposed trees
3. Use consistent layers for tree categories
4. Link planting plans with species schedules
5. Avoid overly complex block geometry

A surprising hidden cost in landscape CAD drawings is overly detailed tree blocks. Complex symbols can dramatically increase file size and slow down large site plans.

In my experience, clean linework almost always beats decorative graphics when a project scales up.

Final Summary

1. Tree CAD blocks communicate canopy size, planting density, and spatial hierarchy.
2. Simple standardized vegetation symbols improve drawing clarity.
3. 2D CAD trees remain essential for documentation workflows.
4. Organizing blocks by canopy diameter speeds up large projects.
5. Lightweight CAD symbols prevent slow, oversized drawing files.

FAQ

What are tree CAD blocks used for?

Tree CAD blocks represent vegetation in landscape architecture drawings such as planting plans, site plans, and master plans.

Where can I download tree CAD blocks for landscape architecture?

You can find vegetation CAD blocks from architecture libraries, landscape design resources, and CAD asset platforms.

Are 2D or 3D tree CAD blocks better for landscape drawings?

2D tree CAD blocks are better for construction drawings, while 3D models are used mainly for visualizations.

How do landscape architects scale tree CAD blocks?

They usually scale blocks based on canopy diameter at maturity, matching the plant schedule specifications.

Do tree CAD blocks represent specific species?

Usually not. Most blocks represent canopy size categories, while species information appears in the planting schedule.

Why are simple tree symbols preferred in CAD drawings?

Simple symbols keep drawings readable and reduce file size in large landscape architecture CAD files.

What layers should vegetation CAD blocks use?

Common layers include existing trees, proposed trees, palms, shrubs, and trees to be removed.

How many tree CAD blocks should a library contain?

A practical landscape architecture library typically contains 10–30 scalable canopy symbols rather than hundreds of variations.
