Troubleshooting Mesh and Topology Issues in Detailed Jali Models: Practical ways to repair geometry errors and stabilize intricate lattice patterns in professional 3D jali modeling workflows.

Direct Answer

Mesh and topology issues in detailed jali models usually come from non‑manifold edges, overlapping faces, unstable boolean cuts, or excessively dense topology. The most reliable fix is to clean the mesh early, maintain quad‑dominant topology, and control subdivision before applying decorative lattice repetition.

When the base geometry is stable, even extremely intricate jali patterns remain predictable during rendering, boolean operations, and subdivision.

Quick Takeaways

1. Most jali mesh failures come from booleans applied to messy base geometry.
2. Quad‑dominant topology makes lattice structures easier to subdivide and edit.
3. Dense decorative meshes should be cleaned with merge, dissolve, and limited decimation.
4. Non‑manifold edges often appear where lattice segments intersect or overlap.
5. Testing subdivision early prevents catastrophic mesh breakage later.

Introduction

After working on dozens of architectural visualization projects involving carved screens and decorative facades, I can tell you one thing: jali modeling looks simple until the topology breaks. The moment you start pushing intricate lattice patterns, geometry problems multiply fast.

The most common complaints I see from designers are warped faces, broken boolean cuts, shading artifacts, and subdivision explosions. These are classic symptoms of unstable topology in a complex decorative mesh.

Interestingly, many of these issues start before the jali pattern is even created. They begin with poorly structured base surfaces or uncontrolled mesh density. When teams build architectural scenes using workflows similar to building accurate architectural layouts before adding decorative structures, the final lattice geometry behaves much more predictably.

In this guide I'll walk through the exact geometry problems I repeatedly encounter when creating refined lattice screens—and the practical fixes that actually work in production environments.

save pin

Common Geometry Problems in Jali 3D Models

Key Insight: Most geometry errors in jali models come from topology that was never designed to support repeated lattice cuts.

In decorative modeling, artists often jump straight into pattern creation. But lattice structures amplify even tiny topology mistakes.

Here are the problems I encounter most frequently:

1. Non‑manifold edges created where multiple lattice beams intersect
2. Overlapping faces after boolean operations
3. N‑gons that distort during subdivision
4. Internal faces hidden inside dense patterns
5. Uneven vertex spacing causing shading artifacts

In one residential facade project I supervised, a decorative jali panel had over 120,000 polygons—but nearly 15% were hidden internal faces. Removing them reduced render artifacts immediately and cut render times significantly.

This is why professional architectural modeling workflows focus on structural mesh planning before adding ornamentation.

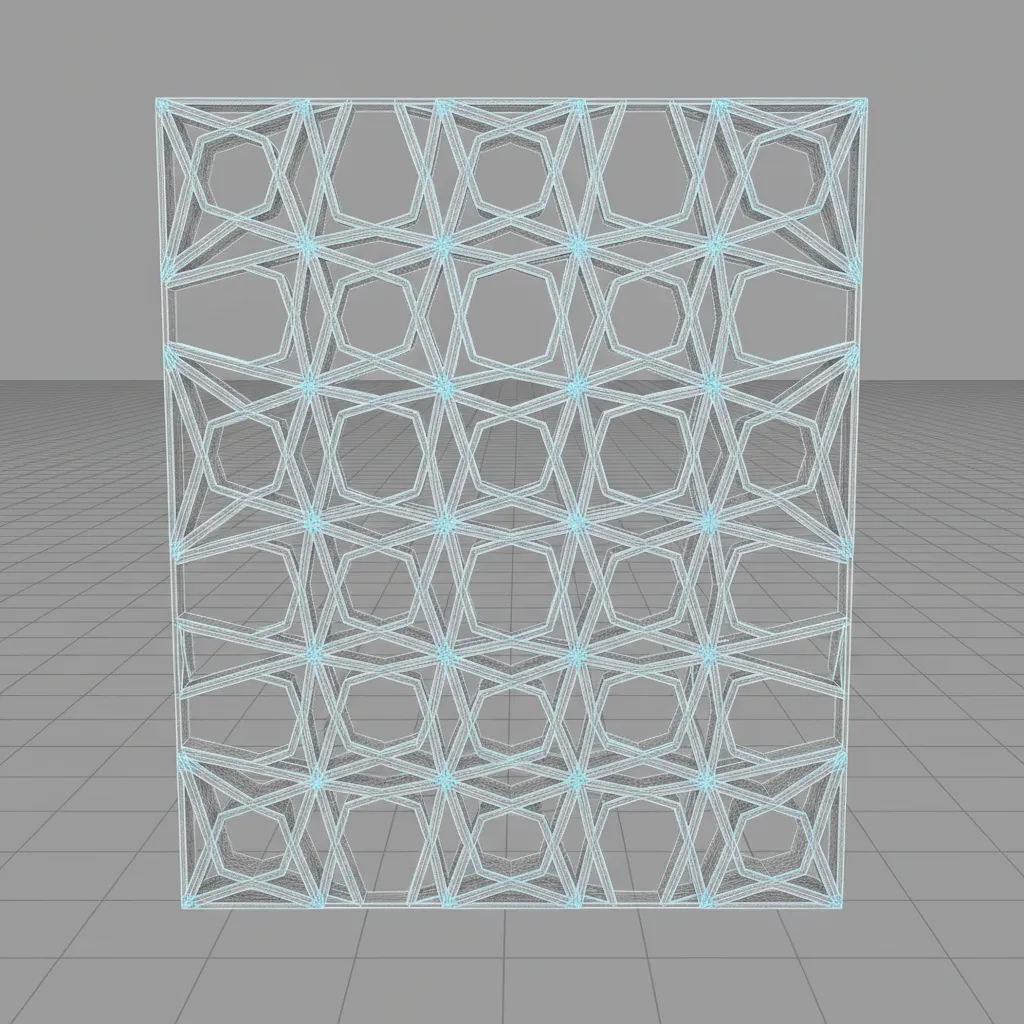

Fixing Non Manifold Edges in Lattice Structures

Key Insight: Non‑manifold edges usually appear where lattice segments intersect without clean vertex sharing.

Jali patterns contain many intersecting elements. If those intersections aren't welded correctly, the mesh becomes mathematically invalid.

Typical causes include:

1. Boolean operations that leave floating edges
2. Copied lattice segments overlapping slightly
3. Extrusions that create internal geometry

Steps that consistently fix the problem:

1. Run a non‑manifold selection tool.
2. Merge overlapping vertices within a small threshold.
3. Delete internal faces created by intersections.
4. Rebuild connections with clean quad bridges.

Architectural visualization studios often rebuild intersections manually because automated booleans rarely maintain clean topology in ornamental patterns.

save pin

Resolving Overlapping Faces and Boolean Errors

Key Insight: Boolean operations are the fastest way to create jali patterns—but they are also the fastest way to destroy mesh integrity.

Designers often use boolean arrays to punch repeating shapes through a surface. This works beautifully until the pattern density increases.

Typical boolean failures include:

1. Thin fragments of geometry left behind
2. Overlapping coplanar faces
3. Broken shading across edges

A workflow I recommend to students:

1. Apply booleans on a low‑density base mesh
2. Clean topology before adding thickness
3. Convert N‑gons into quads where possible

For designers building full architectural scenes, combining structured layout planning with detailed modeling—similar to workflows used when planning room layouts before placing architectural elements—helps maintain control over complex geometry.

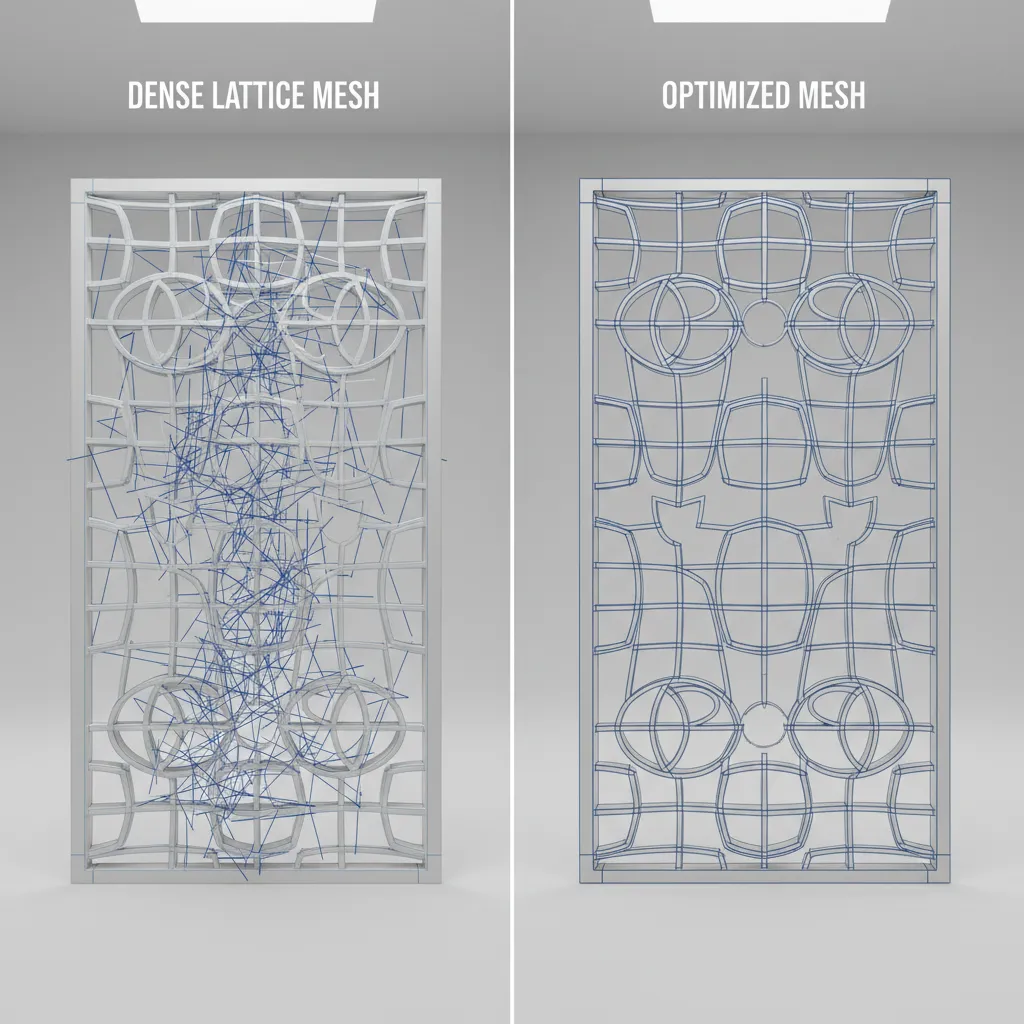

Cleaning Up Dense Jali Topology

Key Insight: Dense jali meshes must be simplified regularly or they become impossible to edit or render efficiently.

Decorative lattice designs often explode polygon counts. Without cleanup, models quickly become unstable.

Effective cleanup techniques include:

1. Merge by distance to remove duplicate vertices
2. Dissolve edges that don't affect the pattern
3. Limited decimation to reduce hidden polygons
4. Manual retopology for key decorative regions

In a hospitality project I reviewed, reducing hidden geometry in a perforated jali divider lowered the polygon count from 380k to 140k with no visible difference in renders.

save pin

Preventing Mesh Breakage During Subdivision

Key Insight: Subdivision breaks jali meshes when the topology contains long triangles, N‑gons, or uneven edge loops.

Subdivision surfaces exaggerate topology problems. A mesh that looks fine at base resolution may collapse once smoothed.

To prevent this:

1. Maintain quad‑dominant topology
2. Add supporting edge loops around pattern borders
3. Avoid extremely thin lattice beams
4. Test subdivision early in the modeling process

Designers preparing high‑quality architectural visuals often verify mesh stability before rendering scenes similar to producing photorealistic architectural interior renders, where shading issues become very obvious.

Answer Box

The most reliable way to fix topology issues in jali 3D models is to clean the base mesh, remove non‑manifold edges, avoid destructive booleans, and maintain quad‑dominant topology before subdivision. Stable foundational geometry prevents nearly all lattice modeling failures.

Best Practices for Stable Jali Geometry

Key Insight: The stability of a jali model depends far more on the base structure than on the decorative pattern itself.

After years of modeling decorative screens for architectural projects, these habits consistently prevent problems:

1. Start with evenly spaced quad grids
2. Keep lattice thickness consistent
3. Avoid intersecting geometry where possible
4. Clean topology after every major modeling stage
5. Use pattern instances rather than fully duplicated geometry

One overlooked detail: overly thin decorative beams often create shading artifacts and structural instability. Slightly thicker geometry usually produces cleaner renders and more reliable topology.

Final Summary

1. Messy base meshes are the root cause of most jali modeling errors.
2. Non‑manifold edges appear where lattice segments intersect incorrectly.
3. Boolean operations require cleanup before subdivision.
4. Regular topology cleanup keeps dense decorative meshes manageable.
5. Quad‑dominant topology ensures stable lattice subdivision.

FAQ

Why do jali 3D models often produce shading artifacts?

Shading artifacts usually come from overlapping faces, internal geometry, or uneven vertex normals inside dense lattice structures.

How do I fix topology issues in jali 3D models?

Start by removing non‑manifold edges, merging duplicate vertices, deleting internal faces, and rebuilding intersections with clean quad topology.

Why do boolean operations fail in jali geometry?

Booleans fail when the base mesh is too dense or contains N‑gons. Applying booleans on simplified geometry reduces errors.

What causes non manifold edges in lattice modeling?

They appear when multiple edges share inconsistent connections, often from overlapping lattice segments or failed booleans.

Is quad topology necessary for jali modeling?

It's strongly recommended. Quad topology subdivides predictably and prevents mesh distortion in intricate patterns.

How dense should a jali mesh be?

Only as dense as needed for visual detail. Excessively dense meshes slow editing and increase rendering problems.

Can decimation damage intricate lattice patterns?

Yes if applied aggressively. Use limited decimation and always check pattern symmetry afterward.

What is the fastest way to repair complex decorative mesh?

Identify non‑manifold edges, remove internal faces, simplify dense areas, and rebuild intersections with clean topology.
