Understanding 3D Modelling in AutoCAD for Interior Design: Learn how AutoCAD 3D modeling actually works and how designers use it to visualize, test, and present real interior spaces.

Direct Answer

3D modelling in AutoCAD is the process of creating three‑dimensional digital representations of spaces and objects using solid, surface, or mesh tools. Designers use it to visualize interiors, test spatial relationships, and produce realistic perspectives before construction begins.

For interior designers, AutoCAD 3D modelling bridges the gap between technical drafting and spatial visualization, allowing accurate layouts, furniture placement, and lighting studies in a realistic environment.

Quick Takeaways

1. AutoCAD 3D modelling turns 2D drawings into realistic spatial visualizations.
2. Designers mainly use solid modelling for interiors because it maintains precise dimensions.
3. 3D models help detect layout conflicts long before construction begins.
4. AutoCAD works best when 2D drafting and 3D modelling are combined in the same workflow.

Introduction

When people first hear about 3D modelling in AutoCAD, they often assume it's mainly for architects or mechanical engineers. But after more than a decade working on residential interior projects, I can tell you that AutoCAD's 3D capabilities are incredibly useful for interior designers as well.

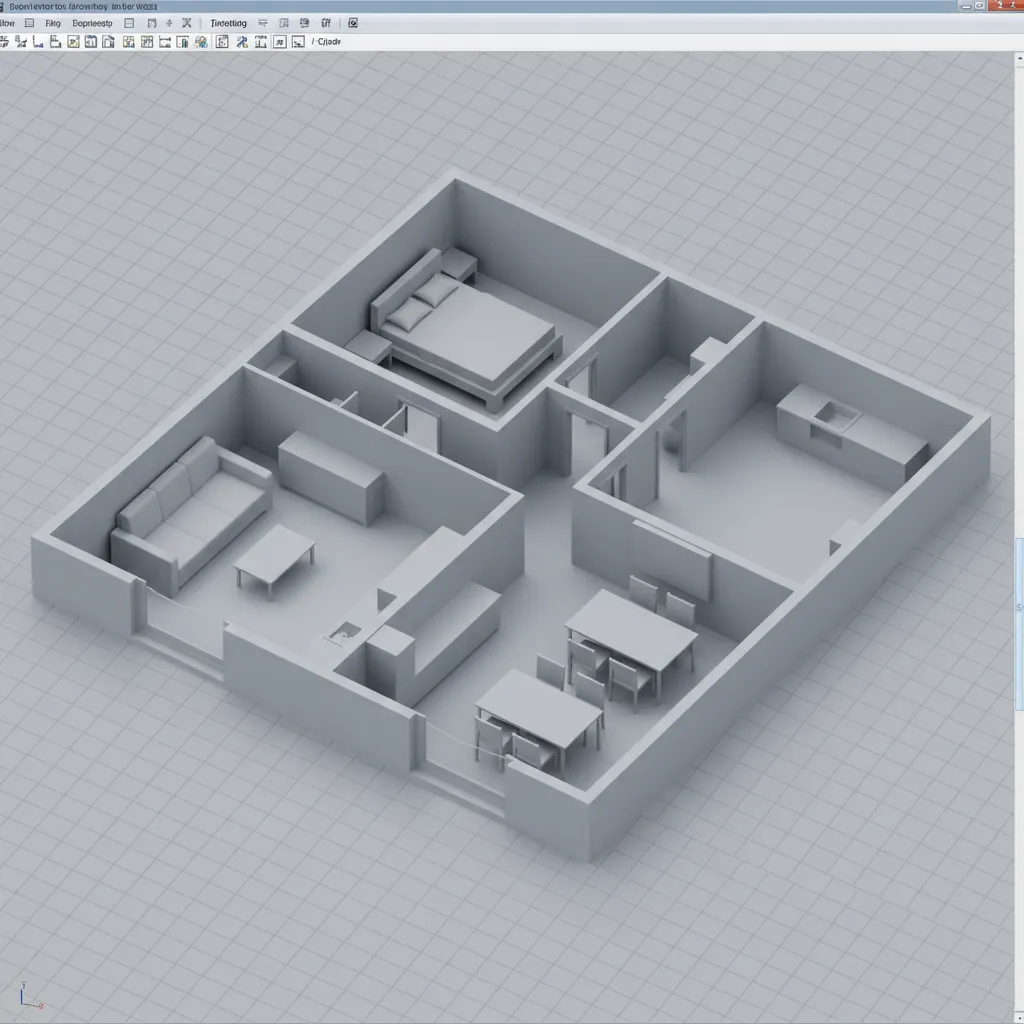

In many of my projects, clients struggled to understand flat 2D plans. Once we converted those drawings into a simple AutoCAD 3D model, everything clicked instantly. They could see ceiling heights, furniture spacing, and circulation paths in a way floor plans simply couldn't show.

This guide explains how AutoCAD 3D modelling works, when it actually makes sense to use it, and some practical insights I learned from real projects where 3D modelling either saved time—or wasted it.

save pin

What Is 3D Modelling in AutoCAD?

Key Insight: AutoCAD 3D modelling allows designers to build digital objects with height, width, and depth instead of relying only on flat drawings.

Traditional AutoCAD drafting focuses on 2D plans, sections, and elevations. While these remain essential, they don't fully communicate spatial relationships. 3D modelling adds the missing dimension—depth—so the design can be explored from any angle.

AutoCAD supports three main modelling approaches:

1. Solid Modeling – Best for interiors, furniture, cabinetry, and architectural components.
2. Surface Modeling – Useful for curved or complex forms.
3. Mesh Modeling – Often used for conceptual shapes and imported models.

In interior design workflows, solid modelling dominates because it preserves accurate measurements. Cabinets, walls, countertops, and built‑ins all rely on precise dimensions.

Autodesk documentation and most professional training programs also emphasize solids for architectural visualization because they behave predictably with Boolean operations like union, subtract, and intersect.

Why Do Interior Designers Use AutoCAD for 3D Modelling?

Key Insight: Designers use AutoCAD 3D modelling primarily to validate spatial decisions rather than to create final photorealistic renders.

This is a point many tutorials miss. AutoCAD is not the best rendering engine compared with software like 3ds Max or Lumion. But it excels at something more important in early design phases: spatial accuracy.

In my own projects, 3D modelling inside AutoCAD helps with:

1. Checking ceiling and lighting layouts
2. Testing cabinet heights and clearances
3. Verifying furniture circulation paths
4. Evaluating sightlines in open‑plan homes

For example, during a recent Los Angeles apartment renovation, a 3D model revealed that pendant lights above the kitchen island would block the living room TV sightline. The issue never appeared in the 2D plan.

This type of conflict detection is one of the most practical uses of AutoCAD 3D modelling.

save pin

How Does the AutoCAD 3D Modelling Workflow Typically Work?

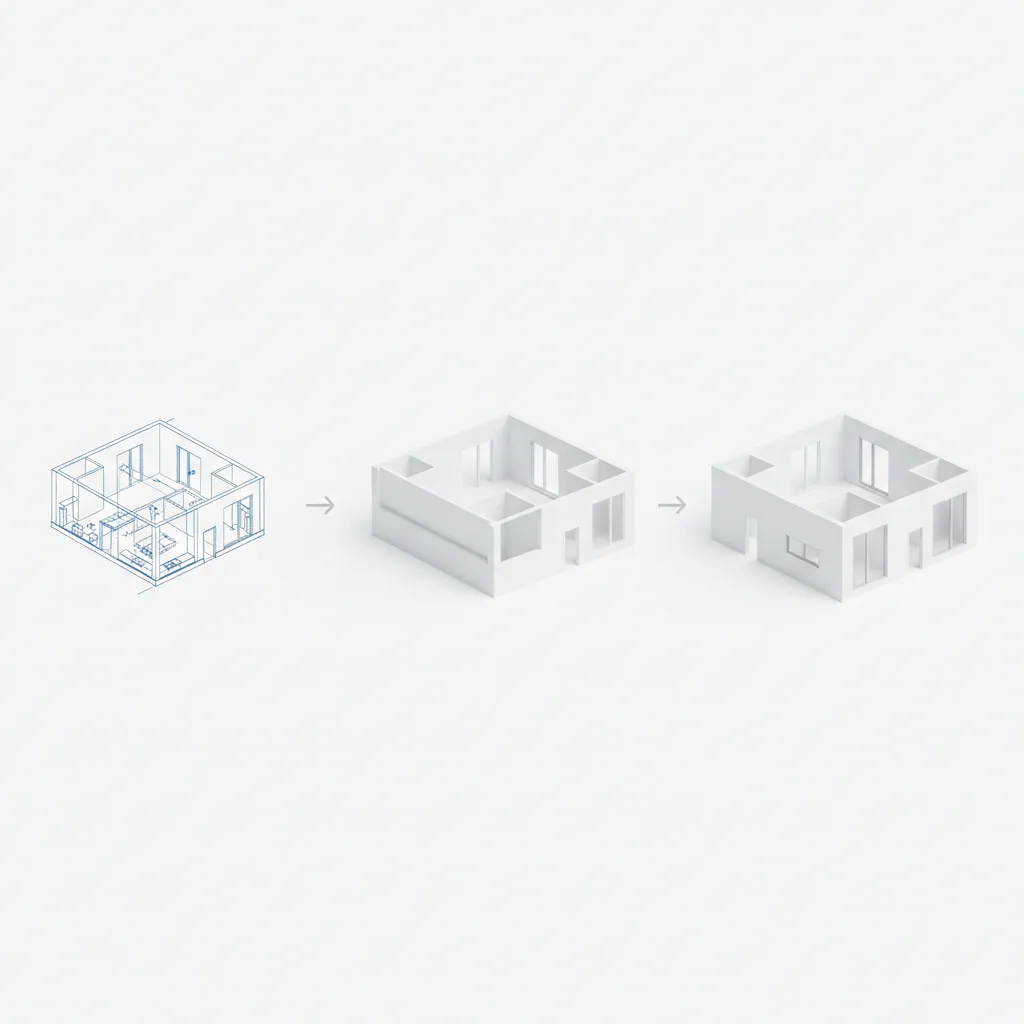

Key Insight: The most efficient AutoCAD 3D workflow starts with a complete 2D plan and then extrudes elements into 3D.

Many beginners try to model directly in 3D from scratch, which slows everything down. In professional studios, the process usually follows a predictable sequence.

Typical workflow:

1. Create accurate 2D floor plans.
2. Draw walls, doors, and windows.
3. Use the EXTRUDE command to convert walls into 3D solids.
4. Add ceilings, floors, and architectural details.
5. Insert furniture blocks or model custom pieces.
6. Apply materials and basic lighting.

This hybrid workflow is efficient because the same file can produce:

1. Construction drawings
2. Sections and elevations
3. 3D views for presentations

Autodesk training materials also recommend maintaining strong layer organization so both 2D and 3D information remain manageable.

What Tools Are Most Important for AutoCAD 3D Modelling?

Key Insight: A small set of commands handles the majority of interior modelling tasks.

After working on dozens of residential projects, I noticed designers repeatedly rely on the same core tools rather than the entire command library.

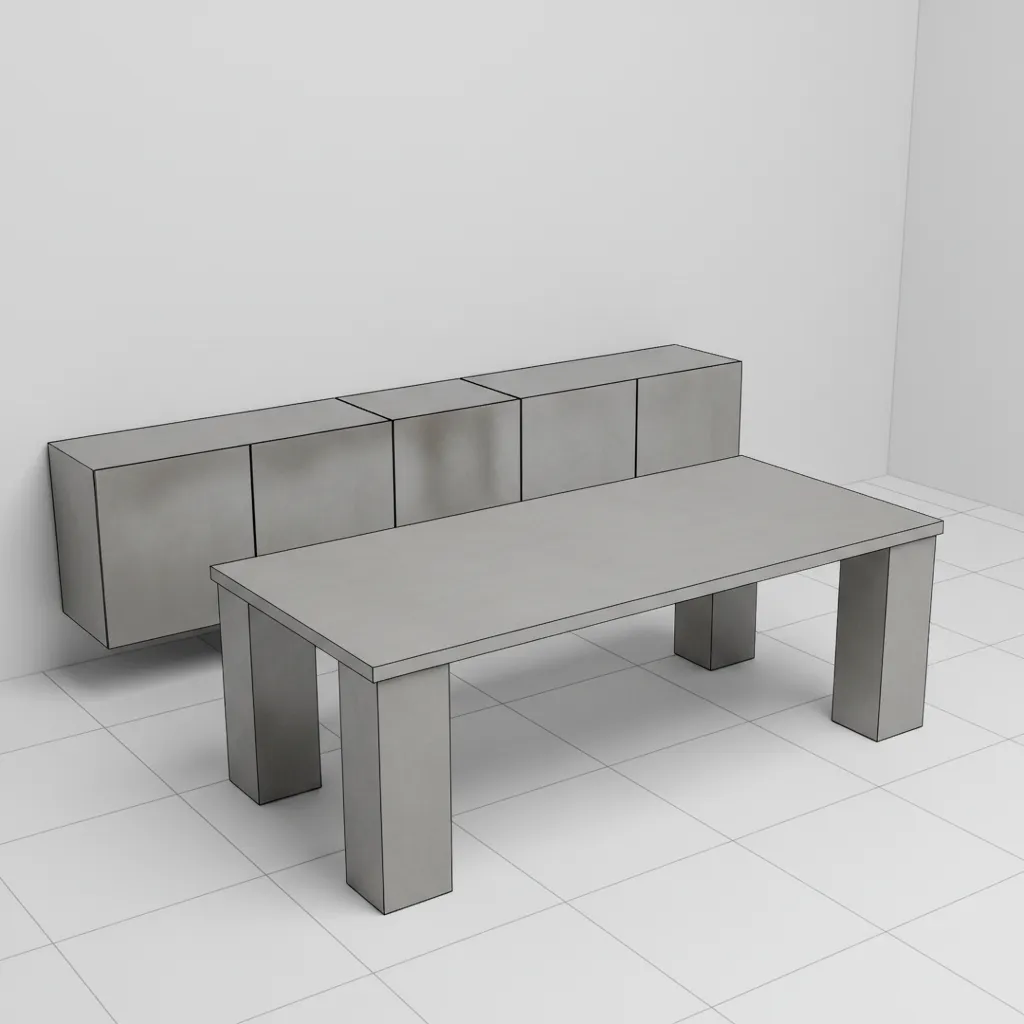

Essential AutoCAD 3D modelling tools include:

1. EXTRUDE – Converts 2D shapes into 3D objects.
2. PRESSPULL – Quickly pushes or pulls surfaces.
3. UNION – Combines objects into a single solid.
4. SUBTRACT – Cuts openings such as windows or niches.
5. REVOLVE – Creates circular objects like columns or lamps.
6. FILLETEDGE – Softens edges on furniture or countertops.

Most furniture, cabinetry, and architectural elements can be built with just these commands.

save pin

Common Mistakes Beginners Make With AutoCAD 3D Modelling

Key Insight: Many beginners overcomplicate models instead of focusing on clean geometry and functional visualization.

From teaching junior designers in our studio, I regularly see the same issues appear.

Common mistakes include:

1. Modeling unnecessary decorative details too early
2. Ignoring layer organization
3. Using mesh objects when solids are more efficient
4. Creating extremely heavy files with imported assets
5. Attempting photorealistic rendering inside AutoCAD

One overlooked problem is file performance. Overly complex models can make AutoCAD unstable, especially on large residential projects.

A cleaner approach is to model architectural volumes first and add detail only where visualization actually requires it.

save pin

Is AutoCAD the Best Tool for 3D Interior Modelling?

Key Insight: AutoCAD is excellent for accurate 3D spatial modelling but is rarely the final visualization tool in modern design pipelines.

In many professional studios, AutoCAD works alongside other software rather than replacing it.

Typical workflow comparison:

1. AutoCAD – precise drawings and technical models
2. SketchUp – quick conceptual massing
3. Revit – BIM‑based architectural modeling
4. 3ds Max or Lumion – photorealistic rendering

Personally, I still rely on AutoCAD for early spatial validation. Once the geometry is correct, the model can be exported to rendering software for high‑quality visuals.

Answer Box

AutoCAD 3D modelling helps designers transform technical drawings into spatial models that reveal layout issues, proportions, and design relationships. While it may not replace dedicated rendering tools, it remains one of the most reliable ways to test interior designs with precise dimensions.

Final Summary

1. AutoCAD 3D modelling converts flat plans into spatial visualizations.
2. Interior designers mainly rely on solid modelling tools.
3. The most efficient workflow starts with accurate 2D drawings.
4. Simple geometry and clean layers prevent heavy files.
5. AutoCAD often works alongside rendering software.

FAQ

What is 3D modelling in AutoCAD?

3D modelling in AutoCAD is the creation of digital objects with height, width, and depth using solid, surface, or mesh tools.

Is AutoCAD good for 3D modelling?

Yes. AutoCAD is strong for precise technical modelling, especially for architectural layouts, interiors, and engineering components.

Do interior designers use AutoCAD 3D modelling?

Yes. Many interior designers use AutoCAD 3D modelling to visualize layouts, test furniture placement, and detect spatial conflicts early.

Is AutoCAD 3D difficult to learn?

It has a learning curve, but most interior modelling tasks rely on a small group of commands like Extrude, PressPull, and Union.

Can AutoCAD create realistic renders?

It can produce basic renders, but most professionals export models to specialized rendering software.

What is the difference between 2D and 3D in AutoCAD?

2D drafting creates flat plans and elevations, while 3D modelling represents real spatial volume and depth.

Is AutoCAD or SketchUp better for interiors?

AutoCAD is better for precise technical drawings, while SketchUp is often faster for conceptual 3D visualization.

How long does it take to learn AutoCAD 3D modelling?

Basic skills can be learned in a few weeks, but mastering efficient workflows usually takes several months of practice.
