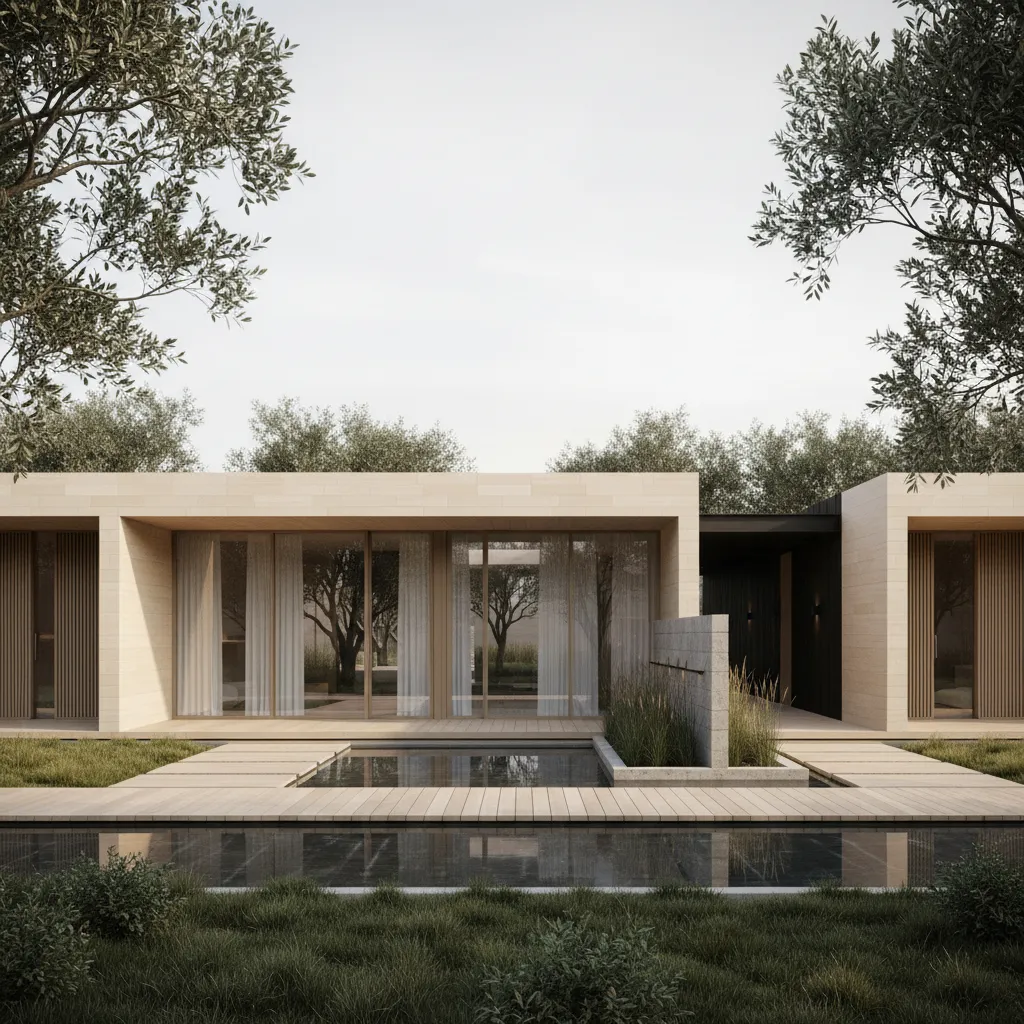

Villa Layout with Staff Quarters: Designing a high-autonomy villa where domestic operations and private rituals run on parallel threads

Future living is converging on discreet service layers and seamless privacy—because today’s pain point is household support colliding with family downtime. AIA reports ongoing shifts toward flexible back-of-house zones in custom homes, a quiet trend that validates a spatial coordination workflow built for a villa layout with staff quarters. The future is pressing in, and I’ve already seen the script compiling.

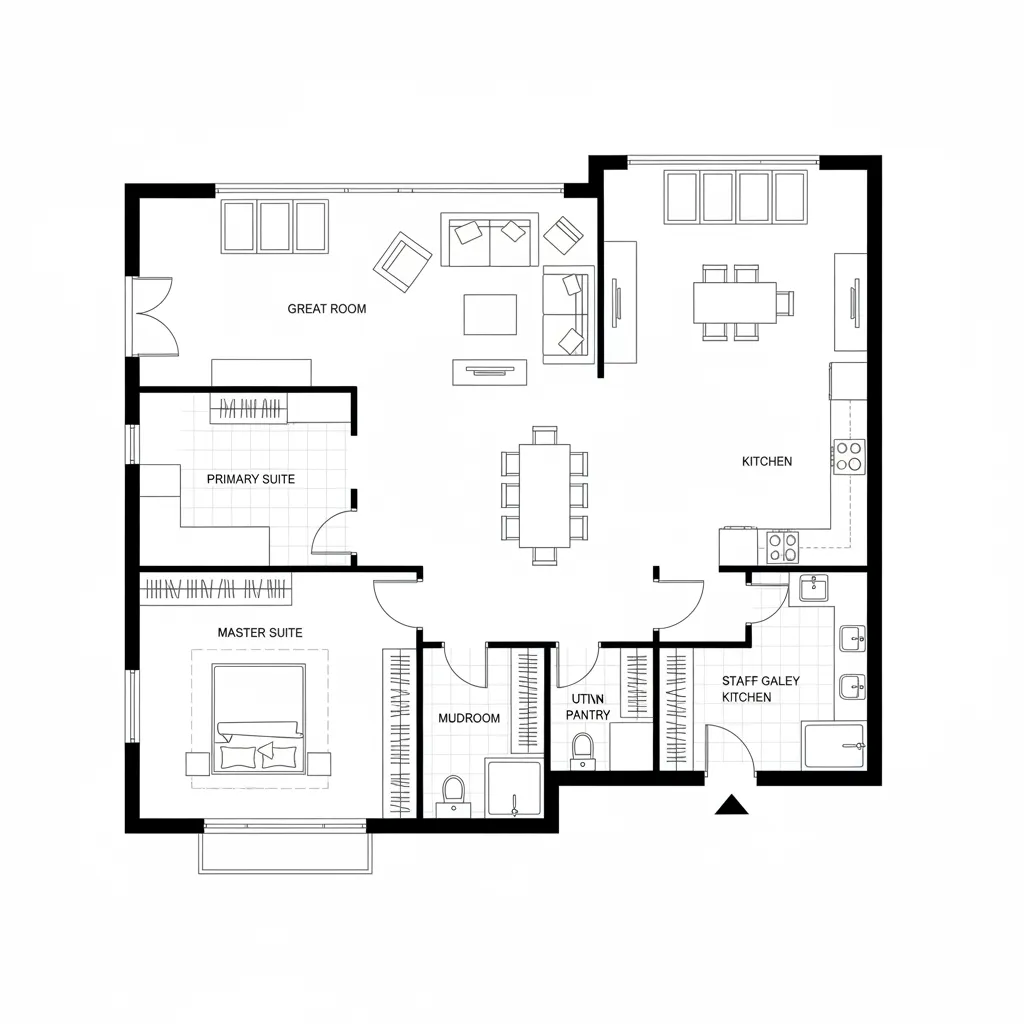

Garden Axis Villa: Split Core with Service Spine

Design Logic：Primary suite and public rooms face the garden; staff wing runs parallel as a service spine, future-proofed for aging-in-place and on-demand hospitality.

Flow：Arrival → vestibule bifurcation → guests to great room; staff via side mudroom → pantry → utility loop → discreet access points.

Sightlines：Main axis frames greenery; service doors align off-axis, keeping maintenance as background processes.

Storage：Pantry wall, linen towers, concealed carts—cache layers sized for weekly cycles and peak events.

Furniture Fit：Modular seating islands, 36–42" circulation APIs, task-height stations in staff galley for continuous throughput.

Verdict：This topology sustains high hospitality bandwidth without visible friction over the next five years.

save pinOpen in 3D Planner Processing...

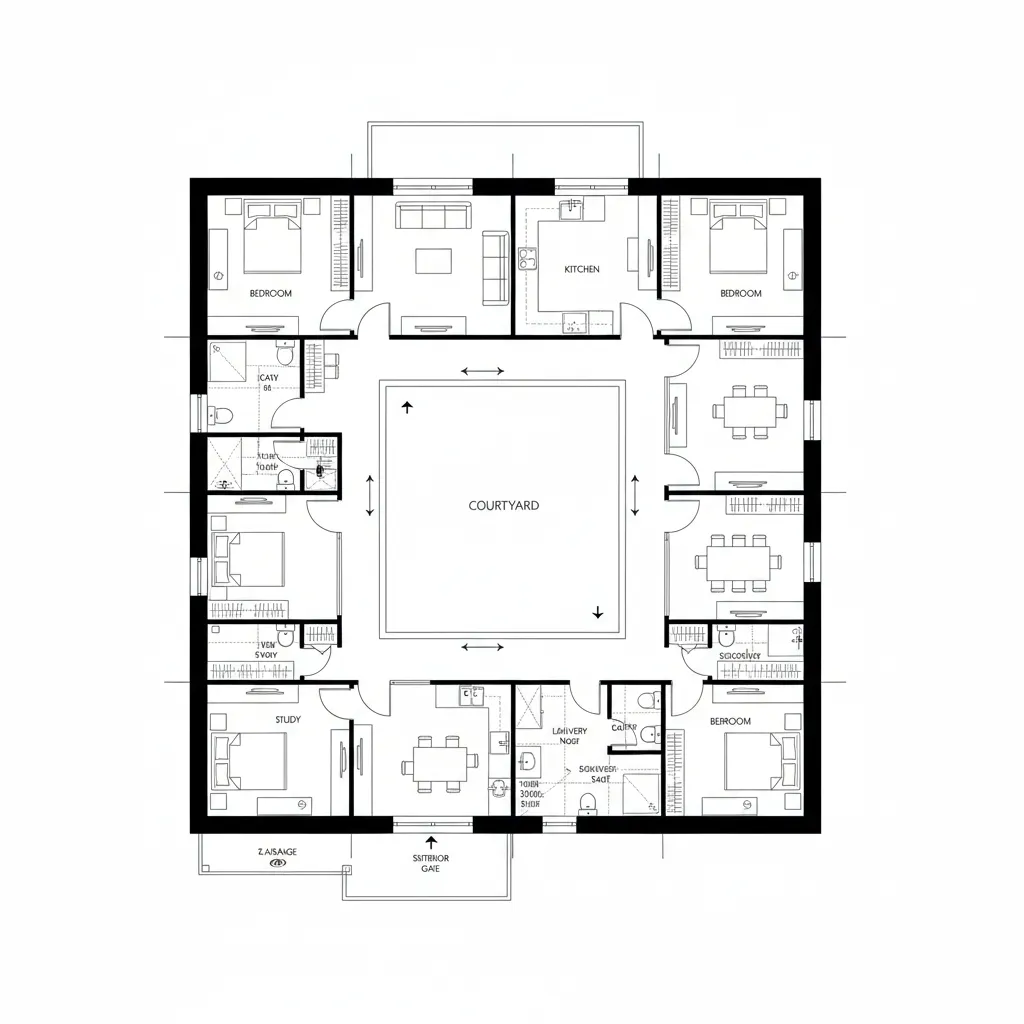

Court-House Plan: Perimeter Suites, Central Operations

Design Logic：Rooms ring a light court; staff quarters tuck along the shaded edge, making service routes short and silent in a heat-adaptive future.

Flow：Perimeter loop → nodes at kitchen, laundry, deliveries → staff suite → exterior service gate; family uses inner loop uninterrupted.

Sightlines：Court acts as UI home screen; service apertures recess into shadow to lower visual noise.

Storage：Perimeter millwork as distributed cache, cold storage near loading, seasonal vault by garage.

Furniture Fit：Low-profile court seating, stackable dining modules, narrow-depth consoles preserving 48" arcs.

Verdict：A resilient matrix where climate, privacy, and operations sync like a stable OS upgrade.

save pinOpen in 3D Planner Processing...

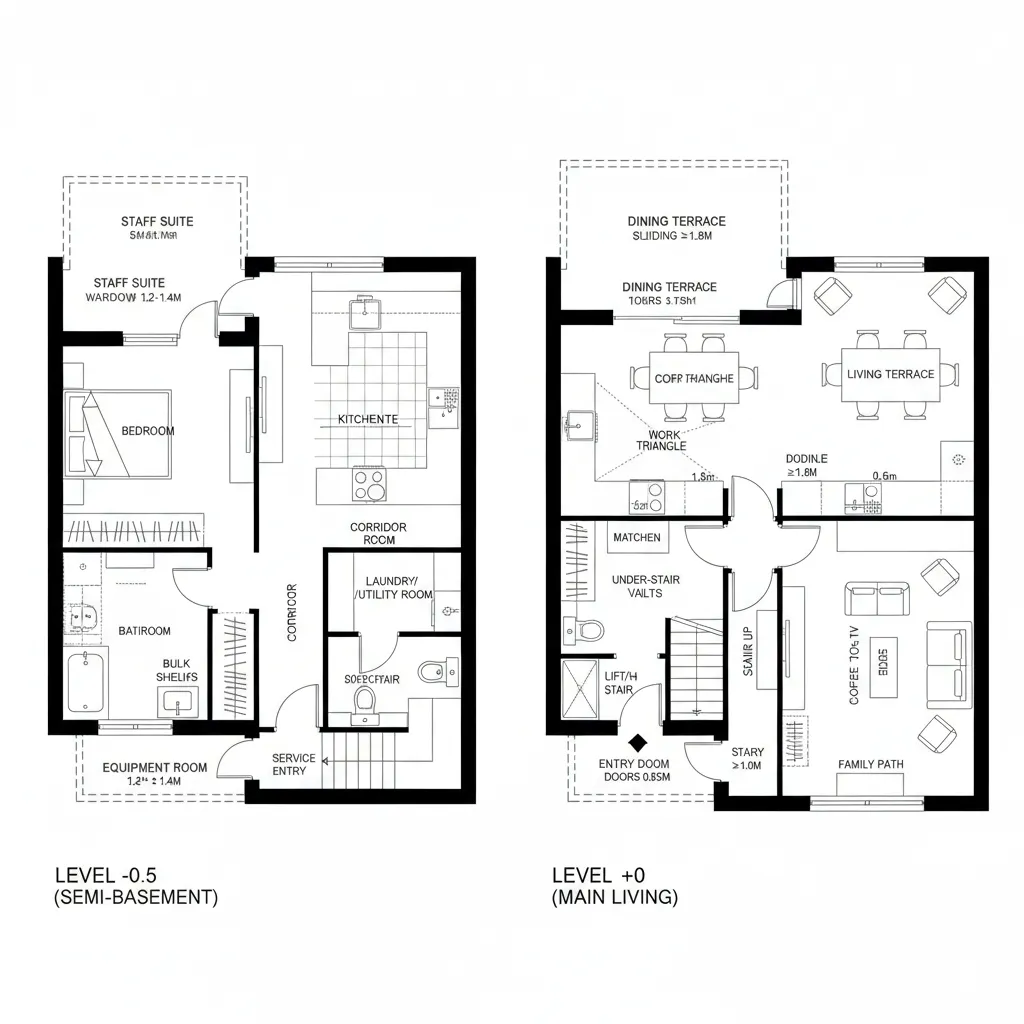

Split-Level Ridge: Vertical Decouple, Horizontal Calm

Design Logic：Staff quarters anchor the semi-basement with daylight wells; living rises one level to decouple acoustics and routines for long-term coexistence.

Flow：Service entry → lift/stair → utility deck → back kitchen; family path → gallery → living terrace → bedrooms above.

Sightlines：Tiered views prioritize horizon lines; service glazing faces light wells, not social zones.

Storage：Under-stair vaults, equipment room, labeled bulk shelves—latency-free access to daily and quarterly inventories.

Furniture Fit：Terrace-depth dining, corner-reading APIs, staff kitchenette scaled to 24" modules for efficiency.

Verdict：Vertical separation yields calm foreground living while the background engine hums reliably.

save pinOpen in 3D Planner Processing...

Final Takeaway

A villa layout with staff quarters works when public ritual and domestic operations read as two synchronized interfaces. Variants like “villa floor plan with service wing” and “private villa staff suite layout” show how tomorrow’s homes will prioritize discreet circulation over square footage. The long-tail logic—separate service entries and dual-route kitchens—turns daily life into a smooth command sequence. In my experience, the smartest luxury isn’t scale but orchestration.
