Wall Materials and Load Capacity for Accordion Laundry Shelves: Understand how different wall types affect the safety and weight limits of wall mounted accordion drying racks.

Direct Answer

The wall material behind an accordion laundry shelf determines how much weight it can safely hold. Stud-mounted installations typically support 40–80 pounds, while drywall-only installations rely on anchors and often support far less. Choosing the correct anchors and mounting method prevents wall damage and rack failure.

Quick Takeaways

1. Stud-mounted accordion drying racks are significantly stronger than drywall-only installations.
2. Typical wall mounted drying racks safely hold 40–80 pounds when installed correctly.
3. Drywall anchors work, but their real capacity is often lower than packaging claims.
4. Concrete and brick walls provide the most reliable load support.
5. Improper mounting causes wall cracking long before rack failure.

Introduction

In more than a decade of residential design projects, I've noticed that most problems with an accordion drying rack aren't caused by the rack itself. They come from the wall behind it. Homeowners install a beautiful accordion laundry shelf, load it with wet clothes, and a few months later the screws start pulling out of the wall.

This happens because people underestimate the weight of wet laundry and misunderstand how wall materials handle load pressure. A typical load of wet towels can easily reach 25–35 pounds, and when that weight pulls outward from a folding rack, the leverage multiplies the stress on the mounting points.

Before installing any drying system, I always evaluate the wall structure first. In many renovation projects, I even map the room layout using tools similar to a simple floor planning workflow homeowners use before reorganizing a laundry room. This helps determine where structural support actually exists.

In this guide, I'll walk through what wall materials can realistically support, where most installations go wrong, and how to safely test your drying rack after installation.

save pin

Why Wall Strength Matters for Drying Shelves

Key Insight: The outward pulling force of a folding drying rack places far more stress on the wall than the weight of clothes alone.

When a rack extends away from the wall, it acts like a lever. That means a 30‑pound load of wet clothes may create 60–90 pounds of effective stress on the mounting screws depending on the rack depth.

This mechanical principle is why racks installed only into drywall frequently loosen over time.

From projects I've worked on, the most common hidden issue is not weight overload but repeated micro‑movement. Each time the rack opens or closes, the screws shift slightly. Over months, drywall crumbles around the anchors.

Three wall characteristics determine safe capacity:

1. Wall material strength
2. Anchor type and depth
3. Distance between mounting points

According to guidance from building hardware manufacturers like Simpson Strong‑Tie and Hilti, structural framing always provides the most reliable load transfer.

Weight Limits of Typical Accordion Laundry Racks

Key Insight: Most wall mounted drying racks are rated between 40 and 80 pounds, but real‑world safe loads are often lower.

Manufacturers usually test racks under ideal mounting conditions. In real homes, installation quality varies widely.

Here's a practical guideline I use with clients:

1. Stud mounting: 60–80 lbs
2. Concrete or brick: 70–100 lbs
3. Heavy duty drywall anchors: 30–50 lbs
4. Standard drywall anchors: 15–25 lbs

A hidden mistake many homeowners make is hanging dense items like bath towels or denim jeans on one side of the rack. Uneven loading creates twisting forces that reduce the overall drying rack wall load capacity.

Even in large laundry rooms, I recommend distributing heavy items across multiple bars.

save pin

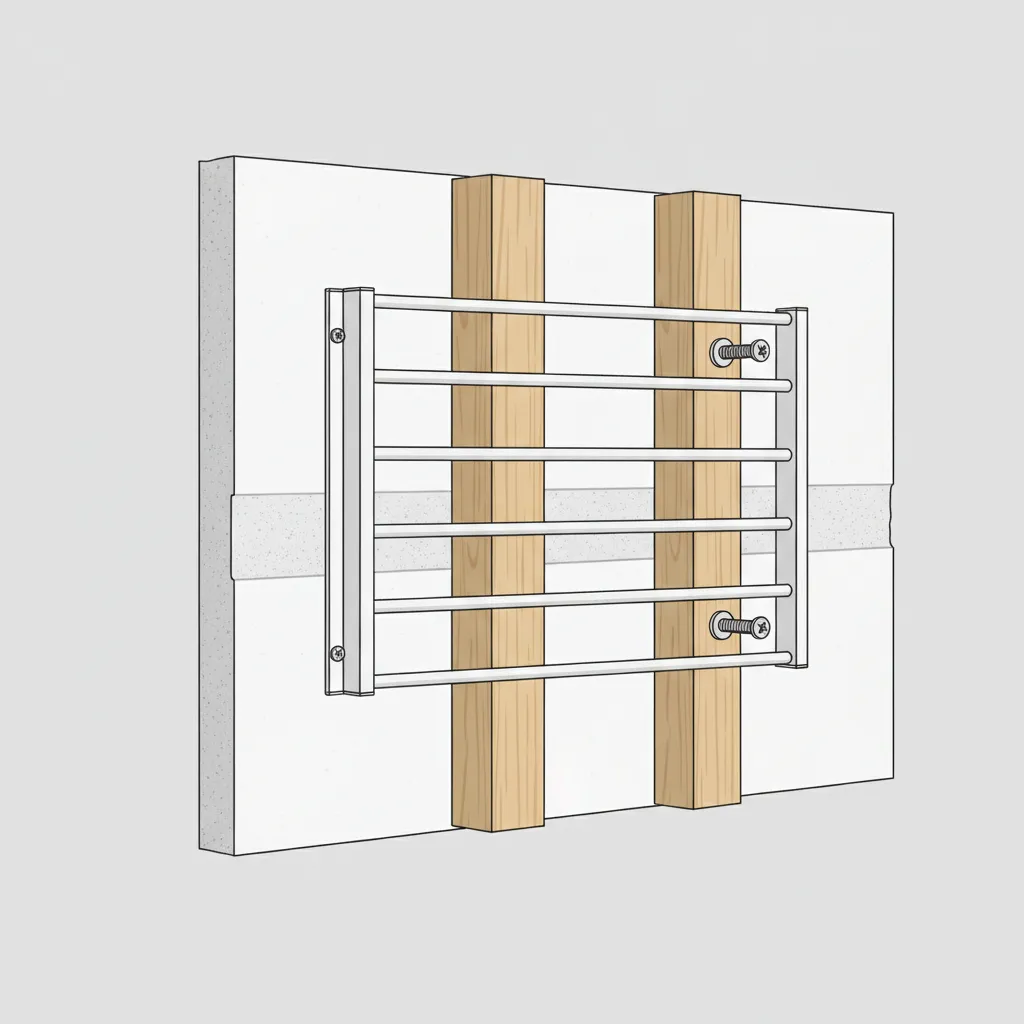

Installing on Drywall vs Studs

Key Insight: If at least one side of the rack can be mounted into a wall stud, the installation becomes dramatically stronger.

Drywall alone is not structural. It's designed to cover framing, not carry load.

In design consultations, I usually recommend the following installation order:

1. Locate studs using a stud finder
2. Align at least two mounting screws into framing
3. Use anchors only for secondary screws
4. Pre‑drill holes to prevent drywall cracking

If your rack doesn't align with studs, a mounting board can distribute weight. A wooden backing plate attached to two studs allows the rack to be mounted anywhere along that board.

When planning laundry layouts, visualizing wall space early helps avoid these alignment issues. Many homeowners use tools similar to a room layout planning approach used for compact utility spacesbefore choosing installation locations.

save pin

Using Anchors for Concrete or Brick Walls

Key Insight: Masonry walls provide the most stable support for accordion drying racks when proper anchors are used.

Concrete and brick behave very differently from drywall. Instead of relying on hollow expansion anchors, you can use masonry anchors that grip solid material.

Common options include:

1. Concrete sleeve anchors
2. Tapcon masonry screws
3. Expansion bolts

For most residential laundry racks, 3/16" or 1/4" Tapcon screws are sufficient.

One mistake I see in older homes is drilling into mortar instead of brick. Mortar is softer and may crumble over time. Whenever possible, drill directly into brick or concrete block.

Preventing Wall Damage and Structural Failure

Key Insight: Most wall damage occurs gradually due to repeated stress cycles rather than a single overload event.

Early warning signs usually appear months before failure:

1. Small cracks around mounting screws
2. Rack tilting slightly downward
3. Screws beginning to spin when tightened
4. Wall anchors pulling outward

If you see these signs, remove the rack and reinforce the mounting area before reinstalling.

In renovation projects, I often recommend reinforcing high‑use laundry walls during planning stages. Visualizing cabinetry, shelving, and drying racks together using a realistic interior layout preview before renovationhelps ensure structural placement makes sense.

save pin

Testing Load Capacity After Installation

Key Insight: A gradual load test is the safest way to confirm your wall mounted drying rack can handle daily use.

After installation, never immediately load the rack with heavy wet laundry.

Instead follow this test sequence:

1. Apply 10 pounds of weight and wait 30 minutes
2. Increase to 20 pounds and inspect anchors
3. Open and close the rack several times
4. Gradually increase load to expected daily weight

If screws remain tight and the wall shows no movement, the installation is likely secure.

Professional installers often call this a "progressive load test" and it's standard practice in cabinetry and shelving installation.

Answer Box

The safest way to install an accordion laundry shelf is mounting directly into wall studs or masonry. Drywall-only installations require heavy-duty anchors and should carry lighter loads. Always test the rack gradually after installation to confirm the wall can safely support wet laundry.

Final Summary

1. Stud mounting provides the strongest support for accordion drying racks.
2. Typical safe capacity ranges from 40 to 80 pounds.
3. Drywall anchors reduce real load capacity significantly.
4. Concrete and brick walls provide the most reliable installation surface.
5. Gradual load testing prevents early wall damage.

FAQ

How much weight can a wall mounted drying rack hold?

Most wall mounted drying racks hold 40–80 pounds when mounted into studs or masonry. Drywall anchors alone usually support less.

Can I install an accordion drying rack on drywall?

Yes, but you must use heavy-duty drywall anchors. For better safety, try to mount at least one side into a wall stud.

What are the best drywall anchors for drying rack installation?

Toggle bolts or heavy-duty metal expansion anchors provide the strongest hold for drywall installations.

What is the best wall type for a laundry drying rack?

Concrete, brick, and wood stud walls provide the most reliable structural support.

Why do drying racks pull out of drywall?

Repeated opening, closing, and uneven loading slowly weakens drywall around the anchors.

How do I prevent wall damage from drying racks?

Mount into studs whenever possible and distribute laundry weight evenly across the rack.

Can wet laundry exceed drying rack weight limits?

Yes. Wet fabrics weigh far more than dry ones, especially towels, denim, and bedding.

Should I test the rack after installation?

Yes. Gradually increase weight to confirm the anchors and wall can safely handle the load.
