Wall Mounted vs Built In Storage for a 5x9 Bathroom: A practical comparison to help you choose the most space efficient storage for a narrow bathroom layout

Direct Answer

For a typical 5x9 bathroom, wall‑mounted storage usually works better when you want flexibility and easier installation, while built‑in storage maximizes space efficiency and creates a cleaner architectural look. The best choice depends on wall depth, plumbing locations, and how permanent you want the solution to be.

Quick Takeaways

1. Wall‑mounted storage is faster and cheaper to install in most small bathrooms.
2. Built‑in storage saves more visual space and can make a 5x9 bathroom feel larger.
3. Floating shelves work best when wall studs limit recessed cabinetry.
4. Built‑in niches reduce clutter but require planning during renovation.
5. The smartest designs combine both systems instead of choosing only one.

Introduction

In more than a decade designing compact bathrooms, the 5x9 bathroom is one of the most common layouts I see in real homes. And the storage question always comes up early: should you install wall‑mounted storage or commit to built‑in solutions?

On paper the difference seems simple. Wall‑mounted storage hangs on the surface of the wall. Built‑ins sit inside the wall or are integrated into cabinetry. But once you factor in door swing clearance, mirror placement, and how people actually move around the space, the decision becomes less obvious.

In many remodels I review, homeowners underestimate how much storage affects the usability of a narrow bathroom. A poorly placed cabinet can block movement, while a well‑designed recessed shelf can make the room feel noticeably larger.

If you're still working through the layout itself, it's helpful to experiment with a visual planner before committing to storage positions. Many designers prototype layouts using tools that let you experiment with realistic small bathroom layouts before construction, which helps reveal where storage will actually fit.

This guide breaks down wall‑mounted vs built‑in bathroom storage specifically for a 5x9 layout—covering space efficiency, cost, installation complexity, and the hidden mistakes I often see during remodels.

save pin

Why Storage Type Matters in a 5x9 Bathroom

Key Insight: In a 5x9 bathroom, storage decisions affect movement space more than storage capacity.

The biggest mistake people make is focusing on how much storage they need instead of where the storage sits in the room. In narrow bathrooms, every inch that protrudes into the walking path matters.

Typical clearances in a 5x9 bathroom:

1. Walkway clearance ideally: 30–32 inches
2. Vanity depth: 18–21 inches
3. Wall cabinet depth: 6–10 inches

If a cabinet extends even 3 inches too far, the space can start feeling cramped.

In many projects I’ve worked on in older homes, replacing a bulky surface cabinet with recessed shelving made the bathroom feel significantly more open—even though the storage volume stayed almost the same.

Industry guidelines from the National Kitchen & Bath Association also emphasize keeping circulation zones clear in small bathrooms, which is why recessed or vertical storage often performs better.

What Counts as Wall Mounted Storage

Key Insight: Wall‑mounted storage is any storage unit attached to the wall surface without being recessed into the structure.

These solutions are extremely popular because they require minimal renovation work and can often be installed in a single afternoon.

Common wall‑mounted bathroom storage types:

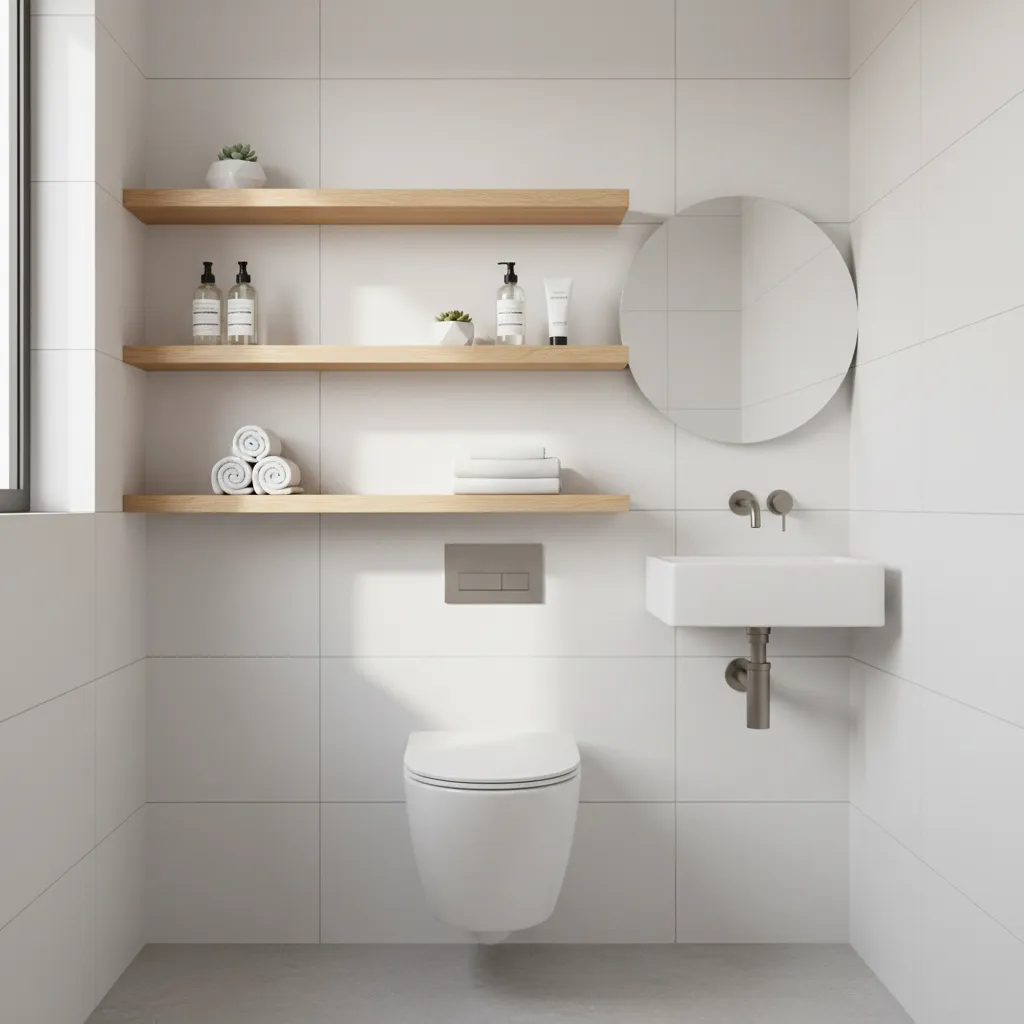

1. Floating shelves
2. Wall cabinets above the toilet
3. Hanging vanity cabinets
4. Mounted storage baskets
5. Floating medicine cabinets

The advantage is flexibility. If the layout changes, wall‑mounted storage can usually be relocated or replaced without opening the wall.

However, there is a trade‑off that many online guides gloss over: protrusion.

Even slim wall cabinets add visual bulk in narrow rooms. In a 5x9 bathroom where the vanity already projects 20 inches, adding a 10‑inch cabinet nearby can compress the space quickly.

save pin

What Defines Built In Bathroom Storage

Key Insight: Built‑in storage integrates into the wall structure, allowing storage without reducing floor clearance.

These solutions are typically planned during renovation because they require opening the wall cavity.

Common built‑in storage options include:

1. Recessed medicine cabinets

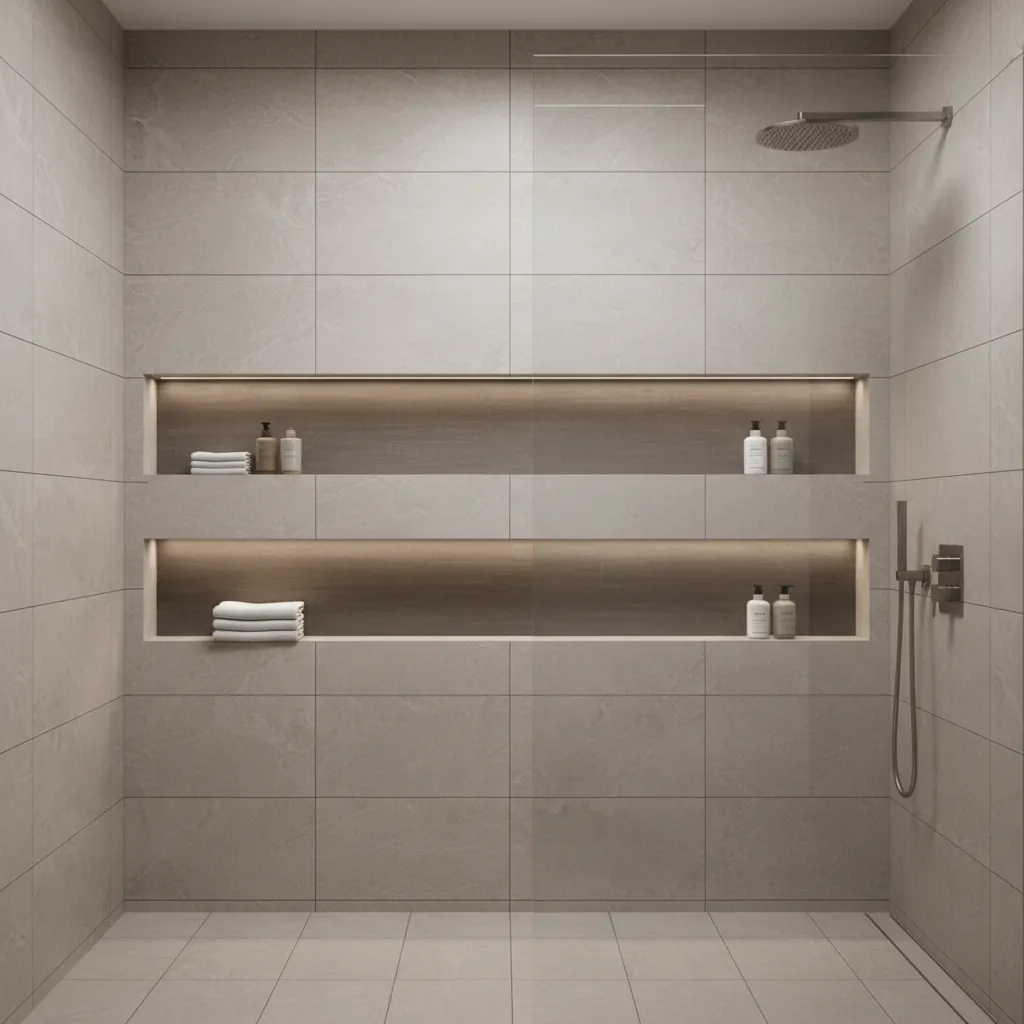

2. Shower wall niches
3. Built‑in shelving between studs
4. Custom vanity cabinetry integrated into walls

Standard wall studs are spaced 16 inches apart, which conveniently creates natural compartments for recessed shelving.

In many remodels, I design vertical niches between studs beside the vanity. They only add about 3–4 inches of depth but provide enough space for toiletries and towels.

This kind of integration is one of the reasons modern bathroom designs feel more spacious even when the footprint hasn't changed.

Space Efficiency Comparison in Small Bathrooms

Key Insight: Built‑in storage almost always wins on space efficiency, but only if the wall structure allows it.

Here's how the two approaches compare in tight layouts.

1. Wall‑mounted storage: faster installation but reduces visual space.
2. Built‑in storage: maximizes openness but requires construction.

Side‑by‑side comparison:

1. Visual openness: Built‑in wins
2. Installation time: Wall‑mounted wins
3. Flexibility: Wall‑mounted wins
4. Long‑term aesthetics: Built‑in wins

A practical strategy I often recommend is combining both: recessed niches in the shower and a floating cabinet above the toilet.

If you're mapping out fixture placement, it's useful to sketch a precise 5x9 bathroom floor plan before choosing storage. Once you see circulation paths, the best storage type becomes much clearer.

save pin

Installation Difficulty and Cost Differences

Key Insight: Built‑in storage costs more upfront but often increases long‑term design value.

Typical installation differences:

1. Wall‑mounted shelves: DIY friendly
2. Wall cabinets: basic carpentry
3. Recessed niches: tile and framing work
4. Built‑in cabinetry: professional installation

Hidden cost many homeowners miss: tile work.

Cutting tile around recessed niches requires precision. In many cases, the tile labor costs more than the shelving itself.

But once installed, built‑ins tend to feel like part of the architecture rather than an add‑on.

save pin

Maintenance and Cleaning Considerations

Key Insight: Wall‑mounted storage collects more visible dust and moisture than recessed storage.

Because wall cabinets and shelves protrude, they create surfaces where dust and condensation accumulate.

Cleaning differences:

1. Floating shelves require frequent wiping
2. Open shelving collects humidity residue
3. Recessed niches are easier to rinse in showers
4. Built‑in cabinets stay cleaner visually

In humid bathrooms without strong ventilation, minimizing exposed horizontal surfaces helps reduce cleaning frequency.

Which Option Works Best for Different Bathroom Layouts

Key Insight: The best storage solution depends more on layout constraints than personal preference.

Here’s how I typically decide during design planning.

1. Very narrow bathrooms: prioritize recessed niches and built‑ins
2. Rental or temporary upgrades: wall‑mounted storage
3. Full renovation projects: mix built‑ins with minimal floating storage
4. Older homes with plumbing walls: wall‑mounted is often safer

For many homeowners researching visual bathroom layout planning for small spaces, the key realization is that storage should be designed at the same time as fixtures—not added afterward.

Answer Box

In a 5x9 bathroom, built‑in storage usually provides the most efficient use of space, while wall‑mounted storage offers easier installation and flexibility. The most effective small bathroom designs combine recessed niches with a limited number of floating storage elements.

Final Summary

1. Built‑in storage saves more visual space in a 5x9 bathroom.
2. Wall‑mounted storage installs faster and costs less.
3. Combining both approaches often produces the best layout.
4. Planning storage with the layout prevents costly remodel mistakes.
5. Recessed niches are one of the most efficient small bathroom upgrades.

FAQ

Is wall mounted or built in bathroom storage better for small bathrooms?

Built‑in storage is usually better for very small bathrooms because it doesn’t protrude into walking space. However, wall‑mounted storage is easier to install and more flexible.

What is the best storage type for a 5x9 bathroom?

The best storage type for a 5x9 bathroom is typically a mix of recessed niches and minimal wall‑mounted cabinets to balance accessibility and space efficiency.

Are built in shelves better than floating shelves in bathrooms?

Built‑in shelves save space and look more integrated, but floating shelves are easier to install and replace.

How deep should bathroom wall storage be?

Most wall cabinets are 6–10 inches deep. Recessed niches are usually 3–4 inches deep depending on wall framing.

Can you add built in storage to an existing bathroom?

Yes, but it typically requires opening drywall and sometimes relocating plumbing or electrical lines.

Is wall mounted storage safe in humid bathrooms?

Yes, if materials are moisture‑resistant such as sealed wood, metal, or treated MDF.

What storage works best above the toilet?

Wall‑mounted cabinets or open shelving are the most common solution because the space is rarely suitable for recessed storage.

Do built in bathroom cabinets increase home value?

Well‑designed built‑in cabinetry often improves perceived quality and can enhance resale appeal during bathroom renovations.

References

National Kitchen and Bath Association Bathroom Planning Guidelines

Houzz Bathroom Storage Trend Reports

Remodeling Magazine Cost vs Value Report
