Wall Mounted vs Floor Mounted Bathroom Water Tanks Installation Comparison: Understand installation complexity risks and space requirements before choosing the right bathroom water tank system

Direct Answer

Wall mounted and floor mounted bathroom water tanks differ mainly in installation complexity, structural requirements, and maintenance accessibility. Wall mounted systems require concealed plumbing, reinforced walls, and precise installation, while floor mounted tanks are simpler to install and easier to repair but take up more visible space.

Choosing between them depends on wall strength, available bathroom space, plumbing layout, and long‑term maintenance priorities.

Quick Takeaways

1. Wall mounted tanks save space but require stronger walls and concealed plumbing.
2. Floor mounted tanks are easier to install and repair in most homes.
3. Incorrect wall reinforcement is the most common failure in wall mounted installations.
4. Maintenance access is typically easier with floor mounted systems.
5. Modern small bathrooms often benefit from wall mounted layouts despite higher installation complexity.

Introduction

After working on residential bathroom renovations for more than a decade, one question I hear constantly is whether a wall mounted or floor mounted bathroom water tank is the better installation choice. On paper the difference seems simple, but in real projects the decision affects plumbing complexity, wall structure, long‑term maintenance, and even resale value.

The wall mounted vs floor mounted water tank installation debate usually appears when homeowners remodel small bathrooms or upgrade older plumbing systems. Many people assume the wall mounted option is always "modern" and therefore better. In reality, I've seen several renovations where the wall simply couldn't support the system without expensive structural reinforcement.

If you're planning a bathroom renovation or installing a new toilet system, understanding the installation risks early matters. Many of the issues I see later during repairs—leaks behind walls, unstable frames, or noisy flushing systems—come directly from poor planning. If you're already evaluating different design layouts, looking at examples of smart bathroom layout planning ideas for modern interiorscan help visualize how each system fits within the space.

In this guide I'll walk through the real installation differences, hidden costs, and layout considerations that designers and plumbers deal with when choosing between these two systems.

save pin

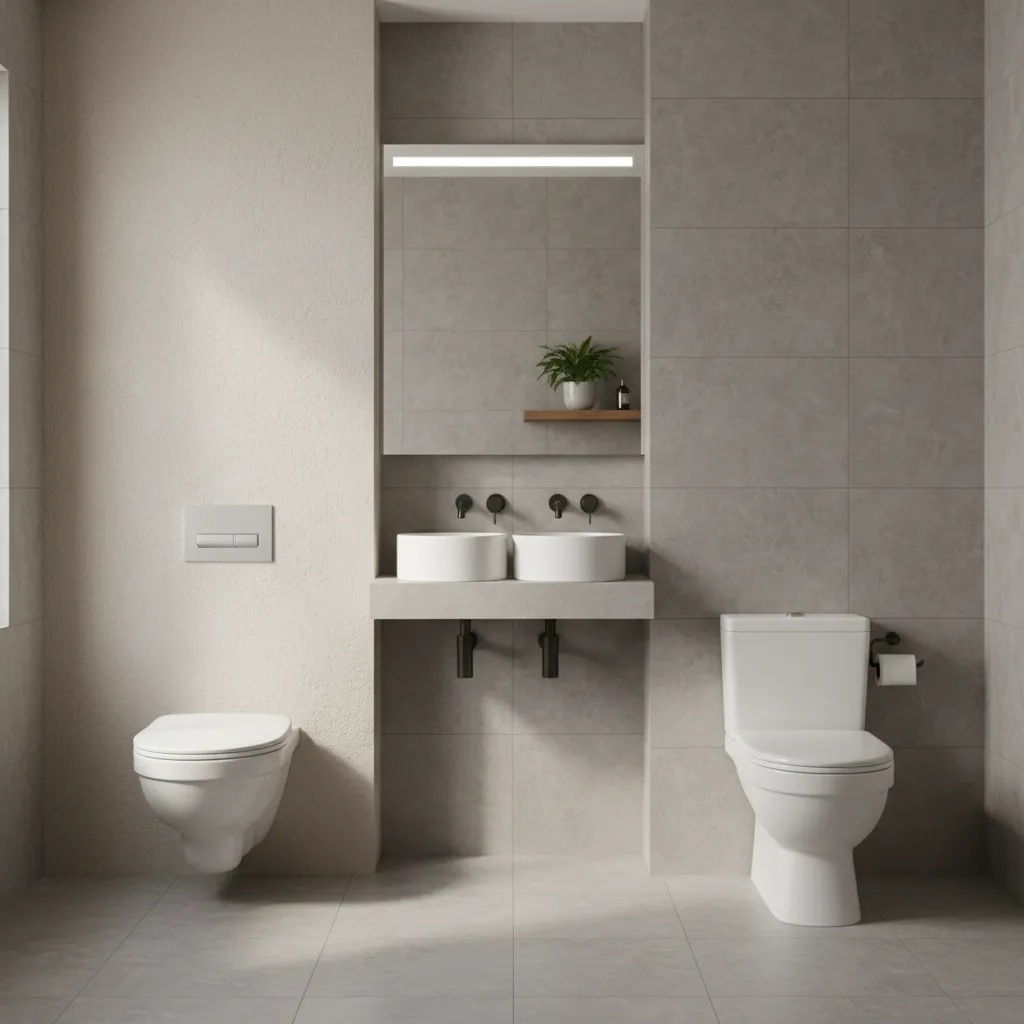

Overview of Wall Mounted and Floor Mounted Bathroom Water Tanks

Key Insight: The main difference between wall mounted and floor mounted tanks is where the weight and plumbing system are supported.

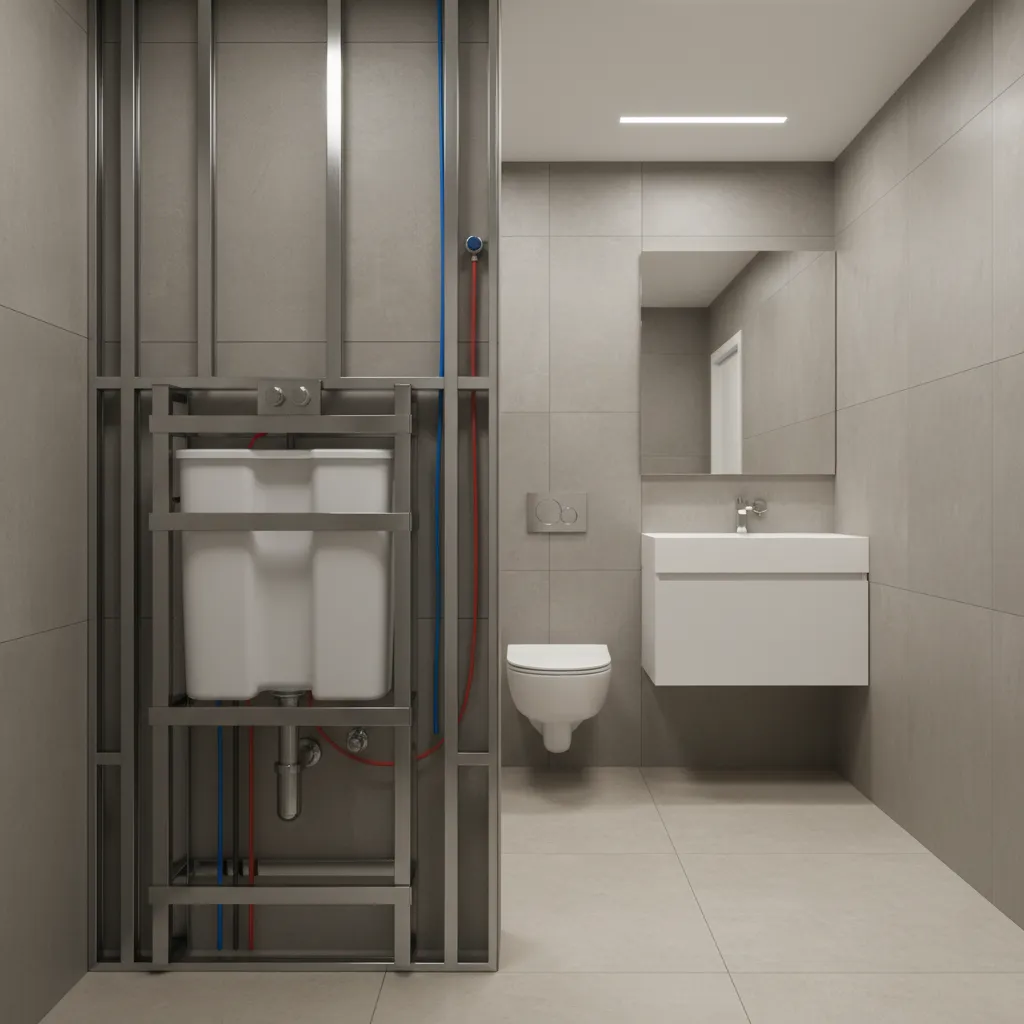

In a wall mounted toilet system, the water tank is concealed inside the wall. The toilet bowl is mounted on a steel carrier frame anchored to structural studs or masonry. This creates the floating toilet look that many modern bathrooms use.

Floor mounted tanks follow the traditional design where the tank sits directly on the toilet bowl or connects externally behind it. The weight rests on the floor rather than the wall.

Here's how the two systems typically compare in real installations:

1. Wall mounted tank: Hidden tank, wall support frame, floating bowl
2. Floor mounted tank: Visible tank, floor supported bowl
3. Plumbing location: In-wall vs exposed rear connection
4. Maintenance access: Through flush plate vs full tank access

From a design perspective, wall mounted systems create cleaner visual lines. But visually minimal doesn't always mean mechanically simple.

Installation Process Differences Between the Two Systems

Key Insight: Wall mounted tank installation is more structural work than plumbing work.

Floor mounted systems are typically installed late in the renovation process. Wall mounted systems must be installed much earlier, often before tile, drywall, and sometimes before final plumbing routing.

Typical wall mounted installation steps:

1. Install steel carrier frame inside wall
2. Anchor frame to floor and studs
3. Connect concealed water supply and drain
4. Close wall with drywall or cement board
5. Install flush plate access panel
6. Mount floating toilet bowl

Typical floor mounted installation steps:

1. Install floor drain flange
2. Connect supply line
3. Secure toilet base to floor
4. Attach water tank
5. Seal base and test flush

In my experience, floor mounted systems often take a plumber under two hours to install in a standard setup. Wall mounted systems can require multiple trades—plumbing, framing, drywall, and tile.

If you're mapping out plumbing early in a renovation, using tools that help visualize bathroom plumbing and layout before constructioncan prevent major installation mistakes.

save pin

Common Installation Risks for Each Type

Key Insight: Most installation failures come from structural mistakes rather than plumbing errors.

Many online guides focus on plumbing connections, but the bigger risks usually come from incorrect structural preparation.

Wall mounted installation risks:

1. Weak wall studs causing frame movement
2. Incorrect carrier frame installation
3. Leaks hidden behind finished walls
4. Improper flush plate access alignment
5. Insufficient service access for repairs

Floor mounted installation risks:

1. Poor wax ring sealing causing leaks
2. Loose floor bolts creating instability
3. Incorrect drain alignment
4. Water supply valve misalignment

One hidden issue I often see with wall mounted systems is noise transmission. If the carrier frame touches drywall directly without insulation pads, flushing vibrations can travel through the wall structure.

save pin

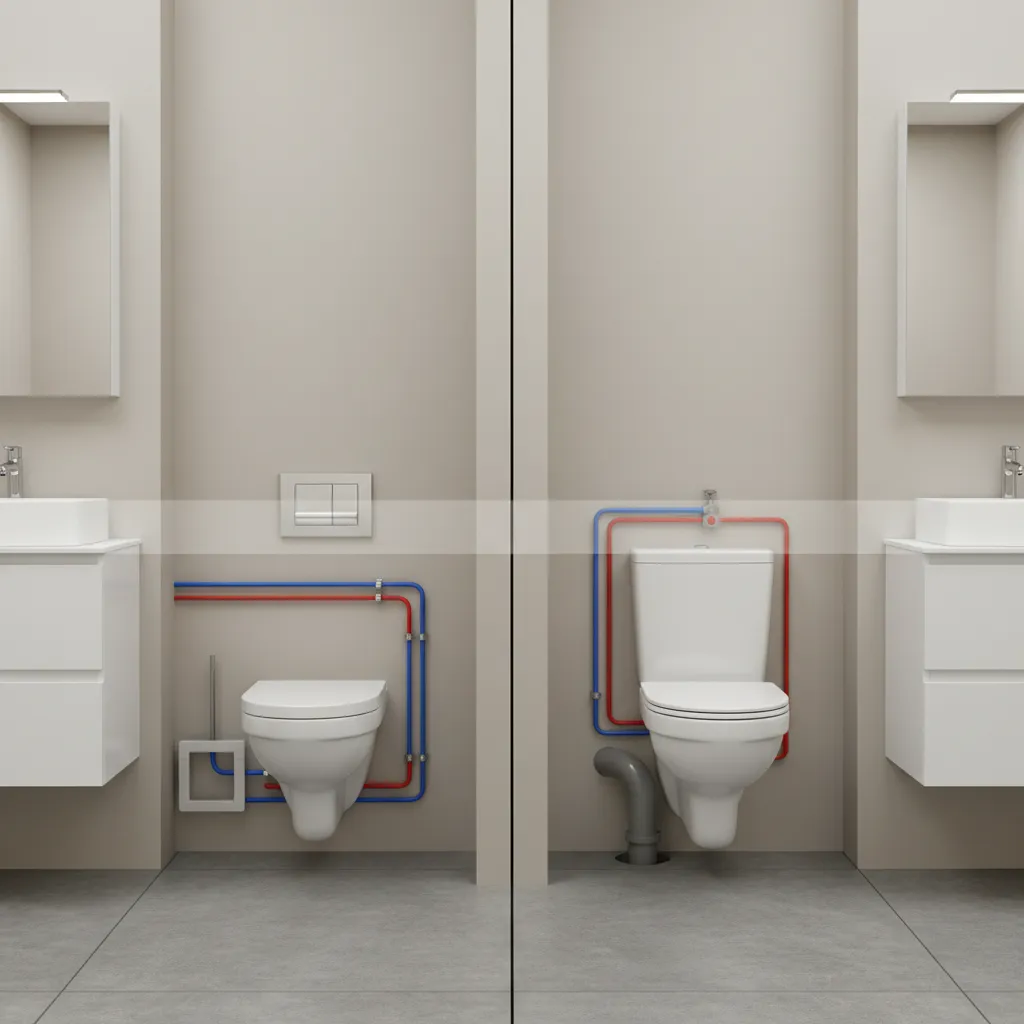

Space Plumbing and Structural Requirements

Key Insight: Wall mounted tanks save visible space but require deeper wall cavities.

Homeowners often assume wall mounted toilets save space everywhere. The reality is a bit more nuanced.

While the toilet itself projects less into the room, the concealed tank typically requires a wall depth of 6–8 inches.

Typical requirements for wall mounted systems:

1. Wall cavity depth: 6–8 inches
2. Structural studs or concrete wall
3. Carrier frame rated for 400–500 lbs
4. Access panel through flush plate

Typical requirements for floor mounted systems:

1. Standard floor drain alignment
2. Exposed water supply connection
3. Stable finished floor surface

In small apartments where every inch matters, planning layouts with tools that help experiment with different bathroom layout configurations often reveals whether the concealed tank depth will actually reduce usable space.

Cost and Maintenance Considerations

Key Insight: Wall mounted systems cost more upfront but sometimes reduce long-term cleaning and design constraints.

Based on renovation projects I've worked on in Los Angeles and Seattle, the price difference is noticeable.

Typical installation cost ranges:

1. Floor mounted tank system: $250–$600 installation
2. Wall mounted system: $900–$2,500 including framing and wall work

Maintenance is another major factor.

Floor mounted advantages:

1. Easy tank access
2. Simple part replacement
3. Lower repair cost

Wall mounted advantages:

1. Better floor cleaning access
2. Modern design appeal
3. Hidden plumbing aesthetics

The hidden cost many homeowners overlook is wall repair. If a concealed tank ever develops a leak outside the flush plate access area, tile removal may be required.

Answer Box

Wall mounted bathroom water tanks provide a sleek modern look but require reinforced walls, deeper cavities, and more complex installation. Floor mounted tanks are easier to install, cheaper to repair, and more forgiving for standard plumbing layouts.

Which Bathroom Layout Works Best for Each Tank Type

Key Insight: The best installation type depends more on bathroom structure than style preference.

After dozens of bathroom remodels, I typically recommend each system for specific situations.

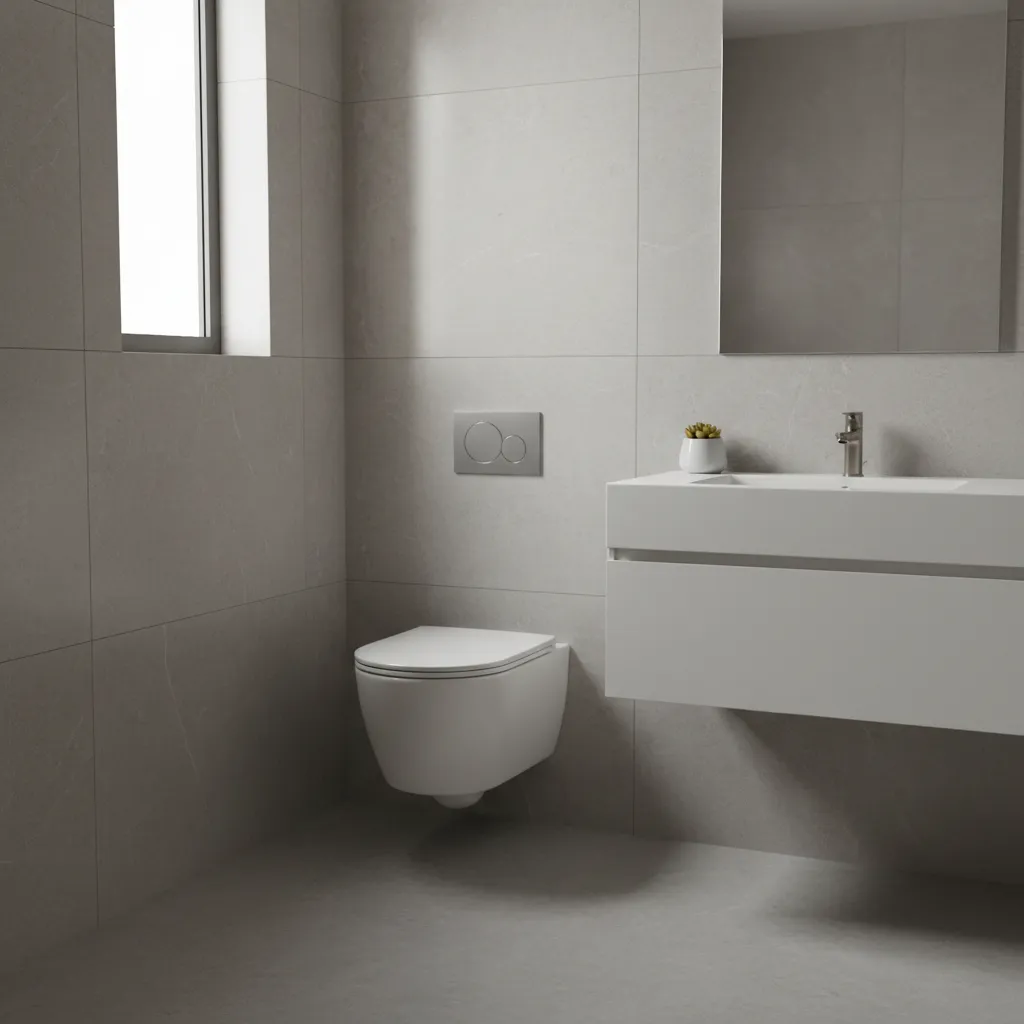

Wall mounted tanks work best in:

1. Modern minimalist bathrooms
2. New construction with planned wall framing
3. Compact bathrooms where floor visibility matters
4. Luxury renovations

Floor mounted tanks work best in:

1. Older homes with thin walls
2. Budget renovations
3. DIY installations
4. Bathrooms with easy plumbing access

The biggest mistake I see homeowners make is choosing wall mounted toilets purely for aesthetics without checking wall structure first.

Final Summary

1. Wall mounted tanks require structural wall support and concealed plumbing.
2. Floor mounted systems are simpler and cheaper to install.
3. Maintenance access is usually easier with floor mounted tanks.
4. Wall mounted systems work best in modern or newly framed bathrooms.
5. Installation planning prevents most long-term plumbing issues.

FAQ

Is a wall mounted water tank harder to install?

Yes. Wall mounted systems require structural frames, concealed plumbing, and precise wall installation.

Which water tank is easier to install in a bathroom?

Floor mounted tanks are generally easier because they don't require wall reinforcement or concealed plumbing.

Are wall mounted toilet tanks reliable?

Yes when installed correctly. Most modern carrier frames are rated to support over 400 pounds.

Can you install a wall mounted tank in any bathroom?

No. The wall must support a carrier frame and provide enough depth for the concealed tank.

What is the biggest risk with wall mounted tank installation?

Improper structural installation can cause movement or hidden leaks behind the wall.

Do wall mounted toilets save space?

They save visual floor space but require deeper wall cavities for the tank.

Are floor mounted tanks outdated?

Not at all. Many modern toilets still use floor mounted tanks because they are reliable and easy to maintain.

What should I check before choosing a bathroom water tank installation type?

Check wall thickness, plumbing layout, structural support, and long‑term maintenance access.

References

1. International Association of Plumbing and Mechanical Officials (IAPMO)
2. National Kitchen and Bath Association Bathroom Planning Guidelines
3. Uniform Plumbing Code Standards
