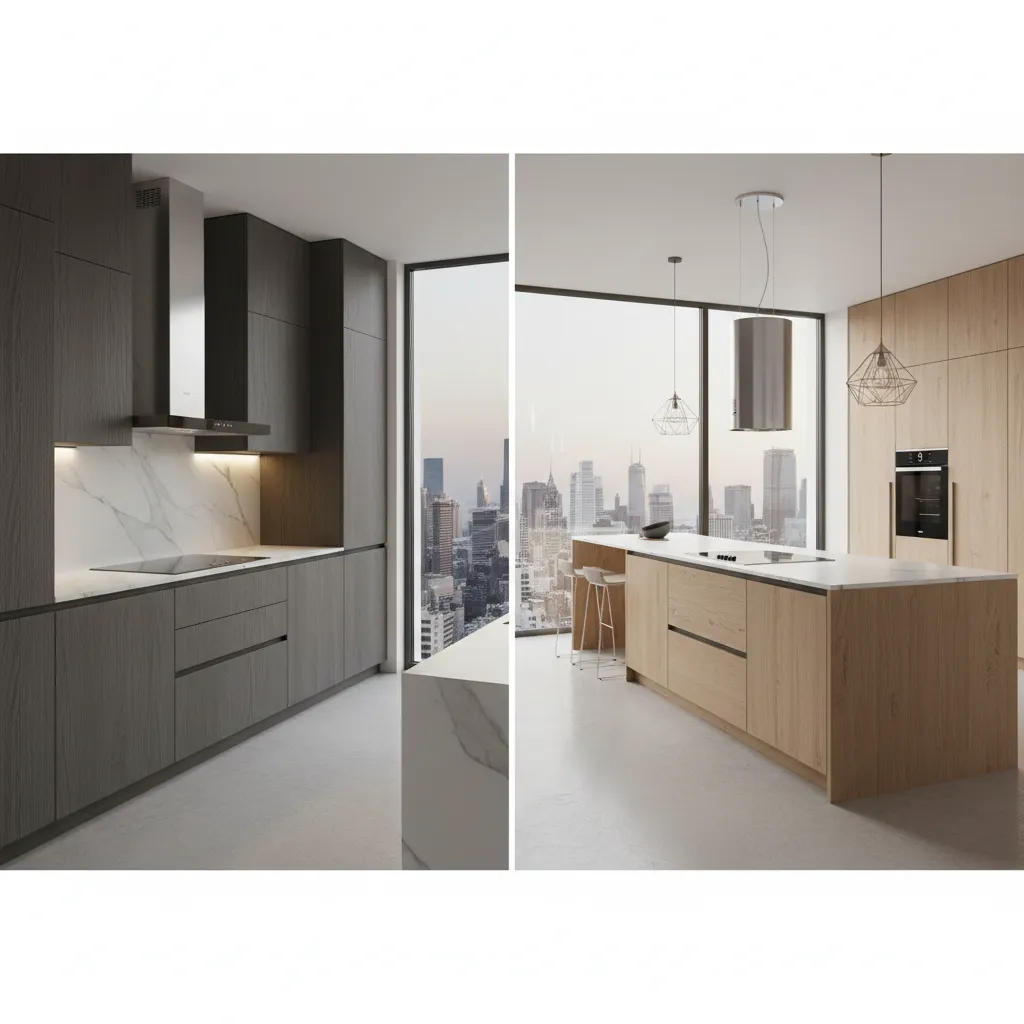

Wall Mounted vs Island Kitchen Chimney Designs: Which Style Fits Your Kitchen?: A practical designer’s guide to choosing the right chimney layout for modern kitchens, open plans, and compact spaces.

Direct Answer

The main difference in a wall mounted vs island kitchen chimney is placement and kitchen layout compatibility. Wall mounted chimneys attach to a wall above the cooktop and work best in traditional or compact kitchens, while island chimneys hang from the ceiling above a kitchen island and are ideal for open‑plan layouts. The right choice depends primarily on your kitchen structure, ventilation path, and available ceiling space.

Quick Takeaways

1. Wall mounted chimneys suit most standard kitchens with a cooktop against a wall.
2. Island chimneys are designed for open kitchens with a central island cooktop.
3. Island installations usually cost more due to ceiling ducting and structural support.
4. Wall units typically offer simpler maintenance and easier installation.
5. Your kitchen layout matters more than visual preference when choosing a chimney type.

Introduction

Choosing between a wall mounted vs island kitchen chimney is one of those decisions homeowners often treat as purely aesthetic. After working on dozens of kitchen renovations over the past decade, I can tell you that this choice is far more about layout physics than style.

I’ve seen beautifully designed kitchens struggle with smoke control simply because the wrong chimney type was chosen for the layout. A sleek island chimney looks incredible in design photos—but if your kitchen isn't structured for it, installation becomes expensive and inefficient.

When I start planning a kitchen with clients, we usually visualize different layouts first. Tools that help you experiment with different kitchen layout ideas before constructionmake it much easier to see whether a wall cooktop or an island cooking zone actually makes sense.

In this guide, I’ll break down the real differences between wall mounted and island kitchen chimneys, including design impact, installation costs, layout compatibility, and the hidden issues most online guides skip.

save pin

Overview of Wall Mounted and Island Kitchen Chimneys

Key Insight: Wall mounted chimneys are built for wall-based cooking zones, while island chimneys are designed specifically for center-island cooktops.

Most kitchens worldwide still rely on wall-mounted cooking areas. That naturally makes wall mounted chimneys the most common design. Island chimneys, by contrast, are purpose-built for modern open kitchens where cooking happens on a central island.

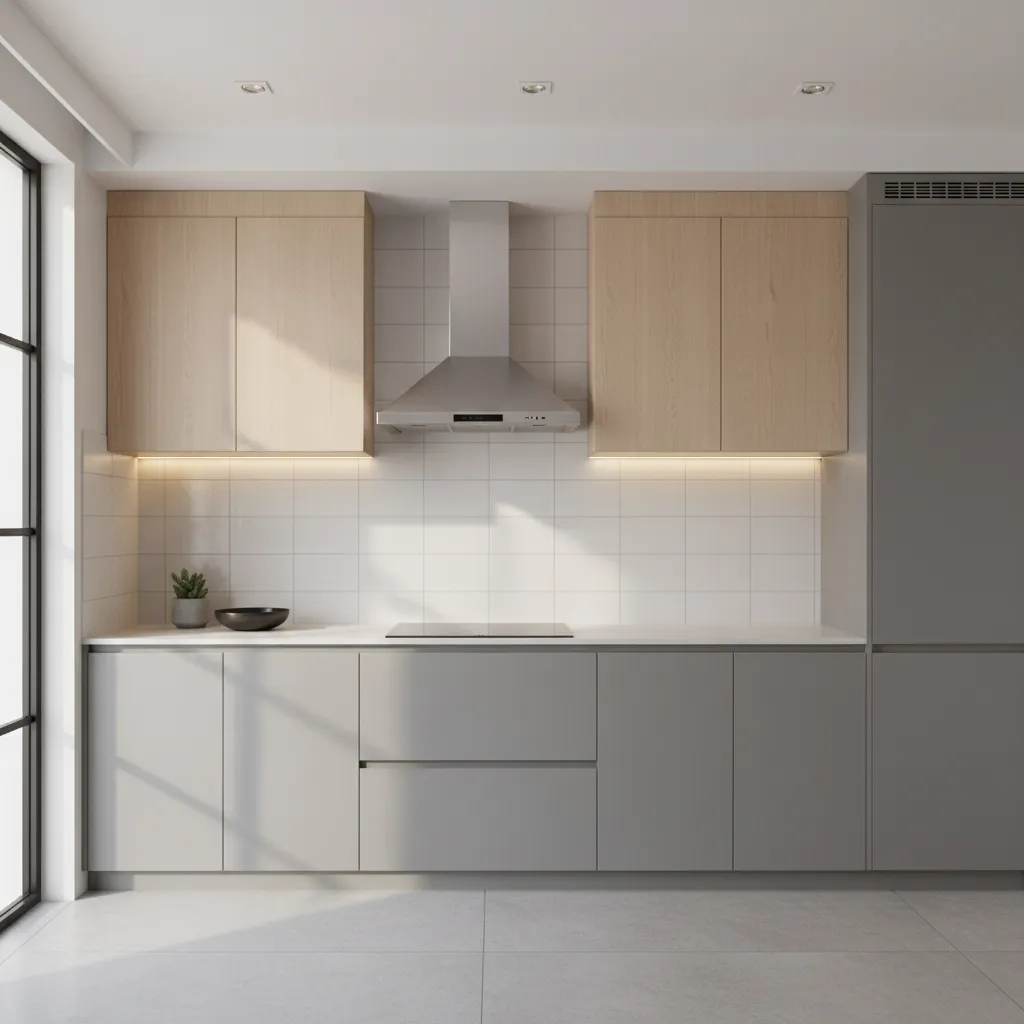

Wall Mounted Chimney

1. Installed against a kitchen wall
2. Duct runs directly through the wall or ceiling
3. Typically pyramid or T-shaped designs
4. Works in compact and medium kitchens

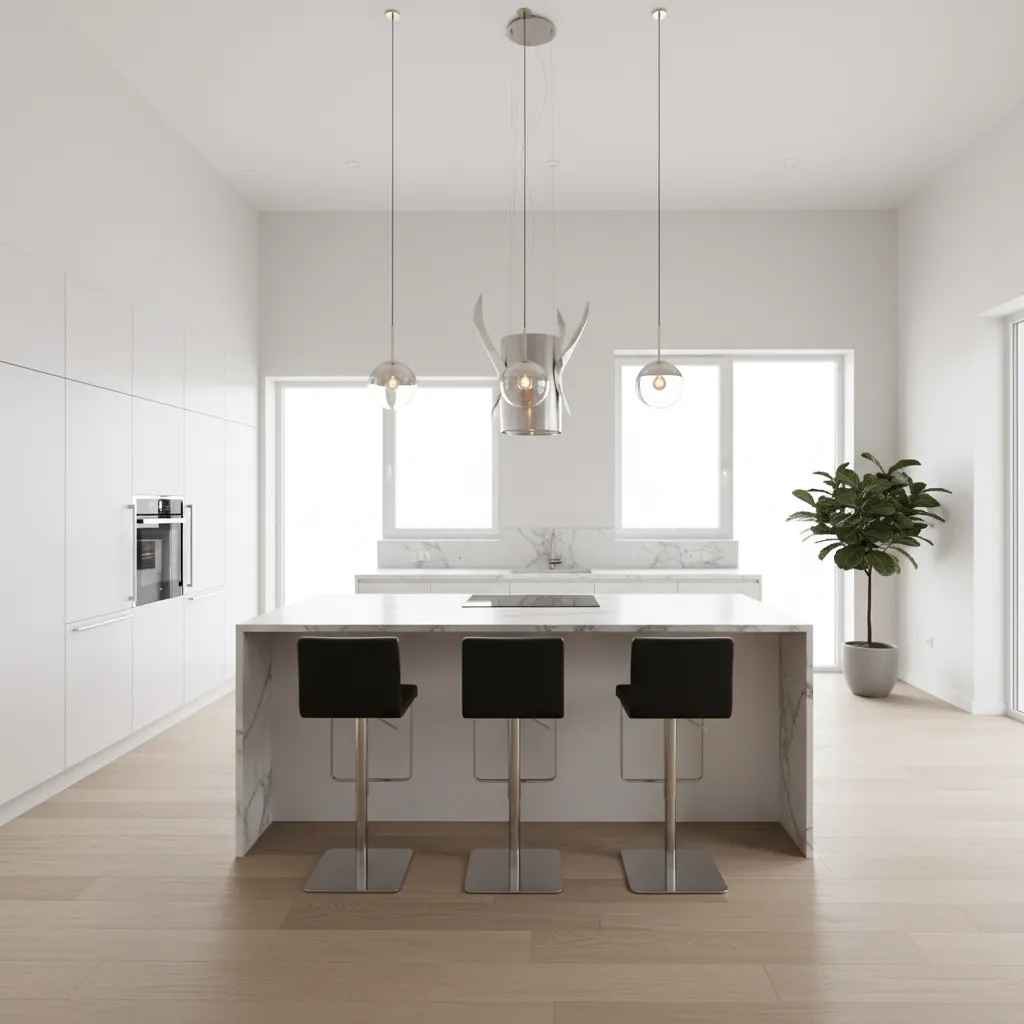

Island Chimney

1. Suspended from the ceiling
2. Placed above an island cooktop
3. Often cylindrical, box, or sculptural designs
4. Designed for open-plan kitchens

From a functional perspective, both remove smoke, grease, and cooking odors. The real difference lies in ventilation routing and spatial design.

Design Differences and Visual Impact in Modern Kitchens

Key Insight: Island chimneys act as a visual centerpiece, while wall mounted chimneys integrate into cabinetry and kitchen walls.

In many of the luxury kitchens I design, the chimney becomes a focal point—especially in island layouts. A suspended stainless steel or matte black chimney hovering above an island can visually anchor the entire kitchen.

But that impact cuts both ways. If the proportions are wrong, island chimneys can dominate the room.

Visual comparison

1. Wall mounted: integrated look, blends with cabinets
2. Island: sculptural centerpiece
3. Wall units hide ducting more easily
4. Island units emphasize open space

Many designers now simulate these layouts first using digital visualization tools that help homeowners preview realistic kitchen renderings before renovation begins. Seeing the chimney in a full kitchen render often reveals scale issues early.

save pin

Space Requirements and Kitchen Layout Compatibility

Key Insight: Kitchen layout—not personal preference—is the biggest factor when deciding between chimney types.

This is the mistake I see most often: homeowners choosing an island chimney simply because it looks modern.

In reality, island chimneys require several structural conditions:

1. A kitchen island wide enough for a cooktop
2. Ceiling duct routing
3. Sufficient ceiling height
4. Clear circulation space around the island

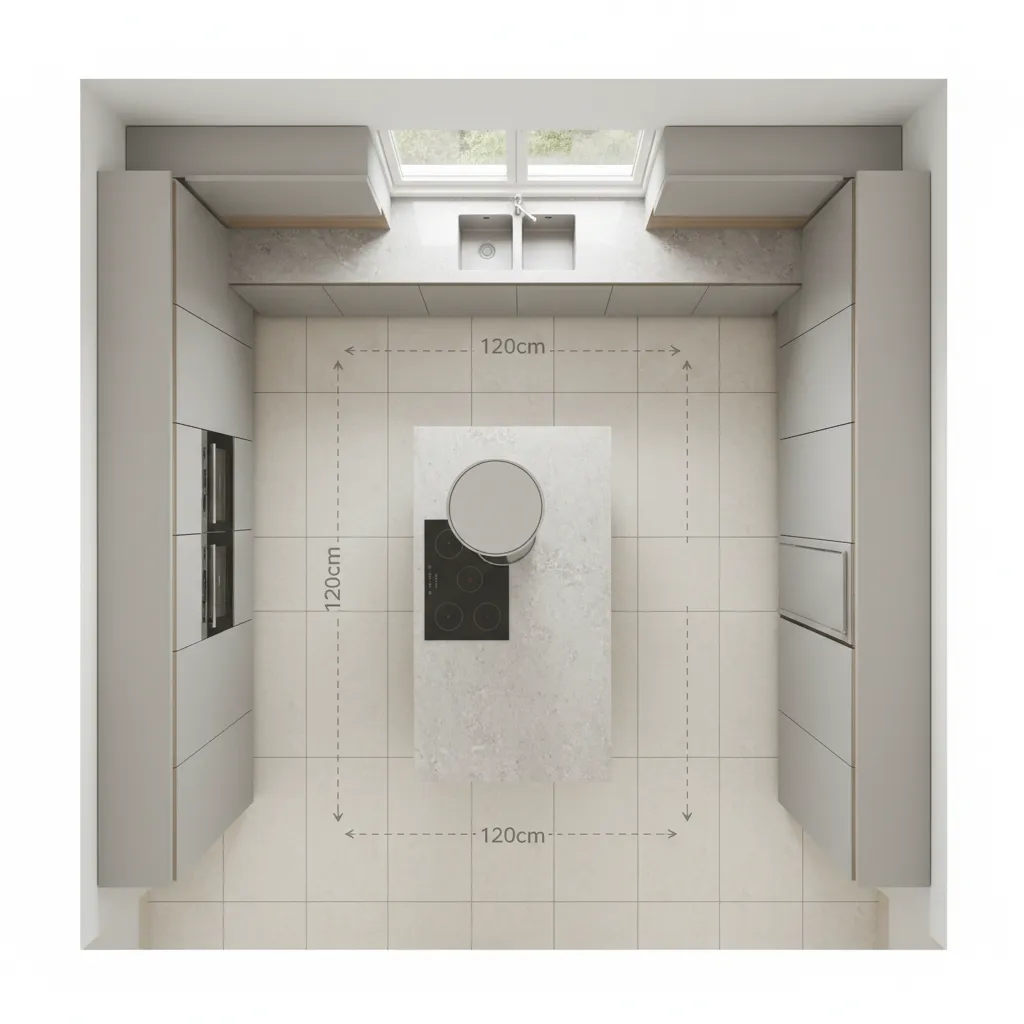

Typical space guidelines

1. Minimum island width: about 36–48 inches
2. Clearance around island: 36–42 inches
3. Ceiling height: ideally above 8 feet

Wall mounted chimneys are far more forgiving and work well in:

1. Apartment kitchens
2. Galley kitchens
3. L‑shaped layouts
4. Small modular kitchens

save pin

Installation Complexity and Cost Comparison

Key Insight: Island chimneys usually cost more to install because ducting and structural support must run through the ceiling.

From a construction standpoint, island installations are more demanding.

Wall Mounted Chimney Installation

1. Simpler wall duct routing
2. Less structural reinforcement required
3. Lower labor costs
4. Easier maintenance access

Island Chimney Installation

1. Ceiling-mounted support frame required
2. Ducting routed through ceiling cavities
3. Often requires electrical relocation
4. Higher installation costs

In several renovation projects I’ve worked on, converting a wall cooktop into an island cooking area increased ventilation installation costs by 30–50%. It’s not just the chimney—it’s the infrastructure around it.

Best Kitchens for Each Chimney Style

Key Insight: Each chimney style works best in specific kitchen configurations.

Wall Mounted Chimneys Work Best In:

1. Compact kitchens
2. Apartment layouts
3. Traditional closed kitchens
4. Budget-conscious remodels

Island Chimneys Work Best In:

1. Open concept homes
2. Large kitchens
3. Luxury modern interiors
4. Homes where cooking is a social activity

One trend I’ve noticed in recent projects is hybrid layouts—homes where cooking stays on the wall, while the island is used purely for prep and seating. This approach keeps ventilation simple while preserving an open kitchen feel.

Answer Box

The best choice in a wall mounted vs island kitchen chimney comparison depends on your kitchen layout. Wall mounted chimneys are practical and cost‑effective for most kitchens, while island chimneys work best in spacious open layouts with a central cooking island.

How to Choose the Right Chimney Design for Your Layout

Key Insight: The smartest approach is to design the kitchen layout first and select the chimney type afterward.

When planning a kitchen, I always walk clients through this quick decision process:

Step‑by‑step approach

1. Define where the cooktop will be located.
2. Evaluate available ventilation routes.
3. Measure ceiling height and island clearance.
4. Compare visual impact with the overall kitchen style.
5. Choose the chimney that supports both airflow and design balance.

If you’re still unsure, visualizing layouts first can remove a lot of guesswork. Many homeowners start by testing different kitchen design concepts with AI‑assisted interior layout toolsbefore committing to appliance placement.

save pin

Final Summary

1. Wall mounted chimneys suit most traditional kitchen layouts.
2. Island chimneys require a central cooking island and ceiling ducting.
3. Installation costs are usually higher for island chimneys.
4. Kitchen layout should determine chimney type—not just aesthetics.
5. Visualizing layouts early prevents expensive ventilation mistakes.

FAQ

What is the difference between wall mounted and island chimney?

A wall mounted chimney attaches to a kitchen wall above the cooktop, while an island chimney hangs from the ceiling above an island cooktop in open kitchens.

Which is better: wall mounted or island kitchen chimney?

Neither is universally better. In a wall mounted vs island kitchen chimney comparison, the best option depends on your kitchen layout and ventilation path.

Can I install an island chimney in a small kitchen?

It’s usually not recommended. Island chimneys require sufficient circulation space and ceiling duct routing, which small kitchens often lack.

Are island chimneys more expensive?

Yes. Installation costs are typically higher because ducting and mounting structures must be installed in the ceiling.

Is an island chimney good for open kitchens?

Yes. Island chimney design for modern kitchens works particularly well in open layouts with central cooking islands.

Do wall mounted chimneys have better suction?

Suction depends on motor capacity, not the chimney type. Both styles can provide strong airflow if properly sized.

What is the best chimney style for open kitchen layouts?

Island chimneys are generally the best chimney style for open kitchens because they align with island cooking zones.

Can I convert a wall chimney setup to an island chimney?

Yes, but it usually requires relocating the cooktop, installing ceiling ducting, and adding structural support.

References

1. National Kitchen and Bath Association (NKBA) kitchen planning guidelines
2. ASHRAE residential kitchen ventilation recommendations
3. Interior Design Society kitchen layout best practices
