Waterproofing and Moisture Risks in Fully Tiled Bathrooms: How to prevent hidden moisture damage, mold growth, and structural issues when tiling an entire bathroom

Direct Answer

Fully tiled bathrooms can be durable and visually clean, but they significantly increase moisture management risks. Without proper waterproofing layers, ventilation, and inspection, water can become trapped behind tiles and slowly damage walls, insulation, and structural framing.

The safest approach is installing a continuous waterproof membrane, sealing all joints, and ensuring adequate ventilation to prevent long‑term moisture buildup.

Quick Takeaways

1. Tiles themselves are not waterproof; the protection comes from the membrane behind them.
2. Poor ventilation is one of the most common causes of mold behind bathroom tiles.
3. Fully tiled bathrooms require stricter waterproofing than partially tiled designs.
4. Regular inspections of grout lines and sealants help prevent hidden moisture damage.
5. Most structural tile failures start with unnoticed moisture infiltration.

Introduction

In many modern homes, homeowners love the clean, seamless look of a fully tiled bathroom. I’ve designed dozens of them over the past decade, and visually they can be stunning. But from a construction perspective, a fully tiled bathroom introduces a different set of risks—especially around waterproofing and hidden moisture buildup.

The biggest misconception I see from clients is assuming tile itself blocks water. It doesn’t. Tile is only the surface finish. Moisture travels through grout lines, tiny cracks, and edges unless the system behind it is properly built.

When planning full-wall tiling, I often recommend reviewing layout and moisture exposure zones first. Tools that help visualize bathroom surfaces and wet zones—like this interactive bathroom layout planning workflow for wet‑area design—make it easier to identify where waterproofing layers must be continuous.

In this guide, I’ll walk through the real risks I’ve seen in projects, the waterproofing layers that actually work, and the maintenance practices that keep fully tiled bathrooms safe for years.

save pin

Why Waterproofing Matters in Fully Tiled Bathrooms

Key Insight: The durability of a tiled bathroom depends far more on the hidden waterproofing system than the tiles themselves.

In construction, tile installations are classified as "water-resistant finishes," not waterproof barriers. That distinction matters.

Behind every successful tiled bathroom is a layered system designed to redirect moisture away from structural materials. Without that system, water slowly migrates into drywall, cement board seams, or timber framing.

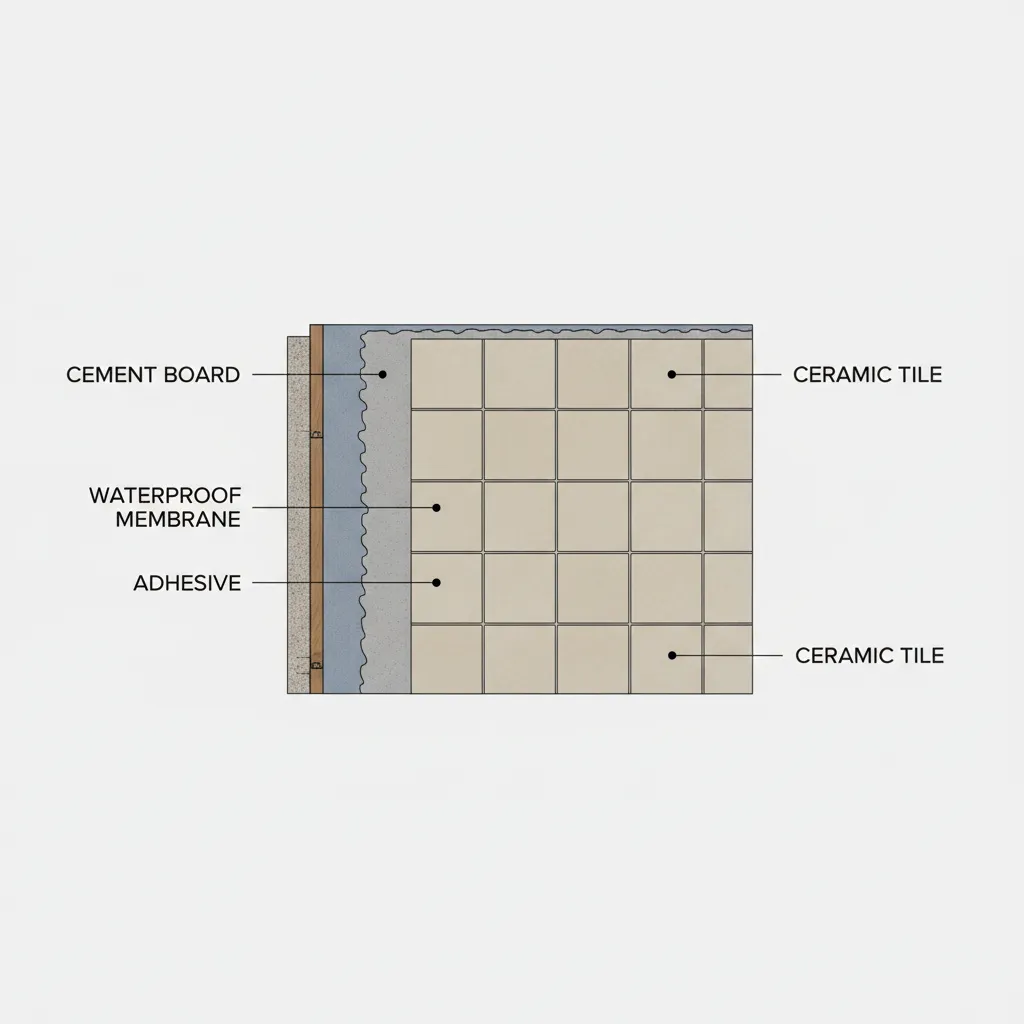

The typical waterproofing stack includes:

1. Structural wall base (cement board or waterproof board)
2. Liquid or sheet waterproof membrane
3. Reinforced corner sealing tape
4. Thin-set mortar
5. Tile surface layer

Industry standards like the Tile Council of North America (TCNA) emphasize that waterproofing must form a continuous barrier behind tiles, especially in shower zones.

One mistake I’ve seen repeatedly: contractors waterproof the shower but skip full-wall protection when the entire bathroom is tiled. Moisture from humidity can still migrate through those areas.

Common Moisture Risks Behind Bathroom Tiles

Key Insight: Most bathroom tile failures start with slow, hidden moisture accumulation rather than visible leaks.

After inspecting several renovation projects, the most frequent issues appear months or even years after installation.

Typical hidden moisture problems include:

1. Mold growth behind tiles
2. Grout deterioration
3. Water trapped inside wall cavities
4. Swelling drywall or framing
5. Tile adhesive breakdown

In humid climates or poorly ventilated bathrooms, vapor movement becomes a bigger issue than direct water spray.

For example, I worked on a remodel where the entire bathroom was tiled floor to ceiling. The installation looked perfect, but six months later a musty smell appeared. Investigation revealed moisture condensation behind the tiles due to insufficient ventilation.

This is why layout planning matters early. When clients map airflow and wet zones using tools similar to a 3D floor planning approach for bathroom airflow and wet‑zone placement, we can predict where condensation risks might appear.

save pin

Essential Waterproofing Layers and Materials

Key Insight: The most reliable bathroom tile installations use a multi‑layer waterproofing system rather than relying on grout or sealant.

Modern bathroom waterproofing typically relies on two major membrane types.

Common waterproofing materials:

1. Liquid waterproof membranes – painted or rolled onto walls before tiling
2. Sheet membranes – flexible waterproof sheets installed under tile
3. Cement backer boards – moisture-resistant wall substrate
4. Waterproof sealing tapes – protect corners and joints
5. Epoxy grout – reduces water penetration compared with cement grout

From my experience, sheet membranes provide the most reliable protection in fully tiled bathrooms because they create a continuous barrier with fewer thin spots.

Liquid membranes work well too, but only when applied evenly and in the manufacturer’s required thickness.

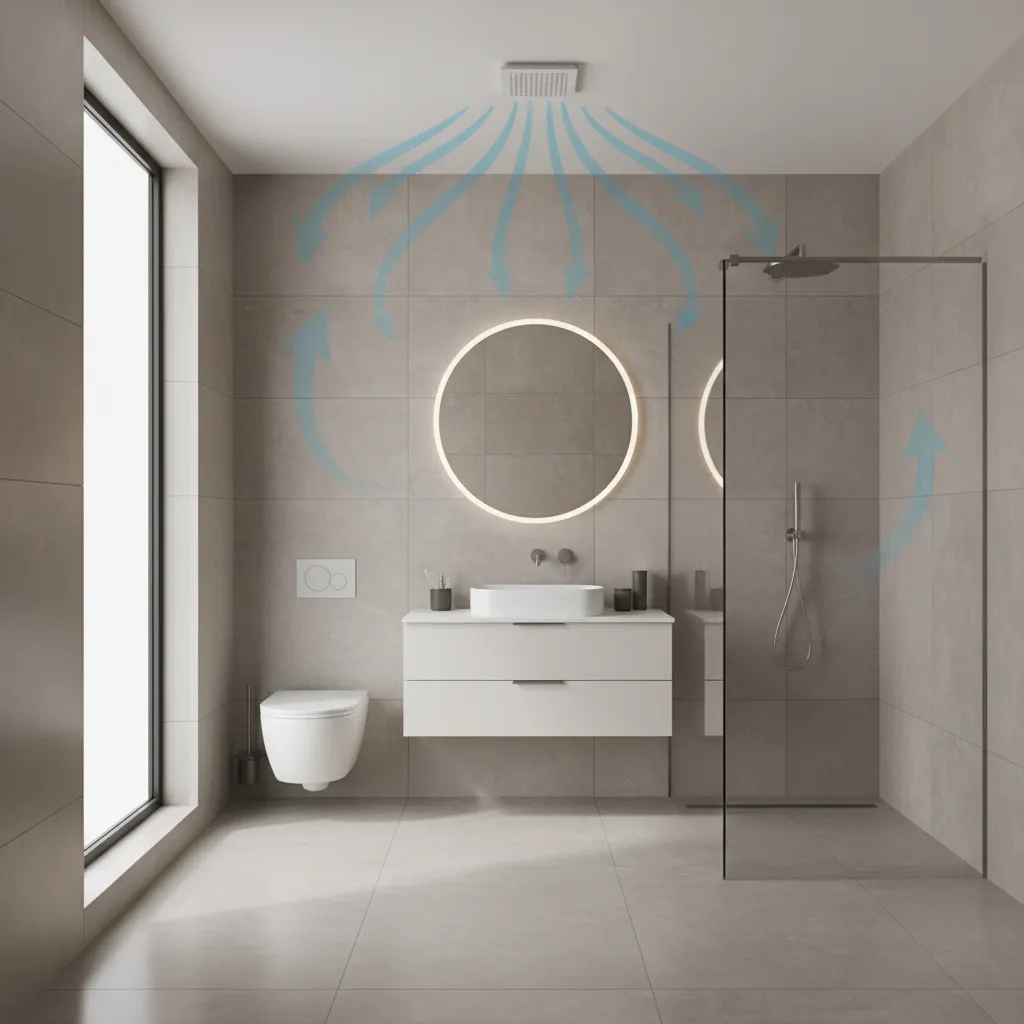

Ventilation Requirements for Fully Tiled Bathrooms

Key Insight: Even perfectly waterproofed bathrooms can develop mold if humidity cannot escape.

Ventilation is the most underestimated part of bathroom design. A fully tiled space often reflects moisture rather than absorbing it, which increases humidity levels.

Effective ventilation strategies include:

1. High-capacity exhaust fan rated for the room size
2. Timed or humidity‑sensor fans
3. Natural ventilation through windows when possible
4. Air gap under bathroom doors

The Home Ventilating Institute recommends bathroom fans capable of moving at least 1 cubic foot per minute per square foot of floor area.

In compact bathrooms, even a small airflow improvement can drastically reduce condensation behind tiles.

Answer Box

Fully tiled bathrooms are safe only when moisture management is treated as a system. A waterproof membrane, proper ventilation, and routine inspection are essential to prevent hidden mold and structural damage behind tiles.

Preventing Mold and Structural Damage

Key Insight: Mold behind bathroom tiles usually develops because of long‑term humidity exposure rather than single water leaks.

Preventing mold requires attention to both installation quality and ongoing maintenance.

Practical prevention strategies:

1. Seal grout every 12–18 months if using cement grout
2. Inspect silicone joints around showers and tubs
3. Use mold-resistant grout where possible
4. Run ventilation fans for 20 minutes after showering
5. Repair cracked tiles immediately

In one renovation project I inspected, a single cracked grout line allowed moisture to seep into drywall for years. The repair ultimately required removing half the wall.

Small maintenance steps prevent large structural repairs.

save pin

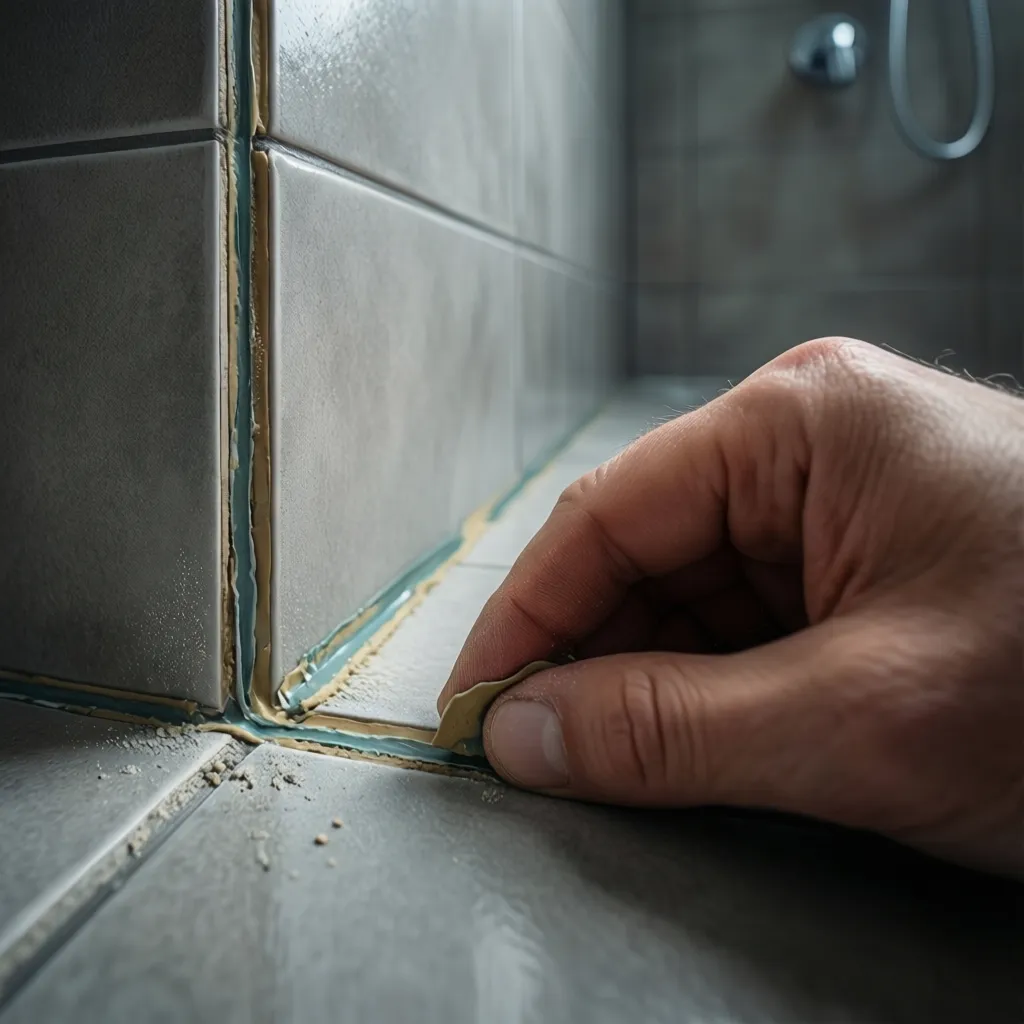

Inspection and Maintenance Checklist

Key Insight: Routine inspection is the most effective way to catch moisture problems before structural damage occurs.

I recommend homeowners perform a quick bathroom inspection every few months.

Simple inspection checklist:

1. Check grout lines for cracks
2. Look for discoloration around tile edges
3. Inspect ceiling and corners for mold spots
4. Confirm ventilation fan airflow
5. Check caulking around shower fixtures

Many hidden moisture issues start with tiny signs—faint odors, slightly dark grout lines, or persistent condensation.

When Waterproofing Needs Professional Assessment

Key Insight: If moisture symptoms persist despite good ventilation and maintenance, the waterproofing layer behind the tiles may have failed.

Signs that professional inspection may be required include:

1. Persistent musty smell
2. Loose tiles
3. Bulging wall surfaces
4. Grout that deteriorates repeatedly
5. Water stains outside the shower area

Professionals often use moisture meters or thermal cameras to detect trapped water behind tile surfaces.

If you are still evaluating whether full-wall tiling is the right choice for your space, reviewing this visual examples of AI‑assisted full bathroom design concepts can help compare tiled layouts with other moisture‑friendly finishes.

Final Summary

1. Tiles do not stop water; the membrane behind them provides real waterproofing.
2. Ventilation is just as important as waterproofing.
3. Most moisture damage develops slowly behind tiles.
4. Routine inspections prevent expensive structural repairs.
5. Professional assessment is needed if mold or odors persist.

FAQ

Do tiles make a bathroom waterproof?

No. Tiles are water-resistant surfaces. True waterproofing comes from membranes installed behind the tiles.

What is the best waterproof membrane for bathroom tiles?

Sheet membranes and high-quality liquid waterproof membranes are both effective when installed correctly.

Can mold grow behind bathroom tiles?

Yes. Mold behind bathroom tiles often develops when moisture penetrates grout or when ventilation is poor.

How do you waterproof bathroom walls before tiling?

Install cement backer board, apply a waterproof membrane, seal joints with tape, and then install tile using thin‑set mortar.

Is full bathroom tiling more risky than partial tiling?

It can be. Fully tiled bathrooms trap more humidity and require stronger waterproofing and ventilation systems.

How long does bathroom waterproofing last?

High-quality systems can last 15–25 years when properly installed and maintained.

What causes moisture problems in tiled bathrooms?

Common causes include failed waterproof membranes, cracked grout, poor ventilation, and improperly sealed corners.

Do all tiled bathrooms need ventilation fans?

Yes. Ventilation helps remove humidity and significantly reduces the risk of mold behind tiles.
