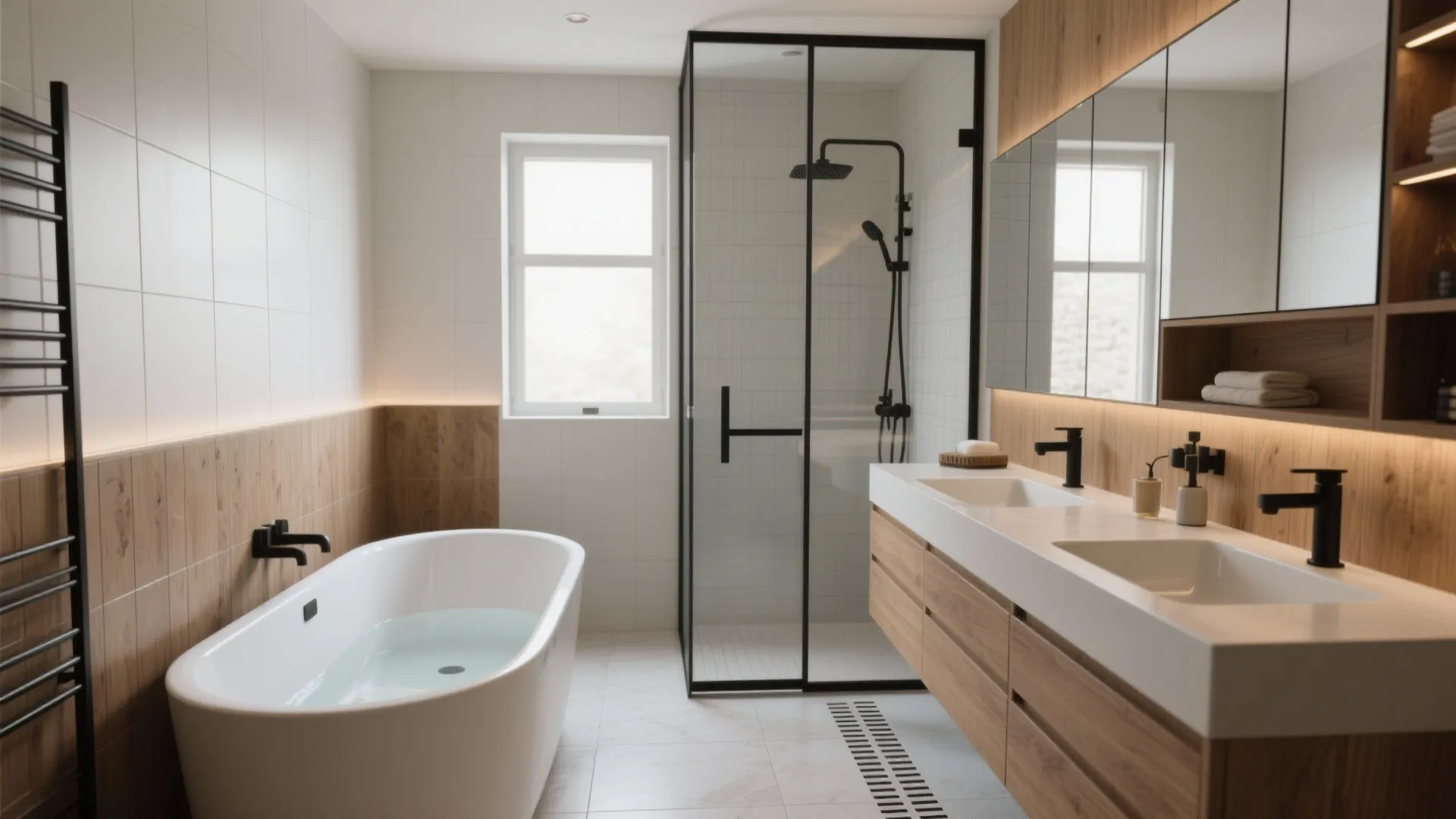

Wet Room Ideas for 5x8 Bathroom — 5 Inspirations: Practical, stylish ways I’d turn a tight 5 x 8 bathroom into a wet room — real tips from ten years of small-bathroom makeovers

I once had a client ask me to turn a 5 x 8 bathroom into a wet room but still keep the soaking tub and a full vanity — I laughed out loud, sketched furiously, and then found a clever compromise that actually worked. Small spaces love to surprise you; they force choices that often make the design smarter, not smaller. For a quick starting point I often show clients detailed wet room layout examples to calm nerves and spark ideas.

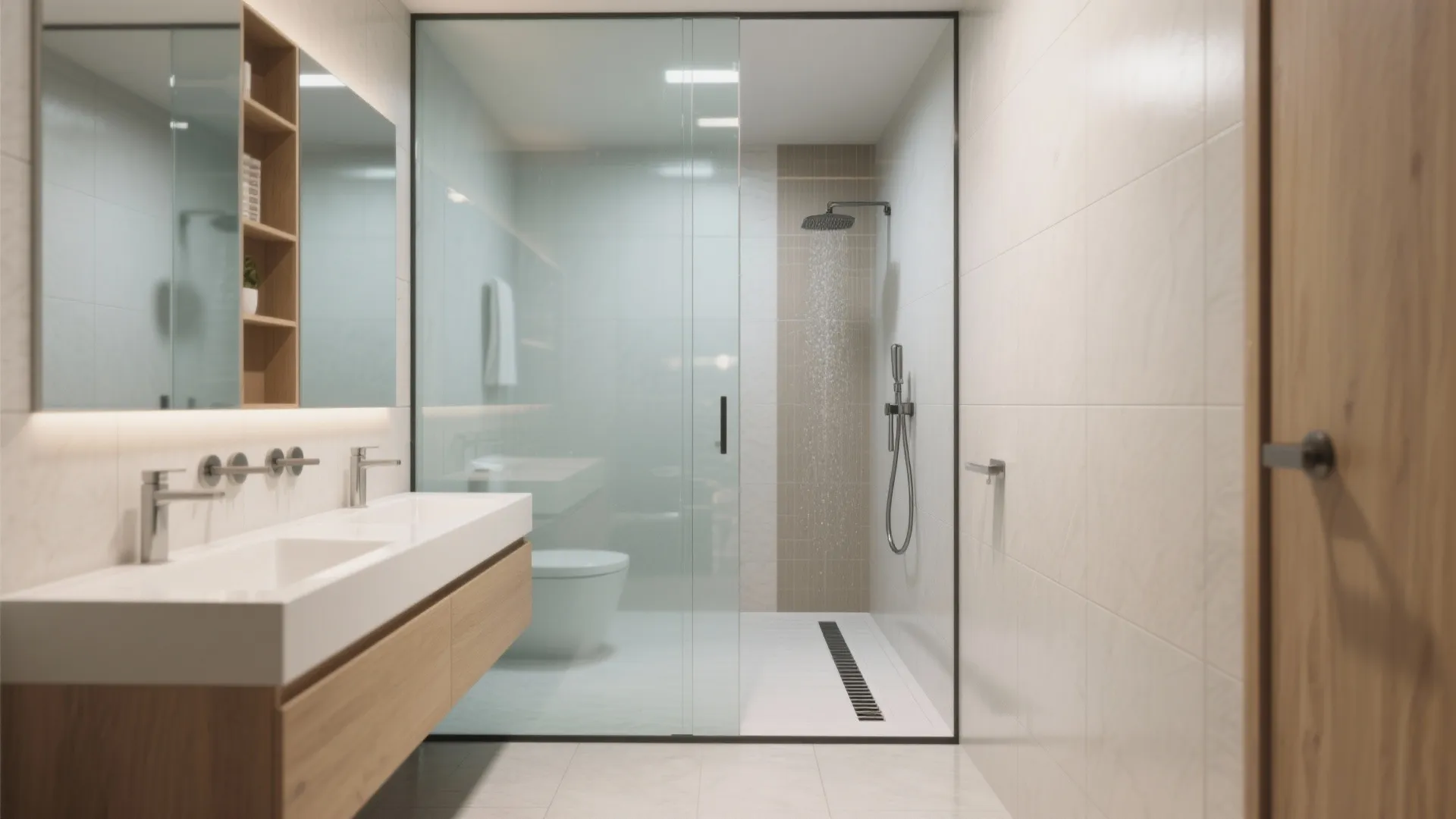

1. Go open with a single glass panel

In a 5x8, one clear glass panel between the shower area and the rest of the room keeps sight lines open and makes the whole space feel larger. The upside is the airy, modern look and easier wheelchair access; the downside is you need excellent slope and a good linear drain to avoid puddles near the vanity.

Tip: use a frameless panel and a shallow curb or invisible channel to control splash — I’ve done this 3 times in small flats and it’s the fastest way to sell the “wet room” idea to nervous clients.

save pin

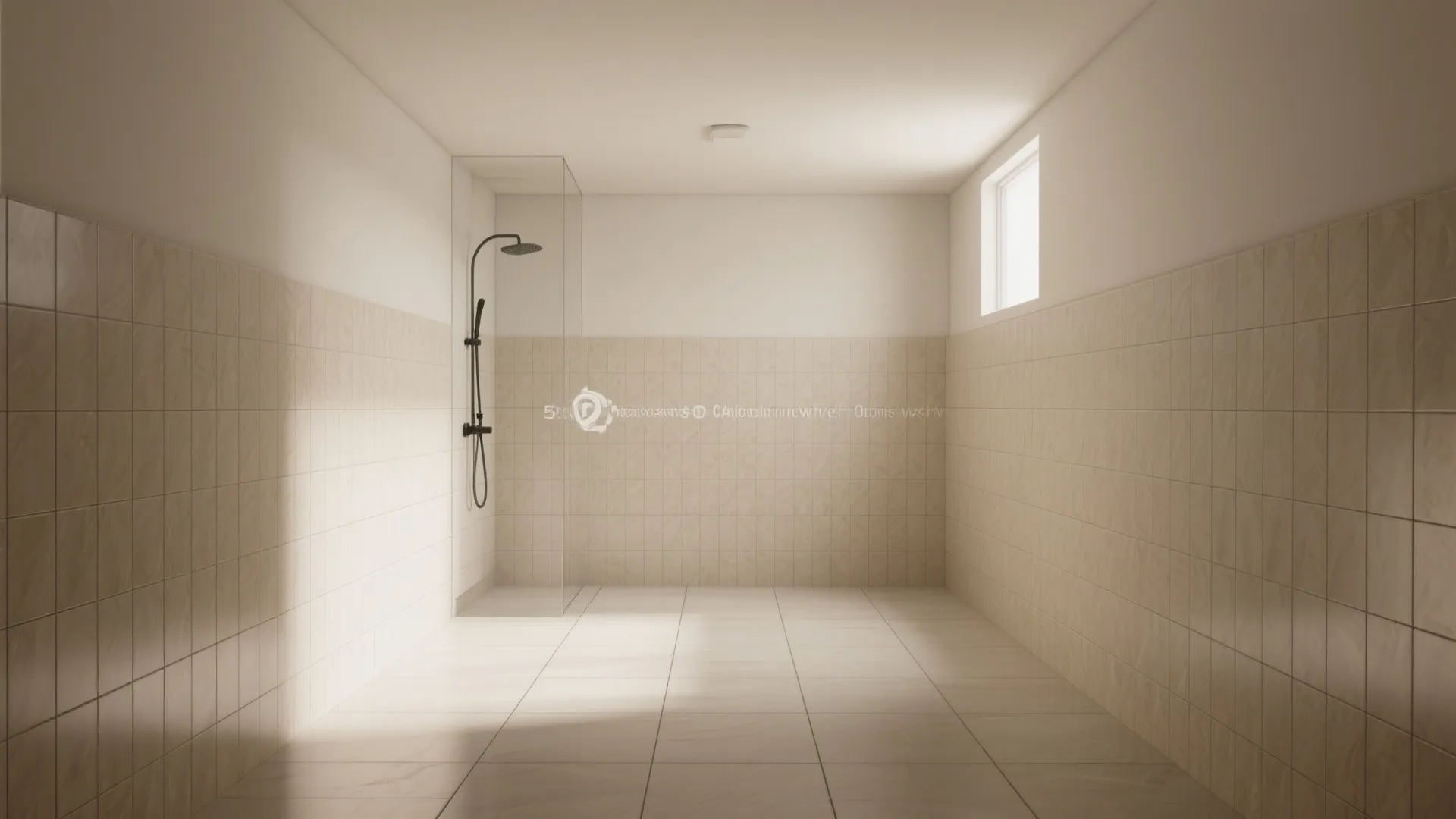

2. Tile the whole room for continuity

Tiling walls and floors in the same color or pattern visually expands a 5 x 8 wet room and simplifies waterproofing details. The advantage is seamless waterproofing and a luxe, cohesive feel; the challenge is cost and the need for skillful grout selection to keep maintenance easy.

Budget trick: use large porcelain tiles on the floor (fewer grout lines) and a complementary lighter wall tile — it looks custom but can be surprisingly cost-efficient.

save pin

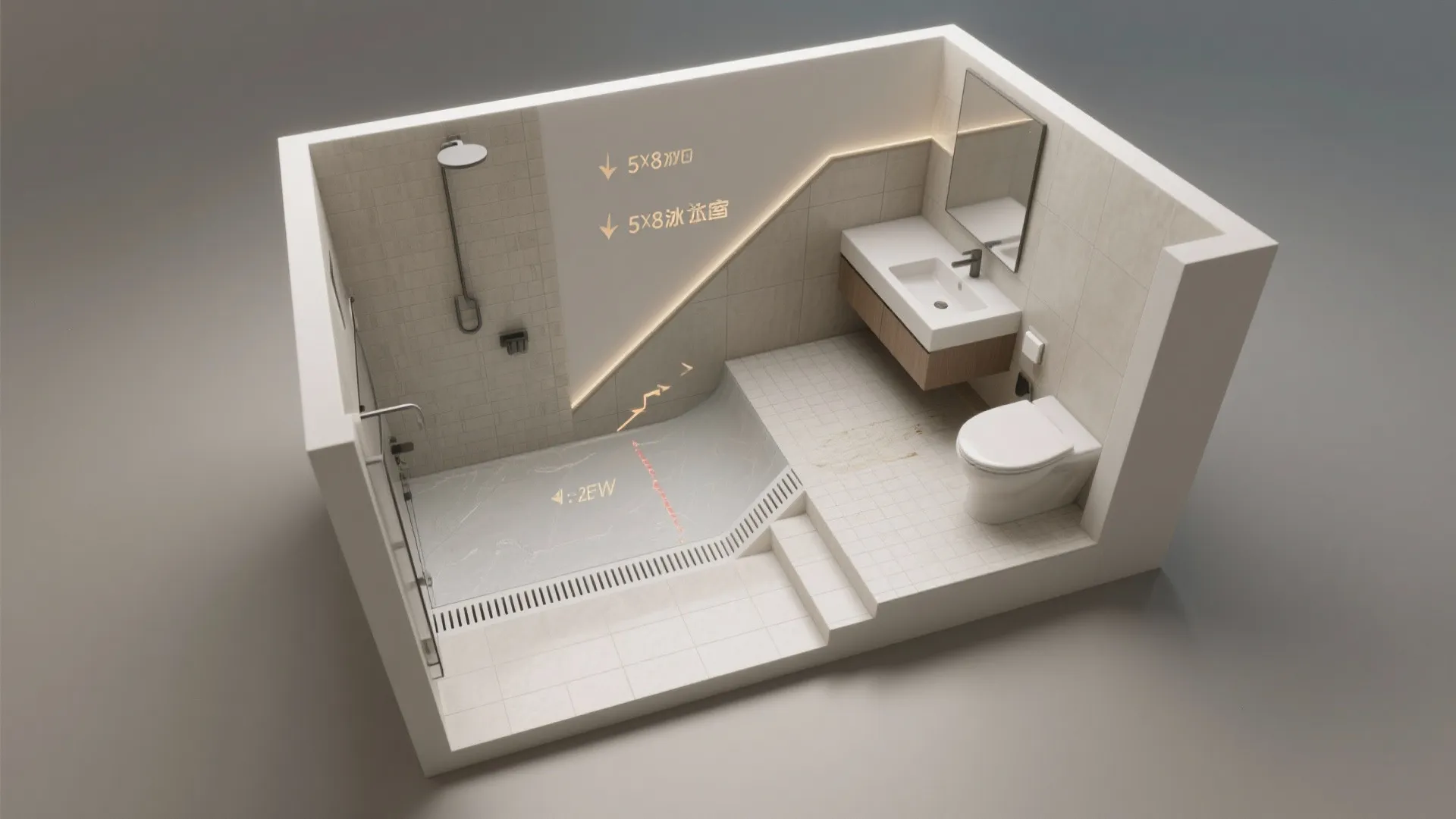

3. Create zones with subtle level changes

Instead of full open-plan, I sometimes recommend a very slight 1–2 inch dropped wet zone that channels water toward a linear drain while keeping the toilet and vanity drier. I like to validate those sight-lines quickly in a 3D floor visualization before committing to tile cuts and drain placement.

Pros are better splash control and defined function; cons are a tiny step that may affect accessibility — so it’s best when you don’t need full zero-threshold access.

save pin

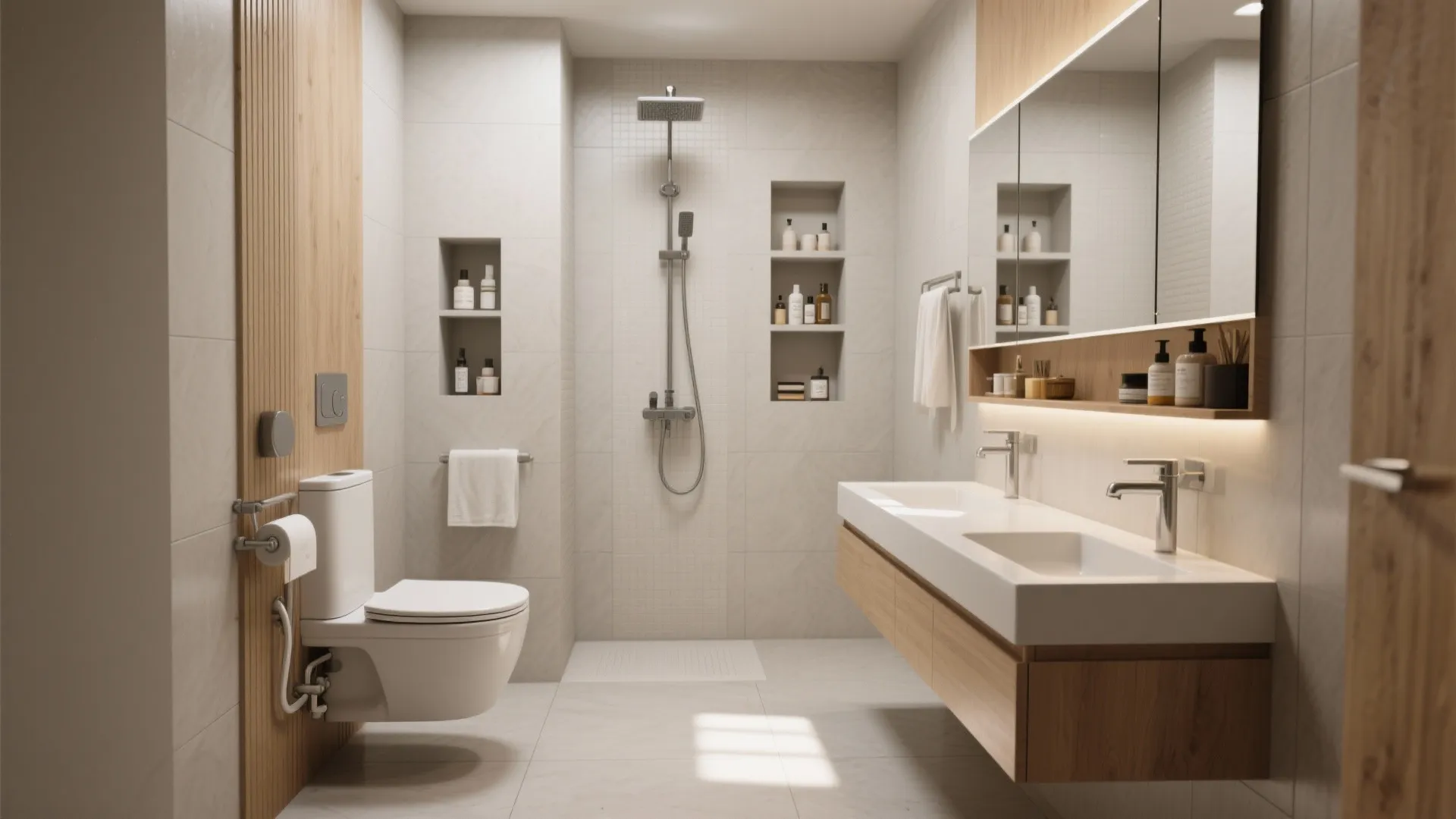

4. Choose wall-hung fixtures and clever storage

Wall-hung toilets and vanities free up visual floor space in a 5x8 and make cleaning a breeze in a wet room. I’ve lost count of how many clients were surprised by how much lighter the room felt once we hung the vanity and tucked plumbing into the wall cavity.

Storage is the trade-off — plan recessed niches and a mirrored cabinet to keep essentials without cluttering the wet zone.

save pin

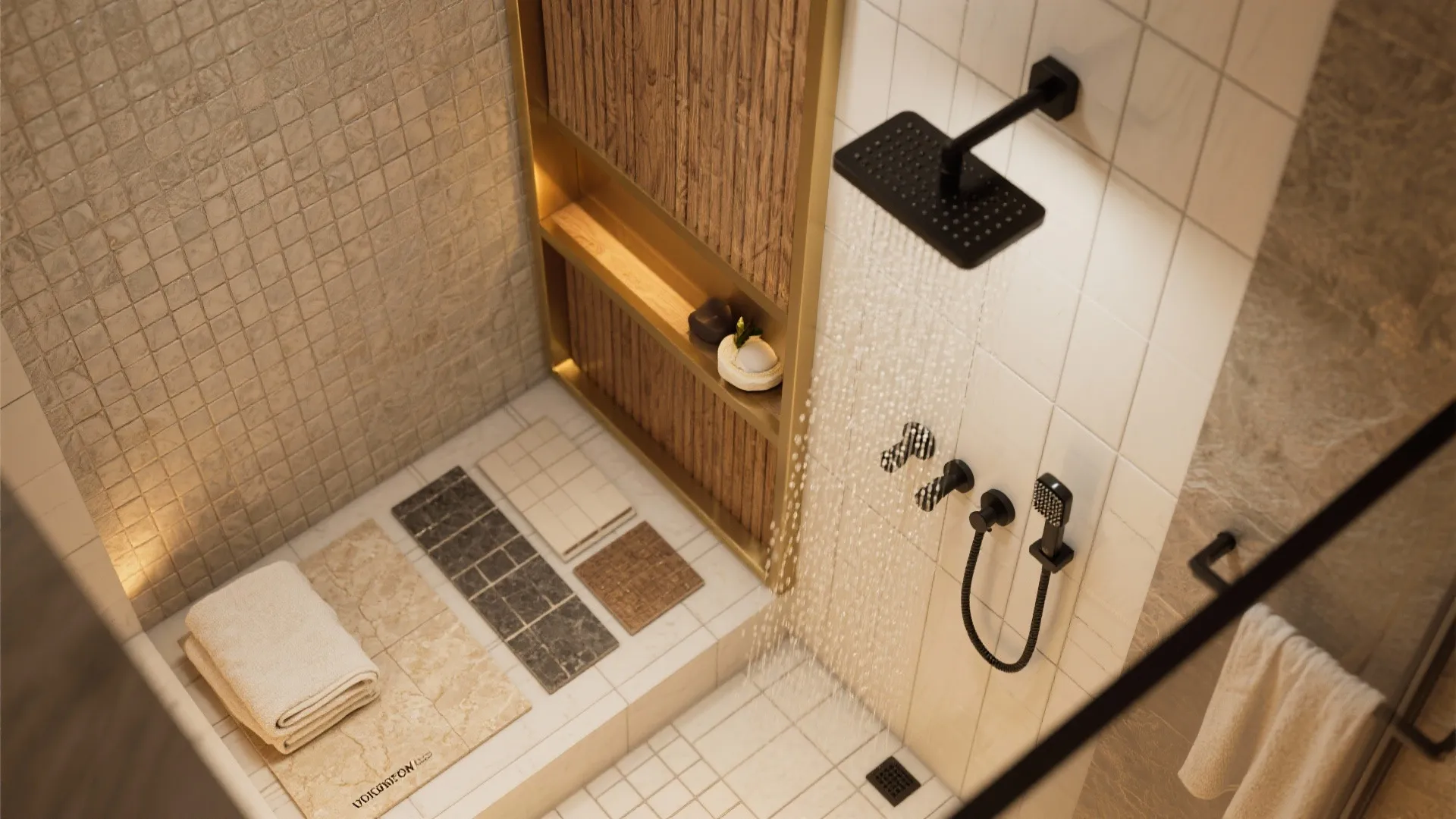

5. Make it feel spa-like with material layering

Even tiny wet rooms can feel high-end: textured tiles, a rain head, underfloor heating, and warm wood-look accents go a long way. If you want to preview materials and lighting I often produce photo-realistic renderings so clients can approve finishes before demolition.

The cost can rise fast with luxury finishes, so mix one statement surface with budget-friendly complementary materials — I call it the ‘one-splurge rule’. It keeps the impact high and the bill reasonable.

save pin

FAQ

Q1: Is a 5x8 bathroom big enough to be a wet room?

A1: Yes — 5x8 is workable for a wet room if you plan drainage, ventilation, and storage carefully. Prioritize slope, a linear drain, and a clear wet/dry strategy.

Q2: What waterproofing is required?

A2: Full floor-to-ceiling waterproof membrane and sealed junctions around drains and penetrations are essential. Consult a licensed contractor for the correct membrane for your climate.

Q3: Do I need a linear drain?

A3: Linear drains make slope planning easier and are ideal for narrow wet zones, but a well-designed central point drain can also work in 5x8 rooms if slopes are correct.

Q4: How do I control splash without walls?

A4: Use a single fixed glass panel, low curb or channel drain, and strategic vanity placement to limit spray. Small design moves often solve the perceived need for more walls.

Q5: What about ventilation?

A5: Proper ventilation is non-negotiable — a powerful extractor fan routed to the outside will prevent mold and protect finishes. Consider continuous low-speed extraction with a boost function tied to humidity sensors.

Q6: Are wet rooms waterproofed differently for accessibility?

A6: Yes — accessible wet rooms need zero-threshold entries and consistent floor slopes; guidance in the UK’s Approved Document M covers recommended approaches for accessibility and drainage.

Q7: Can I see examples before I start?

A7: Absolutely — mockups or virtual previews help. I typically create a few layout sketches and then a 3D plan so clients can understand scale and fixture placement.

Q8: What is the best order of work?

A8: Demolition, waterproofing, screed and fall formation, drainage installation, tiling, fixtures, then final seals and commissioning. Each step must be inspected to avoid costly fixes later.
