Why Public Restroom Floor Plan Design Matters So Much: 1 Minute to Spot the Floor Plan Flaws Ruining Public Restrooms

Direct Answer

Public restroom floor plan design determines how efficiently people move, how clean the space stays, and how comfortable users feel. A well planned layout reduces wait times, improves privacy, simplifies maintenance, and prevents hygiene problems that poorly designed restrooms create.

In commercial projects, the floor plan often has a bigger impact on user satisfaction than the materials or finishes themselves.

Quick Takeaways

1. Good restroom layouts reduce queues and improve traffic flow.
2. Privacy and sightline control strongly influence user comfort.
3. Maintenance access should be designed into the floor plan.
4. Poor layouts create hidden hygiene and cleaning problems.
5. Smart zoning lowers long term operating costs.

Introduction

After working on dozens of commercial projects over the past decade, I can say one thing confidently: public restroom floor plan designis one of the most underestimated parts of architecture and interior design.

Clients often focus on tiles, partitions, or lighting. But when a restroom feels cramped, awkward, or constantly dirty, the real problem is usually the layout. I have seen beautiful $200,000 restroom renovations fail simply because the floor plan ignored traffic flow, privacy lines, or cleaning access.

The difference between a restroom people tolerate and one that actually works comes down to thoughtful planning. In this guide, I’ll walk through the design principles, common mistakes, and hidden costs that most projects overlook.

save pin

Why does public restroom floor plan design affect user experience so much

Key Insight: Most restroom complaints come from layout problems rather than fixtures or materials.

When people say a restroom feels "dirty" or "uncomfortable," they are often reacting to poor spatial planning. Congested entry areas, visible stalls from the door, or sinks placed in traffic paths immediately make the space feel chaotic.

From a design perspective, user experience is shaped by three spatial factors:

1. Traffic flow — how people move from entry to sink to stall.
2. Sightlines — what users can see when doors open.
3. Waiting zones — where people stand when stalls are occupied.

In several retail and airport projects I've worked on, simply repositioning the sink area away from the entrance reduced congestion dramatically without expanding the restroom footprint.

Industry research from the International Facility Management Association also highlights that layout efficiency directly affects restroom satisfaction scores in public buildings.

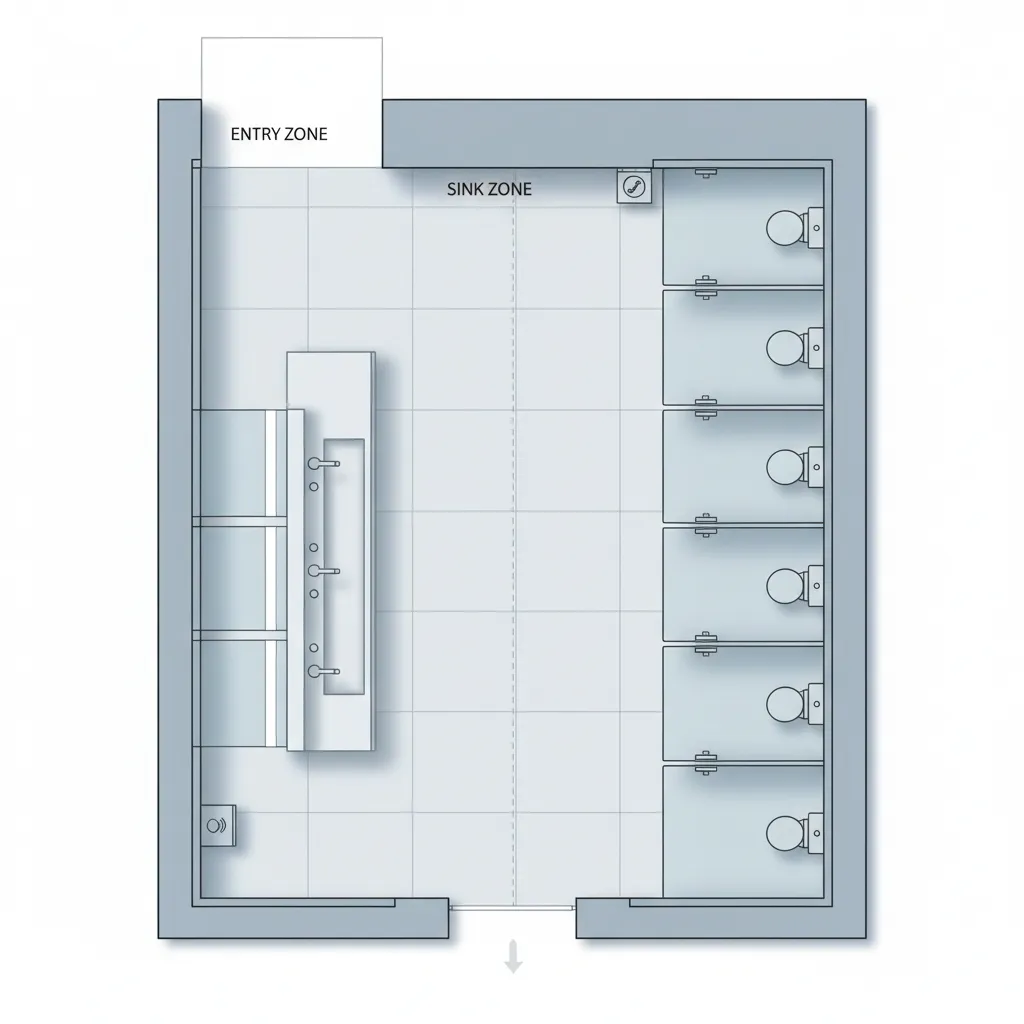

How traffic flow shapes an effective restroom layout

Key Insight: A restroom should function like a one way circulation system whenever possible.

One of the most common layout mistakes is overlapping circulation paths. When people entering, exiting, washing hands, and waiting all share the same narrow area, the space becomes uncomfortable very quickly.

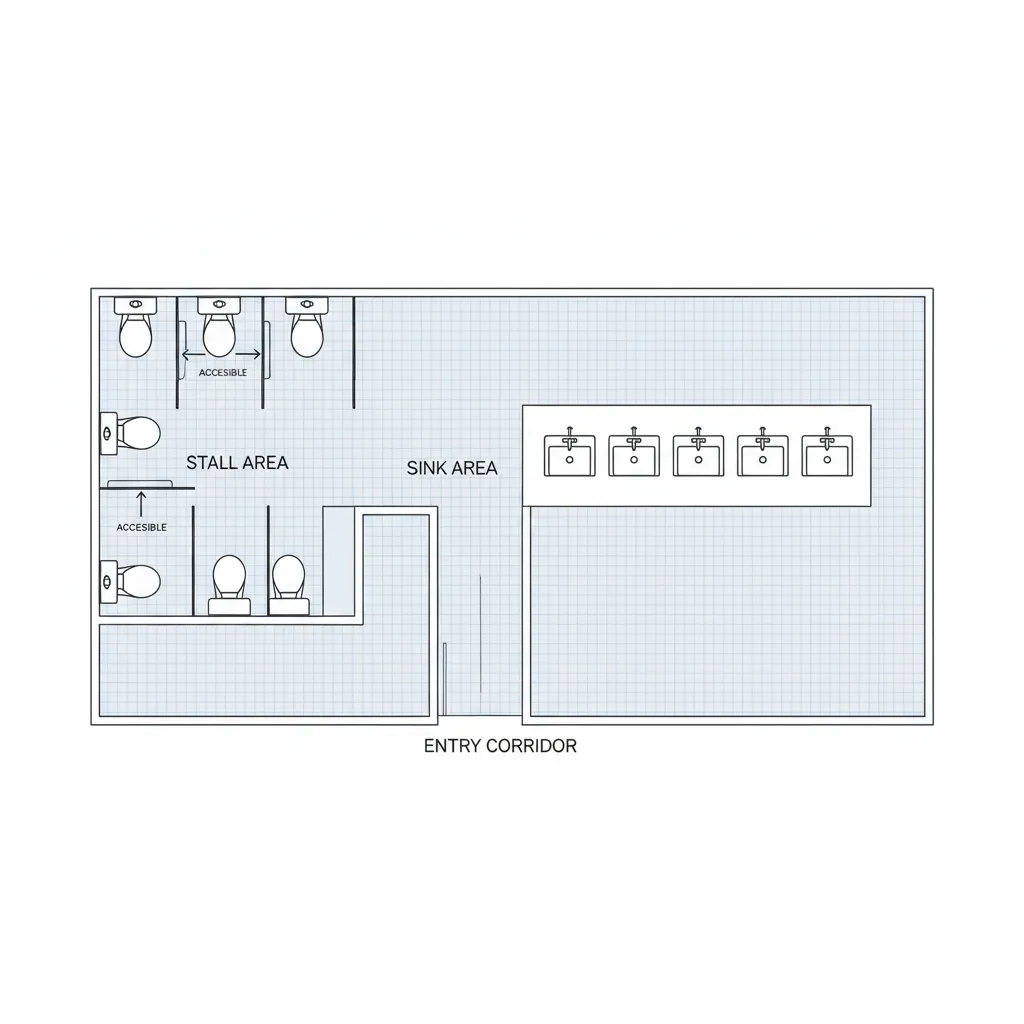

Good restroom floor plans usually follow a simple movement sequence:

1. Entry transition zone
2. Sink and mirror area
3. Stall or urinal zone
4. Exit path

Design strategies that improve traffic flow include:

1. Offset entrances instead of direct door to stall sightlines
2. Separating hand washing from stall circulation
3. Providing buffer space for queues
4. Avoiding dead end corridors

In high traffic environments like stadiums or malls, designers often model restroom traffic similar to airport circulation patterns.

save pin

What privacy problems do bad restroom layouts create

Key Insight: Privacy failures usually come from poor sightline control rather than insufficient partitions.

Many facilities try to fix privacy concerns by installing taller partitions or heavier doors. But the real issue often starts at the entrance.

Common privacy mistakes include:

1. Direct line of sight from door to stalls
2. Mirrors reflecting stall interiors
3. Urinals positioned directly facing entry
4. Sinks placed too close to stall doors

A simple design solution is the "privacy offset" entry. Instead of a straight doorway, a short angled corridor blocks views into the stall area.

This approach is widely used in modern airport restrooms and university buildings because it improves privacy without adding expensive doors.

Hidden maintenance problems caused by poor restroom planning

Key Insight: Cleaning efficiency is one of the biggest hidden costs in restroom design.

Designers often focus on aesthetics while forgetting that restrooms must be cleaned dozens of times per day in busy buildings.

In projects where maintenance teams were consulted early, layouts performed significantly better over time.

Typical layout issues that increase cleaning time include:

1. Narrow spaces between sinks and stalls
2. Fixtures placed too close to walls
3. Floor corners that trap moisture
4. Long stall corridors that are hard to access

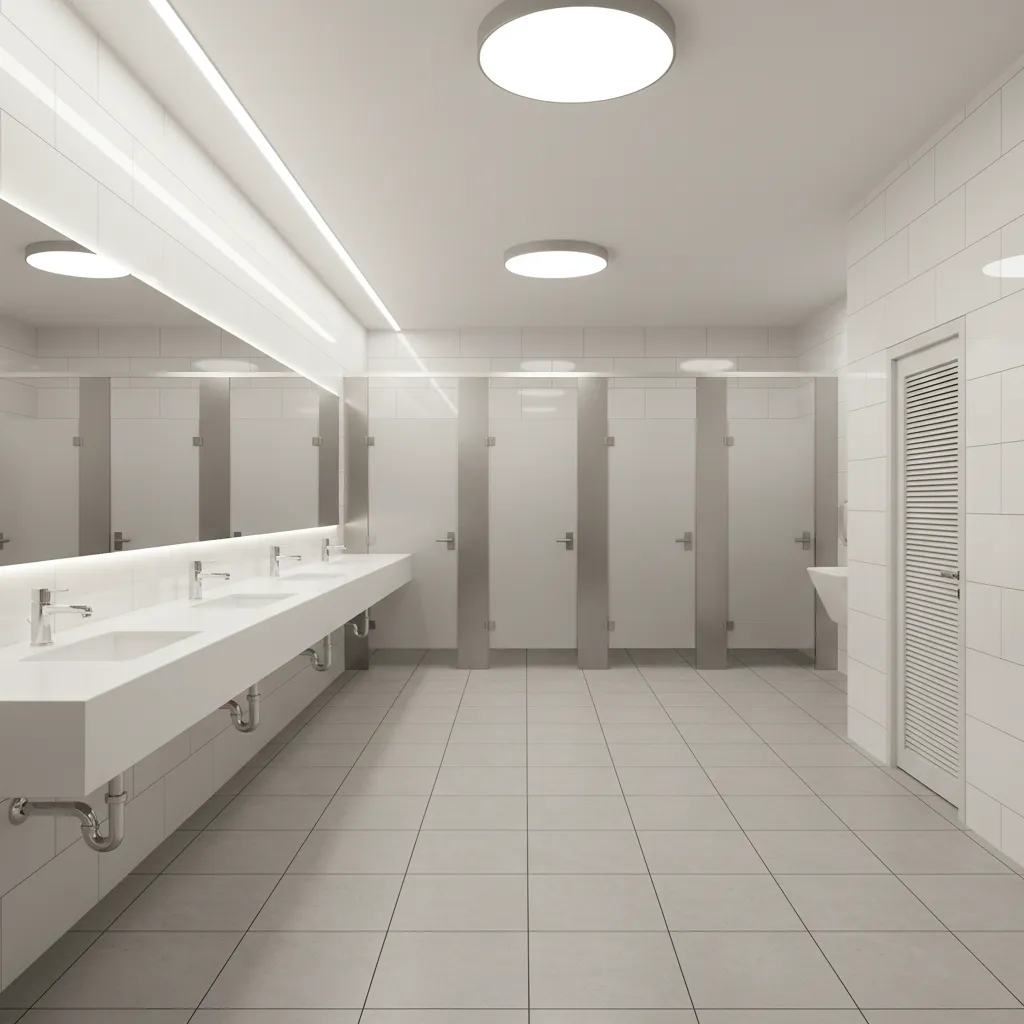

Facility managers often prefer layouts with:

1. Open sink areas
2. Clear mop access routes
3. Centralized plumbing walls
4. Durable traffic paths

In large commercial buildings, improving cleaning efficiency by even 15 percent can save thousands of dollars annually.

save pin

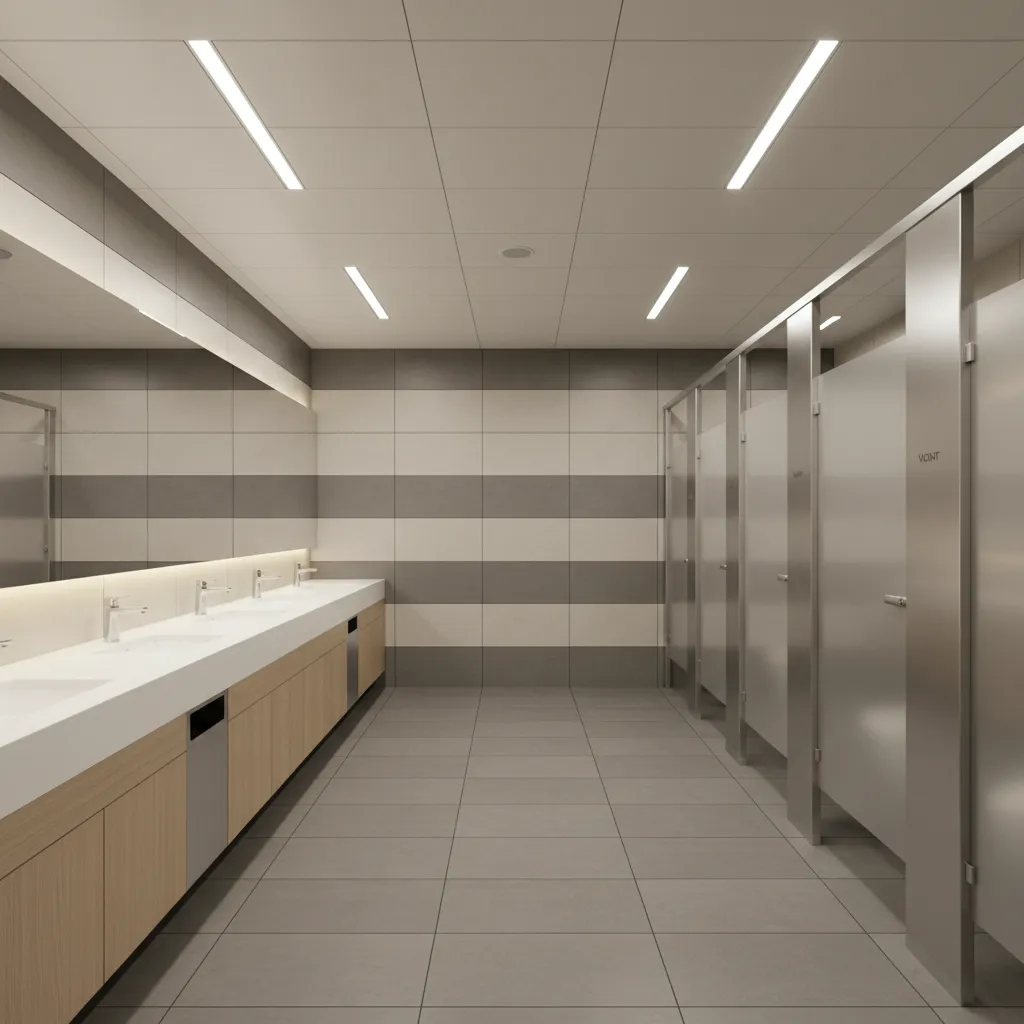

Should sink areas be separated from toilet stalls

Key Insight: Separating sink zones from stalls dramatically improves flow and hygiene perception.

One trend I’ve implemented in several recent projects is splitting the handwashing area from the enclosed restroom area.

This concept appears increasingly in:

1. Airports
2. Restaurants
3. Office buildings
4. Shopping centers

Benefits of this layout include:

1. Shorter lines for handwashing
2. Better ventilation in stall areas
3. Improved visibility for cleaning staff
4. Higher perceived cleanliness

However, the trade off is space. This design requires slightly larger floor area and careful acoustic planning.

What are the most common public restroom floor plan mistakes

Key Insight: Most layout failures come from copying standard plans without considering real user behavior.

Here are mistakes I see repeatedly across projects:

1. Entrances facing busy hallways with no privacy buffer
2. Too few sinks for the number of stalls
3. Urinals blocking stall access
4. No space for accessibility turning radius
5. Maintenance closets located far from restrooms

The surprising part is that many of these issues appear in brand new buildings. They happen because restroom layouts are often finalized late in the design process.

save pin

Answer Box

The success of a public restroom depends more on layout than decoration. A thoughtful public restroom floor plan design improves traffic flow, protects privacy, reduces maintenance effort, and lowers long term operating costs.

Final Summary

1. Restroom layout has more impact than finishes.
2. Traffic flow planning prevents congestion.
3. Privacy depends on sightline control.
4. Maintenance efficiency should guide layout decisions.
5. Separating sink zones can improve usability.

FAQ

1. What is the ideal public restroom layout?

An effective layout separates entry, sink, and stall zones. This improves privacy, circulation, and cleaning efficiency.

2. Why is public restroom floor plan design important?

Public restroom floor plan design affects user comfort, traffic flow, hygiene perception, and maintenance costs. Poor layouts cause congestion and privacy problems.

3. How many sinks should a public restroom have?

A common rule is one sink for every one to two toilets in high traffic facilities, though local building codes may differ.

4. What is the biggest restroom design mistake?

Direct sightlines from the entrance to toilet stalls are one of the most common and uncomfortable design mistakes.

5. Should restroom sinks be outside the bathroom?

Many modern facilities place sinks in a shared open area. This improves traffic flow and reduces congestion inside the restroom.

6. How wide should restroom walkways be?

Most commercial guidelines recommend at least 5 feet for primary circulation paths to support accessibility and high traffic flow.

7. Can better restroom design reduce cleaning costs?

Yes. Efficient layouts improve access for cleaning staff and reduce hidden areas where moisture and dirt accumulate.

8. What makes a restroom feel more private?

Offset entrances, controlled sightlines, and thoughtful stall placement make a restroom feel significantly more private.
