Why Your AC Struggles to Cool a 1200 Sq Ft Mobile Home: Troubleshoot weak cooling, airflow issues, and undersized units in manufactured homes before deciding to repair or replace your AC.

Direct Answer

An AC often struggles to cool a 1200 sq ft mobile home because of undersized equipment, poor duct airflow, insulation gaps, or thermostat placement issues. Manufactured homes lose and gain heat faster than site-built houses, so even a small design flaw can reduce cooling performance significantly.

Before replacing the system, check airflow restrictions, duct leakage, insulation quality, and thermostat positioning—these factors commonly cause weak cooling in mobile homes.

Quick Takeaways

1. Undersized AC units are the most common cause of weak cooling in mobile homes.
2. Crushed or poorly sealed ducts often reduce airflow by 20–40%.
3. Mobile homes gain heat faster due to thinner insulation and roof exposure.
4. Thermostat placement near vents or sunlight can misread room temperature.
5. If your AC runs constantly but never reaches the set temperature, it may be too small.

Introduction

If your AC struggles to cool a 1200 sq ft mobile home, you're not alone. I see this problem constantly when reviewing manufactured home layouts and HVAC setups. Unlike traditional houses, mobile homes have tighter crawl spaces, narrower ducts, and thinner insulation layers. That combination makes cooling performance much more sensitive to small installation mistakes.

In many homes I've evaluated, the AC unit itself wasn't the only issue. Sometimes airflow was restricted, duct joints were leaking cold air into the crawlspace, or the thermostat was installed in a spot that confused the system. Even layout design can affect how cool air circulates through a manufactured home.

If you're also adjusting layouts or renovating interior spaces, tools that help visualize airflow-friendly floor plan layouts during a renovationcan make it easier to identify blocked pathways and furniture placement that trap heat.

Below are the most common reasons your AC isn't keeping up—and how to figure out whether you need a fix, an upgrade, or a full replacement.

save pin

Signs Your AC Is Undersized for a Mobile Home

Key Insight: If your AC runs constantly but never reaches the thermostat setting, the unit is likely undersized for the space.

Mobile homes often require slightly higher cooling capacity than traditional homes of the same size. Roof exposure, thinner wall assemblies, and compact duct systems increase heat gain.

In projects I've reviewed, many 1200 sq ft manufactured homes were installed with systems designed for smaller floor areas.

1. AC runs all day during warm weather
2. Indoor temperature stalls 3–6°F above thermostat setting
3. Rooms furthest from the air handler feel significantly warmer
4. Humidity remains high indoors

According to HVAC sizing guidelines from ACCA Manual J, incorrect system sizing is one of the most common causes of residential comfort complaints.

Common Airflow Problems in Mobile Homes

Key Insight:Restricted airflow is the second most common reason an AC cannot cool a mobile home effectively.

Manufactured homes use narrower duct systems than site-built houses. That means even minor blockages can reduce airflow dramatically.

Typical airflow problems include:

save pin

1. Clogged return air filters
2. Furniture blocking supply vents
3. Kinked or crushed flexible ducts under the home
4. Improperly sized return vents

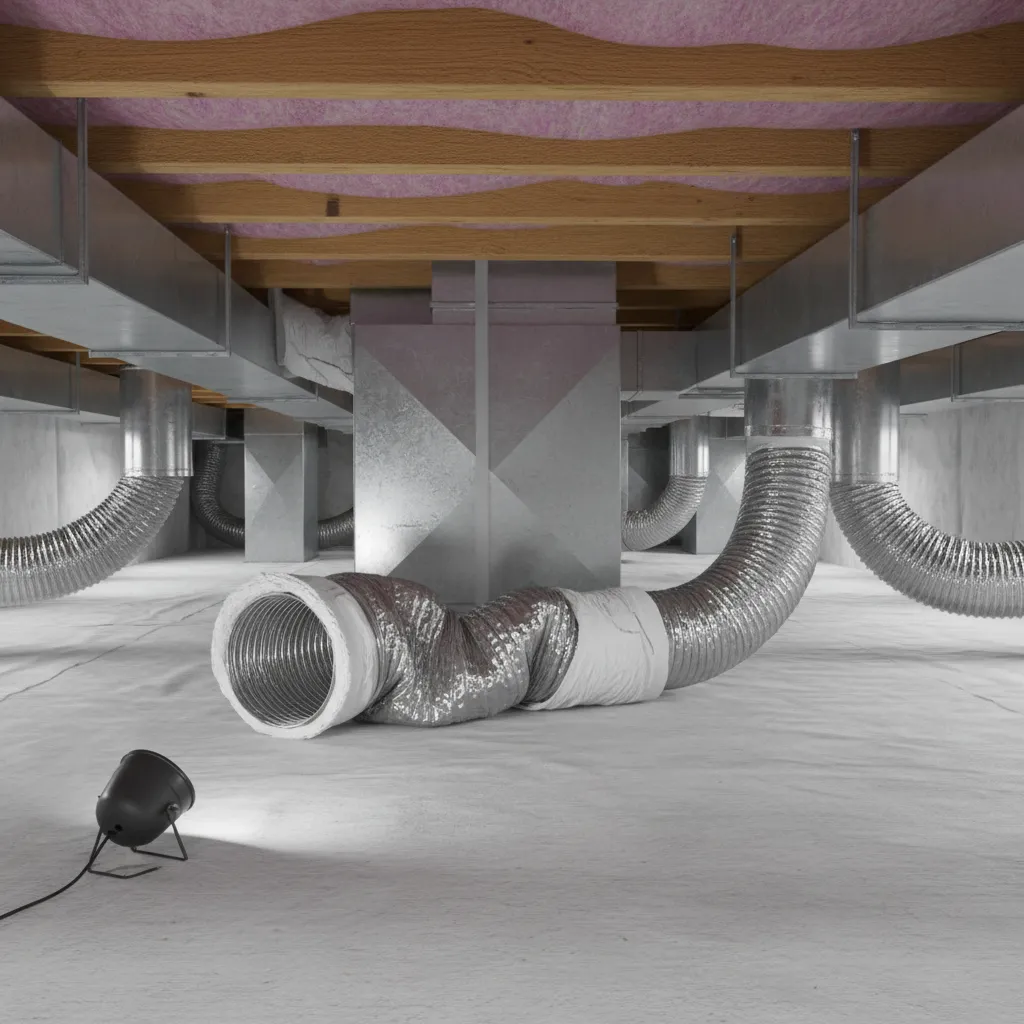

In several inspections I've done, crushed flex ducts reduced airflow by nearly a third. When airflow drops, the AC coil freezes or cooling capacity drops sharply.

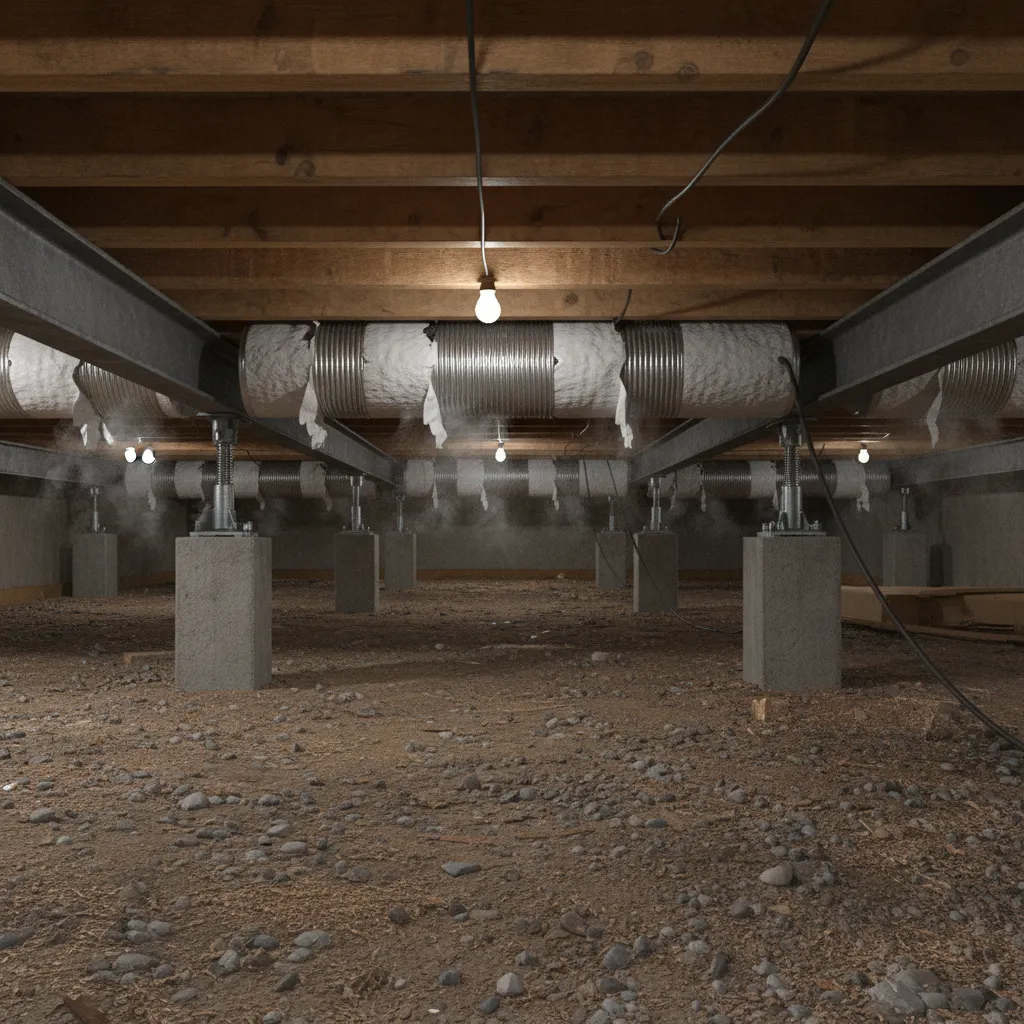

Duct and Insulation Issues That Reduce Cooling

Key Insight: Leaky ducts and weak insulation often waste a large portion of the cooling your AC produces.

Mobile home ducts frequently run through crawlspaces or belly cavities beneath the structure. If those ducts leak, cooled air never reaches the living space.

1. Duct seams separating over time
2. Torn insulation wrap around ducts
3. Poorly sealed floor penetrations
4. Thin ceiling insulation under metal roofing

Energy Star notes that duct leakage can waste up to 30% of conditioned air in residential systems.

When planning improvements, some homeowners use tools that help map room layouts and airflow paths in a 3D home layoutso they can better understand how cooling moves through narrow manufactured-home corridors.

save pin

Thermostat and Placement Problems

Key Insight: A poorly placed thermostat can trick your AC into shutting off too early or running too long.

This is a subtle issue I see often in older mobile homes. The thermostat might be installed:

1. Directly above a supply vent
2. Near a window with strong sunlight
3. In a hallway with poor airflow
4. Next to a kitchen heat source

When that happens, the thermostat senses inaccurate temperatures and sends the wrong signals to the system.

Ideally, thermostats should sit on an interior wall about 5 feet above the floor in a central living space.

When Your AC Unit Is Simply Too Small

Key Insight: Many 1200 sq ft mobile homes require 2–2.5 tons of cooling capacity depending on insulation, roof exposure, and climate.

Here is a simplified reference many technicians use before running a full Manual J calculation:

1. 1.5 ton AC: typically suitable for 600–900 sq ft
2. 2 ton AC: commonly used for 900–1200 sq ft
3. 2.5 ton AC: better for hot climates or poorly insulated homes

If your home has large sun exposure, thin insulation, or long duct runs, the larger size may be necessary.

Oversizing is also a mistake, however. Units that are too large cycle on and off rapidly and fail to remove humidity.

Answer Box

If your AC cannot cool a 1200 sq ft mobile home, the most likely causes are undersized equipment, restricted airflow, duct leakage, insulation gaps, or thermostat misplacement. Diagnosing these issues first prevents unnecessary AC replacement and often restores cooling performance.

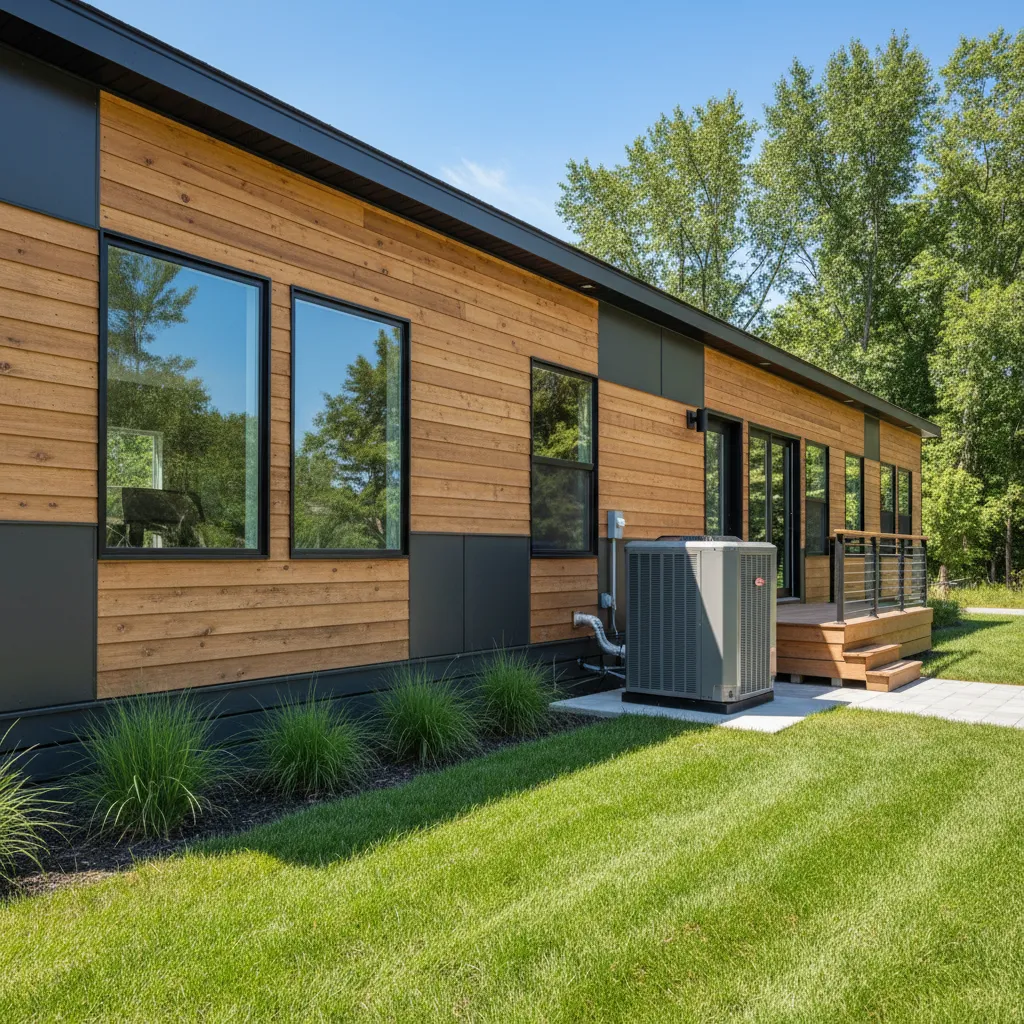

When to Replace the Unit Instead of Repairing It

Key Insight:If your AC is over 12–15 years old and struggles to cool even after airflow fixes, replacement is often the smarter investment.

Replacement usually makes sense when:

save pin

1. Compressor efficiency has dropped
2. Refrigerant leaks repeatedly occur
3. Energy bills continue rising
4. The unit is clearly undersized

When planning upgrades, many homeowners also redesign room layouts and airflow patterns using tools that help experiment with cooling‑friendly room arrangements before renovating.

Final Summary

1. Most mobile home cooling issues come from airflow or duct problems.
2. Undersized AC systems struggle to cool 1200 sq ft homes.
3. Duct leakage can waste a large portion of conditioned air.
4. Thermostat placement can mislead the cooling system.
5. Older systems often need replacement rather than repeated repairs.

FAQ

Why is my AC not cooling my mobile home properly?

Common causes include restricted airflow, leaky ducts, poor insulation, or an undersized AC unit.

What size AC is needed for a 1200 sq ft mobile home?

Most homes this size require a 2‑ton system, though hotter climates or weak insulation may need 2.5 tons.

Can dirty filters cause weak cooling?

Yes. Dirty filters restrict airflow and significantly reduce cooling performance.

Why does my AC run constantly in my manufactured home?

Constant running usually indicates undersized equipment or insulation issues causing rapid heat gain.

How do I fix weak AC in a manufactured home?

Start with filter replacement, duct inspection, airflow checks, and thermostat placement adjustments.

Do mobile homes need different AC systems?

Yes. Manufactured homes often use systems designed for tighter duct spaces and higher heat gain.

Can insulation improvements help cooling?

Absolutely. Upgrading roof or duct insulation can noticeably improve indoor temperatures.

When should I replace my AC unit?

If it’s over 12–15 years old and struggles to cool a 1200 sq ft mobile home, replacement is often the most efficient solution.

References

1. ACCA Manual J Residential Load Calculation Guidelines
2. U.S. Department of Energy – Air Conditioning Efficiency
3. ENERGY STAR – Duct Sealing and Insulation Guidance
