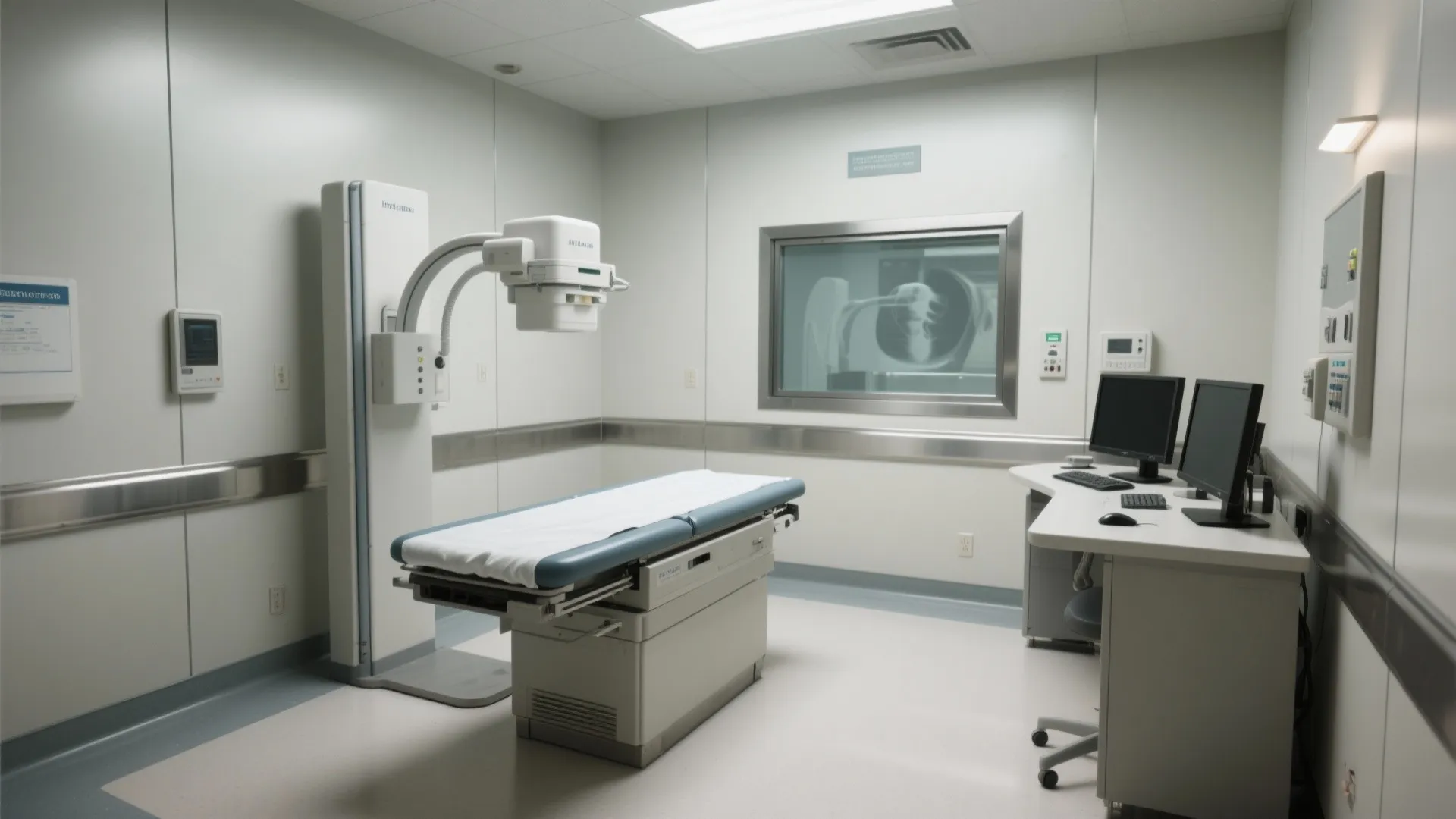

X Ray Room Wall Thickness: Essential Guide for Safe Design: Fast-Track Guide to Determining Safe X Ray Room Wall Thickness

I design diagnostic environments where safety must be as precise as the imaging itself. Getting wall thickness right in an X-ray room isn’t about adding inches—it’s about achieving the correct lead equivalency based on workload, kVp, occupancy, and distance. In real projects, that balance is reached through shielding calculations, not guesswork. For context, research on healthcare work environments shows that design rigor impacts safety and performance: Gensler’s workplace studies consistently link well-resolved space planning with measurable outcomes, and the WELL Building Standard v2 underscores the importance of performance verification for health-related environments. Both reinforce the value of data-driven decision-making in clinical design.

Radiation protection is governed by occupancy and exposure controls rather than a fixed wall thickness. In practice, general diagnostic X-ray rooms often require 1/16" lead equivalent (about 1.6 mm Pb) for primary barriers, while secondary barriers can be thinner—frequently 1/32" (about 0.8 mm Pb)—depending on the shielding report. These values vary by workload and adjacent use. WELL v2’s Performance Verification framework emphasizes real-world testing and continuous compliance, a mindset that aligns with radiation surveys and annual QA in clinical spaces. For broader workplace metrics, Steelcase research highlights how environment quality influences safety behaviors, reinforcing that shielding should be part of a holistic safety strategy.

Clarifying Wall Thickness vs. Lead Equivalency

Wall thickness alone doesn’t protect from X-ray scatter or primary beams—lead equivalency does. A typical gypsum stud wall becomes protective when integrated with lead-lined gypsum board or sheet lead. The “thickness” that matters is the lead layer, not the drywall stack. For general radiography, I usually see 1/16" Pb for primary walls around the tube and table, and 1/32" Pb for secondary walls and control booths, adjusted by the medical physicist’s shielding design.

Core Inputs That Determine Shielding

Every shielding plan starts with a few non-negotiables: workload (mA-min/week), maximum kVp, use factor (fraction of time a barrier is struck by primary beam), occupancy of adjacent spaces (full vs. limited), distance to the source, and equipment type (fixed vs. mobile, fluoroscopy vs. DR). These inputs drive the lead equivalency—not arbitrary thickness. Control rooms with full-time staff usually require higher attention to secondary scatter protection; lightly occupied storage might need less, but this is never assumed without calculations.

Typical Assemblies and Material Decisions

For primary barriers: lead-lined gypsum board with 1/16" Pb bonded, installed continuous and overlapped at seams. For secondary barriers: lead-lined board at 1/32" Pb is common. Where higher energies or workloads exist (e.g., fluoroscopy), additional layers or thicker lead may be required. Doors are lead-lined to match adjacent barrier equivalency; frames often require lead astragals. Vision panels use lead glass with matching equivalency—commonly 1.5–2.0 mm Pb. Acoustic control matters too: the imaging suite benefits from STC-rated partitions and ceiling absorbers to reduce stress and errors, while ensuring shielding continuity around penetrations.

Detailing for Continuous Protection

Shielding effectiveness is only as good as its weakest seam. I specify sheet lead or lead-lined board with staggered joints, continuous coverage behind casework, and fully lapped corners. Electrical boxes get lead-lined backer plates; conduit penetrations require sleeves with lead wrap and sealant. Above-ceiling areas must match wall equivalency where the barrier continues. Coordination with mechanical, electrical, and plumbing trades is essential so no unprotected pathway undermines the assembly.

Layout and Zoning Strategy

Position the X-ray tube and table to minimize primary beam strikes on highly occupied adjacent spaces. Place the control booth where staff can maintain visual contact through lead glass, away from primary beam paths. If you need to simulate adjacency and occupancy impacts across rooms, a room layout tool can help visualize control booth placement and patient flow while respecting barrier priorities:

room layout tool

Ergonomics and Human Factors

Radiation-safe doesn’t mean user-hostile. Control booths should allow neutral postures with monitor heights aligned to eye level, 20–28 inches viewing distance, and anti-glare lighting strategies. WELL v2 encourages visual comfort; I adopt indirect lighting, 3000–4000K color temperature for calm focus, and task lighting that avoids reflections in imaging displays. Door hardware must be easy to operate under PPE, and clear floor paths reduce trip risks in low-light imaging environments.

Lighting and Visual Comfort

Ambient lighting should be dimmable, flicker-free, and shielded from direct glare. IES recommendations for clinical spaces emphasize control of luminance contrast to support accuracy. Use low-reflectance finishes near displays and specify separate task lights for positioning, with CRI high enough for skin tone assessment when needed. Lighting must coordinate with shielding—fixtures penetrating barriers require sleeves and continuity.

Acoustics and Behavioral Patterns

Anxious patients move unpredictably. Reducing reverberation (target RT60 around 0.4–0.6 seconds in small rooms) stabilizes communication. Acoustic panels can be placed on non-primary barrier surfaces or integrated over lead-lined substrates. Keep staff pathways quiet and predictable; place storage near entry to limit mid-procedure disruptions.

Sustainability and Materials

Lead is effective but toxic if mishandled. Specify certified installers and ensure proper waste protocols. Alternatives like barium-based panels can supplement secondary barriers in special cases, but they rarely replace lead for primary protection in diagnostic X-ray. Opt for low-VOC paints, healthcare-grade vinyl flooring with heat-welded seams, and durable casework that survives cleaning cycles without degrading barrier edges.

Commissioning and Verification

After installation, request a radiation survey by a qualified medical physicist to verify dose rates at control points and adjacent areas. WELL v2’s performance mindset is useful here: measure, document, and maintain. Keep an as-built shielding log and detail any penetrations added post-occupancy; small changes can undermine protection if not corrected.

Common Pitfalls I Avoid

- Assuming 1/16" Pb is always enough without calculations

- Forgetting to wrap shielding past door frames and window jambs

- Leaving unprotected chases for conduits and med-gas lines

- Ignoring ceiling and floor continuity where primary beams can strike

- Overlooking occupancy changes in adjacent spaces during renovations

FAQ

Q1: What is the typical lead equivalency for an X-ray room wall?

A: Many general radiography rooms use 1/16" Pb for primary barriers and 1/32" Pb for secondary barriers, but the exact values must be determined by shielding calculations based on workload, kVp, distance, use factors, and occupancy.

Q2: Does increasing drywall thickness improve radiation protection?

A: Not meaningfully. Radiation protection relates to lead equivalency, not drywall thickness. Use lead-lined gypsum or sheet lead integrated within the wall assembly.

Q3: How are doors and windows handled?

A: Doors are lead-lined to match adjacent barrier equivalency, and frames use lead inserts or astragals. Windows use lead glass with matching Pb equivalency, often around 1.5–2.0 mm Pb for general diagnostic suites.

Q4: Who determines the required wall protection?

A: A qualified medical physicist prepares a shielding design based on equipment specs and room conditions. Their report dictates lead equivalencies for each barrier.

Q5: What about the control booth—does it need the same thickness?

A: Control booths are usually protected as secondary barriers to mitigate scatter and leakage, often at 1/32" Pb, unless shielding calculations require more.

Q6: How do adjacent room uses affect wall requirements?

A: High-occupancy adjacent spaces (nurses’ stations, offices) typically increase barrier requirements; low-occupancy areas may allow lower equivalency. Use factors and occupancy categories drive these decisions.

Q7: Are ceiling and floor barriers necessary?

A: Yes where the primary beam can impinge or where scatter/leakage reaches occupied areas above or below. Shielding must be continuous across all potential paths.

Q8: Can I rely on standard values without a survey?

A: No. Standard values are starting points. Commissioning requires a radiation survey to confirm dose limits at control points and in adjacent areas.

Q9: How should electrical boxes and penetrations be treated?

A: Use lead-lined backers and sleeves, maintain overlap, and seal all penetrations. Any opening can become a weak point without proper detailing.

Q10: Does lighting design influence radiation safety?

A: Indirectly. Proper lighting reduces errors and supports accurate positioning. Fixtures must be coordinated so barrier penetrations maintain shielding continuity.

Q11: Are there non-lead alternatives?

A: Some barium-based products can assist in secondary barriers, but lead remains the primary choice for diagnostic X-ray due to efficiency at typical kVp ranges.

Q12: How often should shielding be revalidated?

A: After any equipment change, layout modification, or significant maintenance. Annual QA and documentation are good practice in clinical environments.
