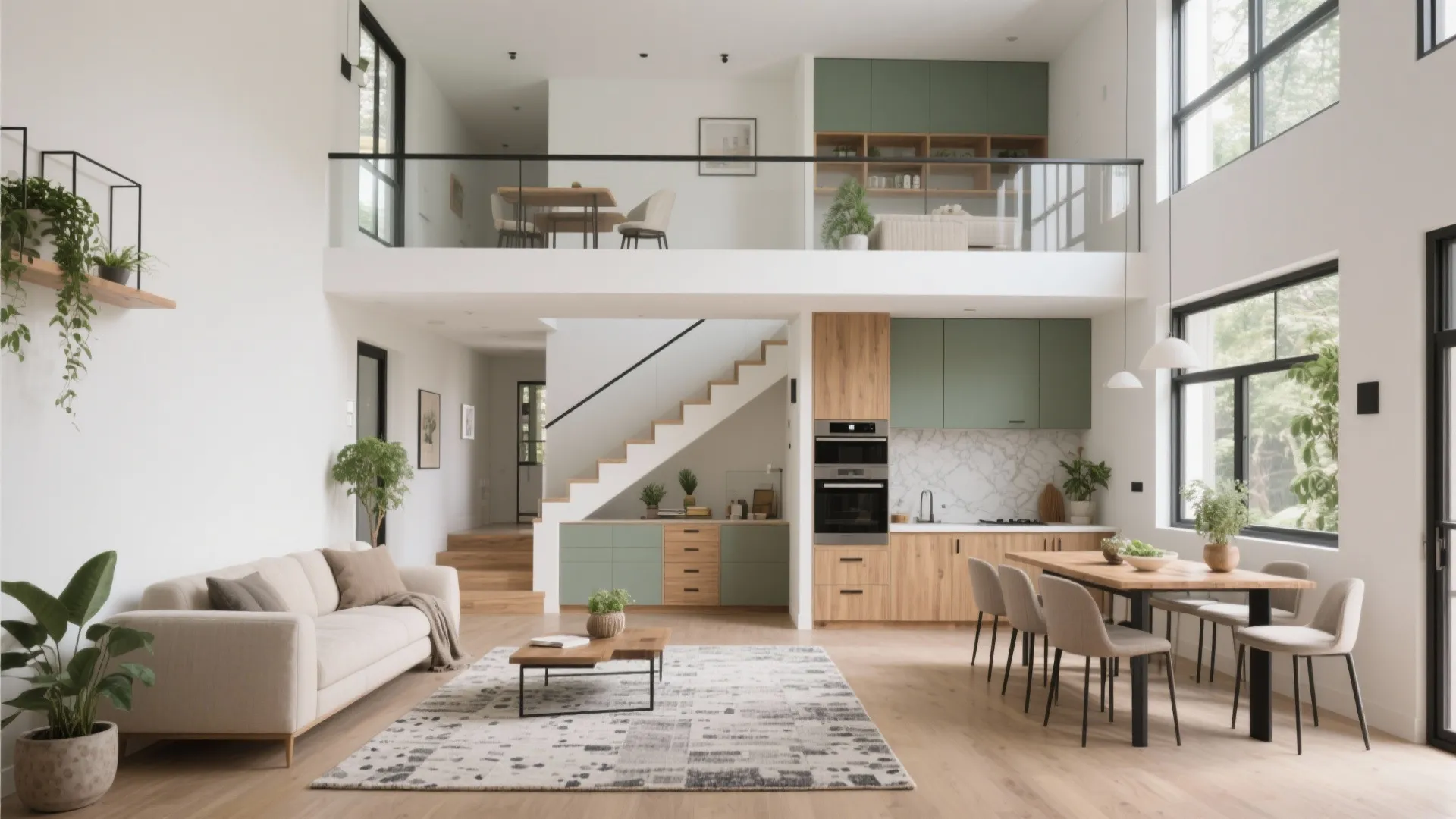

3 BHK Duplex House Plan: 5 Smart Layout Ideas: An interior designer’s field-tested guide to planning a practical, light-filled 3 BHK duplex with five proven ideas, costs, and real-life tips

Every year I tweak at least a dozen 3 BHK duplex house plan briefs, and a few trends keep winning: natural light, smarter circulation, and storage you don’t see. One idea clients love lately is a double-height living room for better light—it makes a compact footprint feel generous without adding square footage. And yes, small spaces truly spark big creativity; duplexes prove it to me week after week.

In this guide, I’ll share five design inspirations I rely on for a 3 BHK duplex—what works, what to watch out for, and where to spend versus save. I’ll mix my own site notes with expert data so you can translate concepts into a real plan. If you’re starting a 3 BHK duplex house plan from scratch, consider this your checklist and reality filter.

We’ll cover: zoning that keeps peace at home, a staircase that quietly earns its keep, light and ventilation that boost comfort, a kitchen that actually cooks, and a flex room that adapts as life changes. By the end, you’ll have five ideas you can sketch into your next draft.

Zoning That Works for Real Families

My Take: On one of my recent duplex projects for a family of five, we separated the social zone (living–dining–kitchen) from the private zone (bedrooms and study) using a partial wall and a pocket door. It kept evening TV noise out of the kids’ room without turning the house into a maze. The trick was aligning circulation so nobody had to cut through a quiet space to get anywhere.

Pros: Strong zoning brings calmer routines, especially in a compact 3 BHK duplex floor plan. You can maintain sightlines from the kitchen to the living area while isolating bedrooms for naps or study. In multi-generational setups, zoning lets you add a small ground-floor suite with an accessible bath without compromising the main living flow.

Pros: Thoughtful zoning also supports long-tail needs like “3 BHK duplex floor plan with parking,” where a discrete vestibule buffers fumes and road noise. Add a mud bench and shoe cabinets at the entry so the rest of the home stays clean, and set the kid zone deeper inside to reduce clutter migration.

Cons: Over-zoning can fracture your space; too many partitions kill light and make rooms feel smaller. Also, adding sound-rated doors and drywall layers costs more upfront—worth it near bedrooms, but you don’t need it everywhere. And if you miscalculate door swings or passage widths, circulation pinch points can creep in.

Tips/Case/Cost: As a starting ratio in compact duplexes, I like 55–60% for social areas and 40–45% for private rooms. Keep primary bedroom upstairs for privacy; place a guest/parents’ room downstairs if stairs are an issue. For quiet zones, consider solid-core doors (adds ~$100–$200 per door) and draft stoppers to cut noise transfer.

save pin

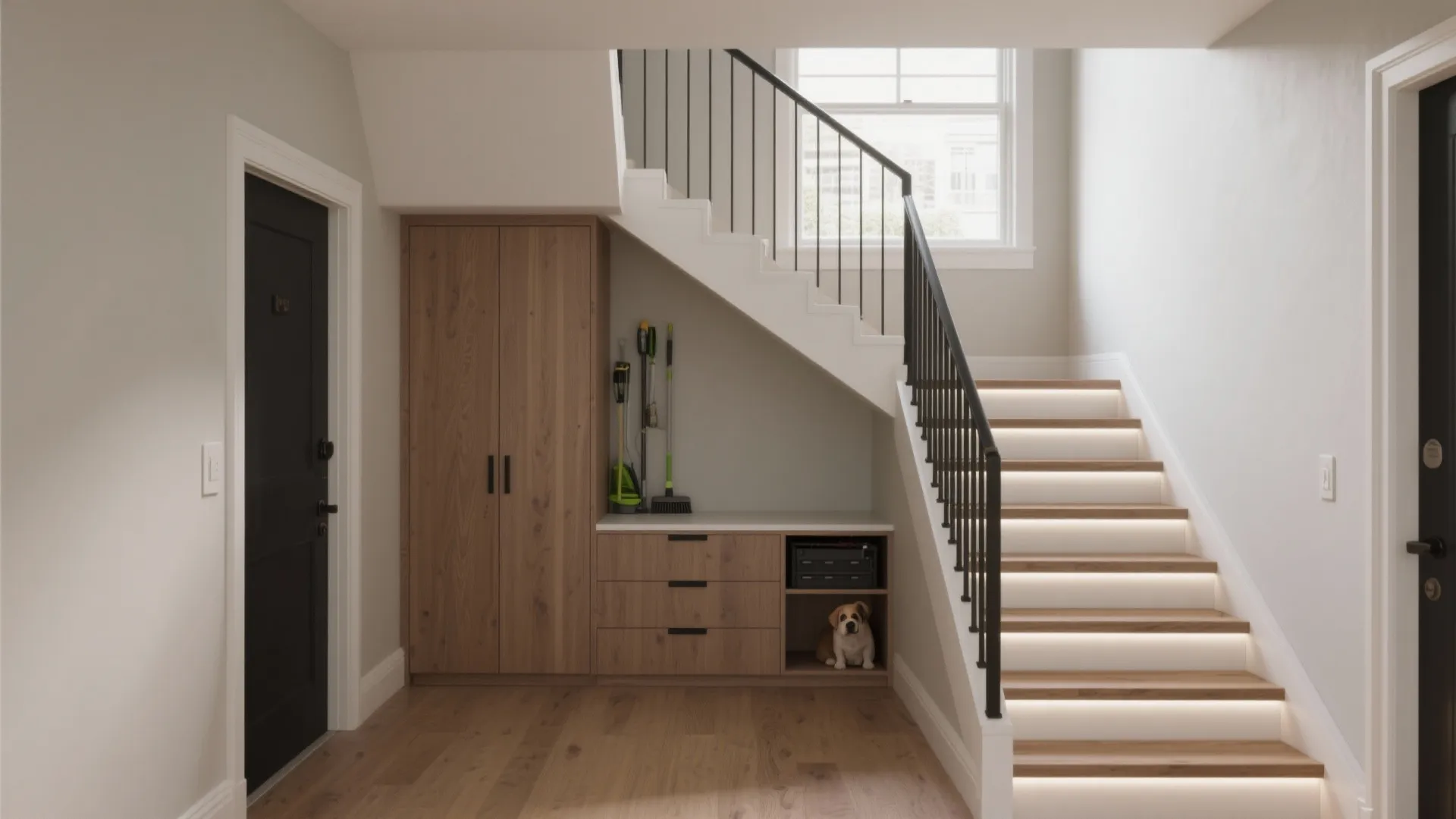

The Staircase as a Space-Saving Hero

My Take: I’ve turned countless under-stair triangles into linen closets, powder rooms, pet nooks, and even a compact study. In one narrow duplex, a switchback stair with a landing gave us a perfect spot for a built-in desk; the landing window also bounced daylight down to the entry.

Pros: A well-placed stair clarifies the plan. Central stairs shorten travel time between floors; perimeter stairs open up the living core. Under-stair storage is gold in a compact 3 BHK duplex design—think drawers for school bags, a tall cabinet for cleaning tools, or a hidden laundry stack if your plumbing allows.

Pros: Split-level or switchback stairs also become structural dividers without needing full-height walls, which helps maintain an open concept feeling. With careful detailing, treads can integrate lighting strips, making the stair both safe and sculptural.

Cons: Headroom and fire safety are non-negotiable—shoehorned powder rooms under stairs often fail clearances. Open risers look elegant but can be unnerving for pets and toddlers. And a switchback stair eats a bit more footprint than a straight run; measure twice before committing.

Tips/Case/Cost: Aim for a comfortable 10–11 inch tread depth and roughly a 7 inch riser; many local codes will be close to that. For under-stair storage, plan full-extension drawers rather than cabinets—deeper drawers reduce dead space. Budget roughly $1,500–$3,500 for a good under-stair millwork package in mid-market finishes.

save pin

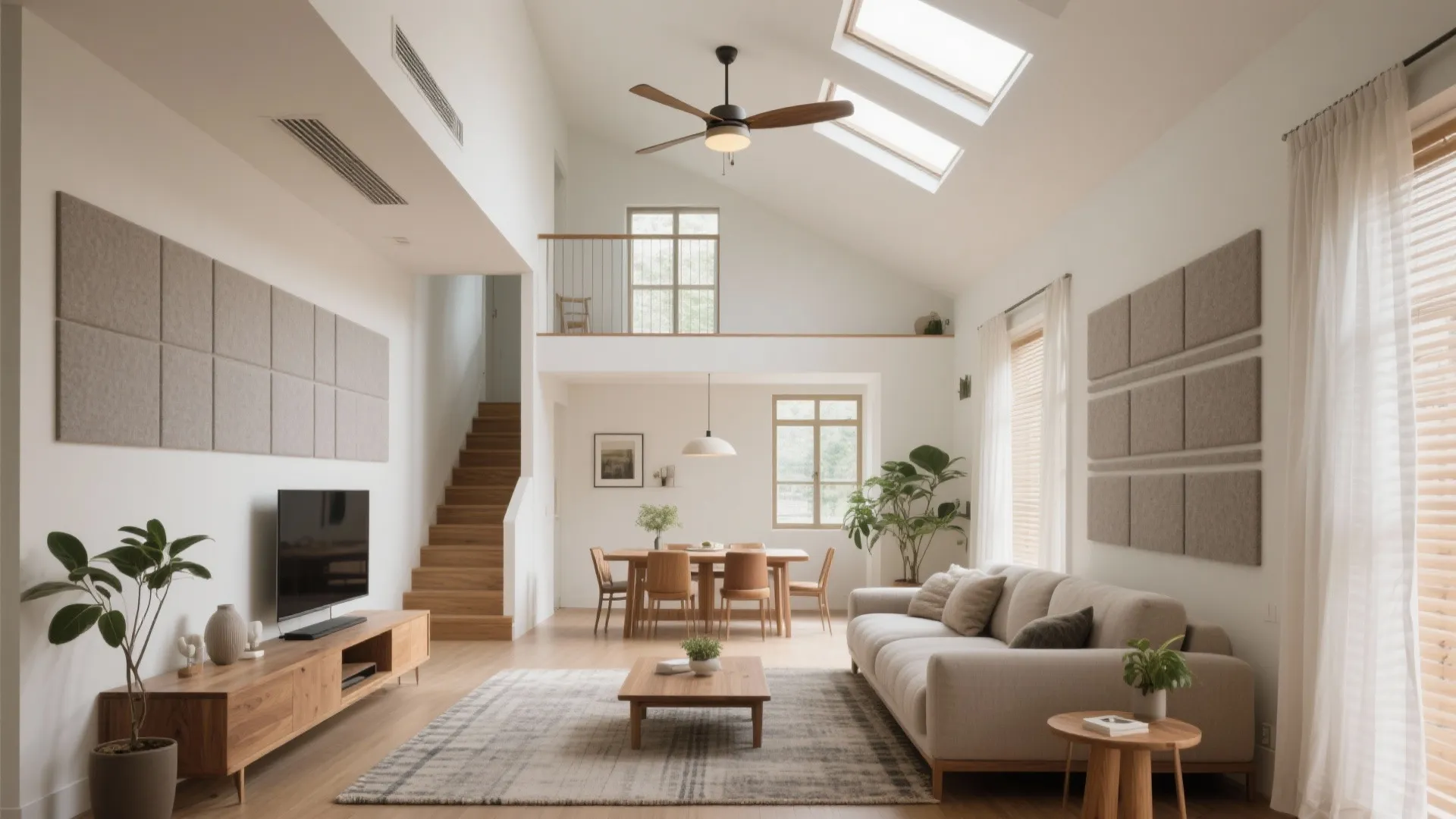

Light, Ventilation, and a Double-Height Wow

My Take: A compact footprint can feel serene with the right light strategy. I prefer stacking windows vertically along the stair shaft so light diffuses onto both levels. In one duplex, a skylight above the landing turned the stair into a glowing lantern by day and cut artificial lighting needs.

Pros: Good daylighting improves well-being and lowers energy use. Position living spaces along the best orientation and consider a modest double-height volume near the living–dining edge so light penetrates deeper. For cross-ventilation, pair operable windows on opposite walls; in hot climates, keep openings shaded to limit heat gain.

Pros: Ventilation targets matter. As a planning benchmark, residential ventilation guidelines such as ASHRAE 62.1 point to adequate outdoor air rates and promote strategies to reduce pollutants and moisture. In practice, I combine trickle vents, ceiling fans, and sealed kitchen/bath exhausts to keep air fresh without overcooling.

Cons: Double-height spaces need acoustic and thermal tuning. Sound can bounce; add soft finishes (rugs, upholstered pieces, acoustic panels) to tame echo. In warmer zones, tall spaces may trap heat aloft—ceiling fans and high-level operable vents help “stack” warm air out.

Tips/Case/Cost: If you’re balancing budget, limit the double-height to 1–1.5 bays rather than the whole living room. Consider a clerestory band above eye level for privacy. And if you’re refining circulation, you can even let a split-level staircase with storage bounce daylight between floors while quietly adding capacity for bags, linens, and seasonal gear.

Authority Note: For indoor air quality and ventilation, see ASHRAE 62.1 (Ventilation for Acceptable Indoor Air Quality) as a reference point for outdoor air and exhaust strategies; it’s a solid baseline when detailing kitchens and bathrooms.

save pin

A Kitchen That Actually Cooks (U-Shaped or Parallel)

My Take: My kitchen test is simple—can two people prep and clean at the same time without saying “excuse me” five times? In compact duplexes I favor U-shaped or parallel layouts: short walks, abundant counter runs, and great sightlines to the dining area so homework and dinner can coexist.

Pros: A U-shaped kitchen layout makes the work triangle efficient in tight footprints. With 36–42 inches between counters, two cooks can move comfortably, and you get generous corner counter space for appliances. A parallel kitchen works brilliantly when the dining is aligned; add a pass-through counter for serving and extra seating.

Pros: Industry planning guides like NKBA recommend 42 inches for a one-cook kitchen and 48 inches for two cooks between opposing runs; in ultra-compact plans I won’t go below 39 inches except at a pinch point. Pair deep drawers under the hob, a tall pantry pull-out, and a corner carousel to maximize usable storage.

Cons: Corners are fussy—carousels and magic corners aren’t cheap, and poorly ventilated corners become clutter traps. A U-shape without enough clearance can feel like a cockpit; then a parallel layout is often kinder. And if your sink sits under a window, check sill height against faucet height before buying.

Tips/Case/Cost: Prioritize task lighting under cabinets and a quiet, ducted range hood vented outdoors. For a mid-range kitchen in a 3 BHK duplex house plan, I budget roughly $120–$220 per square foot of kitchen area including cabinets, counters, hardware, and appliances. Don’t forget an easy-clean backsplash and a pan drawer for heavy cookware.

Authority Note: For aisle widths, clearances, and functional zones, see NKBA Kitchen Planning Guidelines—these remain my go-to for practical dimensions in real kitchens.

save pin

Flex Room: Office Today, Nursery Tomorrow

My Take: The most loved room in almost every 3 BHK duplex I’ve done is a flex room that shape-shifts. I’ve seen it serve as a home office with a sofa bed, then a nursery, and later a teen study. With the right door and storage, a single room can grow with your family.

Pros: A flexible room near the living area is perfect for guests or aging parents; add a small bath nearby for autonomy. Built-in closets plus a wall bed turn it into a real bedroom when needed. If you’re eyeing resale, buyers love versatile square footage—it sells the lifestyle as much as the room count.

Pros: Acoustic separation is what makes flexibility real. A simple upgrade like an acoustic sliding door for privacy can change an open alcove into a phone-call-safe office during the day, then slide back at night for a larger living zone. Plan power, data, and a window for code-compliant bedroom use if you may convert later.

Cons: Flex rooms risk becoming “junk rooms” without a clear storage plan. Also, when everything in a home is flexible, daily routines can feel unmoored—define how the room should perform Monday to Friday versus weekends. Lastly, wall beds and modular systems can get pricey; simple freestanding pieces often do the job.

Tips/Case/Cost: I start with a dry-erase wall panel or cork strip, a fold-down desk, and dimmable lighting presets for work, play, and guest mode. A quality wall bed starts around $1,500–$3,000; sliding acoustic doors with seals can run $900–$2,000 depending on size and finish. Keep at least one clear wall for a future wardrobe.

save pin

Summary

Designing a 3 BHK duplex house plan isn’t about limits—it’s about smarter moves. Zoning sets the tone, the stair does double duty, light and ventilation boost comfort, the kitchen supports real cooking, and a flex room keeps pace with life. If I had to pick one theme, it’s this: small spaces invite better design, not compromises. Which of these five ideas are you most excited to test in your plan?

Note: For ventilation, I often align bath and kitchen exhaust with ASHRAE 62.1 guidance and combine that with orientation-aware window placement to balance comfort and efficiency.

save pin

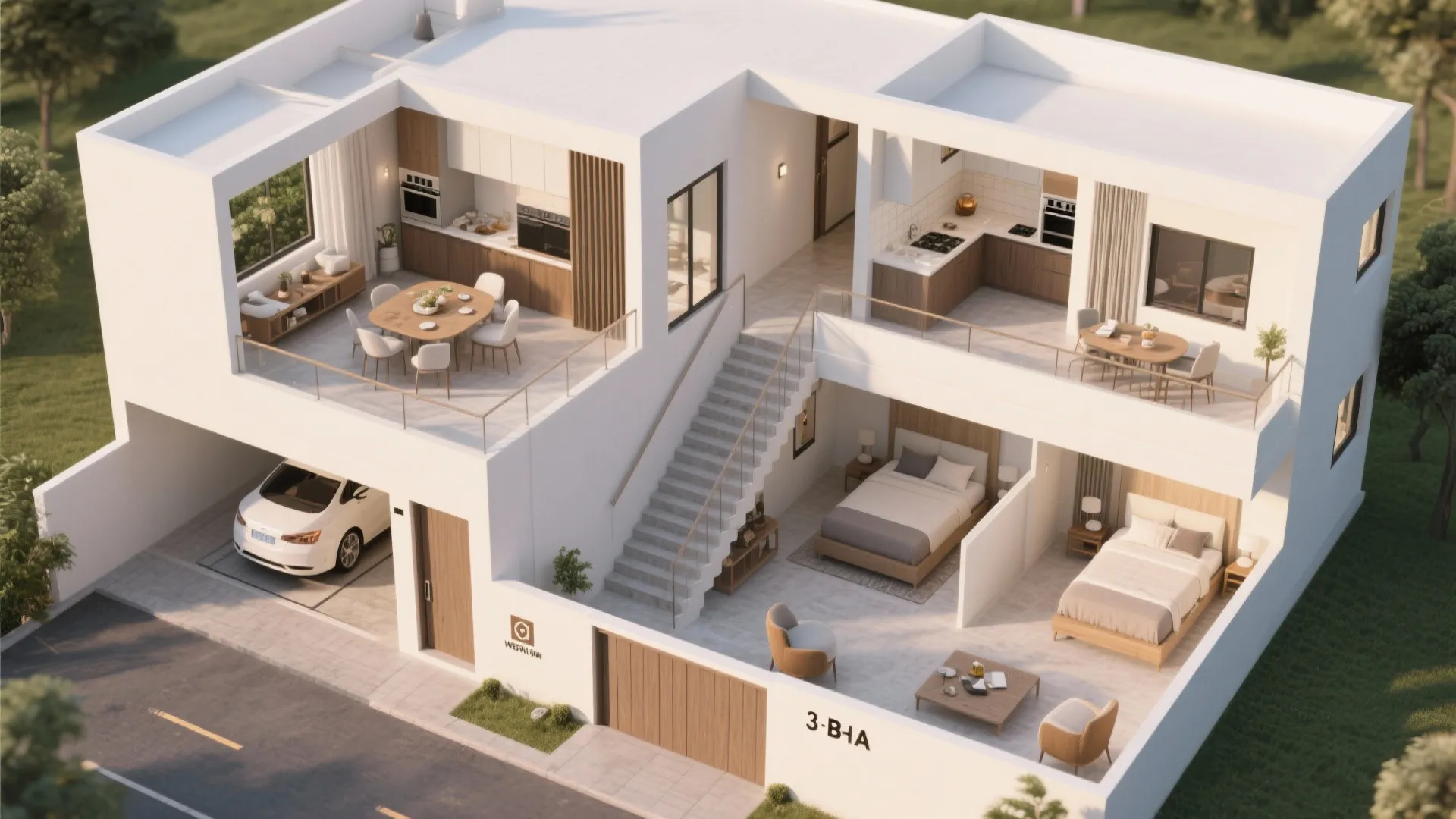

FAQ

1) What is a typical size for a 3 BHK duplex house plan?

In most markets I work in, you’ll see 1,600–2,400 sq ft (150–225 sq m) as a sweet spot. That usually fits three bedrooms, two and a half to three baths, plus a compact family or study. Smaller footprints are absolutely workable with tighter zoning and storage.

2) How should I place the staircase in a 3 BHK duplex?

Place it where circulation is shortest and light can stack—often near the living core. Maintain safe riser/tread proportions and handrail heights per your local building code; many codes similar to the IRC prefer consistent risers around 7 inches and treads around 10–11 inches for comfort.

3) What kitchen layout suits a compact duplex best?

U-shaped and parallel layouts are top performers. NKBA planning guidance suggests 42 inches for one cook and 48 inches for two between opposing runs; that keeps traffic from colliding while you cook, clean, and serve.

4) How do I maximize natural light and ventilation?

Stack windows vertically through stair voids and consider a modest double-height near living–dining to push light deeper. For ventilation, I use ASHRAE 62.1 as a benchmark for outdoor air and exhaust; operable windows, trickle vents, and quiet fans complete the mix.

5) What’s a realistic cost per square foot for a 3 BHK duplex?

Costs vary by region and spec, but mid-market builds often range from $100–$200 per sq ft. Complex stairs, custom millwork, and high-performance windows push costs up; simple forms and standard sizes keep budgets friendlier.

6) Can I integrate parking into a 3 BHK duplex floor plan with parking?

Yes—tuck a carport or single bay at the front and buffer it with a vestibule and storage wall. Keep bedroom windows away from the parking edge and consider a door blower or drop seal to block fumes and noise.

7) Any tips for an east-facing 3 BHK duplex house plan?

Leverage morning light in the kitchen or living area where it’s appreciated; add shading for warmer months. Afternoon heat can be managed with cross-ventilation, thermal curtains, and insulated glazing—your orientation strategy should pair with local climate.

8) How do I future-proof one bedroom for different uses?

Pre-wire for data and power on two walls, add a tall closet, and ensure window egress and room size meet bedroom code in your region. A wall bed or sofa bed and a sliding door make it a guest room on demand without losing daily function.
