3D Kitchen Design: 5 L-Shape Ideas With Measurements: A senior interior designer’s practical guide to L-shaped 3D kitchen design with real measurements, pros/cons, costs, and tips for small spaces

As a designer who’s remodeled more than a dozen compact kitchens, I’ve seen how the L-shaped layout keeps winning in current interior design trends—especially when paired with accurate 3D kitchen design and measurement planning. Small spaces spark big creativity, and an L can carve out efficient zones without feeling cramped. In this guide, I’ll share 5 design inspirations for 3D kitchen design L shape with measurement, blending my hands-on experience with credible expert data.

On a recent 28 sqm apartment project, the L layout helped me unlock a larger prep surface and smoother workflow. To show exactly how it works, I’ll give my typical measurement ranges and note where you can flex depending on appliance sizes and local building codes. For deeper visualization, I often build a quick 3D mockup and iterate in minutes—seeing real scale avoids costly surprises. I’ll also point to authoritative sources where relevant.

By the way, if you’re curious how I test material combinations in early visualization, I sometimes compare gloss and matte in a quick draft, and verify clearance around swing doors before locking specs. In an L, even a 5 cm adjustment can transform corner usability. To see how I preview layouts, I’ve documented a case using the phrase L shaped layout frees more counter space in my notes—it’s a reminder that planning creates room you didn’t know you had.

Minimalist L with wall units: compact, bright, measured right

My Take

I used this in a 2.4 m x 3.0 m kitchenette for a first-time homeowner who cooks daily. The L ran along the 3.0 m wall and turned 1.8 m. We kept lines clean and integrated a slim dishwasher without crowding the sink.

Pros

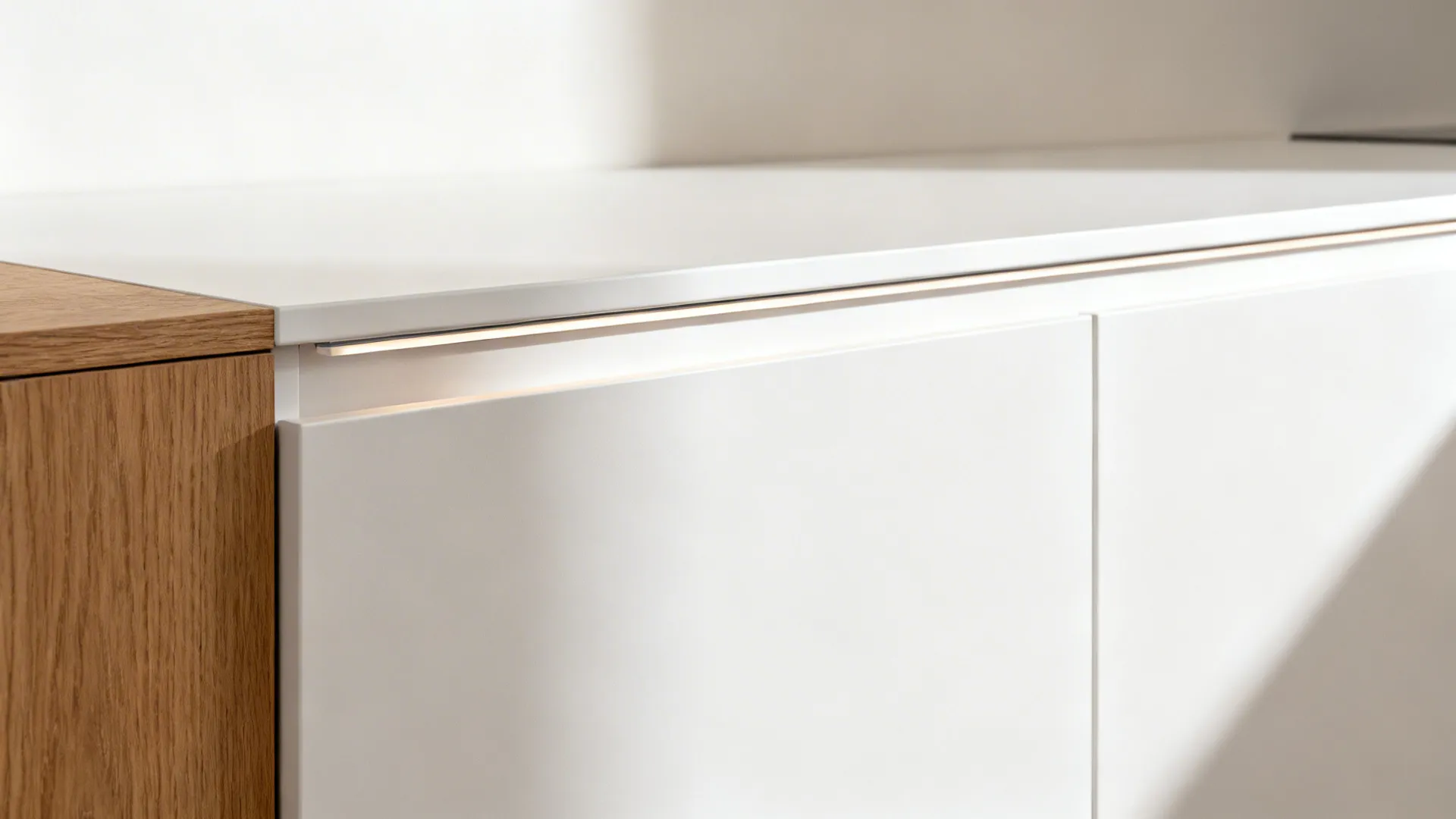

- Minimal cabinet faces and handle-less fronts boost visual calm, a critical advantage in small kitchen design L shape with measurement where every millimeter counts.

- With a 600 mm deep counter and 600–650 mm aisle, circulation stays comfortable while maintaining a practical work triangle.

- Slim wall units (300–350 mm deep) prevent head bumps and keep the room airy; in a narrow L, shallow uppers lighten the look.

Cons

- Ultra-minimal fronts can show fingerprints; matte laminates help but need regular wiping.

- Reduced upper cabinet depth limits large platter storage; I tuck oversized items in the corner base or high pantry shelf.

- If the fridge door swing is wide, it may clip the adjacent counter—plan hinge side and clearance carefully.

Tips / Measurements

- Typical runs: Long leg 2400–3000 mm; short leg 1400–1800 mm. Maintain 400–500 mm landing space on each side of the cooktop when possible.

- Sink–cooktop separation: 600–900 mm works well. Dishwasher next to sink: 600 mm module. Corner: Use a 900 x 900 mm blind or 1000 x 1000 mm with a pull-out.

save pin

save pin

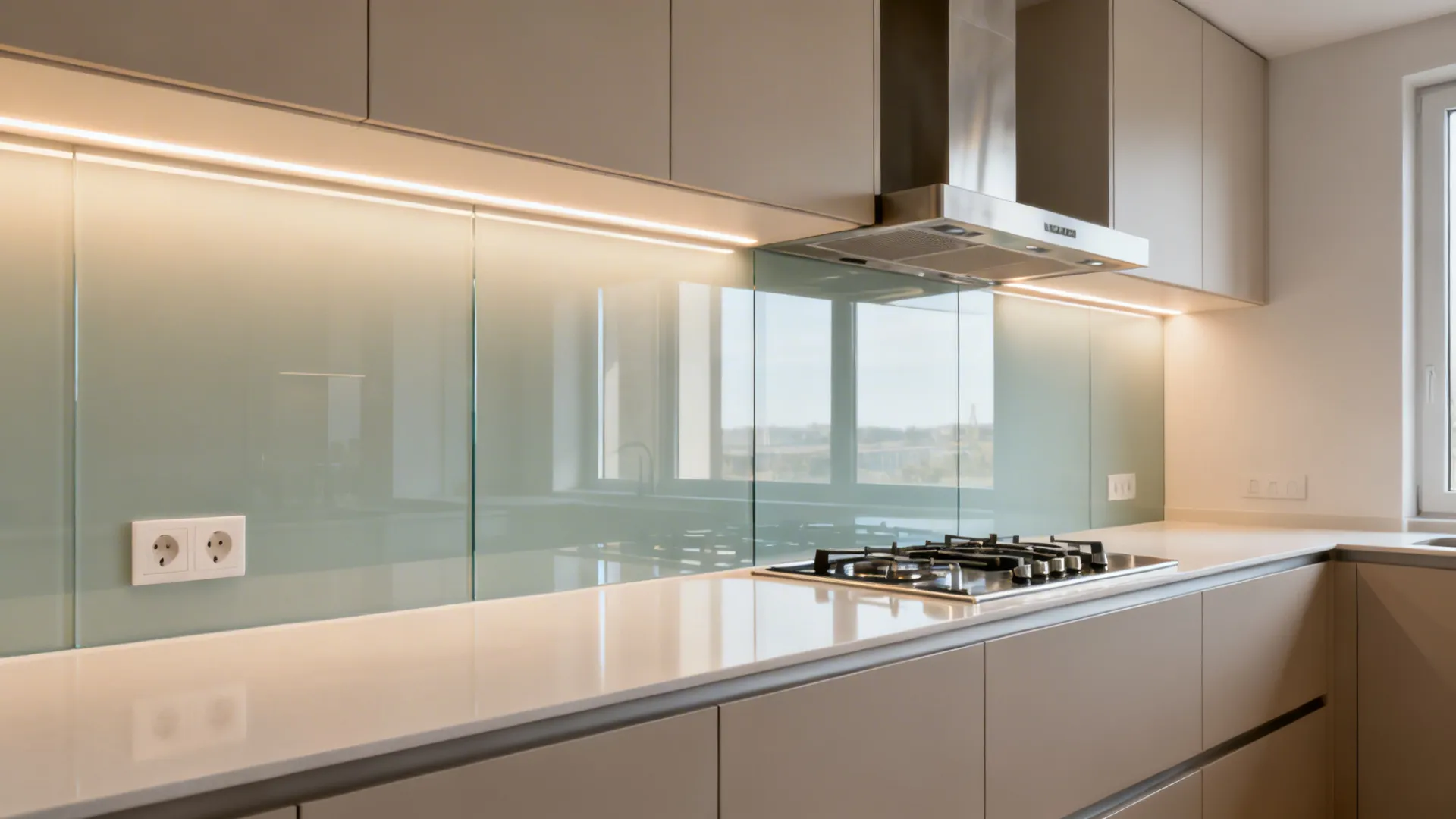

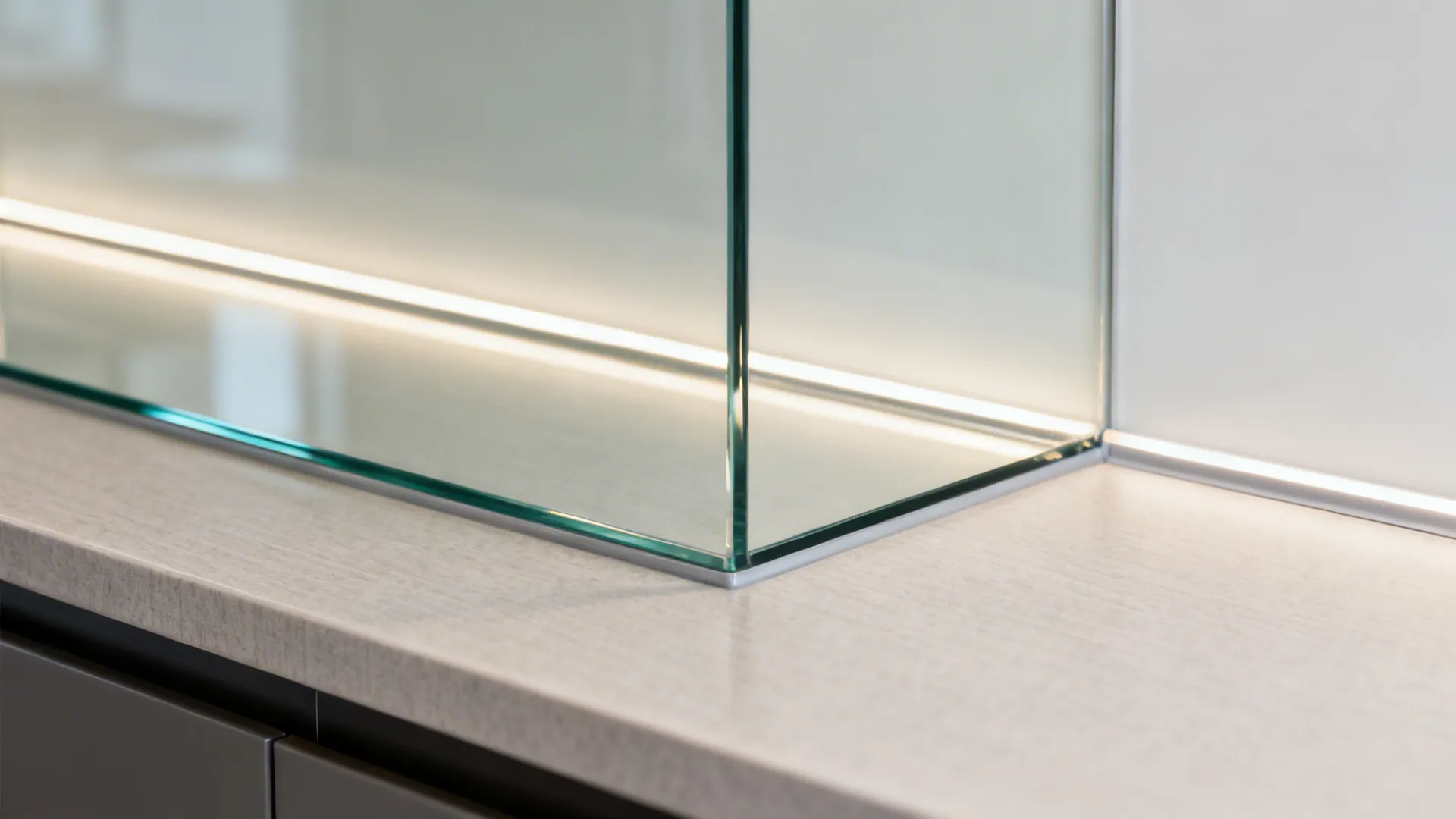

Glass backsplash for light bounce and easy cleaning

My Take

In a rental refresh, I installed a tempered glass backsplash across the long leg of a 2.7 m L. The reflection instantly made the 2.1 m aisle feel broader, and cleanup after stir-fries was a breeze.

Pros

- A reflective surface visually widens tight L-shaped kitchens, aiding 3D kitchen design L shape with measurement decisions when modeling light paths.

- Grout-free panels reduce maintenance; tempered glass resists stains and splatters.

- Paired with under-cabinet lighting (2700–3000K), it boosts task visibility without harsh glare.

Cons

- Visible silicone lines at edges can bother perfectionists; precise installation reduces this.

- Fingerprints show on darker glass; choose low-iron clear or a soft tint for fewer marks.

- You’ll need perfect wall prep—uneven walls telegraph through glossy panels.

Tips / Measurements

- Standard height: 450–600 mm from countertop to underside of wall units; extend to 750 mm around gas cooktops per local code. Leave 50–75 mm clearance at edges for sockets and switches.

- For gas, follow manufacturer’s minimum clearances strictly; the UK HSE and local code guides provide safety distances. I cross-check specs before confirming panel size.

save pin

save pin

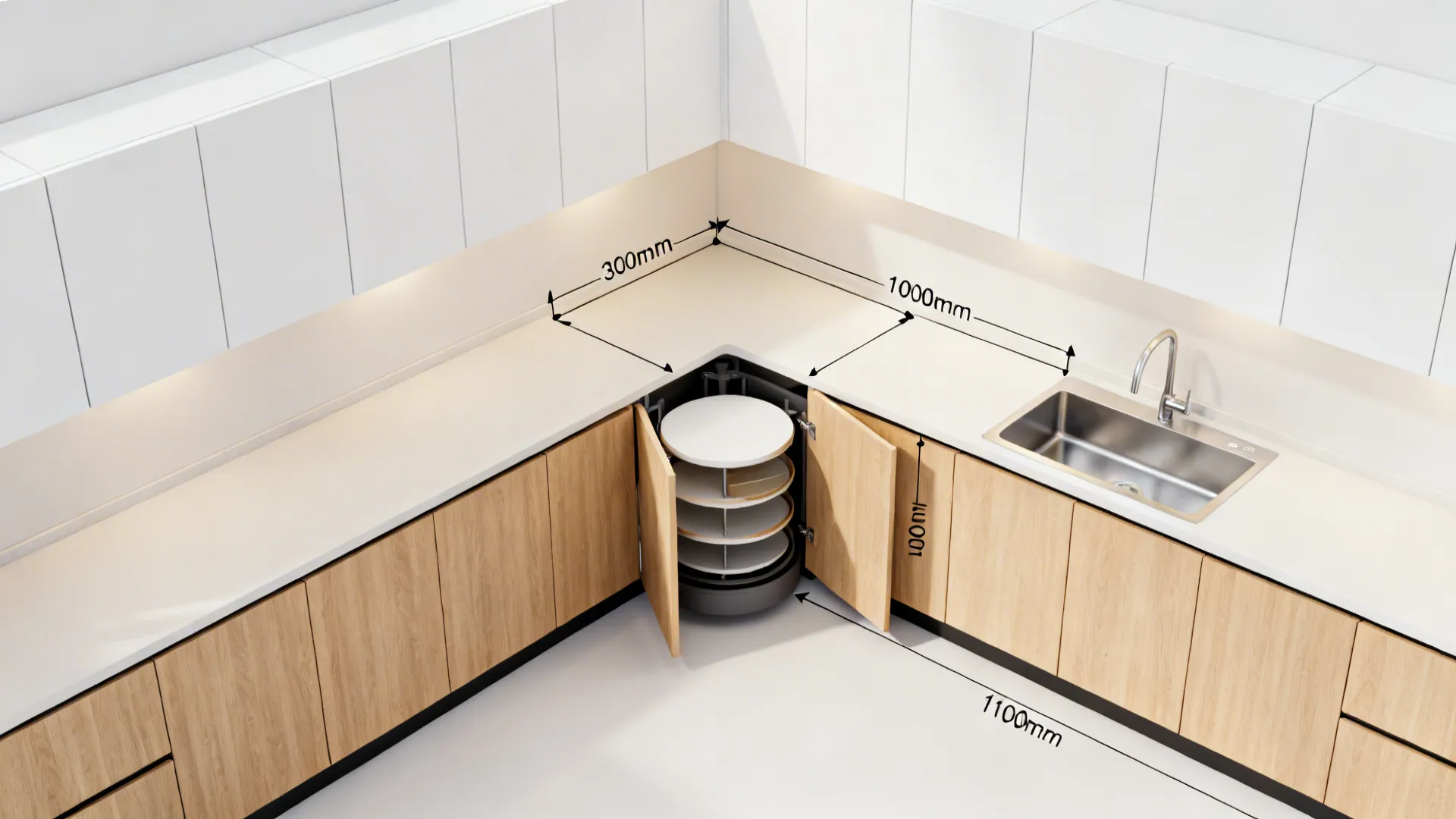

L layout with corner optimization: carousel and diagonals

My Take

Corner access can make or break an L. In a 2.6 m x 2.9 m kitchen, I swapped a blind corner for a 3/4 carousel and gained real-world accessibility for pots. The client finally stopped storing pans in the oven—victory.

Pros

- Corner pull-outs and carousels turn dead zones into useful storage, a frequent win in small kitchen layout L shape with measurement where corners are precious.

- Diagonal corner sinks free both legs for prep; when modeled in 3D, they often reduce elbow collisions.

- According to the NKBA Kitchen Planning Guidelines, maintaining at least 1050 mm aisle in a one-cook kitchen improves function; I aim for 1000–1100 mm when possible (NKBA, 2023).

Cons

- Specialty hardware adds cost and can steal some internal volume compared to simple shelves.

- Diagonal sinks look great in renders but require meticulous plumbing placement; misalign once and your drain conflicts with drawers.

- Corner cooktops complicate venting and splash zones—best left to expert planning.

Tips / Measurements

- Blind corner min opening: 400–450 mm for pull-outs; carousel base often 900 x 900 mm nominal.

- Keep at least 300 mm landing on both sides of a corner sink. If not feasible, add a pull-out cutting board next to it.

Around the halfway point of layout development, I pressure-test my clearances by placing full-size appliances in the model and simulating door swings. If you want to see how I run those checks, this case note titled verifying appliance swing in 3D shows why tiny hinge decisions matter for L kitchens.

save pin

L-shaped galley hybrid: extend to a peninsula

My Take

When a client wanted seating without a separate dining room, we extended the short L leg into a 1200 mm peninsula, creating a cozy two-stool perch. It kept the triangle tight and added 1.2 m of prep space.

Pros

- A compact peninsula adds storage and a casual dining edge, a smart upgrade for 3D kitchen design L shape with measurement where islands won’t fit.

- Height continuity at 900 mm (countertop) smooths flow; waterfall ends protect exposed edges in narrow circulation paths.

- With an overhang of 250–300 mm, you can tuck stools while preserving walkway width.

Cons

- Over-ambitious overhangs need reinforcement; otherwise, elbows lean and counters flex—never fun.

- Peninsulas can pinch the main aisle if you drop below 900–1000 mm clearance; measure twice in the model, then once on-site.

- If it becomes the all-purpose landing spot, clutter creeps in—assign a tray for keys and mail.

Tips / Measurements

- Target clearances: 1000–1100 mm between peninsula edge and opposite cabinets in one-cook kitchens; 1200 mm if two cooks.

- Provide 600 mm cabinet depth on the working side; if space is tight, 500–550 mm can still function for storage.

save pin

Warm wood accents with task lighting layers

My Take

I’m a fan of balancing warm wood fronts on the short leg with painted or laminate doors on the long leg. In one 2.8 m x 2.5 m project, oak veneer on base units plus a soft-white glass backsplash kept the look grounded yet bright.

Pros

- Wood tones bring comfort and visual rhythm, helping small kitchen ideas L shape with measurement feel less clinical.

- Layered lighting—under-cabinet, ceiling, and a small pendant at the peninsula—improves accuracy for chopping and reduces eye strain.

- The U.S. Department of Energy notes LEDs cut energy use without sacrificing brightness; I specify 90+ CRI strips for color-true prep (DOE, 2023).

Cons

- Real wood near sinks needs vigilant sealing; water marks happen faster than you think.

- Mixed finishes demand discipline; sample boards in 3D look perfect, but daylight can shift tones. Order physical samples to confirm.

- Too many warm elements can feel heavy; introduce glass or satin metal to balance.

Tips / Measurements

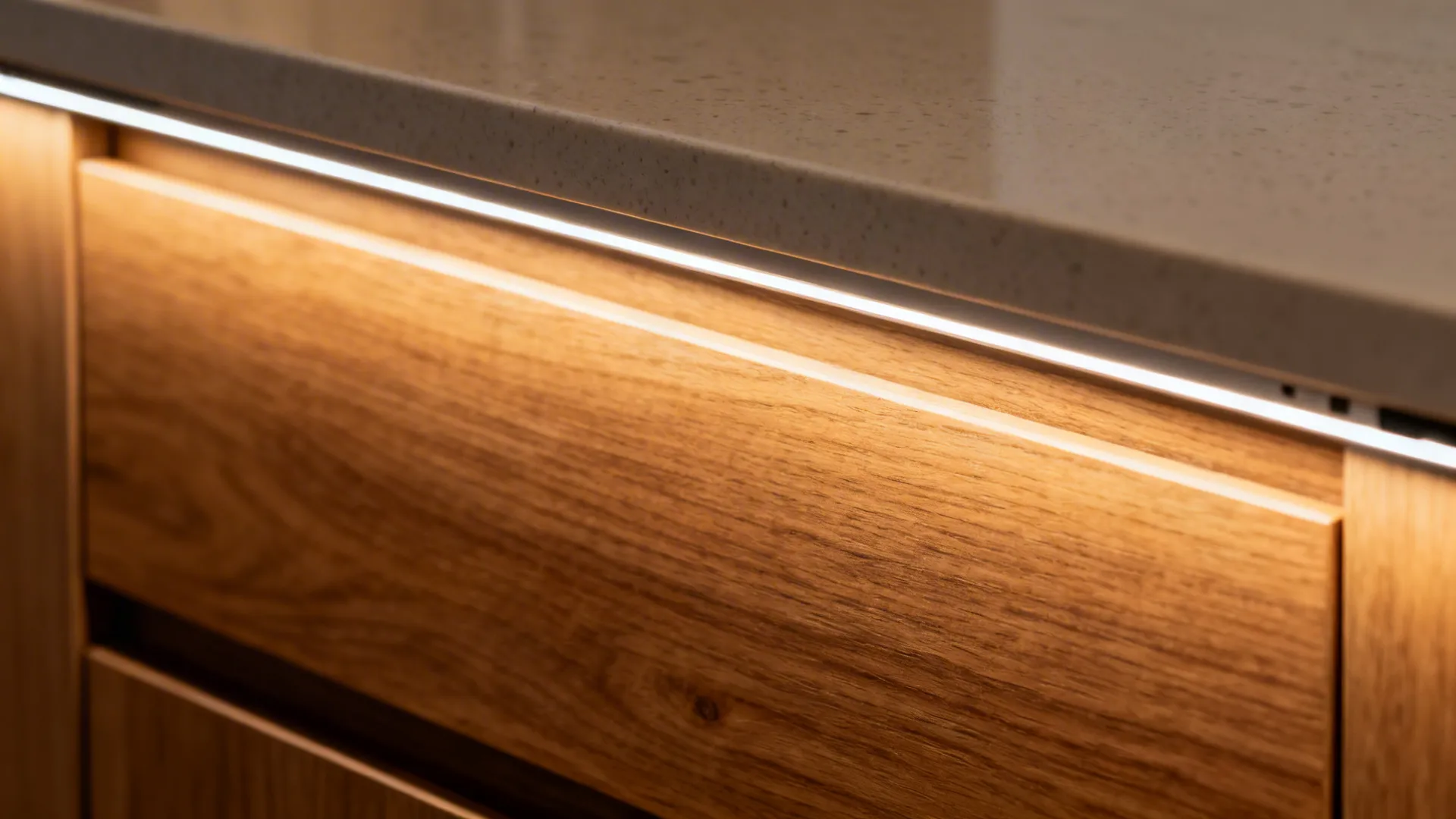

- Under-cabinet lights 400–600 lumens/ft; mount at the cabinet front to minimize glare. Keep switches reachable at 1100–1200 mm AFF (above finished floor).

- Toe-kick height 90–120 mm and 50–75 mm recess improves stance comfort during long prep sessions.

When I finalize finishes with clients, I’ll often render a quick set with alternative woods and lighting scenes. For a side-by-side of light conditions, I once logged a trial under the note testing night vs. daylight in renders, which helped the client pick warmer task lighting without darkening the room.

save pin

save pin

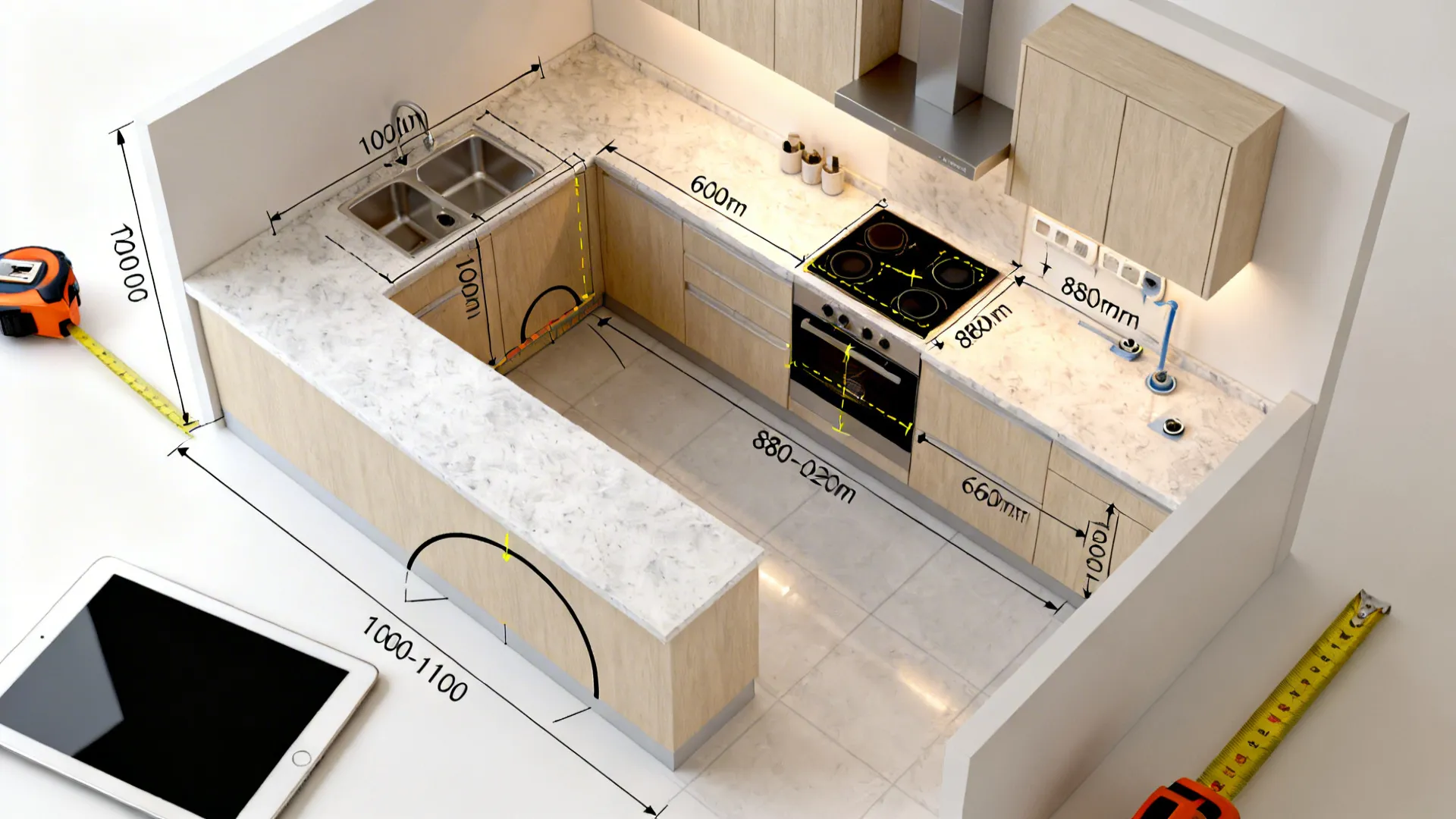

How I dimension an L-shaped kitchen in 3D: my baseline checklist

My Take

Here’s the checklist I actually use before I order cabinets—learned the hard way over 10+ years. It’s saved me from door collisions, hood misalignments, and many return trips.

Pros

- A consistent measurement workflow streamlines 3D kitchen design L shape with measurement, cutting revisions and errors.

- Mapping services and outlets early prevents last-minute compromises in appliance placement.

- Verifying counter heights (880–920 mm) for user ergonomics reduces fatigue; I tweak based on the main cook’s height.

Cons

- It takes patience to model every socket and pipe; clients don’t see the effort, only the absence of mistakes.

- Reality checks can kill a dream appliance—better in the model than on delivery day.

- Sometimes the perfect triangle isn’t possible; accept trade-offs and optimize what matters most.

Measurement Checklist

- Room shell: Confirm wall lengths to the nearest 5 mm, check squareness (measure both diagonals).

- Windows/doors: Sill height, swing direction, casing width, and reveal depth for blinds.

- Services: Water in/out, gas point, 240V/120V circuits, extraction route. Photograph and annotate heights from floor.

- Clearances: Fridge hinge side and door swing (allow 50–100 mm past cabinet face), oven handle projection, dishwasher door with user standing space (at least 900 mm).

- Work triangle: Often 4–7 m total; in tight Ls, I emphasize adjacency: sink to prep to cooktop line.

- Ventilation: Duct size and route; ensure hood width equals cooktop width (preferably +50 mm).

Budget Snapshot

- Hardware upgrades (corner pull-outs, soft-close): +10–20% over basic boxes.

- Backsplash glass: Mid-range pricing, but low maintenance costs over time.

- Lighting: LED strips and drivers can be modest; spend on CRI and dimming rather than raw lumens.

save pin

Summary

A small kitchen doesn’t limit you—it invites smarter design, and the L shape is proof that precision beats size. With 3D kitchen design L shape with measurement, you can test clearances, materials, and sight lines before committing, then build with confidence. I’ve seen countless tiny corners become highly functional hubs once we measured with intention and edited ruthlessly. Which of the five ideas are you most excited to try in your own space?

save pin

FAQ

1) What is the ideal size for an L-shaped kitchen?

An L works from as little as 2.2 m x 2.4 m up to large open plans. Aim for a 1000–1100 mm aisle for one cook and scale up to 1200 mm for two. Keep each leg between 1.6–3.0 m for balanced access.

2) How do I plan the work triangle in an L layout?

Keep sink, cooktop, and fridge within a total distance of roughly 4–7 m. In very small kitchens, prioritize a sink–prep–cook sequence on the long leg and place the fridge at the short leg’s end.

3) What are standard countertop and cabinet depths?

Countertops are typically 600 mm deep; base cabinets 560–580 mm to suit appliances. Wall units run 300–350 mm deep in small kitchens to reduce head bumps.

4) How much clearance do I need around a cooktop and hood?

Match hood width to cooktop (preferably +50 mm). Follow the manufacturer’s minimum clearance to combustibles; NKBA guidelines also recommend proper landing spaces near cooking zones (NKBA, 2023).

5) Are glass backsplashes safe behind gas?

Use tempered glass and comply with local code and manufacturer setbacks. Ensure sealants and adhesives are heat-rated. Always verify the exact clearance requirements in your appliance manual.

6) What’s a good height for countertops?

Standard is 900 mm, but I adjust 880–920 mm to suit the primary cook. Taller users appreciate 920 mm for prep; bakers who roll dough often prefer a slightly lower section.

7) How do I avoid door collisions in corners?

Model appliance swings in 3D and leave 50–100 mm buffer where handles project. Consider a blind corner pull-out or a diagonal corner solution to reduce overlapping door arcs. You can see a walkthrough I reference under planning corner clearances in a small L if you’d like a visual approach.

8) What lighting should I use in a compact L kitchen?

Layer ambient, task, and accent. Under-cabinet LED strips with 90+ CRI improve color accuracy for prep; pair with 2700–3000K for warmth and dimmers for mood.
