5’ x 8’ Bathroom Design: 5 Clever Ideas: How I squeeze function, style, and storage into a compact 5’ x 8’ bath without it feeling cramped

A client once begged me to fit a soaking tub, double vanity, and linen closet into a 5’ x 8’ bath—plus a plant shelf for their monstera. I smiled, took a breath, and started with a scaled digital layout scaled digital layout to prove what the space could actually handle. Small spaces really do spark big creativity, and this size can be delightful when you respect clearances and choose your moments.

So, pulling from a decade of remodels (and a couple of funny near-misses), I’m sharing five design inspirations for a 5 feet by 8 feet bathroom design that have saved me time, budget, and headaches.

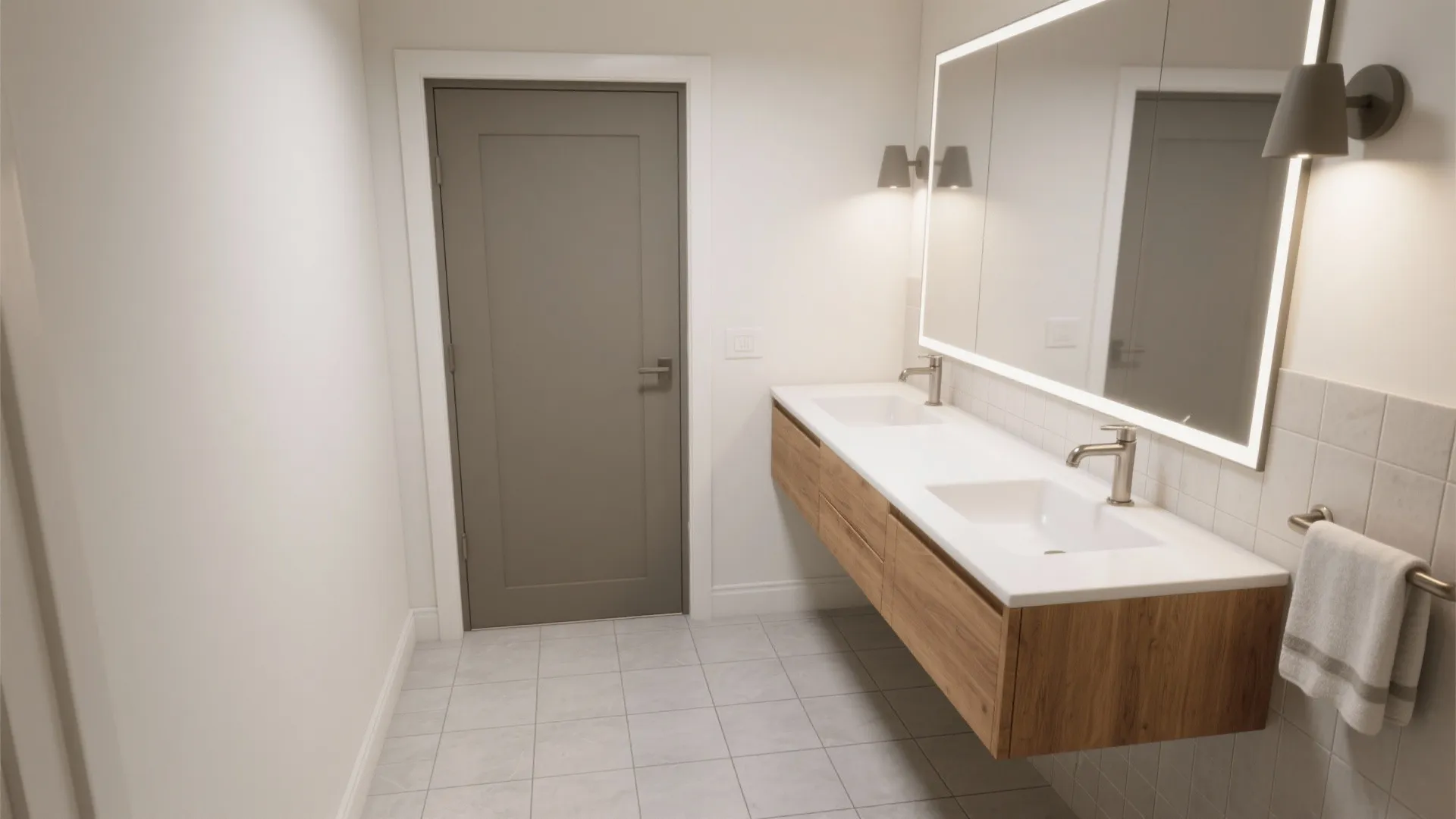

Idea 1: Choose an efficient door and a wall-hung vanity

In tight baths, a pocket door or an outswing hinge can free up valuable floor area that a traditional inswing steals. I often pair that with a wall-hung vanity—it makes cleaning easier, stretches the sightline across the floor, and keeps the room feeling lighter.

The catch: pocket doors need a clean wall cavity and decent carpentry, so older homes may need reframing. If that’s too much, an outswing door and a 18"–24"-deep vanity can still deliver the space win on a sensible budget.

save pin

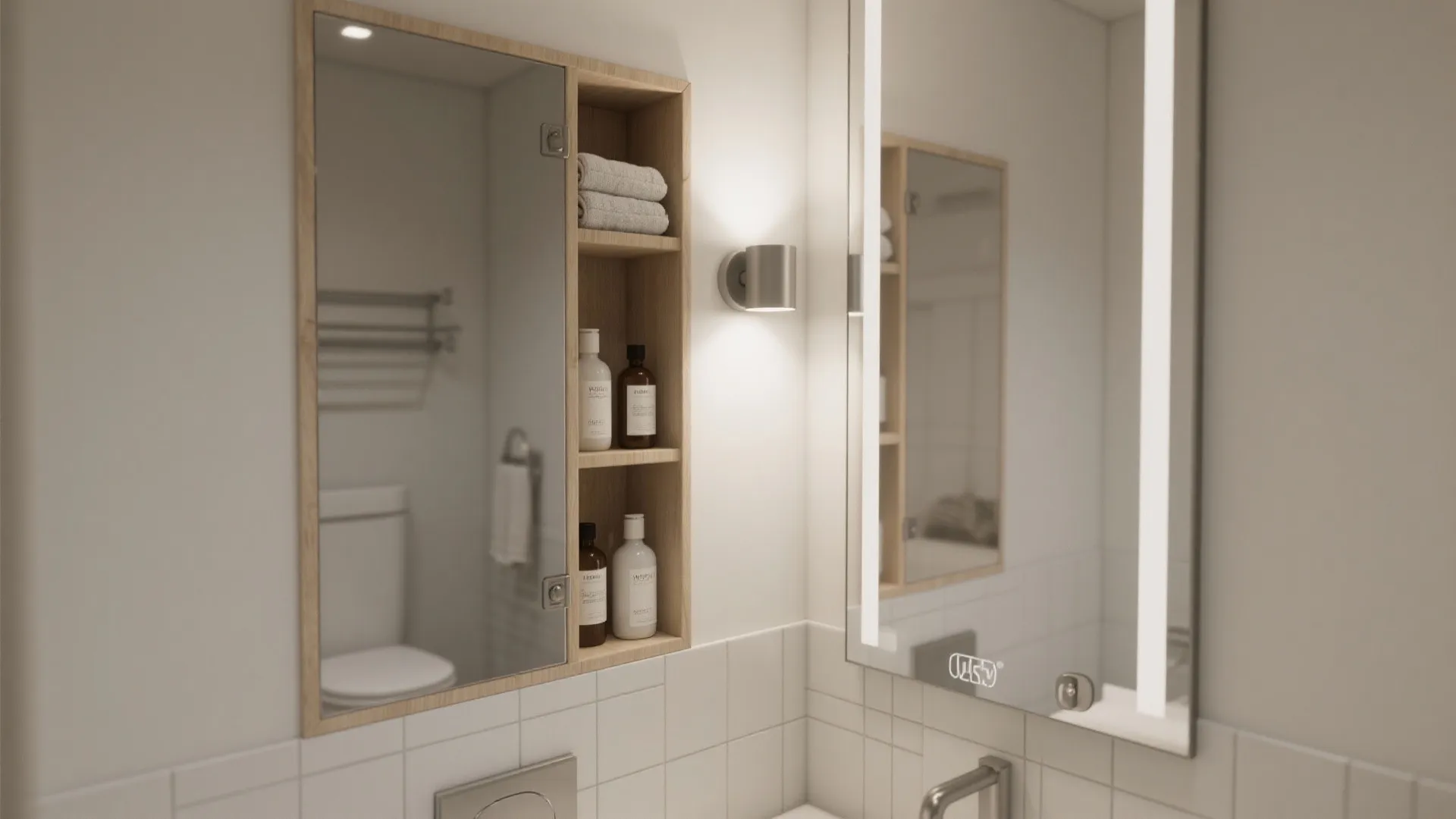

Idea 2: Go vertical with recessed storage and mirrored medicine

When the footprint is fixed, I build “up.” Recessed niches over the toilet, a built-in medicine cabinet, and slim shelving near the vanity keep counters calm and clutter-free. I like a tall mirror to bounce light—paired with a matte sconce so you don’t get a harsh glare.

Do watch the depth of niches so you don’t breach plumbing or structural studs. When budgets tighten, I’ll surface-mount a shallow cabinet and paint it to match the wall—nearly the same effect for fewer dollars.

save pin

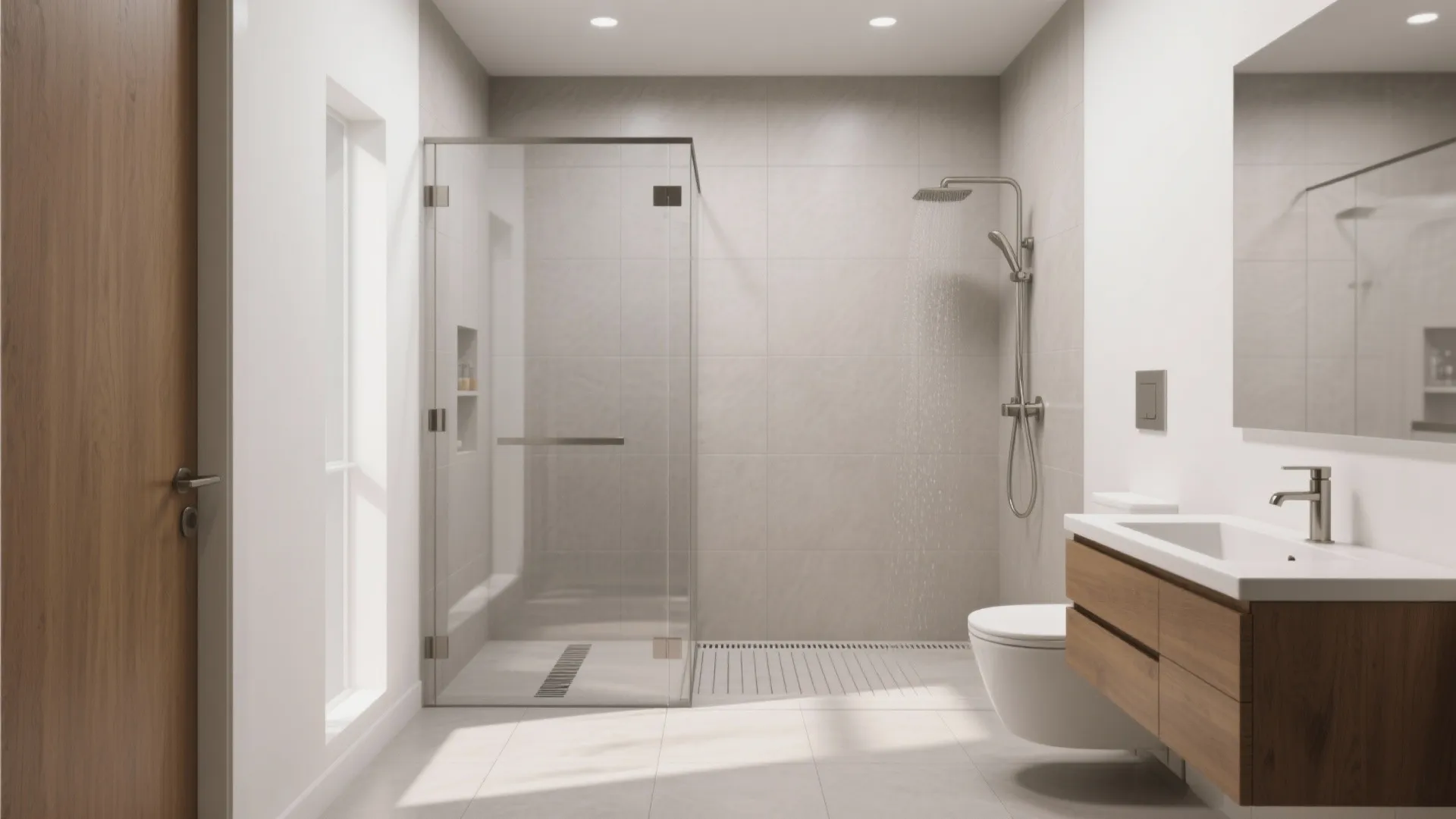

Idea 3: Consider a glass panel and a curbless shower

In a 5’ x 8’, a clear glass panel (instead of a heavy curtain) visually doubles the room, and a curbless shower keeps the floor continuous. A linear drain along the wall helps with slope and minimizes tile cuts, plus it looks slick.

Waterproofing is the homework: you’ll need proper membrane, 1/4" per foot slope, and often a slight recess in the subfloor. I test my ideas with alternate floor plans alternate floor plans before committing—seeing traffic flow on-screen saves change orders later.

save pin

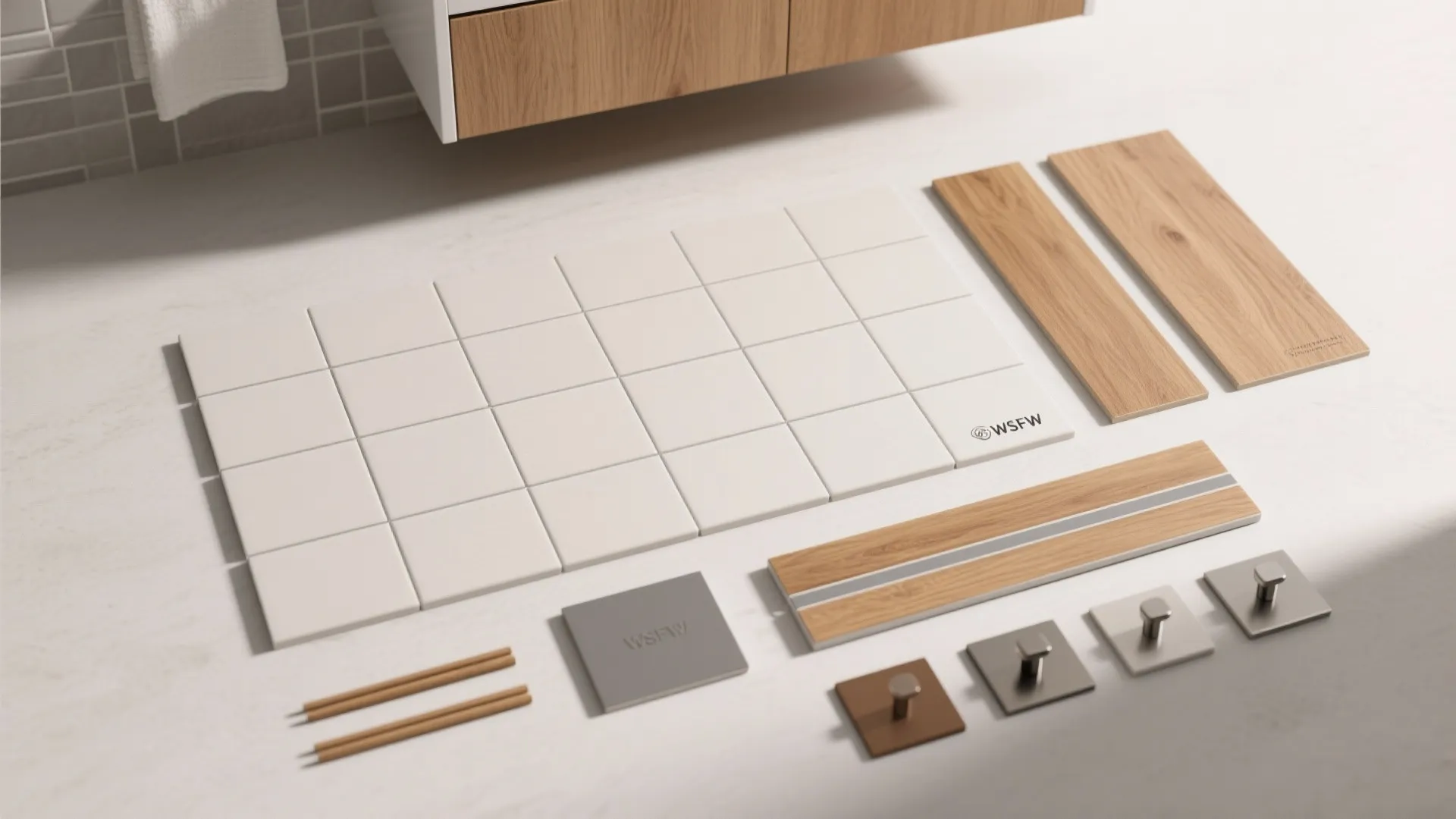

Idea 4: Tile tricks—larger format, lighter grout, one-plane floors

Big tiles (think 12" x 24") reduce grout lines so the eye reads the room as bigger. I run floor tile straight into the shower and keep grout narrow; a single accent stripe up the wall adds height without busy patchwork.

Larger tiles can mean more waste on tricky cuts, so I order extra and lay out the pattern with my installer. If the budget is tight, I’ll do large-format on the floor and a modest ceramic on the walls—the combo still feels premium.

save pin

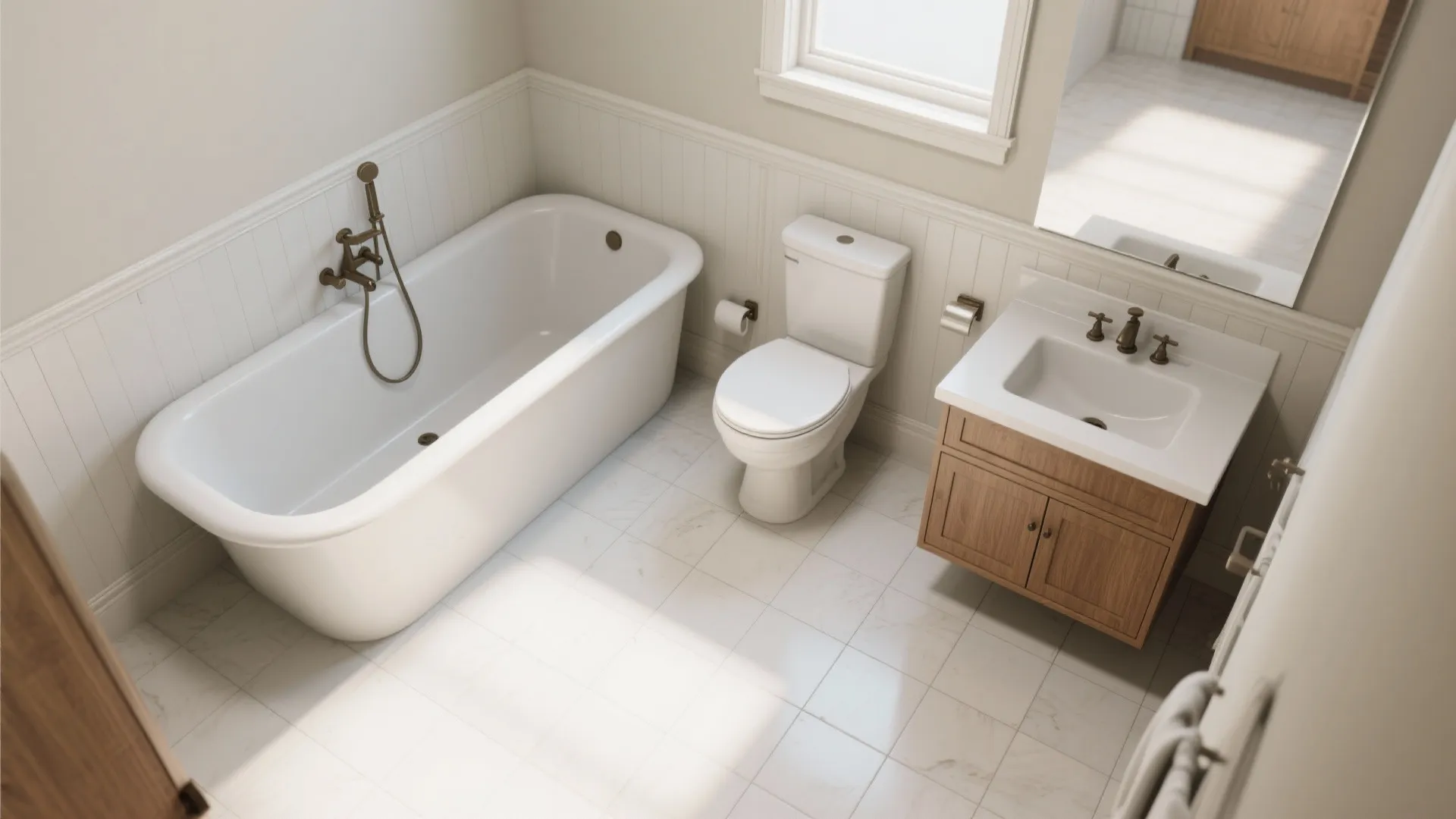

Idea 5: Smart fixtures and a time-tested layout

The classic 5’ x 8’ layout is a 60" tub or shower on one long wall, with toilet and vanity opposite or in-line. I reach for a compact elongated toilet (saves inches without sacrificing comfort) and a 24"–30" vanity, leaving a clear 21"–30" of floor space in front.

Want a double vanity? It’s possible at 48", but I rarely recommend it here—two basins steal counter and drawer space. I get more client joy from one sink, great lighting, and visualizing finishes in 3D visualizing finishes in 3D before we order a single tile.

save pin

FAQ

1) Is a 5’ x 8’ bathroom big enough for a full bath?

Yes. It’s a classic hall-bath footprint that can fit a 60" tub or a shower, a toilet, and a single-sink vanity. I’ve done dozens—the key is respecting clearances so it feels comfortable.

2) What’s the best layout for a 5’ x 8’ bathroom?

I usually place the tub/shower along the 8' wall and line up the toilet and vanity opposite. If the door is centered, a wall-hung vanity near the entry keeps circulation clean and makes the room feel bigger.

3) Can I do a double vanity in 5’ x 8’?

You can squeeze a 48" double, but I find it cramped. One sink with more counter and drawer space—and better lighting—usually wins for everyday function.

4) What clearances should I follow?

I plan for at least 21" clear in front of toilets and vanities and 15" from the toilet centerline to side walls; 30" front clearance is even better. See the NKBA Bathroom Planning Guidelines (National Kitchen & Bath Association) for recommended dimensions.

5) Are large tiles okay in a small bathroom?

Absolutely. Larger tiles reduce grout lines so the room reads cleaner, but make sure they’re rated for floor use and have decent slip resistance. I keep grout color close to tile for a low-contrast look.

6) Can I make it curbless?

Yes, but you’ll need proper slope and waterproofing, and sometimes to recess the subfloor. I also specify a good exhaust fan to handle extra moisture—curbless showers can feel airy, but they demand precise detailing.

7) How much does a 5’ x 8’ remodel cost?

In my projects, basic updates often land in the $8k–$18k range, while mid-to-high finishes with new plumbing and glass can run $20k–$40k+. Labor, tile choice, and glass enclosures swing the budget most.

8) How do I size the exhaust fan?

I usually start at roughly 1 CFM per square foot (so ~40 CFM minimum here) and upsize for long ducts or showers that see daily use. A timer switch that runs 20–30 minutes after you leave is a small upgrade with a big impact.
