5 AutoCAD Kitchen Cabinet Tips That Actually Work: My 10-year pro guide to AutoCAD drawings for kitchen cabinets, with real-world workflows, pitfalls, and build-ready details

AutoCAD drawings for kitchen cabinets have quietly become the backbone of many small-space projects I design. Trend-wise, I’m seeing cleaner lines, slimmer stiles, and smarter storage—especially in compact kitchens where every millimeter counts. Small spaces spark big creativity, and that’s exactly why today I’m sharing 5 design inspirations backed by my own field experience and expert data.

Before we dive in, here’s how I use AutoCAD in my studio: I model the kitchen envelope precisely, draft cabinet modules, and annotate hardware and clearances—then validate ergonomics with appliance specs. If you’re new to cabinet shop drawings, consider this your friendly, hands-on walkthrough.

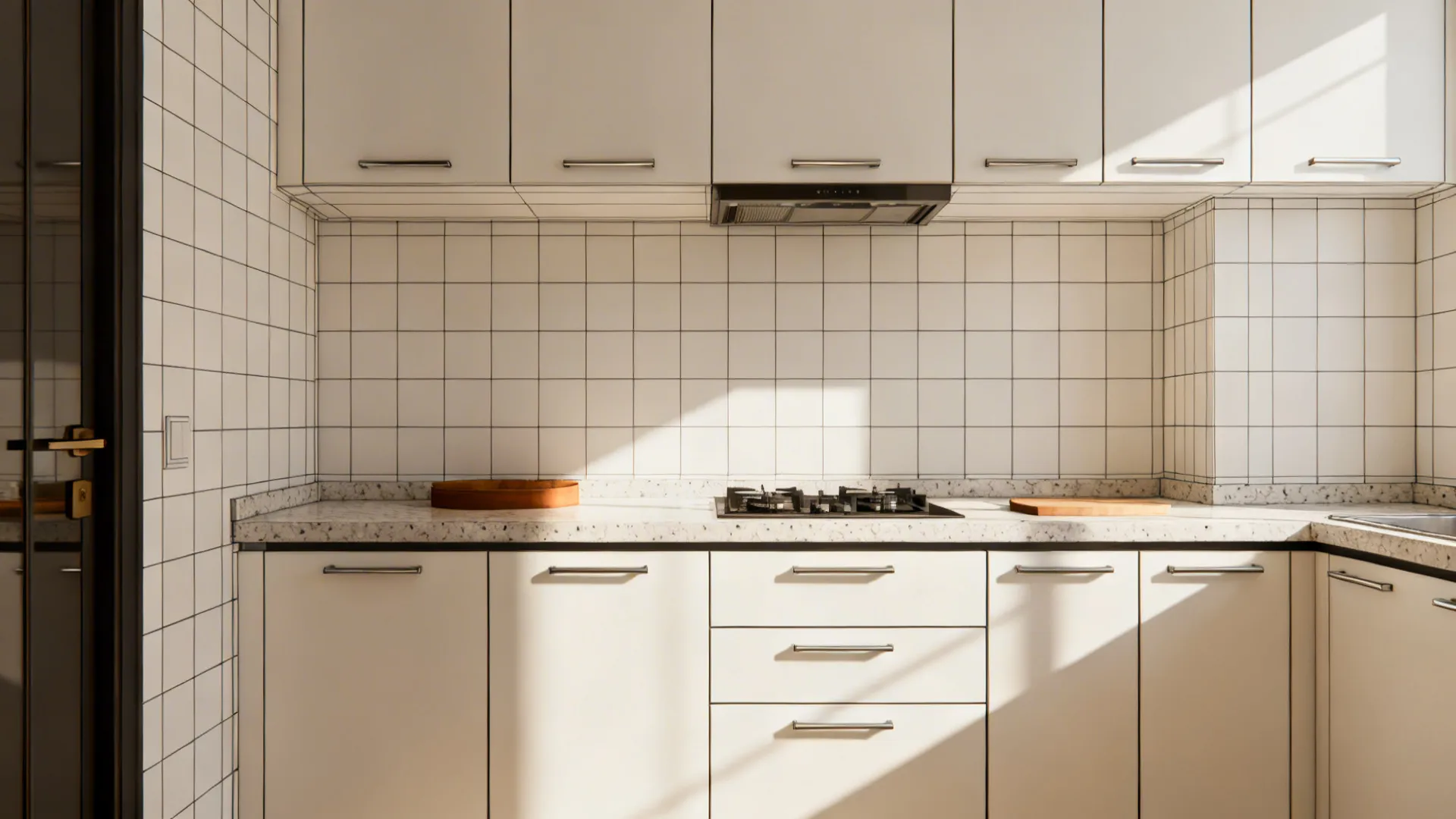

Minimalist cabinet grids that stay buildable

My Take: I love a clean, minimalist grid—consistent door widths, tight reveals, and flush toe kicks. In AutoCAD, I’ll set a base module (typically 300 mm) so elevations and plans align perfectly, and fabricators thank me later during cutting and edge-banding.

Pros: Clean grids speed up drafting and fabrication because repeatable modules simplify cut lists and hinge drilling. Using the long-tail technique “parametric cabinet modules in AutoCAD” keeps updates consistent—change once, update everywhere. According to BSI tolerances for joinery (BS 1186 and relevant woodworking tolerances), consistent reveals reduce cumulative error in assembly, which matters in small kitchens.

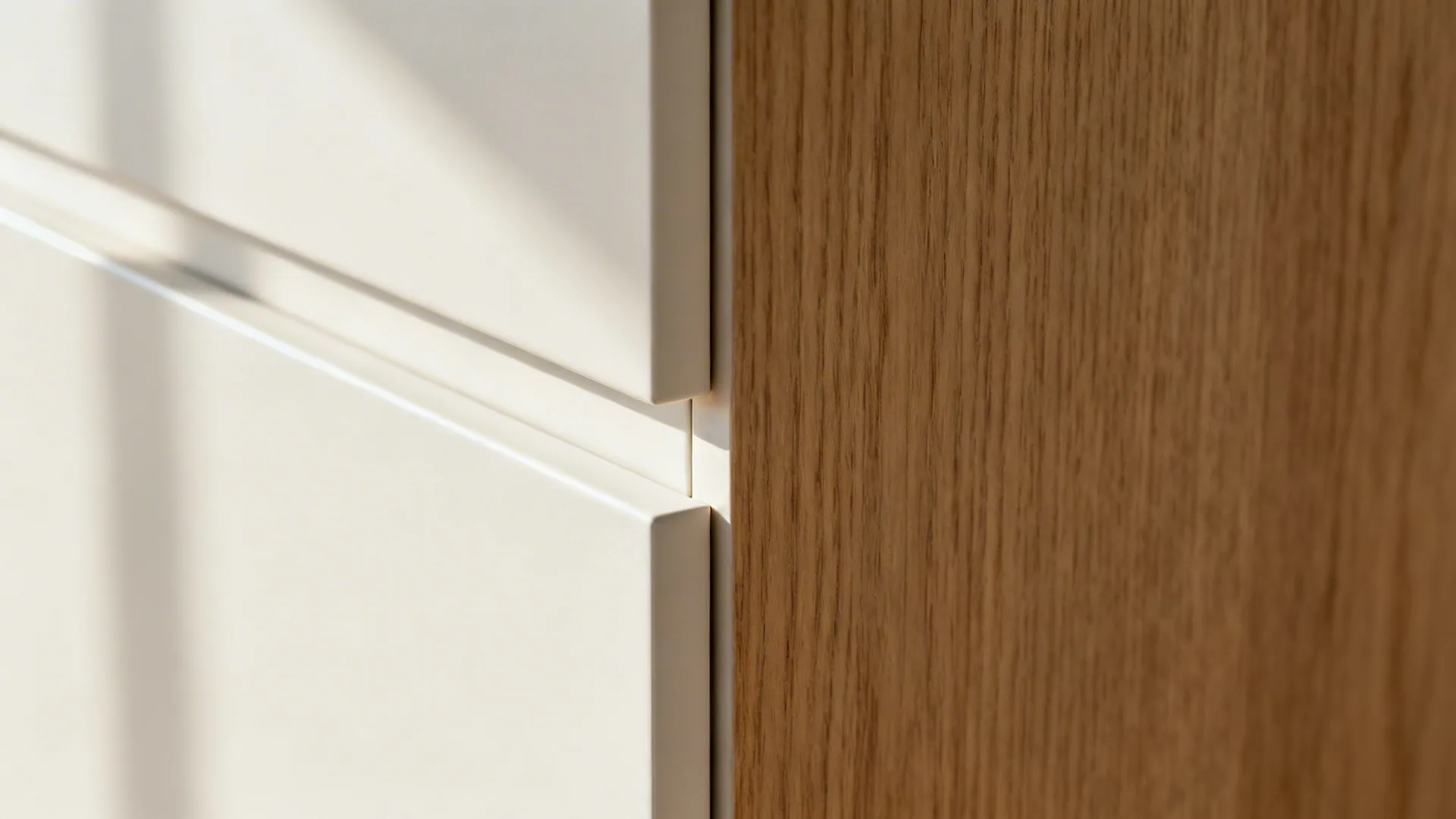

Cons: Perfect grids can clash with site irregularities—wonky walls or out-of-plumb corners force scribe panels you didn’t plan for. Also, ultra-tight reveals (1.5–2 mm) look great on screen but demand top-tier hinges and perfect installation—budget for that finesse.

Tips / Cost: Lock your base module early and create block libraries for doors, drawers, and fillers. If you crave inspiration beyond pure drafting, explore how an AI interior design workflow tests minimalist cabinet layouts visually before you commit to details.

save pin

save pin

Glass backsplashes to visually expand depth

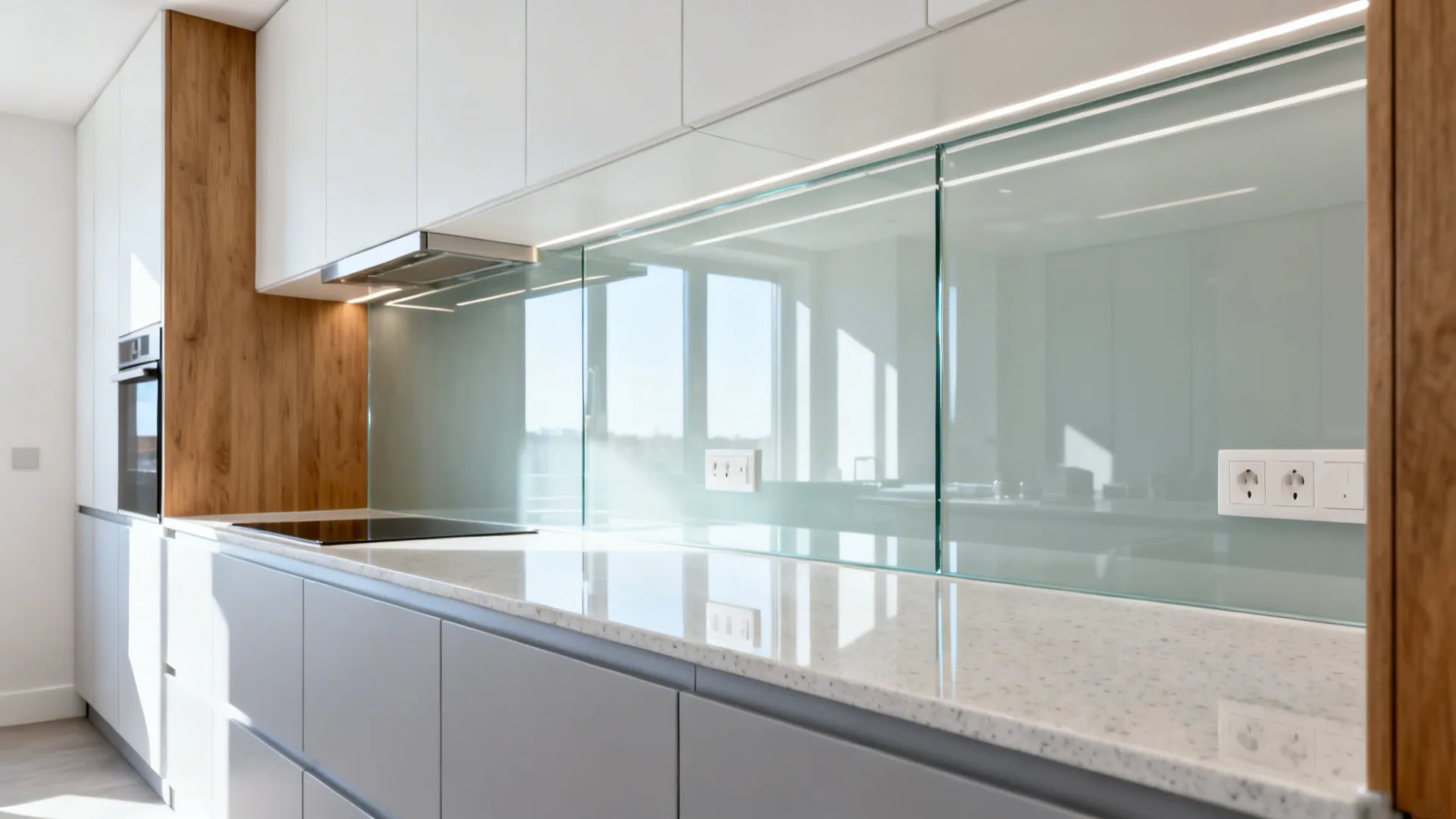

My Take: In tiny galley kitchens, I often specify a low-iron glass backsplash. In AutoCAD elevations, I dimension the glass panel, electrical penetrations, and channel trims, then add a precise outlet offset so installers don’t guess.

Pros: A reflective surface makes narrow kitchens feel deeper; in my experience, even a 600 mm counter run looks airier with a full-height glass sheet. The long-tail keyword “AutoCAD elevation for glass backsplash” helps ensure you’re documenting cutouts, reveals, and silicone gaps so fabricators avoid field trimming.

Cons: Glass is unforgiving—misplaced outlet cutouts turn into reorders. It also shows splashes more than tile; you’re trading grout cleaning for glass wiping, which not every client loves.

Tips / Case: I annotate silicone joints at 3 mm and specify heat-resistant glass behind cooktops where required. When I want to simulate reflectivity and sightlines for clients, I’ll cross-check the CAD with a quick visual study based on “glass backsplash makes kitchens feel more open”—it helps align expectations before fabrication.

save pin

save pin

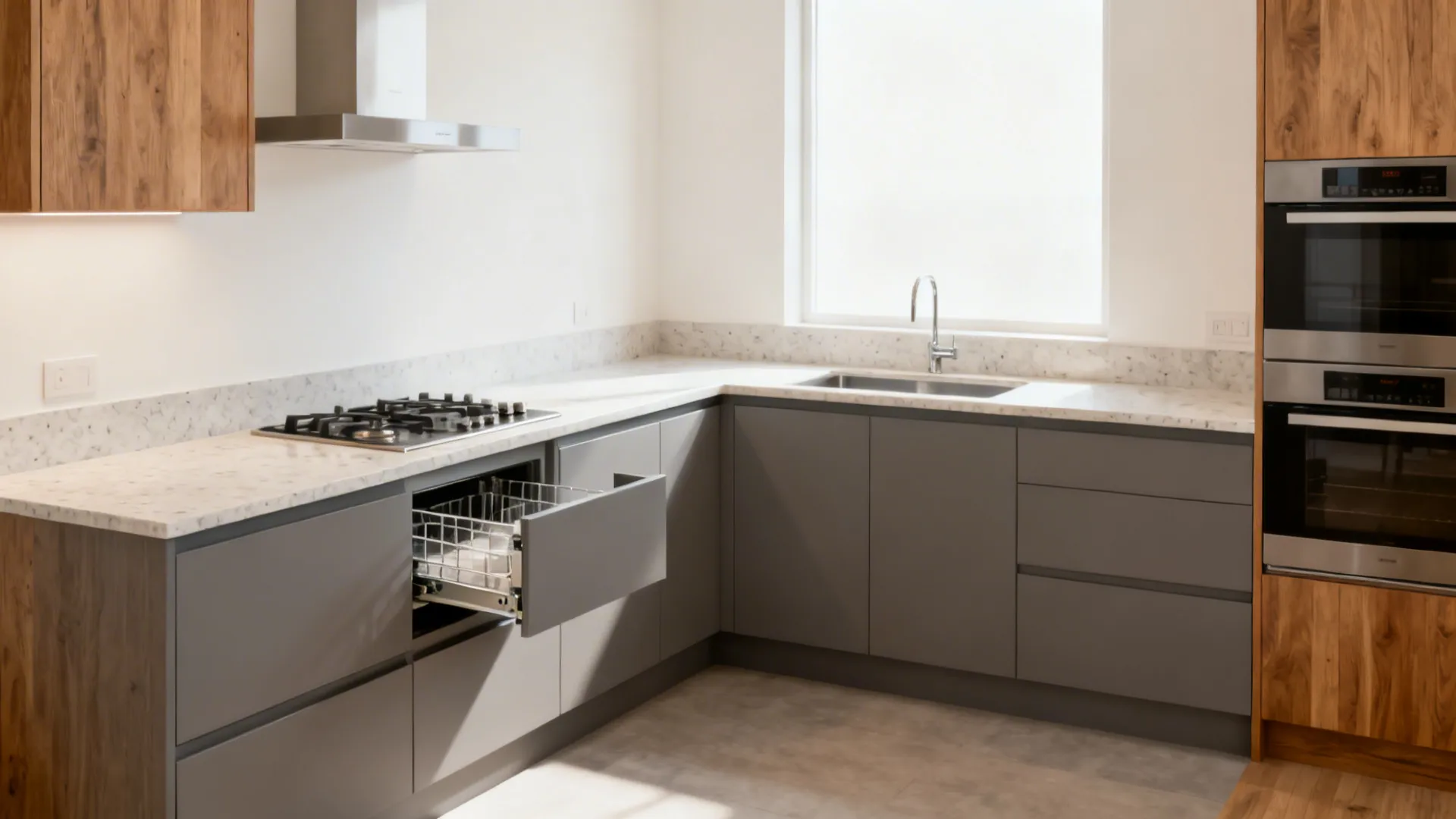

L-shaped layouts that unlock more counter space

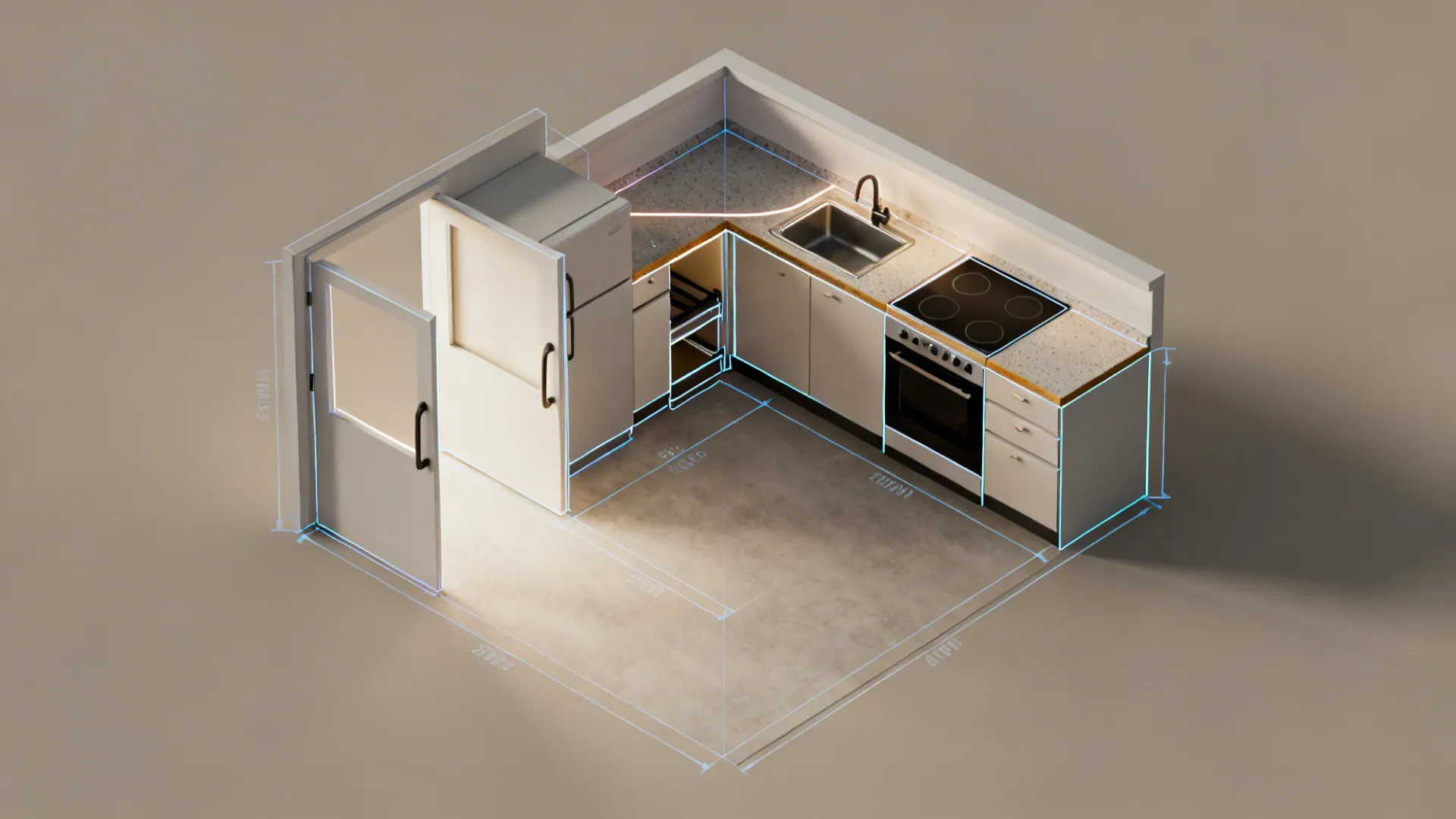

My Take: The L configuration is my go-to for micro apartments. In CAD, I pivot the corner to host a blind cabinet with soft-close pull-outs, and I always dimension the counter return and corner clearances to the hinge swing.

Pros: The long-tail term “L-shaped kitchen cabinet drawings” isn’t just jargon—it’s a productivity win. You gain continuous prep space and a logical work triangle, and corner storage can swallow bulky appliances. Mid-article resource: I’ve validated L-shaped planning using L shaped layouts unlock prep surfaces to sanity-check circulation and landing zones before I finalize cabinet shop drawings.

Cons: Corners are sneaky: dead zones creep in without the right hardware. Also, appliance doors can clash at the corner if you don’t model hinge arcs—your CAD should show door swing arcs and handle projections.

Tips / Cost: Budget for quality corner mechanisms (LeMans, Magic Corner) and note minimum clearances in CAD (e.g., 50 mm filler for handle clearance). I use dashed swing arcs to test collisions in plan.

save pin

save pin

Warm wood textures with exact grain direction

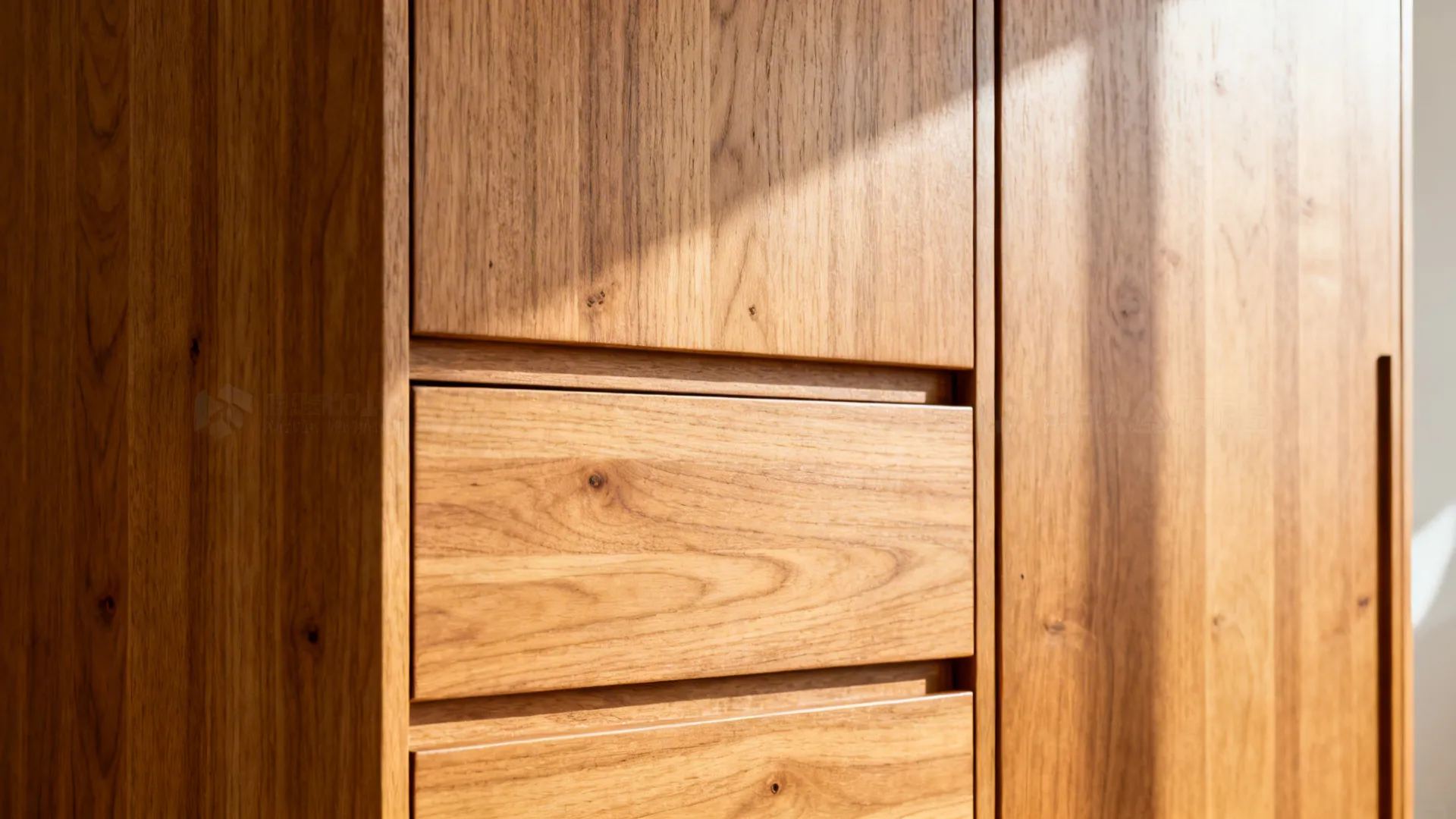

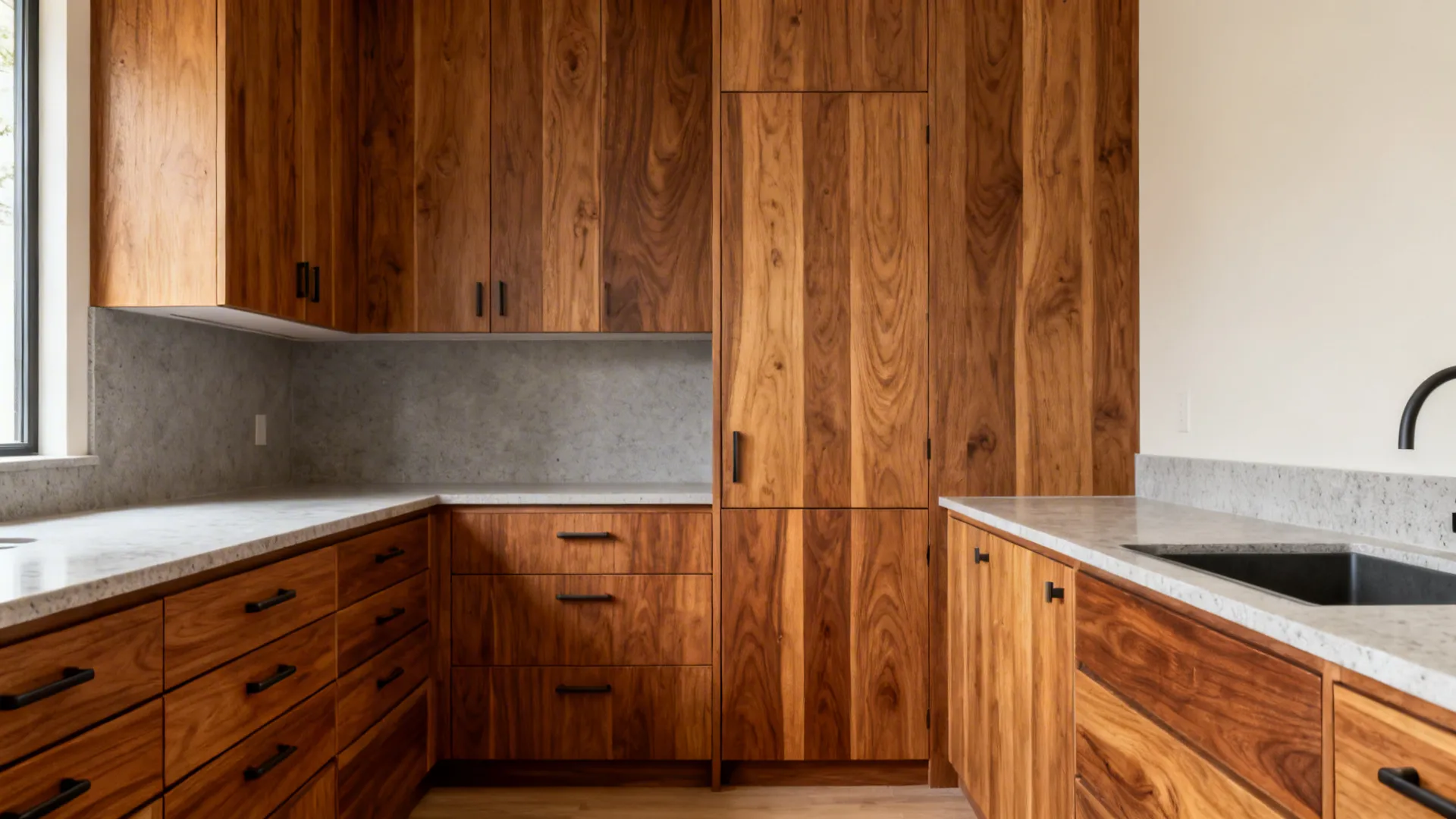

My Take: Wood brings soul to small kitchens. I specify grain direction and sequence-matched fronts right in my elevations—yes, that means labeling each draw front with a grain arrow and panel number in CAD.

Pros: The long-tail keyword “AutoCAD cabinet elevation with grain matching” preserves design intent through fabrication—your fabricator can read it like a map. Studies on biophilic design trends show natural textures reduce visual fatigue in compact spaces; I see clients linger longer in warm wood kitchens and report higher satisfaction.

Cons: Veneer costs add up, and inconsistent lighting can make warm tones read muddy. Also, omitting grain arrows in CAD invites guesswork at the shop—ask me how I learned that the hard way.

Tips / Case: I lock grain horizontally for drawer stacks and vertically for tall doors to elongate height. When I need quick 3D validation and photoreal textures before issuing shop drawings, I cross-check with a visual sandbox grounded in “warm wood elements build a cozy mood”—and export material schedules to keep bids honest.

save pin

save pin

Ergonomics first: appliance, handle, and toe-kick details

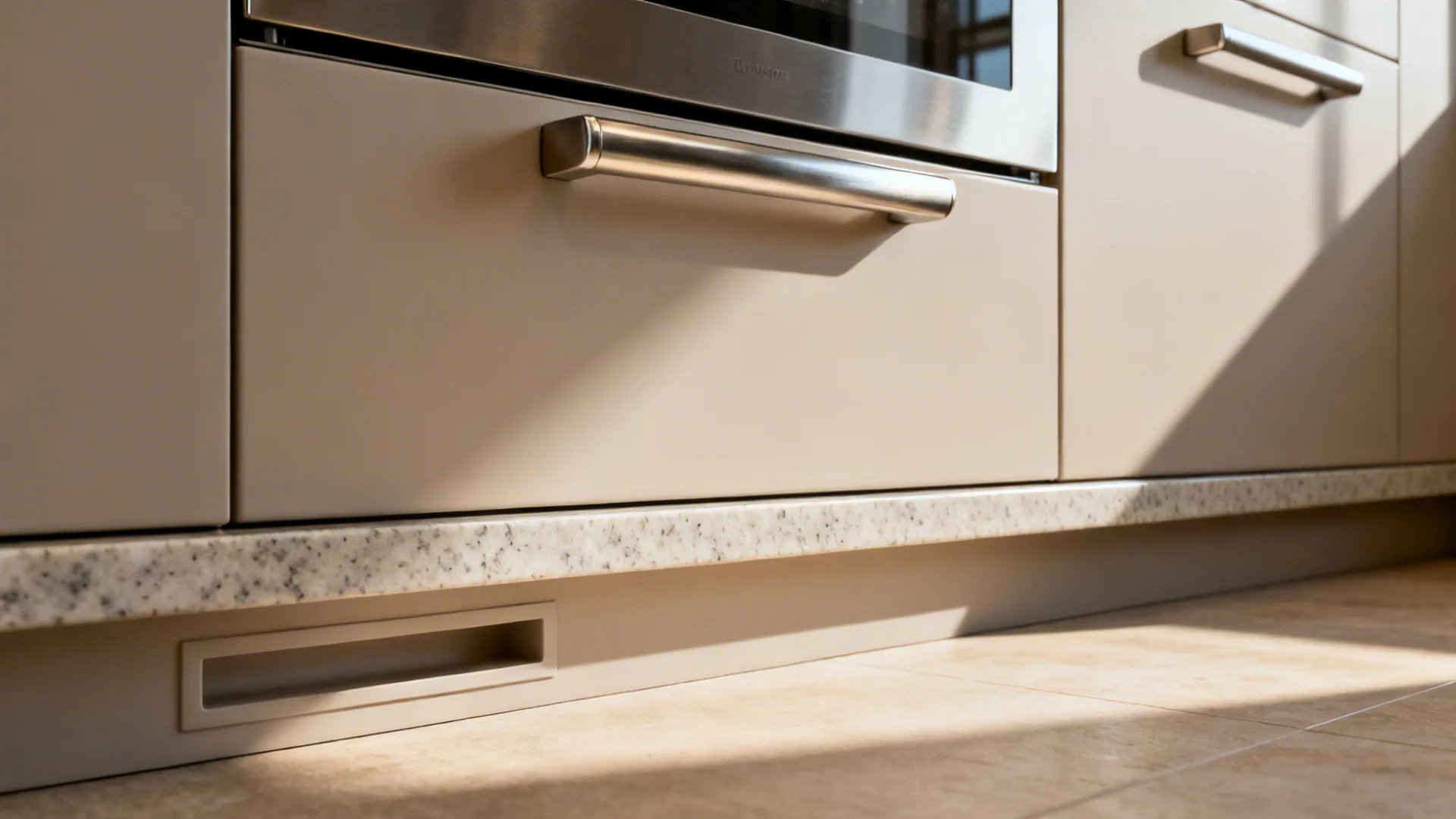

My Take: Ten years of site visits taught me: great cabinets are 50% ergonomics, 50% joinery. I dimension toe-kicks at 90–120 mm height and 50–70 mm recess, confirm appliance handle projections, and annotate reach ranges in elevations.

Pros: The long-tail phrase “ADA reach ranges in kitchen drawings” helps you embed inclusive design. The U.S. Access Board and ADA Standards specify reach ranges and clear floor space; aligning your CAD with those tables makes a small kitchen feel bigger because it functions better. I also add mounting heights for ovens (around 750–900 mm to center) to reduce bending.

Cons: Ergonomics can look less “Instagram-perfect”—higher appliances shift the visual rhythm. And yes, toe-kicks aren’t sexy to draft, but skip them and you’ll hear about stubbed toes forever.

Tips / Cost: I tag appliance service clearances in plan and elevation. When I need to iterate layouts fast at later design stages, I sometimes preview circulation and door-swing conflicts with circulation checks in 3D before locking final AutoCAD dimensions; it’s saved my team from costly field fixes more than once.

save pin

save pin

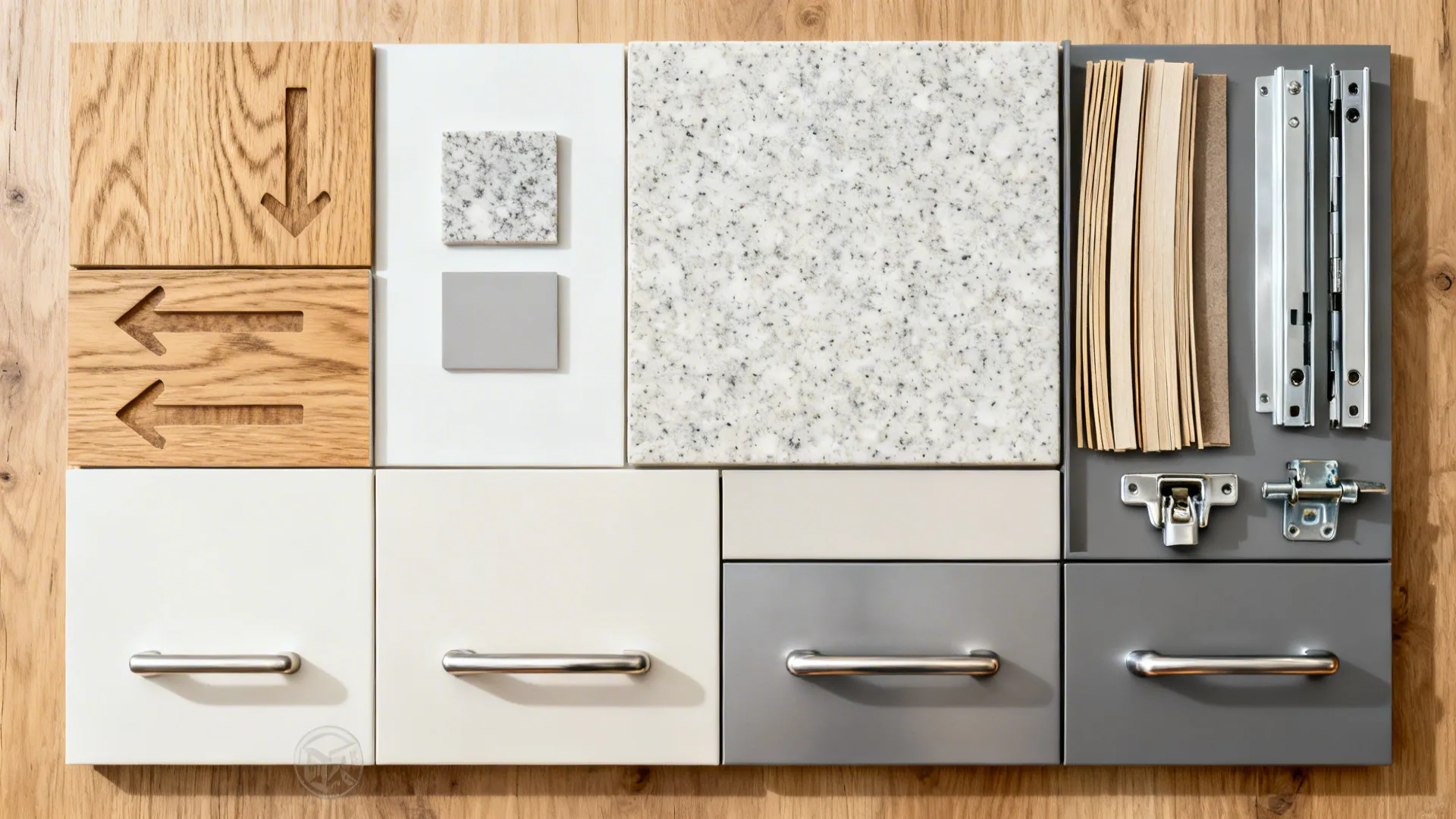

From CAD lines to build-ready cabinet sets

My Take: Clients often ask, “What turns a pretty drawing into a build set?” For me, it’s a repeatable stack: plans, elevations, sections, cabinet schedules, hardware callouts, edge details, and notes on finish and grain—all cross-referenced.

Pros: The long-tail “kitchen cabinet shop drawing checklist” keeps you consistent and reduces RFIs from fabricators. Include datum references and a legend for hinges, slides, and edge-banding codes. As a precision check, the Woodwork Institute and AWI standards offer tolerances and joinery guidelines; aligning to those reduces site surprises.

Cons: More sheets mean more coordination time. And yes, over-annotating can overwhelm installers—use a clear hierarchy so the right info pops first.

Tips / Case: I batch-plot PDFs with named views (Kitchen-Plan, Elev-E, Tall-1) and maintain a revision log. Around 80% of my process, I’ll validate tricky corners or appliance stacks via a quick “buildability preview” like corner collision sanity-check before I issue IFC sets—catching a 5 mm clash now is cheaper than scribing on site.

save pin

Video-friendly workflow: turning AutoCAD drawings into a clear client video

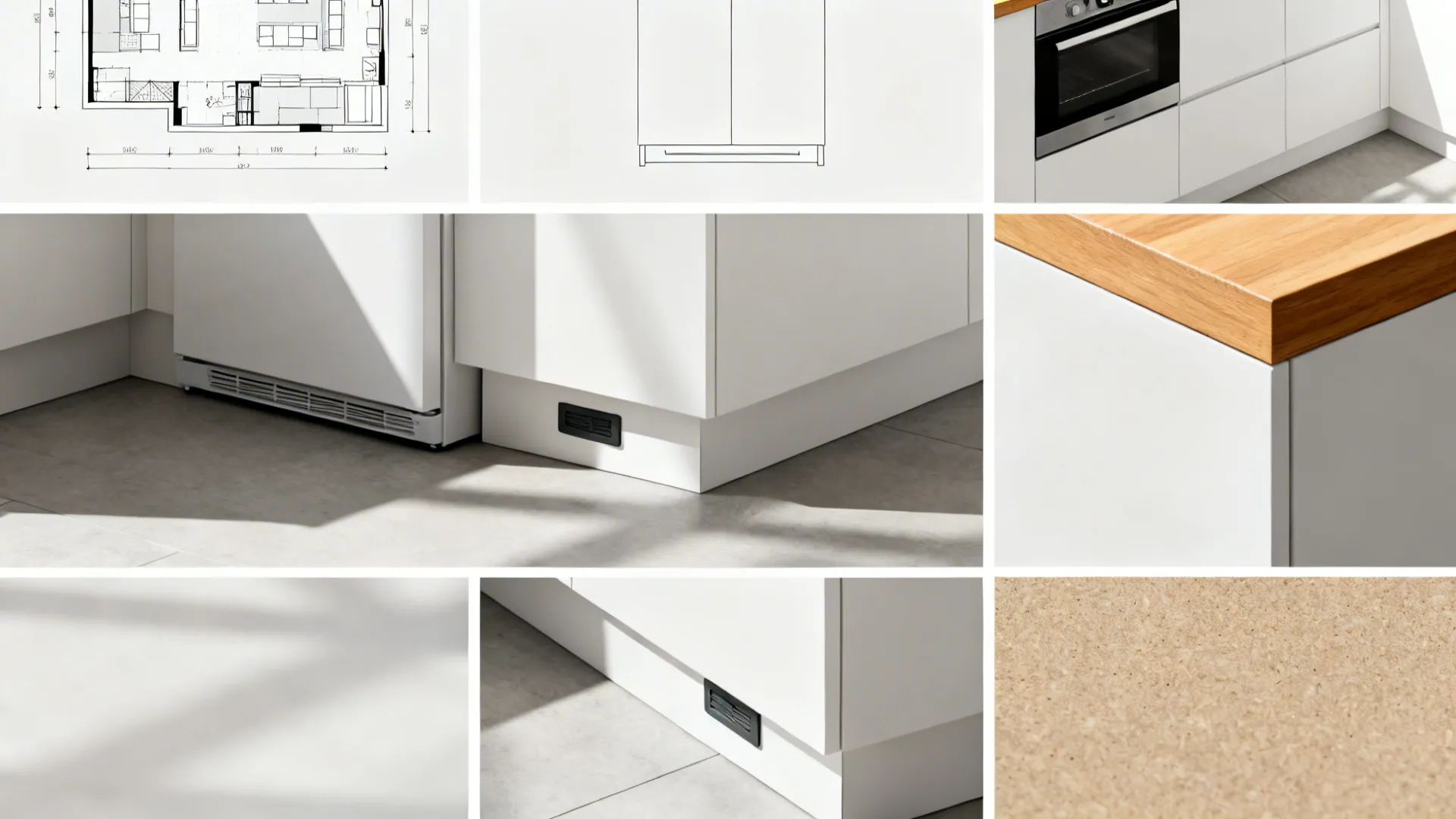

My Take: If you searched for “AutoCAD drawings for kitchen cabinets video,” you probably want a process you can show clients or your team. I record a short walkthrough: start with a plan, pan to elevations, zoom on critical dimensions (appliances, toe-kicks, corner units), and end with a quick 3D or material board overlay. It’s not Hollywood—just crisp, concise, and repeatable.

Pros: A concise video reduces meetings and gets decisions faster. Using the keyword “AutoCAD cabinet elevation video tutorial” in your documentation helps teammates find and reuse your methods.

Cons: Screen recordings reveal messy layer states—clean your layer manager before you hit record. And if you narrate, use a simple script; going off-script doubles retakes.

Tips / Cost: Keep your video under 5 minutes. Use consistent colors for dimensions and centerlines so viewers quickly learn your language. I export a light PDF packet alongside the video so fabricators can print and mark up.

save pin

Summary

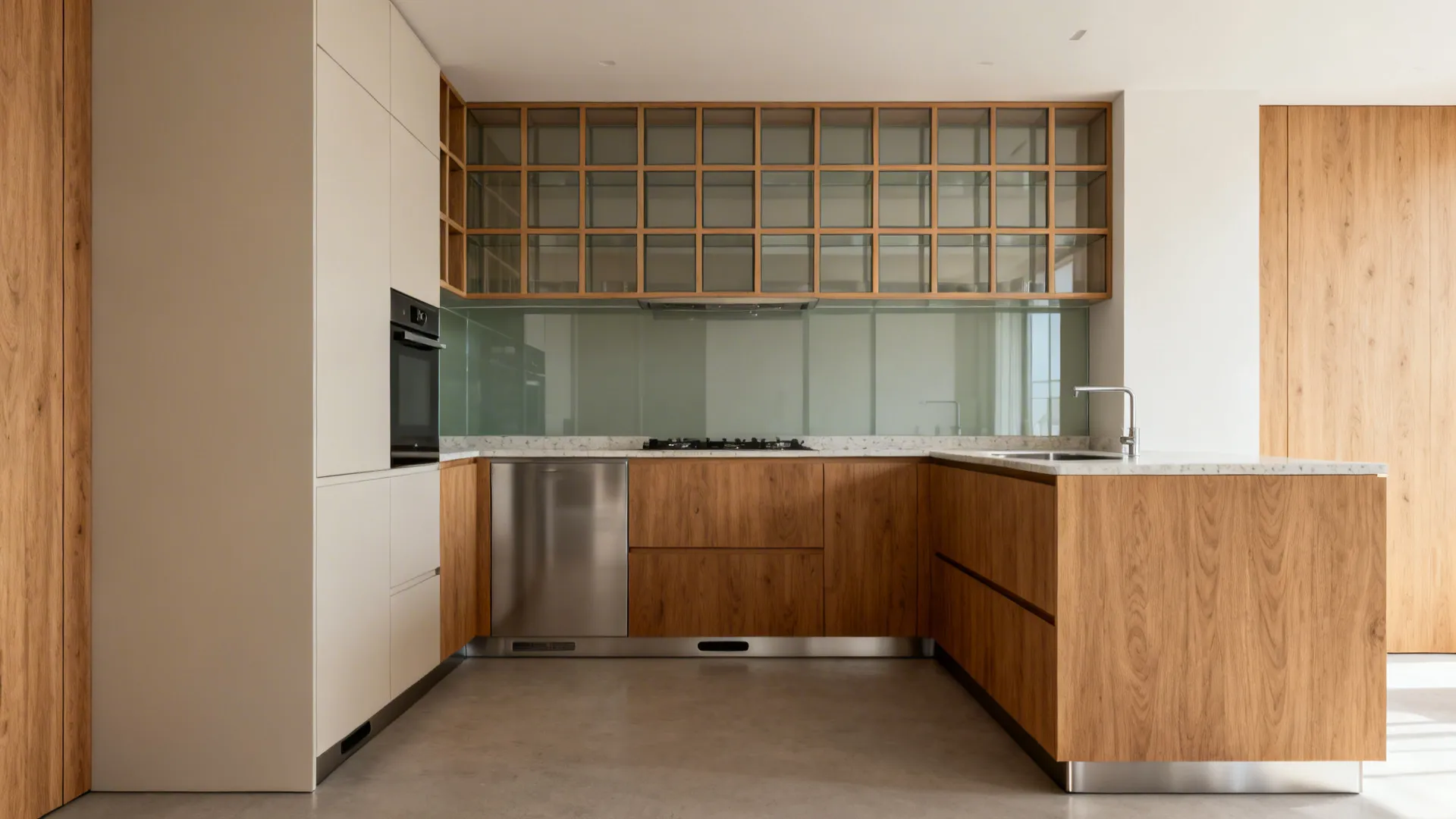

Small kitchens don’t limit creativity—they demand smarter AutoCAD drawings for kitchen cabinets. From minimalist grids to ergonomic details, the difference between pretty lines and build-ready drawings is clarity, consistency, and real-world tolerances. If you’re a data person, check ADA reach guidance and AWI/BSI joinery standards to keep both function and finish on point. Which one of these five ideas are you most excited to try in your next cabinet set?

save pin

FAQ

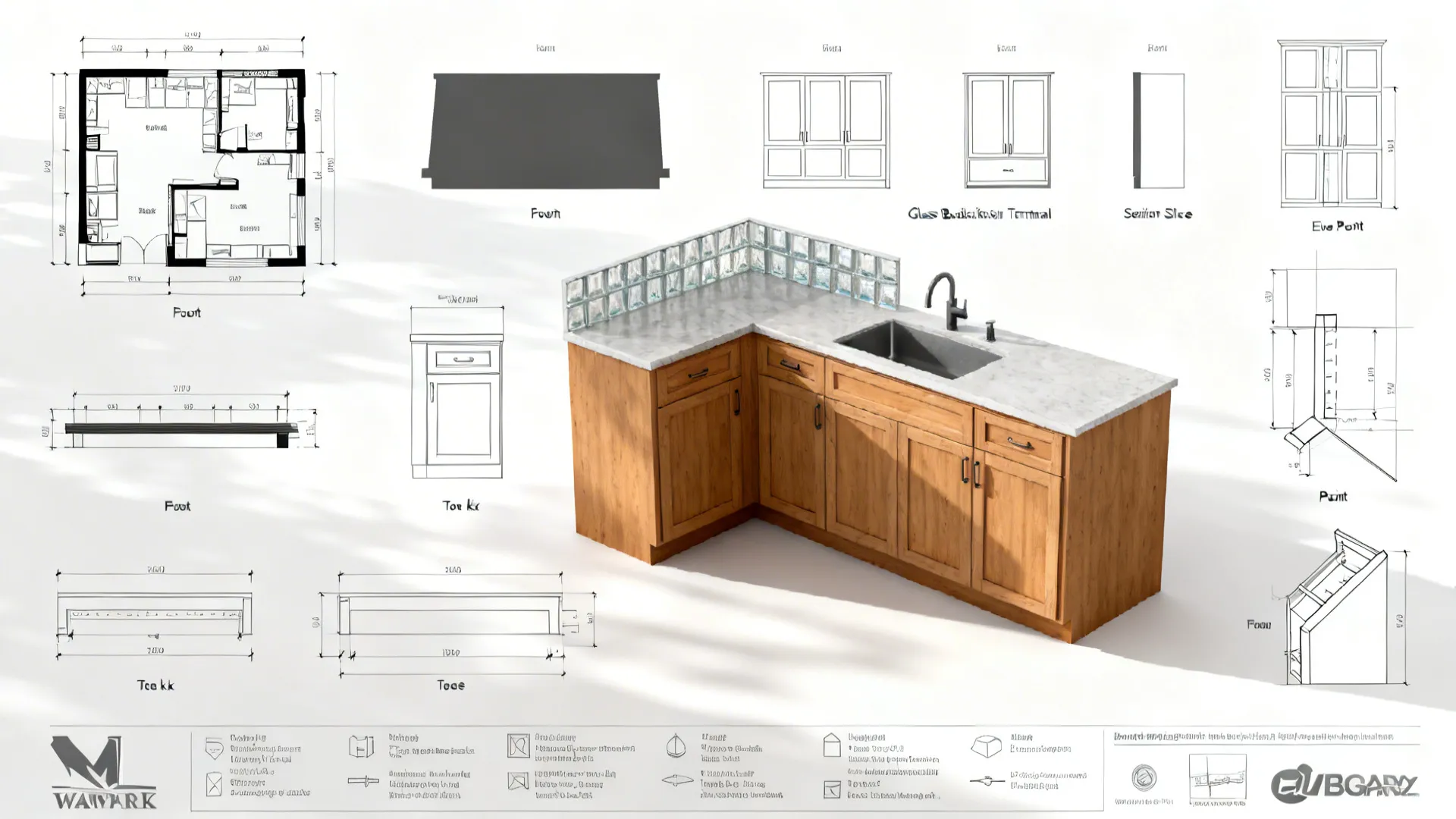

1) What should be in AutoCAD drawings for kitchen cabinets?

Include plan, elevations, sections, cabinet schedule, hardware callouts, finish notes, edge details, and dimensions for appliances, clearances, and toe-kicks. Cross-reference sheet numbers to keep coordination tight.

2) What are standard cabinet dimensions for small kitchens?

Base depth 600 mm, wall depth 300–350 mm, toe-kick 90–120 mm height, counter at 900 mm typical. Always confirm appliance specs; compact units can free up precious millimeters.

3) How do I document a glass backsplash in CAD?

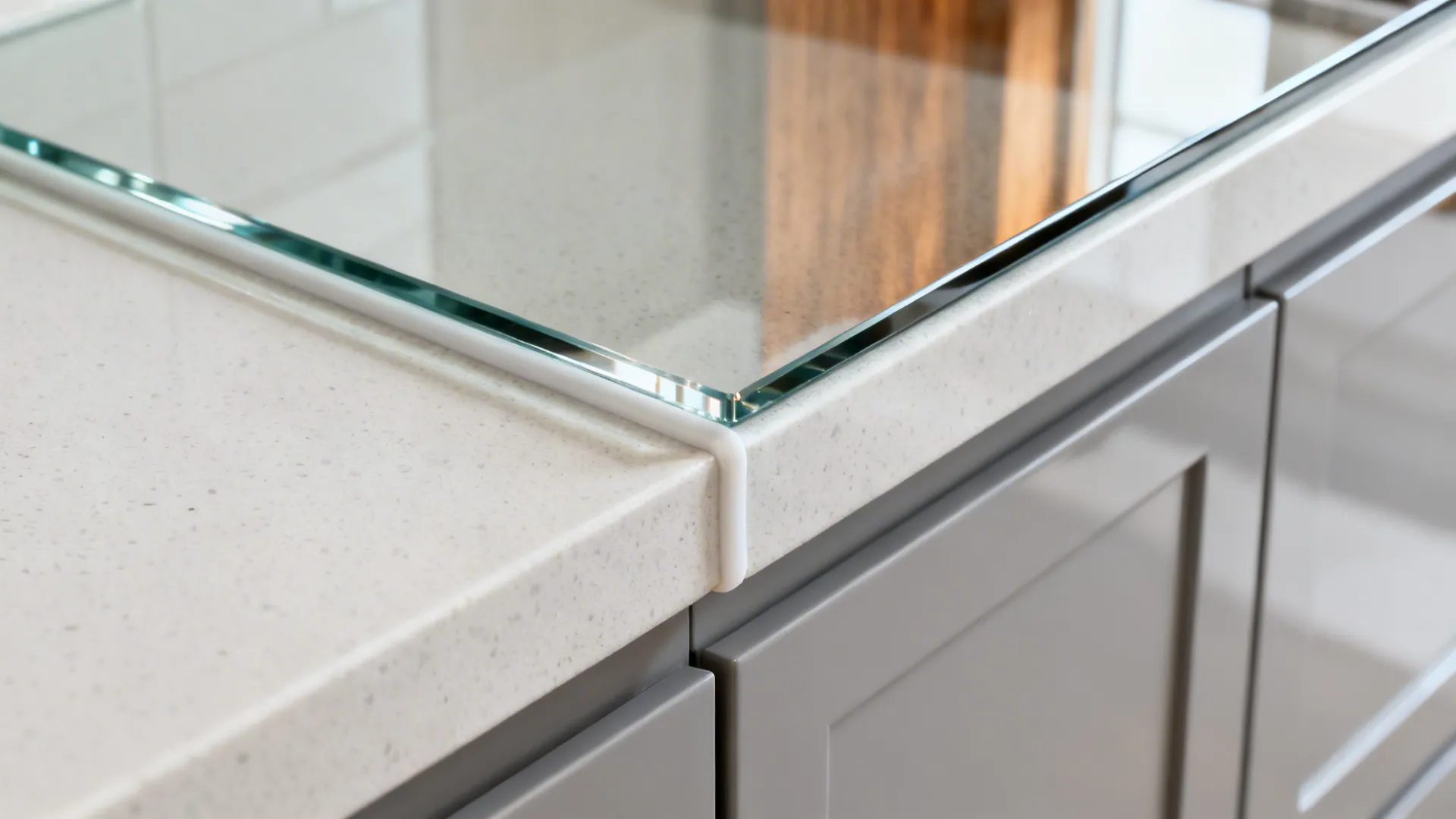

Dimension overall panel size, note material (low-iron tempered where needed), specify outlet cutouts and silicone gaps. Show termination details at countertops and wall units for a clean finish.

4) How do I handle corner cabinets in an L-shaped layout?

Model blind corner units with pull-out mechanisms and show hinge/handle swing arcs. Add fillers (often 50 mm) to prevent door collisions—draft them explicitly.

5) What ergonomic standards should I reference?

Use ADA Standards for accessible reach ranges and clear floor space; see the U.S. Access Board (ada.gov/2010ADAstandards_index.htm) for authoritative tables. Applying these early makes compact kitchens feel bigger and safer.

6) How do I coordinate grain direction for wood fronts?

Add grain arrows on elevations and label sequence numbers for matched veneers. Specify horizontal grain on drawer stacks and vertical grain for tall doors if you want a balanced composition.

7) Can I preview cabinet layouts in 3D before final CAD?

Yes—use a quick 3D check to verify door swings and sightlines, then lock final AutoCAD dimensions. A light preview for “circulation checks in 3D” can catch collisions before shop drawings.

8) Any tips for creating a cabinet drawing video?

Keep it under 5 minutes, script the key dimensions, and show plan–elevation–detail in sequence. If useful, link a simple 3D preview next to the PDF set to help clients visualize.
