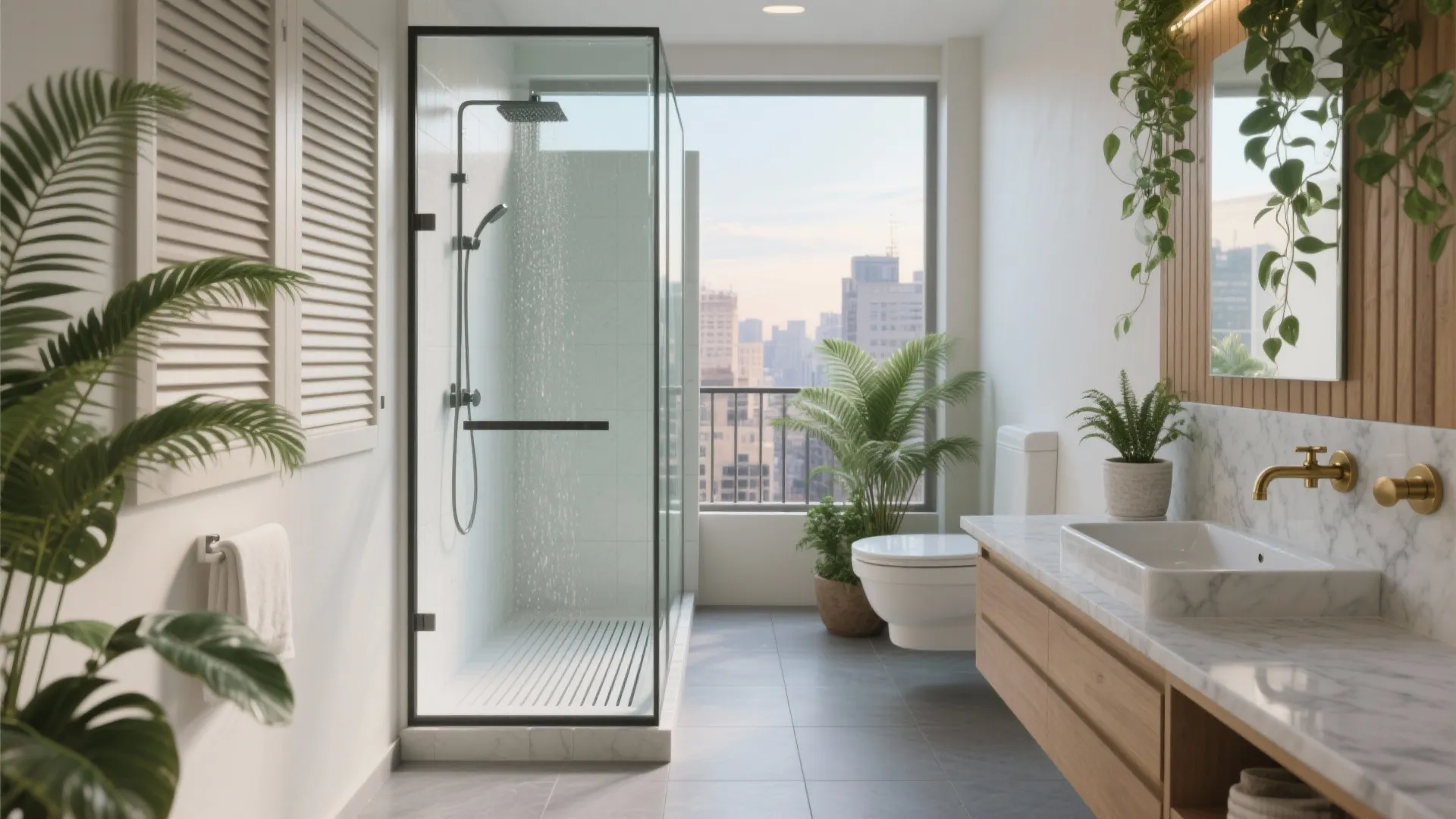

5 Balcony Bathroom Design Ideas That Actually Work: Small spaces can spark big creativity—here are five proven, builder-friendly ways to turn a balcony into a bright, private, and waterproof bathroom that you’ll love every day.

[Section: Intro]

I’ve helped a surprising number of clients turn underused balconies into daily spa moments, and the results are often better than a typical interior bath. Daylight, breeze, and the view do half the design work—if you plan well. I often start with a frameless glass shower to keep it airy, then layer privacy, waterproofing, and storage for a balanced space.

Balcony bathroom design is riding the same wave as biophilic interiors and micro-living: natural light, slim fixtures, and smart layouts that do more with less. I’ve learned that small spaces trigger big creativity—especially when you respect structure, drainage, and neighbors below. In this guide, I’ll share five design ideas I use again and again, weaving in real costs, my field notes, and a couple of expert benchmarks.

By the end, you’ll have a practical playbook: five inspirations with pros and cons, product tips, and code-aware notes that keep your balcony bathroom buildable. Let’s get into the details that make compact feel complete.

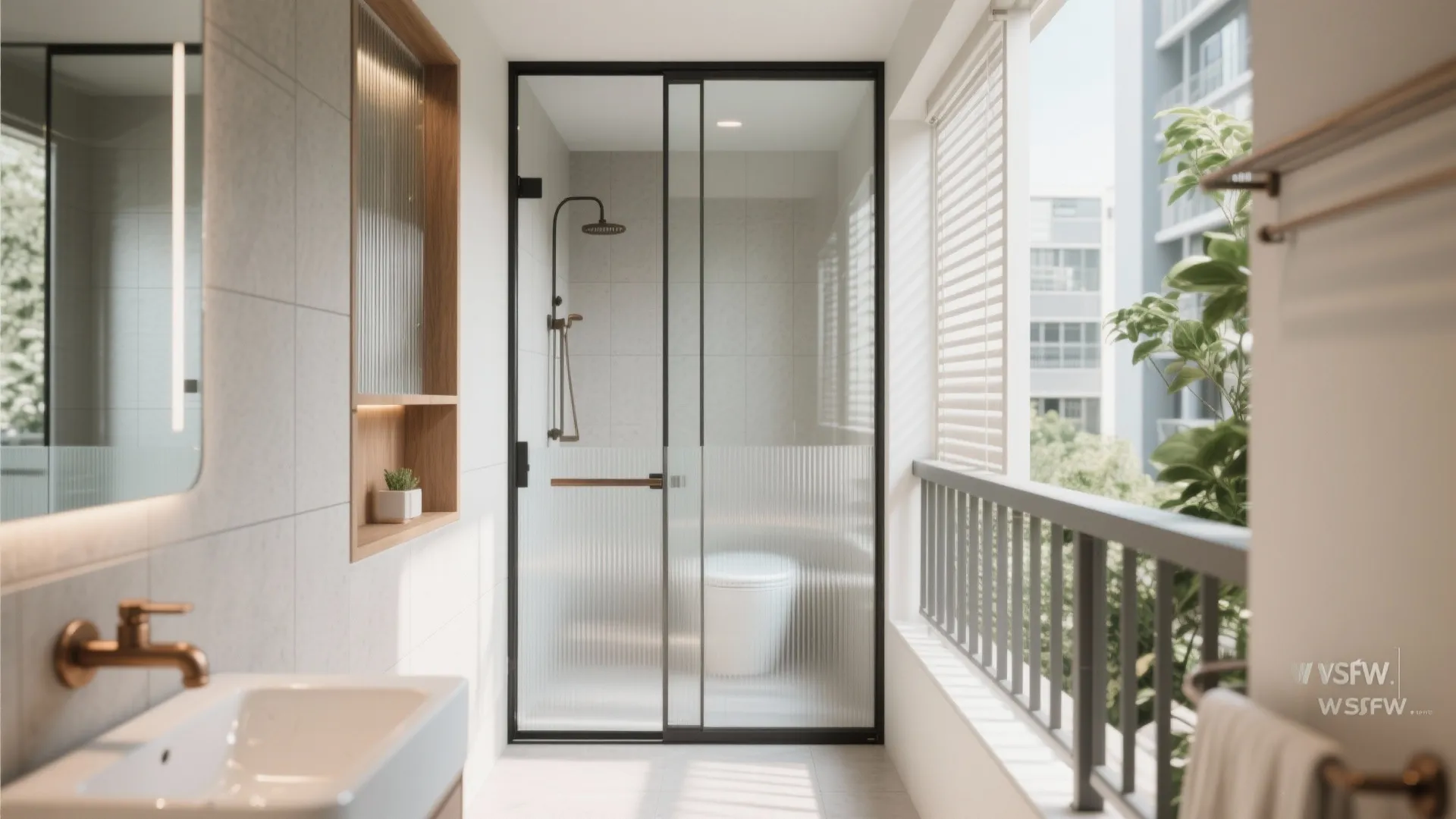

Frameless Glass and Daylight Zoning

[My Take]

On balconies, light is your superpower—but it needs boundaries. I usually zone with clear or frosted frameless glass so daylight floods the space while splash stays contained. In a 1.2 m-wide balcony bath I did in Shanghai, a fixed panel plus a swing door kept everything bright and clean-lined.

[Pros]

Frameless glass visually expands a small balcony bathroom design, making tight footprints feel generous. Using frosted bands or switchable privacy film gives you daylight without the fishbowl effect—great for “balcony bathroom privacy solutions.” Tempered or laminated safety glass around showers is also a code-friendly move (see IBC 2406 safety glazing requirements in wet zones).

[Cons]

Glass shows every splash and fingerprint; you’ll wipe it more often than tile. If your balcony faces harsh western sun, clear glass can make the space too bright without shading. And pivot doors need careful swing planning so they don’t hit railings or cabinets.

[Tips / Case / Cost]

Consider a fixed glass panel plus a sliding door to save swing clearance. For privacy, I love frosting the lower 2/3 while leaving the top clear, or using reeded glass for a classic look. Budget: tempered glass panels typically run $250–$450 per linear meter for standard thickness; add $150–$300 for quality hardware. If wind exposure is severe, choose laminated glass for extra safety and sound control.

save pin

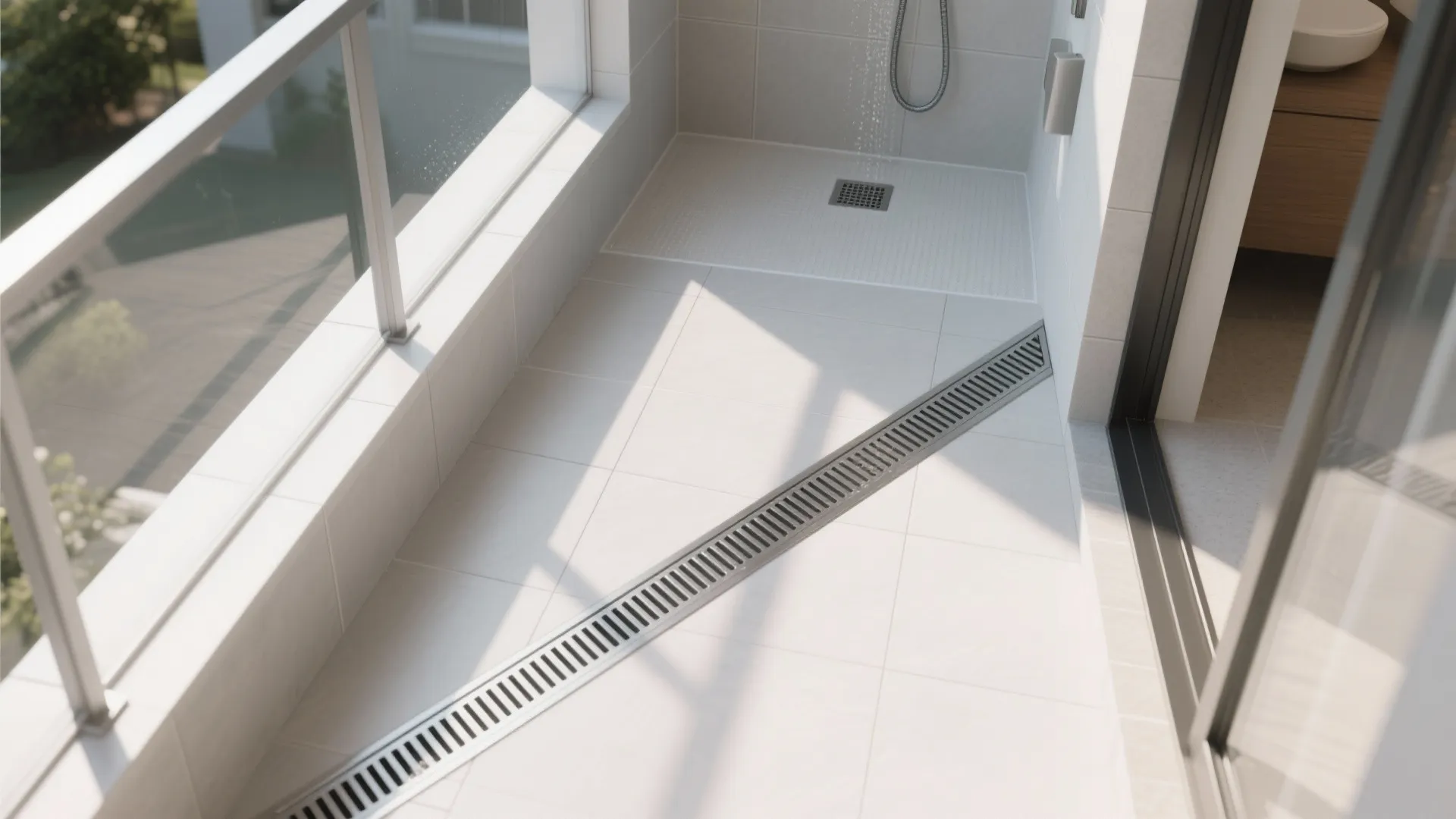

Curbless Wet Room With Linear Drain

[My Take]

Balconies love the wet-room concept: one continuous floor with a curbless shower and a linear drain by the outer edge. It looks minimal, feels larger, and makes waterproofing easier—provided you treat the builder details seriously. My crew targets a 1/4" per foot slope to the drain and hot-mops or membranes the whole floor and up the walls.

[Pros]

A wet room consolidates plumbing and simplifies cleaning—huge wins in a small balcony bathroom. Long-tail win: “balcony bathroom waterproofing” becomes more robust because you’re treating the entire zone, not just a shower pan. Ventilation also improves with fewer partitions breaking up air paths.

[Cons]

Sloping a slab or building up the floor height may trigger threshold adjustments to the adjacent interior, and that can complicate door transitions. Linear drains cost more than center drains and require precise leveling. If you’re DIY-prone, this is the one area to hire a pro—water finds every weak spot.

[Tips / Case / Cost]

Use a bonded waterproofing membrane rated for submerged or continuous wet use; look for ANSI A118.10 compliance. A quality stainless linear drain might run $200–$600, and membranes for a small balcony can be $3–$8 per sq ft. If you can, tuck the drain at the outer edge with a subtle trench and removable grate for easy cleaning.

save pin

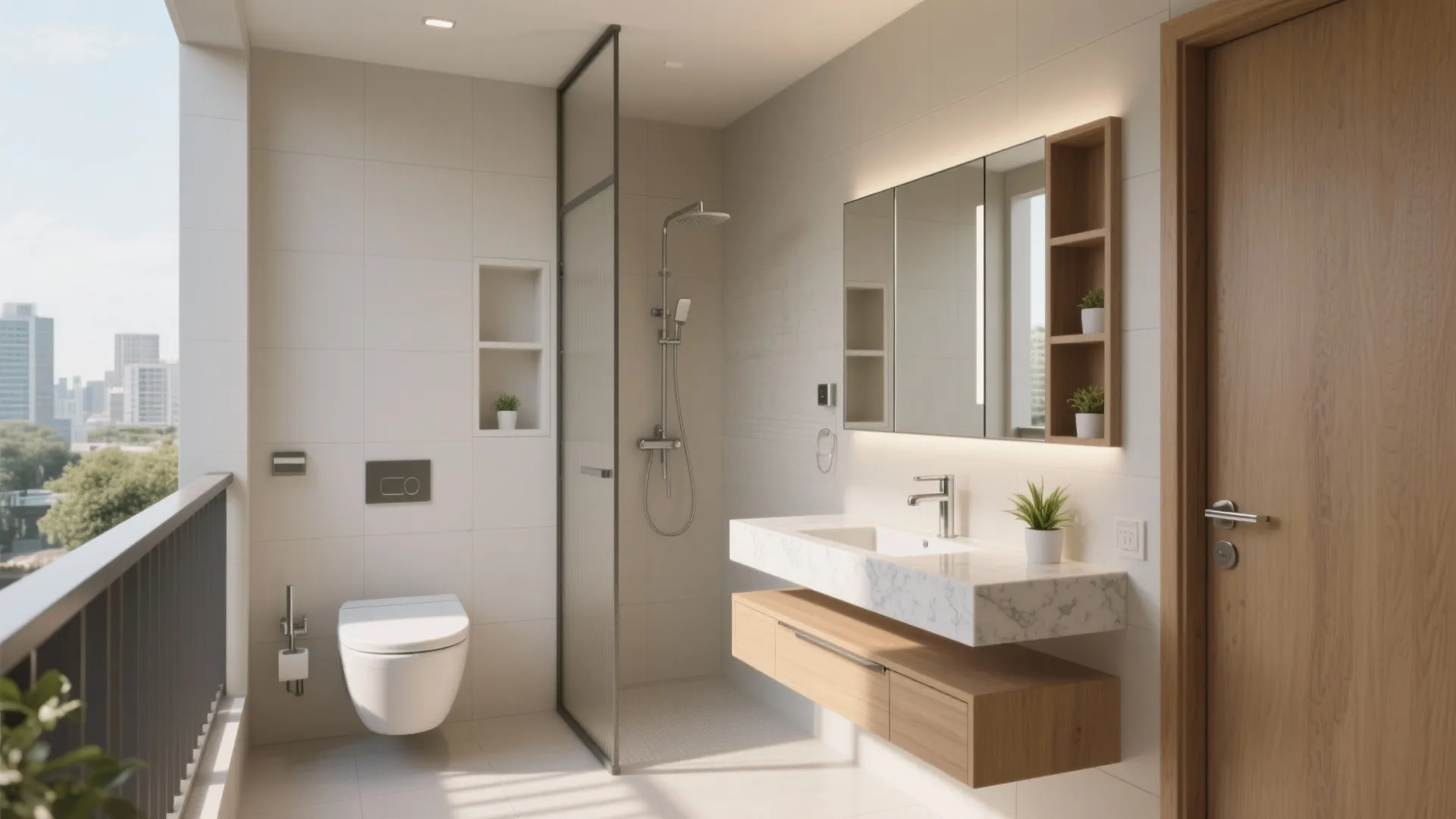

Space-Saving Fixtures and Storage

[My Take]

Space is a puzzle, and the right pieces make everything click. I default to wall-hung toilets, narrow-depth vanities, and mirrored medicine cabinets. In a 3.8 m² balcony bathroom, a 40 cm-deep vanity and a corner basin freed just enough space to keep the dry zone truly comfortable.

[Pros]

Wall-hung fixtures open up the floor visually and make cleaning faster. A mirrored cabinet over a narrow sink adds concealed storage and makes a “small balcony bathroom” look twice as deep. Pocket or barn-style doors reclaim swing clearance, easing compact bathroom layout constraints and traffic flow.

[Cons]

In-wall carriers for wall-hung toilets add cost and require sturdy framing, which may be limited on balconies. Ultra-narrow sinks can splash if the faucet is too tall or too close to the rim. Shallow vanities cut down on plumbing space and may need offset traps.

[Tips / Case / Cost]

Think vertical: recessed niches in shower walls, toe-kick drawers under the vanity, and ceiling-height medicine cabinets. A slim wall-hung vanity with storage niche is my favorite two-for-one. Costs vary: expect $450–$1,000 for a quality wall-hung toilet carrier, $200–$600 for a compact vanity, and $150–$300 for a mirrored cabinet. Keep at least 760 mm (30 in) recommended clear front space for toilets and lavatories for comfort (NKBA Bathroom Planning Guidelines).

save pin

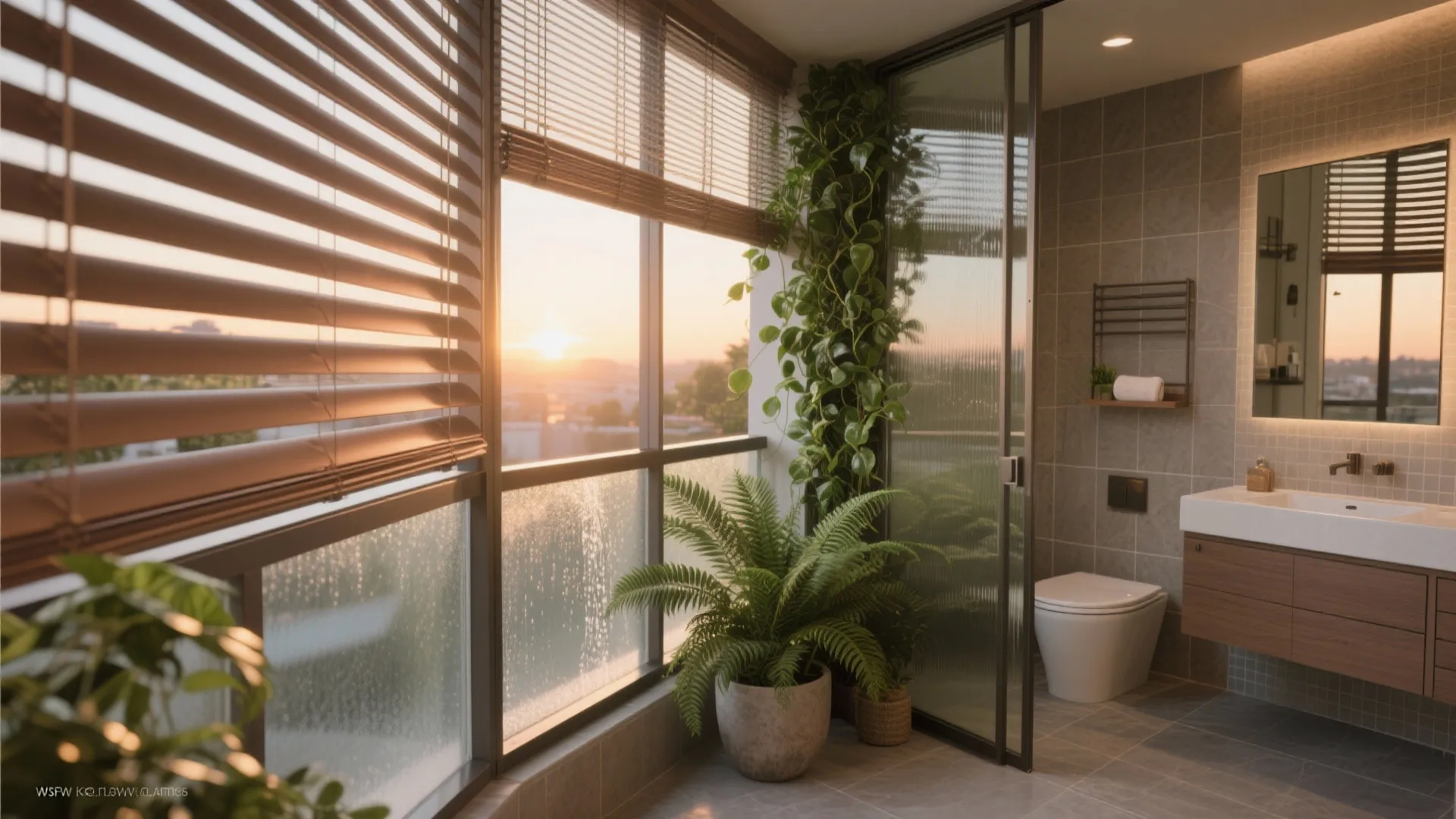

Privacy, Shading, and Greenery

[My Take]

Balcony bathrooms sit between outdoor views and indoor comfort. My approach is layered: exterior shading to soften sun, interior glass for splash control, and selective opacity for privacy. Plants do the rest—ferns and pothos love the humidity and bring that spa feel.

[Pros]

Louvered screens, perforated metal, or exterior blinds keep glare off glass while preserving airflow. Frosted or reeded glass maintains light while tackling “outdoor bathroom privacy solutions.” Plants act as living screens and improve the microclimate—bonus points if you add a drip tray and a simple irrigation line.

[Cons]

Plants need care, and if you’re not a plant person, the spa vibe can become plant guilt. Exterior screens may require HOA or building approval, and wind loads can limit fabric shades. Too many layers can clutter a small footprint if you don’t edit wisely.

[Tips / Case / Cost]

Use privacy film on the lower half of balcony glazing and keep upper panes clear for sky views. Choose marine-grade or powder-coated aluminum for exterior screens. Budget: $12–$20 per sq ft for custom privacy film, $35–$60 per sq ft for powder-coated screens, and $10–$25 per plant for hardy, humidity-loving varieties. For a cohesive look, repeat one finish—like warm bronze—across hardware, lighting, and screen frames.

save pin

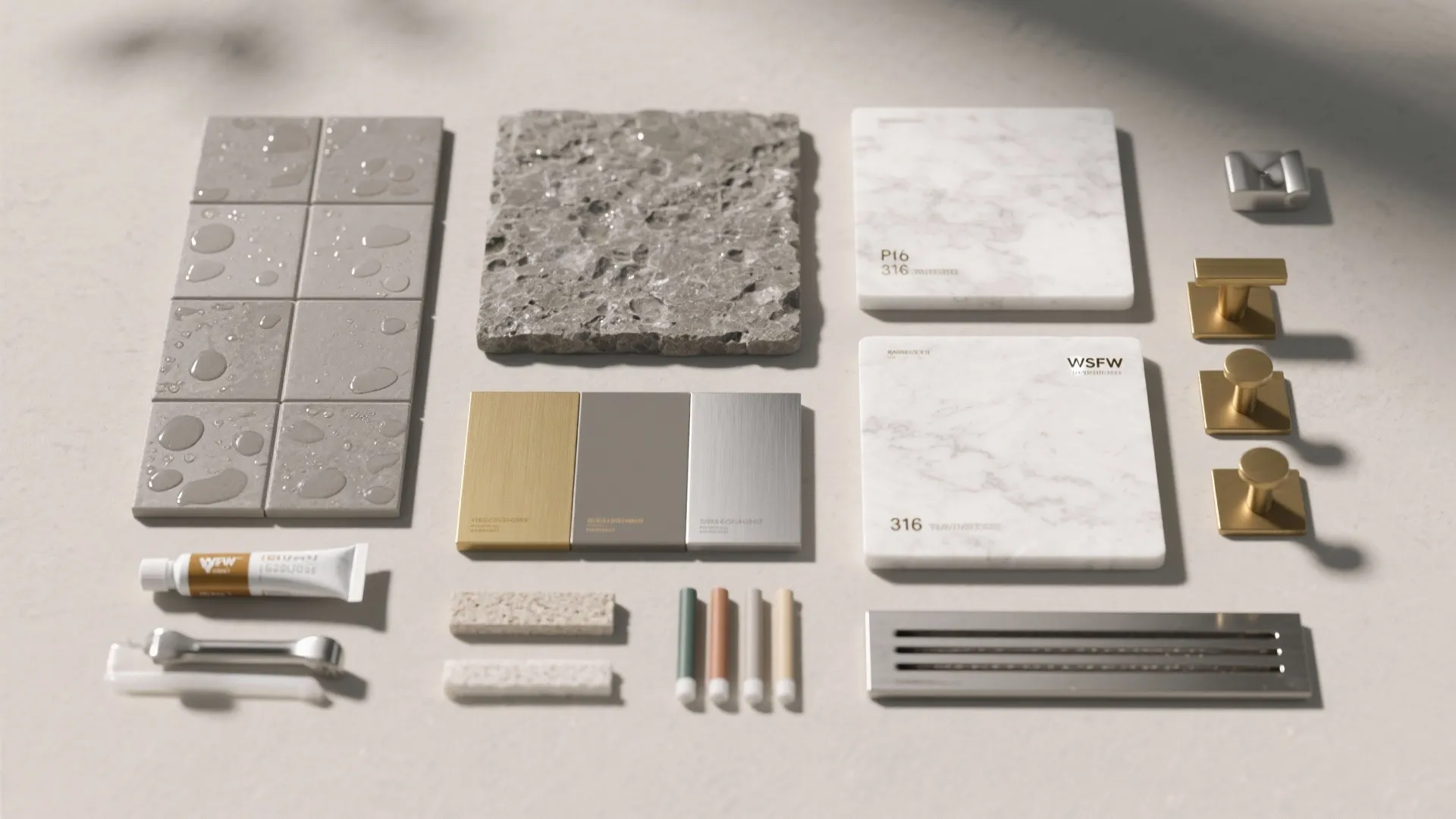

Material Choices for an Outdoor-Leaning Bathroom

[My Take]

Balcony bathrooms live between climates, so materials must be durable, slip-resistant, and low-maintenance. I lean on porcelain tile with a matte finish for floors, quartz or sintered stone for counters, and marine-grade sealants. Hardware in 316 stainless or PVD-coated brass resists corrosion better than budget chrome.

[Pros]

Porcelain with a wet-rated slip resistance delivers safe footing—ANSI A326.3 calls for a DCOF of 0.42 or higher for wet areas (source: ANSI A326.3). Sintered stone tolerates UV and temperature changes better than many engineered stones, ideal for a sunwashed balcony bathroom design. PVD finishes hold color and resist pitting, stretching replacement cycles.

[Cons]

Slip-resistant tiles can feel slightly harder to clean because texture holds soap residue; a soft bristle brush solves it. Sintered stone is harder to fabricate—choose experienced fabricators. Premium metals cost more upfront, though they pay back in fewer replacements.

[Tips / Case / Cost]

Choose grout with stain-resistant additives and match grout color to tile for low visual maintenance. If your balcony gets heavy sun, specify UV-stable silicones around glass and metal. Tile: $3–$12 per sq ft for good porcelain; sintered stone tops: $60–$120 per sq ft installed; marine-grade hardware: plan 20–30% higher than standard finishes. For water performance and seamless flow, I often detail a curbless wet room for seamless flow paired with a concealed linear drain.

save pin

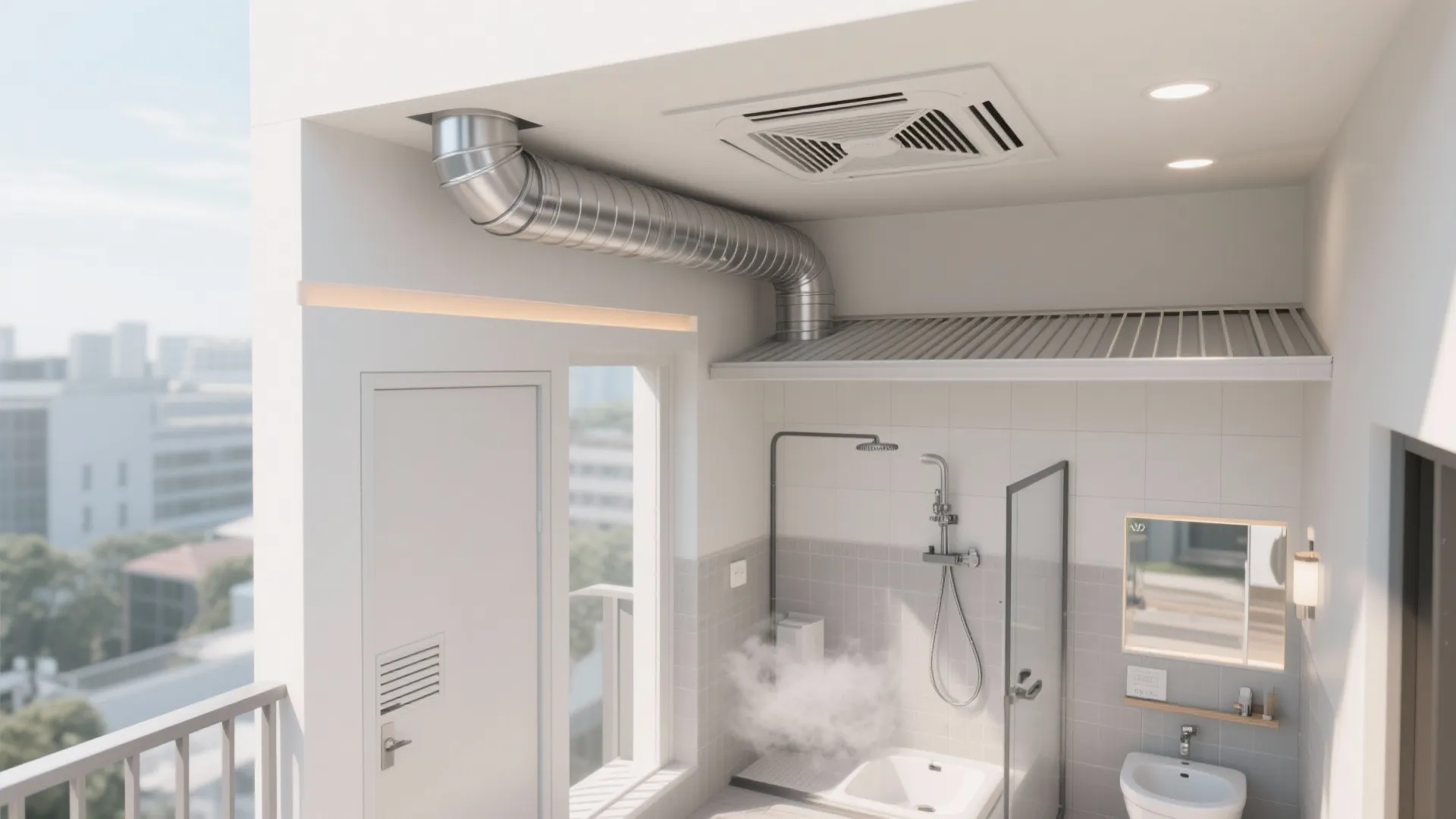

Ventilation and Moisture Control (The Invisible Hero)

[My Take]

Balconies breathe better than interior baths, but reliable mechanical ventilation still matters. I prefer a quiet, exterior-ducted fan on a timer or humidity sensor, paired with generous undercut doors or transfer grilles. In humid climates, I add a mini dehumidifier tucked into a vanity.

[Pros]

Good airflow prevents mildew, protects finishes, and keeps “balcony bathroom ventilation” from being an afterthought. A humidity-sensing fan that ramps up automatically makes daily life easier. Per ASHRAE 62.2, bathrooms should exhaust at least 50 CFM intermittently or 20 CFM continuously (source: ASHRAE 62.2-2019).

[Cons]

Running new ductwork through an exterior wall or soffit can be tricky in multi-unit buildings and may require HOA approval. Super-quiet fans tempt people to forget they’re on—add a lighted control or timer. If you rely only on natural ventilation, rainy days can undo your best-laid plans.

[Tips / Case / Cost]

Use short, straight duct runs and smooth-walled ducts for better performance. Add a 20–40 minute timer to purge moisture after showers. Expect $250–$600 for a quality quiet fan, plus $200–$500 for ducting and exterior hood install. If you have operable balcony glazing, slot vents at head height help safe cross-venting without wind blasts.

[Section: Summary]

Here’s my bottom line after a decade of small-space renovations: a balcony bathroom design is not a limitation; it’s an invitation to design smarter. Daylight, glass, wet-room planning, compact storage, privacy layers, and robust ventilation turn a small footprint into a daily luxury. For safety and performance, align with credible benchmarks like ASHRAE 62.2 ventilation and ANSI A326.3 slip resistance, and you’ll enjoy a bright, dry, and durable space for years.

Which of these five ideas are you most excited to try on your balcony—glass zoning, wet-room waterproofing, storage wizardry, privacy layers, or material upgrades?

save pin

FAQ

1) What is balcony bathroom design?

It’s the art of turning an exterior balcony or loggia into a functional bathroom by managing waterproofing, drainage, privacy, and climate. The best plans use wet-room concepts, frameless glass, and space-saving fixtures to fit more comfort into less space.

2) Is it legal to convert a balcony into a bathroom?

It depends on local codes, building structure, and HOA rules. You’ll likely need permits for plumbing, electrical, and ventilation, plus a waterproofing plan that protects neighbors below. Always consult a licensed contractor or architect familiar with your jurisdiction.

3) How do I ventilate a balcony bathroom?

Pair natural airflow with a mechanical exhaust fan to control humidity reliably. ASHRAE 62.2 recommends at least 50 CFM intermittent or 20 CFM continuous exhaust in bathrooms (source: ASHRAE 62.2-2019). A humidity-sensing fan and a door undercut make it effortless.

4) How do I waterproof a balcony bathroom?

Use a bonded waterproofing membrane across the entire wet zone, slope the floor to a drain, and flash every penetration. For curbless showers, a linear drain at the edge helps containment, and ANSI A118.10-rated membranes are a smart baseline for materials selection.

5) What layout works best for a small balcony bathroom?

Linear wet rooms are efficient: shower at the outer edge, vanity and toilet along the wall, everything on one plane. In slightly wider spaces, an L-shaped wet zone can free up a dry corner for storage or a laundry nook.

6) What materials hold up outdoors?

Matte porcelain tile with a wet-area slip rating (DCOF ≥ 0.42), sintered stone or quartz, and PVD-coated or 316 stainless hardware. Use UV-stable sealants and grout with stain resistance to keep maintenance low and finishes crisp.

7) How much does a balcony bathroom conversion cost?

Budgets vary widely by structure and plumbing access, but a basic, code-compliant conversion often starts around $8,000–$15,000. Wet-room membranes, linear drains, and corrosion-resistant hardware add cost but pay off in longevity and fewer leaks.

8) How can I add privacy without losing light?

Combine frosted or reeded glass, exterior screens, and tall plants to filter views while keeping brightness. Layer solutions so you can tune transparency by time of day—frosted lower panels, clear upper glass, and adjustable louvers are a flexible trio.
