5 Balcony Design Drawings for Smarter Small Spaces: Practical, buildable balcony plans with pro tips, safety notes, and real-world cost ranges—crafted from 10+ years in small-space design

[Section: 引言]

Small balconies are having a big moment. Between the “outdoor room” trend and hybrid home living, I’m sketching more balcony design drawings than ever—and I often start with quick 3D balcony renderings to test light, color, and placement before I commit to a final plan.

Here’s what I’ve learned: tiny square meters can spark giant creativity. When I plan a balcony, I layer function (coffee spot, laptop perch, micro-garden), structure (loads, drainage, guard heights), and feeling (breeze, texture, quiet). A good drawing ties those together so the build goes smoothly.

In this guide, I’ll share 5 balcony design drawings I keep returning to. Each comes with my field notes, pros and cons, and the practical details I wish more Pinterest boards showed. I blend my own projects with expert data—so you can choose what truly fits your space.

[Section: 灵感列表]

Minimalist Balcony Storage Wall

My Take — On my last micro-renovation, a 0.9 m-deep balcony felt unusable. A clean, slatted storage wall turned the lane-way view into a calm backdrop and gave the owner a slim cabinet for tools, cushions, and a fold-away bistro set.

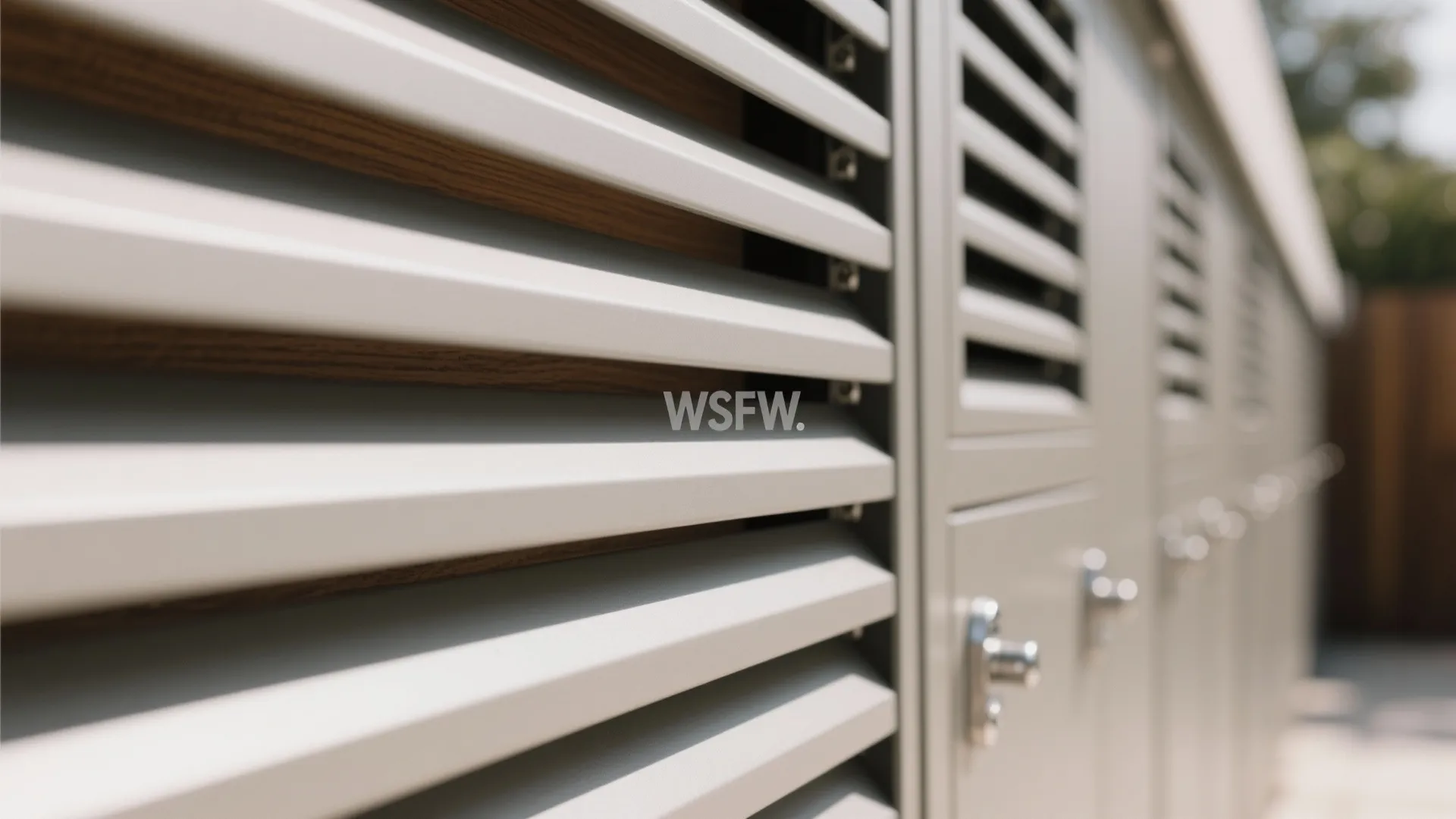

Pros — A minimalist storage wall declutters without eating floor area, which is crucial in a small balcony layout. Done right, your balcony design drawings can hide services (AC lines, hose bib) and keep access panels discreet. Modular slats let you clip on planters or hooks as you grow into the space, giving you flexibility without visual noise.

Cons — Outdoor-rated cabinetry and fixings cost more than indoor pieces, and budget lines creep up when you choose marine-grade plywood or powder-coated aluminum. If you overload the wall, the clean look disappears—and if you don’t ventilate enclosed cabinets, moisture can get trapped. I once found a client’s lanterns smelling musty after a rainy season; lesson learned: add vents.

Tips / Cost — Prioritize depth: 200–250 mm cabinets keep walk-throughs comfortable on slim balconies. Specify drainage-friendly plinths and stainless fasteners. Expect roughly $350–$900 for a compact custom unit; off-the-shelf metal lockers can start around $180.

save pin

save pin

Glass Balustrade and Light Palette

My Take — The biggest visual win on compact balconies is removing visual heaviness. Swapping a solid guard for clear laminated glass and choosing a pale deck tone can make a 1 m deep ledge feel like a room. I’ve seen this turn “avoid” corners into daily coffee spots.

Pros — Clear sightlines make spaces feel larger than their footprint. When you include glass balustrade details in your balcony design drawings, you can capture the exact post spacing, top-rail profile, and laminations for safety. Light-toned finishes bounce daylight back into the home, which is priceless on north-facing units.

Cons — Glass shows water spots and urban dust, so be honest about cleaning access and a maintenance schedule. In windy sites, a fully glazed guard can feel breezy; consider an upstand or partial privacy band. And glare can be a thing with high-polish stone—go matte for flooring if you work on the balcony at midday.

Tips / Safety — For residential projects in my market, I refer to the 2021 International Building Code (IBC) Section R312 for guards: minimum 36 in (914 mm) height and design load of 50 plf (0.73 kN/m) along the top rail; point load 200 lb (0.89 kN) on the guard. Glass guards should be laminated or otherwise comply with safety glazing requirements (IBC 2021, R308, R312). Including these notes directly on your drawings streamlines permitting.

save pin

save pin

L-Shaped Balcony Nook: Kitchenette + Bar

My Take — Corners love multitasking. I once fit a tiny sink, a 450 mm under-counter fridge, and a narrow bar ledge into an L, leaving the center open. Weekdays it was a laptop spot; weekends, a two-person tapas station.

Pros — The L-shape pushes bulk to the edges, releasing more circulation and prep space on the counter—great for small balcony layout constraints. With a compact sink and induction hob, your drawings can show exact appliance clearances, power points, and a balcony waterproofing detail below the cabinet line. Weatherproof doors and a drip tray under the fridge save headaches later.

Cons — Services are the catch. You’ll need to coordinate power, water supply, and waste routes—and not every building allows external sinks. Venting and grease management are non-negotiable if you cook. Be realistic about noise and neighbors; I cap frying to indoor use in most urban buildings.

Tips / Cost — If plumbing is a no-go, omit the sink and lean into an ice-well and portable induction. Budget $1,200–$3,500 for a weather-rated L plus basic appliances. When I’m testing ideas, I explore an L-shaped balcony kitchenette in alternate scales before I lock the cabinet widths.

save pin

save pin

Warmth of Timber Decking and Integrated Planters

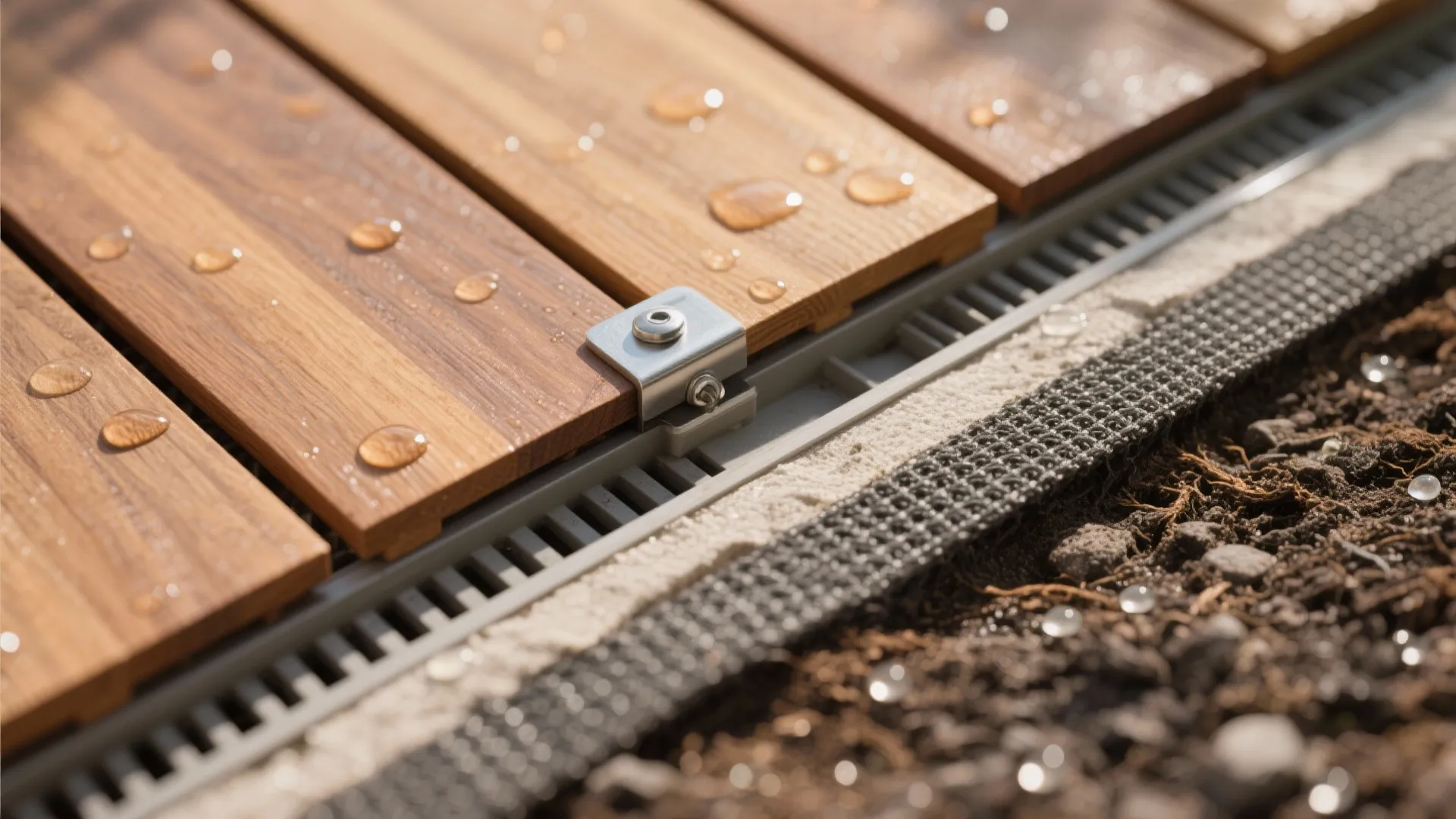

My Take — Timber under bare feet changes how you use a balcony. I like thermally modified ash or FSC-certified teak tiles with concealed trays. Add a slim planter bench at rail height, and the entire edge turns into a green frame.

Pros — Wood softens acoustics and glare, and the modular tile format simplifies future repairs. Your balcony section detail should include a drainage layer, a fall, and an upstand at door thresholds. Integrated planters define the perimeter, shade the deck, and create a calming focus, especially in tight city views.

Cons — Real wood needs care. Expect oiling and seasonal movement, and watch for splinters with softwoods. Overwatering planters without a controlled overflow will haunt your downstairs neighbor—I’ve had to redesign a great-looking setup after leaks stained a façade.

Tips / Standards — I follow balcony drainage slope guidance of about 1:80 to 1:60 fall toward outlets and ensure overflow provision, per BS 8579:2020 (Guide to balconies and terraces). Include root barriers, geotextile, and a lightweight substrate in your drawings. Costs range from $35–$100 per sqm for deck tiles; custom planters can run $250–$800 each depending on metal thickness and powder coat.

save pin

save pin

All-Weather Sliding Enclosure (Micro Sunroom)

My Take — In rainy or cold climates, a slim-line sliding glass enclosure can double your balcony’s usable days per year. One client’s “laundry ledge” became a bright reading room with a fold-flat chair and a narrow console that also hides a drying rack.

Pros — A frameless or slim-framed system protects finishes, reduces street noise, and lets you program the space as a winter garden. In your balcony design drawings, specify trickle vents, tempered or laminated glass, and a continuous sill with drainage breaks. Add privacy film or a ribbed glass panel where the view needs softening.

Cons — You’ll need HOA or building approvals, and not every façade allows a visible enclosure. Thermal gain is real; on hot days it can feel like a greenhouse unless you add shading and cross-vent paths. Budget-wise, customized tracks and glazing drive costs up compared to open balconies.

Tips / Planning — Note the door swing and furniture fold paths right on the plan. Allow cleaning access for exterior panes. I also prototype furniture and storage placements with AI-assisted layout options before I finalize sill heights and vent placements.

[Section: 总结]

Small kitchens taught me this long ago, and balconies confirm it daily: less area can mean smarter design. With clear balcony design drawings—showing drainage fall, guard details, service routes, and furniture clearances—you build once and enjoy for years. In case law or code-land, details matter; that’s why I cite IBC and BS guidance right on my sheets. So, which of these 5 ideas would you try first?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What size is the minimum workable depth for a balcony?

For seated use with a small bistro set, I aim for 900–1,000 mm clear depth. For lounging or an L-shaped nook, 1,200–1,500 mm is more comfortable. Your balcony design drawings should show door swing and chair pull-back zones.

2) How high should my guardrail be?

In many residential contexts, 36 in (914 mm) minimum is common, but always check your local code. The 2021 IBC R312 specifies 36 in min guard height and load requirements; note these in your drawings and structural notes.

3) What slope do I need for balcony drainage?

As a rule of thumb, 1:80 to 1:60 fall toward a drain is a solid target with an overflow route. BS 8579:2020 (Guide to balconies and terraces) provides clear guidance; include slope arrows in your section details and coordinate thresholds.

4) Can I add a sink to a balcony kitchenette?

It depends on your building rules and how waste can be routed. If not allowed, consider a dry bar with an ice well and portable induction. Show service zones in plan and section so installers can pre-drill and seal correctly.

5) What materials work best for outdoor storage?

Powder-coated aluminum, marine-grade plywood with proper sealing, and HDPE are durable options. Avoid standard MDF—it swells. Ventilated cabinet backs reduce moisture and odors.

6) How do I control heat in a glazed enclosure?

Specify operable panels for cross-venting, low-E or selective coatings, and shading (fabric screens, external blinds). A light floor finish helps too. Simulate sun paths or test with quick 3D studies before finalizing glass specs.

7) What’s a realistic budget for a small timber deck and planters?

Deck tiles: roughly $35–$100 per sqm depending on species and quality. Planters: $250–$800 each for powder-coated metal with liners. Don’t forget waterproofing, drainage mats, and fasteners in your estimate.

8) How can I visualize options before building?

Create simple plans with furniture footprints and a section cut to test thresholds and guard heights. I like to compare material palettes and sun angles with 3D studies, then finalize balcony design drawings with exact dimensions and fixings.
