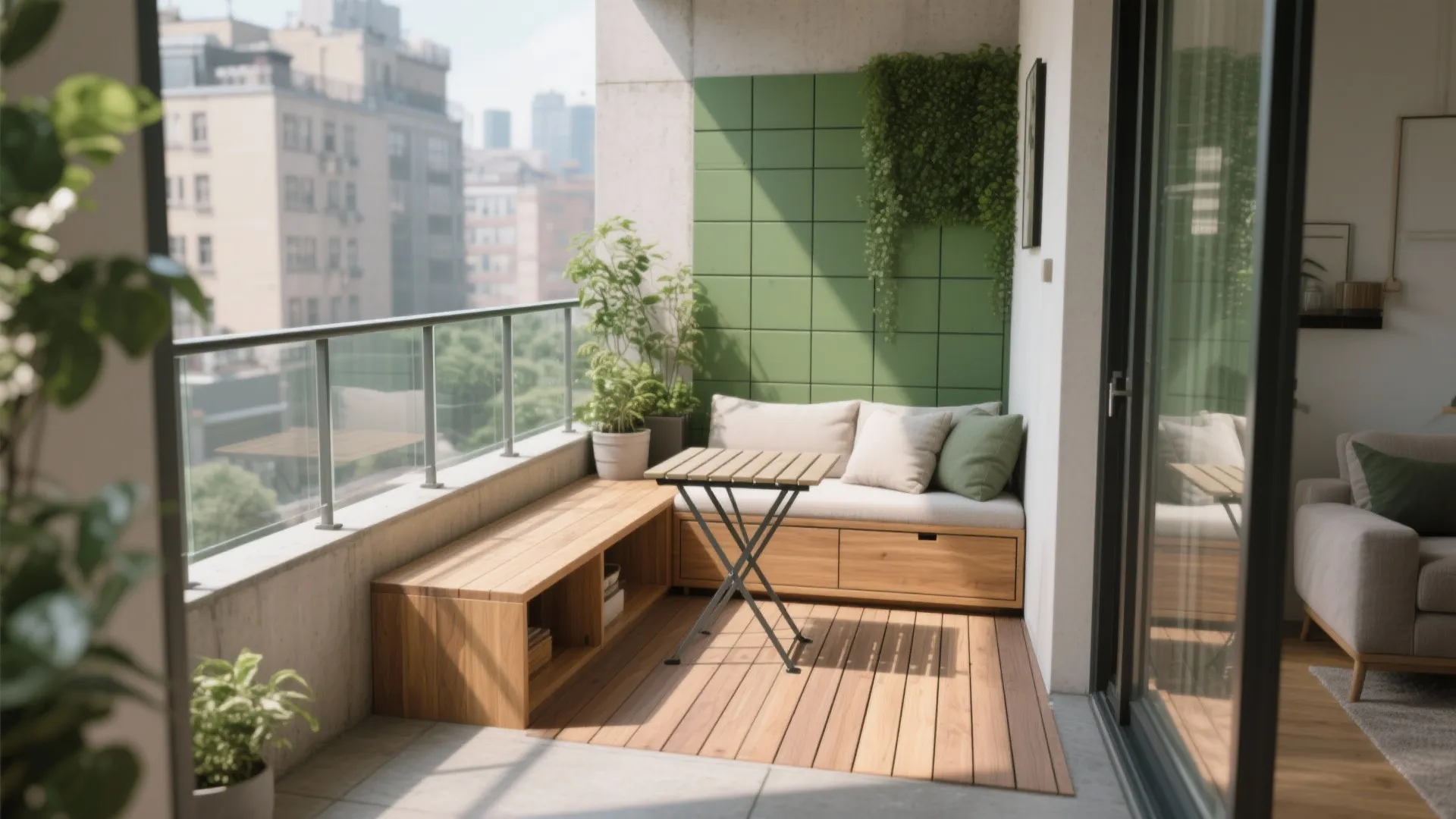

5 Balcony Design Drawings Ideas: A designer’s small-space playbook with practical sketches, real cases, and smart trade-offs

[Section: 引言]

I’ve seen balcony design drawings shift with current interior trends—more multi-functional layouts, lighter materials, and a strong indoor–outdoor flow. As someone who’s redesigned many compact balconies, I’ve learned that small spaces spark big creativity. In this guide, I’ll share 5 design inspirations grounded in my own projects and expert data so you can plan, sketch, and build with confidence.

[Section: 灵感列表]

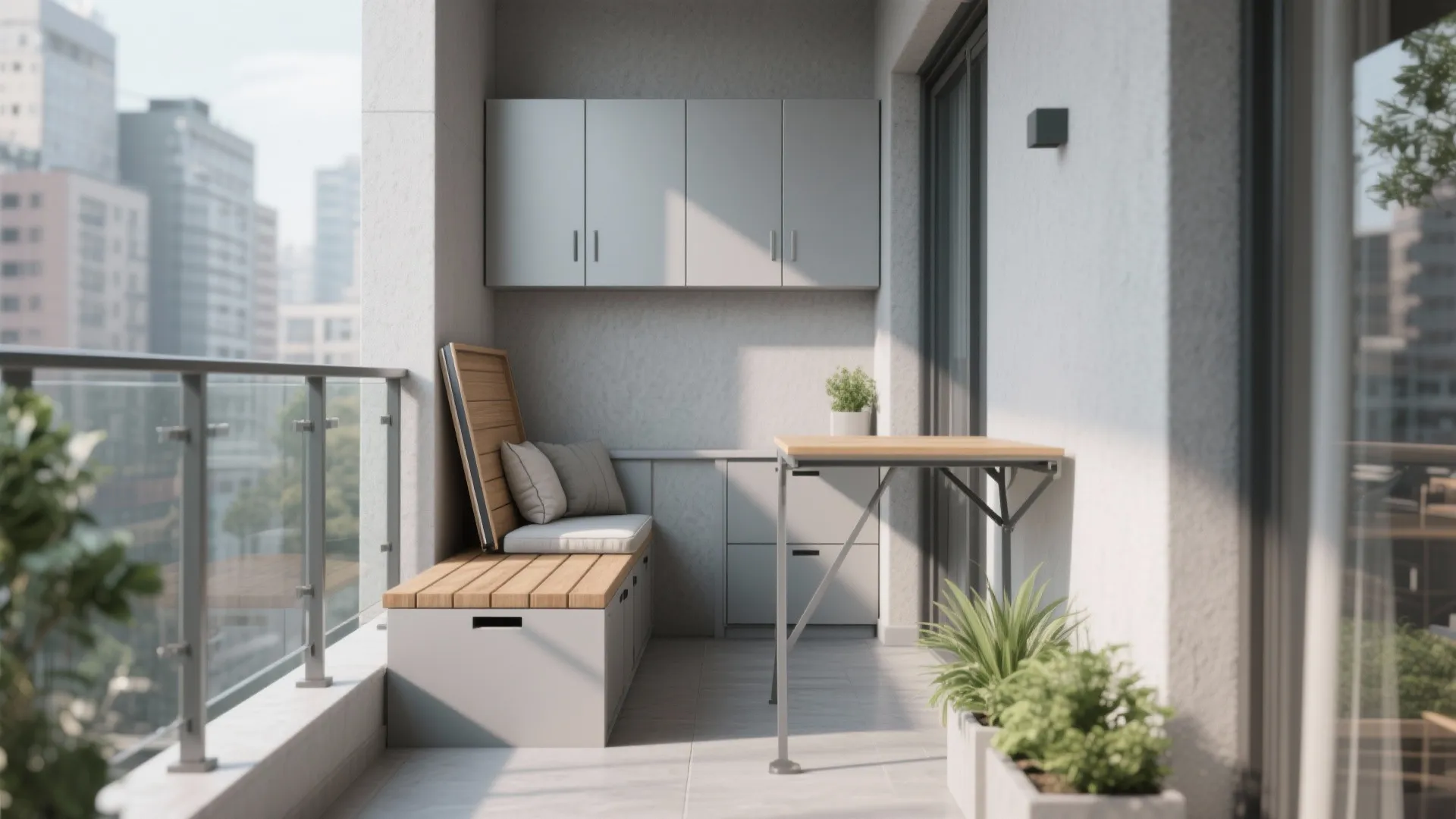

Minimalist Balcony Storage Made Clear

My Take

When I redesigned a 1.1 m-deep balcony in a downtown apartment, I started with a bench that doubled as storage and kept lines clean. I sketched a minimalist balcony storage design with precise clearances so cushions, planters, and a fold-down table all fit without visual clutter.

Pros

Minimal lines reduce visual noise and make small balcony design drawings easy to read and build. Concealed storage helps tiny balconies stay tidy—long-tail plans like “balcony design drawings for small apartments” benefit from modular dimensions (e.g., a 300–350 mm seat depth and a 450 mm seat height). With shallow, wall-hung cabinets (200–250 mm deep), your plan remains flexible for future swaps without redrawing the entire layout.

Cons

Minimal storage can become a “catch-all,” especially if you don’t define zones in your drawings. Ultra-slim cabinets limit what you can store—taller tools or pots may not fit easily. If you go too minimal, you risk a space that looks pristine but feels impractical on busy days.

Tips / Case / Cost Factors

Keep a simple dimension set: mark seat top at 450 mm, lid clearance of 25–30 mm, and note hinge type (soft-close or concealed). Budget-wise, a custom bench with weatherproof plywood and outdoor-grade finish typically runs $300–700; adding marine-grade cushions is another $120–250.

save pin

Glass Balustrade for Air and Light

My Take

I love how glass rails make tight balconies feel bigger—my sketches always plot sightlines and reflectivity along the day’s sun path. On a recent project, we replaced a chunky steel balustrade with tempered glass and documented every fixing point in the elevation drawing, so contractors knew exactly where to anchor without killing the view.

Pros

Transparent guards amplify daylight and create an airy feel—great for “balcony layout drawings with planters and seating” where sightlines matter. For safety, note code heights in your drawings: the International Building Code (IBC) commonly requires 42-inch (1067 mm) guard height in multifamily buildings; many local codes set 36 inches (914 mm) for single-family—check your jurisdiction. Mark glass thickness (often 10–12 mm tempered) and hardware spacing; tidy specs prevent field guesswork and change orders.

Cons

Glass shows smudges and water spots, so plan maintenance access in your drawing notes. Reflections can be harsh in very bright climates; a subtle frit or low-iron glass adds cost but cuts glare. Wind noise may increase if gaps around posts are poorly sealed.

Tips / Case / Cost Factors

Elevation drawings should call out post centers (e.g., 1000–1200 mm), handrail profiles, and fastener types. Expect $900–2,500 for a small balcony run of tempered glass with stainless hardware; low-iron or laminated options add 15–25%.

save pin

L-Shaped Seating That Works Hard

My Take

In long, narrow balconies, I often sketch an L-shaped bench in the corner to maximize seating without blocking the walkway. One homeowner told me it finally felt like a “room” after we added cushion notches and a fold-out table in the drawing, so family breakfasts were no longer a balancing act.

Pros

L-shapes squeeze more function into corners and help traffic flow stay clear—perfect for “balcony design drawings with corner seating.” Set standard seat heights (430–450 mm), leave at least 600–800 mm for a walkway, and plan cushion thickness in section drawings (60–80 mm) so ergonomic comfort is baked in. L-shaped seating also supports hidden storage and integrated power (with a weatherproof outlet) for flexible balcony lighting plans.

Cons

Corner units can feel bulky if not scaled down—use slimmer bases and open toe-kicks to lighten the mass. If you draw the L too deep (over 600 mm), knees bump and cushions slide. Custom corners demand accurate templates; mis-measured angles look wonky once built.

Tips / Case / Cost Factors

On cost, consider modular units ($250–600 per segment) vs. custom carpentry ($800–1,800 total). In drawings, annotate cushion straps and rain covers; you’ll thank yourself during summer storms. For space optimization, I often design an L with one arm at 1000–1200 mm and the other at 1400–1600 mm, keeping sightlines open.

To visualize the space and seating flow, see a L-shaped seating that frees more floor space approach used in similar small-area plans.

save pin

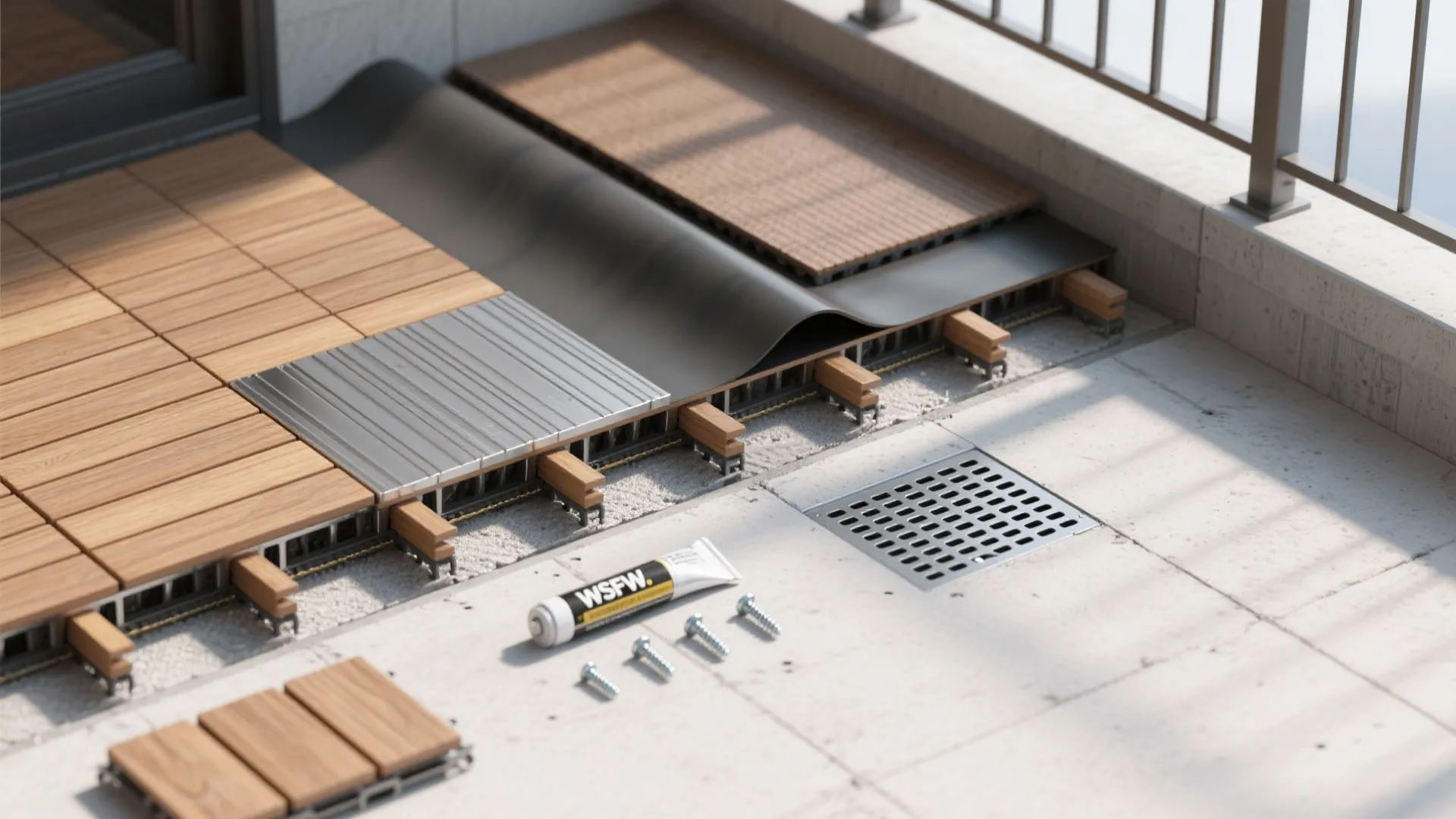

Warm Wood, Waterproof Details

My Take

Wood makes a balcony feel like a tiny deck; my drawings always include slope and flashing notes to keep things dry. I once retrofitted wood tiles over a membrane on a 3rd-floor balcony and added a clean section detail—after the first rain, the client messaged me: “We stayed dry. It works.”

Pros

Wood tones bring a cozy vibe and help indoor floors visually “flow” outside—excellent in “balcony design drawings with wood decking tiles.” For durability, specify slope toward the drain at about 1/4 inch per foot (~2%), a benchmark supported by exterior tile and deck guidelines (e.g., TCNA recommendations for exterior installations). Mark waterproofing layers: substrate, membrane, protection board, and deck tiles; clear layering in drawings prevents leaks and warranty headaches.

Cons

Wood needs maintenance—UV, rain, and foot traffic will age finishes. If you skip expansion gaps in your plan, swelling can lift tiles. Noise may amplify on rigid substrates; rubber underlay helps but adds cost.

Tips / Case / Cost Factors

Include an exploded detail in your balcony section drawing: 2% slope line, drain position, membrane seam direction, and termination at the door sill with flashing. Budget $12–30 per sq. ft. for quality deck tiles; membranes vary widely ($6–15 per sq. ft.) depending on system.

When modeling finishes, it’s helpful to check a glass balustrade that opens up the view or similar render for light behavior on wood tones.

save pin

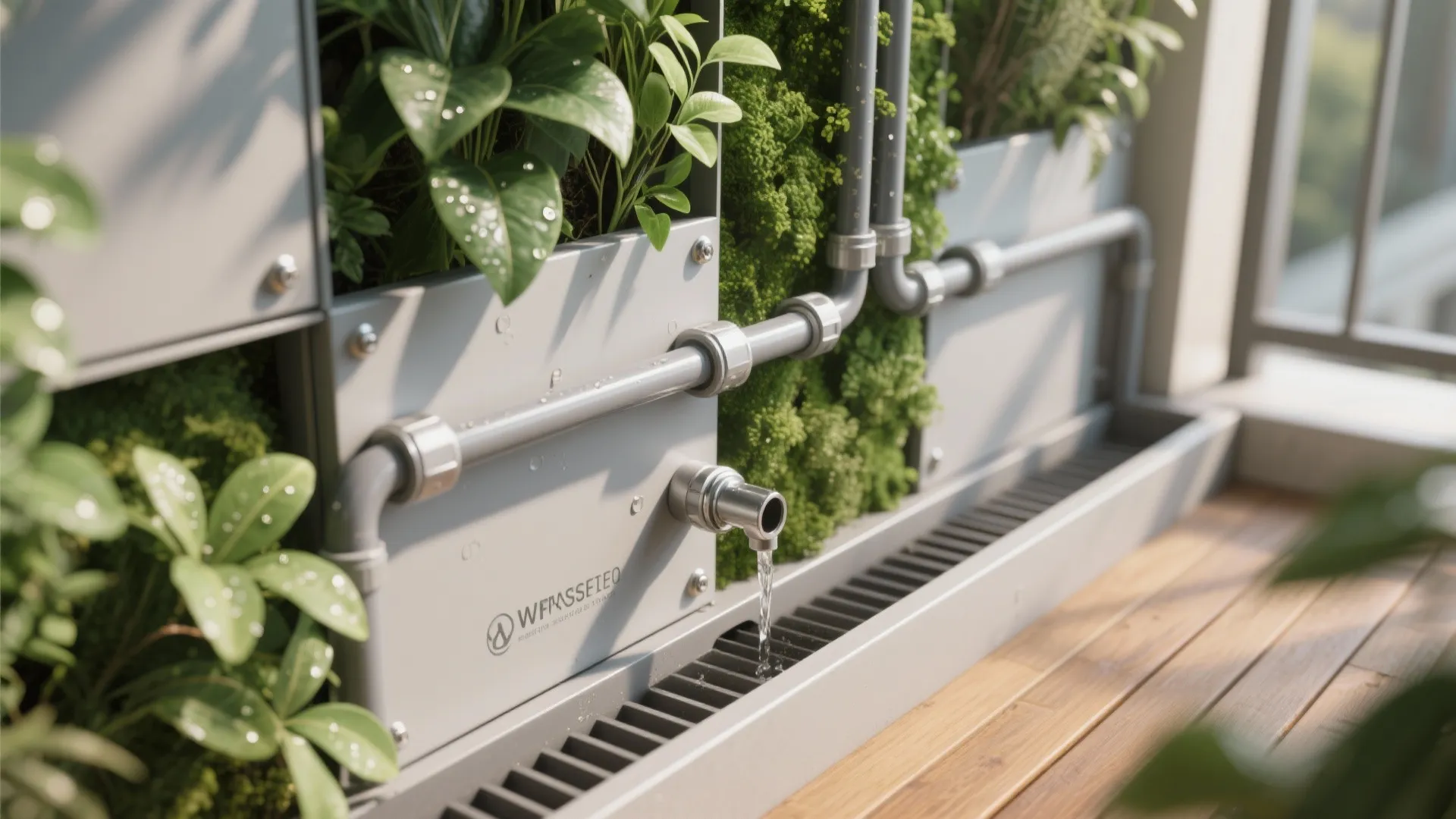

Vertical Green and Smart Utilities

My Take

I’m a big fan of green walls on tiny balconies; they steal no floor area. In one project, we integrated a drip line and a discreet hose bib, then documented the irrigation route in the elevation drawing—no guesswork during installation.

Pros

Vertical planting creates privacy and biophilic comfort—ideal for “balcony design drawings with green wall modules.” Mark module sizes (often 300×300 or 600×600 mm), irrigation tubing, and drain trays; clean diagrams save time on site. For loads, note saturated soil weights (roughly 80–120 kg/m² depending on medium) and confirm structural capacity with your building manager or an engineer; clarity in the drawing avoids risky assumptions.

Cons

Plants require maintenance—without access notes, you’ll struggle to prune or replace modules. Water lines and trays add complexity; a sloppy detail can cause leaks. In windy areas, taller plants may need extra anchors to prevent tipping or root disturbance.

Tips / Case / Cost Factors

Plan sunlight and species in your drawing annotations (e.g., east-facing—herbs; south—drought-tolerant). A small green wall starts around $300–700; adding a smart timer and backflow preventer might add $60–150. For safety and air quality planning, I still reference ASHRAE guidance when thinking ventilation and moisture control near interior thresholds.

For tight layouts, combining an L bench and vertical green can free circulation; I often sketch a corner planter with a bench cut-out and, if needed, reference a minimalist balcony storage design concept to keep hardware concealed.

[Section: 总结]

Small balconies aren’t limits—they’re prompts for smarter planning. The right balcony design drawings capture clear dimensions, codes, and materials so you can build once and enjoy for years. Whether you choose glass, wood, storage, an L-shaped nook, or a green wall, remember: a compact footprint rewards precision. Which of these 5 ideas would you try first?

[Section: FAQ 常见问题]

save pin

FAQ

Q1: What’s the ideal guard height to show in balcony design drawings?

A: For multifamily buildings, the IBC commonly specifies 42 inches (1067 mm); many single-family codes use 36 inches (914 mm). Always verify local code before finalizing your drawings.

Q2: How deep should balcony seating be in small-space drawings?

A: Plan 300–350 mm for compact perches or 450–600 mm for relaxed seating with cushions (60–80 mm thick). Leave at least 600–800 mm of clear walkway in your balcony design drawings.

Q3: What slope and waterproof notes belong on balcony drawings?

A: Indicate a 2% slope (about 1/4 inch per foot) away from the door and toward drains. Call out membrane type, seams, and flashing—industry guides like TCNA support sloped substrates for exterior installations.

Q4: Which materials are best for tiny balconies?

A: Tempered glass for balustrades, outdoor-rated woods or composite tiles for flooring, and powder-coated metal for fixtures. In balcony design drawings, specify thickness, fasteners, and finish grades to avoid surprises.

Q5: How do I show plant irrigation in my balcony plan?

A: Add a simple diagram: hose bib location, drip line routing, and drain trays under modules. Label species by sun exposure and note monthly maintenance in your balcony design drawings.

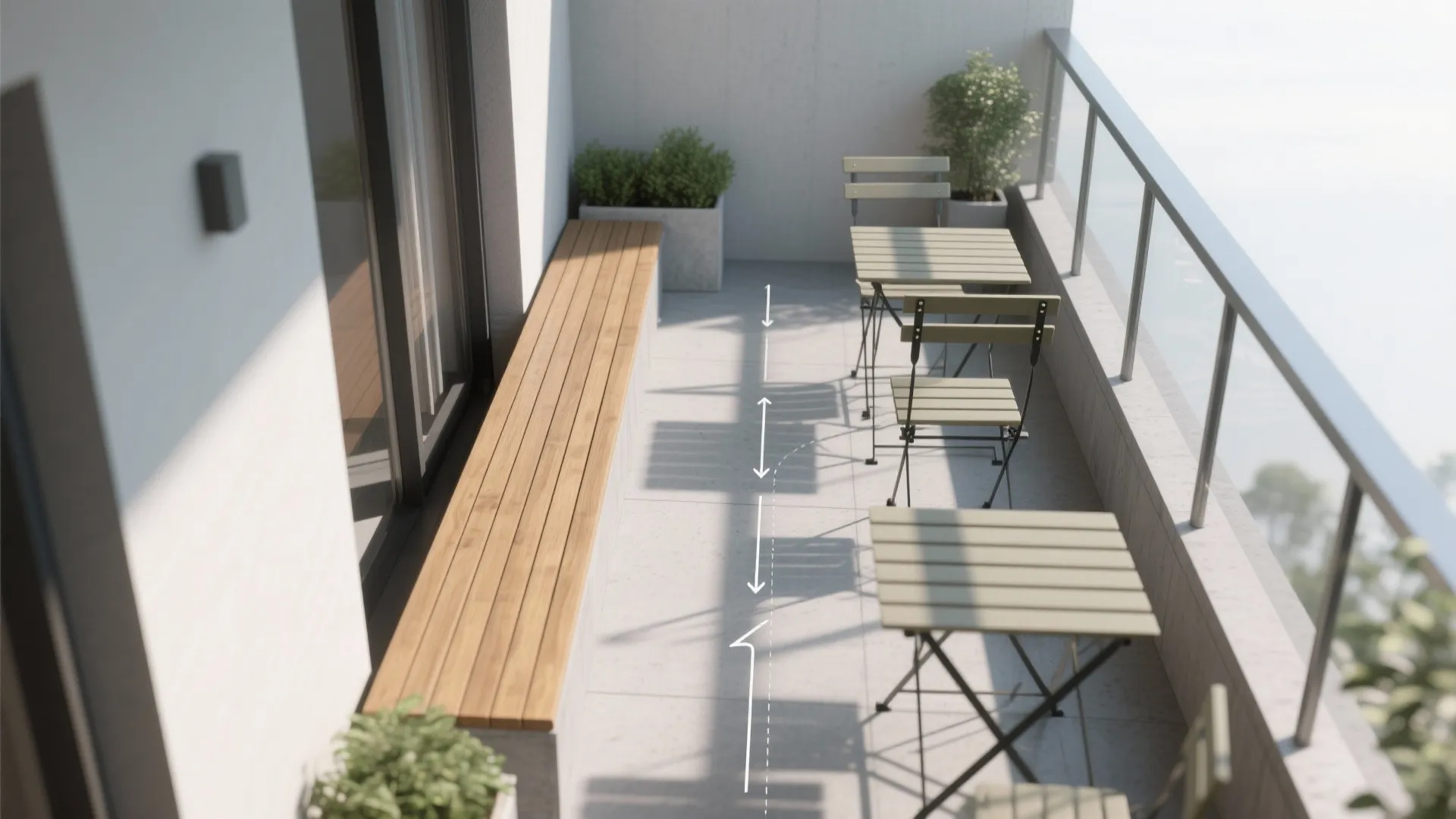

Q6: Can I draw a fold-down table without blocking circulation?

A: Yes—mark the table’s stowed thickness (often 60–80 mm) and open projection (300–450 mm). Confirm clearance in your plan so you still maintain a 600–800 mm walkway.

Q7: What railing glass thickness should I specify?

A: 10–12 mm tempered glass is common for residential balustrades; laminated options improve safety. Always cross-check with local building codes or your engineer before issuing final balcony design drawings.

Q8: How do I ensure my balcony design drawings meet safety standards?

A: Verify guard heights, openings (under 100 mm gap is typical), and load requirements with local codes and standards. Referencing recognized authorities like the IBC keeps your drawings aligned with safety norms.
