Over the past decade, I've watched balcony doors evolve with the wider interior design trend toward slimmer frames, full-height glazing, and soft natural materials. In many of my small apartments, slim-frame aluminum doors for modern balconies solved the light-and-space puzzle without overwhelming the room. Small spaces really do spark big creativity, and well-detailed balcony door design drawings are where that creativity becomes buildable.

As an interior designer who drafts and oversees installs, I know a beautiful door is only as good as its section details and clearances. The right drawings will show how the sill drains, how the frame meets insulation, and how the swing or slide affects furniture. In this guide, I’ll share five design inspirations—from sliding to tilt-turn—grounded in my projects and expert data.

We’ll talk materials, typical balcony door dimensions, waterproof thresholds, acoustic performance, and energy ratings. I’ll keep it conversational and practical, so you can translate each idea into balcony door design drawings you can hand to a contractor or use to brief a fabricator.

[Section: 灵感列表]

Slim-Frame Sliding Balcony Doors

My Take

In a 48 m² apartment I redesigned, switching from chunky wood sliders to thin, thermally broken aluminum transformed the living area. The drawings focused on track depth, drainage, and a tight frame-to-wall interface, so we gained visual space without leaks.

Pros

Slim profiles maximize daylight, and sliding balcony door plans avoid swing arcs—ideal when your sofa and plant corner need every centimeter. With low-E double glazing and a thermally broken aluminum frame, you can hit NFRC-rated performance values (U-factor and SHGC) that keep heat out in summer and in during winter. The hardware is discrete, and the clear opening can be tuned in your balcony door design drawings by specifying panel widths and stacking direction.

Cons

Tracks can collect debris; if you live near the coast or a dusty road, your threshold detail drawings should include a removable cover or easy-clean channel. Sound insulation is good but not great if the system is budget-grade—cheap sliders can rattle in wind, and gaskets wear out faster.

Tips / Case / Cost

Draw a minimum 40–60 mm recess for the outer track with a sloped sub-sill and weep holes; note maintenance access in your section. Mid-range systems start around $450–$700 per linear meter of opening; high-performance sliders cost more but reduce energy bills. If your balcony is narrow, consider a two-panel OX configuration in the drawings: one fixed, one active.

save pin

Full-Height Glass with a Low-Profile Sill

My Take

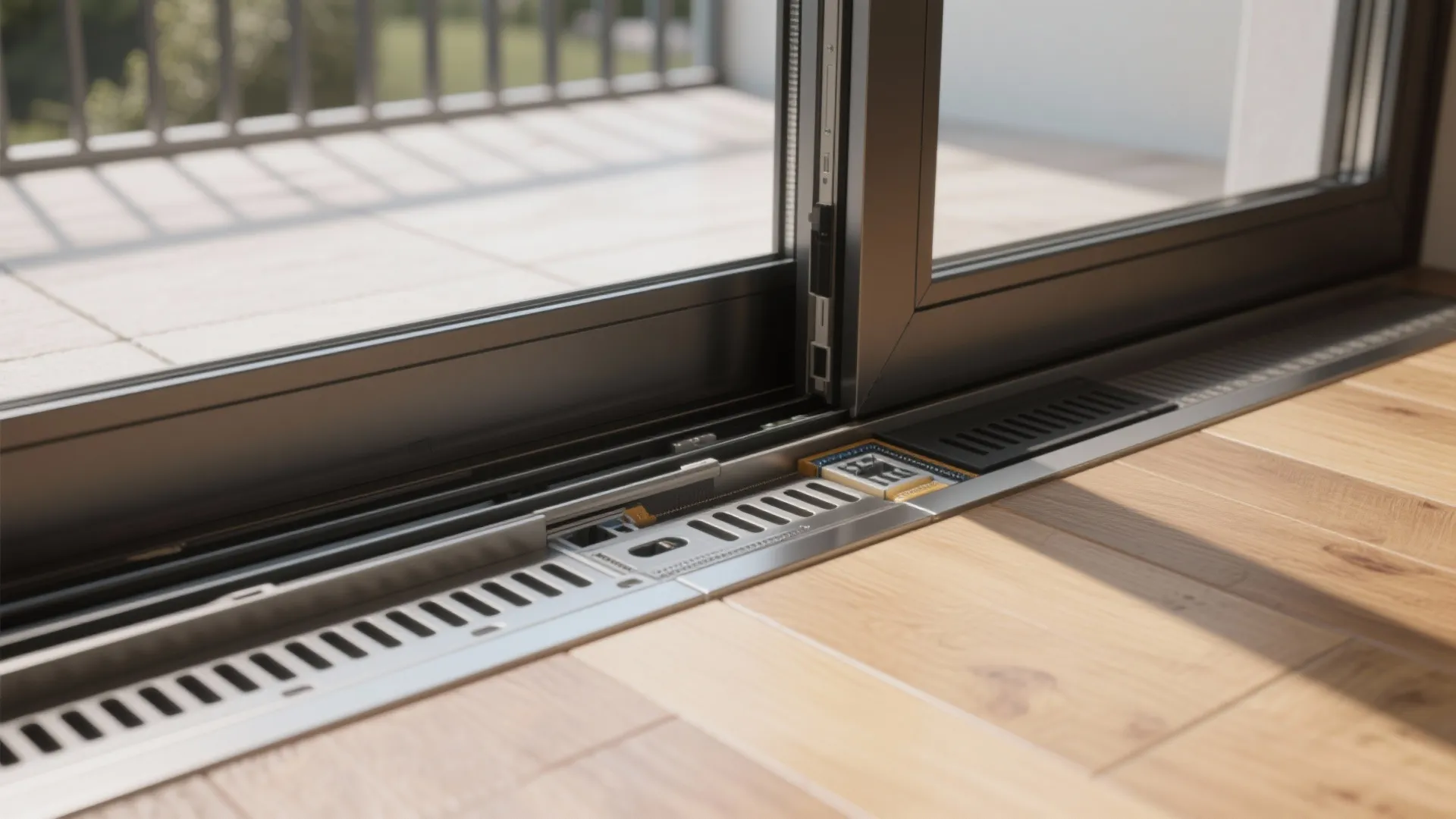

When clients want that “gallery-like” view, I draft doors with a near-flush threshold and full-height glass. The trick is balancing accessibility with weather resistance; my detail drawings specify a micro-step plus hidden drains.

Pros

Full-height glass enhances sightlines and gives a seamless indoor-outdoor feel; in compact rooms, perceived depth matters more than square footage. Safety glazing is a must—per the International Building Code (IBC 2406, ICC), glass adjacent to doors and within hazardous locations should be tempered or laminated, so mark glazing type and thickness on your balcony door design drawings. Low-profile sills improve accessibility and reduce trip hazards while maintaining a clean design.

Cons

Flush sills are not “flush” with heavy rain unless drainage and wind-load modeling are right; your section detail needs a pressure-equalized chamber or upstand. Hinged systems demand swing clearances; the door leaf can bump into a coffee table if you don’t draw the arc properly.

Tips / Case / Cost

Call out the sill’s slope (1–2%) and include gasket specs, drainage slots, and membrane turn-ups in the details. For coastal or high-wind sites, annotate the design with structural mullion sizes and fixings. Expect $800–$1,200 per leaf for quality hinged/pivot systems with laminated glass.

save pin

Bi-Fold Doors for Flexible Openings

My Take

In a narrow balcony retrofit, a three-panel bi-fold gave the client a party-ready opening without encroaching too far inside. My drawings specified stacking direction to the left, so the right-hand view stayed clean for dining.

Pros

Bi-fold balcony doors create a wider clear opening than sliders of the same width, perfect when your balcony is where morning coffee meets weekend guests. Panel segmentation lets you tune balcony door dimensions to structural constraints; show leaf widths and hinge placements clearly in the drawings. With good seals and thermally broken profiles, you retain decent energy performance while enjoying an adaptable layout.

Cons

More panels mean more hardware; if you skimp on quality, alignment drifts and the system doesn’t age well. Stacked leaves can look busy inside small rooms—your plan drawings should avoid blocking light switches or shelves.

Tips / Case / Cost

Draw a 10–12 mm tolerance at jambs and the head for shimming; bi-folds demand a precise install. For cleaning clarity, specify top-hung systems where possible to keep floor channels minimal. If your goal is capacity for gatherings, consider how bi-fold layout creates a wider opening at the furniture planning stage and reflect it in your room elevations.

save pin

Warmth with Wood or Aluminum-Clad Wood

My Take

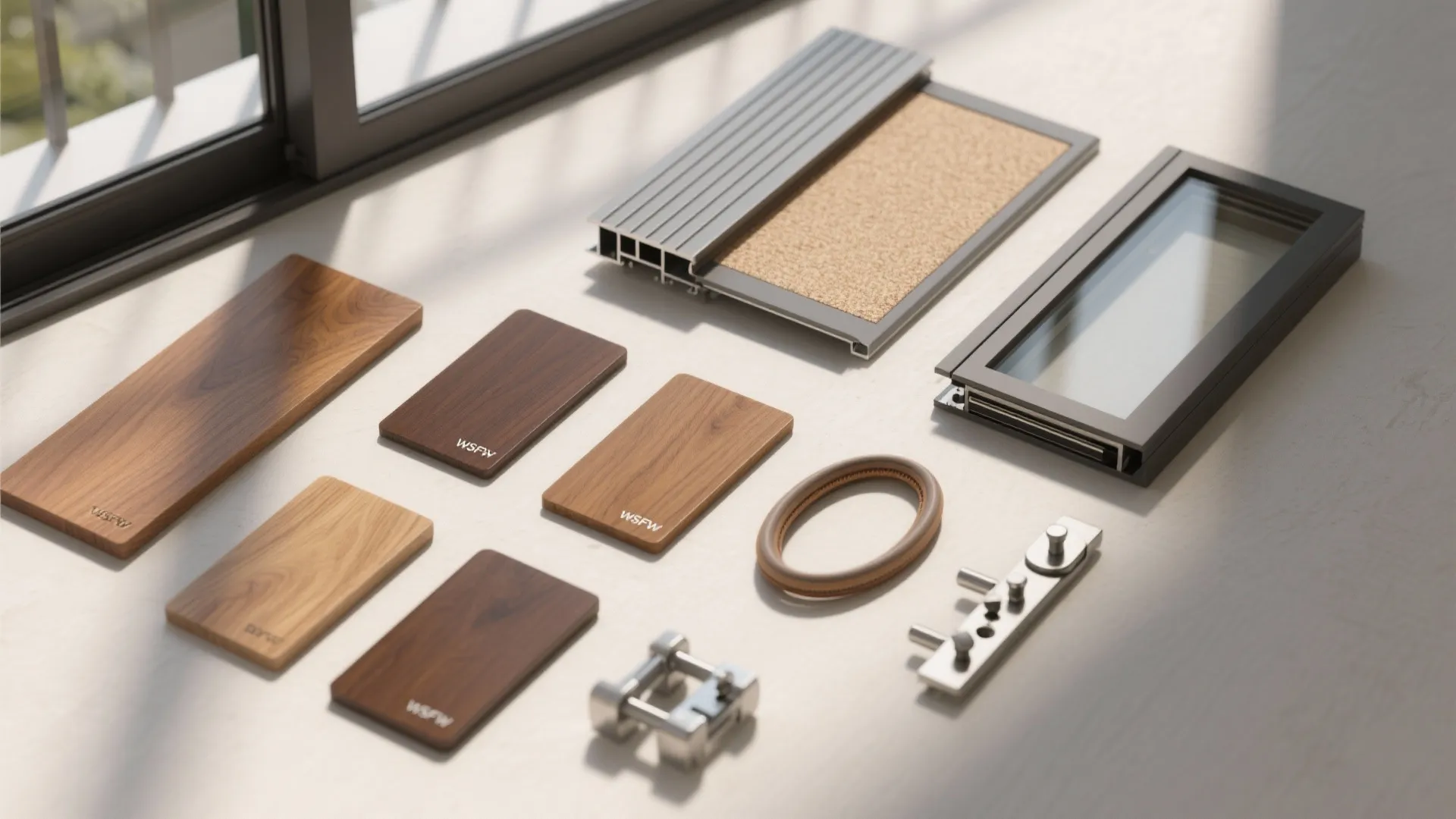

Not every balcony suits a hyper-modern look. In heritage apartments, I draft wood or aluminum-clad wood doors to soften the envelope and match interior millwork. The drawings highlight drip edges, expansion gaps, and finish layers to keep maintenance sensible.

Pros

Wood adds warmth and better acoustic damping than thin metal; if your street is lively, laminated glass plus dense wood sections can calm the sound. Aluminum-clad wood balances durability outside with natural texture inside—note exterior cladding thickness in your balcony door design drawings for accurate reveals. With multi-point locking and good seals, you can achieve low air infiltration rates even in older buildings.

Cons

Pure wood needs care—sun and rain can warp cheaper species, and finish schedules matter. Profiles are thicker than minimalist aluminum, so sightlines slightly shrink, and you’ll need to detail larger jambs.

Tips / Case / Cost

Specify species (e.g., oak or teak), finish (oil vs. polyurethane), and an external drip detail to shed water away from the sill. Costs vary widely: solid hardwood can be $1,200–$2,000 per leaf, while aluminum-clad options sit mid-to-high tier. In humid climates, call out ventilated cavities behind cladding in the section drawings.

save pin

Tilt-and-Turn Doors for Safe Ventilation

My Take

One of my favorite small-space solutions is a tilt-and-turn balcony door that micro-vents without fully opening. The drawings highlight hinge clearances and restrictor hardware so kids can’t swing it open unsafely during ventilation.

Pros

Tilt mode brings fresh air with rain protection—great for night cooling—and turn mode offers full egress when needed. If you specify laminated safety glazing (again per IBC 2406) and secure restrictors, you get the balcony safety glazing and child-safe operation families appreciate. Combine low-E coatings with warm-edge spacers, and NFRC-rated metrics in your balcony door design drawings can keep comfort steady through seasons.

Cons

Hardware is more complex, so costs rise and maintenance schedules matter. In very tight living rooms, the inward-turn leaf can bump stools or plants—note the swing arc in plan and keep pathways clear.

Tips / Case / Cost

Draw tilt gap dimensions (usually 100–150 mm at top) and specify a trickle vent for passive air even when the leaf is closed. In energy-focused retrofits, include thermal break values and spacer types on the glazing schedule. If you’re prioritizing daylight, consider how frameless glass panels increase daylight when paired with tilt-and-turn hardware—keep sightlines clean in the elevations and call out slim beads.

[Section: 设计说明与细节扩展]

Beyond the five inspirations, your balcony door design drawings should clearly annotate dimensions, tolerances, and materials. I usually include a door schedule (leaf size, frame type, glazing makeup, hardware set, finish), plus plan, elevation, and section details. For waterproofing, the sill section must show membranes lapping under the frame, drainage paths, and any thermal breaks to prevent condensation.

On acoustics, drawings benefit from an STC/Rw note, especially in noisy urban sites; laminated glass with an acoustic interlayer and compressible seals can be marked. For energy, cite NFRC U-factor and SHGC on the glazing schedule, and if you’re outside North America, note local standards or manufacturer values.

Finally, specify installation sequencing: shims, fasteners (stainless near coasts), sealant types, and expansion joints. If your balcony slab slopes, record the slope in the plan and adjust threshold levels; this is a classic on-site shock if the drawings skip it.

[Section: 总结]

A small balcony isn’t a limit—it’s a nudge toward smarter design. With careful balcony door design drawings, you can prioritize light, airflow, and code-safe glazing while keeping the room flexible. Referencing standards like IBC 2406 for safety glazing and NFRC ratings for energy helps your ideas pass from sketch to reality smoothly.

Which of these five ideas would you try first in your home?
