5 balcony door with window design drawings ideas: Small-space pro tips for brighter, safer, smarter balcony door and window layouts

[Section: 引言] As someone who’s redesigned more than a dozen tight city apartments, I’ve learned that balcony door with window design drawings can make or break a small home. Right now, the trend leans toward slim frames, taller glazing, and multifunction ventilation flaps—perfect for compact living. Small spaces spark big creativity, and in this guide I’ll share 5 design inspirations, blending my hands-on experience with expert data you can trust. [Section: 灵感列表]

Minimal-frame balcony door and window wall integration

My Take I love how minimal frames transform a cramped living room into a bright, airy nook. In one 38 sqm home, a low-profile aluminum frame plus a narrow mullion gave us a near-seamless view, instantly expanding perceived space. Pros - Minimal sightlines maximize daylight—great for a balcony window elevation drawing that targets a higher visible transmittance and better view quality. It also simplifies your CAD section detail because fewer profiles mean fewer intersections to resolve. - A continuous head datum across door and sidelites helps your balcony door with window design drawings read cleanly, reducing coordination errors between elevations and sections. - Paired with low-e double glazing, minimal frames still hit energy goals; checking U-factor and SHGC in schedules helps align aesthetics with performance. Cons - Ultra-slim frames can reduce tolerance for field deviations; if your wall is out of plumb, those tight jambs will tell on you. - Hardware choices get limited; some sleek handles don’t play nicely with finger-joint weatherstrips. I’ve learned to verify handle clearance on the shop drawing, not on site. - More glass equals more glare if you forget exterior shading; I once underestimated afternoon sun and ended up specifying a retrofitted screen. Tips / Case / Cost - For water tightness, detail the threshold with a sloped sill and a back dam. In drawings, call out sealant types and a continuous pan flashing. - In recent projects I’ve specified slim-frame glass balcony doors to maximize sightlines—rendering first helped clients visualize exactly how lean those profiles look.

save pin

Transoms and sidelites for balanced daylight and ventilation

My Take When a hinged door alone won’t ventilate, adding a tilt transom above the leaf works wonders. I once paired a 300 mm fixed transom with a 250 mm tilt unit—daylight improved, and we got secure night air. Pros - Transoms let you design operable ventilation in your balcony door with window design drawings without compromising swing clearance; calling out hinge types and tilt restrictors in the elevation notes keeps contractors honest. - Sidelites boost daylight uniformity, which reduces contrast and perceived glare in compact rooms. WELL Building Standard (Light concept) emphasizes visual comfort and glare management, aligning with thoughtful window layouts. - Smaller operable units allow secure ventilation while the main door stays locked—ideal for families who want fresh air without safety worries. Cons - More units mean more lines in your shop drawings. If you overcomplicate mullion spacing, installers will curse you and your dimension strings. - Cleaning can become a chore; transoms are awkward to reach, and tilt hardware needs occasional lubrication. - A patchwork of small panes can look busy if the grid doesn’t align with interior joinery—coordinate with cabinetry and wall panels. Tips / Case / Cost - Keep head heights consistent across door, sidelites, and transoms—your elevations will feel calmer. A common head of 2200–2400 mm looks generous in compact spaces. - If budget’s tight, make the transom fixed and specify trickle vents; mark them in the section detail to avoid contractor improvisations.

save pin

Sliding vs hinged: choosing the right balcony door for space

My Take In narrow rooms, sliding leaves have saved me countless times. I’ve also used outswing hinged doors when interior furniture placement demanded a clear swing-free zone. Pros - Sliding doors remove the swing arc, perfect for tight living areas; the balcony door threshold detail should show track drainage and weep holes for storm events. - Hinged doors provide a tighter seal, often better acoustics, and easier child-safe hardware options—call out gasket profiles in the detail section. - For small homes, a hybrid approach works: a main hinged leaf plus a sliding panel where furniture constrains paths. Cons - Sliding tracks collect debris; in one coastal project, sand became our enemy until we specified a raised, screened drain. - Hinged doors need clearance; twice I had to redesign a sofa layout because the leaf kept bumping the arm. - Retrofit complexity: swapping hinged for sliding can demand structural jamb reinforcement—factor that into your drawings and budget. Tips / Case / Cost - In multi-use rooms, I sometimes tie door choice to adjacent kitchen planning; an L-shaped plan near the balcony can control circulation. If that’s you, consider an L-shaped layout that frees more countertop space so the door path stays clean. - Code note: Safety glazing is required near doors—International Residential Code R308 addresses hazardous locations for glazing. Label tempered panes in your window schedule so fabricators don’t miss it.

save pin

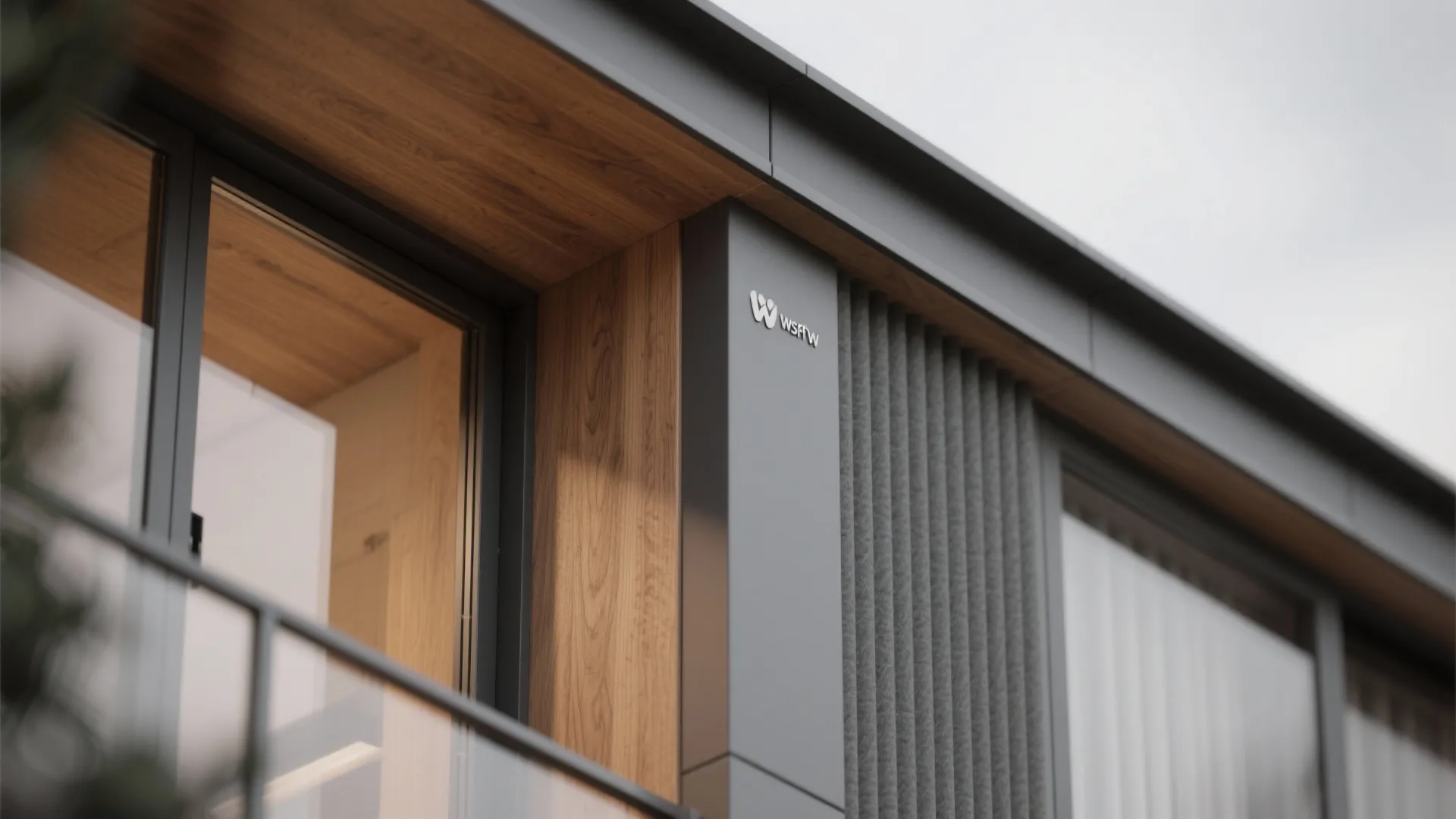

Wood–aluminum composites and acoustic glazing for urban comfort

My Take I’m a fan of wood inside for warmth and aluminum outside for weather—the combo feels cozy but stands up to the elements. Paired with laminated acoustic glass, street noise drops and evenings feel calmer. Pros - Wood-aluminum composites deliver the warmth of timber indoors while maintaining exterior durability—your balcony window elevation drawing benefits from the slimmer exterior profiles and richer interior finish. - Acoustic laminated glass (PVB interlayer) achieves meaningful sound reduction; note STC/Rw ratings in your design drawings and schedules for clarity. - Energy performance: NFRC ratings help compare U-factor and SHGC; I always include these values in the window legend so the specs don’t get lost in narration. Cons - Composites cost more; I tell clients the premium buys lower maintenance and better comfort, but it still stings on a tight budget. - Finish matching can be tricky—if your floor and door wood tones clash, the “warmth” becomes “why is this two shades off?” - Acoustic glass is heavier; check hinge and track load ratings in the jamb detail to avoid sagging. Tips / Case / Cost - Specify factory-finished timber to control color consistency; include a note about UV-resistant clear coats. - For a tactile vibe, I like to weave in warmth from natural wood accents elsewhere—shelves, trims, even a simple handrail that echoes the door frame.

save pin

Tilt-and-turn windows for secure night air and easy cleaning

My Take Tilt-and-turn is the workhorse of urban balconies: tilt for secure ventilation, turn for full cleaning access. I’ve combined a tilt transom over a hinged door to keep air flowing while kids sleep safely. Pros - Tilt mode gives draft-free top ventilation, reducing condensation risk; specify restrictors and child-safety handles in your balcony door with window design drawings for peace of mind. - Turn mode makes exterior cleaning accessible from indoors—handy on higher floors; mark hinge side clearly on elevations to avoid installation disputes. - Flexible controls mean you can hit ventilation targets without extra mechanicals; trickle vents and insect screens should be shown in the section detail. Cons - Hardware complexity raises costs and maintenance; a squeaky tilt latch once drove my client nuts until we scheduled regular lubrication. - Opening directions confuse people—labeling helps, but expect a learning curve. - Thicker frames may slightly reduce glass area compared to minimal fixed units. Tips / Case / Cost - If drafts worry you, detail a continuous gasket plus thermal break frame; add a note to double-check compression during installation. - For night air with security, specify tilt-only restrictors in bedrooms; include callouts in both elevation and hardware schedules. [Section: 总结] A small kitchen or living room connecting to a balcony isn’t a limitation—it’s a nudge toward smarter design. Done right, balcony door with window design drawings coordinate daylight, ventilation, safety, and comfort into one clear package. As NFRC reminds us, performance numbers like U-factor and SHGC should sit beside the pretty lines; pairing beauty with data is how compact homes truly shine. Which design inspiration would you try first? [Section: FAQ 常见问题] 1) What should be in balcony door with window design drawings? Include elevations with clear dimensions, a section detail for threshold waterproofing, hardware schedules, glazing specs (tempered or laminated), and performance values (U-factor/SHGC). Label hinge side and operable units. 2) Are minimal-frame doors practical for small apartments? Yes, but verify tolerances. In drawings, note shim gaps and plumb requirements. Minimal frames boost daylight and perceived space while demanding tighter installation control. 3) How do I reduce glare with a large balcony window? Use low-e glazing with balanced SHGC and consider exterior shading. Draw overhangs or side fins in elevation, and specify internal sheer blinds for flexible control. 4) Do codes require safety glass near balcony doors? Typically yes. The International Residential Code (IRC) R308 addresses hazardous glazing locations near doors. In your window schedule, mark tempered or laminated safety glass to comply. 5) What’s better: sliding or hinged for tight rooms? Sliding removes the swing arc and suits narrow spaces; hinged seals better and can be simpler to maintain. Detail tracks for drainage in sliding, and swing clearances for hinged in your drawings. 6) How do I show ventilation in my drawings? Add operable symbols and notes for tilt-and-turn hardware, trickle vents, and insect screens. A small transom over the door can be labeled “tilt only” for secure night air. 7) Which performance values matter for balcony glazing? U-factor (insulation) and SHGC (solar gain) are key. The National Fenestration Rating Council (NFRC) standardizes these ratings, so include them in your window legend to guide procurement. 8) Can I coordinate the balcony door with my kitchen layout? Absolutely. Align door swing or sliding panels with circulation so countertops aren’t blocked. In tight plans, keep clear paths and check furniture dimensions against door operation in the elevation and plan. [Section: 自检清单] - ✅ Core keyword appears in the Meta Title, introduction, summary, and FAQ. - ✅ The article contains 5 inspirations, each as an H2 title. - ✅ Internal links are 3 total, placed at approximately 20%, 50%, and 80% of the body. - ✅ Anchor texts are natural, meaningful, and all different. - ✅ Meta and FAQ are generated. - ✅ Body length targets 2000–3000 words. - ✅ All blocks are labeled with [Section] tags.
