5 Bathroom Designs with Separate Toilet: Smart zoning, ventilation, and privacy solutions for compact homes

[Section: 引言]

Over the last few years, privacy-first layouts have moved from hotels into homes, and bathroom designs with separate toilet are now on many clients’ wish lists. As someone who specializes in small-space interiors, I’ve found that a few inches of smart zoning can turn a tight bath into a calm daily ritual. Small spaces spark big ideas—especially when we separate the WC without making the room feel chopped up.

In this guide, I’ll share 5 design inspirations I use in real renovations. You’ll get my firsthand experiences, the pros and cons, plus a couple of expert references and practical tips to help you plan a bathroom with a separate toilet that actually works for your life.

[Section: 灵感列表]

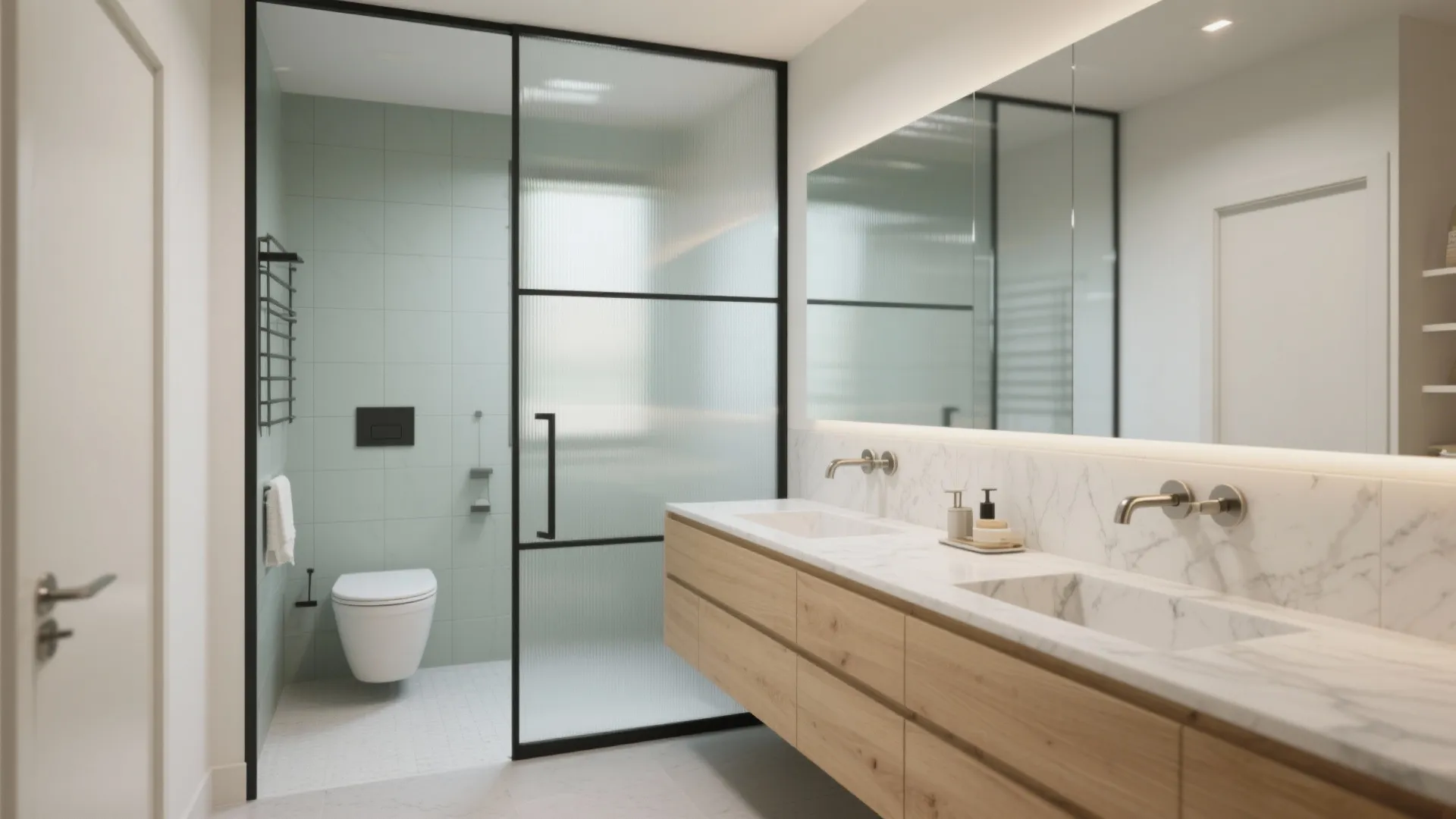

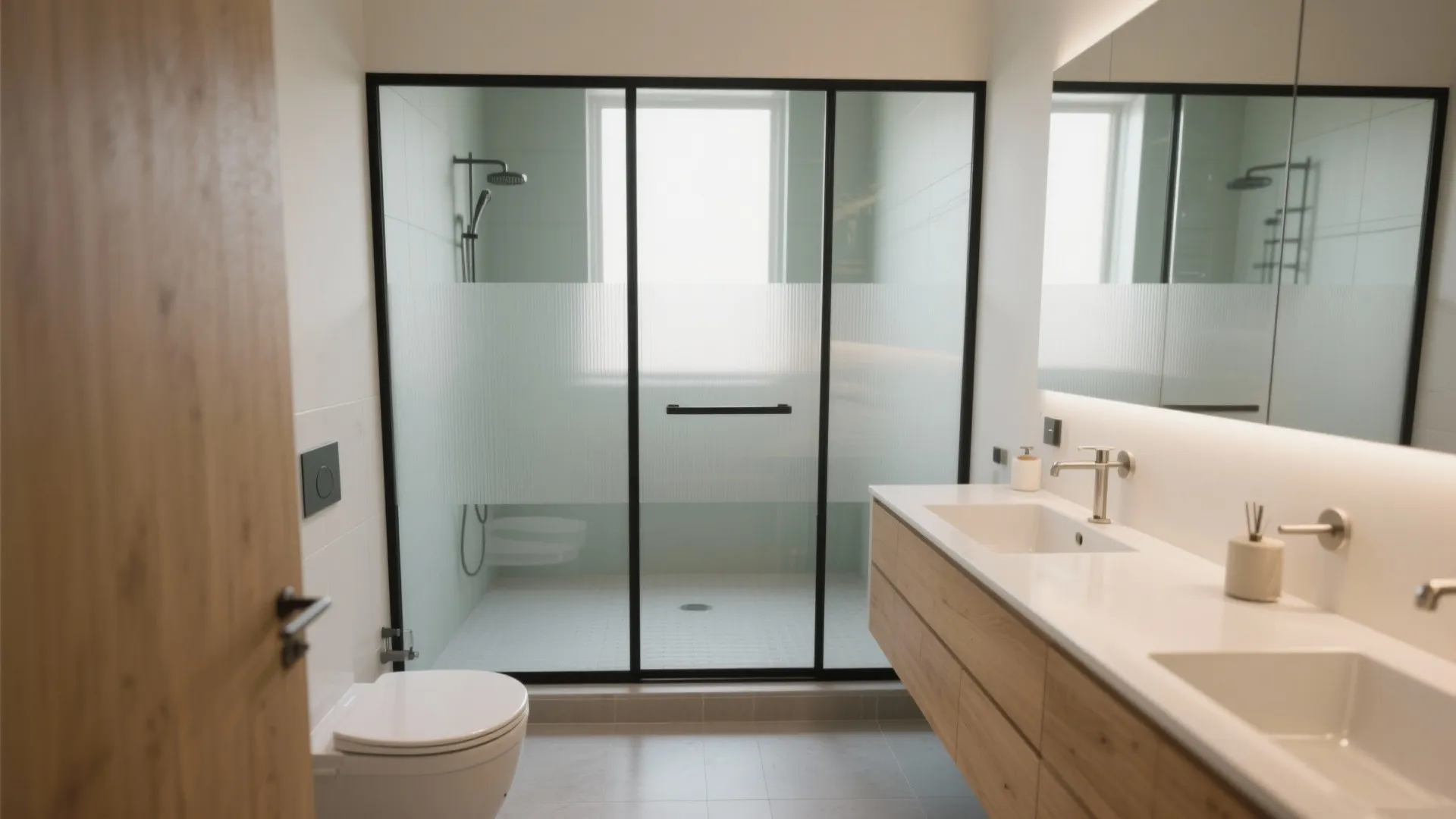

Zoned Wet-and-Dry Separation with a Glazed Partition

My Take

I first tried a glazed partition in a 4.8 m² city apartment—clear above eye level, frosted around the WC. It kept the shower “wet zone” and the toilet “dry zone” visually connected, but functionally distinct. The result felt like one larger bath, even though we carved out a true separate toilet nook for privacy.

frosted glass partition for privacy was the key; it softened silhouettes without turning the WC into a dark box.

Pros

A glazed divider maintains light flow, an essential trick in small bathroom designs with separate toilet layouts. It supports a wet-dry separation bathroom design so the shower splash doesn’t invade the WC, keeping cleaning simpler. When you pick laminated or tempered glass, maintenance is easy and it resists moisture warp that plagues cheaper panels.

NKBA bathroom planning guidance notes that good sightlines and adequate clearances reduce congestion; pairing a slim partition with a 30" front clearance for the toilet keeps movement smooth (NKBA Planning Guidelines). In my projects, that clearance plus a 600–700 mm glass panel usually does the trick.

Cons

The partition frame and privacy glass add cost and have lead times; I’ve had to wait 2–3 weeks for the right frosted finish. If you only rely on glazing, sound transmission won’t improve much—so it’s privacy-by-sight, not privacy-by-sound. And yes, water spots happen; you’ll wipe glass more than you would a painted wall.

Tips / Case / Cost

In a rental-friendly refresh, I used a ceiling-to-cabinet half-height panel instead of full-height glass to save money. Pick hardware finishes that match the faucet set, and run a narrow solid sill at the bottom to catch drips. Budget-wise, expect $500–$2,000 for custom glass depending on size, frosting, and frame quality.

save pin

Sliding Pocket Door WC for Micro Apartments

My Take

A pocket door is my go-to when swing clearance is a heartbreaker. In one 4 m² ensuite, we tucked the toilet behind a thin stud wall and used a solid-core pocket door for better acoustics. The door vanished into the wall, turning circulation into clean lines instead of awkward maneuvers.

Pros

For small bathroom separate toilet plans, a pocket door separation reduces the “door dance.” It’s friendly to tight corridors and lets you keep the vanity larger or add a linen tower. A solid-core slab and brush seals noticeably reduce sound bleed, which clients appreciate during early mornings.

From a privacy-focused bathroom layout perspective, sliding doors eliminate risky hinge conflicts with shower doors and keep the threshold flush—great for universal design and fewer stubbed toes.

Cons

Pocket doors can be fussy if your wall has plumbing or electrical you can’t reroute. The hardware requires precise installation; otherwise, you’ll hear rattles or feel wobble. Maintenance is trickier since everything is concealed—think ahead and specify quality tracks and soft-close.

Tips / Case / Cost

If your wall won’t take a pocket, consider a surface-mounted barn-style slider with minimal projection. Remember, a 32" clear opening is friendlier for future accessibility (ADA Standards for Accessible Design). Cost-wise, think $800–$2,500 for framing, a solid-core slab, track, and finishing, depending on your region.

save pin

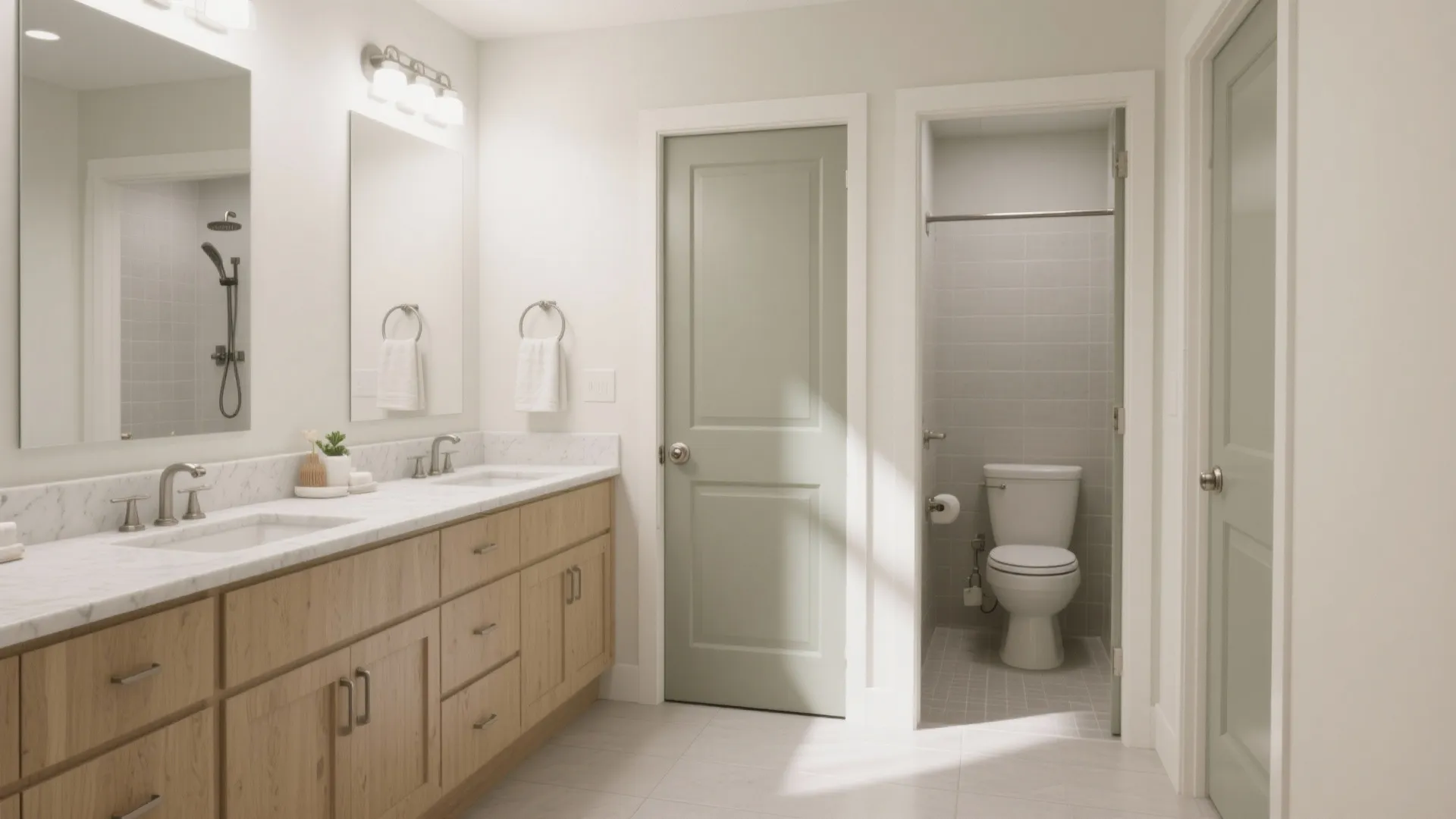

Jack-and-Jill Bathroom with a Dedicated Toilet Room

My Take

In a townhouse, I designed a Jack-and-Jill with a shared vanity and shower, and a separate toilet room accessible from both bedrooms. The teenagers could brush teeth together while the WC stayed private, and morning traffic actually calmed down. The double-entry solved scheduling wars without expanding the footprint.

Pros

Jack-and-Jill bathroom designs with separate toilet balance family privacy with efficiency. You can place the WC on the quieter side of the plan, then add a lock on each door to prevent awkward walk-ins. Locating the WC away from exterior walls helps with even temperature control and more flexible exhaust routing.

pocket door separation saves space in these shared setups, especially when two doors converge. NKBA suggests 36" minimum clear paths for circulation; aligning doors with that recommendation keeps the traffic pattern intuitive (NKBA Planning Guidelines).

Cons

Two doors mean twice the reinforcement and hardware to pay for. Sound control is trickier with dual entries; you’ll need seals, solid cores, and perhaps a small vestibule. Expect occasional lock confusion; I label with subtle icons to keep it light-hearted.

Tips / Case / Cost

Use a motion-activated night light in the WC and a quieter fan to avoid jolting sleepers. Schedule-proof the morning rush with dual mirrors and a 1,200–1,500 mm vanity. For a budget, multi-door trim and extra switching will add $400–$1,000 beyond a single-entry bath.

save pin

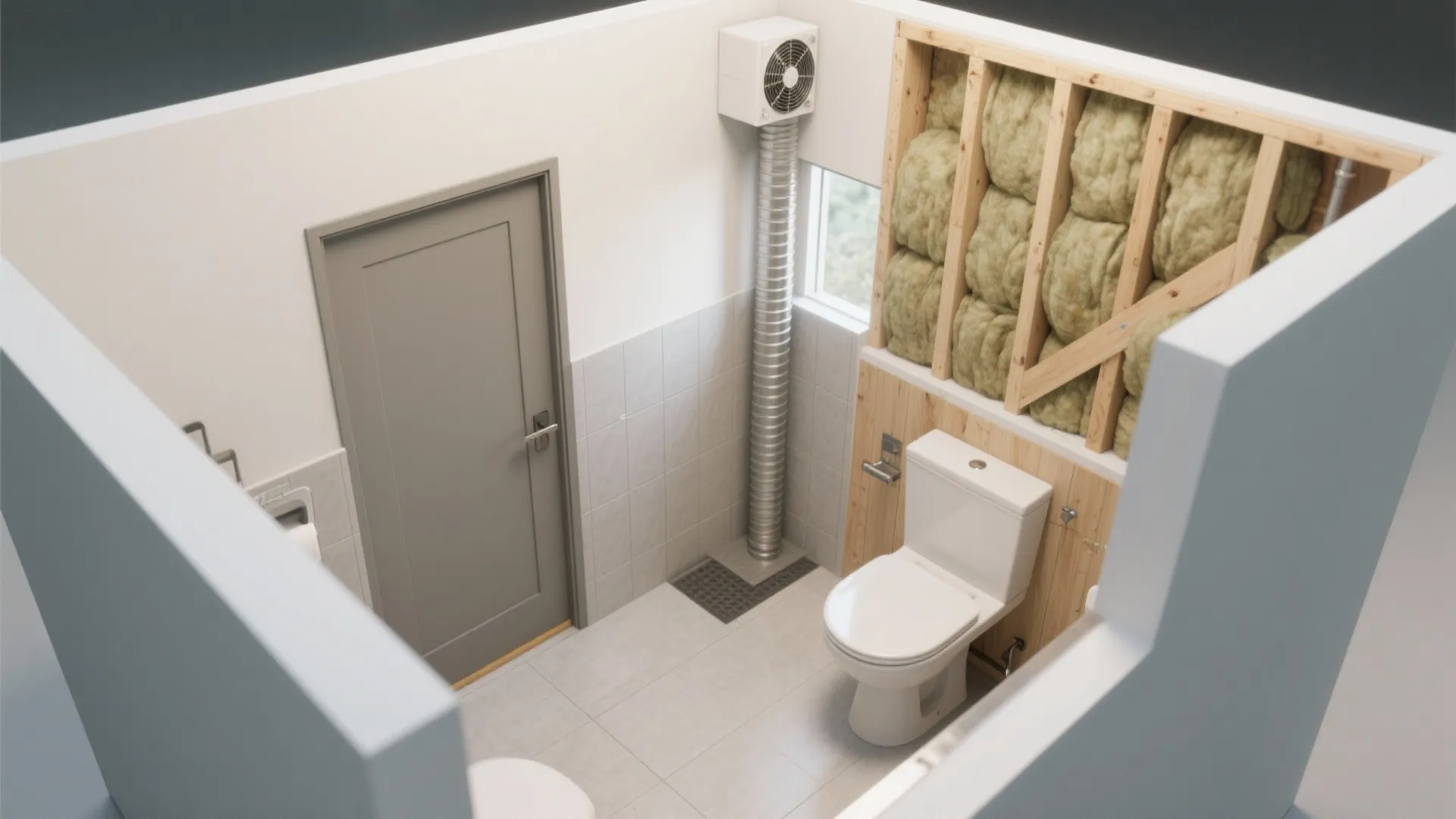

Acoustics and Ventilation: The Comfort Upgrade

My Take

The moment we separate the toilet, we also create an acoustic boundary—and that’s where comfort either shines or stumbles. In one loft project, a soft-close, solid-core WC door plus a quiet fan turned a noisy echo chamber into a sanctuary. The client joked it was the “library you actually visit twice a day.”

Pros

For privacy-first bathroom designs with separate toilet, acoustic insulation in the partition and a solid-core door dramatically improve perceived quality. Use mineral wool in the stud bay and add perimeter seals. For air quality, ASHRAE 62.2 recommends 50 cfm intermittent or 20 cfm continuous exhaust for bathrooms; a dedicated WC fan keeps odors from migrating (ASHRAE 62.2).

Placing the fan near the WC and running the duct with minimal bends boosts performance. The WELL Building Standard also highlights low-noise systems; I aim for ≤1.0 sone fans so you don’t feel like you’re in a wind tunnel.

Cons

Upgrading acoustics adds material and labor—mineral wool, seals, and a heavier door. Overventilation can make the WC chilly, so balance cfm with comfort. And yes, replacing a dated fan mid-renovation often reveals questionable duct work; be ready for a minor reroute.

Tips / Case / Cost

Select an ozone-free fan and place the switch inside the WC, with a quiet timer for energy savings. In tight envelopes, a slim trickle vent in the door keeps air fresh without drafts. Budget $350–$1,200 for soundproofing and a quality fan; it’s one of the highest-impact upgrades I’ve installed.

save pin

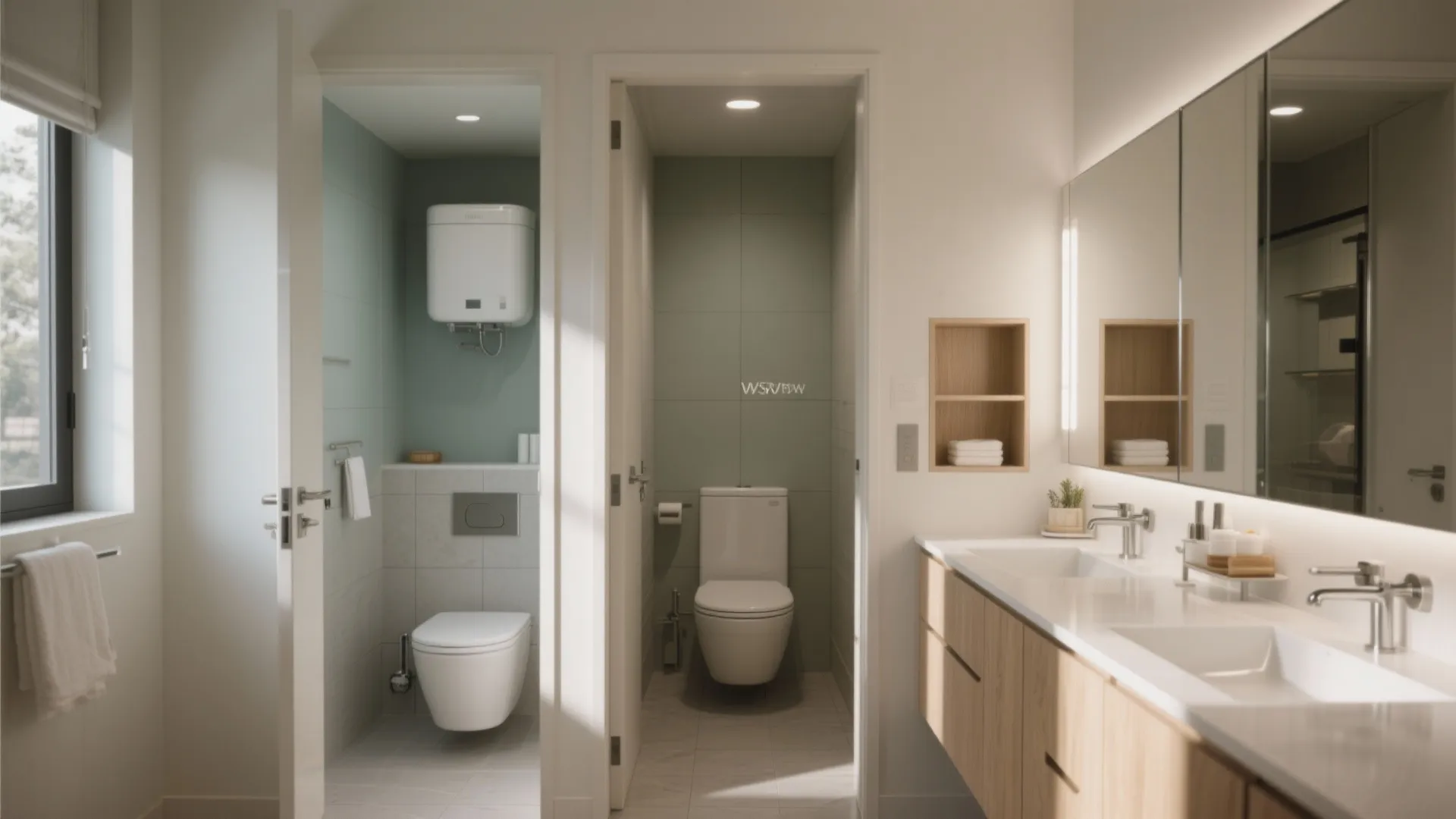

Dual-Entry Circulation and Storage Integration

My Take

When the footprint won’t grow, I choreograph movement: a WC door aligned to a hall, and a second path to the vanity and shower. Then I thread shallow storage into dead zones—over the tank, between studs, above doors—to keep counters clean. The flow feels hotel-grade even in a starter home.

Pros

Dual-entry design lets a compact ensuite with separate WC serve two routines simultaneously. A mirrored medicine cabinet and a narrow tower free the vanity top, which is huge in a privacy-focused bathroom layout. With clever studs, you can recess a 100–120 mm cabinet into walls and still maintain structure.

hotel-style powder room separation works beautifully with a small niche over the tank—stash tissues, scents, and cleaning gear without clutter. Balanced storage helps the room look intentional, not makeshift.

Cons

Two entries cost more in trim, seals, and planning hours. Overdoing storage can make the WC feel claustrophobic; I keep upper shelves airy and rely on recessed solutions. And yes, someone will inevitably forget which door is faster—friendly signage solves it.

Tips / Case / Cost

Use satin paint in the WC for wipe-ability, and match hardware finishes across both doors to unify the look. If you can, align one door with natural light from the hall so the WC never feels cave-like. Storage runs $150–$800 for recessed units and a basic cabinet set; plan for stud scanning and neat carpentry.

[Section: 总结]

Small bathrooms aren’t limitations—they’re invitations to design smarter. With bathroom designs with separate toilet, you can tune light, acoustics, and circulation so the space feels calm and capable. Whether you go glazed partition, pocket door, or a dual-entry layout, the right mix of zoning, ventilation, and storage works wonders.

Standards like NKBA and ASHRAE 62.2 give helpful benchmarks, but your daily routine is the real north star. Which of these 5 design inspirations would you try first in your home?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the benefit of bathroom designs with separate toilet?

Separate toilet rooms add privacy, reduce morning bottlenecks, and isolate odors from the main bath area. In small spaces, it also helps maintain a clean wet-dry separation that makes cleaning easier.

2) How much space do I need to add a separate WC?

Plan for about 30" front clearance and roughly 800–900 mm depth for comfort. If you’re tight, a pocket door can save crucial swing space while maintaining privacy.

3) Do I need special ventilation for a separate toilet room?

Yes. ASHRAE 62.2 suggests 50 cfm intermittent or 20 cfm continuous exhaust in bathrooms for better air quality. A dedicated fan near the WC helps keep odors contained.

4) Will a glazed partition really provide privacy?

Frosted or patterned glass blurs silhouettes while keeping light flowing, which is great in small bathroom designs with separate toilet. If sound privacy is a priority, pair it with solid-core doors and seals.

5) Is a Jack-and-Jill layout practical with a separate toilet?

Absolutely. A shared vanity and shower plus a dedicated WC room can handle two routines at once. Add locks on both doors and keep circulation clear for stress-free mornings.

6) What’s the typical cost to separate the toilet?

Expect $1,500–$5,000 for framing, doors, ventilation, and finishing, depending on materials and local labor. Custom glass or built-ins will nudge the budget higher.

7) How do I improve sound privacy in the WC?

Use a solid-core door, perimeter seals, and mineral wool in the partition. Quieter fans (≤1.0 sone) help keep the experience comfortable without drawing attention.

8) Are there design standards I should follow?

Yes—NKBA planning guidelines for clearances and ASHRAE 62.2 for ventilation are solid references. If accessibility is a goal, the ADA’s 32" minimum door clear width is a helpful benchmark.
