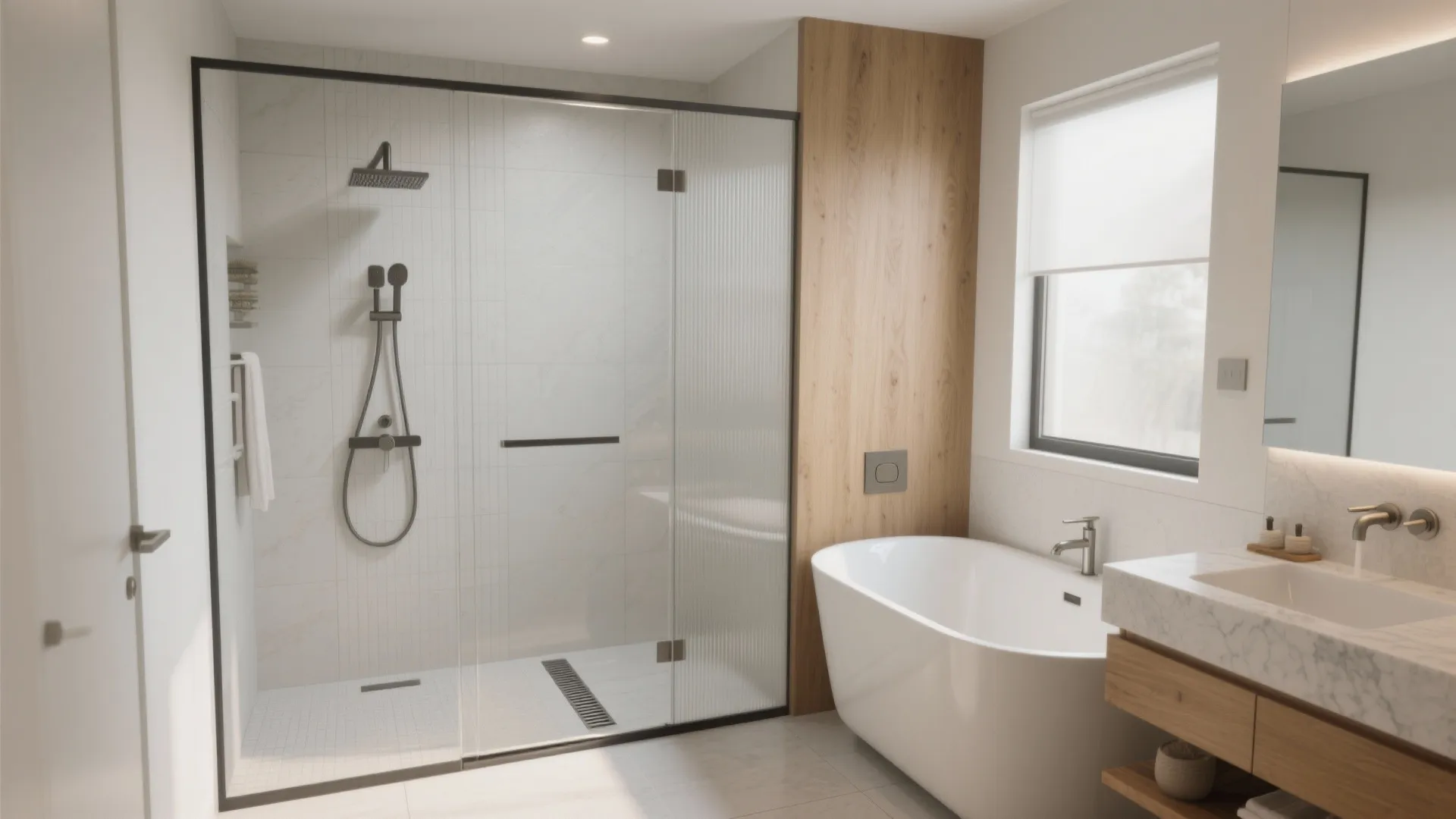

5 Bathroom Designs with Shower and Tub That Truly Work: Real designer strategies to fit a shower and tub into small, stylish bathrooms—without compromise

[Section: Introduction]

I’ve spent the last decade helping clients squeeze spa-level comfort into tight footprints, and the biggest request lately is clear: bathroom designs with shower and tub, together. The trend leans clean-lined, light-maximizing spaces, with smart waterproofing and warm materials to keep things serene. Small spaces spark big creativity, and that’s where these ideas shine.

In this guide, I’ll share 5 design inspirations I’ve used in real homes—what worked, what didn’t, and how to budget wisely. I’ll blend my on-site lessons with expert data (think NKBA sizing and CDC safety insights) so you can plan with confidence.

[Section: Inspiration List]

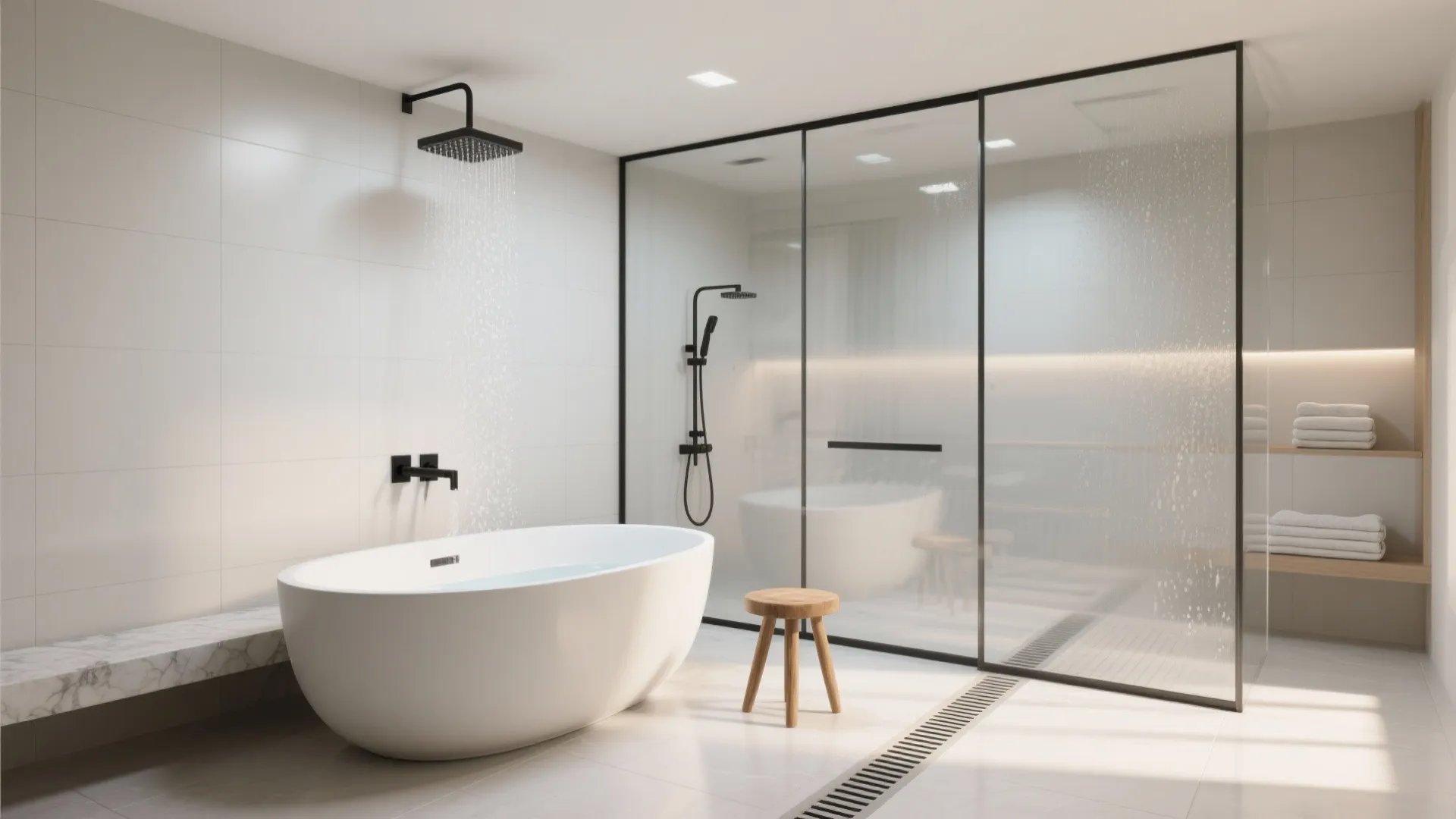

Wet room with a freestanding tub and frameless glass

My Take: When I combine a walk-in shower and tub in small bathrooms, I often create a single wet zone. A minimal curb (or none at all) and a frameless glass partition that keeps sightlines open make the room feel twice as large. I’ve done this in apartments where every inch has to work, and the client still gets that long soak plus a quick rinse option.

Pros: A wet room consolidates waterproofing and drainage, which can simplify a bathroom layout with separate shower and tub in one zone. Visual continuity—same tile from floor to walls—creates that spa vibe and helps small bathroom shower and tub layouts read as one space. According to NKBA best practices, a curbless shower needs proper slope (about 1/4-inch per foot) and a reliable linear drain to keep water moving efficiently.

Cons: Steam and splash can be real; towels and toilet paper need thoughtful placement or a glass return panel. If you love rugs, they’ll need to sit well outside the wet zone—or be washable and fast-drying. Routine squeegee time becomes a lifestyle choice unless you’re okay with glass water spots.

Tip / Cost: Budget for continuous waterproofing and a high-quality drain; in my builds, that runs higher up front but saves on long-term maintenance. If you’re going curbless, plan floor recess early—retrofits are more invasive.

save pin

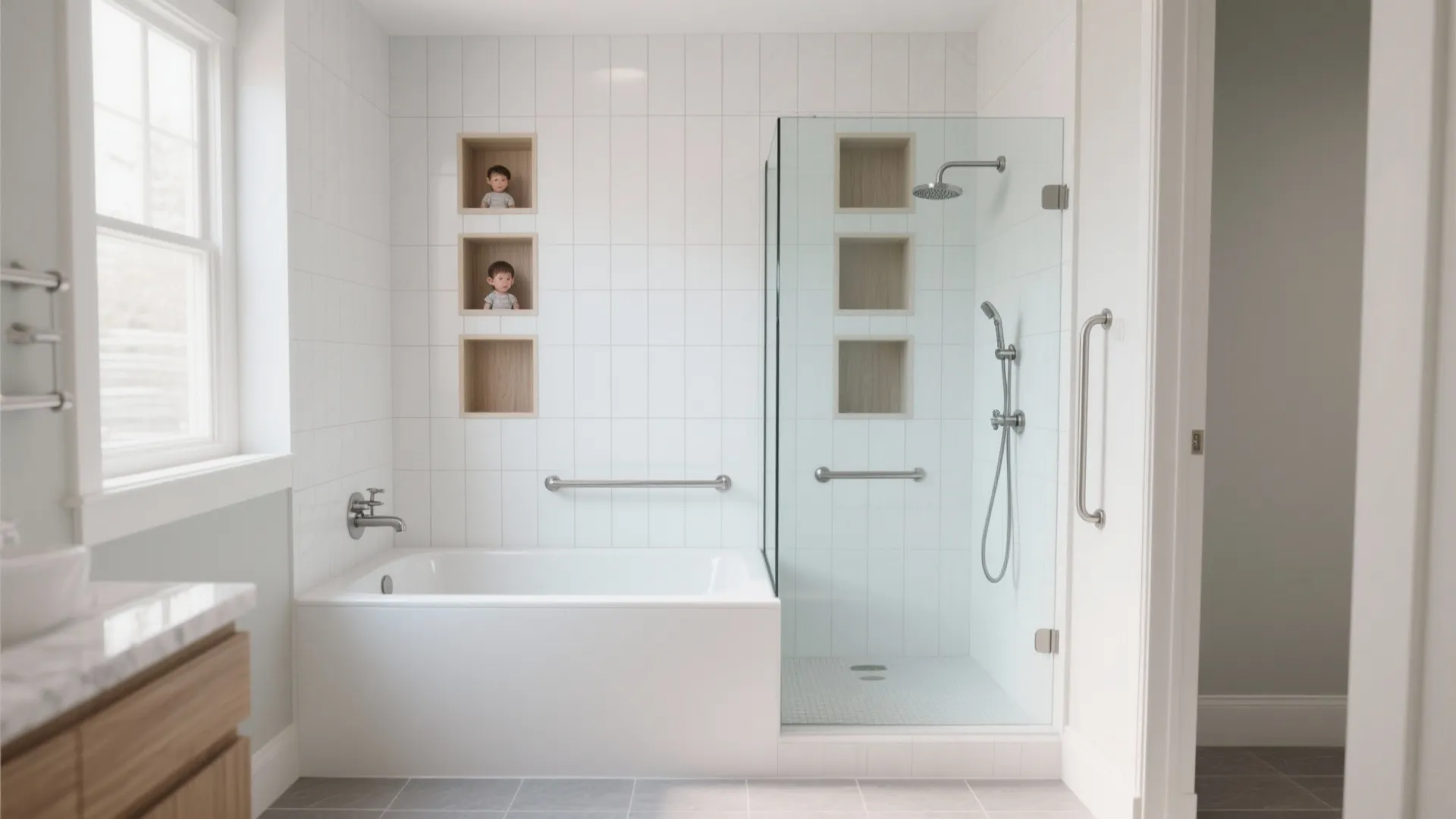

Modern alcove tub–shower combo with niches

My Take: A deep-soak alcove tub with a fixed glass panel or sliding door is the smartest upgrade when space is tight. I’ll stack multiple niches vertically—kids get the lower one, adults get the higher—so everyone has a spot for bottles without crowding the ledge.

Pros: This shower tub combo small bathroom upgrade fits within a standard 60-inch alcove, saving serious space and cost. Curved or fixed glass panels feel lighter than full curtains and keep the floor drier, which matters in narrow footprints. The CDC notes that bathroom slips are common; pairing slip-resistant tile (DCOF ≥ 0.42) with a grab bar makes a family-friendly shower and tub layout safer.

Cons: Sliding doors need regular track cleaning, and framed options can look dated if hardware is chunky. A deep alcove soaker can be tall for kids; I’ve added a low, tile-topped step that doubles as a bath seat to make entry easier.

Tip / Cost: Upgrade to a pressure-balanced or thermostatic valve so you can set safe temperatures for kids. Add at least one 12-inch-wide, 3-inch-deep niche per bather—your future self will thank you when the bottles stop crowding the tub rim.

save pin

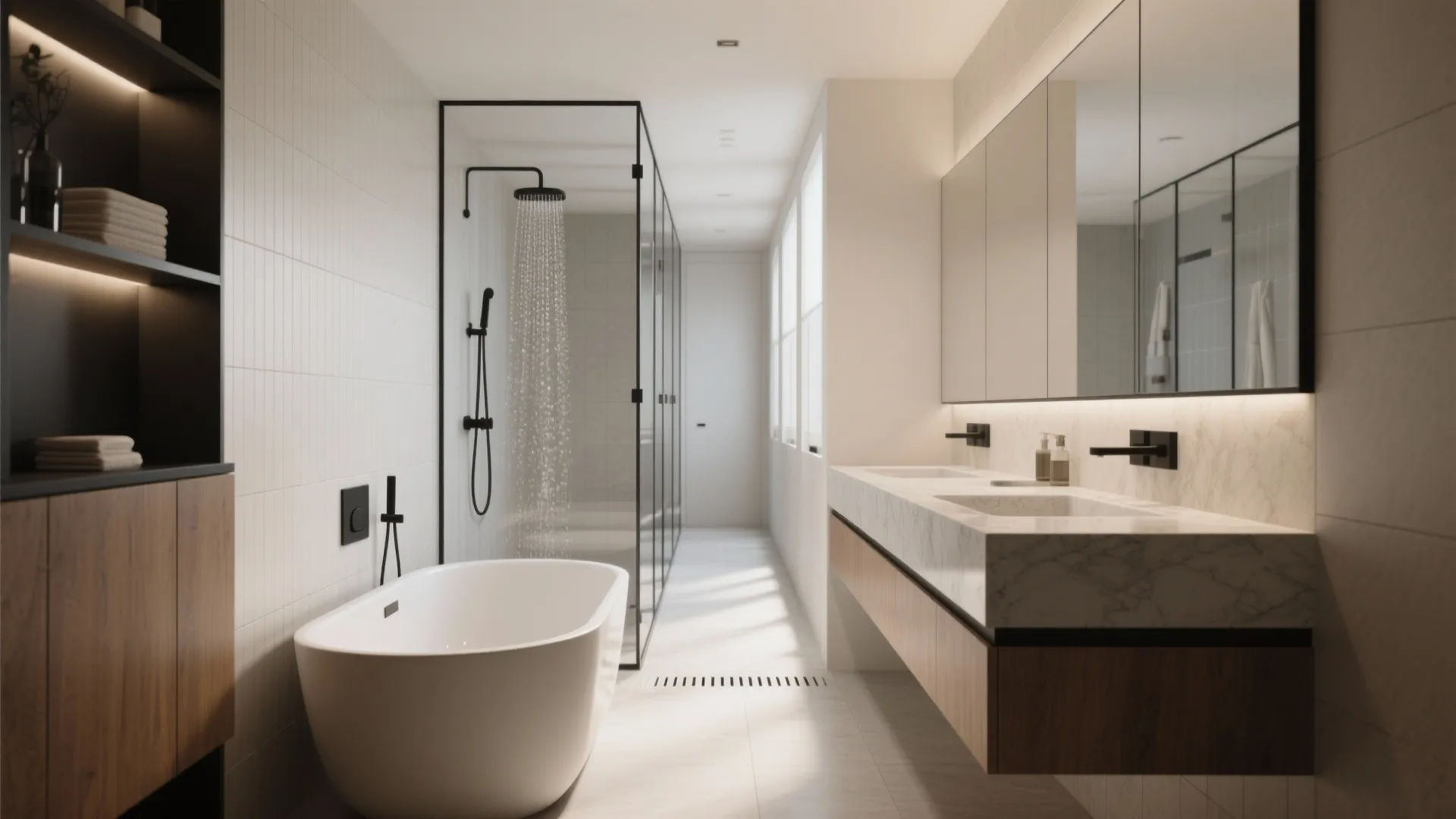

One-wall layout: shower and tub in a clean line

My Take: In long, narrow bathrooms, I align the tub and walk-in shower along one wall like train cars, then float a slim vanity opposite. It keeps plumbing simple and sightlines clear. I’ve used a half-height partition between the tub and shower to catch spray while preserving openness.

Pros: This walk-in shower and freestanding tub layout keeps all drains on one side, helping reduce labor. A linear composition makes a small bathroom with shower and tub feel organized rather than cramped. If you prefer a soaking tub over a standard alcove, choose one with a smaller footprint (54–60 inches) to maintain pass-through width.

Cons: You’ll need at least 30–36 inches clear aisle opposite the fixtures; in ultra-narrow rooms that can be tight. Wall-length glazing can add cost; I often mix fixed glass with a budget-friendly splash panel to balance the spend.

Tip / Plan: I like to trace the one-wall alignment to scale so clients can see how the tub edge, shower glass, and vanity line up. Use the same wall tile across both zones; a subtle change in grout color can add depth without visual clutter.

save pin

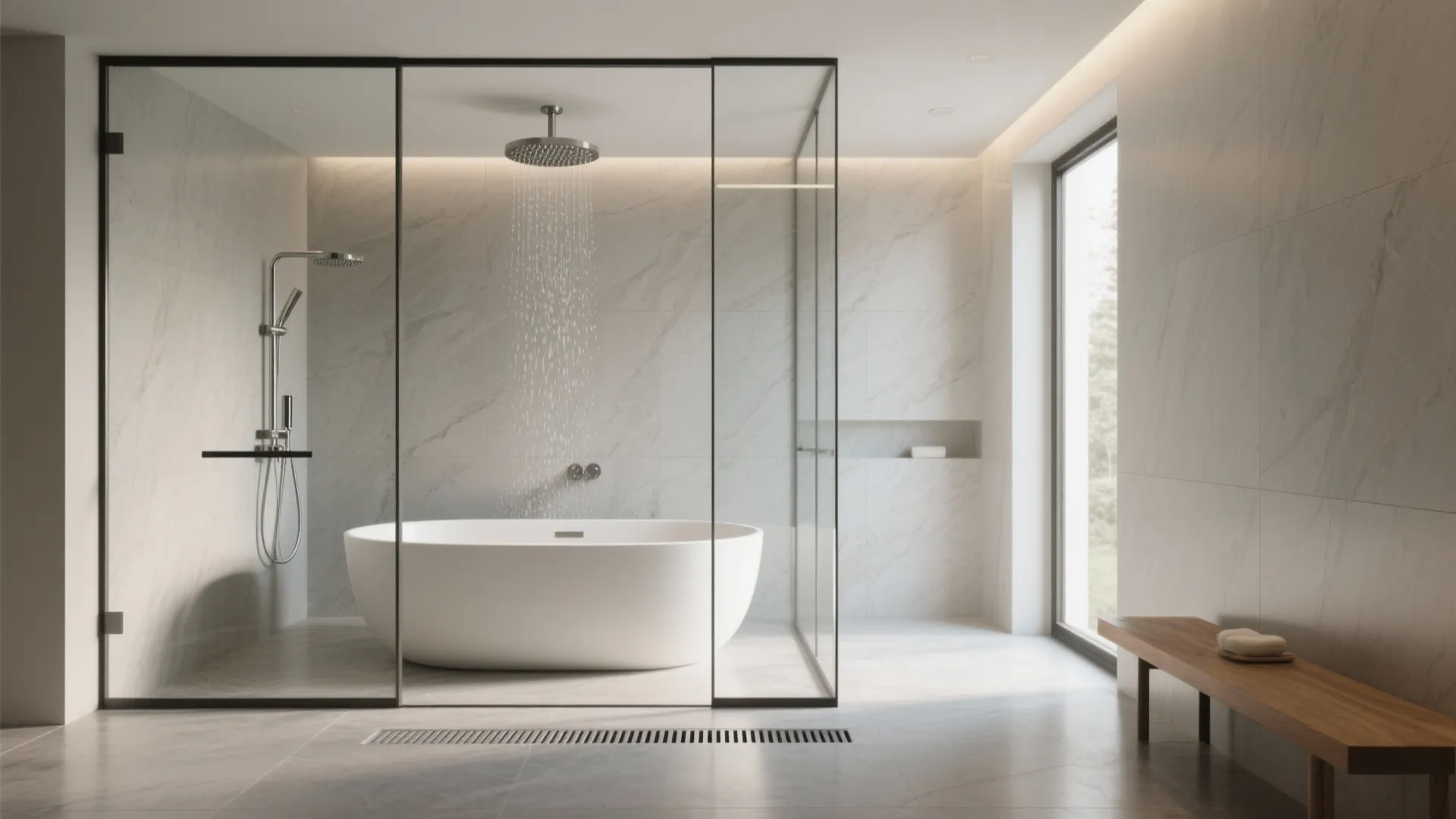

Freestanding tub inside an oversized shower

My Take: This is the “bathtub-in-shower” move, and it’s drama done right—especially with a ceiling-mounted rain head and a hand shower. I’ve used it in lofts where the envelope is concrete and waterproofing the whole zone just made sense.

Pros: It’s the ultimate bathroom layout with separate shower and tub feeling, but inside one waterproofed envelope—no splash worries and easy cleanup. Parents love it for bathtime; you can rinse toys and tub without wetting the rest of the bathroom. NKBA guidance suggests a minimum 36 by 36 inches for the showering area; going larger comfortably accommodates the tub footprint and drying zone.

Cons: You’ll need enough width for safe circulation around the tub, and the shower’s spray shouldn’t blast directly into the tub filler valves. Moisture management is key; a robust exhaust fan (sized to CFM and run-on timer) prevents lingering humidity.

Tip / Cost: Position the hand shower near the tub for rinsing. Expect higher tile and glass costs; I often value-engineer by using porcelain slab or large-format tiles to reduce grout lines and installation time.

save pin

Curbless shower plus kid-friendly soaking tub

My Take: In multigenerational homes, I pair a curbless shower for aging-in-place with a compact soaking tub that kids adore. It’s a best-of-both-worlds solution: accessible now, indulgent later.

Pros: A curbless shower and soaking tub combo supports universal design while keeping style front and center. ADA-informed clearances—like 60 inches of turning radius in larger remodels and reinforced walls for future grab bars—make the space adaptable without shouting “medical.” This long-tail approach to accessibility suits a small bathroom shower and tub layout that evolves with the family.

Cons: True curbless builds can raise waterproofing complexity, and doorless showers can feel drafty in colder climates. Compact tubs heat faster but cool faster too; I often specify an inline heater or good insulation to hold temperature.

Tip / Plan: Warm the space with radiant floor heat inside and just outside the shower. I also like to preview the tile pattern and lighting before you install—accent lighting near the tub and a dimmable shower downlight makes evening soaks feel like a boutique spa.

[Section: Details, Materials, and Layout Nuance]

Tile strategy: Keep the same floor tile through the wet zone, then transition to herringbone or a warmer tone outside to define “dry” areas. In tighter rooms, vertically stacked wall tile with a light grout elongates the walls; a band of stone or micro-mosaic around eye level frames the tub elegantly.

Glass choices: Clear, low-iron glass maintains color fidelity for stone and tile. If privacy matters, use fluted or reeded glass on a single fixed panel while keeping the rest clear—balanced translucency without feeling boxed in.

Storage: Build a tub deck with a concealed access panel for plumbing and a slim ledge for salts and candles. In shower zones, go for a panel niche with a small integrated shelf for razors, plus a lower niche for kids’ bath toys.

Lighting: Layer task lighting at the mirror, ambient ceiling lights, and a wet-rated accent near the tub. A 2700–3000K temperature feels spa-warm; dimmers extend usability from morning wake-up to late-night soak.

Ventilation: Choose a fan sized to room volume (CFM) and run it on a humidity sensor or a 20–30 minute timer post-shower. A quiet fan (sone 1.0 or less) actually gets used—quiet is compliance.

Water and safety: The CDC highlights bathroom slip risks; pair slip-resistant tile with a bathmat outside the wet zone and consider a discreet grab bar by the tub rim. EPA WaterSense fixtures help maintain pressure while cutting consumption—especially helpful if you do a rain head plus hand shower.

[Section: Real-World Planning and Budget]

Space planning benchmarks: For most bathroom designs with shower and tub, I aim for at least 60 inches for a tub and 36 inches clear for the showering zone, even when they overlap in a wet room. Keep at least 30 inches clear in front of the tub for entry and drying where possible. Door swings matter—pocket or barn doors often save a layout.

Typical cost drivers: Waterproofing, tile, and glass size are the big three. Curbless details and linear drains add cost but elevate usability. To value-engineer, I mix porcelain for most walls and a feature slab behind the tub, then invest in the best valve and drains you can afford.

Plumbing realities: If you’re rearranging a tub and adding a shower, know where the joists run; moving drains across joists can complicate things. In condos, maintain the existing wet-wall when you can—your budget (and downstairs neighbor) will thank you.

[Section: Summary]

Small bathrooms are not a limitation—they’re an invitation to design smarter. With the right details, bathroom designs with shower and tub can deliver day-to-day practicality and night-time luxury in the same footprint. As NKBA guidelines and CDC safety insights remind us, good design blends clearances, waterproofing, and slip resistance with the textures and light that make you exhale.

Which of these five ideas would you try first in your space, and what’s the mood you want—urban spa, family-friendly, or classic hotel?

[Section: FAQ]

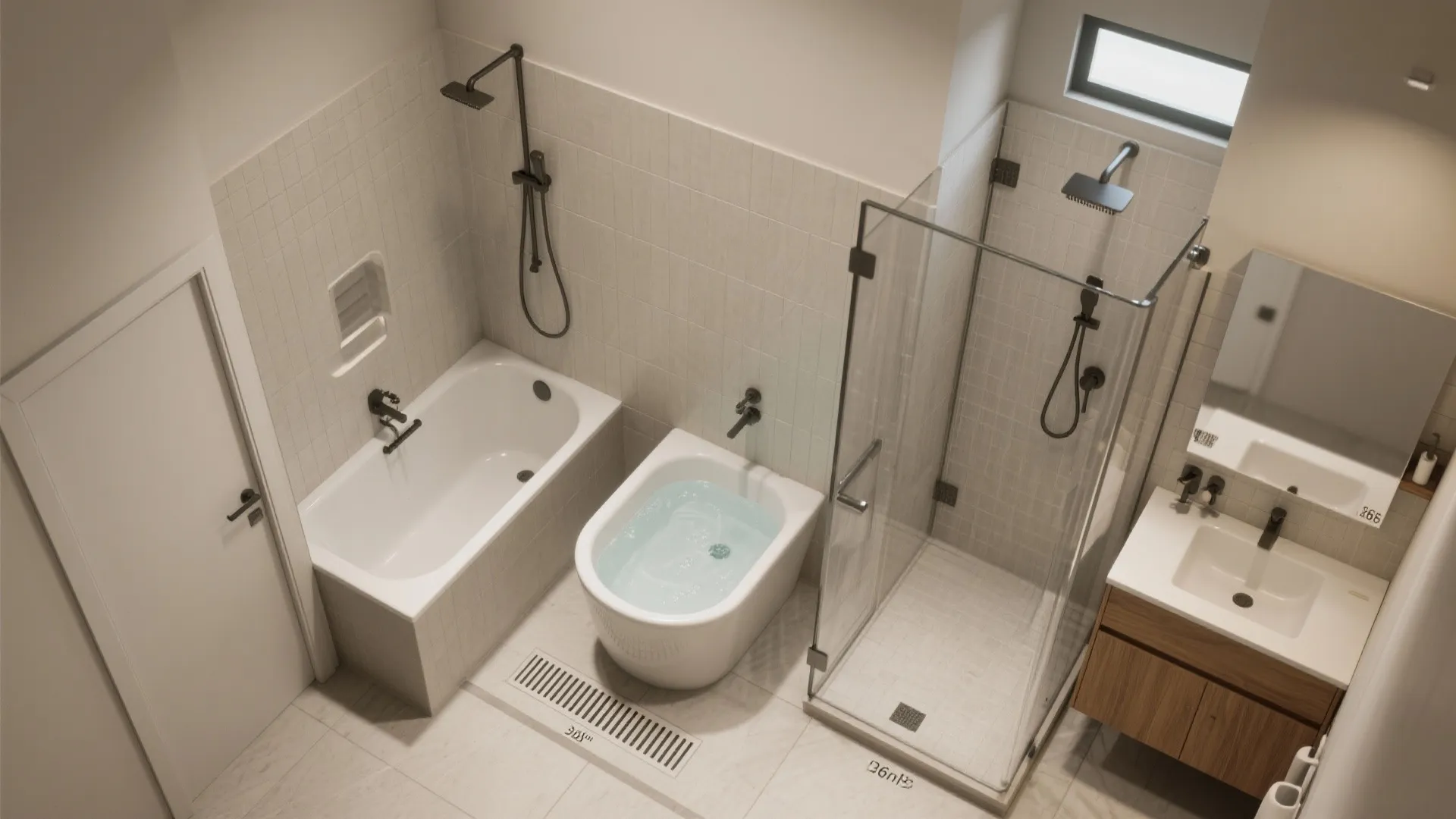

FAQ

1) What is the smallest space for bathroom designs with shower and tub?

In many remodels, a 5-by-8-foot room can fit an alcove tub–shower combo. If you want a separate walk-in shower and tub layout, target more length or consider a wet room to overlap zones.

2) Are curbless showers safe in a wet room with a tub?

Yes—when correctly sloped (about 1/4-inch per foot) with quality waterproofing and drainage. Add a grab bar and slip-resistant tile for extra confidence, especially in family spaces.

3) Is a freestanding tub practical with a nearby shower?

Absolutely, especially in a tub-in-shower setup or a one-wall layout. Specify a hand shower for easy cleanup and keep valves out of the main spray path.

4) What’s better for resale: a tub–shower combo or separate fixtures?

Market preferences vary, but most buyers appreciate at least one tub in the home for kids and soaking. If space allows, a separate walk-in shower and tub layout reads “luxury” and broadens appeal.

5) How do I prevent water everywhere in a wet room?

Use a linear drain aligned with the shower head and a fixed glass return panel to block overspray. A slight floor pitch and a well-placed towel niche keep the dry zone dry.

6) What materials hold up best around a shower and tub?

Porcelain tile is durable, affordable, and low-maintenance; stone looks rich but needs sealing. For glass, low-iron panels keep whites and light stones from looking green.

7) Are there code or guideline sizes I should follow?

Yes. NKBA suggests at least 36 by 36 inches for a comfortable showering area and recommends clear approach zones around fixtures; ADA-informed guidance supports 60 inches turning radius in accessible baths when feasible. Always confirm local code with your contractor.

8) How do I ventilate a bathroom with both shower and tub?

Choose a fan sized to the room’s volume (CFM) and use a humidity sensor or a post-shower timer for 20–30 minutes. This reduces condensation and protects finishes over time.
