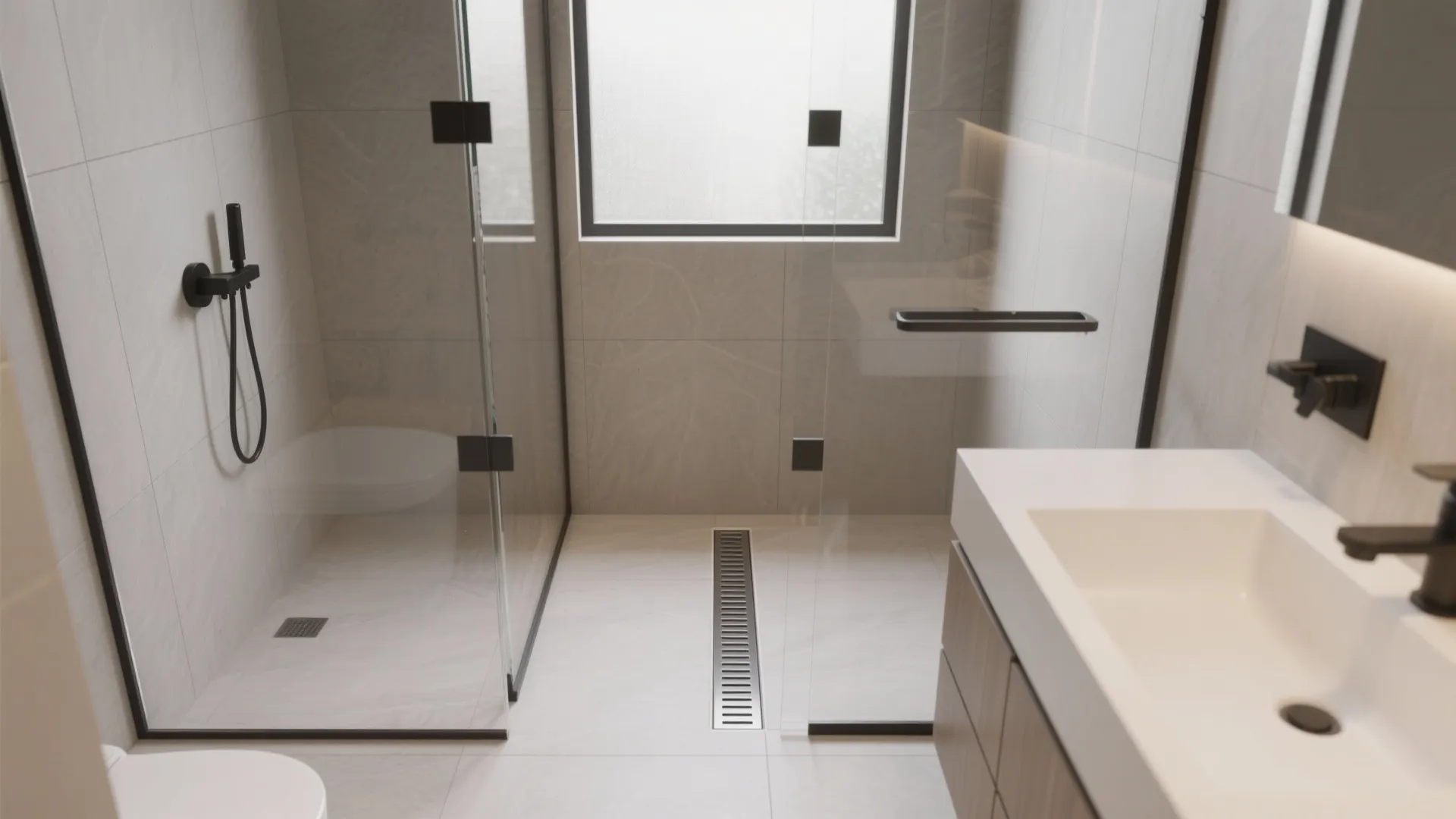

5 Bathroom Drainage System Design Ideas That Work: A senior designer’s field-tested strategies for smarter slopes, cleaner lines, and code-friendly flows in tight bathrooms

[Section: 引言]

Bathroom drainage system design has been evolving fast, and I’m here for it. From curbless showers to smarter venting, the trend leans toward cleaner lines and fewer barriers—form that follows function. In my small-space projects, I’ve learned that compact rooms don’t limit creativity; small spaces spark big creativity.

In this guide, I’ll share 5 design inspirations I use on real jobs, combining personal lessons with expert-backed data. Whether you plan a wet room or just want fewer clogs, these ideas will help you build a bathroom drainage system design that’s reliable, beautiful, and easy to maintain.

[Section: 灵感列表]

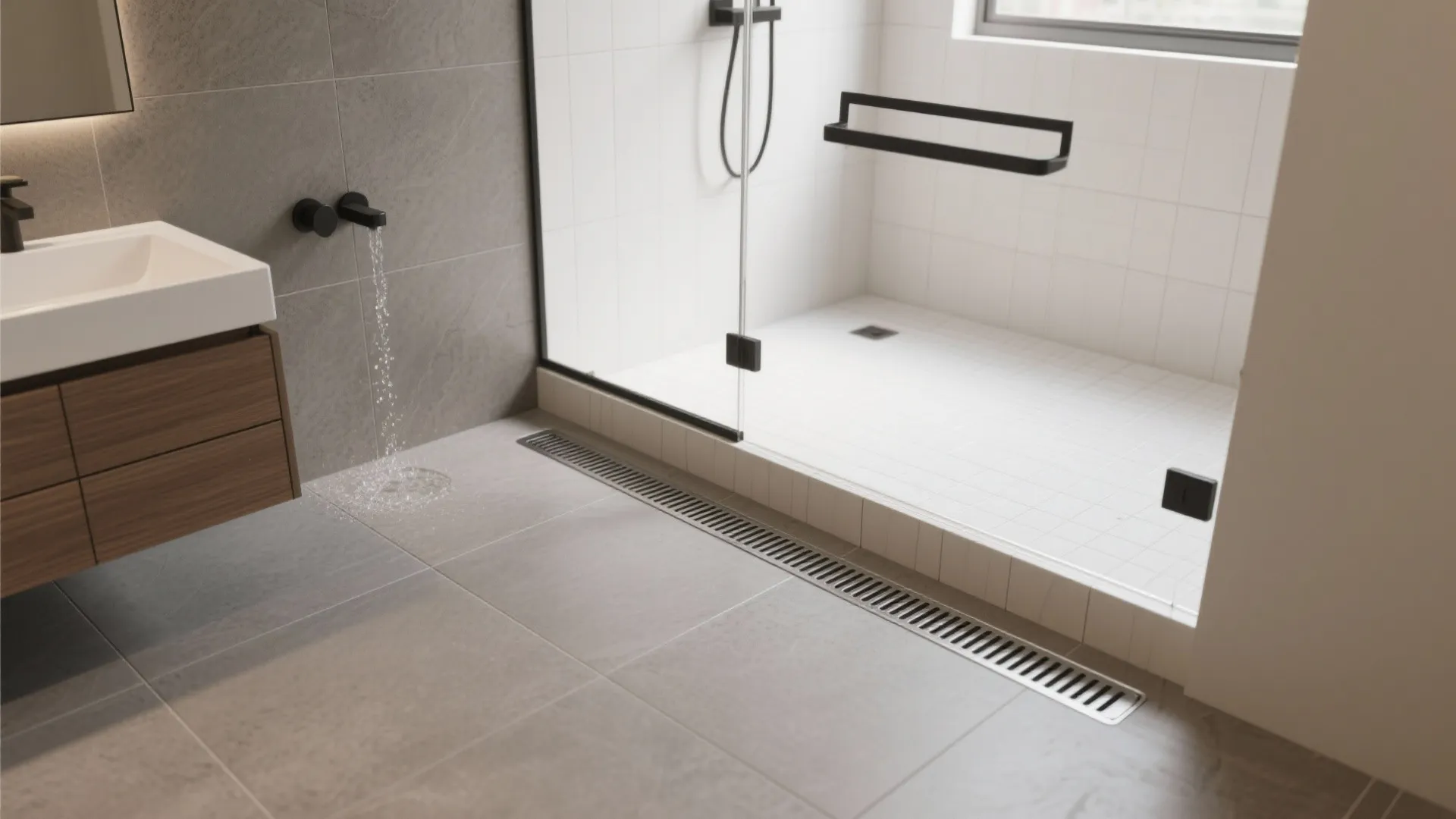

Curbless Shower With Linear Drain

My Take

I started using curbless showers for aging-in-place projects, then never looked back. The continuous floor makes a tiny bath feel bigger, and a linear drain lets me control slope with fewer tile cuts.

Pros

With a linear shower drain installation, you can run a single-direction slope (about 1.5–2%) for a cleaner look and easier tile layout. This bathroom drainage system design improves accessibility while maintaining proper water evacuation in a small footprint. It also pairs well with large-format tile, minimizing grout lines and maintenance.

Cons

Subfloor leveling must be precise; even a minor dip can cause ponding. Costs are higher than a standard center drain because you’ll need a quality waterproofing membrane and careful transitions. If the grate isn’t removable, hair buildup can sneak up on you.

Tips / Cost

Plan your waterproofing layers early—membrane, thin-set, and tile thickness all affect finish elevation at the door. For a typical 3×5 ft curbless stall with linear drain, budgets in my market start around mid-tier pricing for fixtures plus professional labor. If you’re considering a layout that prioritizes accessibility and water control, preview a walk-in shower no-threshold scenario to check transitions and clearances.

save pin

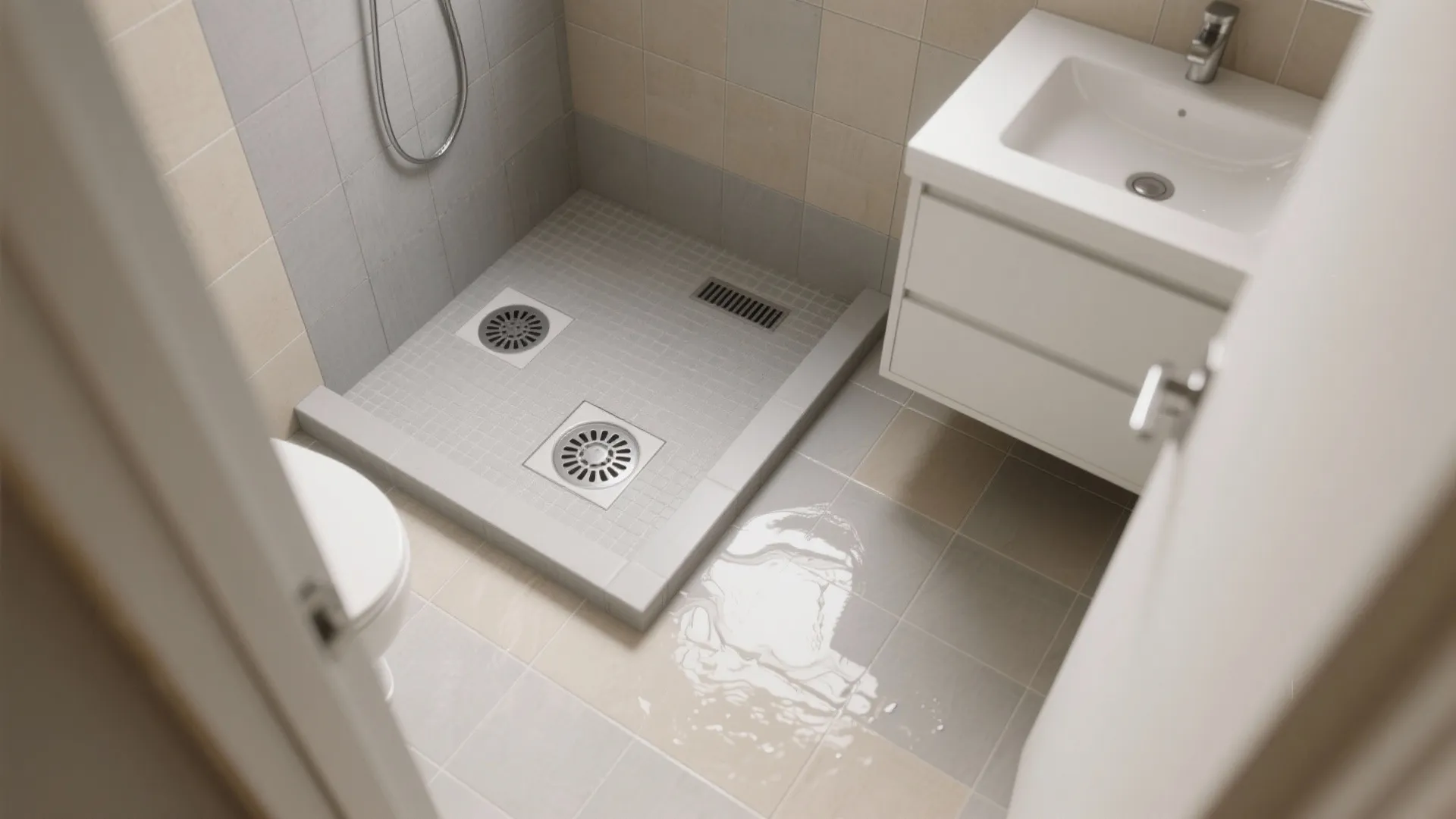

Smart Zoning: Two Drains, One Small Bathroom

My Take

On tight layouts, I sometimes add a secondary floor drain near the vanity. It’s a small insurance policy against splashes, leaks, and kids who treat handwashing like a water sport.

Pros

A backup floor drain protects finishes and cabinets if a supply line or P-trap ever misbehaves. For basement bathrooms, pairing your main stack with a backwater valve can prevent heartache during heavy storms. In small baths, this long-tail approach—secondary floor drain plus localized slope—reduces long-term repair costs.

Cons

More drains mean more penetrations in the waterproofing layer, so detailing must be spot-on. If you overdo it, slopes can get visually busy or feel uneven underfoot. Also, every added trap is another place hair might accumulate.

Tips / Case

To keep surfaces calm, I’ll slope no more than 2% toward the secondary drain and blend the plane with careful feathering in the thin-set. In a recent 5′×7′ remodel, this strategy caught a minor supply leak early—zero cabinet damage.

save pin

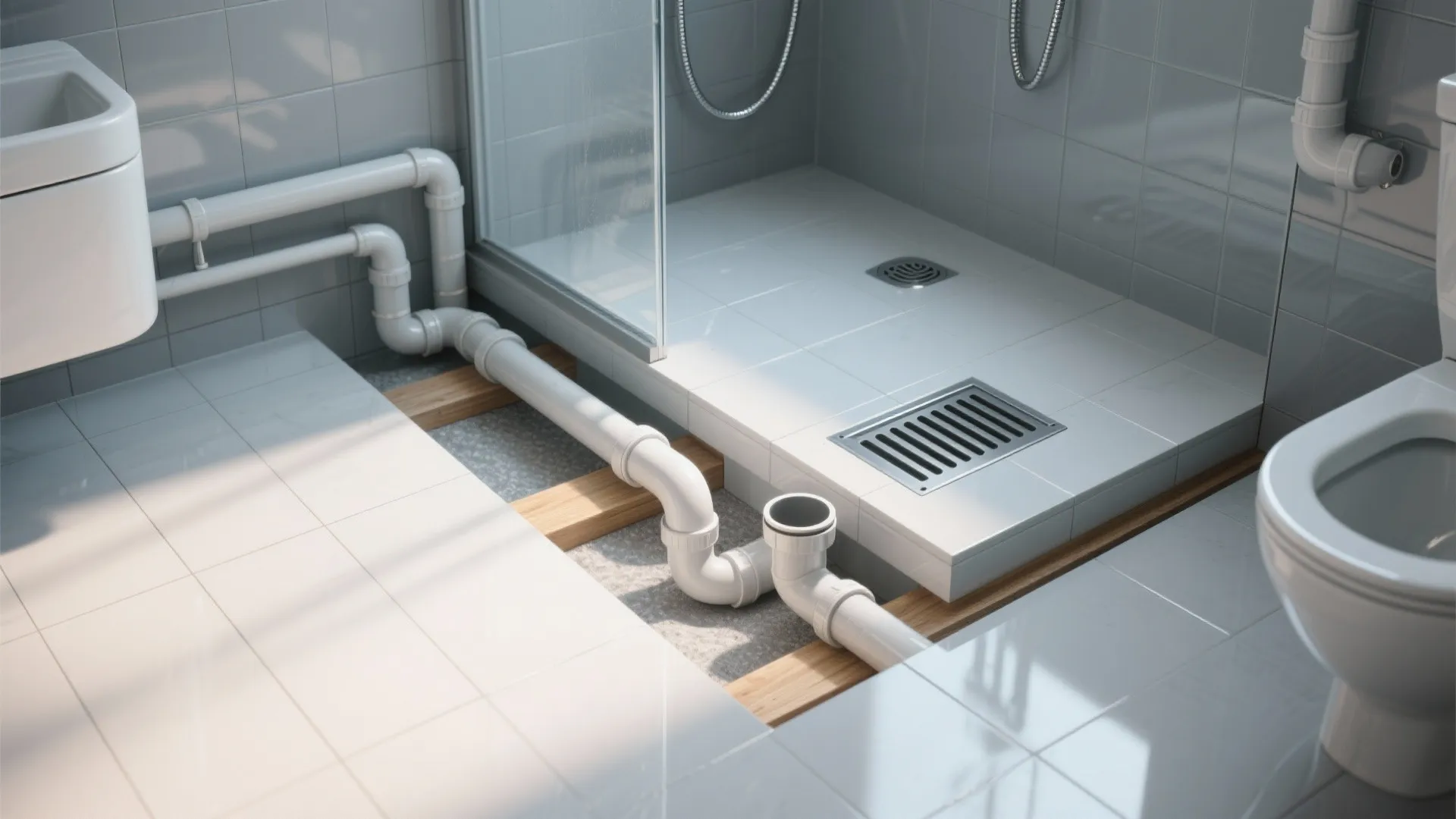

Get the Slope and Venting Right

My Take

This is where beauty meets physics. Even the prettiest tile can’t rescue a bad gradient or poor venting, so I treat these like non-negotiables on every project.

Pros

For horizontal drainage piping, maintaining proper pipe slope (often 1/4 inch per foot for 2 1/2 inches and smaller) promotes self-scouring flow and reduces clogs. According to the 2021 International Plumbing Code, Section 704.1, minimum slopes are defined to ensure reliable drainage performance. Proper venting and trap arm lengths (per code) prevent siphonage and protect trap seals, which is essential for odor-free bathrooms.

Cons

Space constraints inside joist bays make perfect slopes tricky, especially in old buildings with out-of-level framing. Over-sloping may cause water to outrun solids in larger lines, inviting buildup. Rerouting vents can require wall opening, which adds dust, time, and budget.

Tips / Cost

Before closing walls, I have the plumber camera-test or water-test tricky runs to confirm clear flow. When the architecture is tight, I model tile planes and transitions early; a quick digital mock-up helps avoid last-minute shims. If you’re visual like me, a simple 3D slope modeling pass can clarify gradients and threshold elevations around the room.

save pin

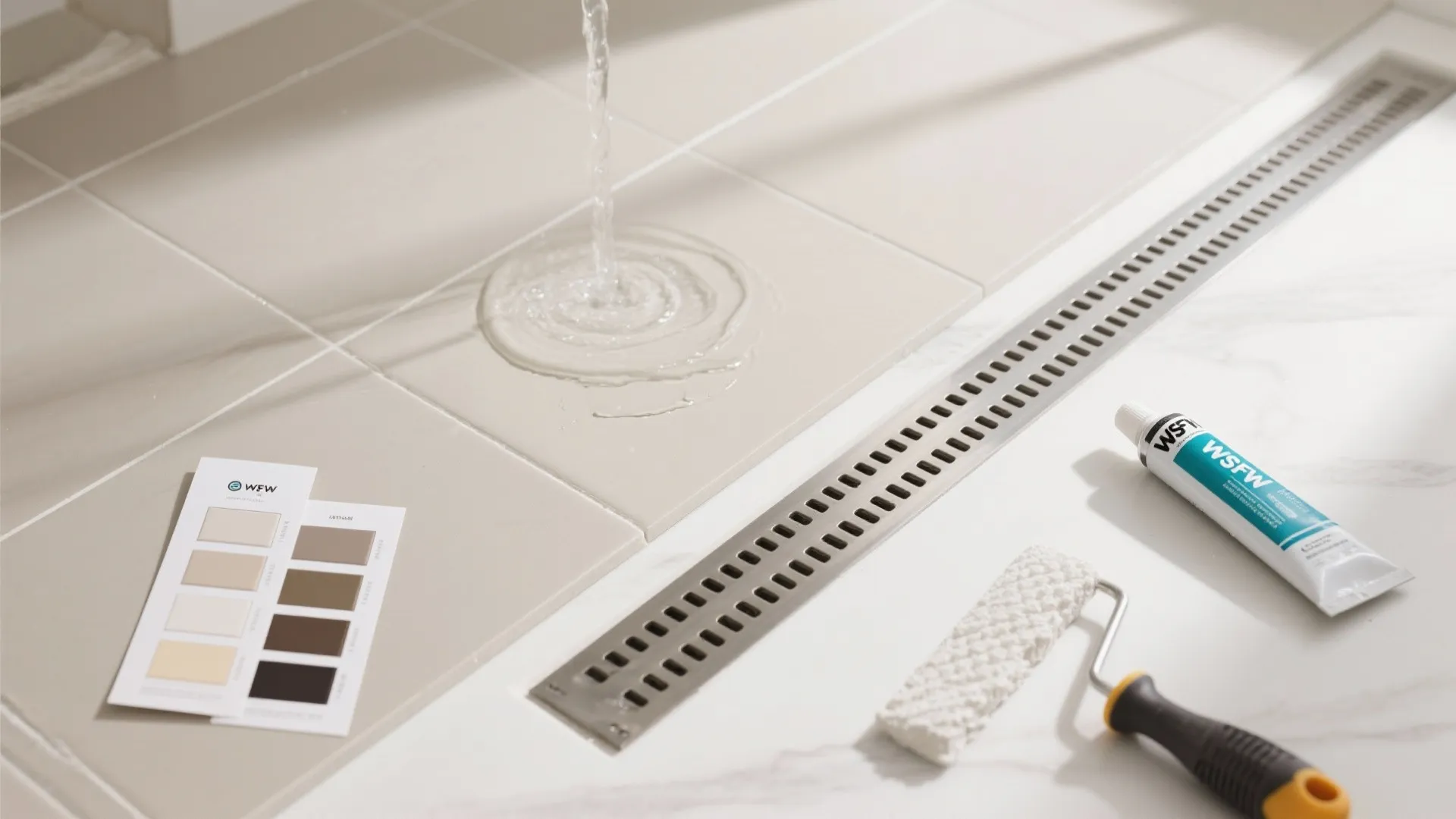

Tile, Grout, and Finishes That Flow

My Take

I obsess over finish choices because they influence both drainage and daily cleanup. Large-format tiles with a gentle fall are my go-to, especially paired with epoxy grout in wet zones.

Pros

Large-format tile lets you maintain a consistent wet room slope 1:50 while minimizing grout joints. Epoxy or pre-sealed grout resists staining and helps water bead and move toward the outlet. A tile-in linear grate keeps the look seamless, especially when you align grout joints with the channel for a unified field.

Cons

Polished finishes can be slippery when wet—specify a slip-resistant surface where it matters. Large tiles around a center point drain require tricky pie cuts unless you switch to a linear channel. Epoxy grout sets quickly; you’ll want an installer who knows the clock.

Tips / Case

Where walls meet floors, I like a coved or slightly radiused base to guide splashes back to the floor plane. In a recent wet room, aligning tile joints with the channel produced a crisp aesthetic and fewer micro-lips. For visualizing hardware alignment, reviewing a tile-in grate detail can help you dial in proportions before ordering.

save pin

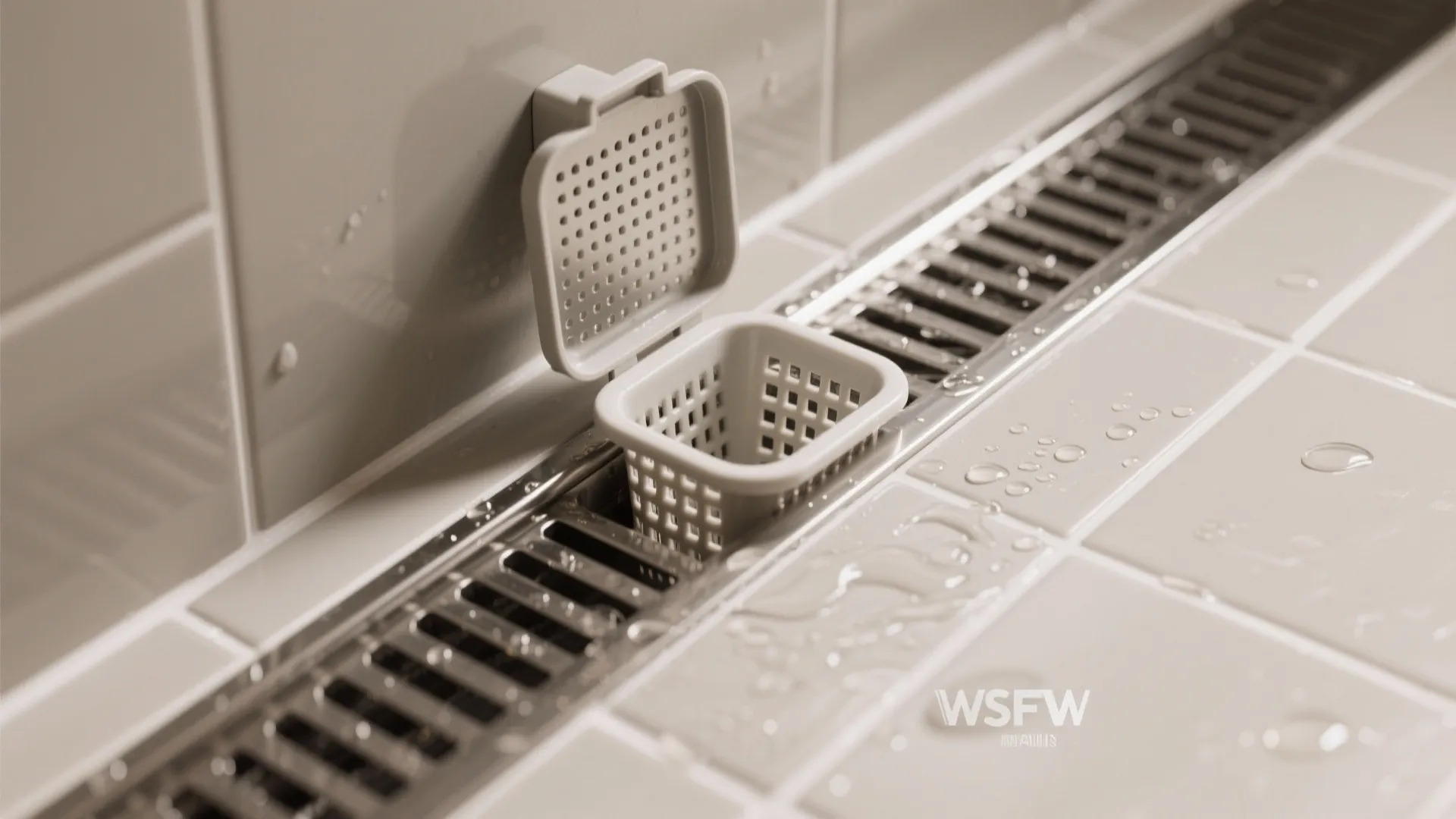

Maintenance-First Drainage Features

My Take

Every great bathroom drainage system design plans for easy cleaning. If you can’t access a trap or cleanout, you’re setting yourself up for frustrating weekends.

Pros

Removable grates with built-in hair catchers keep clogs at bay, while accessible cleanouts turn a two-hour headache into a ten-minute task. ASPE (American Society of Plumbing Engineers) recommends trap seals typically 2–4 inches to prevent sewer gases from entering occupied spaces; keeping seals intact via proper venting and, where needed, trap primers is key. Choosing fittings with serviceable parts supports long-term performance and reduces emergency calls.

Cons

Extra access panels and cleanouts can challenge minimalist aesthetics unless thoughtfully concealed. Trap primers need maintenance in low-use baths; if they fail, seals can evaporate. Some hair catchers narrow flow paths—clean them regularly to avoid slow drains.

Tips / Cost

In kids’ baths, I favor tool-free grates and clear maintenance instructions right on the inside of the vanity door. Budget a small allowance for quality valves and cleanout caps—you’ll thank yourself later during the first seasonal deep clean.

[Section: 总结]

Small bathrooms don’t limit you—they sharpen your thinking. With the right bathroom drainage system design, you’re not fighting water; you’re guiding it. Codes like the IPC exist to help you succeed, but details—membranes, slopes, vents—are where good plans become great rooms. Which of these five ideas are you most excited to try in your space?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the ideal floor slope for a shower?

For most tiled showers, a slope around 1/4 inch per foot (about 2%) toward the outlet promotes self-draining without feeling steep. The 2021 International Plumbing Code (IPC 704.1) specifies minimum drainage pipe slopes, and many designers mirror that logic in floor planes.

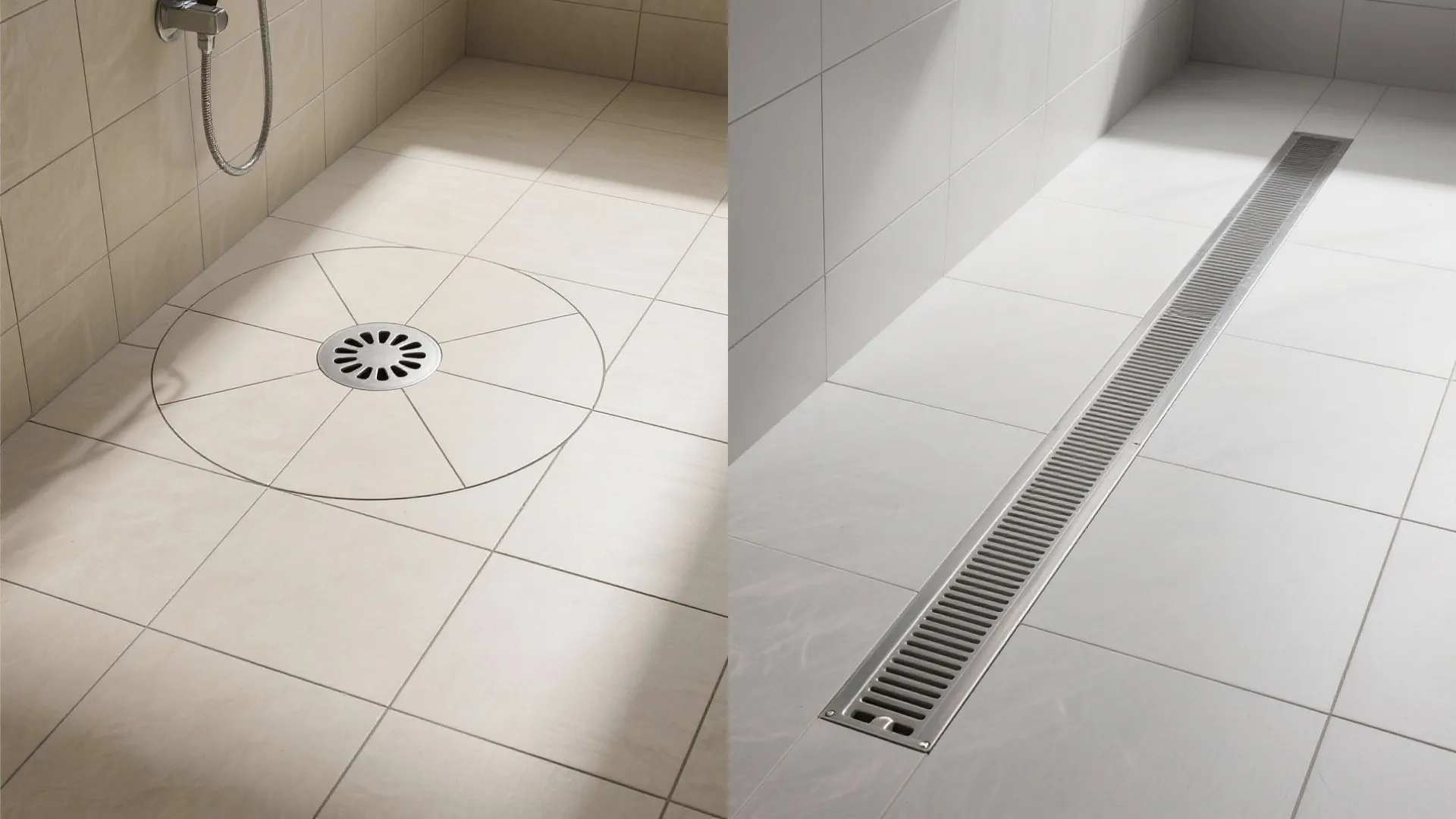

2) Linear drain or center point—how do I choose?

Linear drains suit curbless showers and large-format tile, because you can use a single-direction fall. Center drains are cost-effective and familiar but require more complex tile cuts in larger formats.

3) Can I do a curbless shower in a condo?

Often yes, but you’ll need building approval and a plan to recess the shower area or raise surrounding floors. Focus on waterproofing membrane continuity, threshold detailing, and acoustic considerations between units.

4) How do I stop sewer smells in the bathroom?

Make sure every fixture has a working P-trap, the venting meets code, and trap seals don’t evaporate. ASPE guidance recommends maintaining typical trap seals of 2–4 inches; if a bath isn’t used often, consider a trap primer or periodic water run-throughs.

5) Do I need a backwater valve in a basement bathroom?

If your home is in a flood-prone area or the fixture sits below the upstream manhole, a backwater valve can prevent sewage backflow. Check local code and talk with a licensed plumber about site-specific risks.

6) What finish materials work best in wet rooms?

Slip-resistant porcelain tile, epoxy grout, and waterproof backer boards are reliable choices. Use a continuous membrane and detail corners, niches, and penetrations with compatible tapes and sealants.

7) How important is venting to drainage performance?

Venting protects trap seals and prevents siphonage, which keeps odors out and flow consistent. Poor venting can mimic a clog, causing slow drainage and gurgling noises even when pipes are clear.

8) What’s a realistic timeline and cost for drainage upgrades?

For a standard small bath remodel, expect 2–4 weeks depending on structural changes and lead times. Linear drains, waterproofing, and rerouting vents or slopes add cost but pay off in durability and daily ease.
