I’ve redesigned dozens of compact baths, and bathroom floor drain design is always the unsung hero. This year, barrier-free wet rooms, tile-in grates, and low-profile linear drains are trending hard—partly because they look clean, and mostly because they actually work. As a small-space designer, I’ve learned that tight footprints spark big creativity, especially when the goal is fast drainage and zero odors.

In this guide, I’ll share 5 bathroom floor drain design ideas that I rely on, blending my hands-on experience with code-backed details. You’ll see where a linear drain wins, when a center drain makes sense with large-format tiles, and how odor control hardware saves your mornings. Small spaces demand smarter choices, not compromises—let’s dig in.

[Section: 灵感列表]

Linear drains for barrier-free showers

My Take

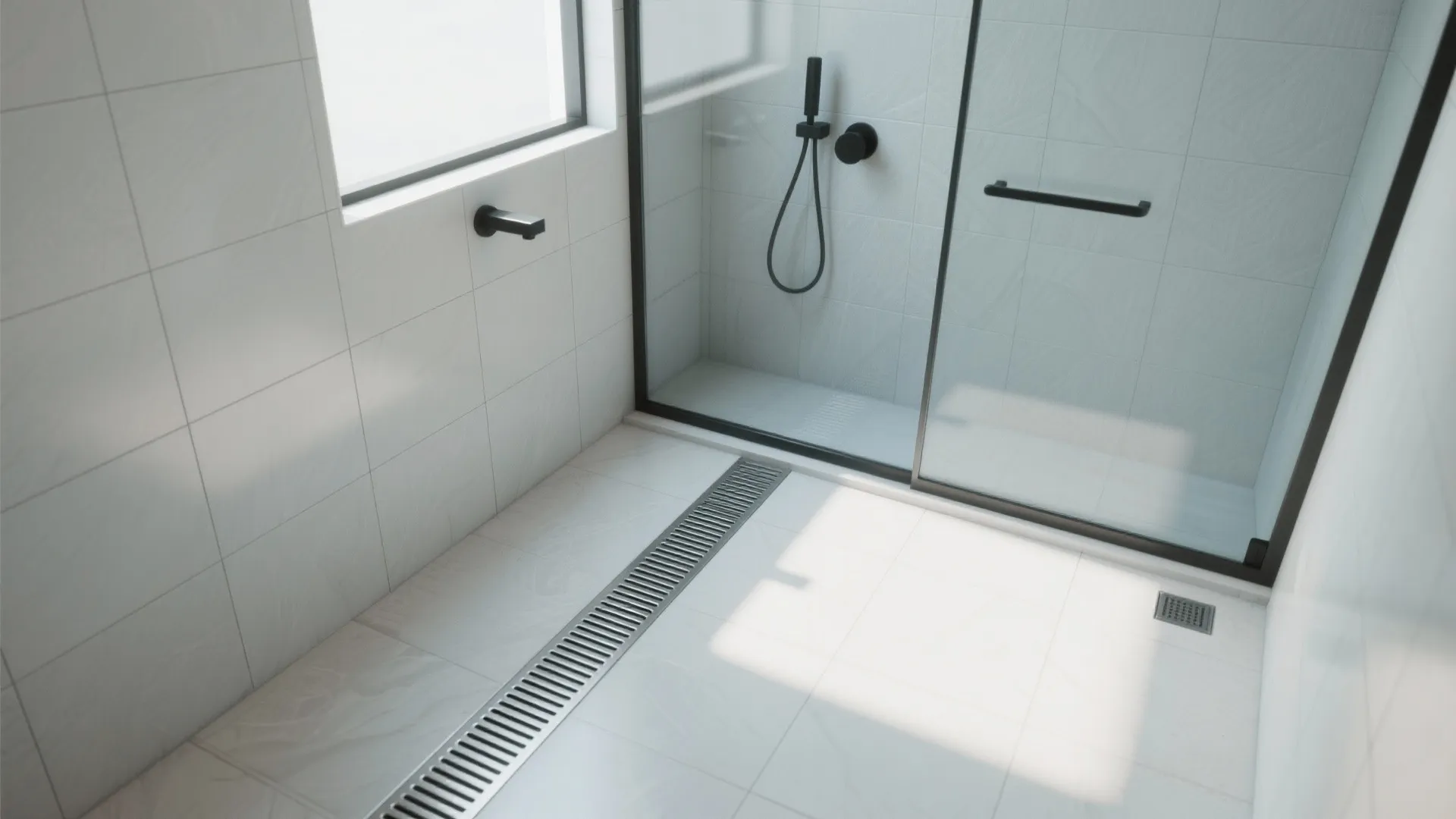

When a client wants a clean, hotel-caliber look—and especially when accessibility is key—I reach for a wall-to-wall linear drain. I’ve used it to create a continuous, curb-free entry where the floor slopes in just one direction, which is a game-changer in tight bathrooms.

Pros

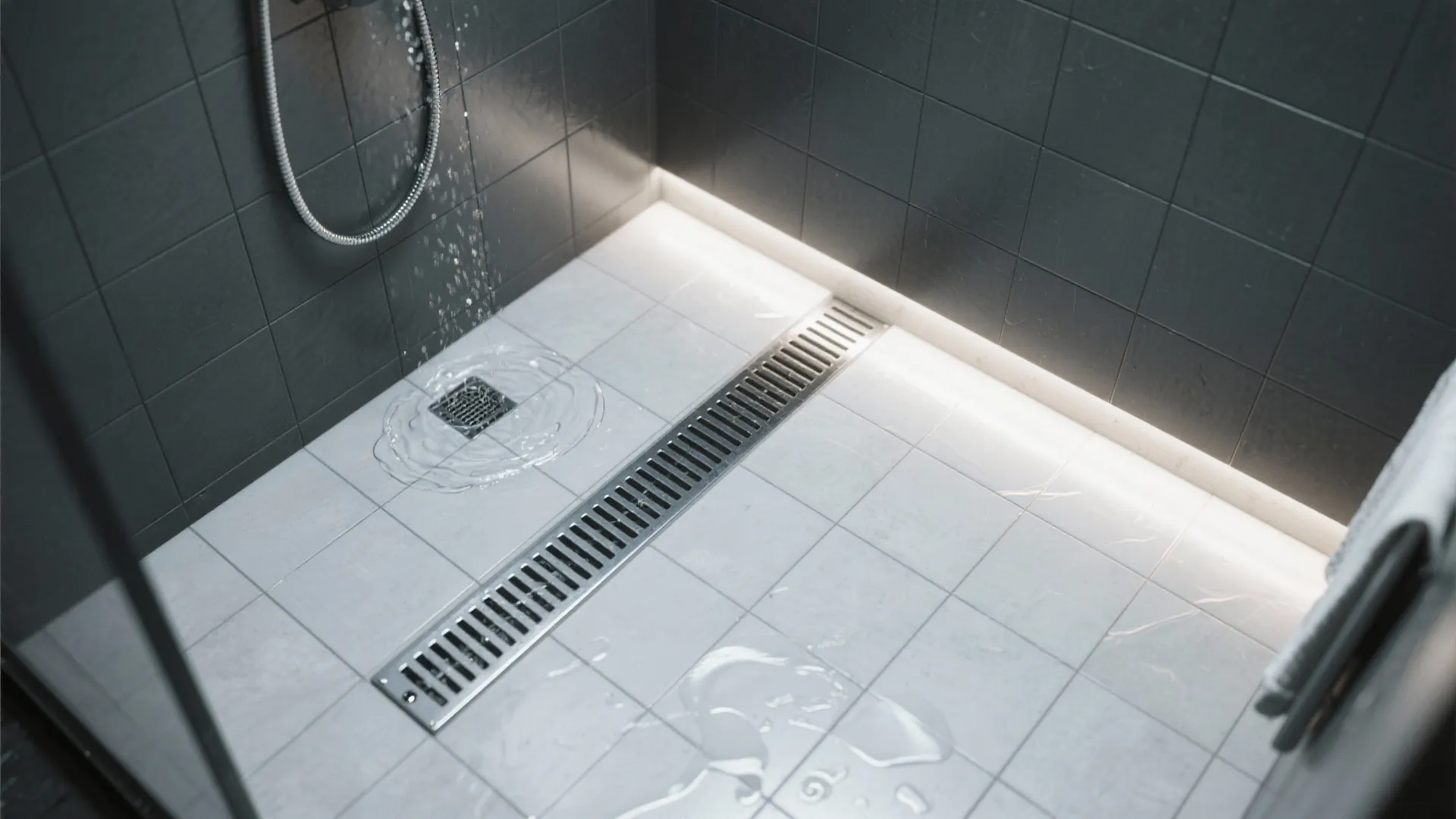

With linear shower drain installation, you only slope the floor one way, so large-format tiles lay flatter and look sleek. It’s ideal for a barrier-free shower drain because the threshold can be minimal or even zero, keeping wheelchairs and strollers moving smoothly. Waterproofing membranes integrate cleanly with bonding-flange linear drains, reducing weak points that can leak.

Cons

Good linear drains cost more than basic round grates, and misaligned slopes can leave a thin ribbon of standing water along the wall. Long grates collect hair; if you skip the hair-catcher basket, you’ll be fishing with a coat hanger. Also, some budget models feel tinny and rattle when you step on them.

Tips / Case / Cost

For code-aligned drainage, I target a 1/4 inch per foot (2%) slope—International Plumbing Code 2021 (IPC 417.5.2) cites a minimum slope for shower floors to drain. In accessibility projects, I keep general slopes at or under 2% except right at the drain, which aligns with 2010 ADA Standards 608.3.1. I often test a layout with a linear drain for a barrier-free shower so clients see the one-way fall before we commit. Stainless steel 316 is my default near the coast; inland projects can often save with 304.

save pin

save pin

Center drains with large-format tiles done right

My Take

Most small bathrooms already have a center drain, and that’s perfectly fine—if you handle the four-way slope with care. I once retiled a 3’x4’ shower using 24” tiles and a smart “diamond” layout to avoid skinny, awkward cuts around the drain.

Pros

Done right, a center shower drain with large-format tiles can look minimal and cost-effective. Pre-slope mortar beds make the tile plane predictable, and mosaics can be introduced in a neat square around the drain to relieve tricky lippage. For homeowners, this is often the best value because you can keep existing plumbing while upgrading surface materials.

Cons

Four-way slopes can create tiny tile “slivers” and visible lippage if your layout isn’t exact. If the pre-slope is uneven, small puddles form at the tile corners—nothing ruins “spa vibes” like soggy grout lines. Also, cutting a perfect circular opening through porcelain can chip unless you use the right diamond bits and lots of water.

Tips / Case / Cost

I like to rotate the tile grid 45 degrees so cuts radiate cleanly around the drain, then frame the drain with a 2” mosaic border to hide micro-height adjustments. The TCNA Handbook recommends a minimum 1/4” per foot slope to the drain and proper waterproofing under tile; I still flood-test pans for 24 hours to be sure. Budget-wise, keep a line item for premium blades and drill bits—saving $30 here can cost a tile run later.

save pin

save pin

Perimeter trench drains to keep the dry zone dry

My Take

In ultra-compact wet rooms, I sometimes place a slim trench drain just outside the shower curtain line or along the door. It’s a quiet trick: water that escapes the shower gets caught before it invades the dry half of the room.

Pros

A perimeter trench drain supports wet room floor slope strategies by dividing the space into wet and dry zones. It doubles as an overflow path during power showers or when a guest accidentally points the handheld wand at the vanity. For families, this “second chance” channel protects wood thresholds and keeps bath mats from becoming semi-permanent sponges. To help clients visualize placement and tile falls, I show photo-realistic 3D bathroom renders that make the slopes and channel locations crystal clear.

Cons

Channels require deeper recesses, which can be tough in slab-on-grade homes without a remodel. The longer the drain, the more you’ll clean—biofilm loves shadowy corners. And if you’re not careful, a trench right at the door can collect grime from shoes and wheelchairs.

Tips / Case / Cost

Keep trench openings narrow with a removable brush insert and a basket for hair and grit. If you need a nearly flush doorway, ADA guidance allows low thresholds (often 1/2” beveled) in accessible routes; pairing that with a shallow channel just inside preserves the dry zone while staying user-friendly. I pitch the surrounding floor at 2% toward the channel and choose grates with at least 50–70 L/min capacity for routine showers.

save pin

save pin

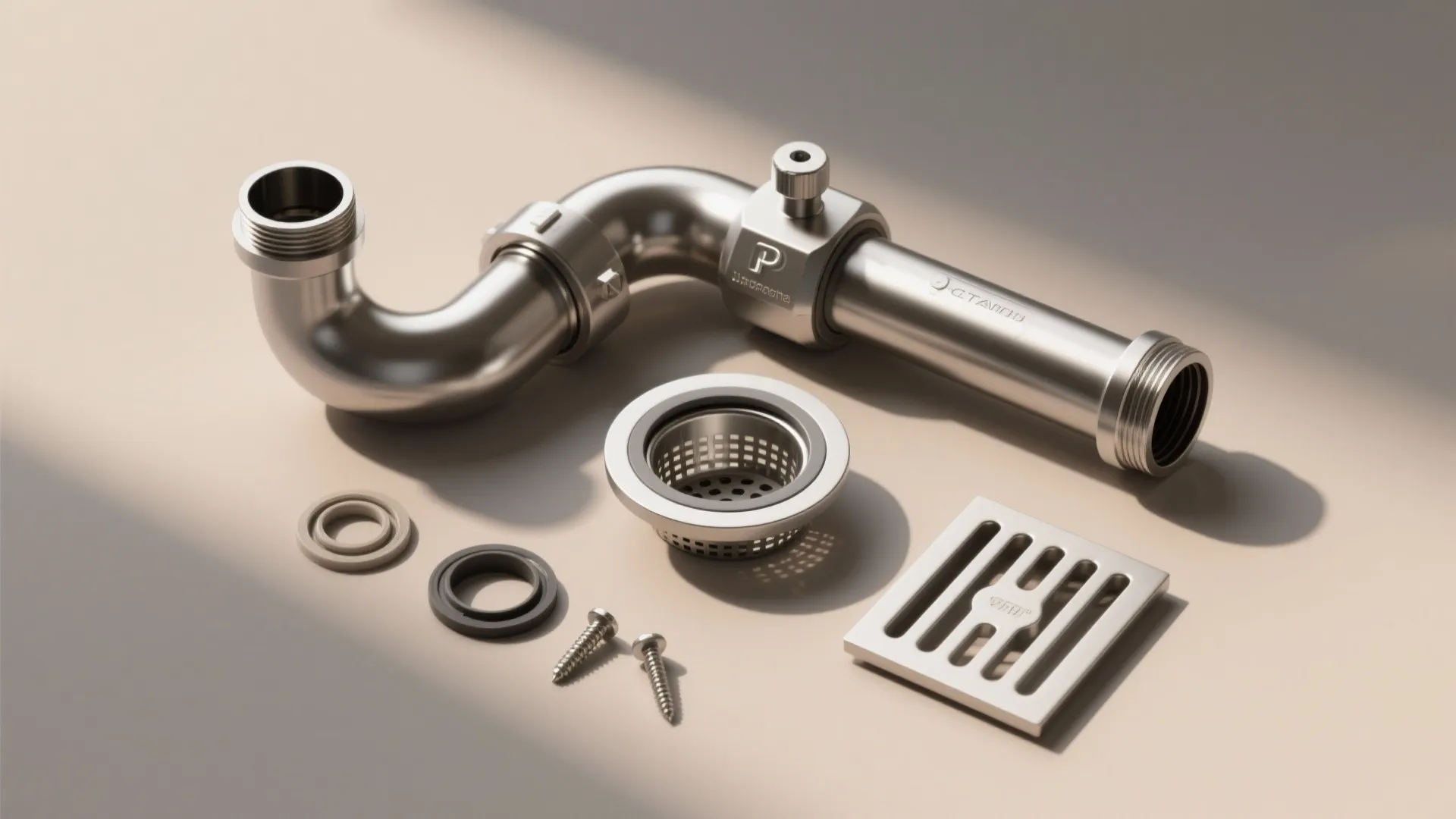

Odor control and easy-clean details you’ll thank later

My Take

Nine times out of ten, “mystery smells” trace back to a dry trap or a tired floor drain with no anti-odor valve. I now specify deep-seal traps, integrated odor flaps, and a removable hair catcher by default. Clients barely notice these parts—until a heat wave hits and there’s no sewer smell.

Pros

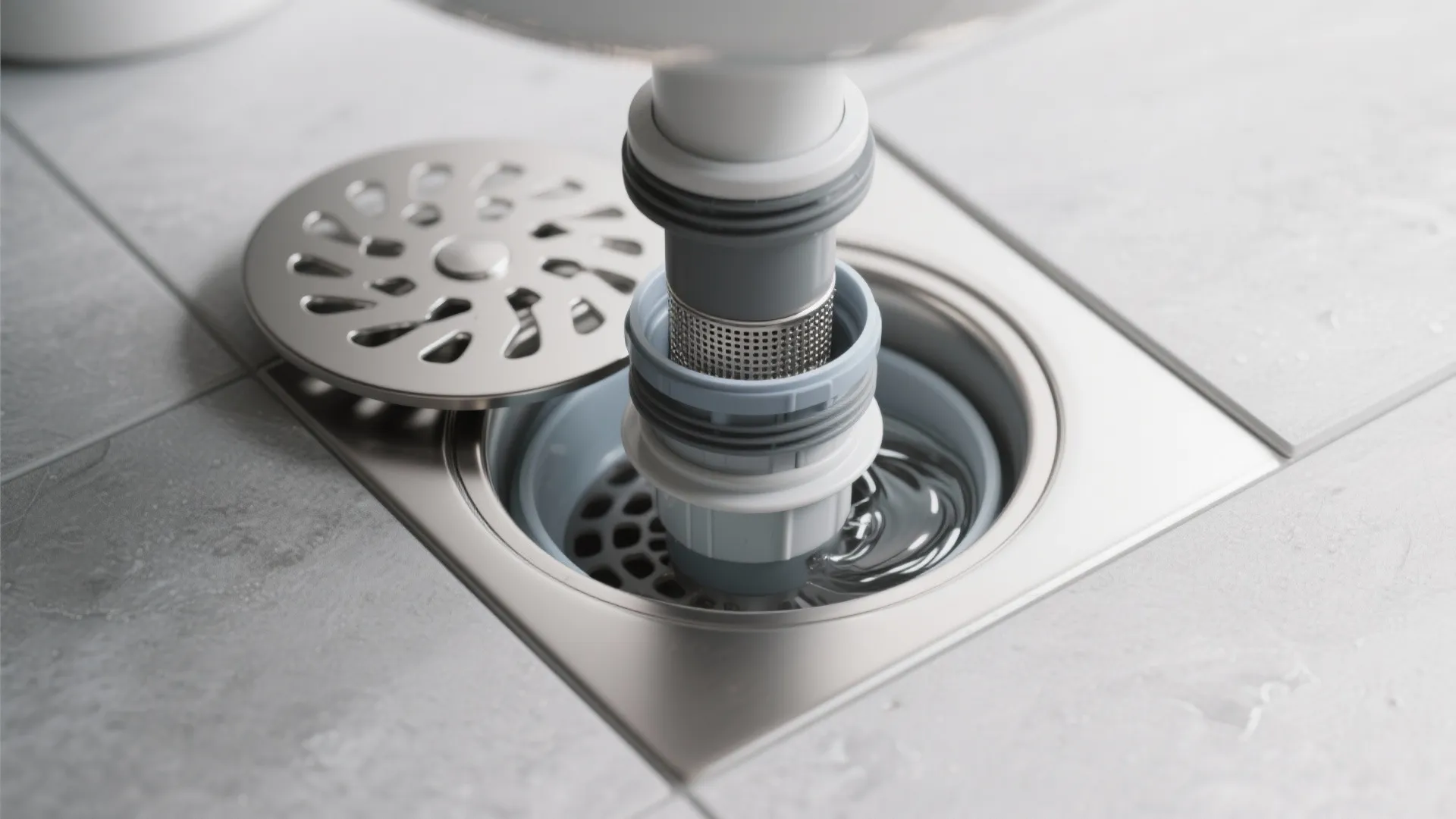

An anti-odor floor drain with a deep-seal trap and a removable hair catcher basket prevents sewer gases while making maintenance painless. Trap seal primers, or mechanical trap seal devices, keep the seal from evaporating in guest baths that sit idle. IPC 1002.4 sets a trap seal depth between 2 and 4 inches, which is a reliable target for long-term odor control.

Cons

Some one-way odor valves can reduce flow rate slightly, which matters with high-output rain heads. Cheap flappers may chatter under negative pressure or fail early, and replacement parts aren’t always universal. Over-spec the wrong mesh on a hair catcher and you’ll be cleaning it every other day.

Tips / Case / Cost

In low-use baths, I like mechanical trap seal devices paired with a standard P-trap to maintain the seal without constant water. If the bathroom doubles as a laundry area, consider a secondary, capped clean-out near the drain for quick snaking. When clients want to compare grate patterns and layouts that hide clean-outs, I mock up AI-generated tile layout options to find a look that’s both discreet and serviceable. Expect $40–$120 for quality odor-control floor drains, and more if you go for premium finishes.

save pin

save pin

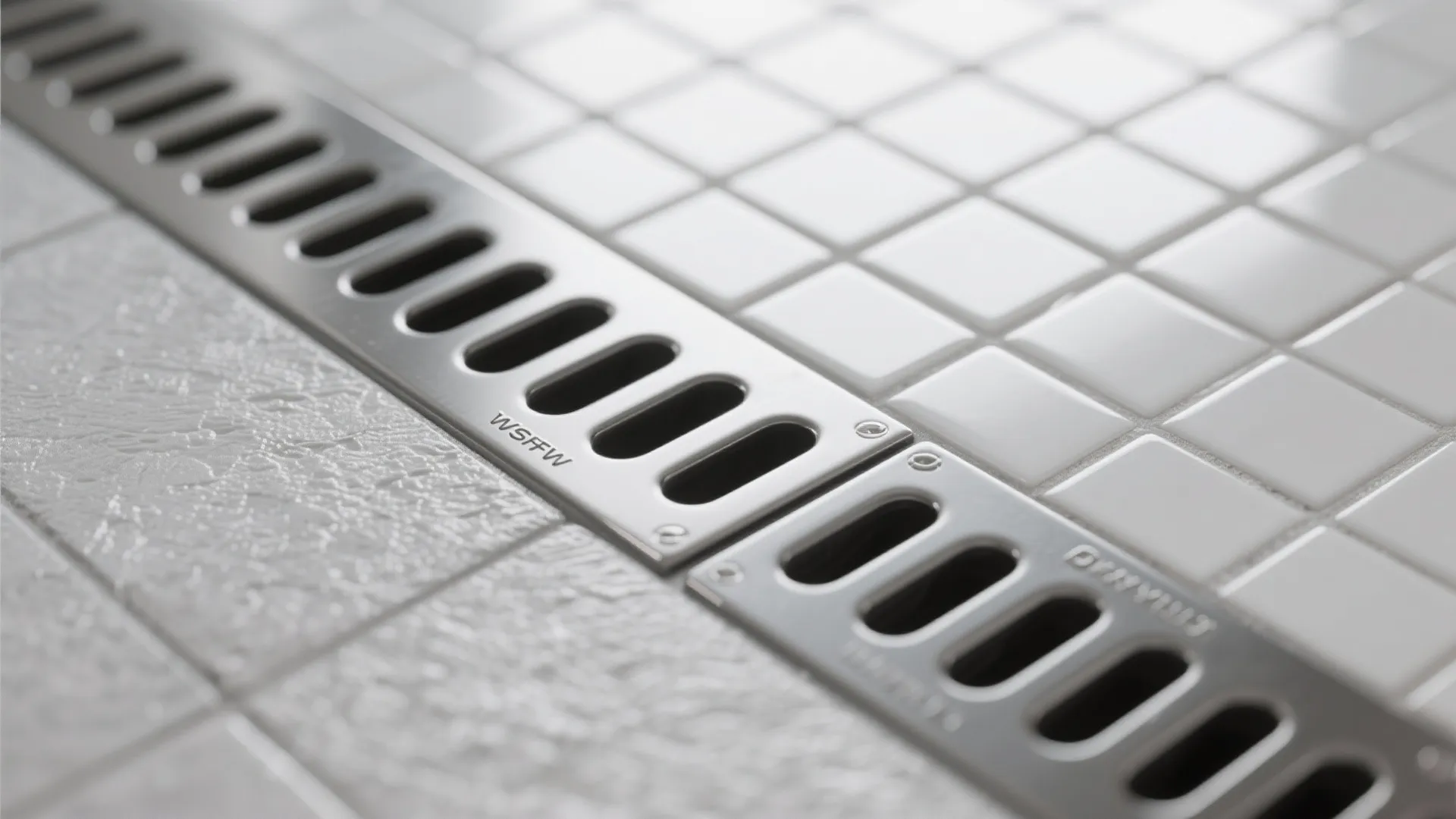

Tile-in grates and materials that elevate the look

My Take

The “disappearing drain” is my favorite party trick in a small bath. A tile-in drain cover lets the floor read as one continuous surface, which visually expands the room. I’ve used it in rental-friendly makeovers to get a luxury vibe without changing the rough plumbing.

Pros

Tile-in drain covers deliver a seamless look while preserving drainage performance when sized correctly. Brushed stainless steel and PVD matte black finishes resist corrosion and complement modern fixtures, and SS316L is superb for coastal humidity. For safety, pairing textured porcelain with a tile-in grate keeps slip resistance high without the look of rubber mats.

Cons

Tile-in grates can have less open area than slotted patterns, so you need to match flow rates to your shower head output. Some finishes scratch if you drop tools, and matte black can show soap scum until you dial in the right cleaner. Oversized tile pieces on the grate may feel heavy; if they shift or rattle, it breaks the “invisible” magic.

Tips / Case / Cost

Check the drain’s published flow capacity (L/min) against your total shower flow; two 2.0 gpm heads need roughly 15+ L/min capacity to stay comfortable. Use epoxy grout in the wettest zone for stain resistance, and keep edges micro-beveled around the grate for barefoot comfort. Material-wise, SS316L for coastal, 304 inland; brass adds warmth in classic baths, but verify lacquer durability in steam-prone spaces.

[Section: 总结]

Smart bathroom floor drain design is the difference between a spa-like routine and a daily mop. In small bathrooms, the right drain isn’t a limitation—it’s where clever design starts. Between single-direction slopes for linear drains, four-way center-drain layouts that respect tile geometry, and odor-control hardware, you can keep water moving and smells away. The IPC and ADA give us clear slope and accessibility boundaries, and sticking to them pays off in both comfort and resale.

Which of these five ideas would you try first—linear elegance, a tuned center drain, a perimeter trench, stealthy odor control, or a tile-in “invisible” finish?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What’s the ideal slope for bathroom floor drain design?

For tiled showers, I aim for 1/4 inch per foot (about 2%) toward the drain. The International Plumbing Code (2021 IPC 417.5.2) requires shower floors to slope to the drain, and staying near 2% balances drainage with comfort.

2) Linear drain vs. center drain—how do I choose?

Go linear if you want a barrier-free shower and large-format tiles with a single-direction slope. Choose center if you’re keeping existing plumbing and want a budget-friendly upgrade; just plan a precise four-way slope or a mosaic border to handle lippage.

3) Do I need waterproofing under the tile if I have a good drain?

Yes. A bonded waterproofing membrane that ties into the drain body is essential. The TCNA Handbook and ANSI A118/A108 standards outline methods for continuous waterproofing—drains don’t replace membranes; they work with them.

4) How do I stop sewer smells from the bathroom floor drain?

Keep a proper trap seal (IPC 1002.4 specifies 2–4 inches) and consider an anti-odor floor drain or a mechanical trap seal device. If a guest bath sits idle, pour water down the drain monthly or use a trap primer to prevent evaporation.

5) Are tile-in drain covers good for small bathrooms?

Yes. A tile-in drain cover visually “erases” the drain so the floor looks bigger and calmer. Just confirm the grate’s open area supports your shower’s flow, and keep edges micro-beveled for barefoot comfort.

6) What materials hold up best around the drain?

Stainless steel 316L handles coastal humidity and cleaning agents very well; 304 is fine inland. Porcelain tile with a textured finish offers slip resistance; epoxy grout near the drain resists staining and mildew.

7) Can I keep the floor dry outside a curtain-only shower?

Yes—add a narrow perimeter trench drain just outside the curtain line and pitch the floor 2% toward it. This capture channel protects the dry zone and keeps bath mats from staying damp.

8) What codes should I be aware of for bathroom floor drain design?

Look at the International Plumbing Code (slope and trap seal requirements like IPC 417.5.2 and 1002.4) and the 2010 ADA Standards for slope and thresholds in accessible showers (608.3.1). Always confirm with your local authority having jurisdiction.
