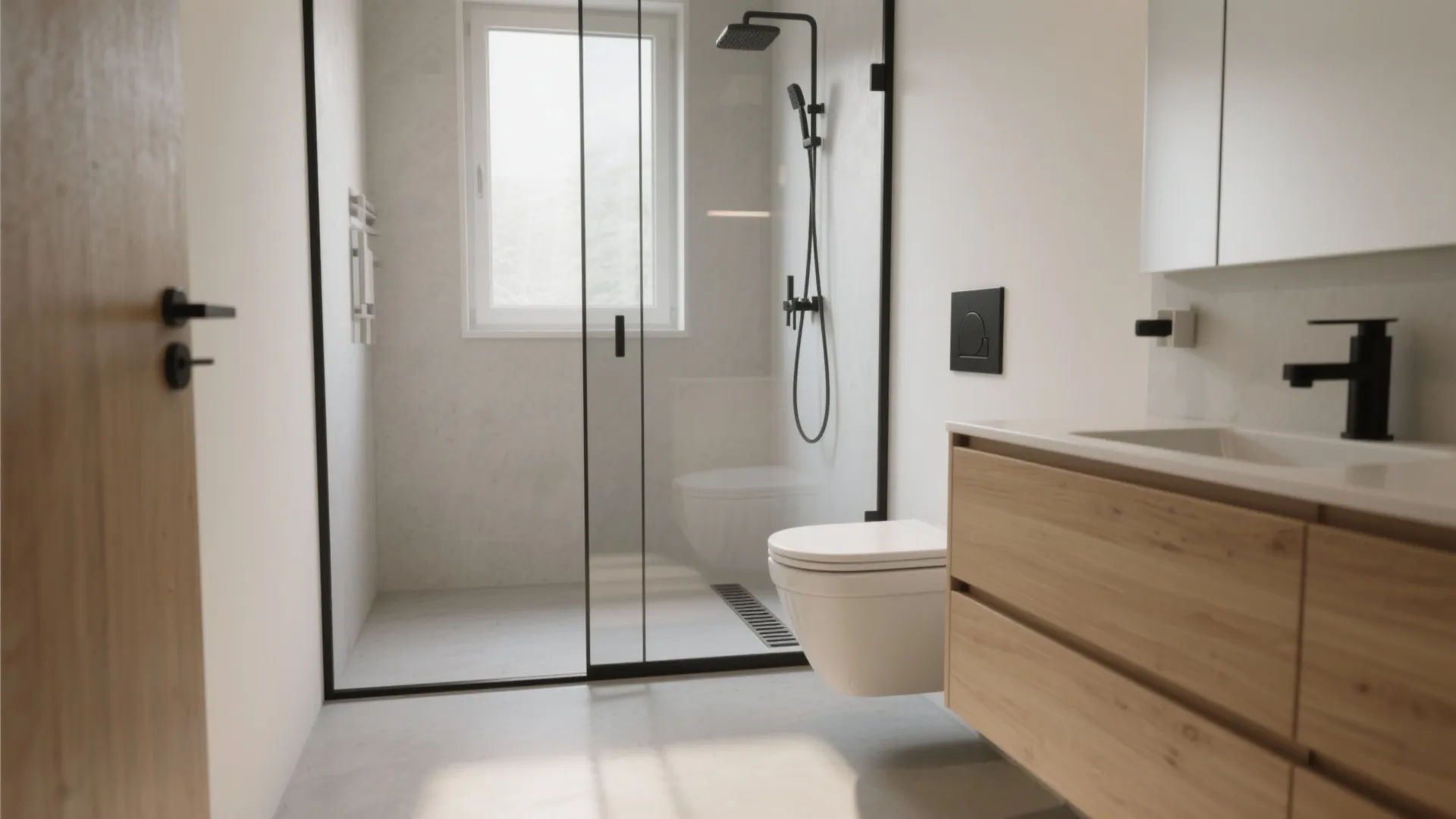

5 Bathroom Pan Design Ideas That Maximize Space: A senior interior designer’s real-world guide to smarter shower and toilet pans—beautiful, durable, and made for small bathrooms.

[Section: Introduction]

Trends in bathroom pan design are moving toward cleaner lines, seamless drainage, and universally accessible details—think curbless showers and wall-hung toilet pans with minimal visual clutter. After 10+ years transforming tiny bathrooms, I’ve learned that small spaces can spark big creativity, especially when the pan (shower base or toilet pan) sets the tone for layout and flow.

In this guide, I’ll share 5 design inspirations grounded in real projects and expert data. I’ll walk you through what worked for me, what to watch out for, and simple ways to balance style, drainage, and maintenance. Let’s make your bathroom pan design both practical and beautiful.

[Section: Inspiration List]

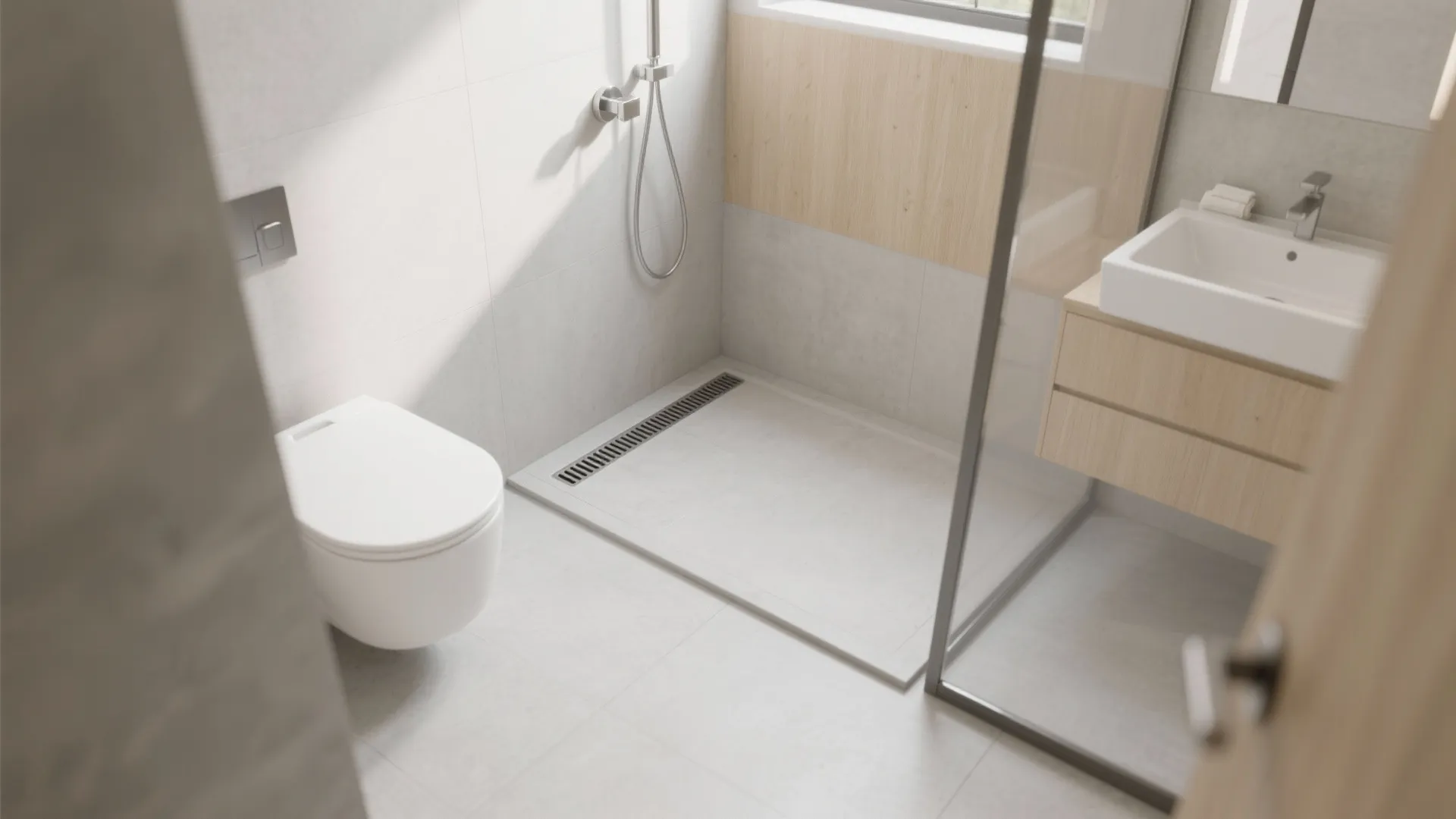

Curbless Shower Pan With a Linear Drain

My Take — On compact renovations, I often start with a fully curbless shower pan to visually expand the floor. A linear drain at the far wall keeps the slope simple and subtle, so the whole bathroom reads as one continuous surface. I’ve even used one-tone microcement to make a 40-square-foot bath look twice as calm.

To quickly test sightlines and drainage zones, I’ll first mock up a curbless shower pan for small bathrooms before committing to materials. Seeing the fall lines and door swings on a plan helps me avoid last-minute surprises and keeps the shower entry truly barrier-free.

Pros — A curbless layout makes a small bathroom feel larger, improves accessibility, and is easier to clean because there’s no step to catch grime. It also supports long-term aging-in-place and universal design goals. For a long-tail win, a linear drain curbless shower pan design for small bathrooms allows a single-plane slope, which keeps large-format tile patterns visually uninterrupted.

Cons — Waterproofing details are less forgiving. If your slope or membrane is off, water can migrate to dry areas. Also, curbless transitions need precise execution at the door or main floor; I’ve seen beautiful tile ruined by a 2 mm lip that still puddles. Expect a little extra coordination among contractor, tiler, and plumber.

Tips / Cost — If you’re retrofitting, plan for recessing the subfloor or using a pre-sloped tray. I budget a modest premium (10–20%) over a standard curb shower because of waterproofing and finish precision. For accessibility, note ADA guidance that thresholds should be minimal and slopes consistent; a 2% slope (about 1/4 inch per foot) is commonly recommended in industry standards.

save pin

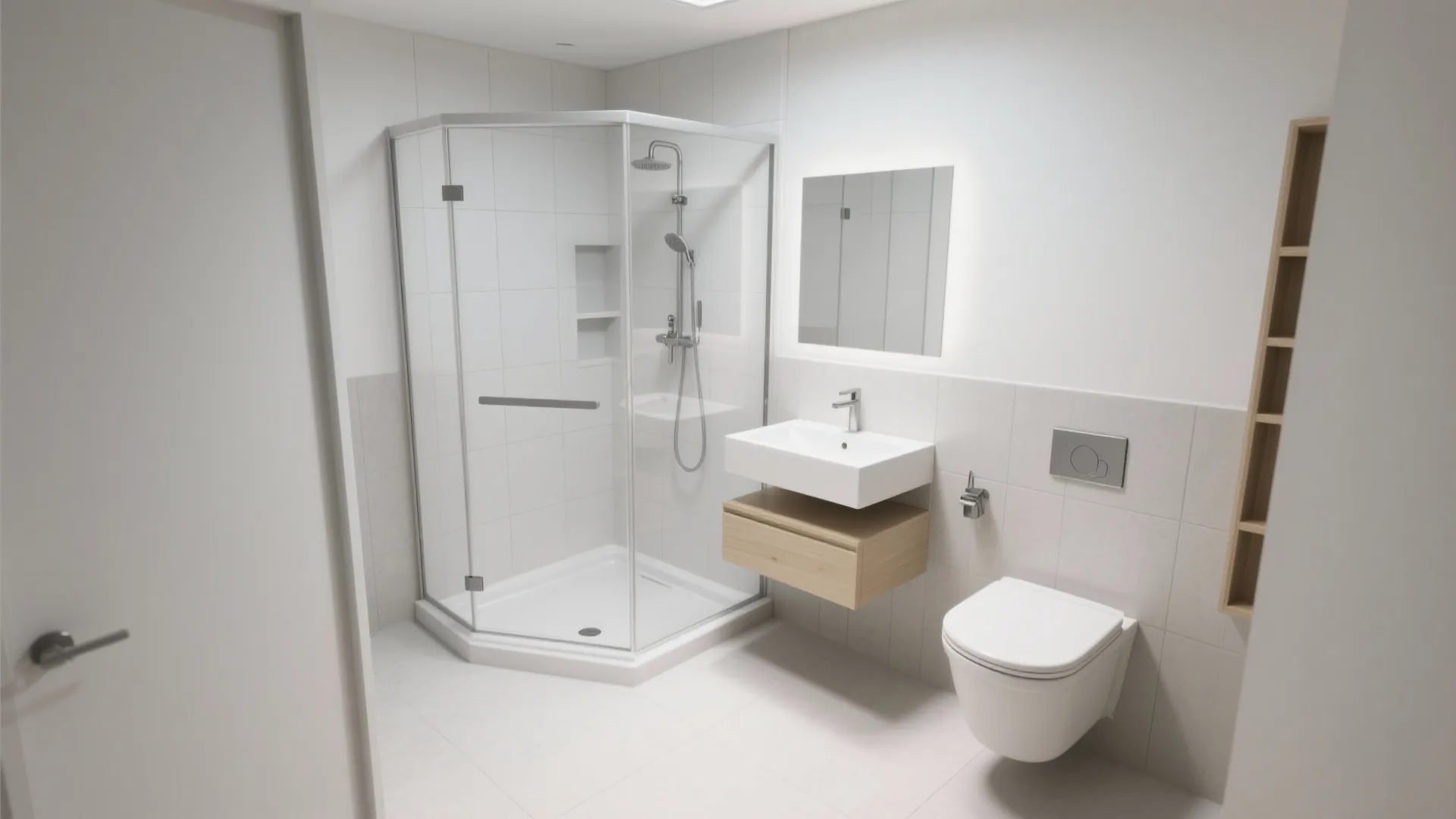

Corner or Neo-Angle Shower Pan to Unlock Elbow Room

My Take — In tight apartments, a corner or neo-angle pan converts dead space into a functional shower while freeing the center of the room. I love pairing a low-profile white resin pan with a clear glass enclosure to keep the footprint airy. It’s a small shift that clears just enough walking space for daily comfort.

Pros — A corner pan reclaims floor area and makes the toilet and vanity feel less cramped. A neo-angle base (with the front corner clipped) grants a wider entry and better circulation. As a long-tail bonus, a corner shower pan design for small bathrooms can align with existing plumbing walls to reduce cost and demo.

Cons — Triangular or clipped corners can complicate door hardware and curtain choices. Tile patterns need thoughtful cuts to avoid a busy look. In very small rooms, a neo-angle might cut into needed storage if the vanity is too close—measure twice before you fall in love with the geometry.

Tips / Case — I aim for at least 36 inches in the shower’s interior where possible (NKBA recommends 36 x 36 inches for comfort), even if code allows smaller. Opt for frameless glass to avoid visual heaviness. If you can, line up a small recessed niche on the plumbing wall to keep bottles off the floor.

save pin

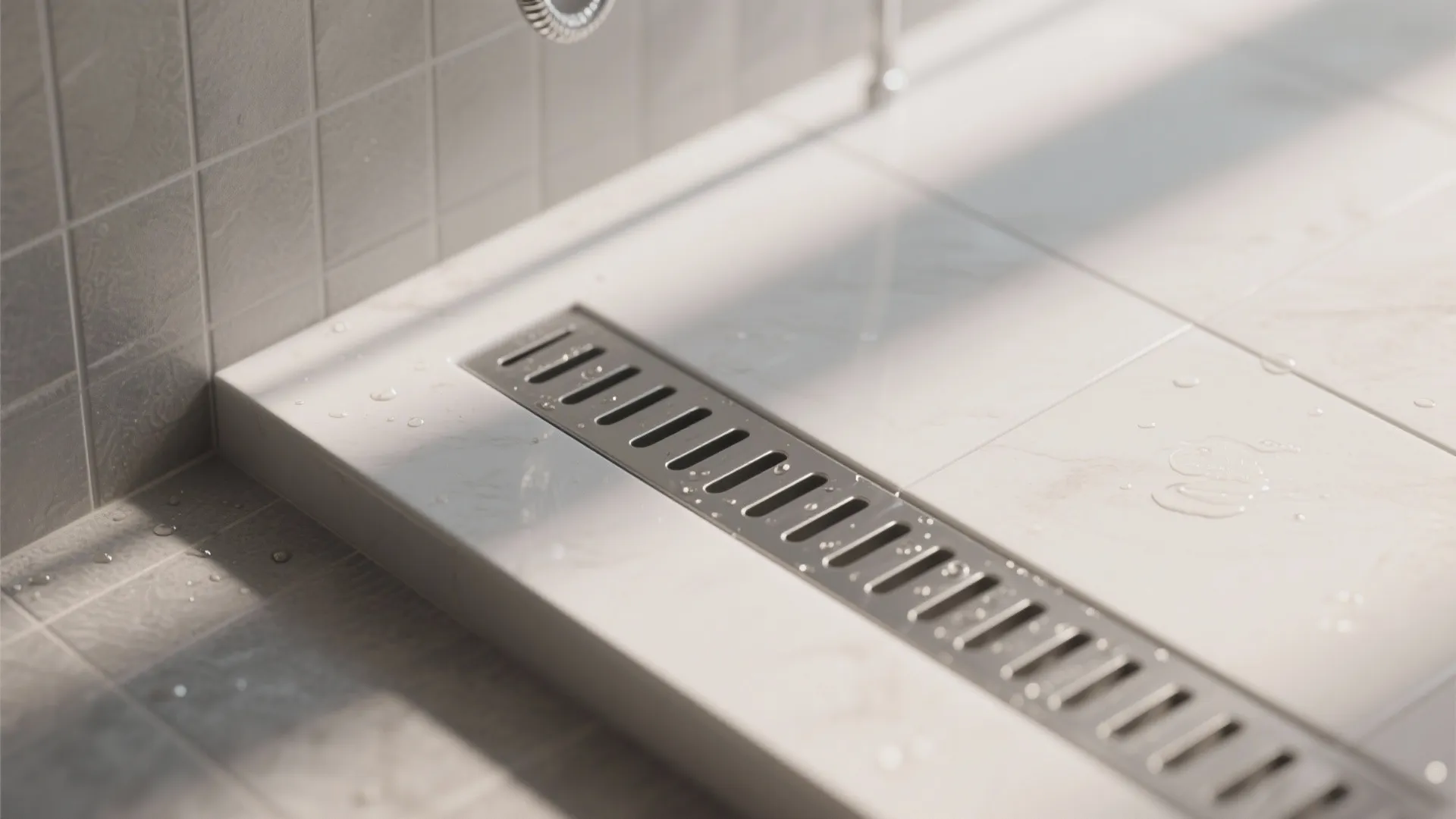

Tileable Shower Base With a Hidden Drain

My Take — When clients want spa vibes, a tileable shower base is my go-to. You get a custom look with continuous floor tile and a discreet drain—almost like the water disappears. In a recent remodel, we used a porcelain slab pan with a narrow slot drain; the bathroom felt like a boutique hotel without bloating the budget.

For visual buy-in, I often share a quick 3D render of a tileable shower base so clients can see grout lines, drain placement, and bench options in context. It speeds up decisions on tile size and texture, which matter a lot for drainage and slip resistance.

Pros — A tileable shower pan design hides the drain while giving you full control over tile style and size. Large-format tiles mean fewer grout joints and an elevated, continuous look. From a performance angle, a properly sloped tileable shower base with a 2% fall maintains drainage while blending into the main floor.

Cons — More moving parts: waterproofing, slopes, and tile cuts must be right. Mosaics offer better grip but add grout maintenance; large tiles look serene but need precise slope choreography. If you love stone, be aware some stones get slippery when wet—choose honed or structured finishes.

Tips / Data — For tile floors subject to water, the ANSI A326.3 standard recommends a wet DCOF of 0.42 or greater for level interior surfaces; in showers and ramps, many pros target even higher friction. For builds with foam pans, confirm compressive strength and compatibility with your membrane. The TCNA Handbook also emphasizes the 1/4 inch per foot slope target for typical shower floors—hold that line for consistent drainage.

save pin

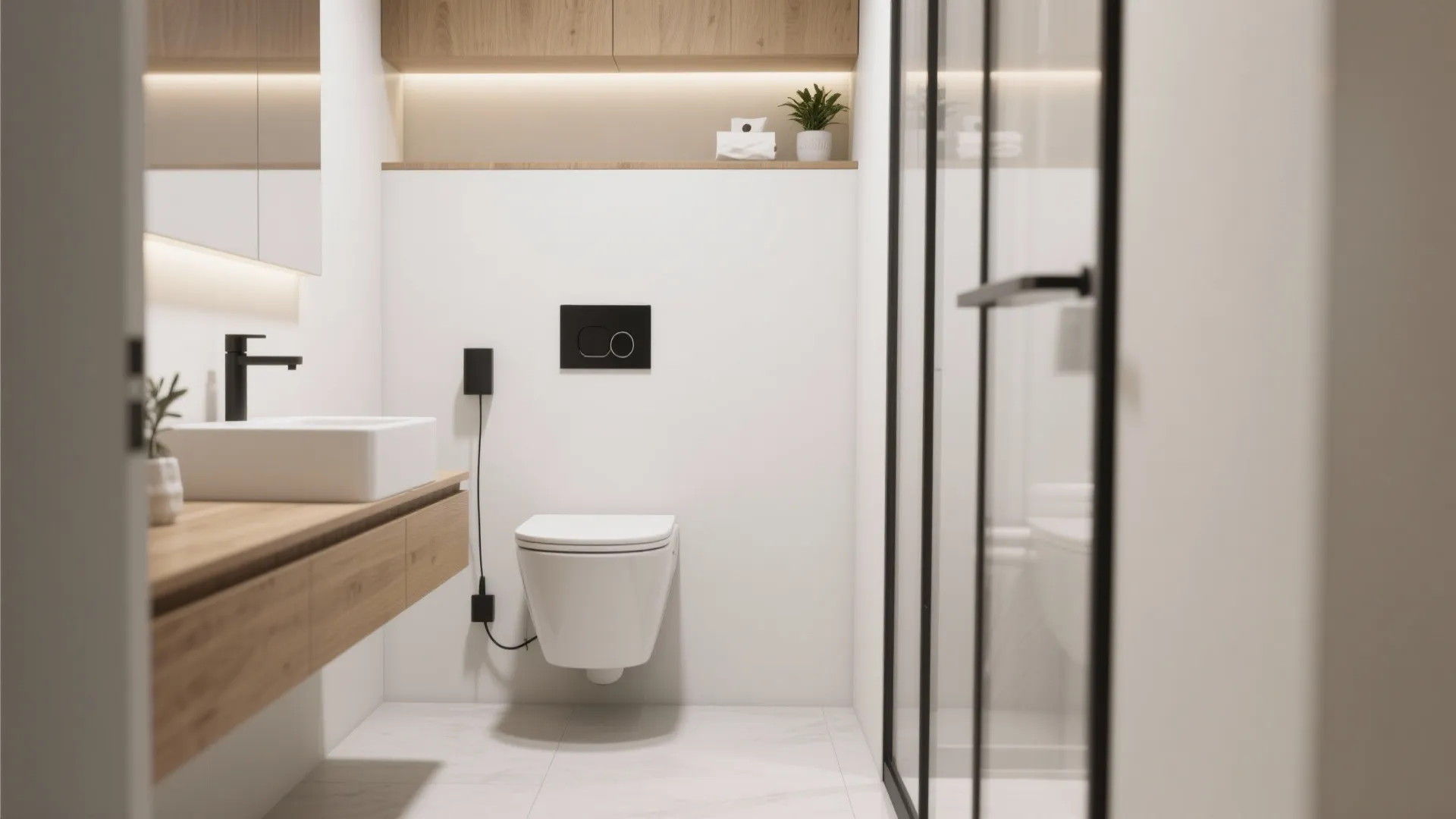

Wall-Hung Toilet Pan to Free the Floor

My Take — A wall-hung toilet pan with an in-wall cistern is my secret weapon for tiny baths. The floating bowl visually lightens the room and makes mopping a breeze. I usually set the rim height at 16–17 inches for standard comfort, or around 17–19 inches for “comfort height” needs.

Pros — A wall-hung toilet pan design opens up floor space, reduces visual clutter, and simplifies cleaning. The in-wall tank also allows a slimmer footprint front to back, great for tight doors and narrow rooms. Long-tail benefit: a wall-hung toilet pan for small bathrooms improves circulation and can align nicely with a linear vanity.

Cons — The carrier frame and rough-in add complexity, and you’ll need adequate wall depth. Access panels must be planned—usually via the flush plate. If you’re remodeling in a building with strict plumbing chases, double-check that venting and drain reroutes are feasible.

Tips / Cost — Budget for a quality carrier frame and quiet-fill valve. Choose a rimless bowl for easier maintenance and improved hygiene. I often integrate a slim shelving niche above the concealed cistern—great for extra TP and a small plant.

save pin

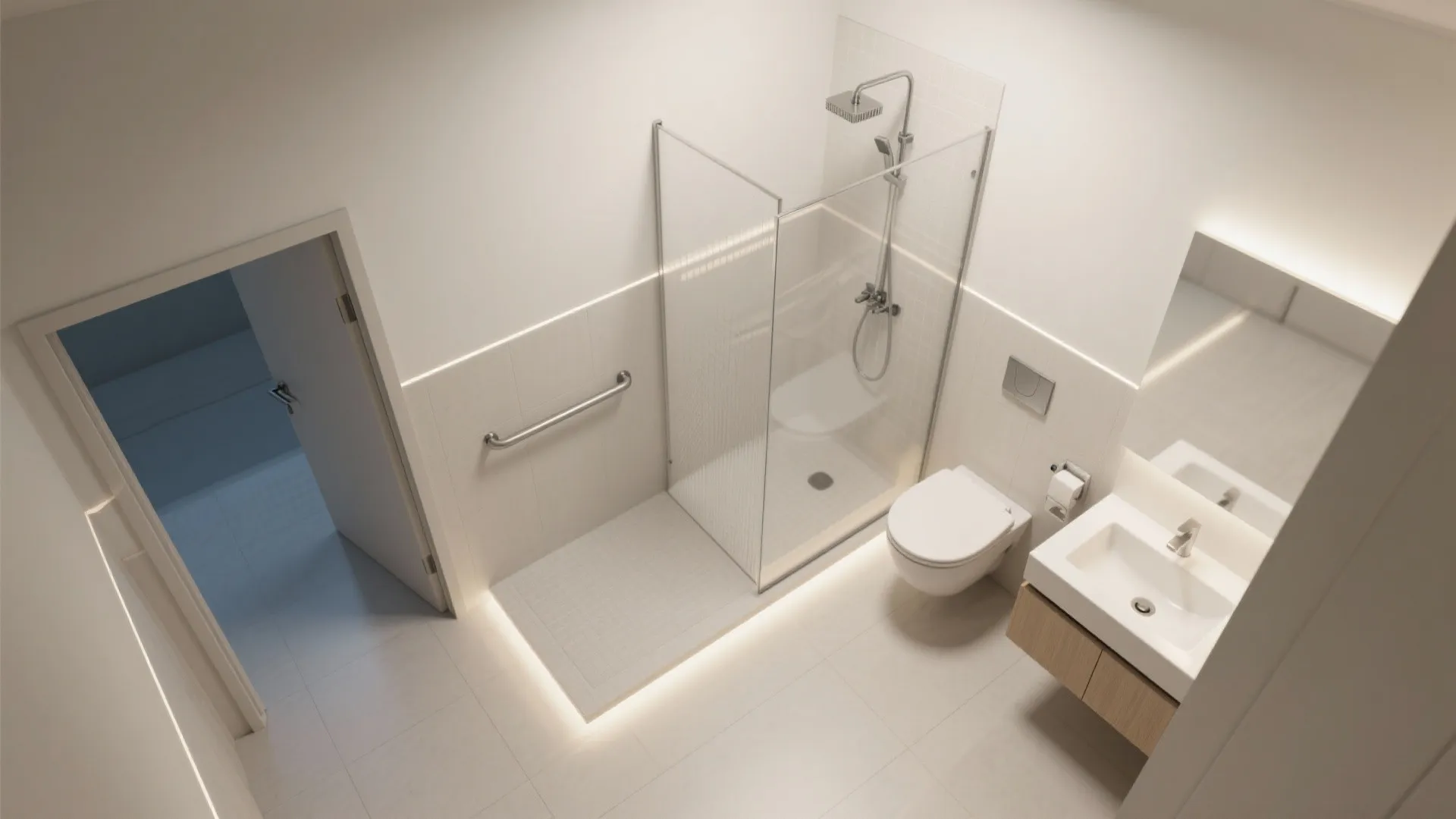

Universal Design: Low Thresholds, Grip, and Smart Layout

My Take — Whether you’re 25 or 75, a safe, intuitive bathroom is always on trend. I love combining a low-threshold shower pan, a grab-bar-ready wall (with blocking), and a slip-resistant tile to future-proof the space. In my last two projects, these choices didn’t change the look—just the peace of mind.

When we map clearances early, we can optimize a compact bathroom layout around the pan, vanity, and door swing. This ensures wheelchair turning or simple maneuvering stays possible even in tight footprints.

Pros — Low or no step at the shower reduces trip hazards, and textured pans improve traction. Proper planning reserves a minimum clear floor area in front of the toilet and shower, improving daily usability. Long-tail keyword win: universal bathroom pan design with low thresholds supports aging-in-place without sacrificing style.

Cons — Grab bar placement and blocking require forethought; it’s not a last-minute add. Slip-resistant textures can feel rough on sensitive feet; a softer mat or a gentle scrub routine helps. And while comfort-height toilet pans are popular, very petite users sometimes prefer standard heights—test in person if you can.

Tips / Data — As a reference, 2010 ADA Standards note low thresholds and clearances for accessible showers (roll-in and transfer types) and limit abrupt level changes. NKBA’s latest guidance recommends generous turning and approach spaces beyond minimum code, and many pros follow ANSI A326.3 for tile traction targets in wet areas. In practice, a 30-inch by 48-inch clear floor space in front of fixtures is a helpful planning baseline for compact rooms.

[Section: Summary]

In short, a small bathroom doesn’t limit you—it invites smarter bathroom pan design. From curbless linear-drain showers to wall-hung toilet pans and tileable bases, the right pan choice unlocks flow, safety, and style. As industry references like NKBA and ANSI A326.3 remind us, thoughtful slopes, clearances, and slip resistance are the backbone of a beautiful bath that works hard.

Which of these five ideas are you most excited to try in your space?

[Section: FAQ]

save pin

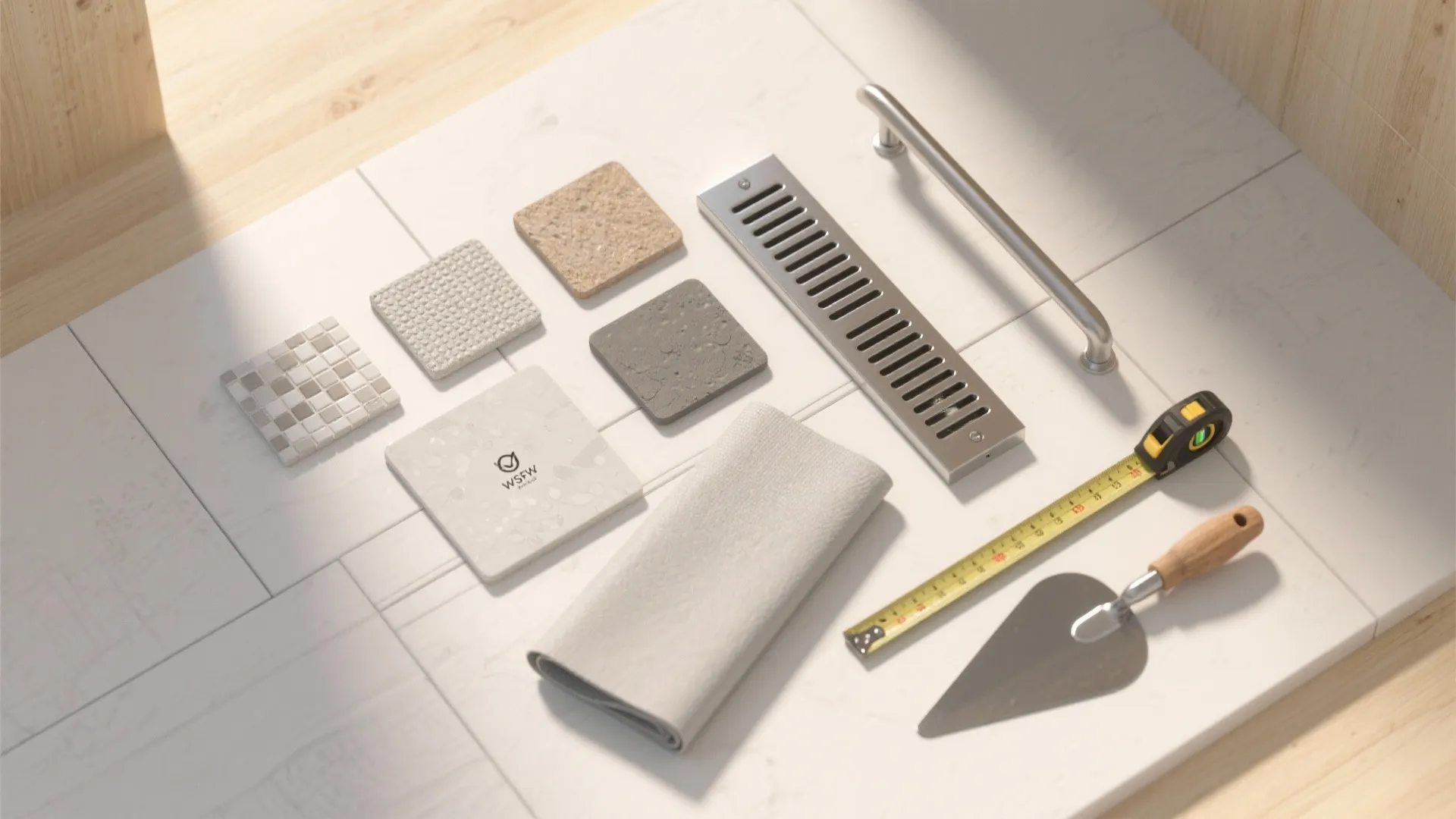

FAQ

1) What is the difference between a shower pan and a tiled shower floor?

A shower pan is the base that directs water to the drain—either a preformed tray (acrylic, resin, fiberglass) or a mortar bed. A tiled shower floor uses a waterproofed pan underneath but finishes the surface with tile for a custom look.

2) Is curbless bathroom pan design right for small bathrooms?

Yes—curbless showers visually open the room and improve accessibility. Just be diligent with waterproofing and maintain a consistent 2% slope to the drain to avoid pooling.

3) How do I choose slip-resistant materials for the shower base?

Look for surfaces that meet wet DCOF targets. According to ANSI A326.3, a dynamic coefficient of friction of 0.42 or greater is recommended for level interior wet floors; in showers, many pros opt for even higher traction.

4) Are wall-hung toilet pans durable enough for everyday use?

Yes, with a rated carrier frame installed to spec, they’re extremely sturdy. They also simplify cleaning and save visual space, making them ideal for compact bathrooms.

5) What are the maintenance trade-offs of a tileable shower base?

Tile offers a bespoke look and flexibility, but grout needs periodic sealing and cleaning. Choose larger tiles or epoxy grout to reduce maintenance, and verify your waterproofing system’s compatibility with the substrate.

6) How much space do I need for a comfortable shower?

While codes vary, NKBA recommends a 36 x 36 inch interior for improved comfort, even if smaller showers are permitted. If you’re very tight on space, a corner or neo-angle pan can preserve central circulation.

7) What slope should a shower pan have?

Industry practice targets about 1/4 inch per foot (2%) toward the drain for reliable drainage. This aligns with common tile and plumbing standards referenced in the TCNA Handbook and building codes.

8) How can I plan bathroom pan design for aging in place?

Combine a low-threshold or curbless shower pan, slip-resistant surfaces, and blocking for future grab bars. ADA-aligned clearances and gentle transitions make everyday routines safer without compromising on style.
