Bathrooms are getting smarter and sleeker this year—think slimmer profiles, quieter systems, and tasteful reveals—so bathroom pipe design is finally in the spotlight. In tight apartments I’ve remodeled, I’ve even leaned into exposed copper plumbing as a feature when it suits the vibe. Done right, pipes become part of the story instead of a problem you hide at all costs.

I’m a big believer that small spaces spark big creativity. The trade-off is always aesthetics vs. access vs. acoustics—but there’s a sweet spot. Over the last decade, I’ve learned to prioritize serviceability first, then chase quiet and beauty in layers.

In this guide, I’ll share five bathroom pipe design ideas I rely on. I’ll mix personal experience with expert data, including code-backed details where it matters, so you can plan with confidence and avoid the headaches I’ve seen on site.

[Section: 灵感列表]

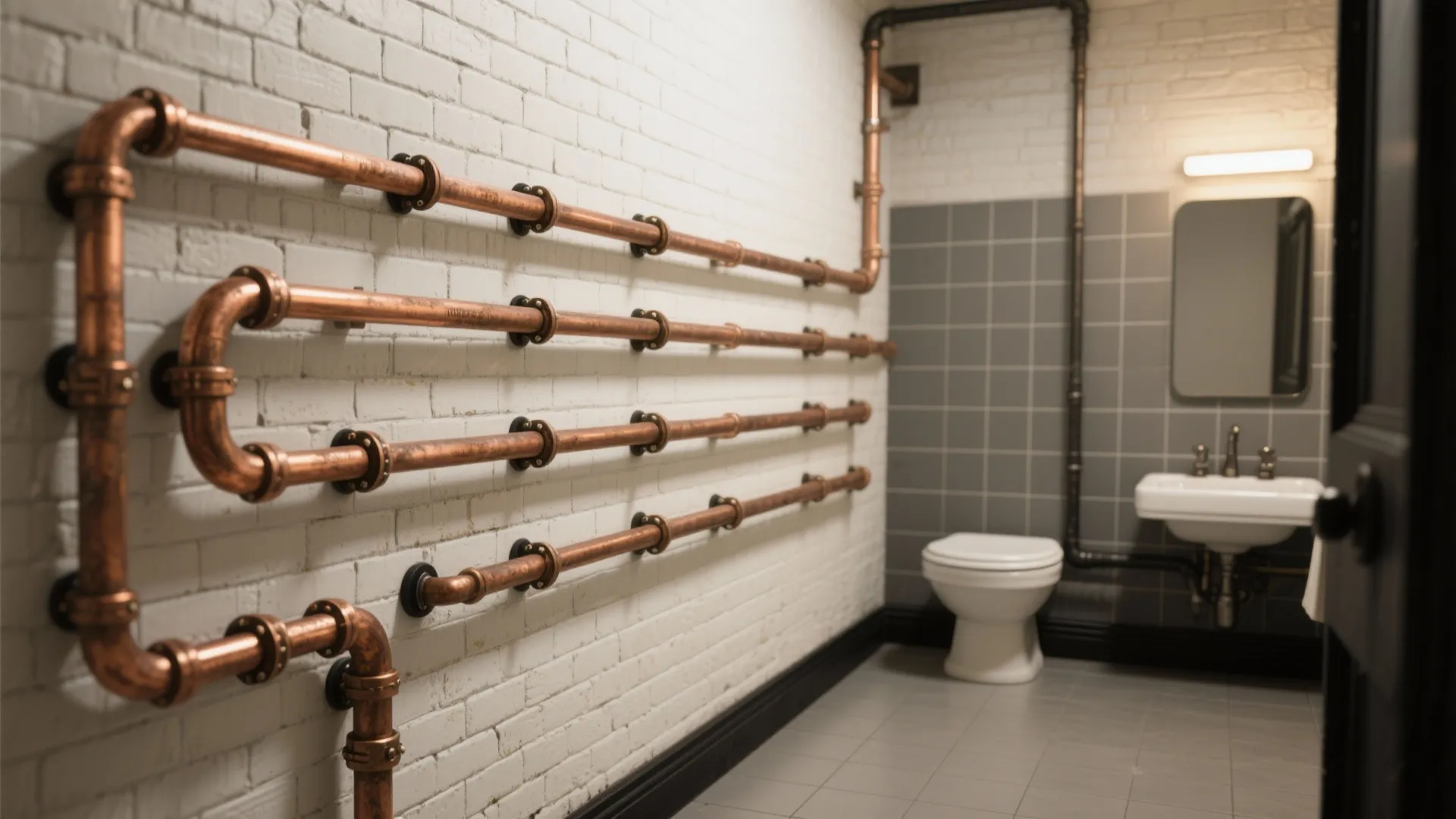

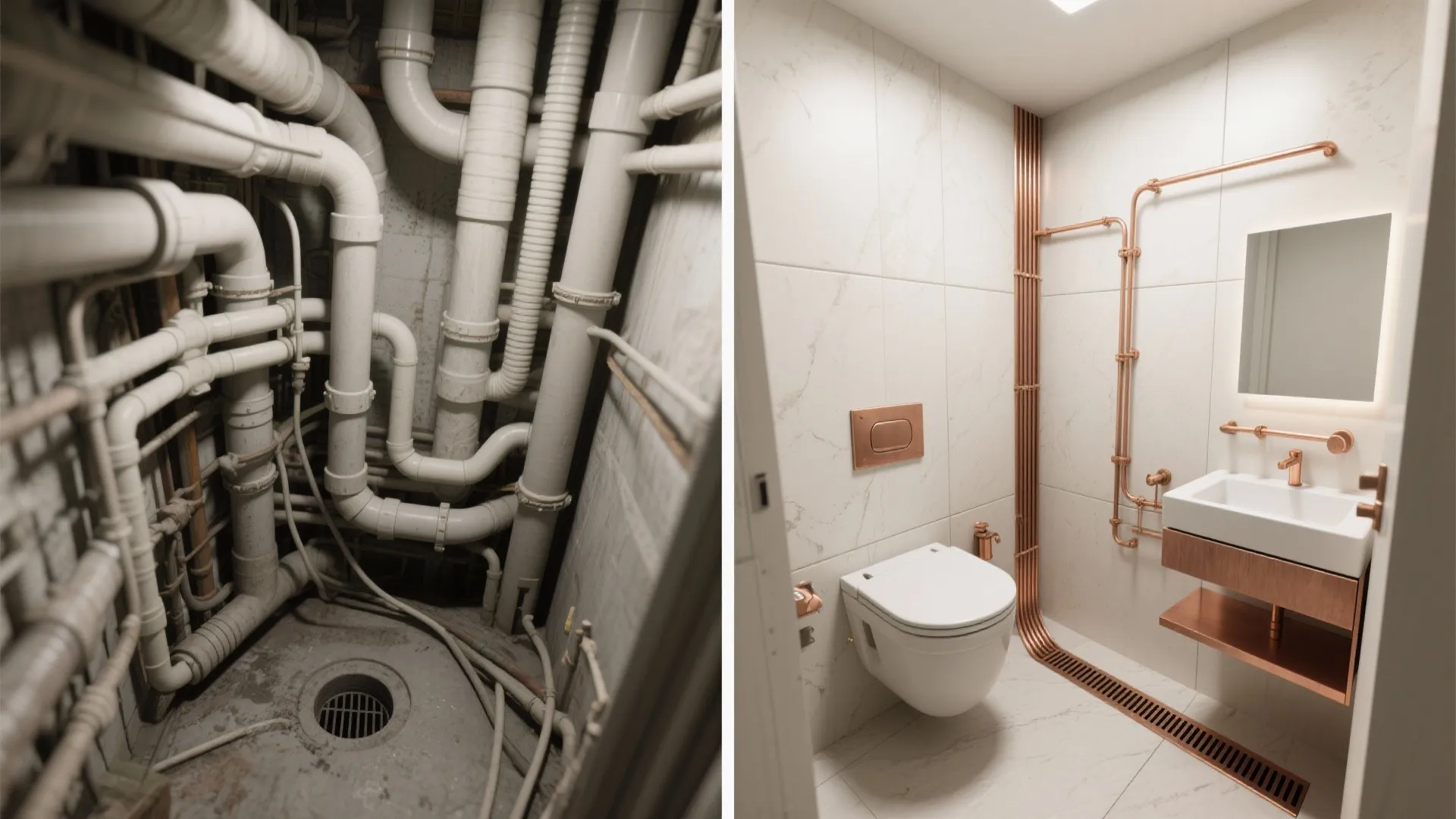

Exposed piping with purpose

My Take — In a prewar loft, I once ran a new shower line along a painted brick wall using copper with natural patina. It turned a constraint into a focal line that guests actually complimented. When you keep the runs neat and orthogonal, exposed bathroom plumbing reads intentional, not improvised.

Pros — It preserves wall depth and avoids a bulky chase in a small footprint, a real win for tiny baths. With a clean bathroom pipe layout—tight clips, aligned tees, and consistent spacing—you get quick leak detection and easy maintenance. It also supports long-tail needs like “exposed bathroom plumbing ideas” for industrial interiors without sacrificing function.

Cons — Surface runs can add visual clutter if they crisscross or snake around obstacles. You’ll also hear water flow more, especially on high-pressure lines, and you’ll need to be diligent about thermal expansion noise. In coastal zones, corrosion protection becomes a full-time hobby.

Tips / Case / Cost — Keep lines parallel and 90°; use matching finishes (copper or black steel for an industrial tone). Budget for premium pipe clamps with rubber isolation, and consider a coat of clear lacquer on copper to freeze the patina. Expect a modest labor bump for precision clipping and alignment.

save pin

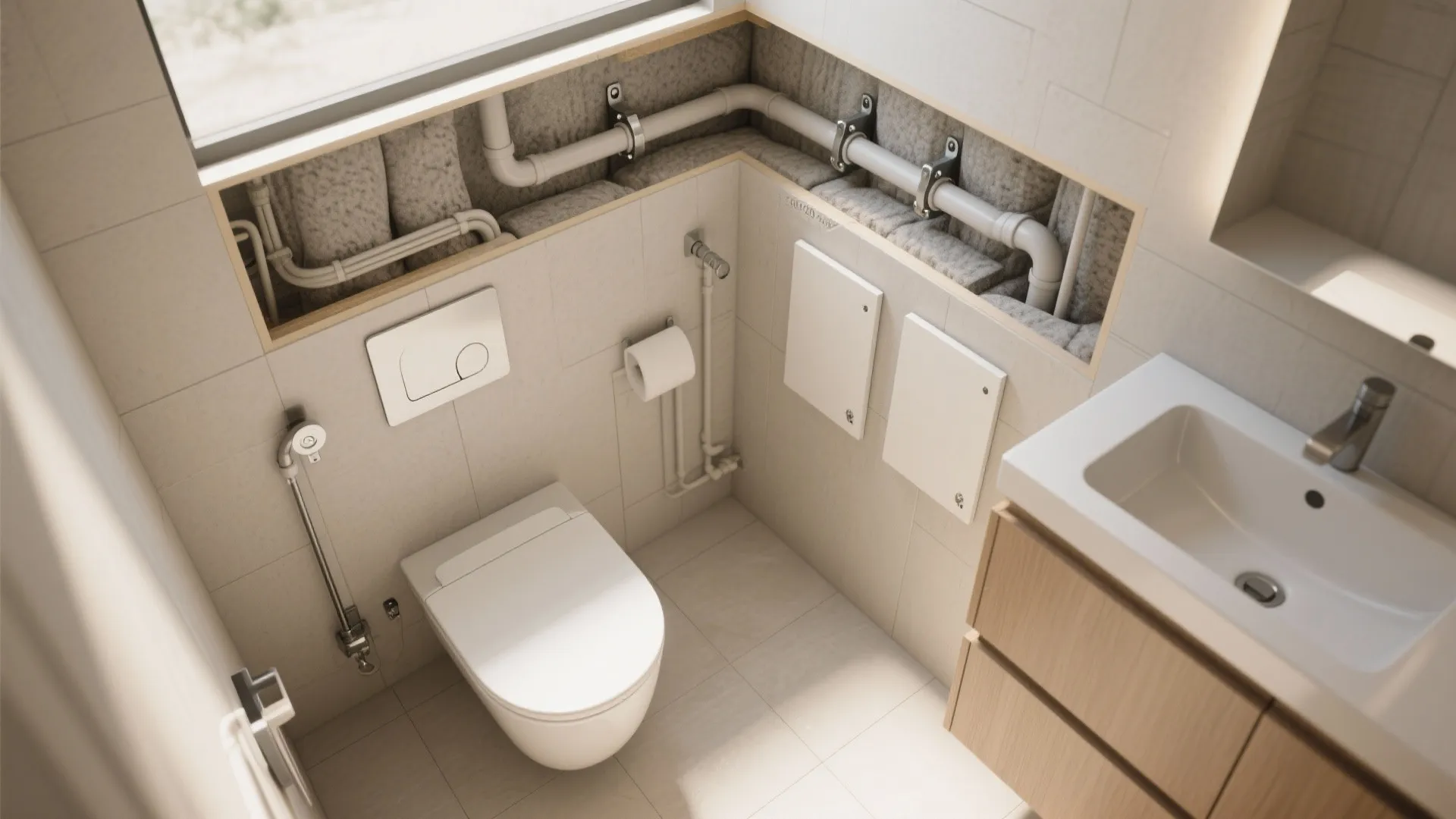

The quiet wet wall: concealed chase with access

My Take — Most of my renovations land here: a 120–150 mm (5–6 inch) wet wall that hides supply and drainage, with properly placed access panels. I’ve had clients tell me, “I can’t believe how quiet the flush is now,” which is the best review a designer-plumber duo can get.

Pros — A dedicated wet wall keeps your bathroom pipe design compact, protects structure, and simplifies venting. It lets you add soundproof pipe insulation and decouple brackets so you tame drips, hammer, and stack noise. It also future-proofs for upgrades like a bidet spray, a wall-hung WC, or a rain head without tearing half the room apart.

Cons — You lose a bit of room width, which can feel precious in a city studio. Hidden lines without access panels are a gamble; you save a centimeter but pay in panic later. If the chase isn’t continuous, you may end up with awkward doglegs that slow drainage and make cleaning cameras cry.

Tips / Case / Cost — Center the wet wall on your main fixtures (WC + vanity + shower) to minimize crossing. Use two discreet access points: one behind the WC (cistern and shutoffs) and one at the vanity base (angle stops and cleanout). Add mineral wool inside the chase for noise; a small premium now buys long-term peace.

save pin

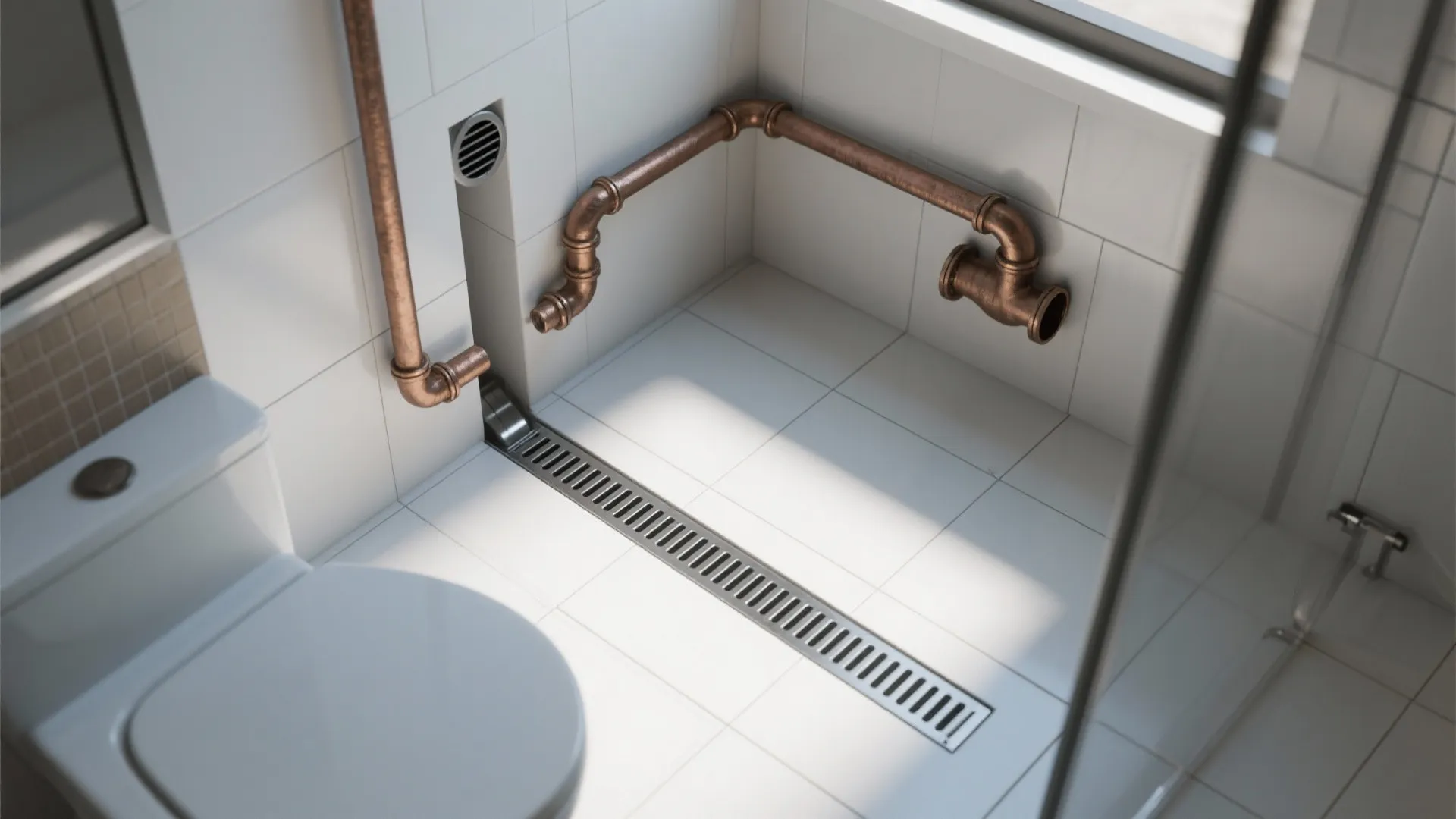

Code-smart slopes and vents for small baths

My Take — When space is tight, the real magic is in slope math and venting strategy. I’ve watched jobs go from endless clogs to flawless flow just by correcting falls and trap arm lengths. Nothing feels better than a shower that drains like a whisper.

Pros — Right-sized slopes prevent standing water and biofilm, essential for a compact, low-profile shower pan. Per the International Plumbing Code (IPC 2021 §704.1), most horizontal drainage needs a 2% fall (1/4 inch per foot), which meshes well with linear drains in small rooms. Keeping trap seals per UPC 2021 (§1002; 2–4 inches) and respecting trap arm limits creates a resilient, odor-free system that supports long-tail keywords like “bathroom vent stack design” and “P-trap clearance” for the detail-minded renovator.

Cons — You can overdo slope and create a ski slope floor that feels awkward and looks DIY. Incorrect vent distances can cause siphoning, leading to gurgles or smells—and you often won’t notice until after tiling. Local amendments sometimes tweak national rules, so you can’t work from memory across cities.

Tips / Case / Cost — If the floor build-up is tight, switch to a low-profile trap and a linear drain to spread slope evenly. Design a sound-dampened wall chase for stacks, then keep your branch arms short and straightforward. Expect modest cost for quality drains and traps, but they pay you back in fewer callbacks and a better shower experience.

save pin

Linear drains and low-profile traps

My Take — Linear drains are my go-to in micro-baths because they simplify plane changes. I’ve tucked them against the back wall, pitched the whole floor one way, and kept the room feeling calm and level—no “tent” in the middle of the shower.

Pros — A single-direction slope is easier to tile cleanly in a tiny footprint. You can pair a linear drain with a shallow P-trap to keep floor thickness down, perfect for renovations where you can’t deepen joist bays. It’s also friendlier for barrier-free entries and “wet room” layouts that require consistent pitch and reliable bathroom pipe design to manage splash.

Cons — Budget-wise, linear drains and their flanges cost more than a standard point drain. They demand careful waterproofing and a consistent slope, or hair will collect at the grate edges. The long grate means you’ll notice alignment errors more easily.

Tips / Case / Cost — Aim for a 1–2% slope to the linear drain and test it with a flood test before tiling. Use a removable hair trap and a stainless or PVD finish that coordinates with your trim. Expect an incremental cost (often a few hundred dollars more) that’s worth it for aesthetics and accessibility.

save pin

Future-proof manifolds and serviceability

My Take — In my own apartment, I ran a compact manifold with individual shutoffs inside the vanity toe-kick. I can isolate the shower without killing the sink—pure joy during maintenance. It’s one of those details you can’t see, but you feel it when something goes wrong.

Pros — A trunk-and-branch or home-run manifold keeps supply organized, supports pressure balance, and makes upgrades easy—think adding a spray bidet later. Strategically placed cleanouts in the bathroom pipe layout turn potential disasters into quick fixes. Clear labeling and a simple diagram taped inside the cabinet is the kind of nerdy touch future you will love.

Cons — Manifolds need space, and space is the currency of small baths. More valves mean more cost and more potential points of failure if you cheap out. If the cleanout ends up behind fixed millwork, it’s basically not a cleanout.

Tips / Case / Cost — Place a main cleanout accessible at the vanity or in the WC access panel. Use full-port, quarter-turn shutoffs and avoid hidden compression joints. For multi-family units, remember that walls between apartments often need better acoustics (IBC 2021 §1207 targets STC 50); isolating pipe clamps and resilient mounts help keep your plumbing from broadcasting next door.

save pin

Material mixes: copper, PEX, and no-hub cast iron

My Take — I’m material-agnostic; I pick based on goals. I often combine PEX home runs for quiet supply, copper stubs at the fixtures for clean terminations, and cast iron for the main stack to kill noise. That mix has rescued more than one compact bath from sounding like a utility room.

Pros — Cast iron soil stacks are naturally quieter than PVC, which helps meet multi-family acoustic targets while keeping the look crisp. PEX makes routing easier in small spaces and reduces fittings, which helps long-tail concerns like “fewer joints in bathroom pipe design” and leak risk. Copper where it shows gives you a premium fit-and-finish and durability at the wall plate.

Cons — Mixed materials require proper transitions and compatible fittings—think no-hub couplings and dielectric protection. PEX can expand and tick if not clipped right, and it hates UV. Copper costs more and needs clean, skilled soldering or press work to look the part.

Tips / Case / Cost — Use isolation clamps on PEX runs and maintain straight, well-supported copper stubs at the escutcheons. Where you must transition to cast iron, budget for quality couplings and precise alignment. If you’re also integrating a wall-hung WC, spec a concealed cistern with service hatch so valve access stays painless.

[Section: 总结]

Small bathrooms don’t limit you—they just demand smarter bathroom pipe design. If you prioritize access, code-smart slopes, and acoustic control, you’ll earn both beauty and quiet. For reference, IPC 2021 §704.1’s 2% drain slope is a baseline I return to again and again, and it pairs perfectly with linear drains in compact spaces.

I hope these five ideas give you a clear path, whether you love a sculptural exposed line or a whisper-quiet wet wall with a plan B for maintenance. Which design inspiration are you most tempted to try in your own bath?

[Section: FAQ 常见问题]

save pin

FAQ

Q1: What is the ideal slope for bathroom drains?

A: Most horizontal drains should run at 1/4 inch per foot (about 2%). The International Plumbing Code (IPC 2021 §704.1) sets this as the typical standard to maintain flow without leaving solids behind.

Q2: Is exposed bathroom plumbing a good idea in small spaces?

A: Yes, when it’s orderly and intentional. Exposed runs can save wall depth, simplify maintenance, and add an industrial accent, but use isolation clamps and consistent alignment to avoid noise and visual clutter.

Q3: How do I reduce plumbing noise in a condo bathroom?

A: Build a dedicated wet wall with mineral wool, isolate pipe clamps, and consider cast iron for the main stack. In multi-family buildings, IBC 2021 §1207 targets STC 50 between dwelling units, so decoupling helps you meet acoustic expectations.

Q4: What’s the best trap for a low-profile shower?

A: A shallow P-trap paired with a linear drain often works best in thin assemblies. It spreads the slope evenly and reduces the “speed bump” look that point drains can create in small showers.

Q5: Do I need access panels if everything is concealed?

A: Absolutely. Place a panel near the WC for the cistern and shutoffs, and another at the vanity for angle stops and a cleanout. Lack of access often turns small leaks into big repairs.

Q6: Copper, PEX, or PVC—what should I choose?

A: Mix based on goals: PEX for quiet, flexible supply runs; copper for visible stubs and premium finishes; cast iron or no-hub for quiet stacks. Transitions need proper couplings and attention to expansion and corrosion.

Q7: How close can a vent be to a trap in a small bathroom?

A: It depends on pipe size and code, but the UPC 2021 Table 1002.2 limits trap arm lengths to prevent siphoning. Keep vents close and branch arms short to maintain trap seals and avoid gurgling.

Q8: Can linear drains handle hair and soap scum better?

A: They can, provided you use a removable hair trap and maintain proper slope. Because the grate is long, alignment and waterproofing must be precise, but cleaning is straightforward once set up.
