5 Bathroom Pipe Fitting Design Ideas for Small Homes: Smarter bathroom pipe fitting design that saves space, reduces noise, and makes maintenance easy—rooted in real projects and code-backed best practices.

Trends are moving toward cleaner walls, spa-like finishes, and hidden services, which makes bathroom pipe fitting design more important than ever. In small apartments and compact homes I’ve designed, the right plumbing layout turns tight footprints into calm, easy-to-clean retreats. Small spaces spark the biggest creativity, and over the years I’ve learned how much performance, comfort, and style depend on what’s behind the tile. In this guide, I’ll share 5 bathroom pipe fitting design ideas, blending my project experience with expert data so you can make smart, code-conscious choices.

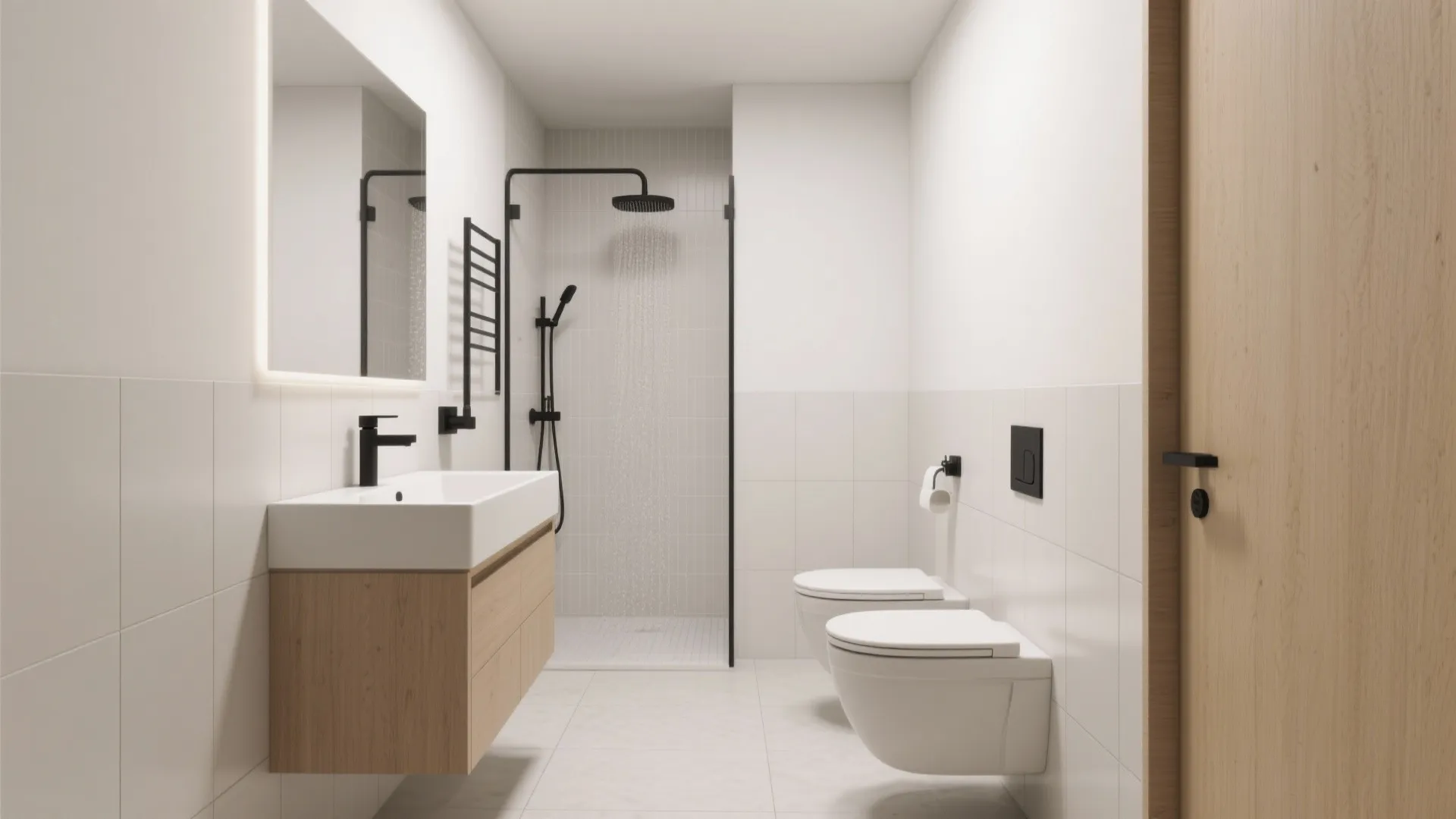

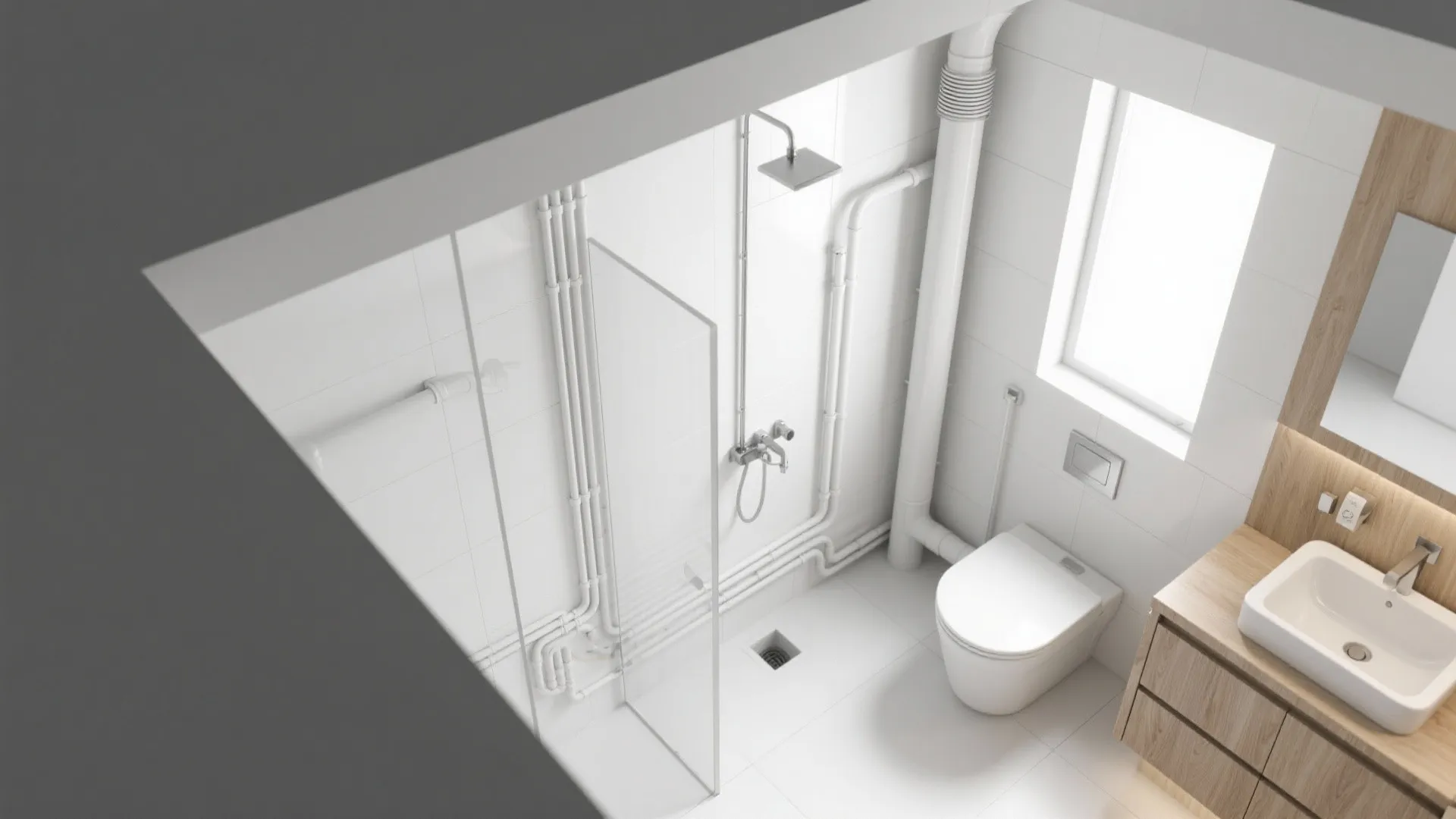

1) The Single Wet Wall: Stack Your Services

My Take

I love starting small bathrooms with a single wet wall—lining up the shower, vanity, and WC along one service spine to minimize runs, fittings, and surprises. In my last 4.6 m² remodel, I shifted the toilet 150 mm to join the vanity and shower drains on the same wall, which cut material costs and future leak points. For many urban apartments, I’ll propose a wet wall strategy for compact bathrooms because it simplifies both design and long-term maintenance.

Pros

- A wet wall bathroom layout reduces chase depth, fittings, and penetrations—key for small bathroom plumbing layout where every millimeter counts.

- Fewer turns and shorter runs generally mean fewer clog-prone spots and less friction loss. If allowed locally, bathroom-group wet venting can further streamline stacks (International Plumbing Code, 2021, §912).

- Budget-friendly: combining services on one wall can cut trades’ hours and open up more wall area for shelving or a towel niche.

Cons

- Not every plan can move the WC; existing stacks or neighbors’ lines may limit where you can place toilets and showers.

- You’ll concentrate noise on one wall; if that wall adjoins a bedroom, invest in acoustic insulation or decoupled studs.

- If a single wall carries everything, future repairs might require careful access planning behind mirrors or removable panels.

Tips / Cost

- Before demolition, trace existing vent and drain paths; camera inspections can save headaches.

- If your shower and vanity trap arms are long, check vent distances to stay code-compliant.

- Cost-wise, I often see 8–15% savings in labor and fittings compared to multi-wall layouts, especially in renovations with tight riser access.

save pin

save pin

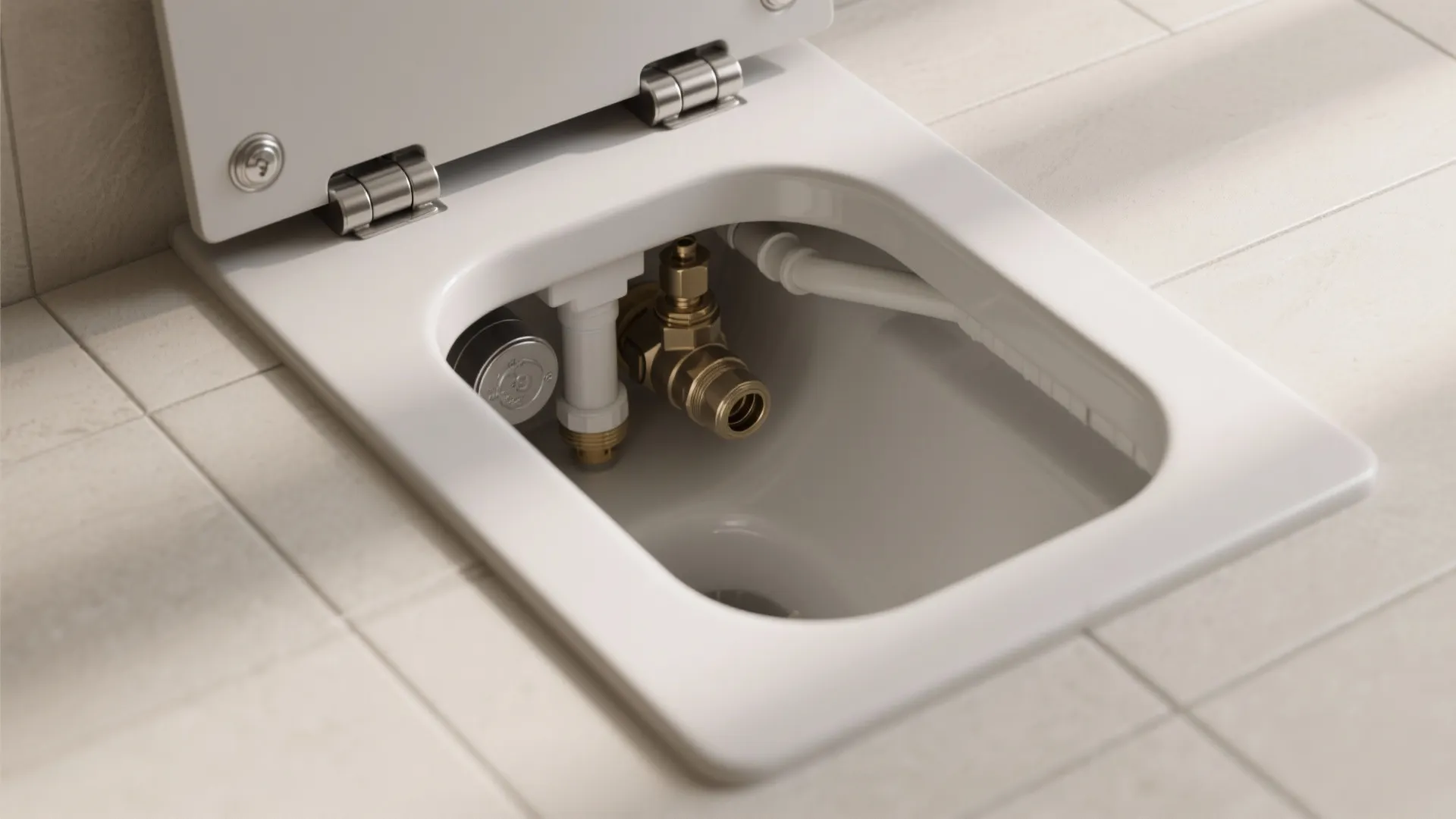

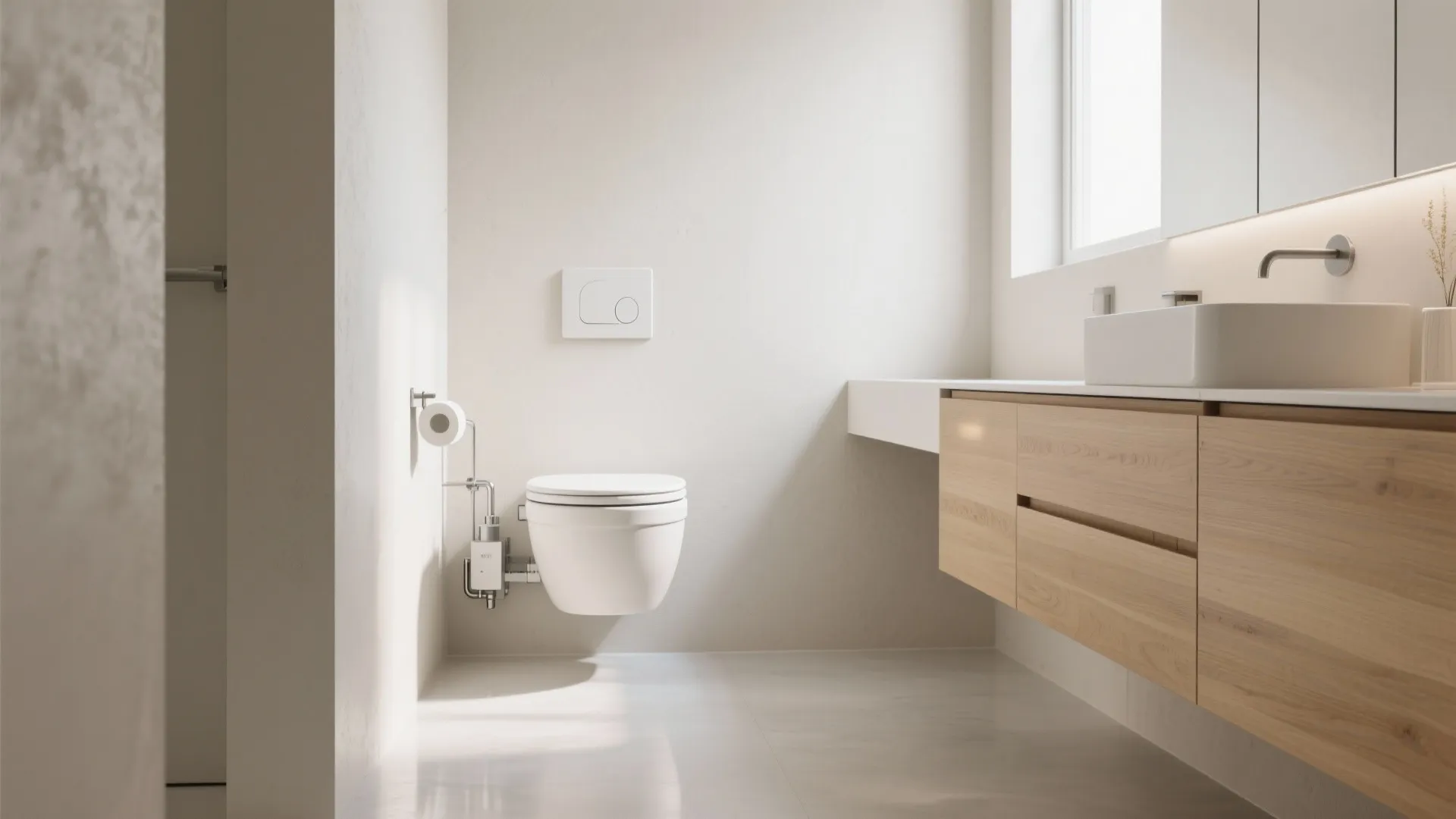

2) Wall-Hung Fixtures with Concealed Carriers

My Take

Wall-hung toilets and vanities are my go-to for micro-baths. The in-wall carrier consolidates fittings in a tight frame, frees floor area, and makes cleaning faster—no more squeezing a mop behind a pedestal. On a recent condo, a concealed cistern plus wall-hung basin bought us 150 mm of visual depth and reduced that cramped feeling.

Pros

- Concealed cistern plumbing cleans up the sightline and cuts visual clutter, which is a small-bathroom superpower.

- A wall-hung toilet carrier often dampens flushing noise, and it lets you set a custom seat height—great for accessibility.

- With a shallow vanity trap and compact P-trap, you keep knee room and gain under-sink storage for cleaners or bins.

Cons

- Carriers add upfront cost and require precise rough-in; structure and wall depth must cooperate.

- You must plan a discrete service opening—typically behind the flush plate—so future valve repairs don’t mean breaking tile.

- If you choose a niche brand, sourcing spare parts years later can be tricky; mainstream systems are safer long-term.

Tips / Case / Cost

- Aim for a 2x6 stud wall (or add furring) to fit the carrier and maintain robust insulation around vent and supply lines.

- Pair a pressure-balancing shower valve with low-flow fixtures to avoid temperature swings if someone flushes.

- Expect carriers to add roughly $300–$1,000 in hardware plus labor, depending on brand and framing complexity.

save pin

save pin

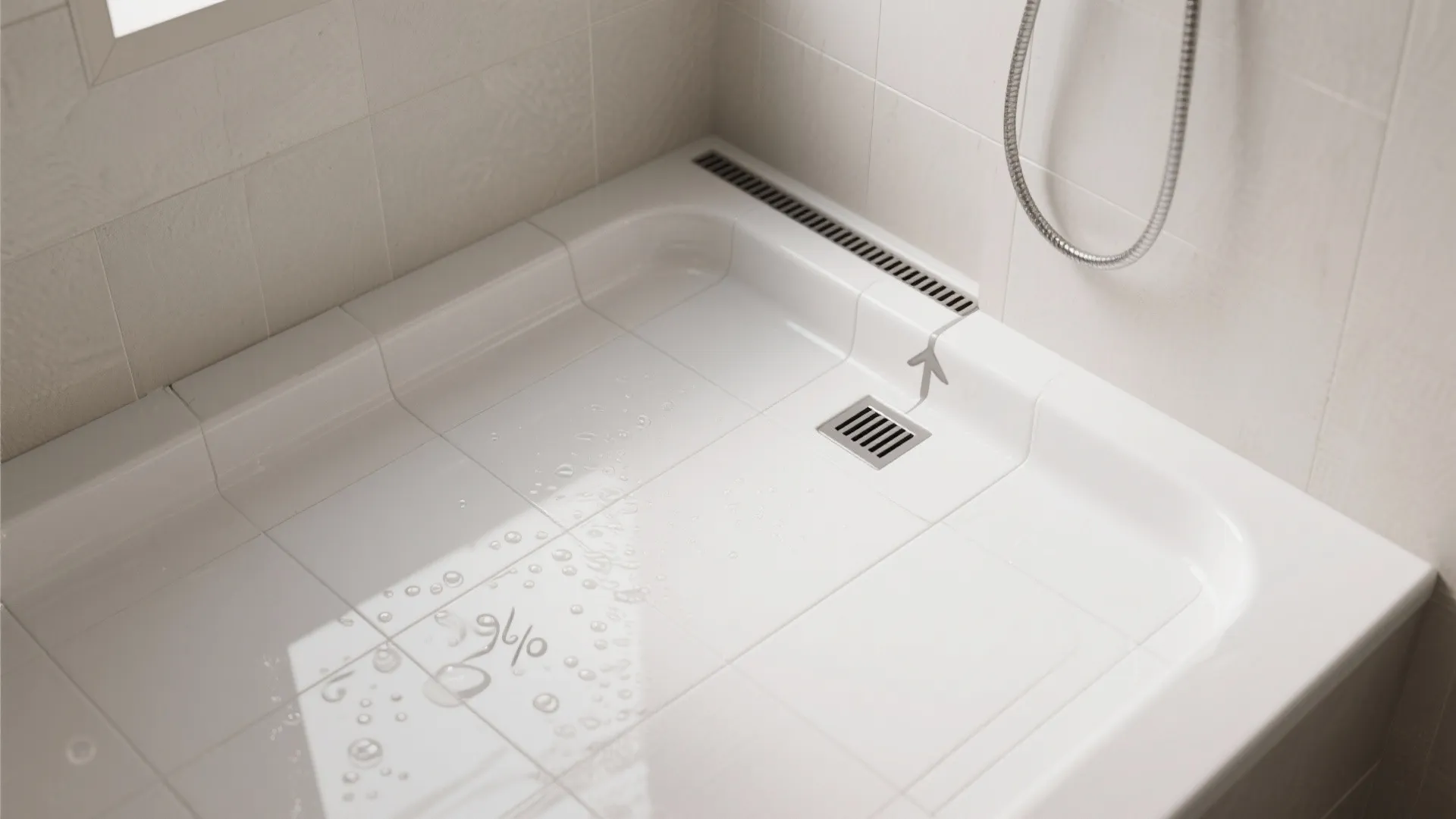

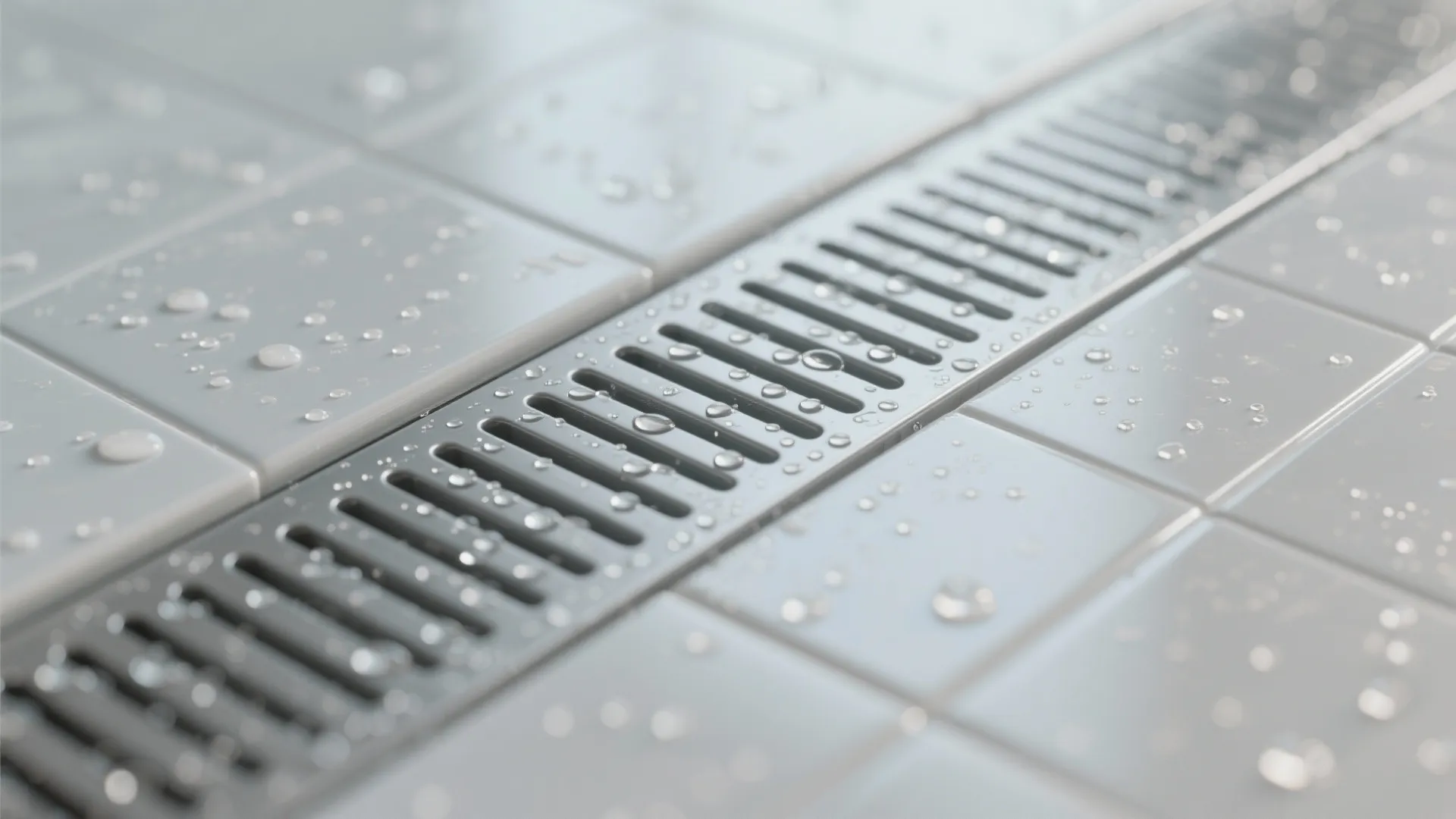

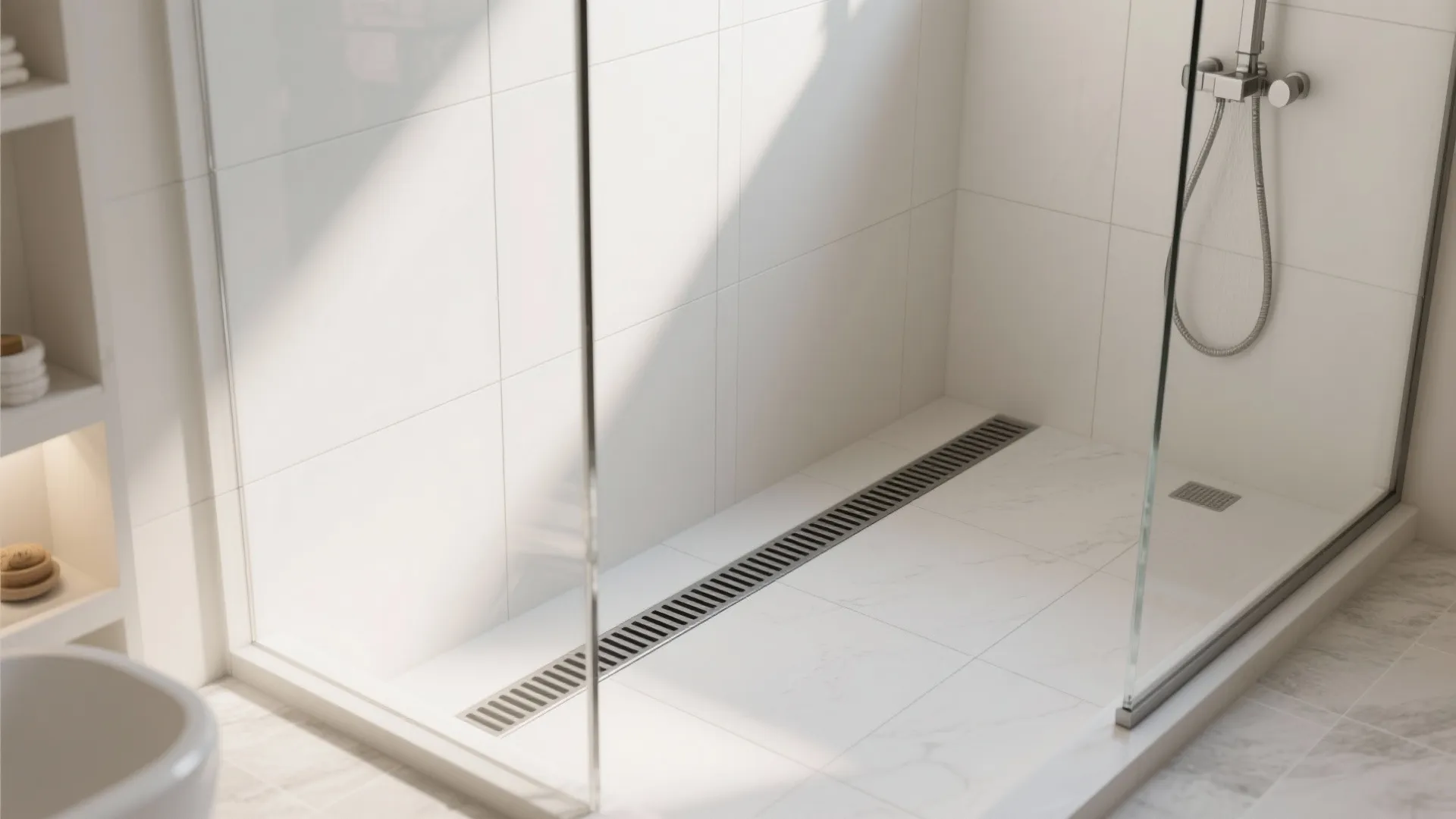

3) Linear Drains, Proper Slope, and Vent Clarity

My Take

Linear drains help me deliver low-threshold showers and elegant tile patterns. The trick is pairing the drain with correct pre-slope and understanding how the vent connects to keep traps protected. In tight plans, a linear drain along the back wall lets me use larger tiles and a single-direction slope.

Pros

- A linear shower drain with 2% slope (about 1/4 inch per foot) simplifies tiling and reduces lippage on larger-format tiles.

- Correct slope and trap-vent distances help avoid gurgling and siphoning—core to a reliable bathroom pipe fitting design (International Plumbing Code, 2021, §704.1).

- In tiny ensuites, placing the drain against the wall can free the center area and make the shower feel bigger.

Cons

- Linear drains can be pricier than center drains and demand extra attention to waterproofing transitions.

- Some designs require higher flow grates for rain-style heads; undersizing can lead to pooling.

- If your slab is post-tensioned, cutting for a trench drain might be off-limits; surface remodel pans may be safer.

Tips / Layout

- Coordinate the drain location with the tile module; I align grout lines with the drain grate for a crisp finish.

- For tight renovations, model the pre-slope and drain placement in tight showers to make sure the curb and door swing clearances stay comfortable.

- Test the pan with a 24-hour flood test before tiling to confirm membrane integrity.

save pin

save pin

save pin

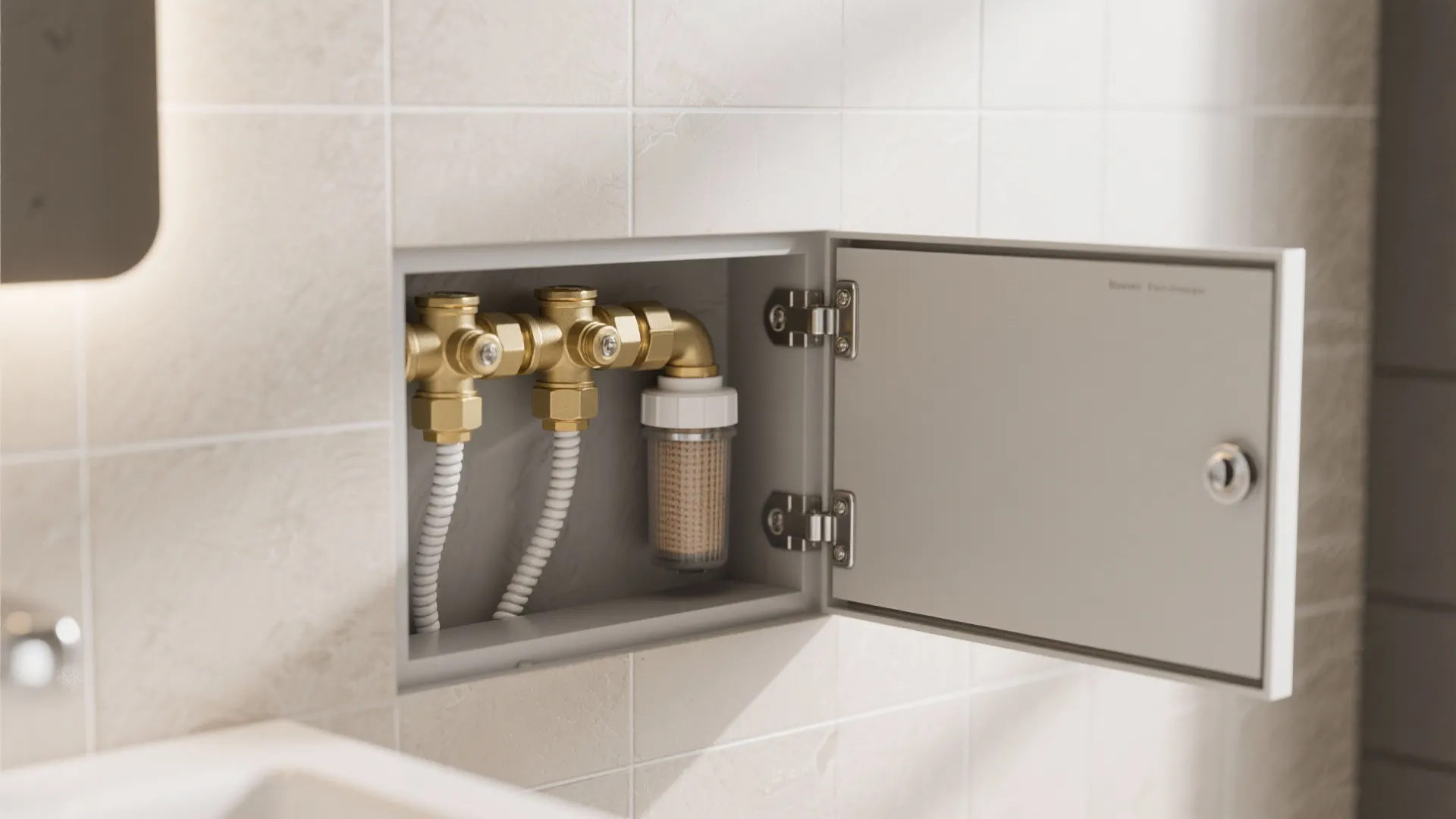

4) Plan for Discreet Access and Emergency Shut-offs

My Take

I always design maintenance into the look. Mirror cabinets that lift off, magnetic tile panels, or a painted wainscot that conceals an access door—these tricks save you from jackhammer drama. In a 1930s loft, we hid shut-offs and a sediment filter behind a tall mirror with a finger catch; the client can isolate any fixture in seconds.

Pros

- Fast access means smaller repair bills and less downtime; you won’t have to demo fragile finishes just to change a valve.

- Grouping shut-offs on or near the wet wall keeps emergency responses simple—everyone knows which panel to open.

- Done well, an access panel becomes a design feature: a framed art piece, a shelf zone, or a neatly aligned grout joint.

Cons

- Panels can look clunky if proportions or placement are off; it takes careful coordination between carpenter and tiler.

- Added hardware and specialty hinges raise material costs slightly.

- In super-compact powder rooms, panel clearances can clash with door swings—measure like a hawk.

Tips / Details

- I often spec a shallow cabinet above the vanity that doubles as an access cover—no one knows it’s a service hatch.

- If you love tile-to-tile continuity, consider a magnetic tile access panel idea with a metal substrate behind the backer board; magnets hold the tile face neatly, with a razor-thin reveal.

- Label shut-offs inside the panel so a guest or super can act quickly during a leak.

save pin

save pin

5) Quieter, Longer-Lasting Piping: Materials and Isolation

My Take

Nothing ruins a serene bath like a whooshing drain or pipe ticking as hot water cools. I treat sound and longevity as part of the aesthetic. A blend of smart materials and isolation tricks keeps baths peaceful and durable.

Pros

- Acoustic insulation for drain pipes—plus resilient pipe clamps—cuts structure-borne noise dramatically in lightweight framing.

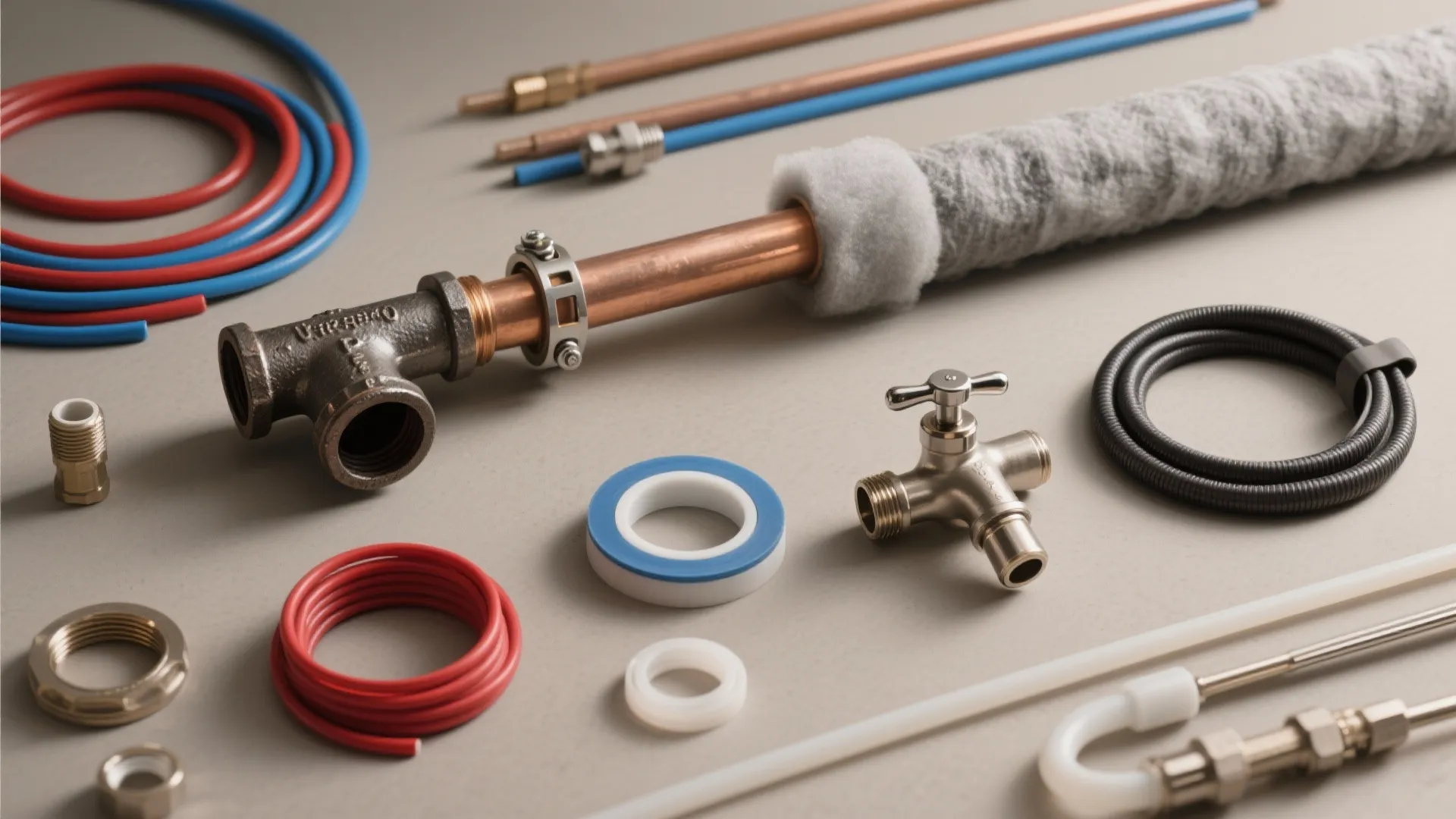

- PEX vs. copper in bathrooms comes down to performance and context: PEX offers easier runs with fewer fittings (fewer potential leak points), while copper shines at heat resistance and rigidity in exposed segments.

- Cast iron stacks still win for quiet drainage; in multi-family buildings, I’ll spec cast iron for the main stack and transition to quieter assemblies at fixtures.

Cons

- Cast iron adds weight and cost; plan for lifting and hanger spacing.

- PEX needs protection from UV and sharp edges; sloppy drilling or kinks can bite you later.

- Copper is beautiful but pricier; in areas with aggressive water, consider dielectric unions or treatments to slow corrosion.

Tips / Execution

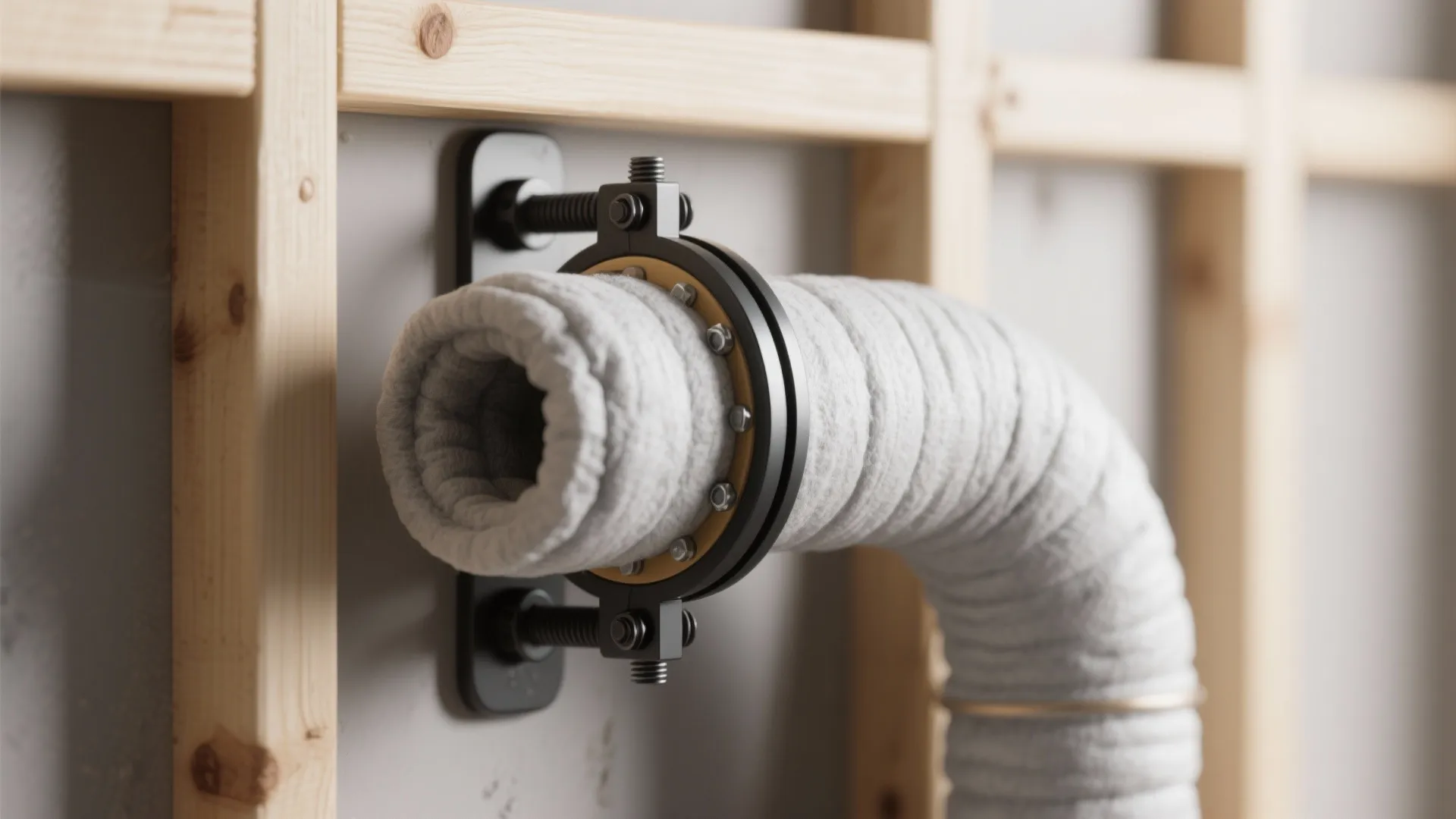

- Decouple noisy pipes from studs with isolation clamps, and wrap bends (where turbulence grows) with acoustic sleeves.

- Separate hot and cold lines to reduce heat transfer and pipe “sweating,” and avoid tight notches that create ticking as pipes expand.

- Keep hose bibb and laundry lines off shared bathroom walls if possible, or add mass-loaded vinyl for an extra noise barrier.

save pin

save pin

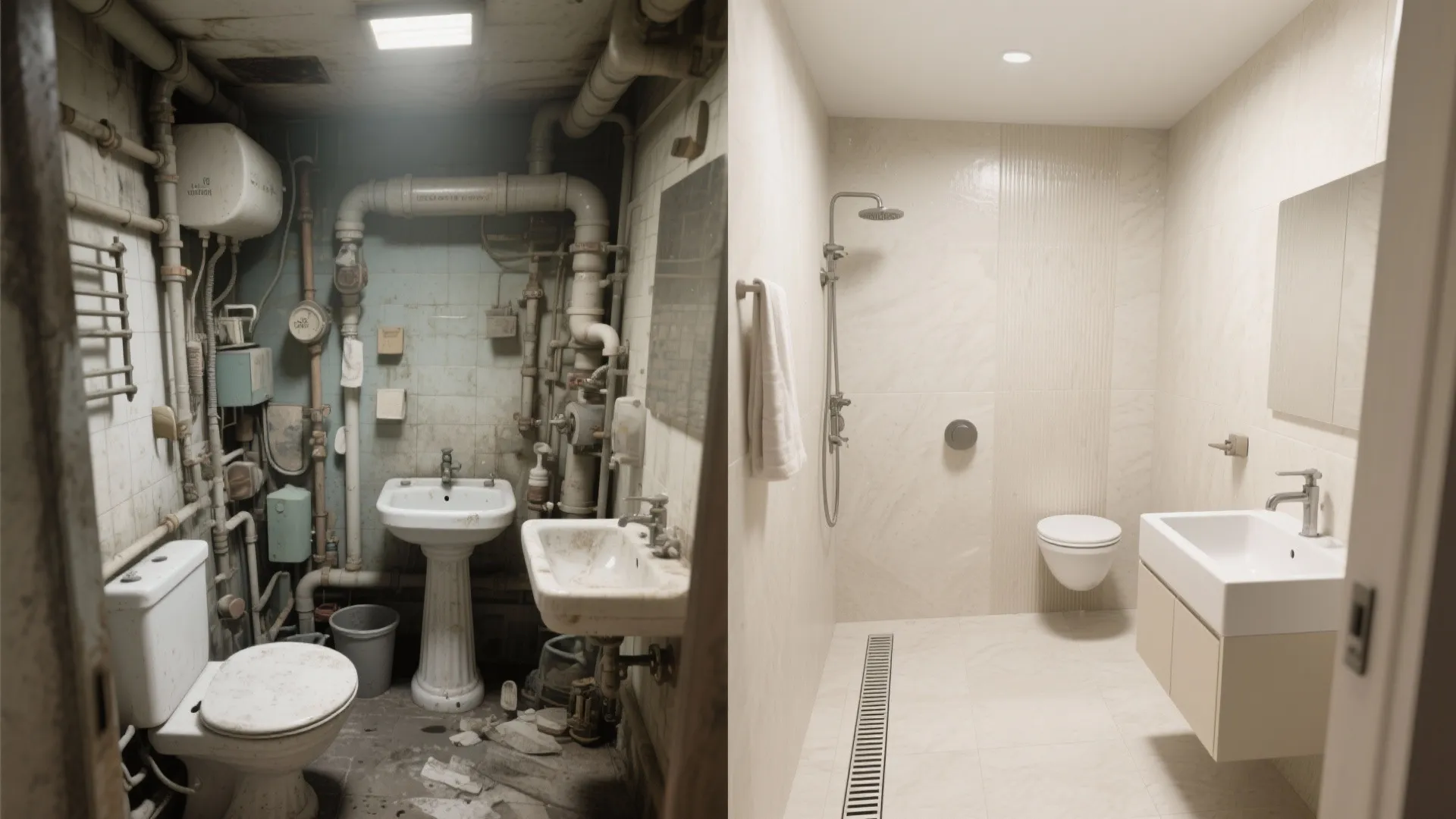

Summary

A small bathroom doesn’t limit you—it nudges you toward smarter decisions, and that’s where great bathroom pipe fitting design shines. From a single wet wall to quiet, durable materials, these choices add up to cleaner lines, fewer failures, and better daily rituals. I’ve seen modest apartments feel like boutique hotels when the hidden systems are planned as carefully as the tile. Which of these five ideas are you most excited to try in your own space?

save pin

FAQ

1) What is the best bathroom pipe fitting design for a tiny apartment?

In most micro-baths, a single wet wall is the most efficient starting point. It shortens runs, reduces fittings, and keeps maintenance simple while leaving more wall area for storage and mirrors.

2) How much slope should a shower drain have?

For typical residential sizes, a 2% slope (about 1/4 inch per foot) is standard for horizontal drainage runs. This helps prevent standing water and maintains trap integrity.

3) Are linear drains worth it in small bathrooms?

If you want a low-threshold, visually clean shower, linear drains are great. Pair them with correct pre-slope and waterproofing, and they can make a compact shower feel larger and more accessible.

4) Do wall-hung toilets complicate maintenance?

They require precise rough-ins and an access point behind the flush plate, but day-to-day use is easy. Choose a well-supported carrier system and ensure spare parts are available long-term.

5) Can I legally use wet venting in my bathroom?

Many jurisdictions allow wet venting for bathroom groups under specific sizing and layout rules. Check your local adoption of the International Plumbing Code (2021, §912) or local code amendments before proceeding.

6) How do I reduce plumbing noise in a shared wall?

Use acoustic pipe wrap, isolation clamps, and, where possible, cast iron for the main stack. Also, avoid fastening pipes rigidly to the same studs that support a bedroom headboard.

7) What hot water temperature reduces Legionella risk?

Guidelines commonly recommend storing hot water at 60°C (140°F) and delivering at safe, lower temperatures via mixing valves; this approach balances safety and hygiene (WHO, Legionella and the prevention of legionellosis, 2007/2017 updates).

8) Should I choose PEX or copper for a bathroom remodel?

PEX is flexible, fast to install, and uses fewer fittings—great for tight layouts. Copper offers durability and heat resistance, especially for exposed runs; the right choice depends on your budget, water chemistry, and code.
