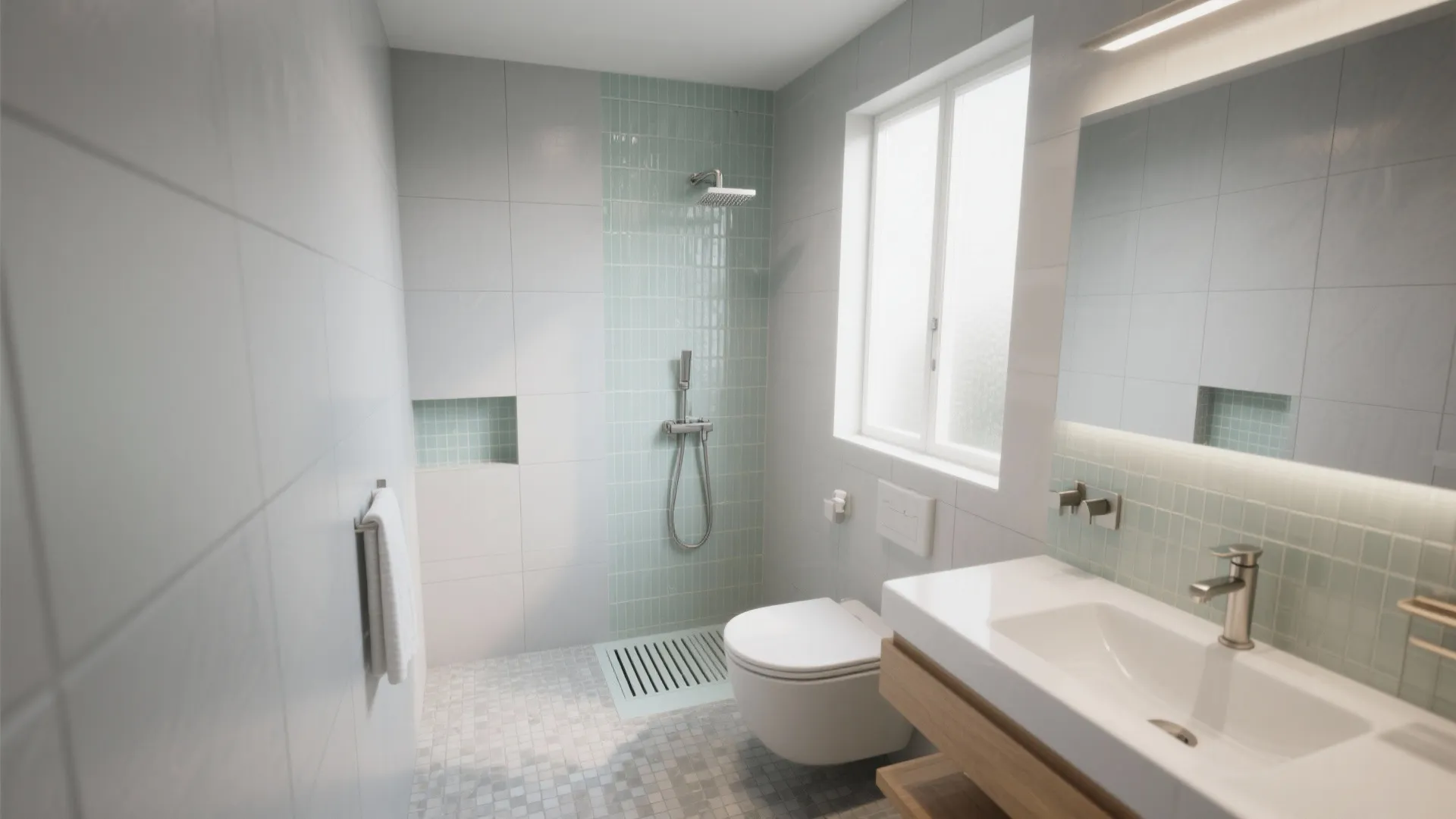

5 Bathroom Tiles Water Design Ideas That Truly Work: From a senior interior designer: 5 smart, data-backed bathroom tiles water design ideas for small spaces that look luxe and stay dry

As someone who’s remodeled more bathrooms than I can count, I’ve watched “bathroom tiles water design” evolve from purely functional to quietly stunning. This year’s trend leans clean-lined, low-maintenance, and high-performance—exactly what small spaces need. Small bathrooms ignite big creativity, and in this guide I’ll share 5 design ideas I’ve used in real homes, backed by expert data and lived experience. To make it practical, I’ll break down my take, real pros and cons, and cost-savvy tips along the way.

Quick note: I’m a big believer that smart planning beats expensive materials. If you’re curious how I map spray zones, grout lines, and slope details, I once experimented with an online planner when designing an “L-shape” shower in a micro-ensuite; the visualization helped me refine the niche heights and transition details without guesswork—especially useful for small baths.

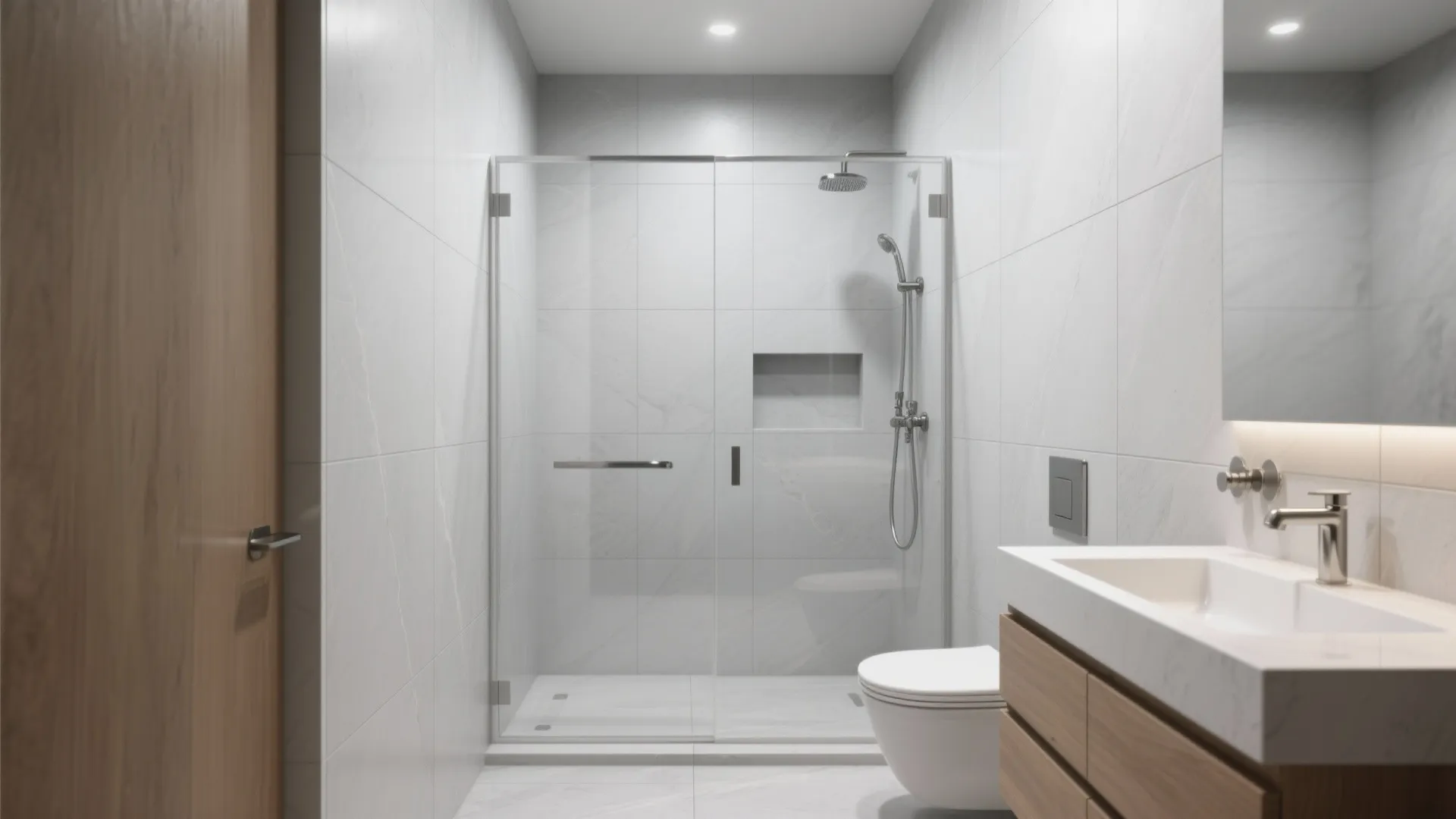

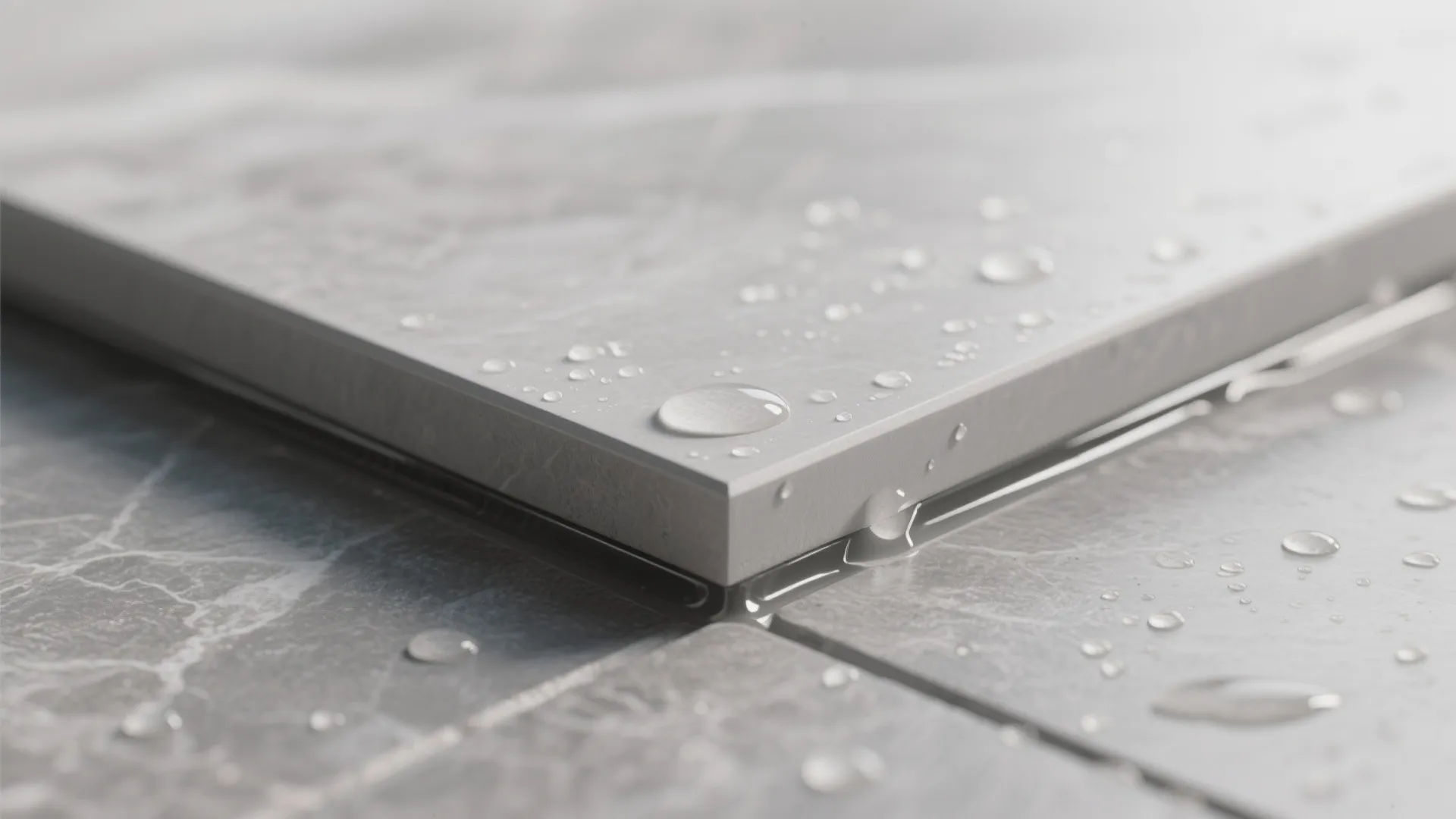

1) Minimal grout, maxi impact: large-format porcelain

My Take

I learned this trick in a 4.2 m² guest bath where visual calm was non-negotiable. Large-format porcelain reduced grout interruptions, made the room feel wider, and gave me a cleaner water-shedding surface around the shower zone.

Pros

- Fewer grout joints mean fewer spots for moisture, soap scum, and mildew—classic “low grout maintenance tiles” advantage.

- Porcelain has low water absorption (≤0.5% per ISO 10545-3), which is ideal for shower walls and splash-prone areas.

- Oversized tiles elongate sight lines; for small bathroom water design, that visual stretch is invaluable. The TCNA (Tile Council of North America) notes porcelain’s suitability for wet areas when installed per manufacturer guidelines.

Cons

- Large slabs can be heavy and tricky in tight hallways or elevators—delivery logistics aren’t glamorous but they matter.

- Substrate flatness has to be on point. If your walls aren’t true, lippage can be noticeable with big tiles.

- Cutting around niches and valves demands a patient installer (and sometimes a premium fee).

Tips / Cost

- Choose matte or soft-satin finishes to disguise water spots.

- Budget: mid to high. Material costs vary, but the install (special handling and leveling systems) is the bigger line item.

- If you plan detailed slopes or half-height wet walls, mocking up “L shaped layout frees more countertop space” in a planning tool can help you see tile break lines clearly—try exploring a visualizer before committing to cuts: L shaped layout frees more countertop space.

save pin

save pin

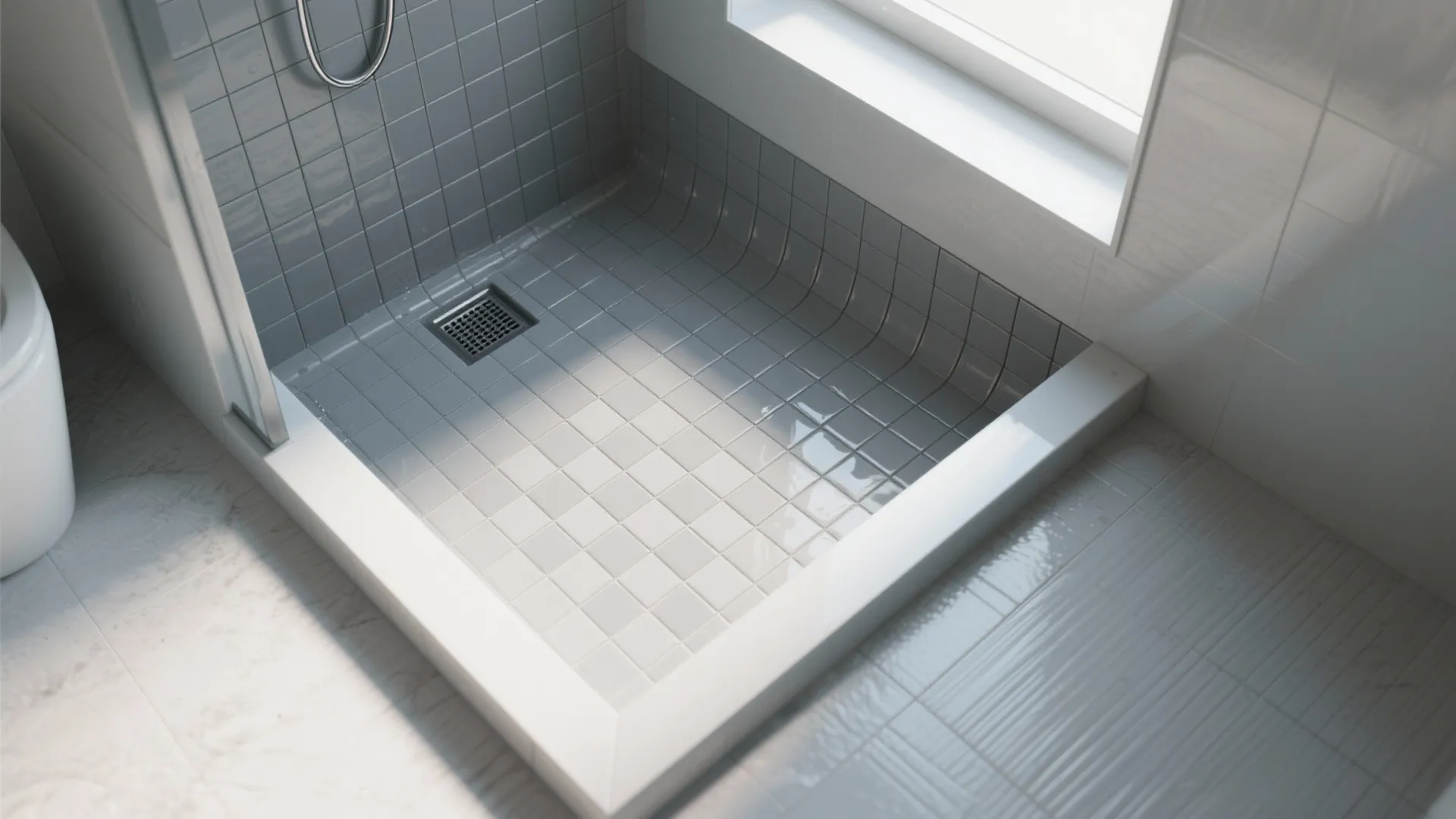

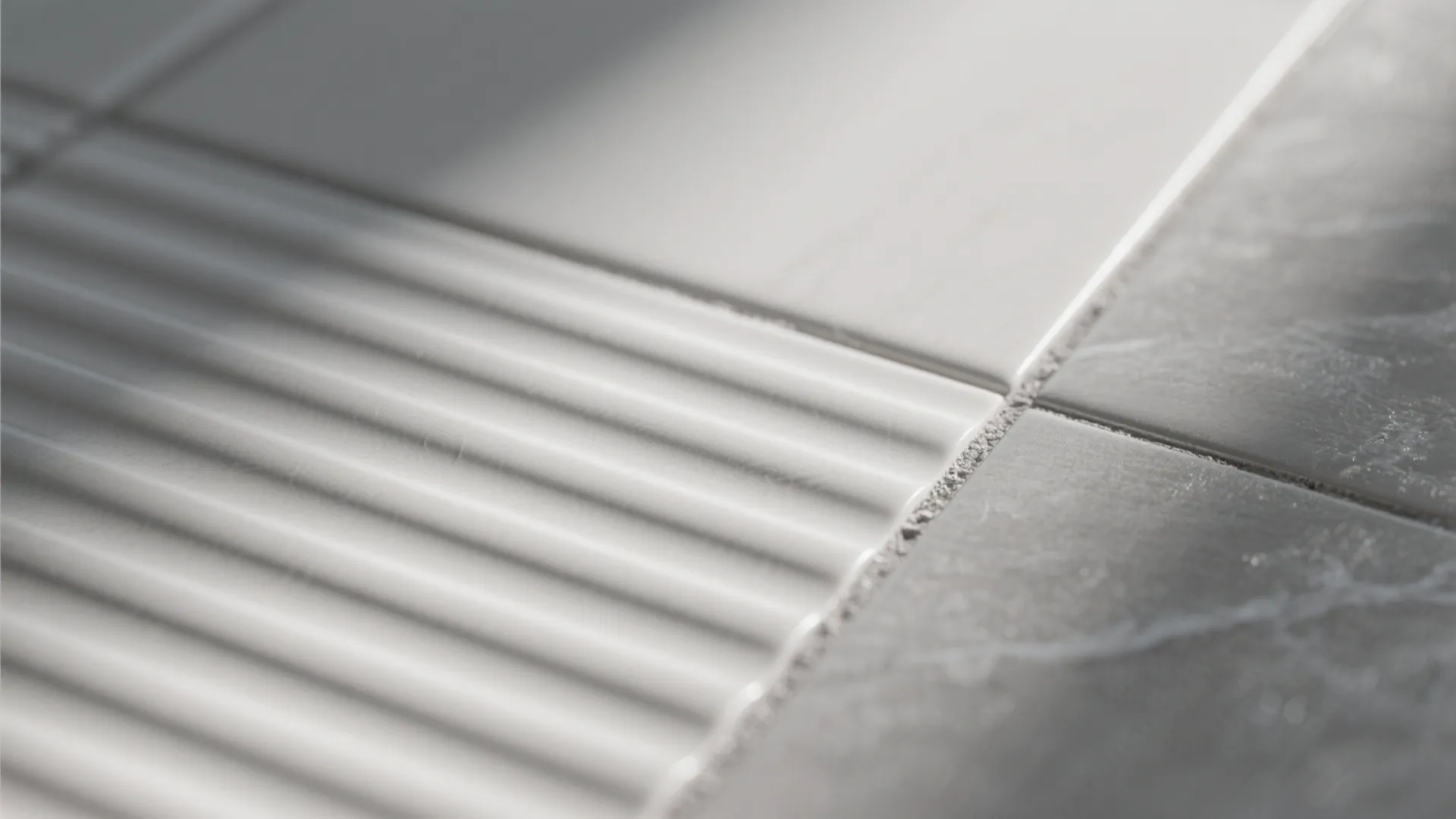

2) Textured slip-resistance: matte mosaics and micro-flutes

My Take

A client’s dad once slipped in a glossy shower—ever since, I specify DCOF-tested floors. Matte mosaics with lots of grout, or porcelain with micro-fluted texture, give grip without shouting “commercial bathroom.”

Pros

- “Slip-resistant shower floor tiles” with proper DCOF (≥0.42 wet per ANSI A137.1 for level interior) increase safety, especially for kids and seniors.

- Smaller mosaics conform to slopes for linear drains, ensuring efficient water run-off.

- Textured porcelain mimics stone but stays more stain-resistant—a good balance in wet bathroom design.

Cons

- Extra grout can mean more cleaning if you choose very light colors.

- Ultra-aggressive textures feel rough underfoot; I test barefoot samples before specifying.

- Some micro-flutes collect residue; a weekly soft-bristle scrub keeps them crisp.

Tips / Case

- Go for 2x2 inch (or smaller) mosaics on shower pans for better slope conformity.

- Pair with an epoxy grout in a mid-tone to hide day-to-day splashes.

- When I designed a compact bath with a curbless entry, I tested tile transitions and drain placing using a quick 3D mockup; seeing the “glass backsplash makes the kitchen brighter” effect in another room type convinced the client to try a similarly reflective shower wall, achieving both grip and glow. Explore a parallel case to visualize reflectivity and transitions: glass backsplash makes the kitchen brighter.

save pin

save pin

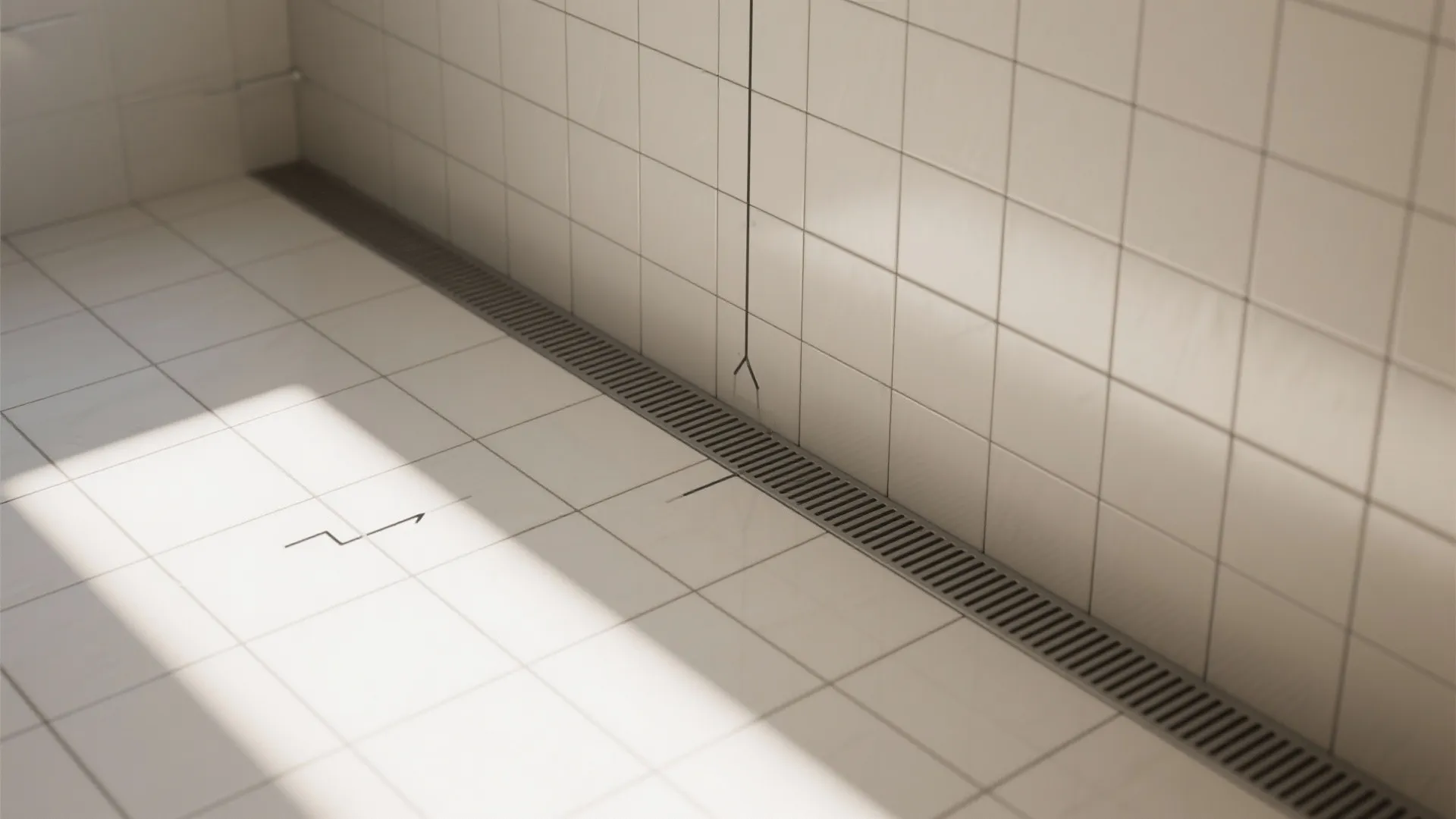

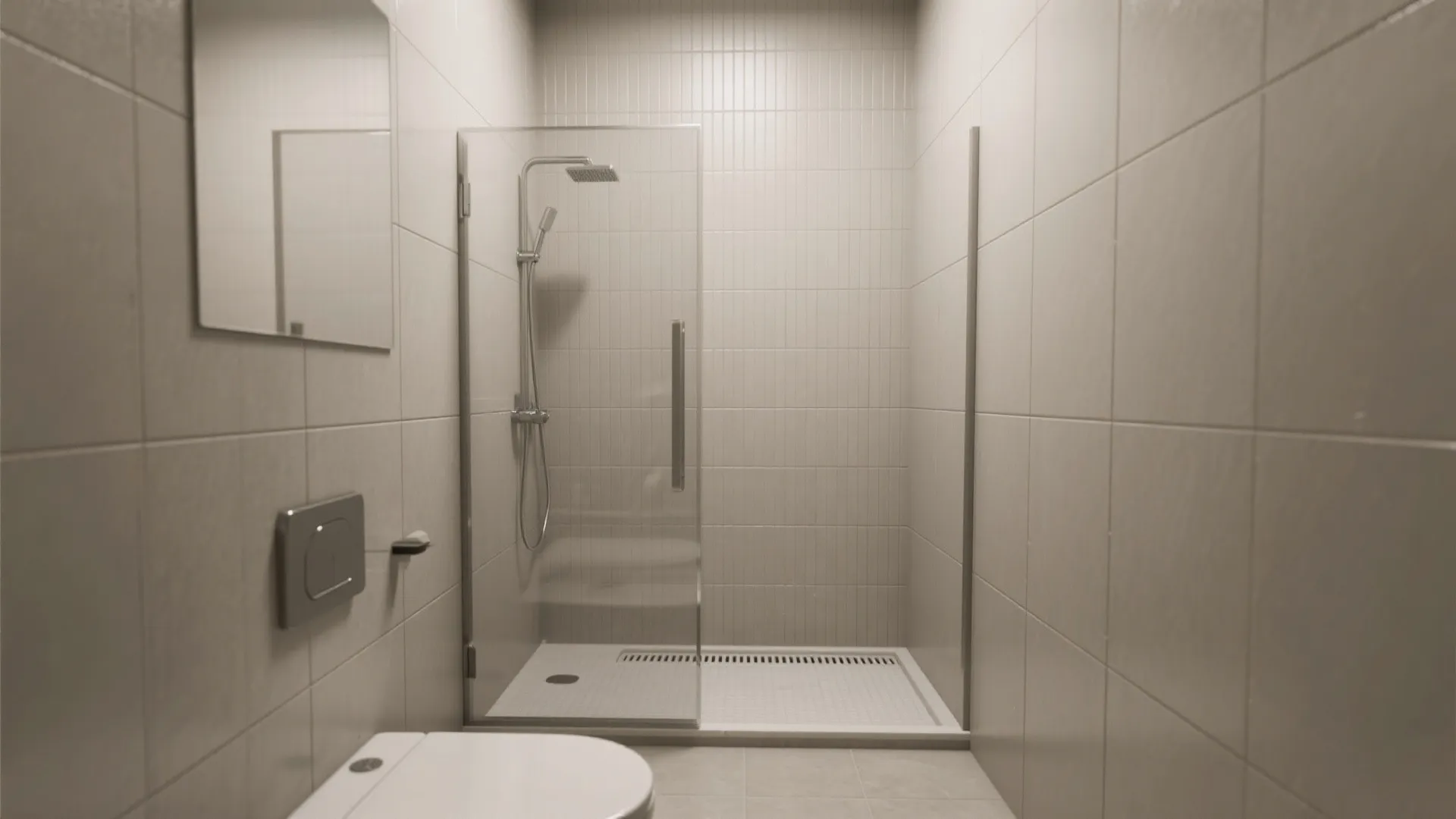

3) Waterline drama: stacked vertical tiles with a drainage-led layout

My Take

Vertical stacking is my go-to for extra height. In a 2.3 m ceiling bath, I paired vertically stacked 3x12 tiles with a slight floor pitch toward a linear drain—clean, modern, and efficient at moving water away from the doorway.

Pros

- Vertical lines make low ceilings feel taller—an easy visual win for “small bathroom vertical tile design.”

- Linear drains allow continuous tile fields, minimizing cuts and improving water evacuation in walk-in showers.

- With smart placement, you can keep the dry zone truly dry—especially helpful in powder rooms converted to showers.

Cons

- Vertical stacks reveal wall imperfections faster than staggered layouts.

- A linear drain adds cost and requires careful slope planning (single-direction pitch).

- If grout line alignment drifts, it’s immediately noticeable—use spacers religiously.

Tips / Cost

- Choose a rectified tile for crisp, tight joints.

- Map valve and niche centers to grout lines so cuts land cleanly.

- Mid to high budget: linear drains and precise labor raise the price. At the halfway point of your planning, it helps to simulate spray reach and clearances; I often build a quick scenario to validate my lines using a tool similar to this “minimalist kitchen storage design” case, just to sanity-check spacing: minimalist kitchen storage design.

save pin

save pin

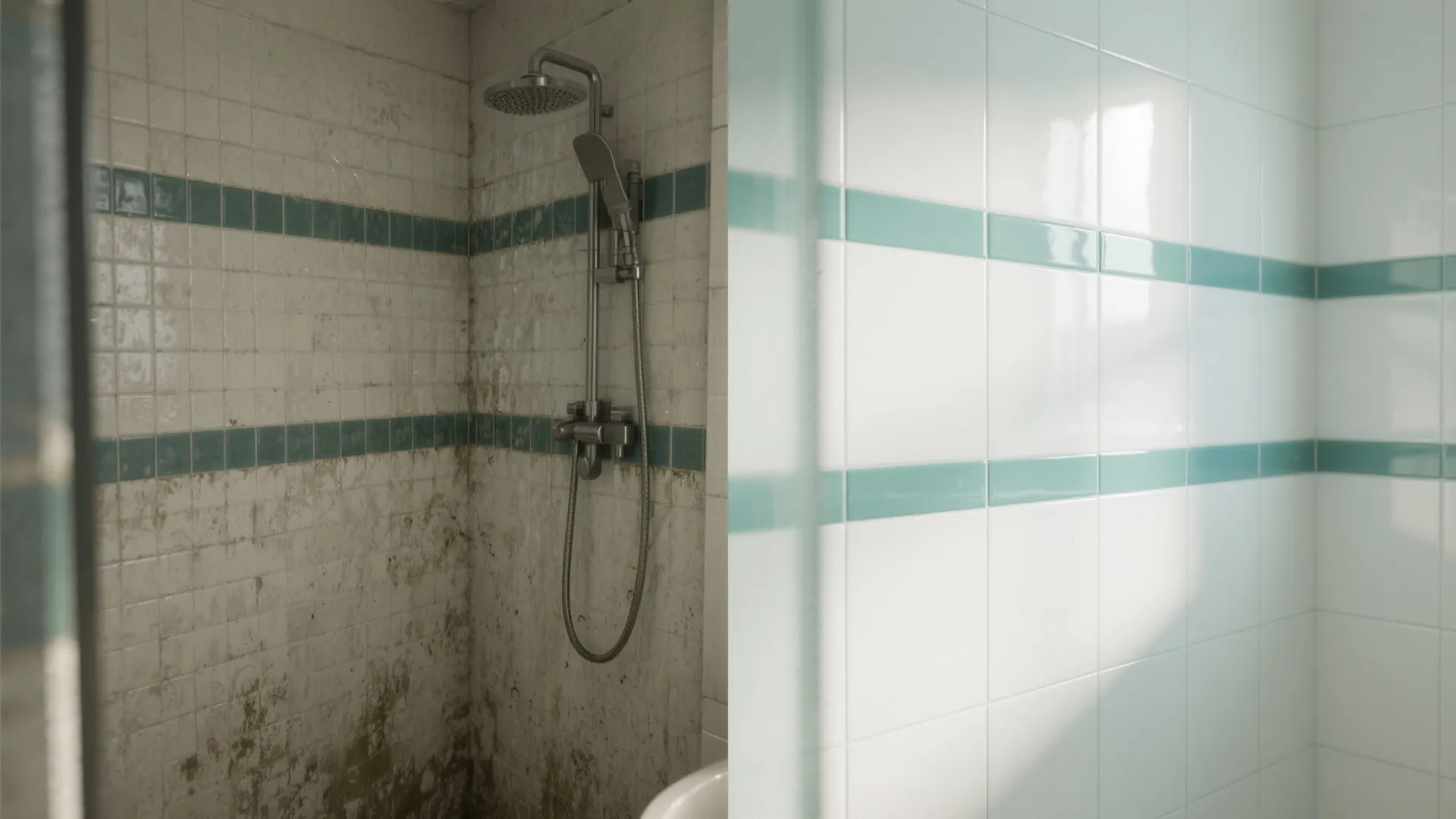

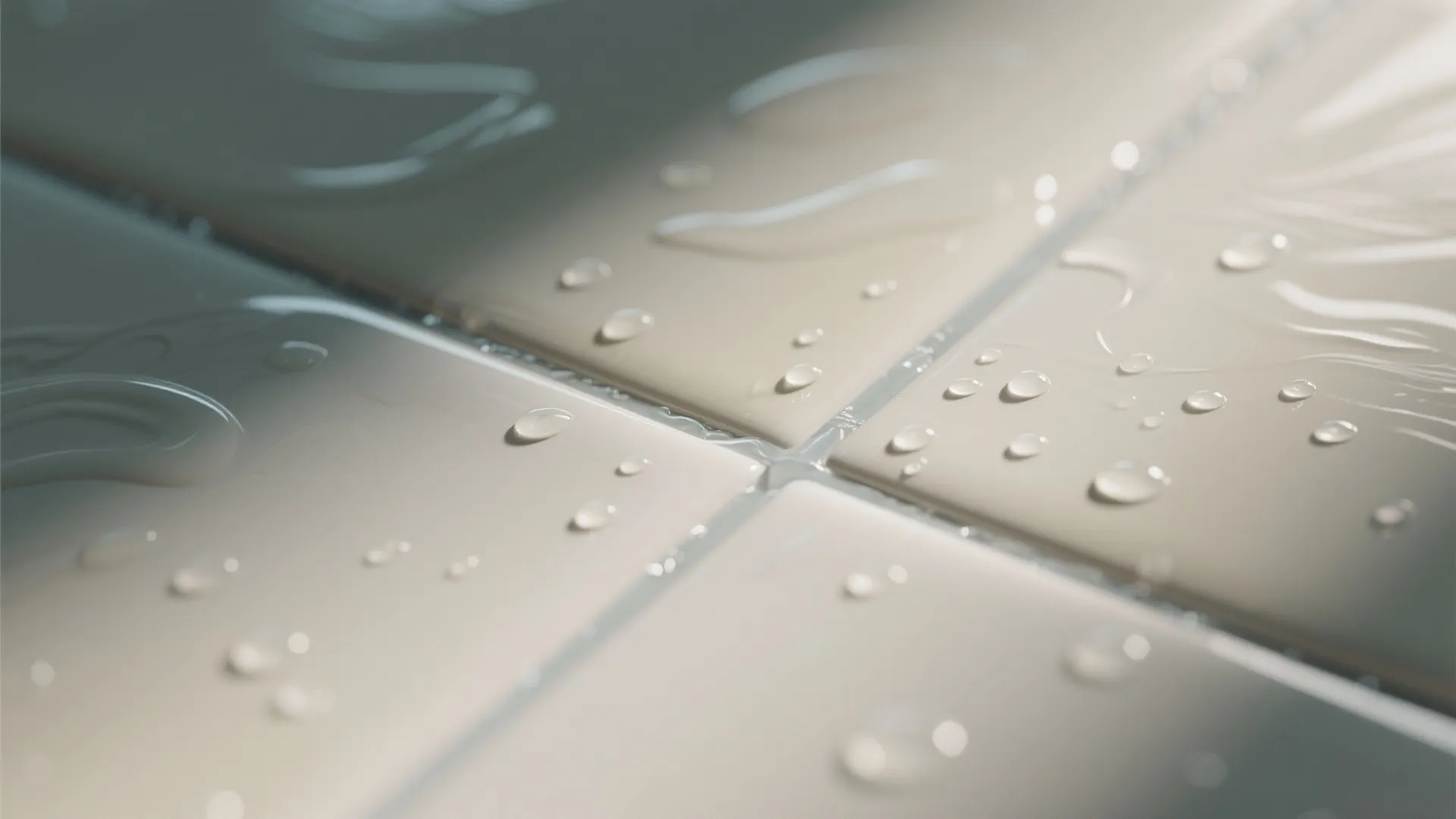

4) Hydro-optimizing surfaces: glazed ceramic + epoxy grout

My Take

When clients ask for easy cleaning, I default to glazed ceramic on walls with epoxy grout. In a rental I manage, this combo cut my scrub-time in half and kept the shower bright.

Pros

- Glazed ceramic sheds water and soap quickly, reducing buildup in “bathroom tiles water design” applications.

- Epoxy grout is far more stain- and water-resistant than cementitious grout, perfect for shower niches and corners. According to the TCNA Handbook, epoxy grouts offer superior chemical and stain resistance when installed per spec.

- Consistent sheen helps bounce light in small spaces, improving perceived size.

Cons

- Epoxy grout sets fast and can be sticky; an inexperienced installer might haze the tile surface.

- Slightly higher material cost vs. cementitious grout.

- High-gloss glazes can show water spots; choose a soft-sheen where possible.

Tips / Maintenance

- Use a neutral pH cleaner; avoid harsh acids that dull glazes.

- Color-match epoxy for a monolithic look or contrast for rhythm—both hide water marks differently.

- Ventilation matters: pair with a quiet fan to keep humidity in check and protect the grout sheen.

save pin

save pin

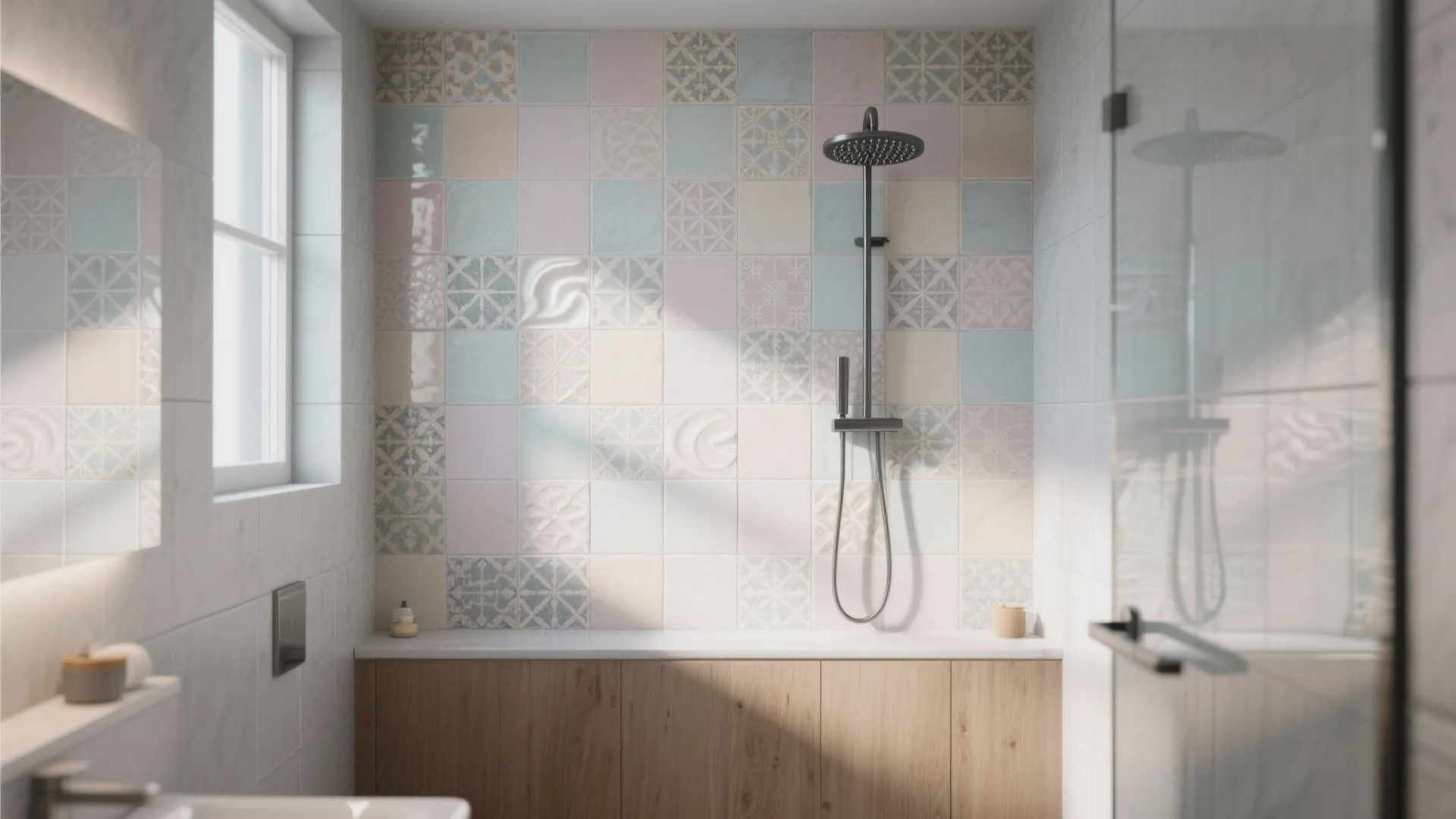

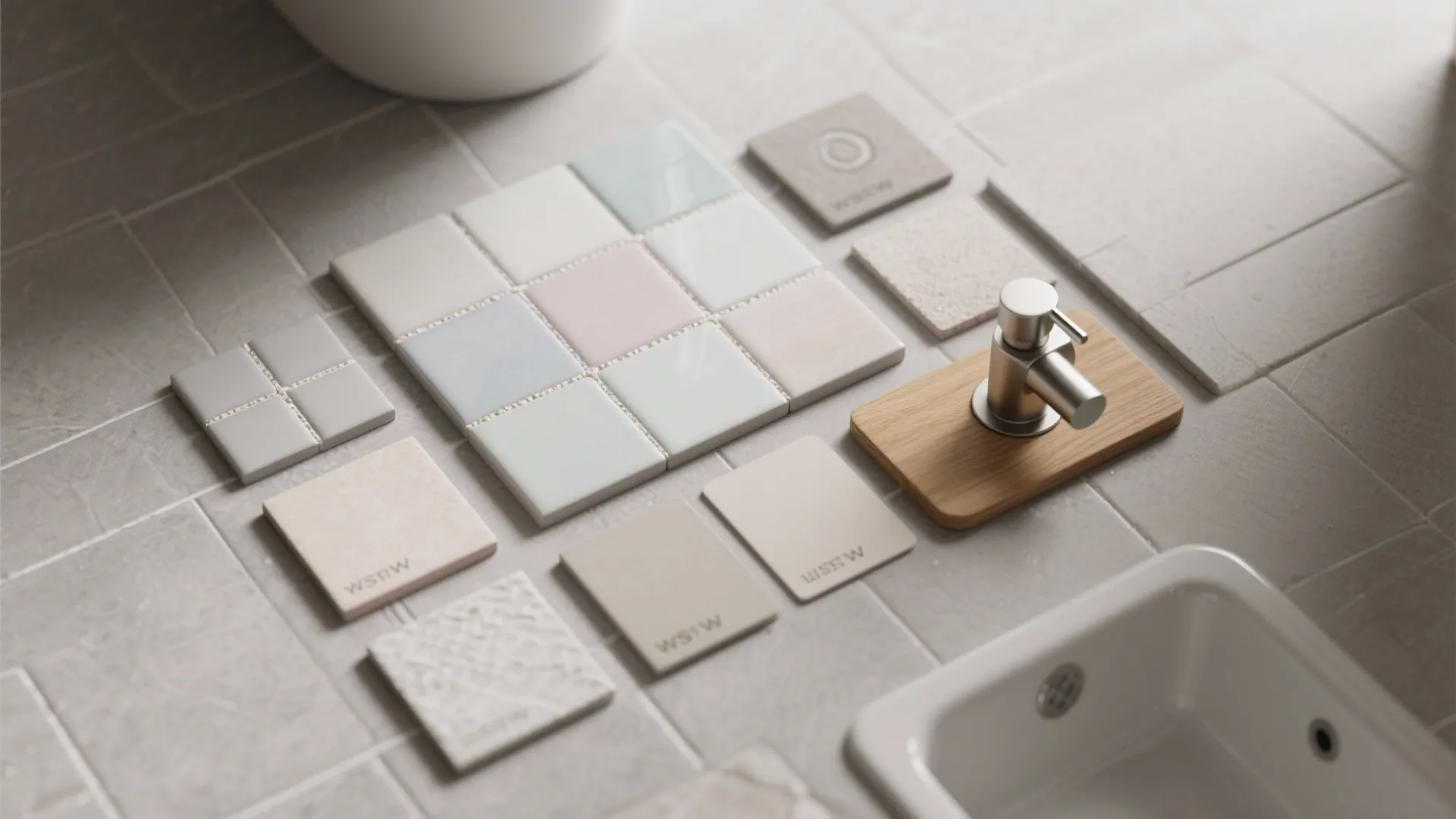

5) Spa-light and color: zellige, pastels, and strategic reflectance

My Take

I love using handcrafted-look zellige on feature walls opposite the shower head. The ripple catches light like water, and in small bathrooms, that shimmer turns a purely functional zone into a spa moment.

Pros

- Subtle color variation camouflages water specks—great for “water friendly tile colors.”

- Higher reflectance boosts brightness in tiny baths without resorting to high gloss everywhere.

- A lighter, desaturated palette psychologically reads fresher and cleaner; paired with good CRI lighting, it’s transformative.

Cons

- Handmade tiles can be irregular; embrace the wabi-sabi or choose machine-pressed lookalikes.

- Some zellige requires sealing and more delicate cleaning.

- If your water is hard, edges can spot—use a squeegee habit to keep the magic.

Tips / Data

- Aim 3000–3500K lighting with 90+ CRI to flatter tile color and skin tones.

- Mix one high-texture wall with smoother surrounds for balanced upkeep.

- For a final pre-order gut-check at around 80% of your planning, spin up a quick visualization that approximates reflectance and tile joint rhythm—try a comparable case to preview finishes and light play using “warmth from wood accents” as a mood proxy: warmth from wood accents.

save pin

save pin

Summary

Small bathrooms aren’t limits—they’re invitations to design smarter. The right bathroom tiles water design combines scale, texture, drainage planning, and grout science to keep surfaces beautiful and dry. Industry bodies like the TCNA and ANSI standards give us reliable benchmarks for wet-area performance, but the magic happens when we tailor those rules to your space and rituals. Which of these five ideas are you most excited to try first?

save pin

FAQ

1) What is the best tile for bathroom walls in wet zones?

Glazed porcelain or glazed ceramic with low water absorption perform best in showers. Their surfaces shed moisture quickly and pair well with epoxy grout for long-term stain resistance.

2) Are large tiles or small tiles better for water control?

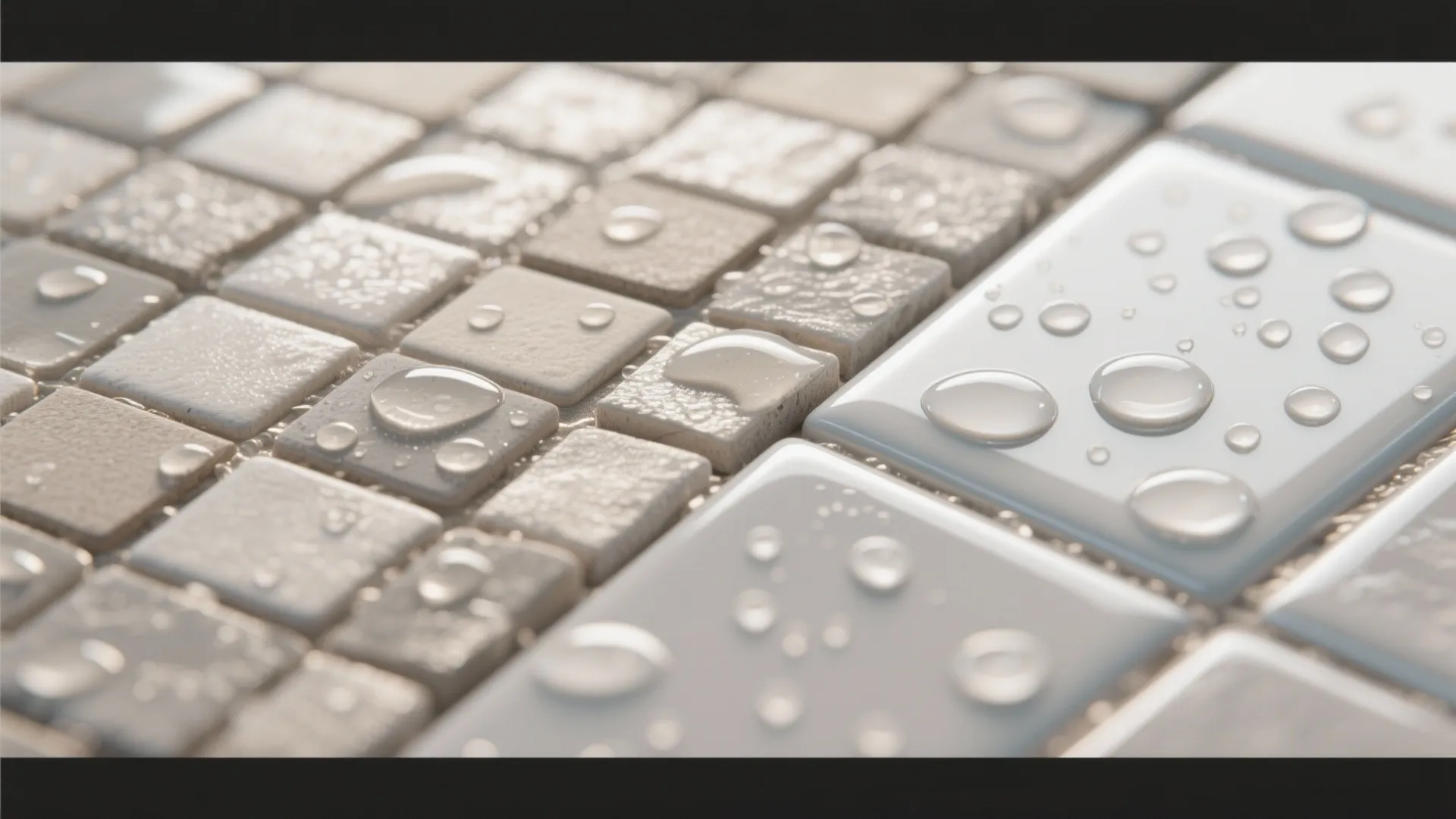

Large tiles mean fewer grout lines, which reduces moisture traps. Small mosaics win on floors where slope and traction matter. Mix them: large on walls, small on pans.

3) How do I prevent slippery shower floors?

Pick tiles that meet a wet DCOF of ≥0.42 (ANSI A137.1). Textured porcelain or small mosaics with more grout joints typically provide safer footing than high-gloss surfaces. The TCNA Handbook echoes this guidance for wet areas.

4) Do I need epoxy grout in a shower?

Not mandatory, but highly recommended for stain, water, and mold resistance. It’s pricier and trickier to install, but maintenance is significantly easier in high-splash zones.

5) What color tiles hide water spots best?

Mid-tone neutrals and gently variegated surfaces (like zellige or stone-look porcelain) disguise spotting better than pure white or jet black. Soft-satin finishes also help.

6) Can I make a small bathroom feel bigger with tile?

Yes—use large-format tiles on walls, keep grout lines thin, and run tiles vertically to lift the eye. Light, desaturated colors and good CRI lighting maximize perceived space.

7) How do I plan drains and slopes with my tile layout?

Decide on a linear or point drain early and design slopes and grout lines to align. A quick visualization can prevent awkward cuts; testing a layout similar to a “room planner” case can save time.

8) What’s the most budget-friendly upgrade for wet performance?

Switching to epoxy grout on existing tile (where feasible) and adding a better exhaust fan often beats a full retile. For new work, glazed ceramic provides a strong cost-to-performance ratio.
