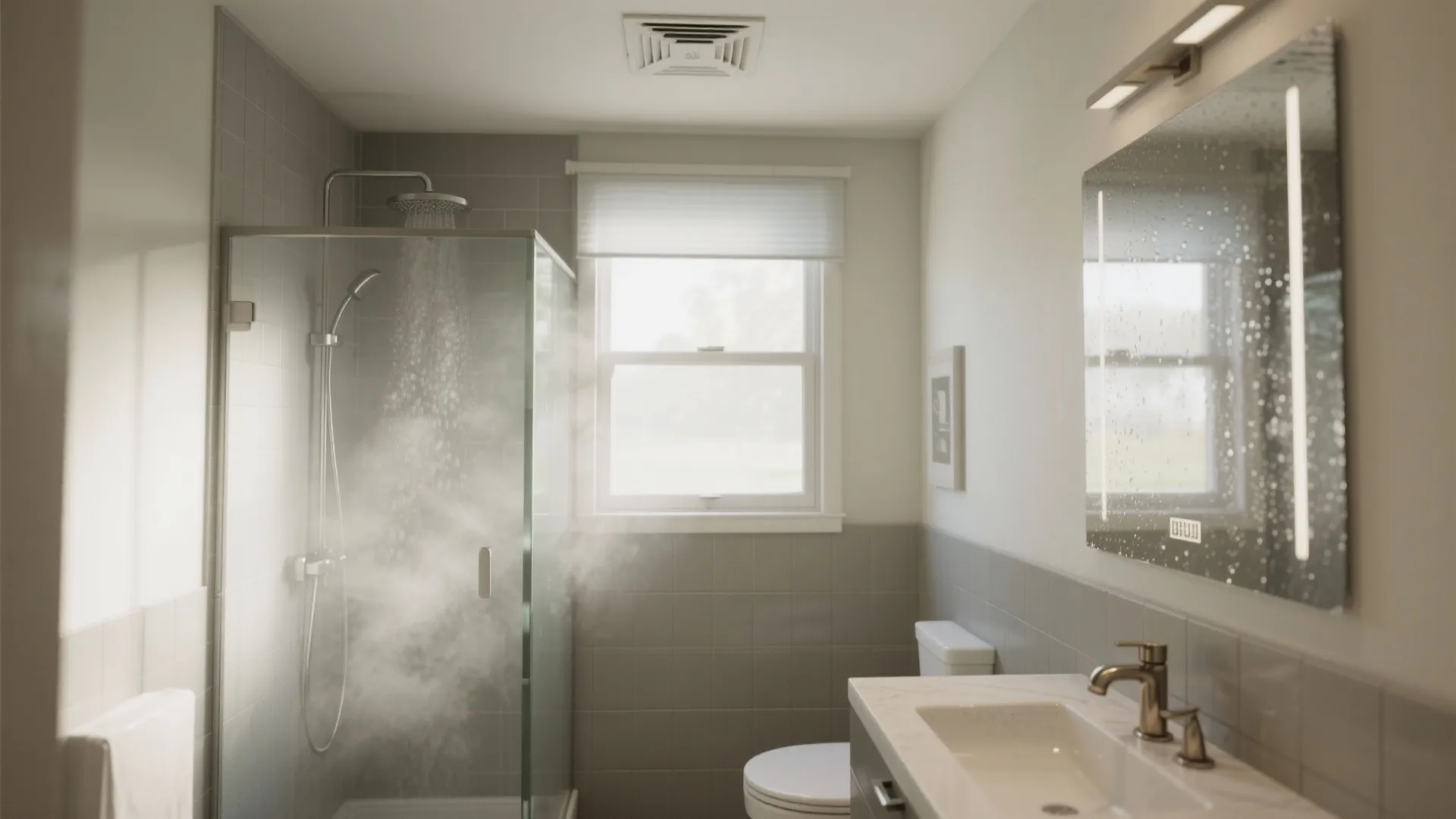

I’ve redesigned more than a hundred compact bathrooms, and one trend keeps proving itself: bathroom window designs with exhaust fan are the quiet heroes of moisture control and comfort. Small spaces spark big creativity, especially when natural light, privacy, and ventilation have to coexist. In this guide, I’ll share 5 design inspirations I use in real projects—practical, pretty, and backed by expert data—so you can mix daylight with dependable extraction.

In my own 38 sqm apartment remodel, pairing a modest window with a well-sized fan reduced mirror fogging and cut repainting cycles. Below, I’ll walk you through how I plan window heights, glazing types, and fan placements, plus the pros and cons I tell every client up front.

[Section: 灵感列表]

Frosted Awning Window Above the Shower

My Take

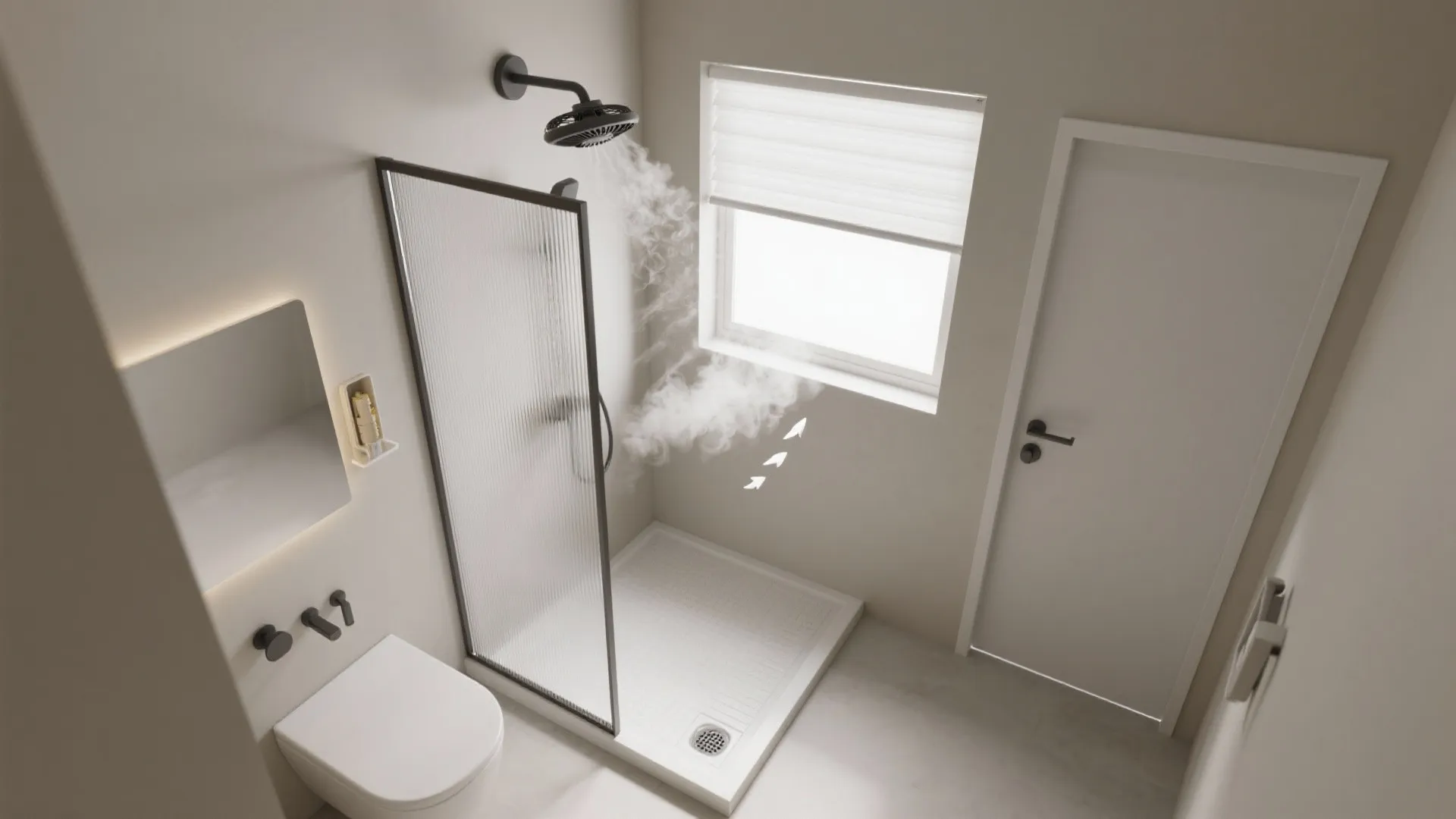

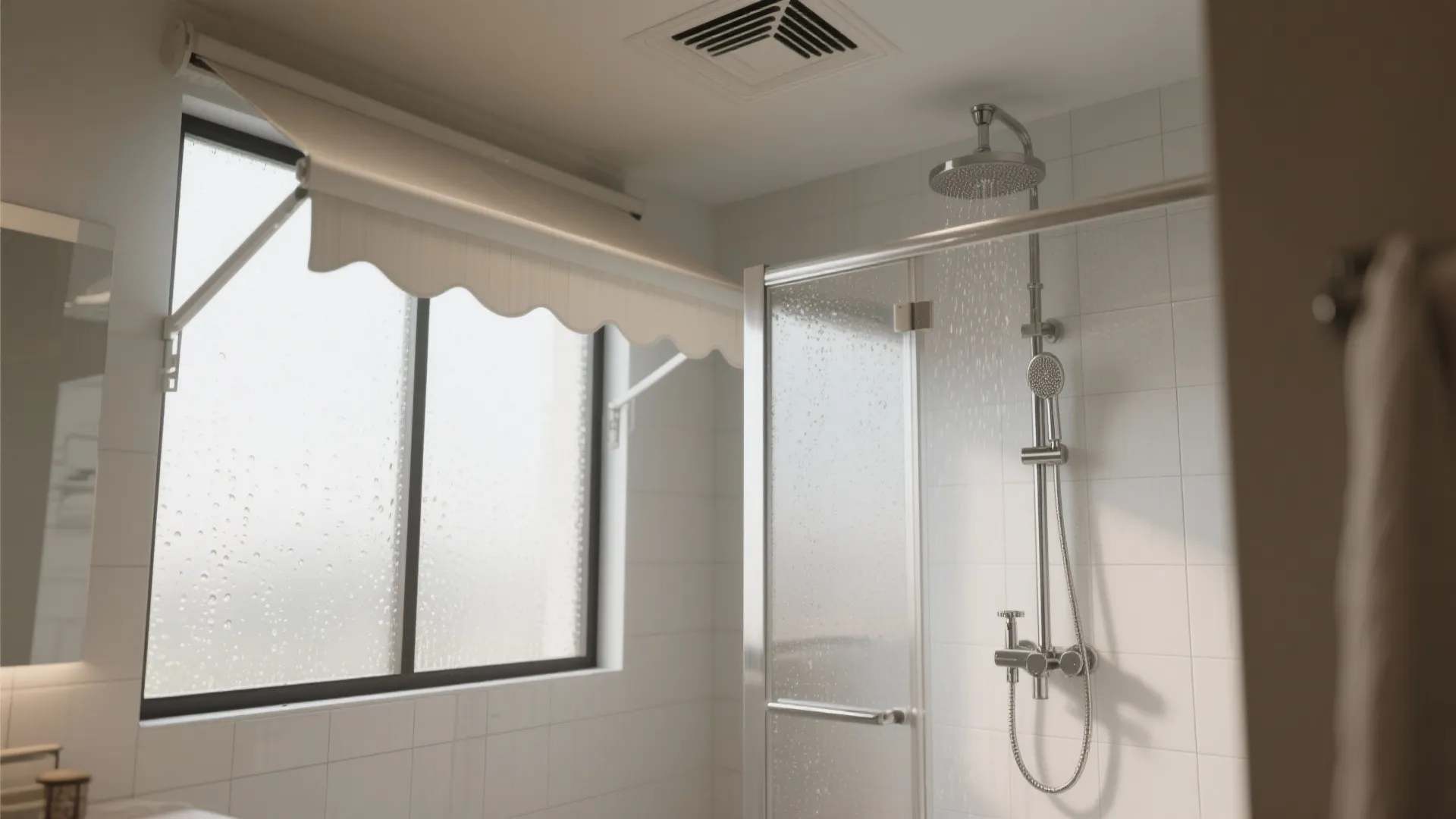

I love awning windows because they shed rain and still vent when tilted open. In a tiny shower stall, I place a frosted awning about 1.8–2.0 m above the floor, then pair it with a ceiling exhaust fan directly over the wet zone. This combo keeps privacy, light, and ventilation in balance.

Pros

- Great for humid zones: the fan handles peak steam while the awning window provides ongoing passive air change and daylight. This improves indoor air quality and helps meet bathroom ventilation best practices for small bathrooms with window and exhaust fan pairing.

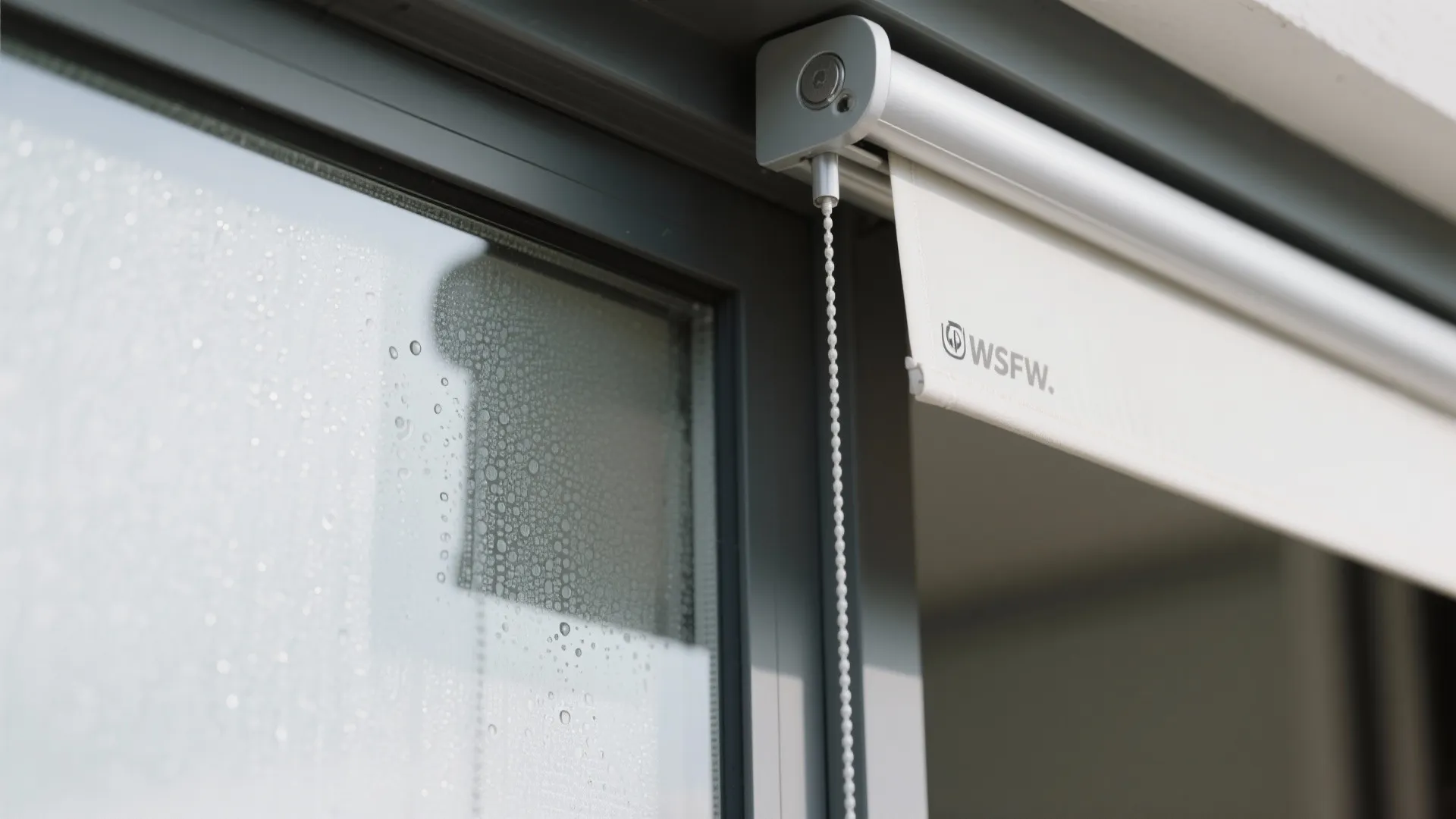

- Privacy-first glazing: frosted or acid-etched glass diffuses harsh light, reducing glare and shadows in narrow shower stalls.

- Weather-friendly: awnings can stay slightly open during light rain, avoiding the sauna effect after hot showers.

Cons

- Hardware reach: taller placements can be awkward to open; I often specify a pole operator or a simple crank.

- Heat loss in cold climates: even double-glazed awnings can feel cool near the frame; budget for thermal breaks and quality seals.

Tips / Cost

Specify tempered, privacy-rated glass and a fan with backdraft damper. For a 2–3 m² shower room, look at 80–110 CFM fans. For planning layout options, I sometimes sketch alternatives showing how a glass backsplash makes the kitchen feel airier—a trick I borrow conceptually in bathrooms by using reflective surfaces to amplify light from a small window.

save pin

save pin

save pin

Clerestory Strip Window with Inline Fan

My Take

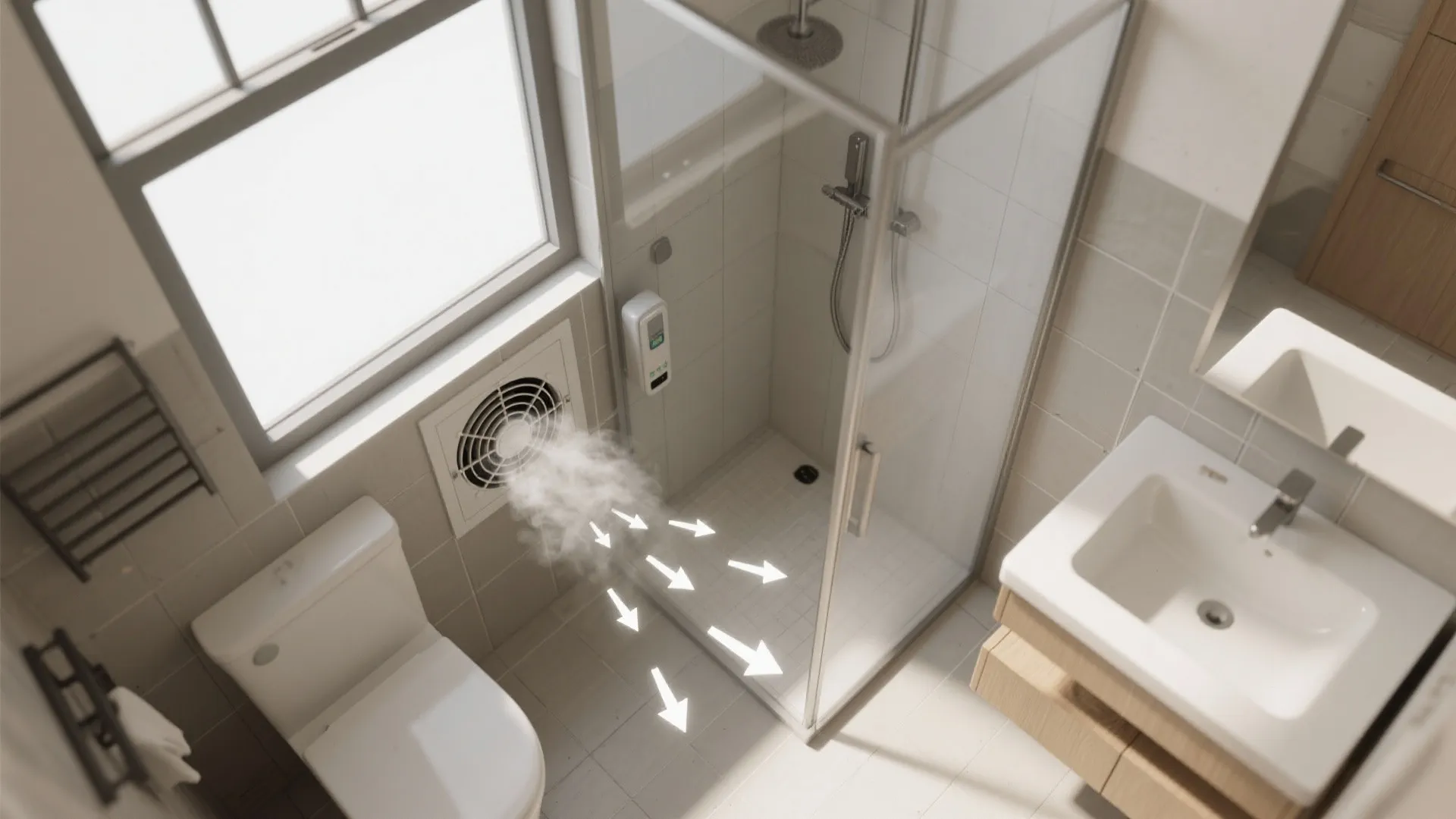

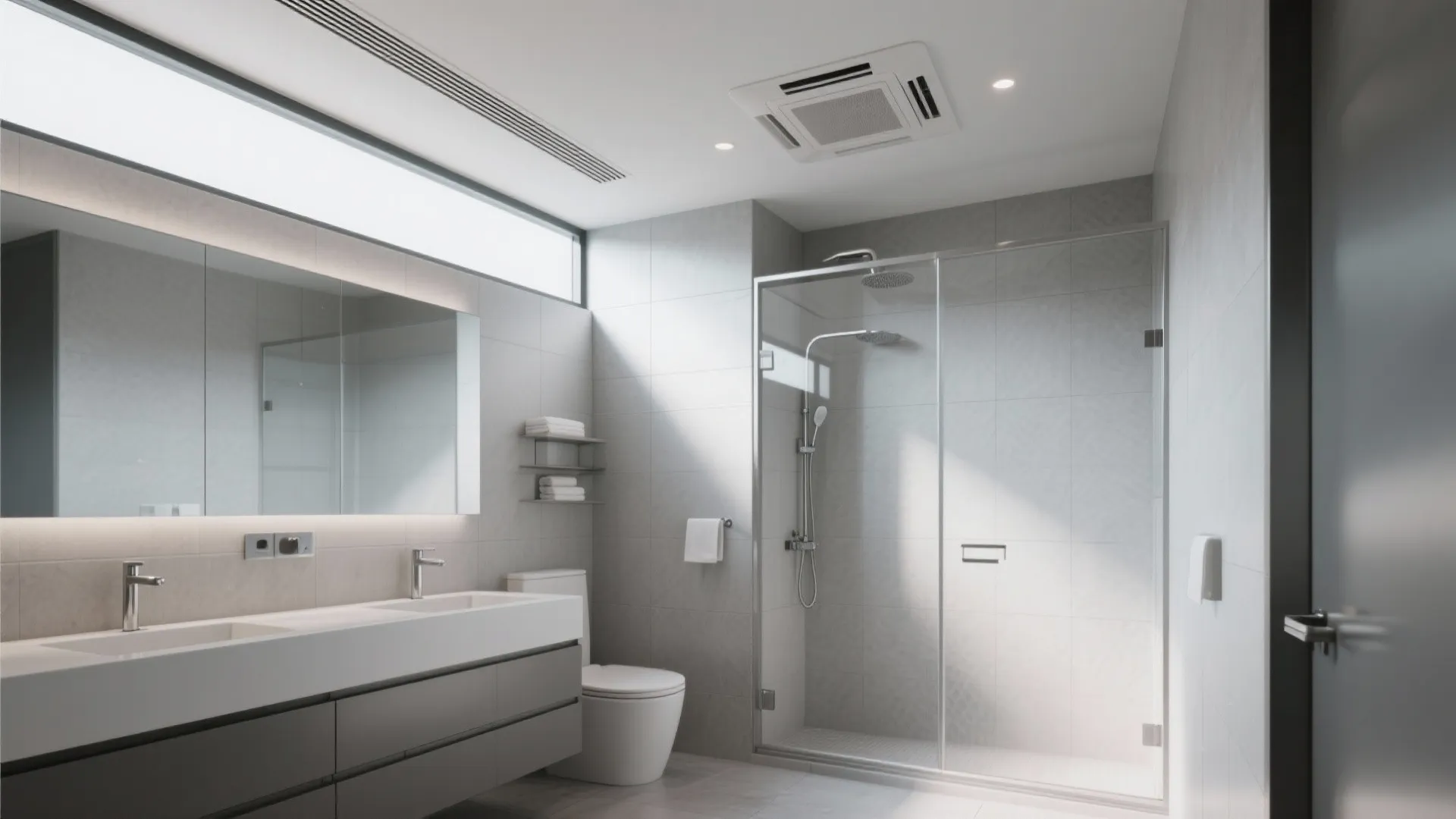

Clerestory windows near the ceiling are my go-to in urban bathrooms pressed against neighboring buildings. I mount an inline exhaust fan in the duct run to keep the visual noise low while the high strip window spills soft, uniform light across tiles.

Pros

- Privacy by design: at 2.1–2.3 m head height, the sightline is protected without film or shades—perfect for narrow lot lines.

- Even daylighting: a continuous clerestory reduces harsh contrast, improving makeup lighting and the perceived size of the room; it’s a strong small bathroom window ventilation strategy.

- Quiet performance: inline fans installed remotely (attic/void) dramatically cut perceived noise, encouraging daily use and better moisture control; see ASHRAE 62.2 guidance on continuous or intermittent ventilation rates for residential baths.

Cons

- Structure and ducting: you’ll need a clear path for the duct, and sometimes a beam forces a jog (and pressure drop).

- Access for maintenance: inline units need service access; plan a discreet ceiling hatch.

Tips / Cost

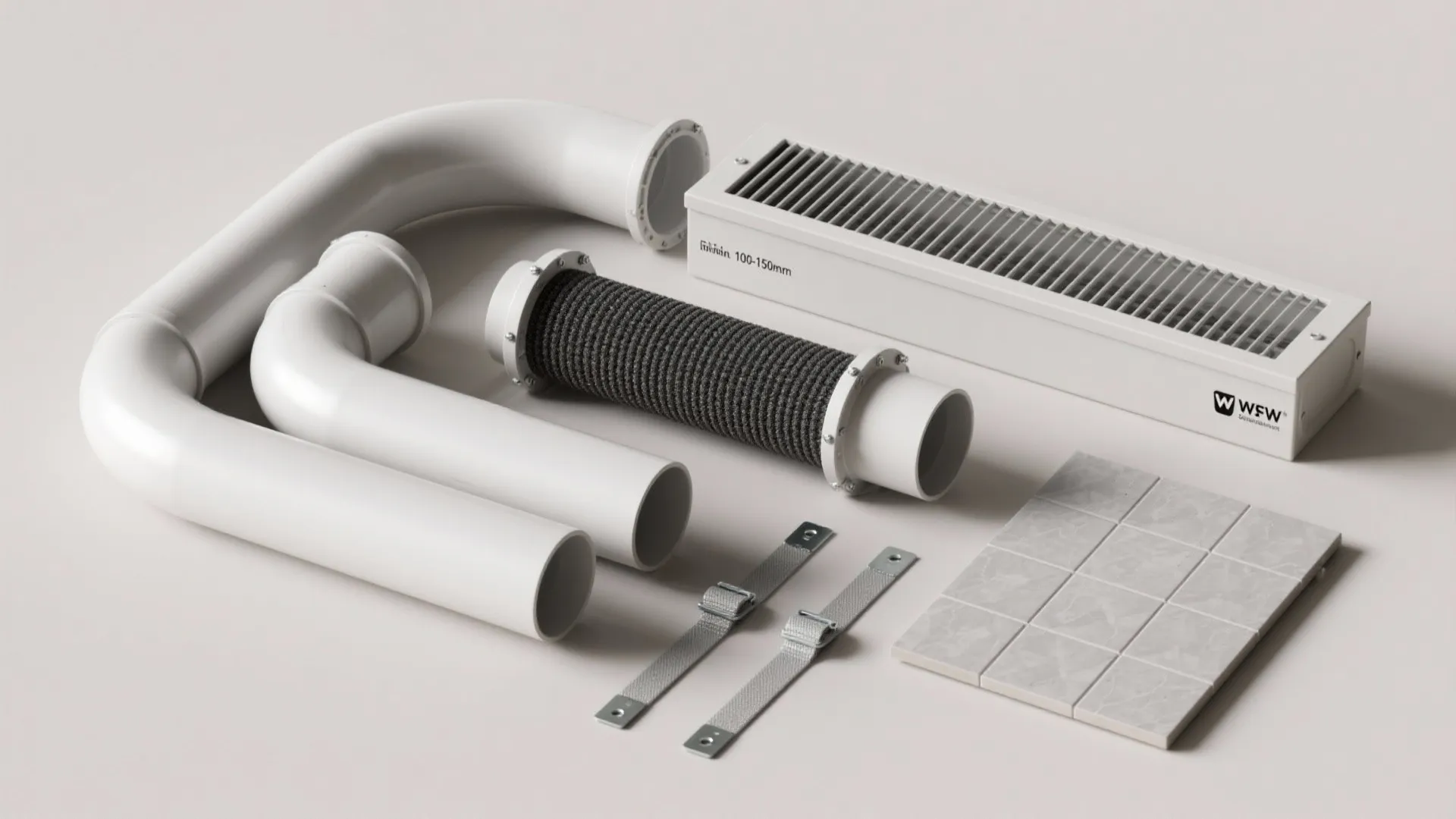

Budget for duct silencers if you’re sensitive to sound. A 100–150 mm smooth duct keeps air velocity reasonable. If you’re testing alternative ceiling lines and elevations, you can mock up options like an L shaped layout frees more counter space concept to understand how high windows shift storage opportunities along walls.

save pin

save pin

save pin

Sliding Window Over Vanity with Dedicated Fan Zone

My Take

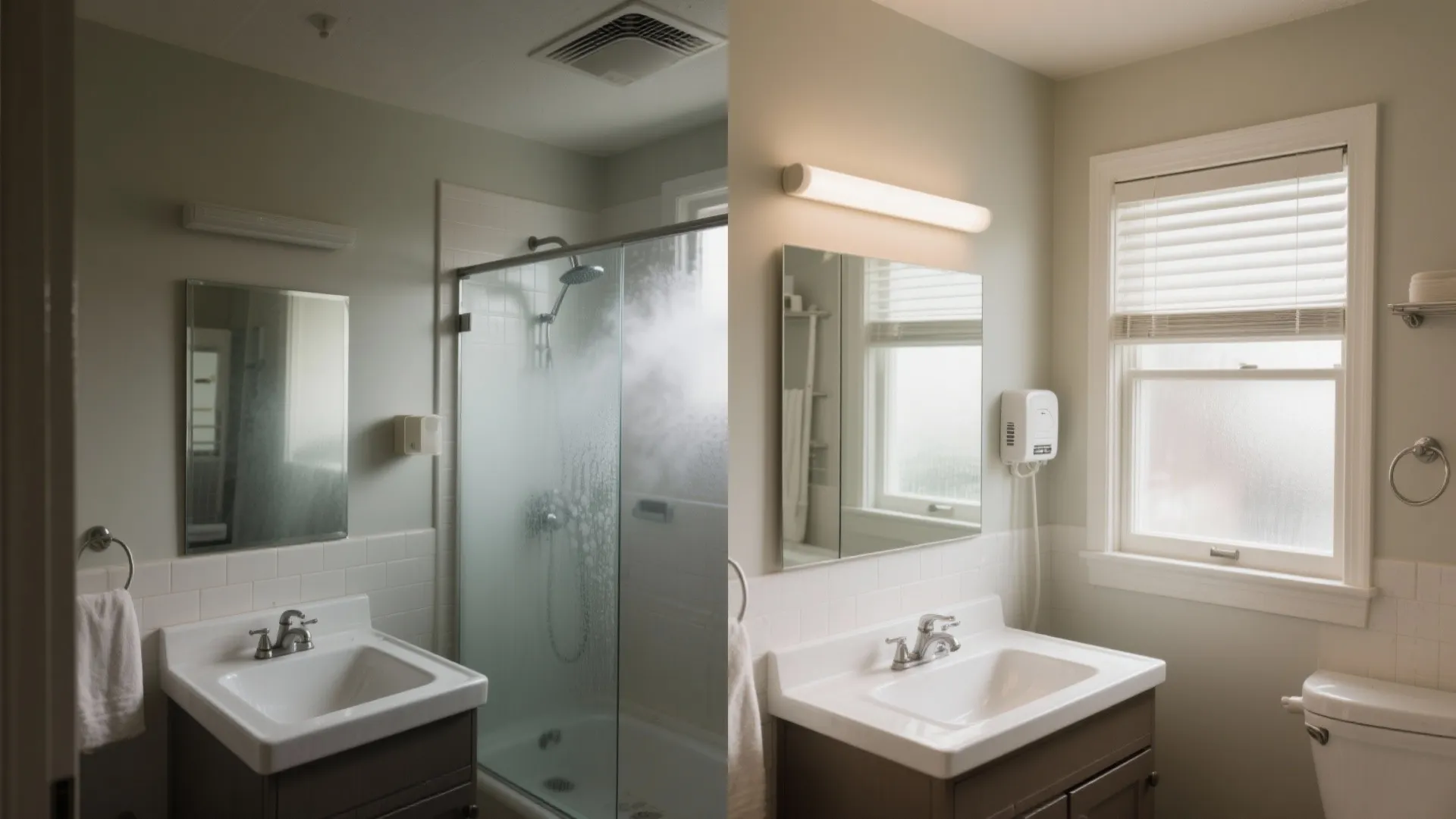

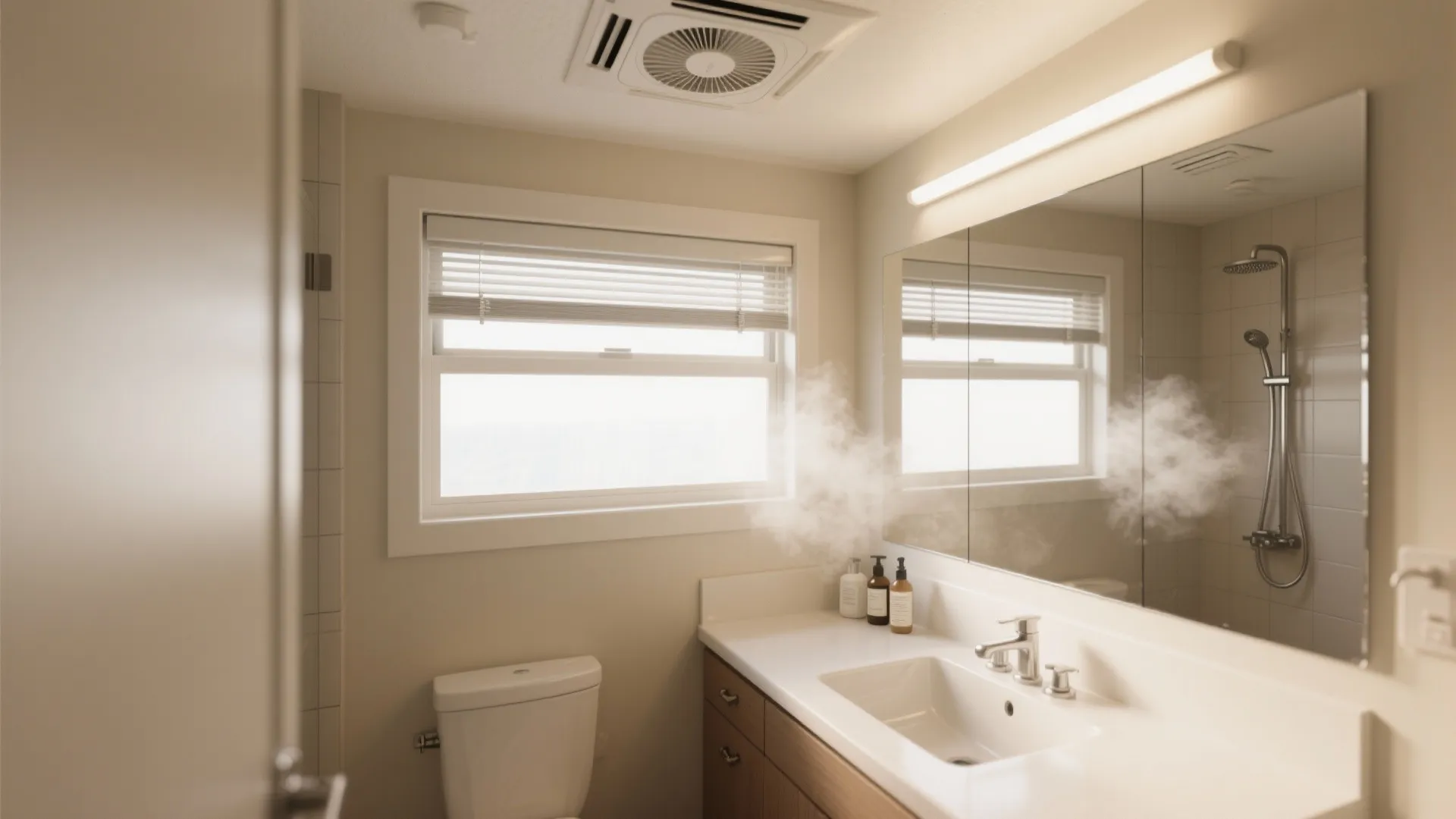

For renters or retrofits, a simple horizontal sliding window above the vanity is a friendly starting point. I place the exhaust fan toward the shower or bath end to pull moisture across the room, using the window as the make-up air source.

Pros

- Easy to operate: sliders are intuitive and parts are common, useful in DIY-leaning upgrades of bathroom window designs with exhaust fan installation.

- Task-light boost: daylight over the vanity reduces reliance on overheads, and reflective mirrors spread it further.

- Balanced airflow: with the fan pulling from the wet end, incoming air near the vanity helps sweep humidity off mirrors faster.

Cons

- Air leaks: budget units can rattle and draft in winter; specify better rollers and weatherstripping.

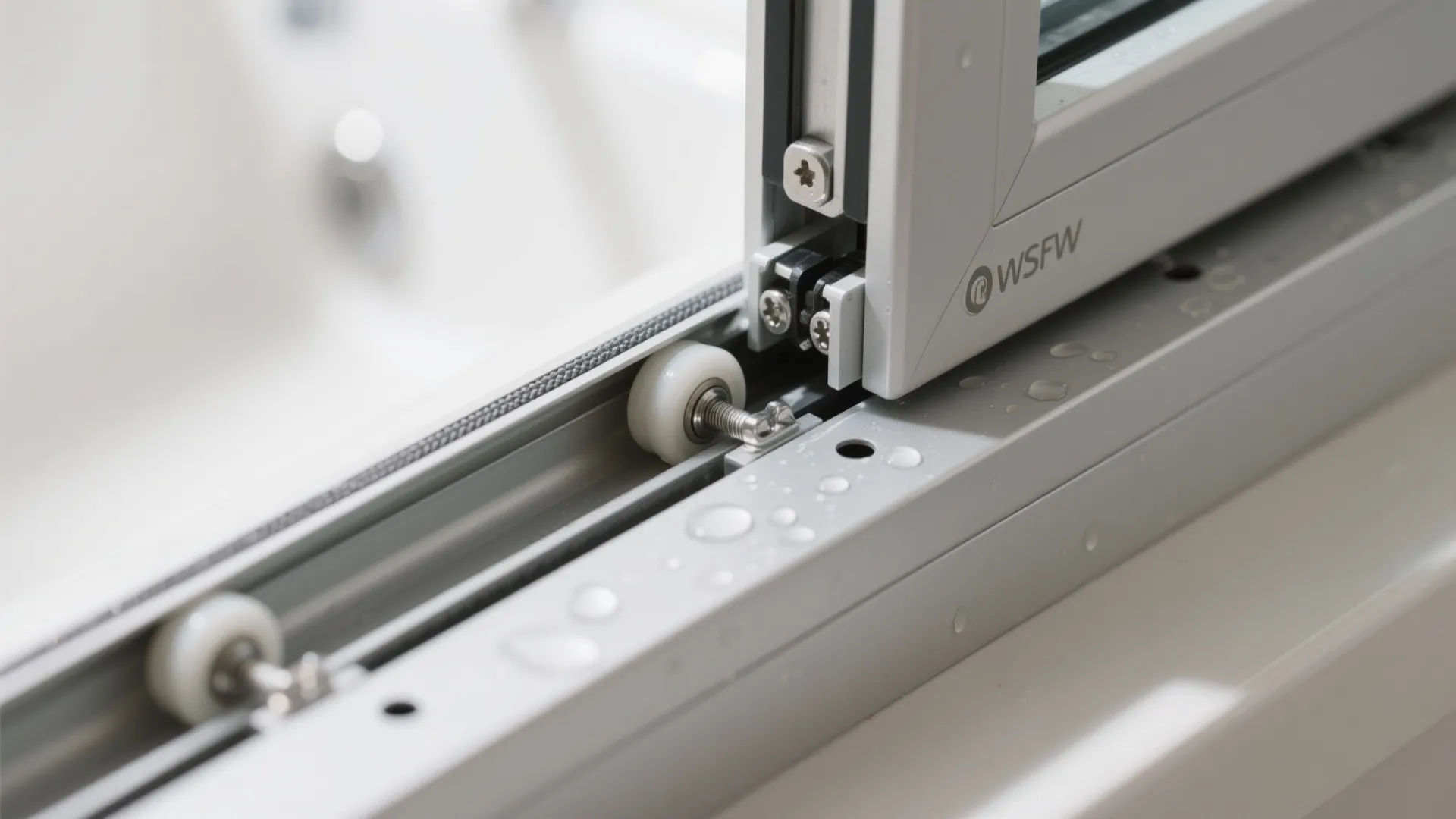

- Cleaning tracks: sliders trap grime in the sill; I specify weep holes and removable track inserts when possible.

Tips / Case

In a 1.6 m × 2.2 m bath, moving the fan 60–90 cm closer to the tub side cut post-shower RH from 90% to 65% in 15 minutes. That kind of placement tuning is more impactful than upgrading a fan by one size.

save pin

save pin

save pin

Obscure Glass Casement with Trickle Vent and Humidity Sensor Fan

My Take

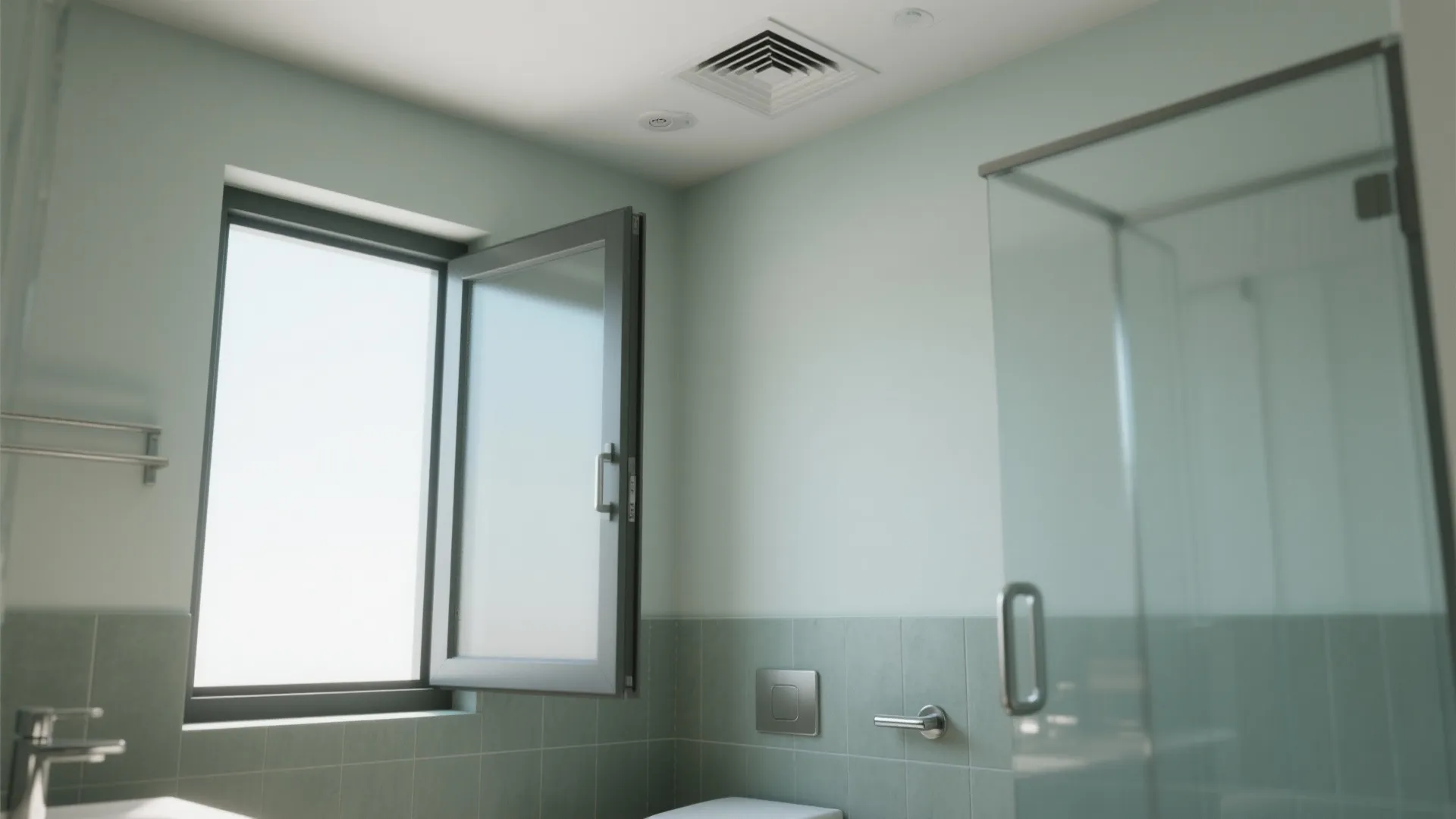

Clients who love crisp ventilation appreciate casements. I pair an obscure-glass casement with an integrated trickle vent and a humidity-sensing fan that ramps up automatically after showers. It’s a set-and-forget strategy for busy households.

Pros

- Smart control: humidity sensors maintain target RH, aligning with evidence that automatic control improves compliance with recommended ventilation rates; the EPA notes that bathrooms benefit from exhaust fans vented outdoors for mold prevention and indoor air quality.

- Tight seal: casements compress against weatherstripping, reducing drafts compared with sliders—helpful for energy-efficient bathroom window exhaust fan solutions.

- Fresh-air moderation: trickle vents allow background airflow without giving up privacy or security.

Cons

- Swing clearance: check for conflicts with mirrors or tall faucets.

- Cost: better hardware and multi-point latches add to budget, but they pay back in durability.

Tips / Cost

Set humidity threshold to ~55–60% RH. Specify a quiet fan (≤1.0 sone) at 80–110 CFM for typical small baths. Mid-grade obscure casements often land in the mid price tier; installation quality matters more than brand in long-term performance.

save pin

save pin

Dual-Glazed Window Seat Niche with Remote Fan Extraction

My Take

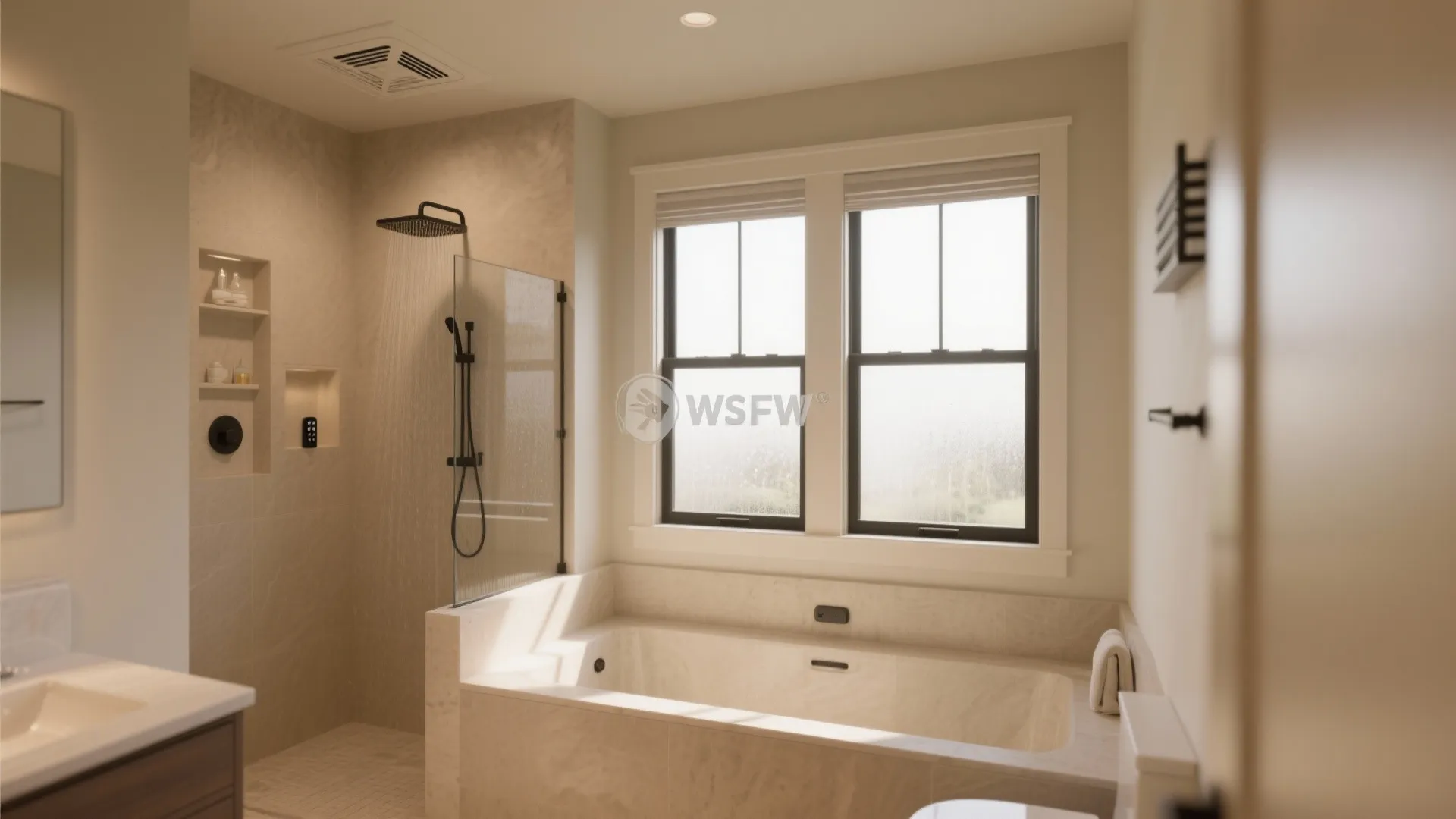

In larger primary baths, I sometimes carve a shallow window-seat niche under a double-glazed unit opposite the shower, then hide a remote fan over the shower line. The seat becomes a robe-drop zone, and the window floods the room while the fan quietly handles steam.

Pros

- Spatial drama: the niche and deeper sill enhance perceived depth, helping small bathrooms feel wider when paired with a strong bathroom window and exhaust fan layout.

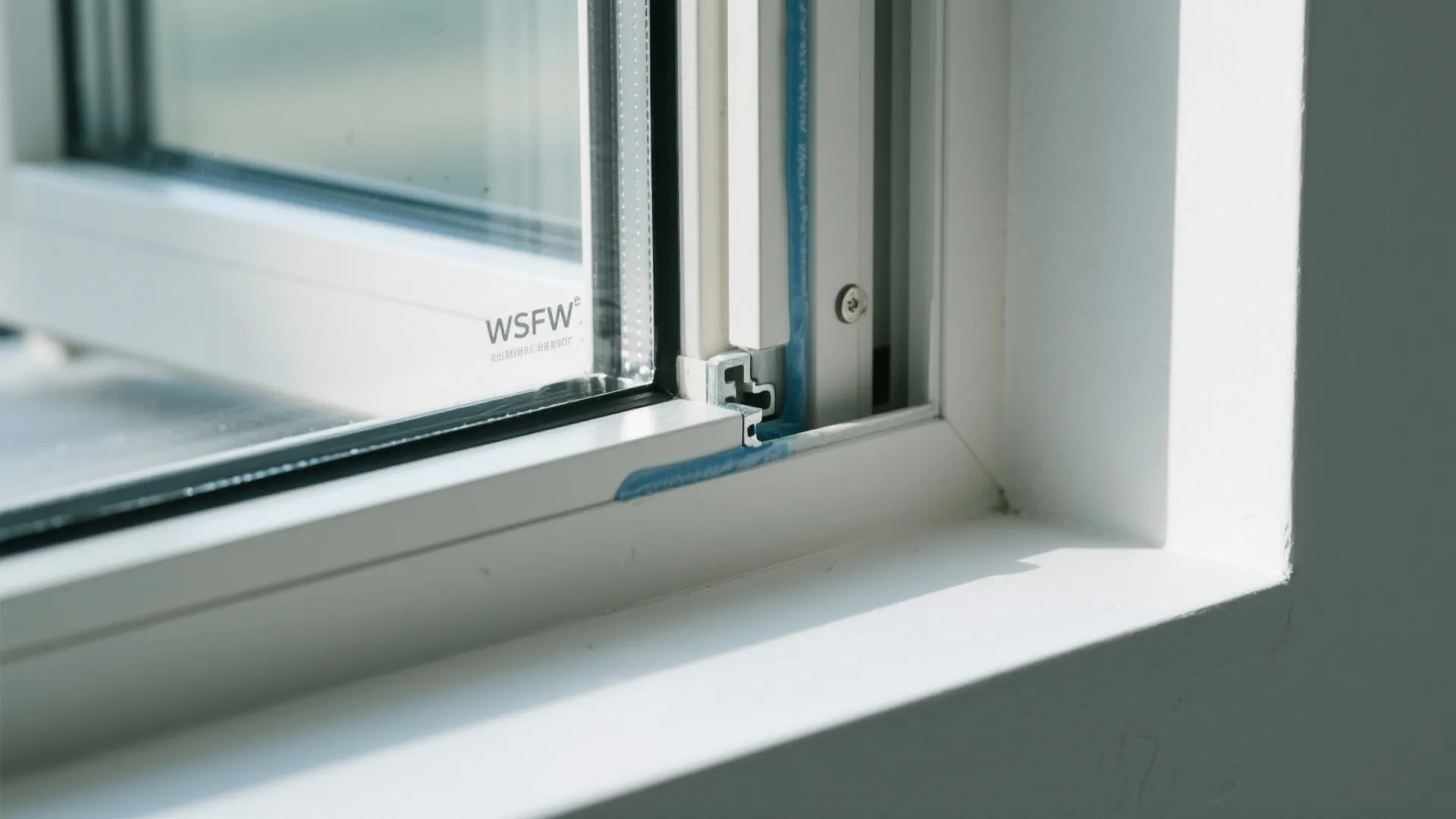

- Condensation control: double glazing and thermal breaks reduce cold glass surfaces, limiting condensation and paint damage.

- Zonal strategy: a remote fan over the wettest point shortens moisture dwell time, protecting grout and grout sealant cycles.

Cons

- Thermal bridging at niche: insulate and install a continuous vapor barrier or risk cold spots.

- Sun exposure: strong west sun may need a light-diffusing shade to keep afternoon baths comfortable.

Tips / Reference

When placing the extraction point, keep duct runs short and smooth; each 90° bend can significantly reduce effective CFM. For complex layouts, I model options much like I would when testing how L shaped layouts free up more counter space in kitchens—visualization helps catch conflicts between structure, ducts, and storage before build.

[Section: 数据与权威参考]

- ASHRAE 62.2 recommends minimum ventilation rates for residential bathrooms; in practice, 50 CFM intermittent or 20–30 CFM continuous is a common benchmark for small baths.

- The U.S. EPA advises that bathroom exhaust fans vent to the outdoors to control humidity and reduce mold growth; recirculating fans do not remove moisture.

[Section: 总结]

Small bathrooms aren’t a limitation—they’re an invitation to design smarter. Bathroom window designs with exhaust fan give you the best of both worlds: fresh daylight and reliable moisture control. Whether you choose a frosted awning or a clerestory strip with an inline fan, plan the airflow path, size the fan sensibly, and treat the window like a light engine. Which of these five ideas are you most excited to try in your own space?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What size exhaust fan do I need for a small bathroom with a window?

For most small bathrooms (under ~9 m²), 80–110 CFM works well, depending on duct length and bends. Pair the fan with a window to aid make-up air and reduce fogging time.

2) Should the exhaust fan be near the shower or near the window?

Place it near the shower or tub to capture steam at the source. Use the window as a make-up air point, so air sweeps across the room toward the fan.

3) Do I still need an exhaust fan if my bathroom has a big window?

Yes. Windows don’t remove moisture reliably in cold or rainy weather. The EPA recommends venting moisture outdoors with a dedicated fan for mold prevention (source: U.S. EPA Indoor Air Quality guidance).

4) What window types work best with an exhaust fan?

Awning and casement windows seal well and control rain, while clerestory strips maximize privacy and daylight. Sliders are fine in retrofits but check for good weatherstripping.

5) How do I reduce fan noise?

Pick a fan rated ≤1.0 sone, use smooth ducting with gentle bends, and consider a remote inline unit. Proper mounting and a backdraft damper also reduce rattle.

6) Is frosted film enough for privacy?

Usually, yes for street-facing or close-lot conditions. Frosted, obscure, or acid-etched glass preserves daylight while blocking views—good for bathroom window designs with exhaust fan.

7) Do humidity-sensing fans really help?

They automate ventilation, keeping relative humidity in check after showers without user input. This aligns with best-practice ventilation targets cited by ASHRAE 62.2.

8) Can I model my bathroom layout before committing?

Yes. A quick digital mockup helps check clearances, duct routes, and light paths. If you’re exploring variations, previewing something like “3D render home” options can clarify finishes and glazing effects.
