Bathroom Window Designs With Exhaust Fan Ideas That Actually Work: Practical bathroom window layouts that improve ventilation, privacy, and everyday comfort in real homes

Direct Answer

Bathroom window designs with exhaust fan integration work best when the fan is positioned either above the window frame or within a divided window panel. This approach keeps natural light while allowing the fan to remove humidity efficiently. In most residential projects, the goal is balancing airflow, privacy, and moisture control rather than simply adding a bigger window.

Quick Takeaways

1. Placing an exhaust fan above the window keeps airflow strong without sacrificing daylight.
2. Sliding or awning windows pair better with exhaust fans than fixed glass panels.
3. Frosted or textured glass maintains privacy while allowing ventilation.
4. Small bathrooms benefit most from split window fan layouts.
5. Poor placement can trap humidity even if a powerful fan is installed.

Introduction

After working on dozens of bathroom renovations across Los Angeles, I can tell you that bathroom window designs with exhaust fan integration are one of the most misunderstood parts of bathroom planning. Homeowners often assume a bigger window solves ventilation problems. It rarely does.

Bathrooms produce constant humidity from showers, sinks, and warm air. Without proper airflow, moisture lingers and leads to mold, peeling paint, and warped cabinetry. The trick is designing the window and the exhaust fan as one system instead of treating them as separate features.

In this guide, I will walk through several bathroom window designs with exhaust fan ideas that actually work in real homes. These are layouts I regularly recommend when clients want better airflow without sacrificing privacy or natural light.

save pin

Why combine a bathroom window and exhaust fan instead of choosing one

Key Insight: The most reliable bathrooms use both natural ventilation and mechanical exhaust because each solves a different airflow problem.

Natural airflow from a window removes stale air slowly, while an exhaust fan pulls humid air out quickly. Relying on just one often creates hidden issues. In older homes I have renovated, bathrooms with only windows often had lingering humidity after showers, especially during colder months when windows stay closed.

A combined system solves this.

1. Window provides daylight and passive airflow
2. Exhaust fan actively removes moisture
3. Together they reduce mold risk dramatically

According to the U.S. Environmental Protection Agency guidance on indoor moisture control, mechanical ventilation is one of the most effective ways to prevent mold growth in humid spaces like bathrooms.

What bathroom window styles work best with an exhaust fan

Key Insight: Window style determines how efficiently air moves through the bathroom.

Through experience, certain window types consistently perform better when paired with an exhaust fan.

1. Awning windows open outward from the bottom and allow airflow even during rain.
2. Sliding windows are easy to combine with side mounted exhaust fans.
3. Casement windows create strong cross ventilation.
4. Split pane windows allow a dedicated panel for the fan.

Fixed windows are the least flexible option because they remove the possibility of passive airflow.

save pin

Five bathroom window designs with exhaust fan ideas

Key Insight: The most functional layouts integrate the fan into the window zone instead of placing it randomly on the ceiling.

1. Fan Above the Window
2. One of the cleanest layouts places the exhaust fan directly above the window frame. This maintains a full glass opening while removing humid air at the highest point.
3. Split Window With Built In Fan Panel
4. A vertical window divided into two sections lets the upper panel house a compact exhaust fan.
5. Side Panel Vent Window
6. A narrow side window contains the exhaust fan while the main glass section brings in daylight.
7. Clerestory Window With Ceiling Exhaust
8. High horizontal windows bring privacy and daylight while a nearby fan pulls steam upward.
9. Awning Window With Wall Mounted Fan
10. This layout works well in smaller bathrooms where ceiling ducting is difficult.

save pin

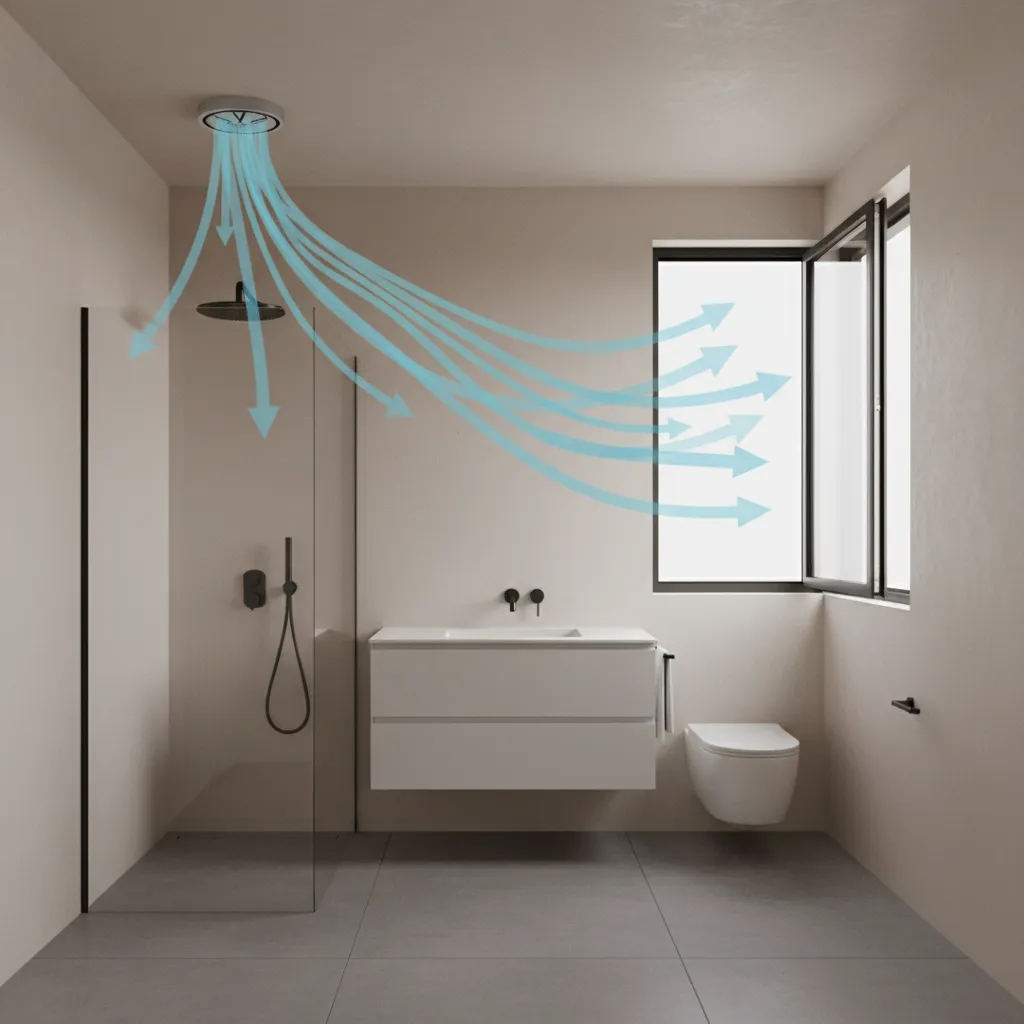

Hidden mistakes people make with bathroom ventilation

Key Insight: Most ventilation failures come from layout mistakes rather than weak fans.

After inspecting many bathrooms with mold problems, I repeatedly see the same issues.

1. Fan installed too far from the shower
2. Window placed on the opposite wall from airflow path
3. Fan airflow rating too small for the room
4. Blocked or poorly routed ductwork

The Home Ventilating Institute recommends roughly one cubic foot per minute of airflow per square foot of bathroom space. Yet many installations fall below that benchmark.

save pin

How to design bathroom window ventilation for small bathrooms

Key Insight: Small bathrooms benefit most from compact window and fan combinations because airflow paths are shorter.

In apartments and older homes, bathrooms often have limited exterior wall space. Here are strategies I frequently use.

1. Install a narrow vertical window beside the mirror wall
2. Place the exhaust fan directly above the shower
3. Use frosted glass to maximize privacy
4. Choose quiet fans rated under 1.5 sones

This layout keeps the room bright while preventing steam buildup.

Answer Box

The best bathroom window designs with exhaust fan placement combine natural light with direct moisture removal. Position the fan near the window zone or above the shower so humid air exits quickly while the window maintains daylight and passive ventilation.

Final Summary

1. Bathroom ventilation works best when windows and exhaust fans function together.
2. Awning and sliding windows integrate most easily with exhaust fans.
3. Fan placement near the shower dramatically improves moisture removal.
4. Split window designs allow compact fans without losing daylight.
5. Poor airflow layout causes more problems than weak fans.

FAQ

Can a bathroom window replace an exhaust fan?

No. Windows provide passive ventilation but cannot remove humidity quickly after showers.

Where should an exhaust fan be placed in a bathroom?

The fan should be close to the shower or bathtub where most steam forms.

What is the best bathroom window design with exhaust fan?

A split window with a fan panel or a fan placed above the window works best.

Are bathroom window exhaust fans effective?

Yes, especially in small bathrooms where they remove moisture directly at the exterior wall.

Should the fan be above the window?

Often yes. Warm humid air rises, so placing the fan higher improves extraction.

What type of glass works best for bathroom windows?

Frosted, textured, or obscure glass provides privacy while allowing natural light.

Do all bathrooms need an exhaust fan?

Most building codes require one unless the bathroom has a sufficiently large operable window.

What size exhaust fan is needed?

Typically one CFM per square foot of bathroom space.
