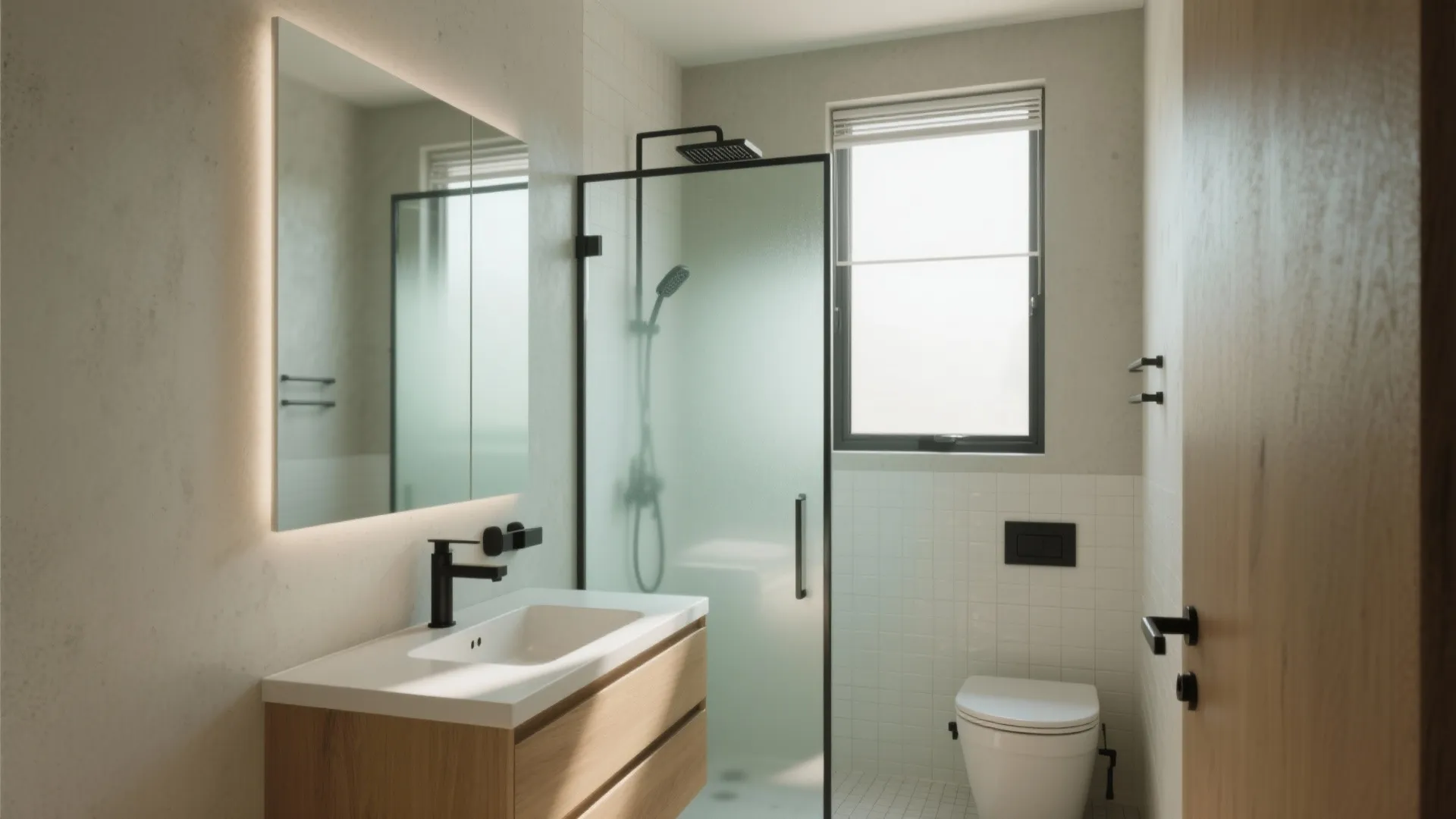

5 Bathroom Window Designs with Exhaust Fan That Work: Practical, code-savvy ventilation ideas from a small-space interior designer

[Section: Introduction]

I’ve spent over a decade redesigning compact homes where every inch counts, and few puzzles are trickier—or more satisfying—than bathroom window designs with exhaust fan. This year’s big interior trend? Pairing natural light with smart, quiet ventilation for spaces that feel brighter, healthier, and more serene.

Small spaces spark big creativity. In tight bathrooms, I’ve seen the right window-and-fan combo eliminate fogged mirrors, tame mildew, and make a tiny room feel generous. In this guide, I’ll share 5 design ideas I use on real projects—plus my on-site lessons learned and key data from building-science pros—so you can choose what fits your layout, budget, and climate.

We’ll talk privacy glass, clerestory ribbons, retrofits that won’t anger your HOA, and heat-saving strategies for cold winters. Each idea includes my take, honest pros and cons (including long-tail tips like bathroom exhaust fan through window and window vent fan placement), and practical notes on cost and install complexity. Let’s dive in.

[Section: Inspiration List]

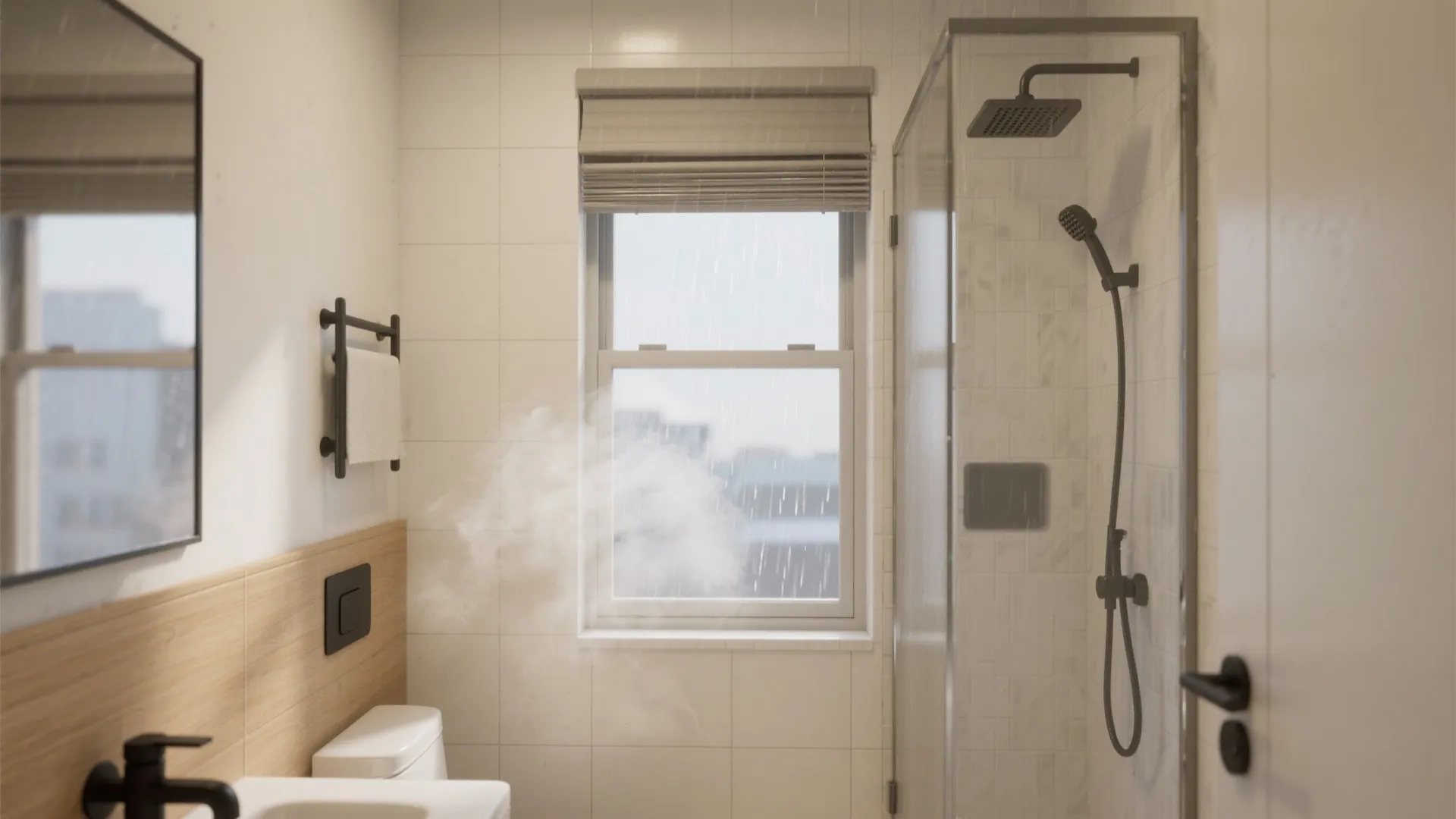

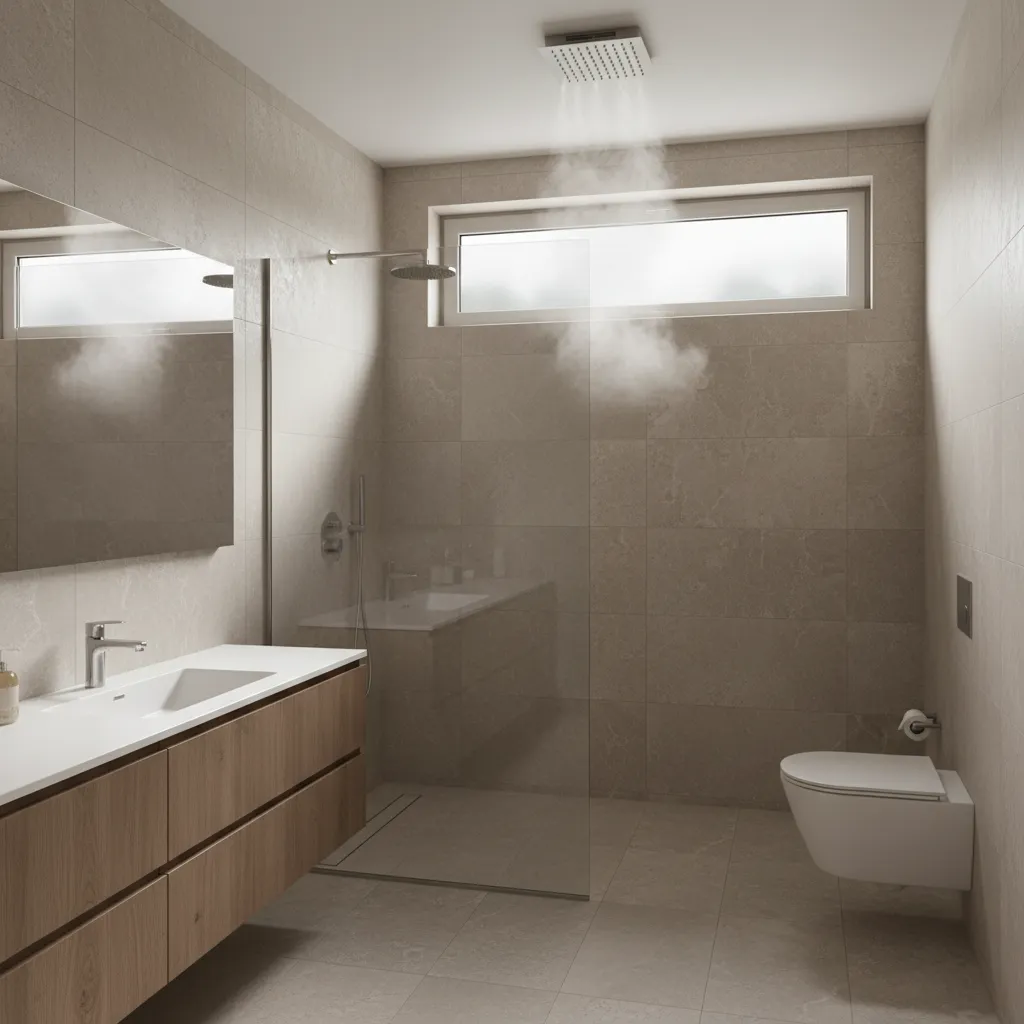

Awning Window Over Shower + Inline Exhaust Fan

My Take

In a 4.5 m² condo bath I renovated last spring, we tucked a narrow awning window high above the shower and paired it with a quiet inline fan mounted in the ceiling cavity. The awning protected against wind-driven rain, and the remote fan kept noise out of the small room—my client could actually hear her podcast again.

Pros

Awning sashes shed rain while venting, so you get daylight even during a drizzle—an ideal awning bathroom window with exhaust fan pairing for real-world weather. Inline fans (mounted remotely) reduce perceived loudness and help meet the recommended rates without a clunky grille next to your face. ASHRAE 62.2 calls for at least 50 cfm intermittent or 20 cfm continuous ventilation in bathrooms, which this setup meets comfortably (ASHRAE 62.2-2019).

For tight urban sites, placing the window high preserves privacy but still pulls steam at the source. I often specify obscured glazing here; Frosted glass with a slim awning vent balances daylight with a clean silhouette in small spaces.

Cons

Inline fans need duct runs through a joist bay or attic; if your path is long or kinked, performance drops and you may need a higher cfm unit. High windows can be trickier to clean, and if the shower wall is exterior masonry, cutting for a new opening may require a lintel—budget for proper structure.

Tips / Case / Cost

Target 80–110 cfm for a tub/shower combo and keep the sone rating under 1.0 at the grille. Use a humidity sensor switch set around 50–55% RH so the fan runs when it should and rests when it can. Expect $650–$1,200 for fan, duct, and electrical in many markets, plus window and finish costs.

save pin

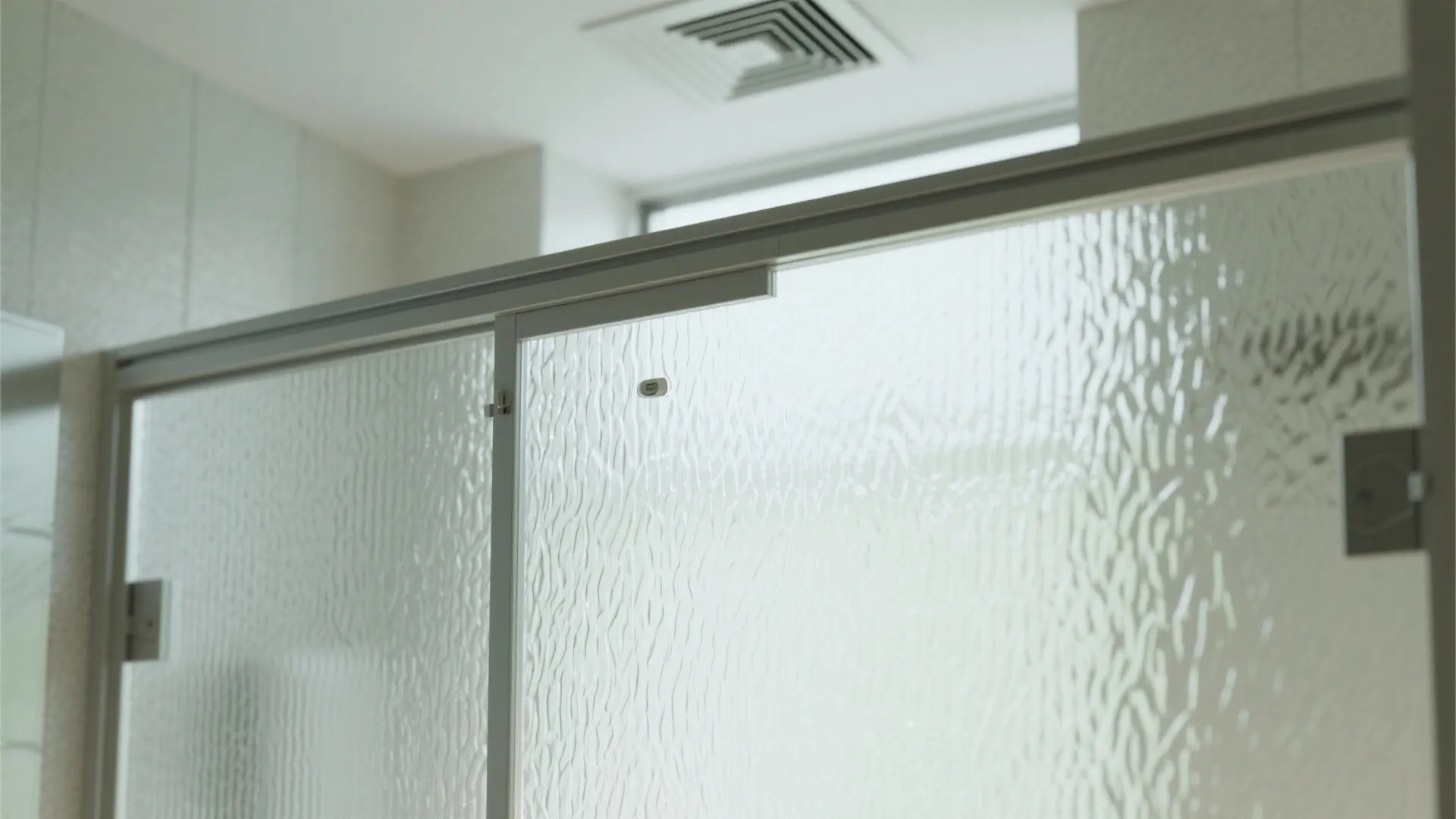

Frosted or Patterned Glass + Trickle Vent + Humidistat Fan

My Take

In rowhouses where neighbors are a handshake away, I lean on frosted or patterned glass paired with a discreet trickle vent at the head of the window and a humidistat-controlled fan. Last fall, a client wanted privacy without blackout; we layered reed glass with a white frame so natural light washed the vanity from morning to afternoon.

Pros

Obscured glazing gives you daylight and privacy simultaneously, a win for frosted bathroom window ideas with fan—especially at street-facing façades. A trickle vent allows a whisper of fresh air year-round, helping dilute odors and moisture even when the main fan is off. With a humidistat fan, you get set-and-forget control; when humidity spikes from a shower, the system kicks on automatically to maintain a comfortable band.

This bathroom window with exhaust fan combo shines in guest baths, powder rooms with a shower, and compact ensuites, because you keep glass surfaces bright while cutting glare. It’s also renter-friendly in some cases if the trickle vent is integrated into the sash and doesn’t violate exterior rules.

Cons

Trickle vents move limited air by design, so you still need a code-compliant bath fan to reach proper air changes. In winter, any continuous vent can slightly increase heat loss; a well-insulated window (low U-factor, warm-edge spacer) minimizes that. Some patterned glasses show streaks more readily—choose a texture you like to clean.

Tips / Case / Cost

Favorite patterns: satin etch for a soft glow; fluted/reeded for a modern, vertical rhythm that elongates the wall. If you’re worried about glare, choose a neutral white tile or microcement around the window to bounce light evenly. Typical costs: $350–$900 for a quality window with obscured glass; $150–$400 for a humidistat fan upgrade vs. a basic switch.

save pin

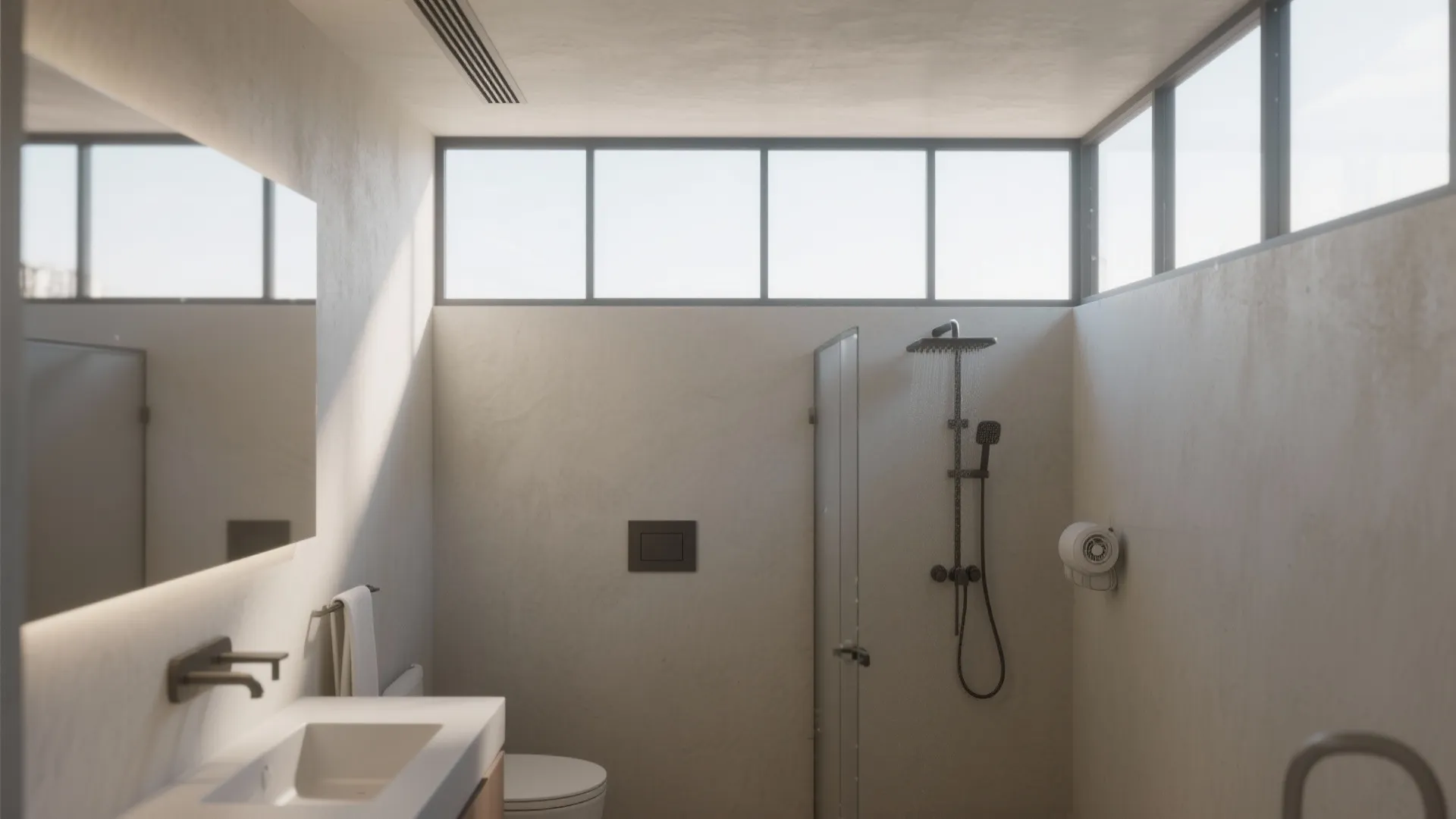

Clerestory Ribbon Windows + Remote Inline Fan (Quiet by Design)

My Take

Noise matters in small homes. I had a nursery adjacent to a primary bath, and the parents begged me to keep the fan whisper-quiet. We ran a clerestory band of fixed windows at ceiling height for a sky-view effect and put the fan motor two joist bays away; it felt like daylight poured in while the fan seemed to run in another apartment.

Pros

Clerestories admit high, diffuse light and preserve privacy fence-to-fence, while the remote inline fan drops sone levels at the grille dramatically. Properly sized, this setup supports small bathroom ventilation without sacrificing serenity. According to ASHRAE 62.2, intermittent bath ventilation should be no less than 50 cfm; pairing a smooth, short duct run with an inline unit helps meet that target without the typical hum (ASHRAE 62.2-2019). The EPA also recommends maintaining indoor humidity around 30–50% to reduce mold growth; a quiet fan that actually runs makes that easier (EPA Indoor Air Quality guidance).

When I model glare, I aim the clerestory toward a bright but not direct-sun exposure—north or east in most climates—so the space feels taller without harsh contrast. If your plan supports it, a continuous ribbon creates a gallery-like feel that belies the bathroom’s footprint. I sometimes sketch concepts around a clerestory band with a remote inline fan to communicate how daylight and airflow will interact.

Cons

Clerestories require careful framing; you’ll need a structural header above, and in single-story homes without attic space, routing ducts can be tighter. Cleaning the inside is easy; cleaning the exterior may require a ladder or pro, especially on upper stories. In very cold zones, be diligent about insulating the header to prevent thermal bridging.

Tips / Case / Cost

Fan placement: keep the grille near the moisture source (shower/tub area) but motor farther along the duct. Use smooth-walled duct, minimize 90-degree elbows, and seal joints with mastic, not just tape. Expect $1,200–$2,500 for the window band (size-dependent) and $700–$1,400 for the inline fan plus ductwork.

save pin

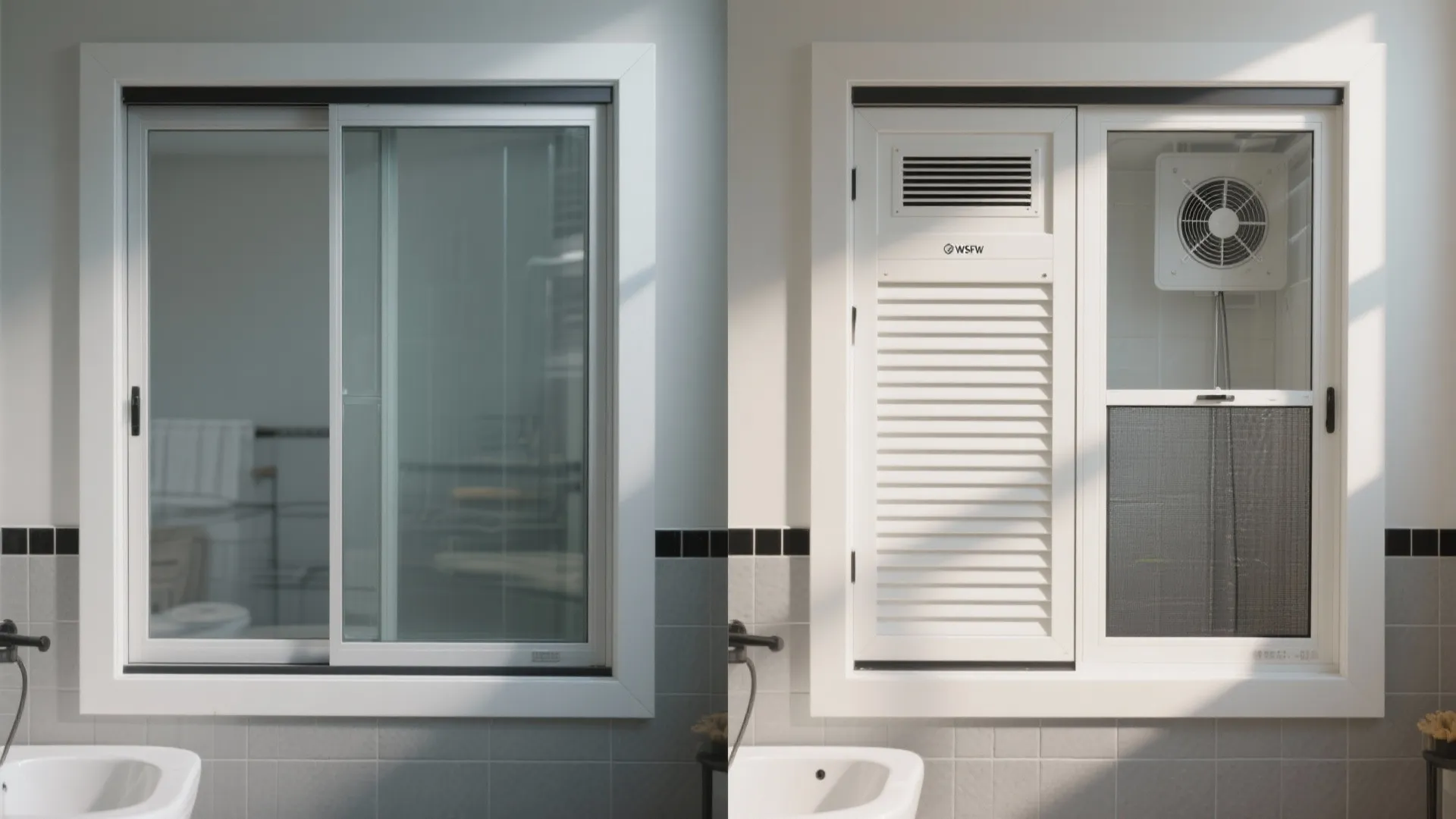

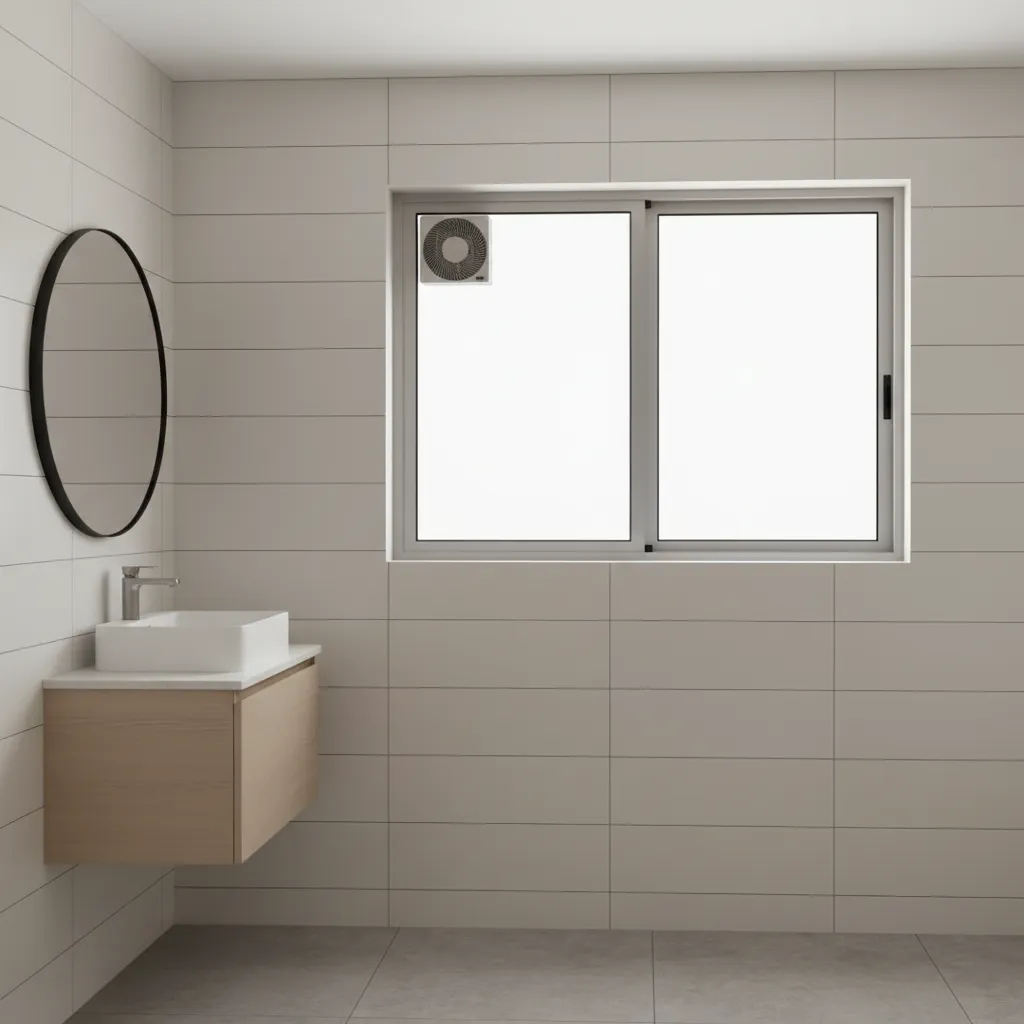

Sliding Window with Louvered Panel + Through-Glass Fan Kit (Retrofit Hero)

My Take

For apartments and condos where coring an exterior wall is a non-starter, I’ve converted one side of a sliding window into a louvered panel and used a through-glass fan kit. One client in a 1970s building wanted to reduce fog and smells without upsetting her HOA; we delivered a reversible setup that came out clean at move-out.

Pros

Retrofit-friendly and reversible, this approach uses the existing opening and respects façade rules. A louvered insert isolates the fan from the operable sash, and modern backdraft dampers keep winter air at bay. It’s flexible for window vent fan placement, especially in older buildings where ducting is impossible and bathroom exhaust fan through window is the only practical path.

You can size the insert to maintain security and a bug screen, and paint the panel to match the frame for a tidy look. Because the fan sits in the panel, service and replacement are straightforward—no attic spelunking required.

Cons

Any window-mounted fan introduces potential thermal and acoustic leakage; choose insulated panels and gasketed edges. It won’t be as silent as a remote inline fan, and it may not meet stringent energy codes in some jurisdictions. Pay attention to water management—overhangs help, and a well-detailed sill is non-negotiable.

Tips / Case / Cost

Measure twice: glazing thickness, panel width, and clearances for locks and stops. Consider a magnetic insect screen and a keyed lock for security. Budget $250–$600 for the panel and fan kit, plus a couple of hours of pro labor if you’re not handy; it’s one of the most cost-effective ways to upgrade airflow fast.

save pin

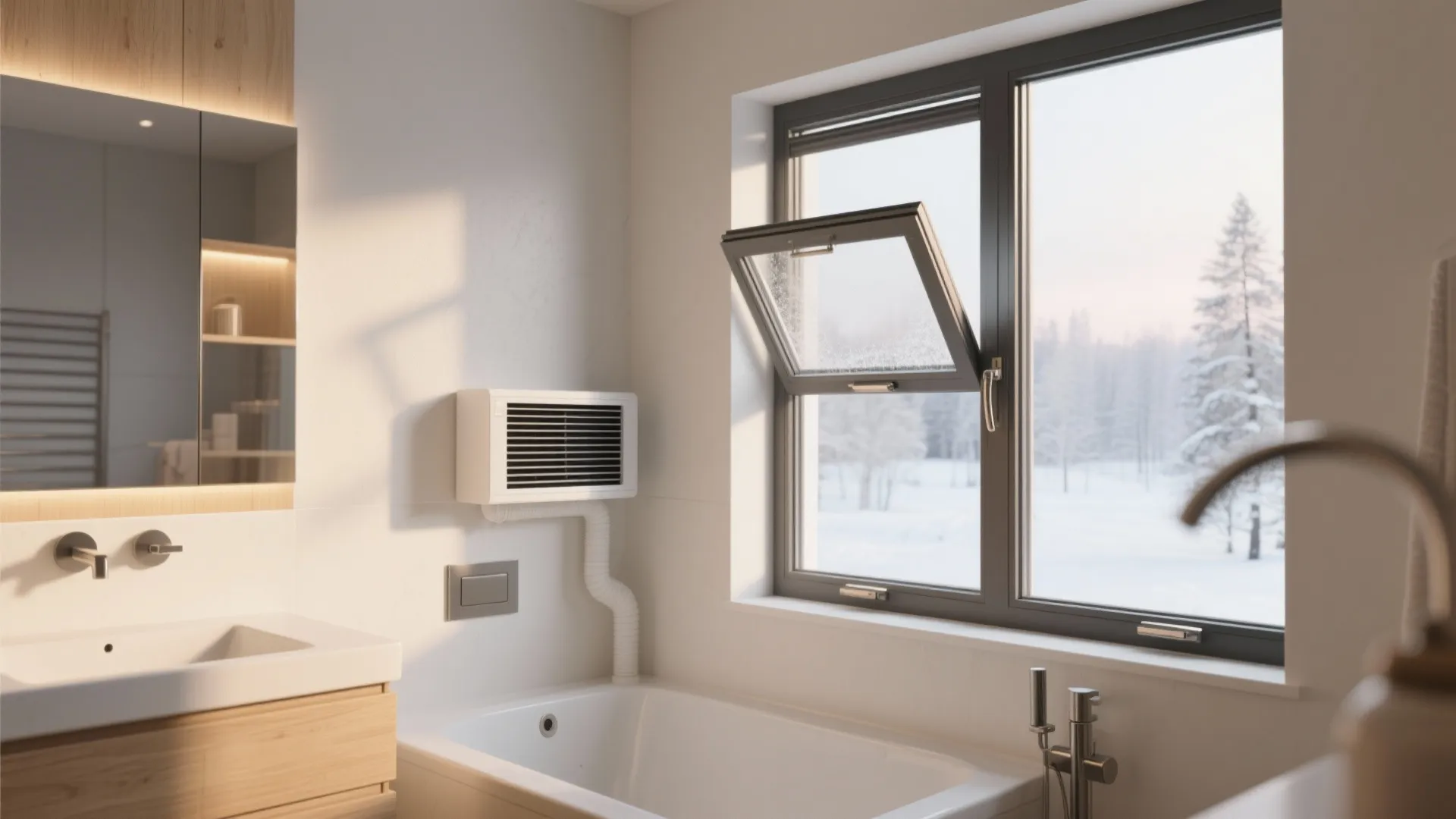

Tilt-and-Turn or Casement + Micro‑ERV Exhaust for Cold Climates

My Take

In snowy regions, clients want dry mirrors without dumping heat. My favorite play: a tilt-and-turn window for secure micro-venting plus a compact energy-recovery ventilator (ERV) set to exhaust-dominant mode. In a 1920s bungalow with thick plaster walls, this combo kept the bath toasty and the window condensation-free.

Pros

Tilt mode lets the sash vent at the top while staying rain-tight and child-safe—great for privacy and security—while a micro‑ERV recovers a big chunk of heat from outgoing air. That’s a smart evolution of bathroom window designs with exhaust fan, especially in cold climates where every degree counts. Many compact ERVs recover 60–80% of heat energy (DOE field studies and manufacturer specs), helping you ventilate without the sting on your utility bill.

Pair a humidity sensor (50–55% RH setpoint) with a timer to ensure a post-shower purge. Quiet operation is doable with wall-mounted ERVs designed for bedrooms; a bathroom-rated unit or placement in an adjacent closet keeps the vibe spa-like. If you love minimal, this is a sleek, hardware-forward look that reads modern.

Cons

Upfront cost is higher, and installation is more complex than a simple exhaust. You’ll need a penetrations plan that avoids studs and pipes, plus a decent electrical feed. If misconfigured, you could depressurize the room and pull in cold drafts—commissioning matters.

Tips / Case / Cost

Choose a low U-factor window with warm-edge spacers to fight condensation. Ask your contractor to balance the ERV for slight exhaust bias during showers, then neutral the rest of the day. Expect $1,800–$3,200 for a quality tilt-and-turn window, and $900–$2,000 for a compact ERV. In my last install, the energy savings paid back a meaningful share over four winters. For design planning, I like to storyboard options like a tilt-and-turn with a compact ERV upgrade so clients can picture operations and clearances.

[Section: Summary]

Small bathrooms don’t limit you—they demand smarter moves. With the right balance of glass, privacy, and airflow, bathroom window designs with exhaust fan can turn a damp cubby into a bright, dry, and quiet retreat. Codes like IRC R303.3 allow a properly sized exhaust fan in lieu of an operable window, and ASHRAE 62.2 ventilation rates are a reliable target; use them as your guardrails while you customize for light, privacy, and climate.

Which idea fits your space best—the awning-over-shower, the clerestory ribbon, the retrofit louver, or the cozy cold‑climate combo? If you share your layout and climate, I’m happy to weigh in on sizing and materials.

save pin

FAQ

[Section: FAQ]

Q1: What’s the best cfm for a small bathroom exhaust fan?

A1: ASHRAE 62.2 recommends at least 50 cfm intermittent or 20 cfm continuous for bathrooms (ASHRAE 62.2-2019). If your shower is used frequently, I often spec 80–110 cfm to clear steam faster in compact rooms.

Q2: Do I still need a window if I have an exhaust fan?

A2: Many codes (e.g., IRC R303.3) allow a code-compliant exhaust fan instead of an operable window. If you can have both, you’ll get better daylight and passive ventilation options, especially in nice weather.

Q3: What glass is best for privacy without losing light?

A3: Satin-etched (frosted) or lightly reeded glass maintains brightness and blurs silhouettes. These are favorites for frosted bathroom window ideas with fan because they keep the space bright even with blinds open.

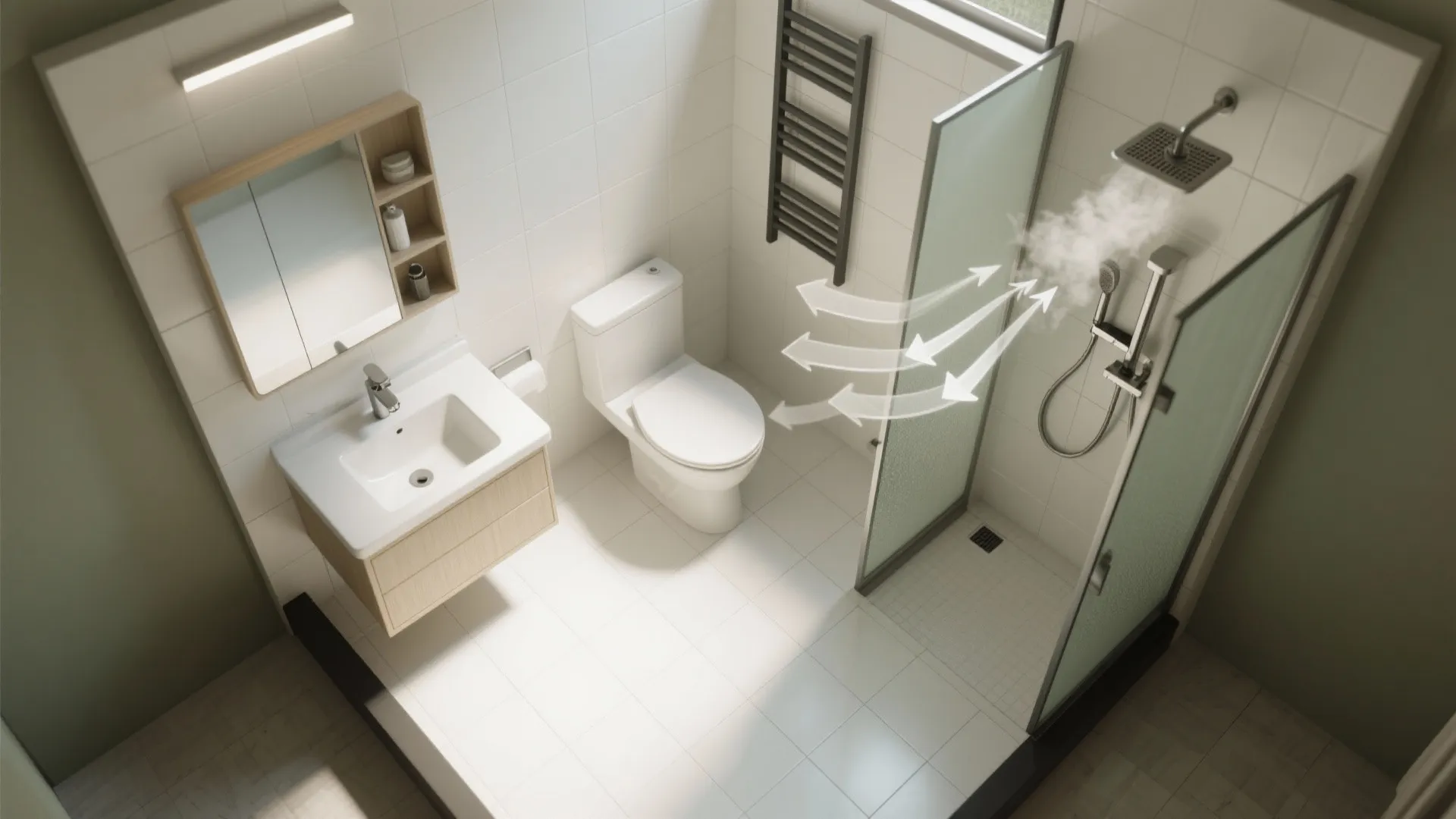

Q4: How can I reduce fan noise in a tiny bathroom?

A4: Use a remote inline fan and keep duct runs smooth and short; that design can drop audible noise dramatically. Also look for low sone ratings (≤1.0 sone at rated cfm) and isolate the fan housing with vibration damping.

Q5: Is a window vent fan placement through the glass a good idea?

A5: It’s a practical retrofit when you can’t core an exterior wall—especially in condos or rentals. Choose a kit with insulated panels, a backdraft damper, and tight gaskets to limit heat loss and noise.

Q6: How do I prevent condensation on cold mornings?

A6: Ventilate during and after showers (10–20 minutes), keep indoor RH around 30–50%, and choose thermally efficient windows (low U-factor). The EPA notes that maintaining 30–50% indoor humidity helps reduce condensation and mold risk.

Q7: Can I pair a bathroom window with exhaust fan and a heat-recovery system?

A7: Yes—an ERV can reclaim 60–80% of heat while exhausting moist air, great for cold climates. Balance the ERV to run slightly exhaust-biased during shower time, then neutral the rest of the day.

Q8: What’s the simplest, budget-friendly upgrade for better ventilation?

A8: Swap in a humidity-sensing fan (50–80 cfm) and ensure your duct is smooth, sealed, and vented outdoors. If you have an existing slider, a louvered insert with a through-glass fan kit can be an affordable boost.
