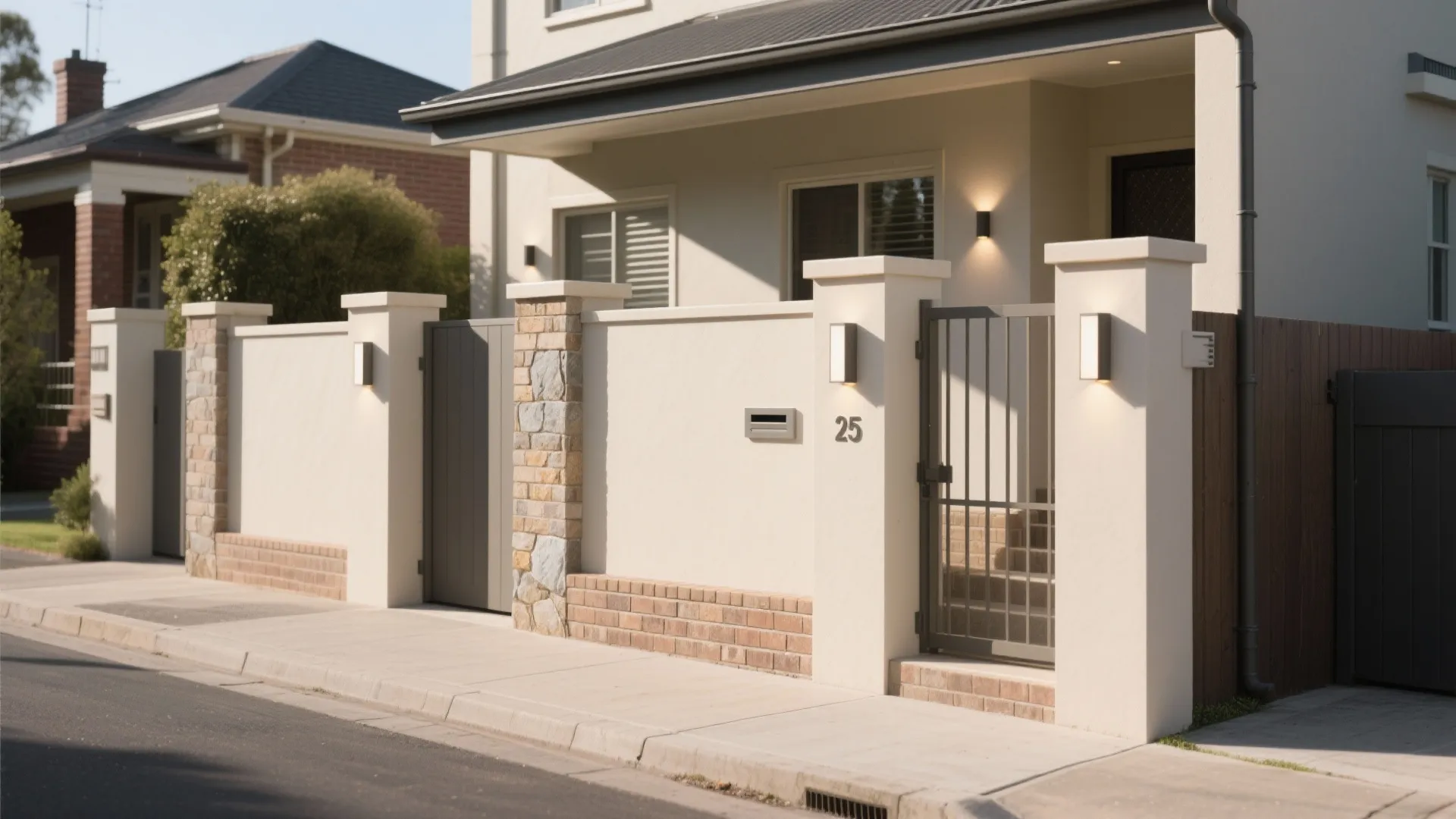

5 Boundary Wall Pillar Design Ideas: Smart pillar details that make small boundaries feel bigger, safer, and more beautiful—told from my 10+ years on site.

A client once asked me for "castle" pillars on a 4‑meter townhouse frontage. I sketched options and built quick 3D mockups to prove slimmer piers could look grand without swallowing precious curb space. We laughed, then trimmed 40 mm off each column—tiny on paper, but massive on the sidewalk.

That project reminded me how small spaces spark big creativity. Boundary wall pillar design isn't just structure; it's rhythm, light, and texture working hard in narrow footprints.

So, pulling from real jobs and a few near-misses, I’m sharing 5 pillar ideas that consistently make small boundaries feel generous, durable, and stylish.

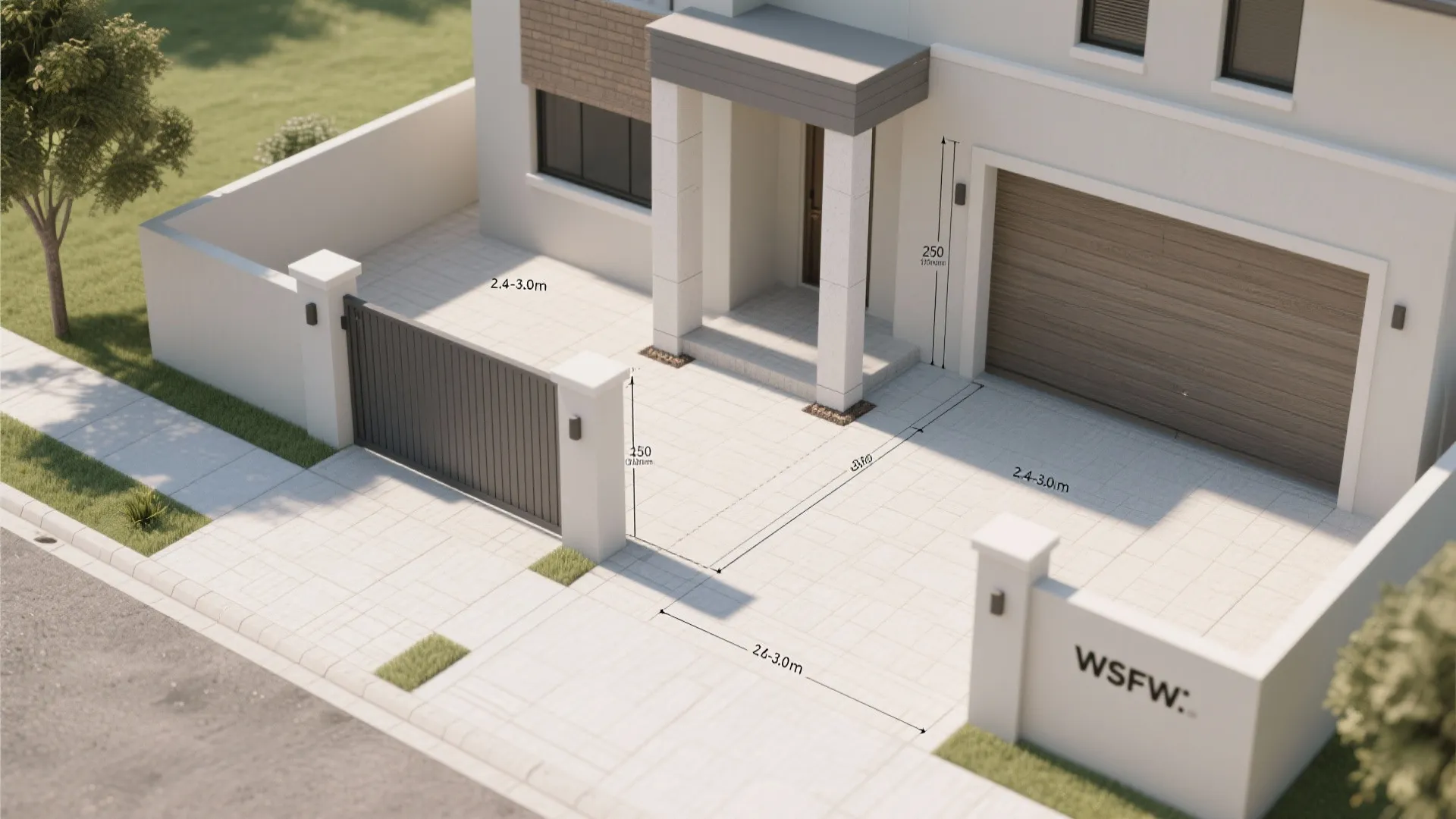

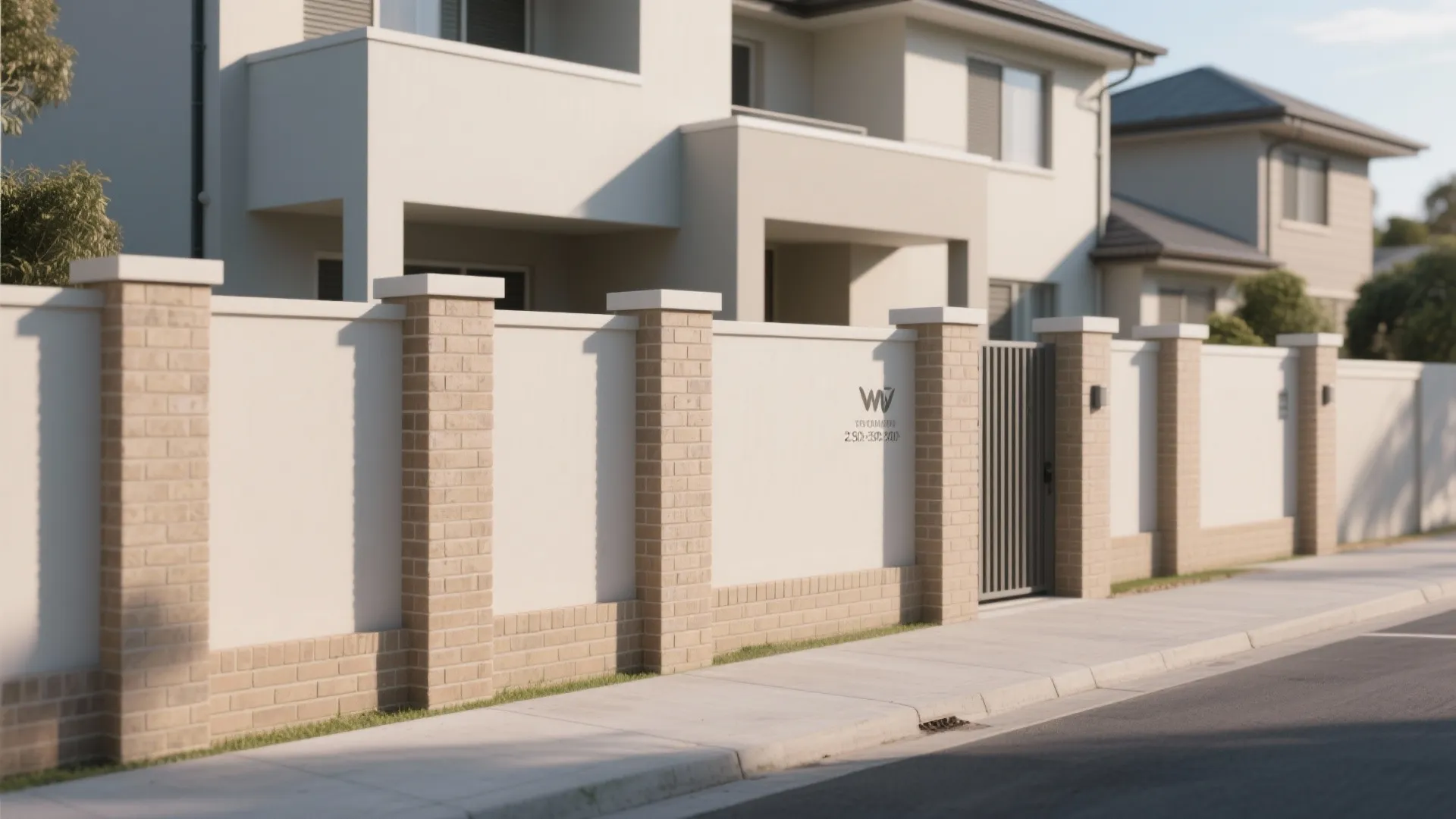

1) Proportion and Rhythm: Narrower Piers, Smarter Spacing

When space is tight, I start with ratios. A 1:2 pillar-to-gap rhythm often feels balanced: think 250–300 mm pillars with 2.4–3.0 m centers in a small frontage, adjusting for gate widths.

Keep tops aligned to a datum (mailbox, window sill, or coping height), and repeat a simple detail like a shadow reveal at 1/3 height. The challenge is foundations meeting property lines; plan footings early to avoid awkward step-ins or neighbor disputes.

save pin

save pin

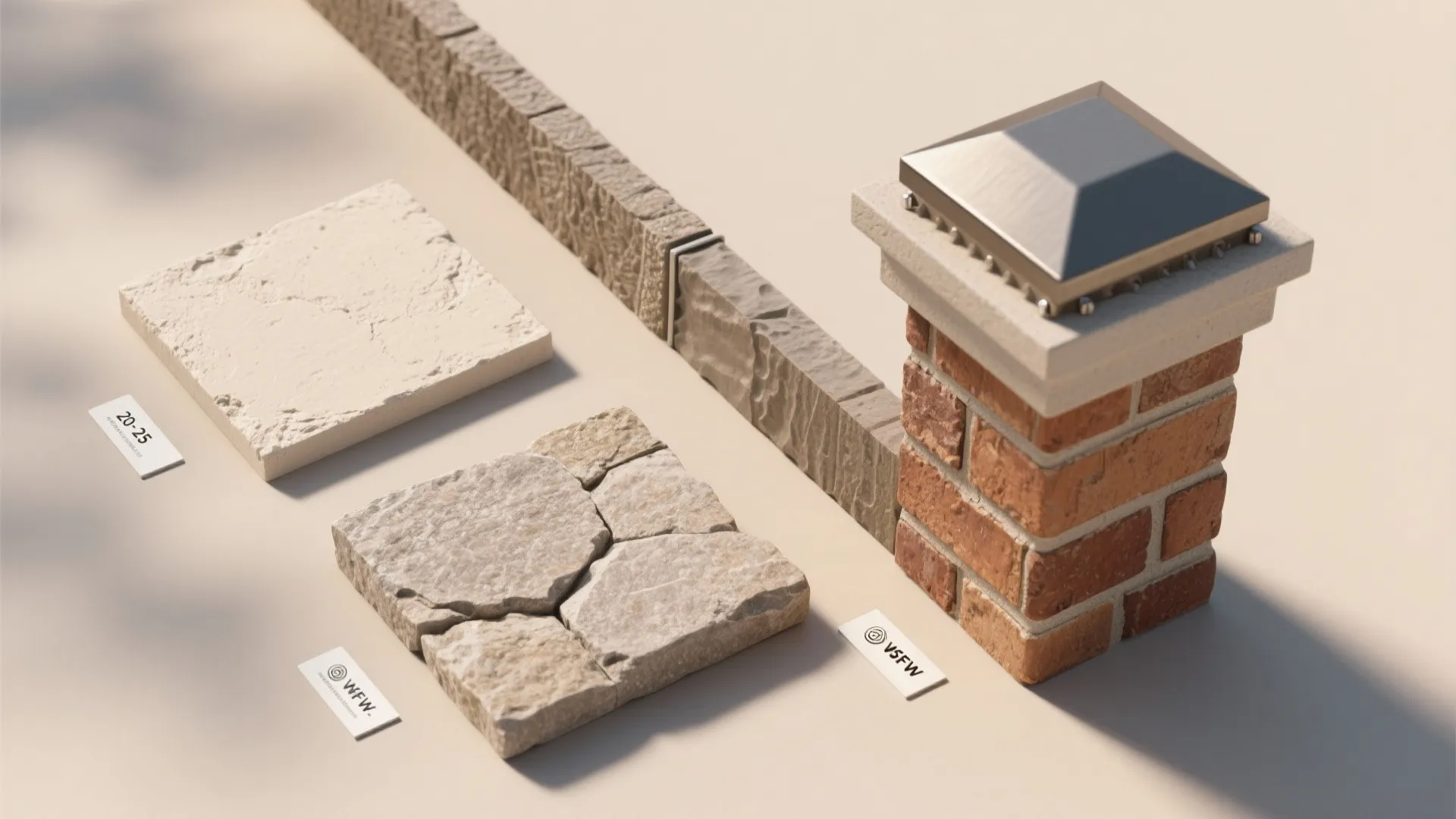

2) Layered Materials: Shadow Lines, Caps, and Drip Edges

I love mixing a smooth render with hand-textured brick or split-face stone. A 10–12 mm recess or chamfer at the edges throws elegant shadows, making slim pillars read richer.

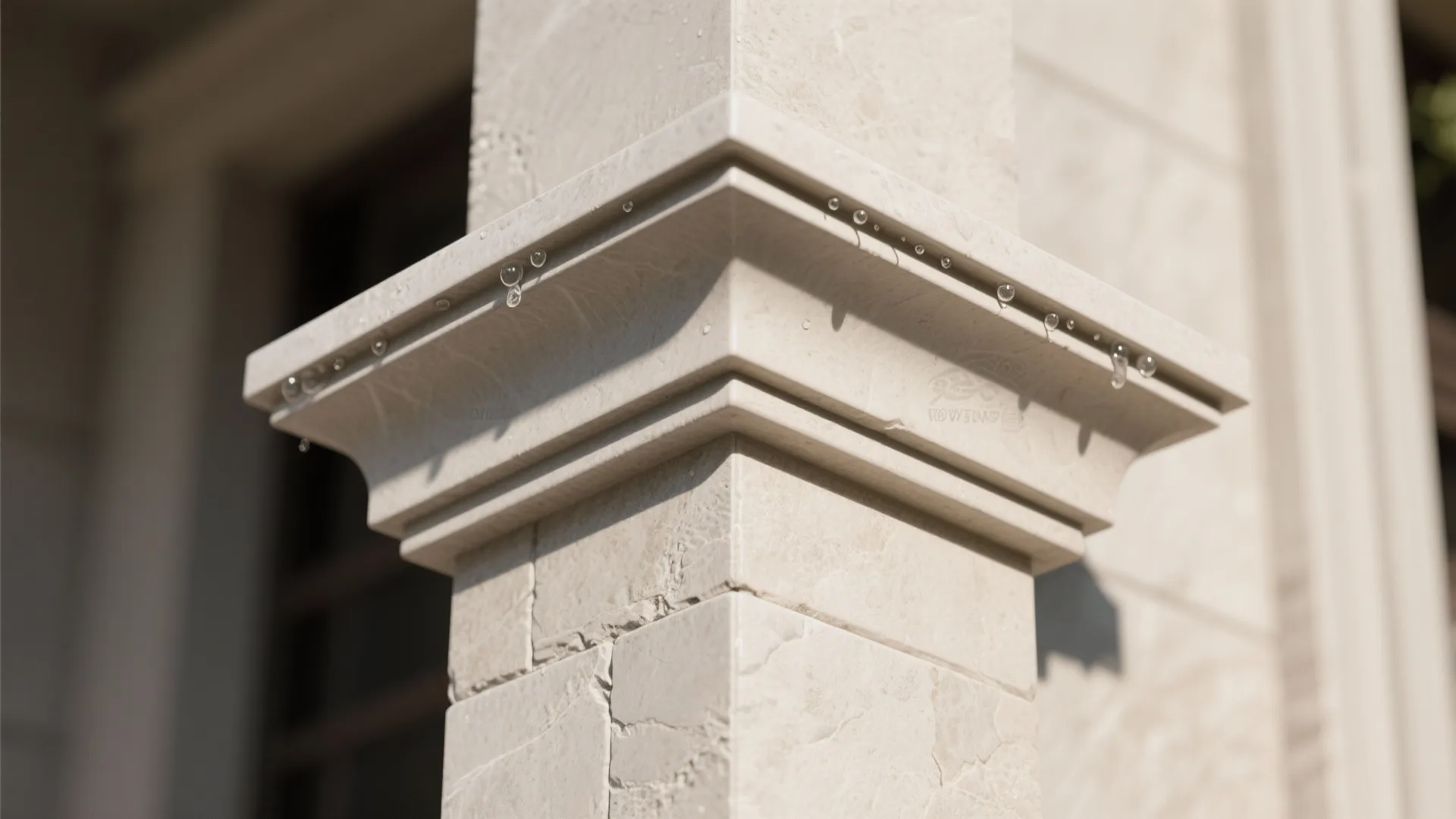

Add a cap with a 20–25 mm overhang and drip edges to keep rain from streaking the wall. It costs a bit more to detail properly, but you’ll save on long-term cleaning and repainting.

save pin

save pin

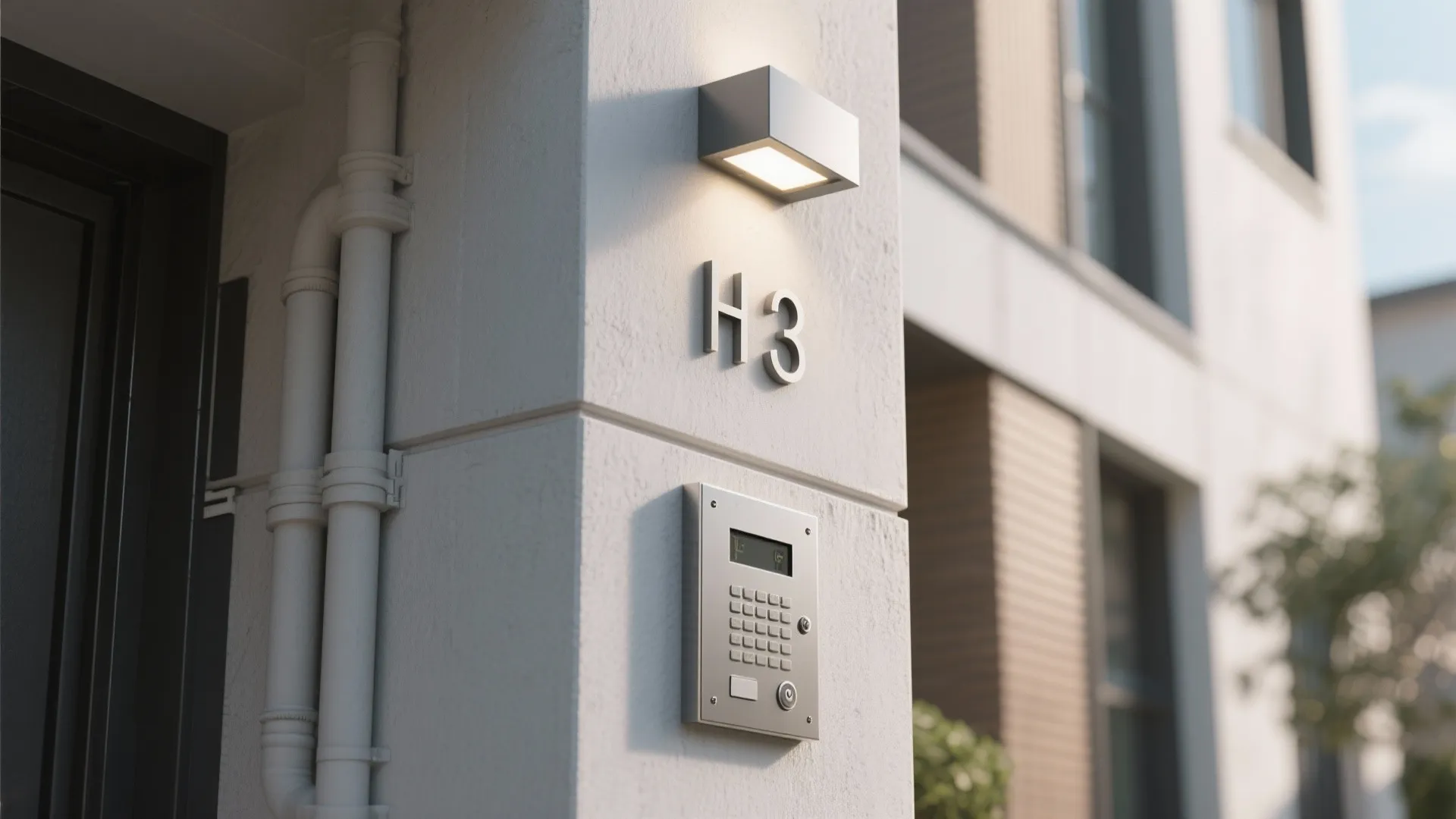

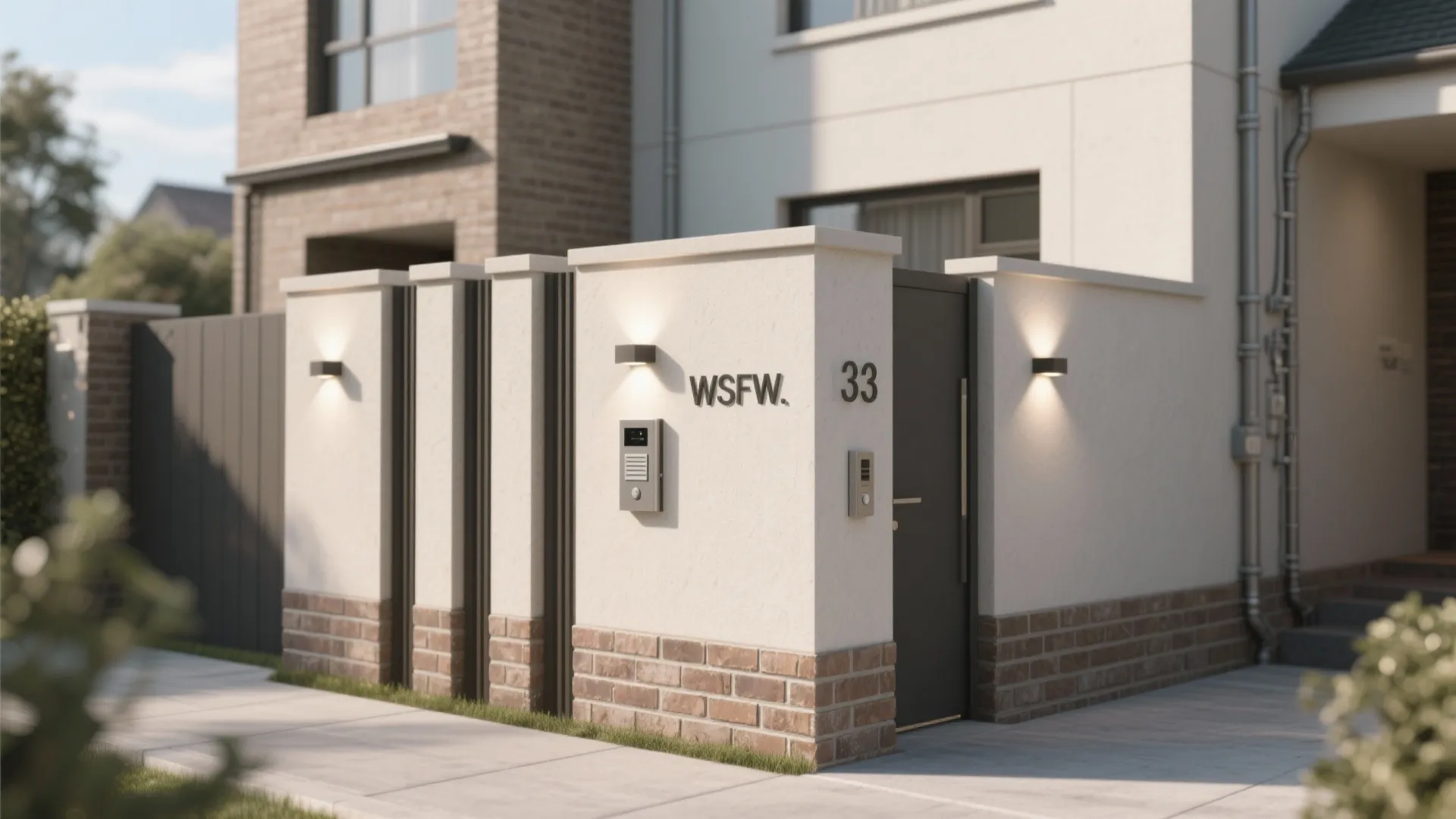

3) Light, House Numbers, and Intercoms Built Right In

Integrate up/down lights, house numbers, and intercoms into the pillar face so the wall does more with less. I use low-voltage fixtures with sealed junction boxes and run conduits through the pillar core to hide everything.

Before any wiring, I rely on my scaled layout studies to lock conduit paths, junction points, and exact cutouts. The hiccup is waterproofing: specify gaskets and IP-rated fixtures, or you’ll be chasing leaks every rainy season.

save pin

save pin

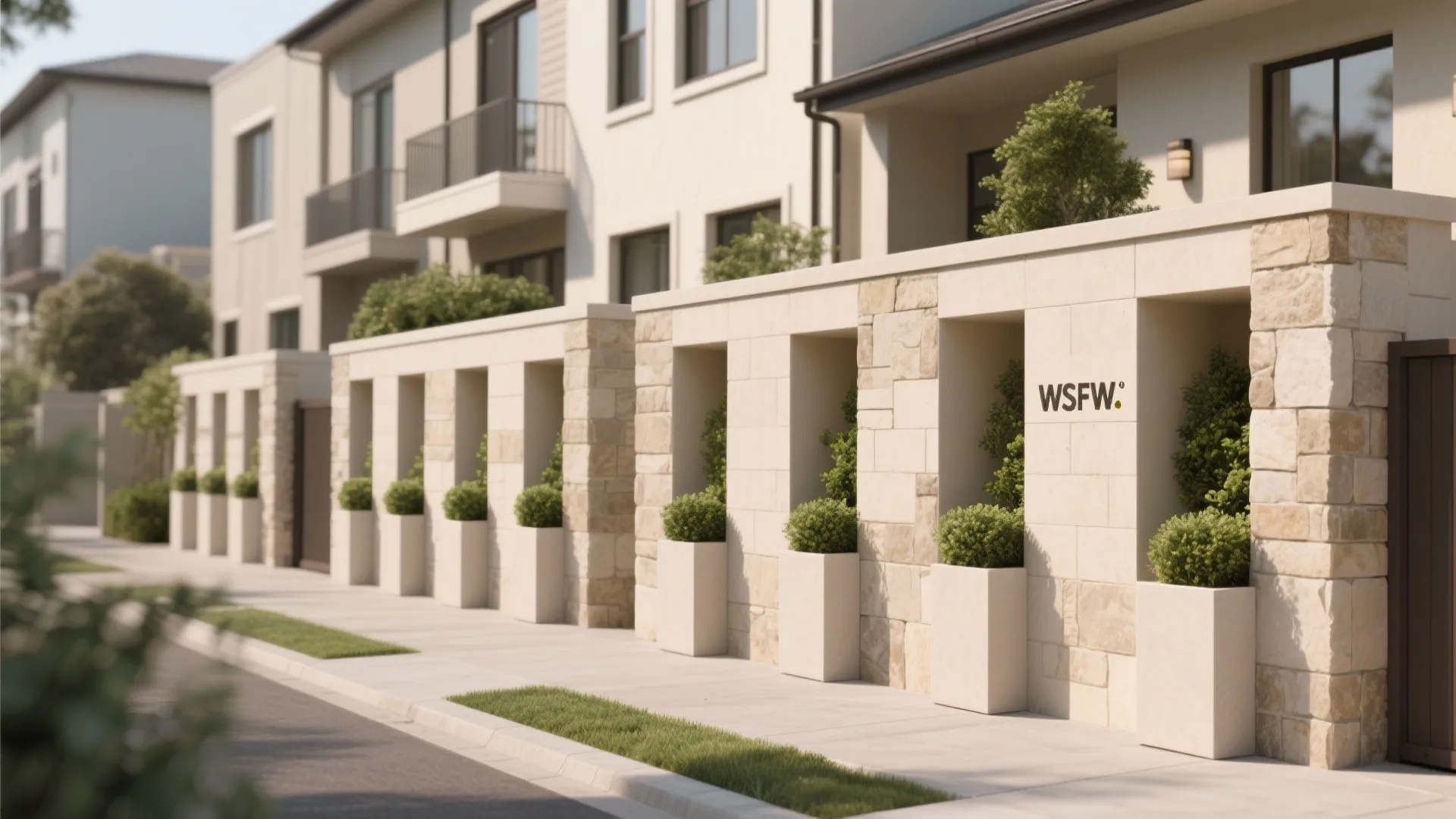

4) Slim Storage and Planter Columns

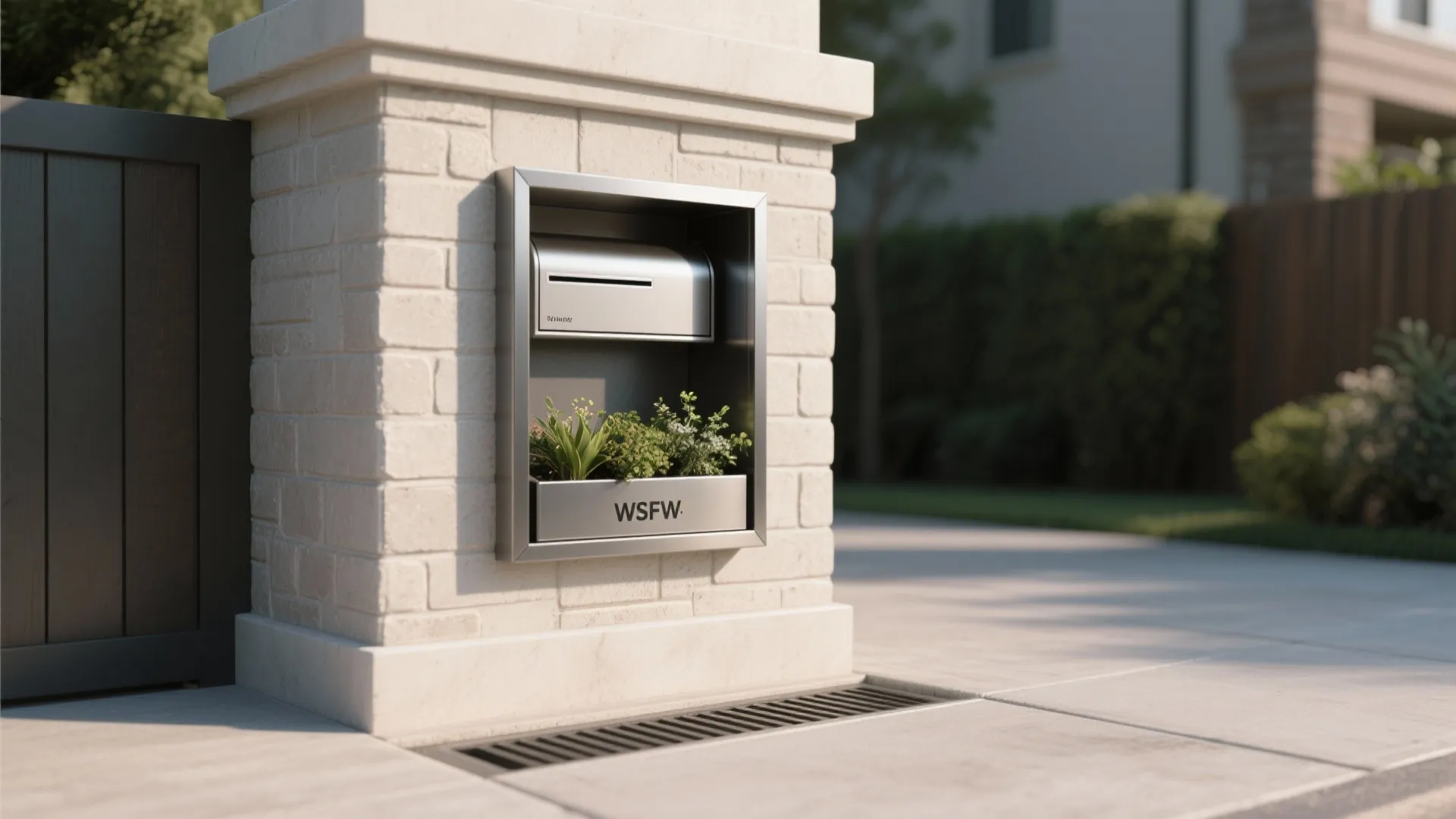

In micro-frontages, a 250–300 mm deep niche in a pillar can hold parcels, a slim mailbox, or even a planter insert. It keeps the facade tidy without adding bulk.

Line niches with metal or composite sleeves and slope bases slightly for drainage. The trickiness is keeping structure intact—never notch through reinforcements; frame the recess within the masonry or concrete cover.

save pin

save pin

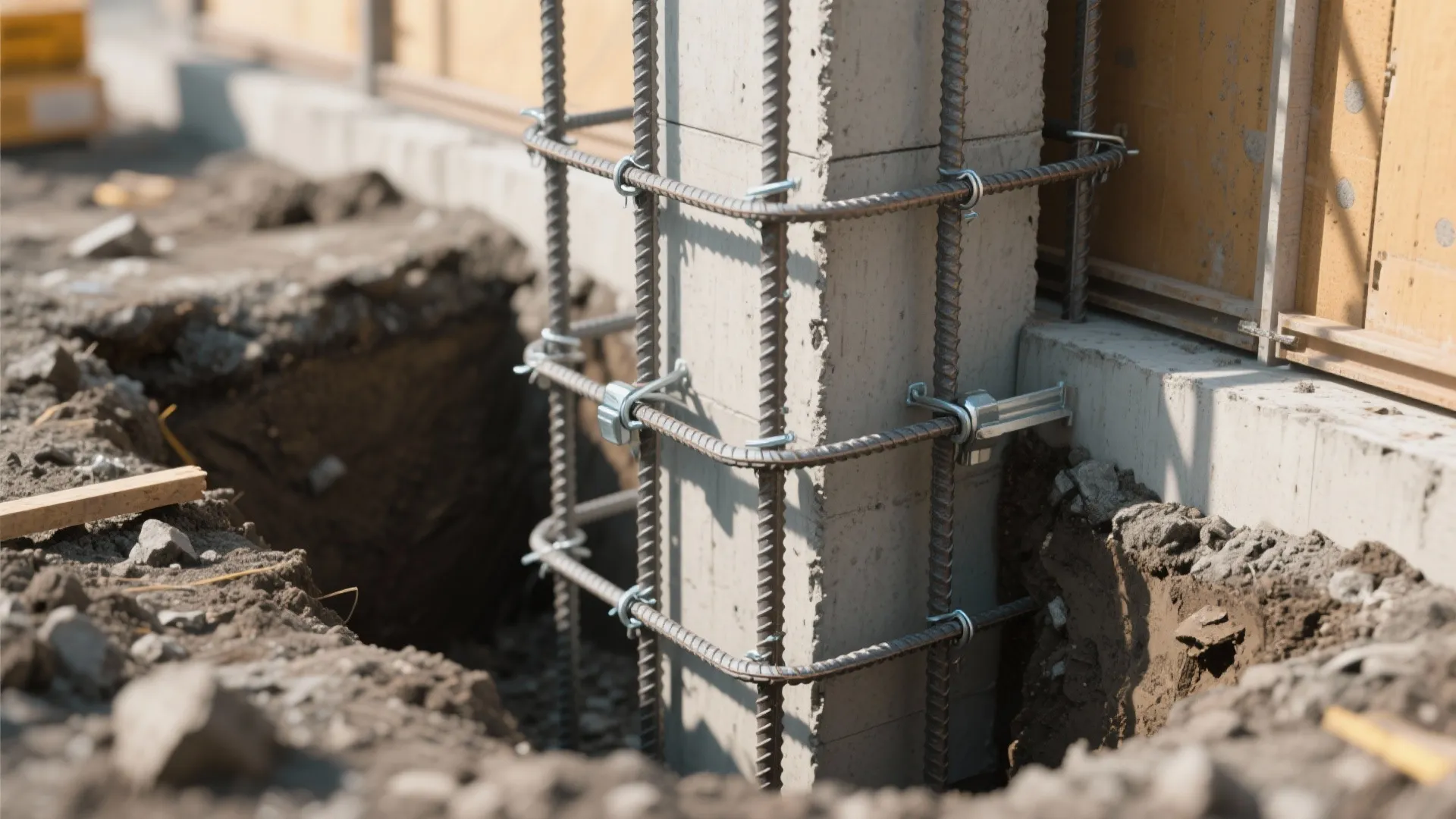

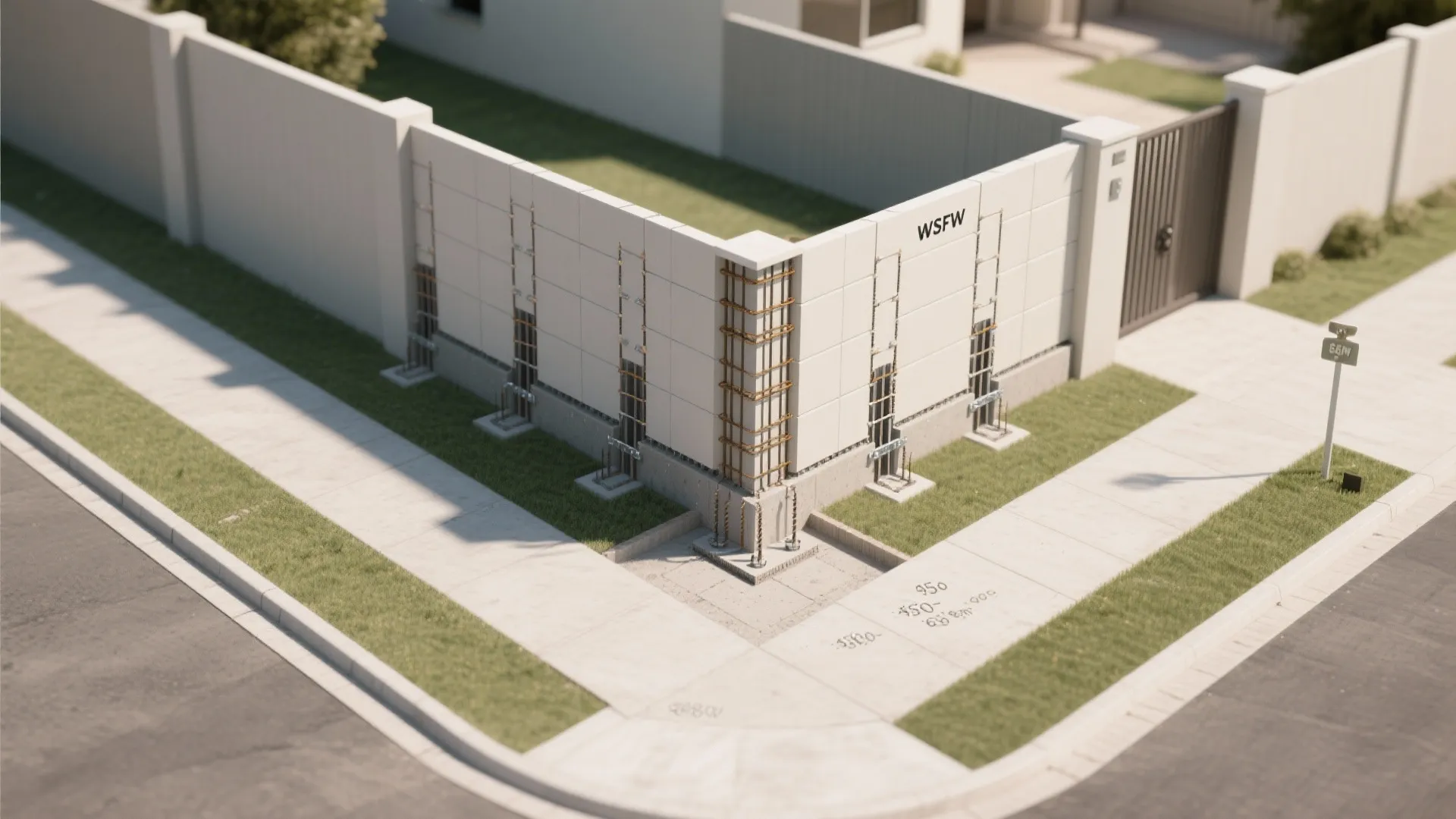

5) Structure First: Footings, Reinforcement, and Movement Joints

Pillars take wind and gate loads, so footings matter. I often use 450–600 mm square footings (depth tuned to frost line/soil), vertical rebar cages, and tie pillars mechanically to the wall panels.

Introduce movement joints every 6–8 m, or at gates and corners, to avoid cracks. It’s not glamorous, but it’s what keeps those sleek details looking sleek five years later.

When I’m fine-tuning finishes to match the facade, I’ll test AI-assisted style palettes to compare textures and tones quickly. It’s a fast way to sanity-check how caps, numbers, and lighting read together before I lock the spec.

save pin

save pin

FAQ

1) What’s the ideal spacing for boundary wall pillars?

For small frontages, 2.4–3.0 m centers usually feel balanced and reduce panel flex. Adjust around gates and corners, and follow your structural engineer’s call on wind loads.

2) How deep should pillar footings be?

Depth depends on soil and frost line; 450–600 mm square footings are a common start for light masonry, but verify locally. Your engineer may increase depth/width on poor soils or exposed sites.

3) Which materials are best for pillar durability?

Brick and block with cement render are budget-friendly and robust. Natural stone is long-lived but heavier; powder-coated metal accents handle weather well if paired with proper drainage.

4) How do I hide wires for lights or intercoms?

Run conduits inside the pillar core and exit at recessed boxes with gaskets. Keep inspection access behind a removable plaque or under the cap for maintenance.

5) Do I need a permit for boundary wall pillars?

Many jurisdictions require permits above specific heights or near the public right-of-way. Check the International Building Code and local rules; see IBC 2021 via the ICC (https://codes.iccsafe.org/content/IBC2021) and masonry design standards TMS 402/602-22 by The Masonry Society (https://masonrysociety.org/product/tms-402-602-22/).

6) How do I prevent damp stains on pillars?

Use caps with drip edges, breathable sealers, and proper weep/drainage details. Avoid trapping moisture with fully sealed paint on masonry unless the system is designed for vapor control.

7) What pillar dimensions suit a tight frontage?

250–300 mm width with a cap overhang feels slim yet sturdy. Keep height proportionate—about 1.2–1.5 m for low privacy walls, higher near gates if needed and legal.

8) What budget should I expect?

Simple rendered masonry pillars can be cost-effective, while stone cladding, custom caps, and lighting push costs up. Prioritize structure first, then layer details where they’ll be most visible.
