5 Wall Paint Design Drawing Ideas for Small Spaces: A senior interior designer’s playful, practical take on turning tiny walls into big statements

The funniest client request I’ve ever had? “Make my studio feel taller with watermelon stripes.” I laughed, then realized it was genius—small spaces force us to get inventive. These days, I start by sketching my wall layouts sketching my wall layouts so I don’t let a cute idea crash into a power outlet or a crooked corner. Small spaces really do spark big creativity, and today I’m sharing five wall paint design drawing ideas I use in real projects.

I’ll keep it friendly and real—what works, where it gets tricky, and the tiny hacks that save a Saturday. Grab a pencil, some painter’s tape, and let’s turn your walls into storytellers.

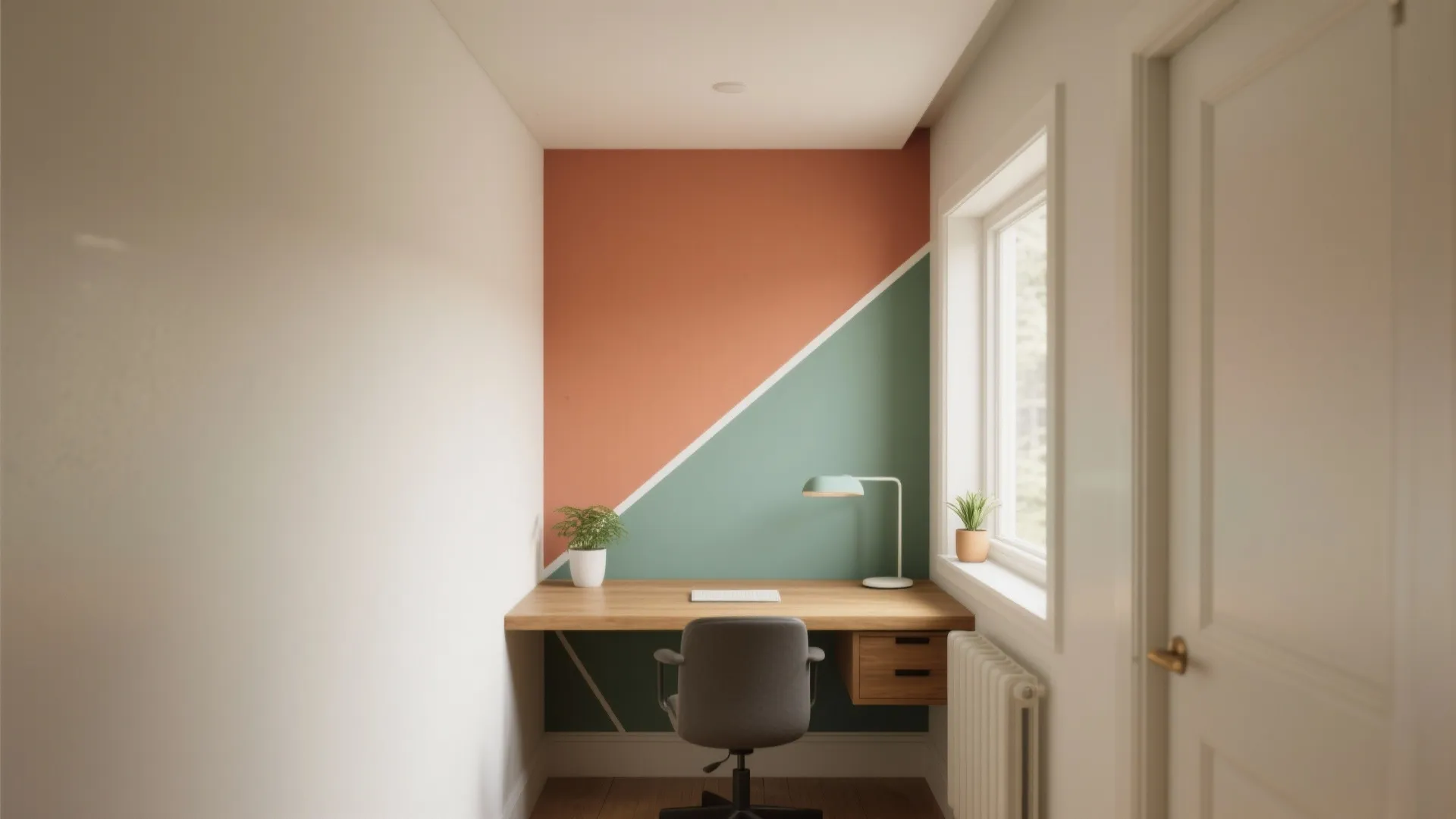

Idea 1: Color-Block Zoning That Shapes the Room

In tiny homes, paint can be architecture. I’ll draw a bold diagonal or a tall block to “push” the ceiling up or widen a narrow wall. It’s perfect for defining a desk zone or reading nook without adding actual partitions.

The trick is precision: I measure from the floor reference line and run a laser level so the tape stays true across corners. If you’re budget-conscious, one extra quart in a contrasting color usually covers a feature without overspend—just watch for bleed by burnishing the tape.

save pin

Idea 2: Soft Arch Backdrops (A String Compass Saves the Day)

I learned the hard way that tracing an arch with a dinner plate is… optimistic. Now I tie a string to a pencil, anchor the other end with a pushpin, and draft a perfect radius directly on the wall. A painted arch behind a bed or entry console softens everything and feels custom, fast.

Curves take patience—apply tape in small segments and step back often. If the arch looks too heavy, lighten the base color or lift the spring point higher; about two-thirds up the wall feels graceful in most rooms.

save pin

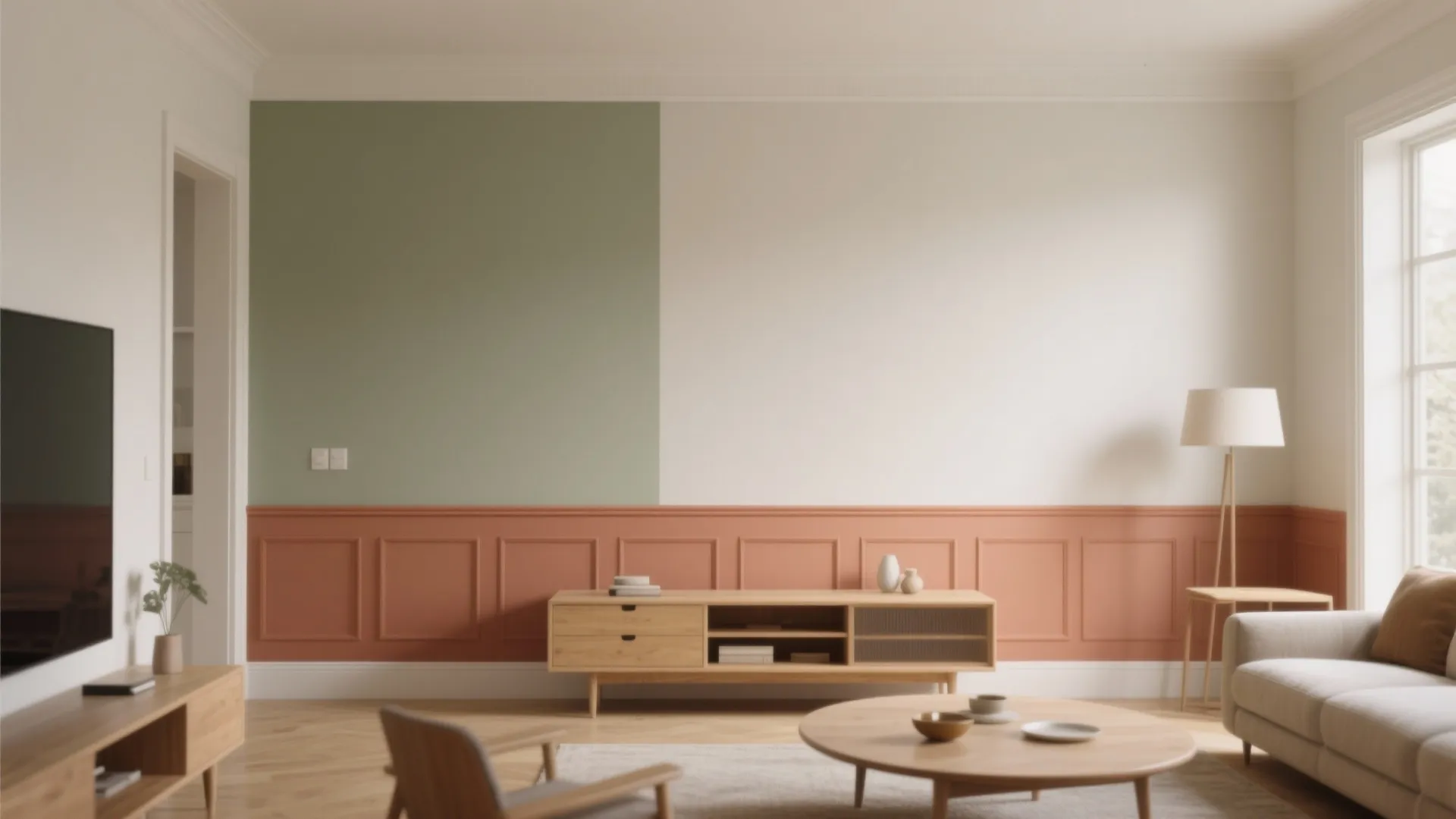

Idea 3: Two-Tone Half Walls With a Crisp “Cap” Line

When a space needs calm and character, I draw a half wall at 36–48 inches and choose two tones from the same palette. It mimics wainscot, protects from scuffs, and visually lowers furniture so the room reads tidier.

For planning, I love to visualize paint boundaries in 3D visualize paint boundaries in 3D before I tape. Use a laser for the line, press tape firmly, then seal the edge with the lighter color to prevent bleed. Slightly rounding the “cap” at inside corners keeps it looking intentional rather than abrupt.

save pin

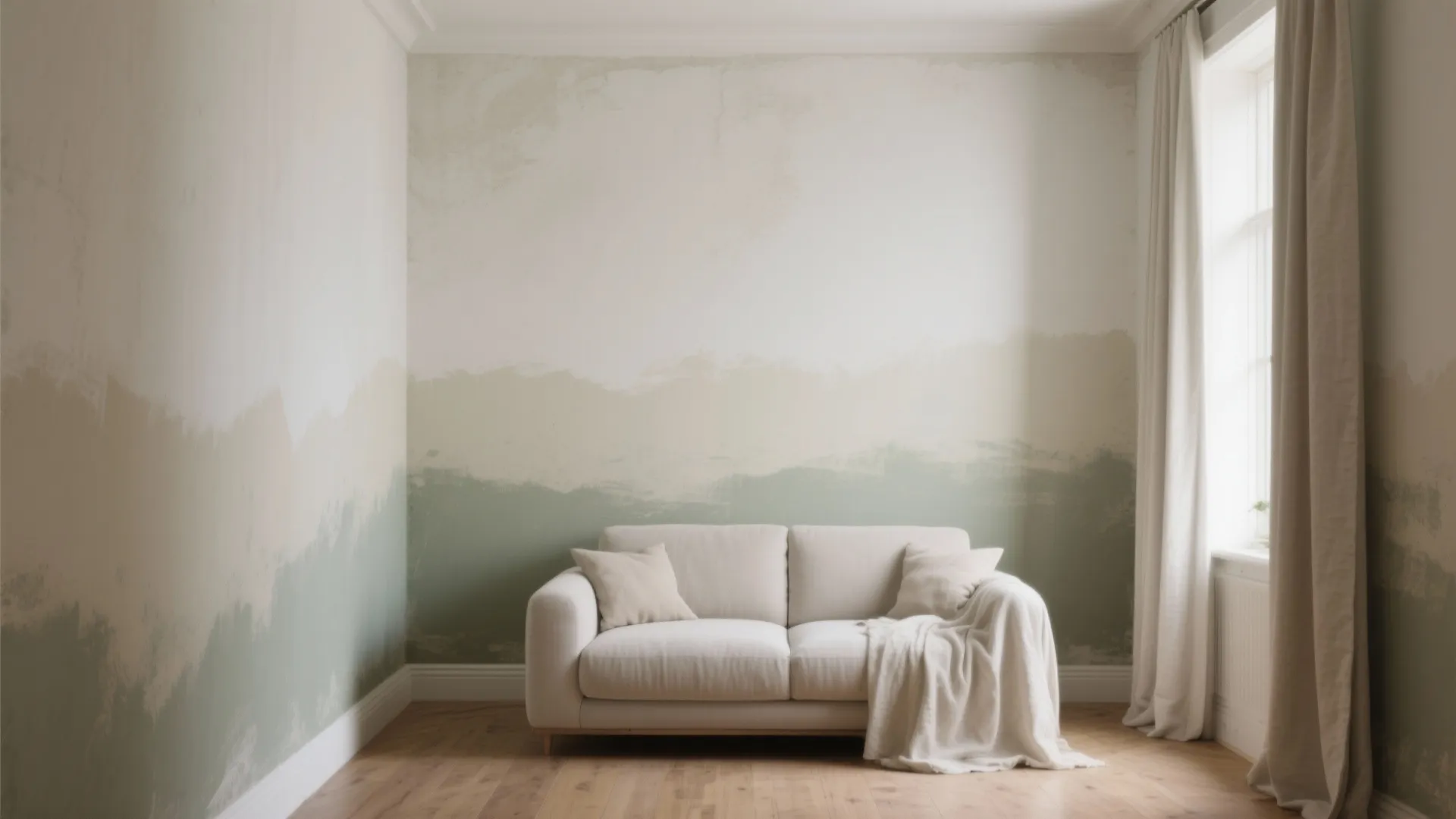

Idea 4: Vertical Ombre or Limewash for Height

A gentle gradient—from medium at the bottom to light at the top—coaxes the eye upward and makes low ceilings feel kinder. I draw soft horizontal guides, then blend with a wide brush and damp cloth while the paint stays wet.

Ombre is a dance: work quickly and keep your wrist relaxed. Limewash or mineral paint adds beautiful cloudy texture but shows roller marks if you rush. If you’re sensitive to odors, choose low-VOC products; they’re kinder during multi-coat blends.

save pin

Idea 5: Micro-Mural Grids and Repeat Patterns

For playful walls, I lay a light chalk grid—about 12 inches—and sketch motifs: simple leaves, arcs, or geometric repeats. It’s easy to scale from a paper drawing; just match the grid squares and transfer, one box at a time.

Keep the palette to two or three colors so the room doesn’t feel busy. If you’re nervous, you can test patterns before committing test patterns before committing and adjust scale, spacing, or color warmth. Stencils help, but hand-drawn imperfections are charming—that’s my polite word for “human.”

save pin

FAQ

1) What is a wall paint design drawing?

It’s a measured plan for paint shapes, lines, and color areas on your wall. Think of it as a blueprint for stripes, arches, blocks, or gradients before you touch a roller.

2) How do I measure and scale my drawing to the wall?

Use a simple 1:20 or 1:25 scale on paper (1 cm = 20–25 cm on the wall). Transfer key points with a tape measure and laser level, then connect with light pencil lines you can erase.

3) What’s the best height for a two-tone half wall?

Common heights are 36–48 inches (90–120 cm). In small rooms, I aim slightly lower (around 40 inches) so furniture feels nested and the upper wall stays airy.

4) How do I get crisp paint lines?

Burnish painter’s tape, paint a sealing pass with the lighter color, then apply your feature color. Remove tape at a 45° angle while the paint is still slightly wet for the cleanest edge.

5) Which paint sheen works best for wall designs?

Matte or eggshell keeps shapes refined and hides minor wall flaws. Use satin on high-touch lower sections (two-tone bases) to resist scuffs without too much shine.

6) Are low-VOC paints worth it?

Yes. The U.S. EPA notes VOCs contribute to indoor air pollution, and Green Seal GS‑11 sets limits of ≤50 g/L for flat and ≤150 g/L for non-flat coatings. Choosing low-VOC helps air quality, especially in small, enclosed spaces.

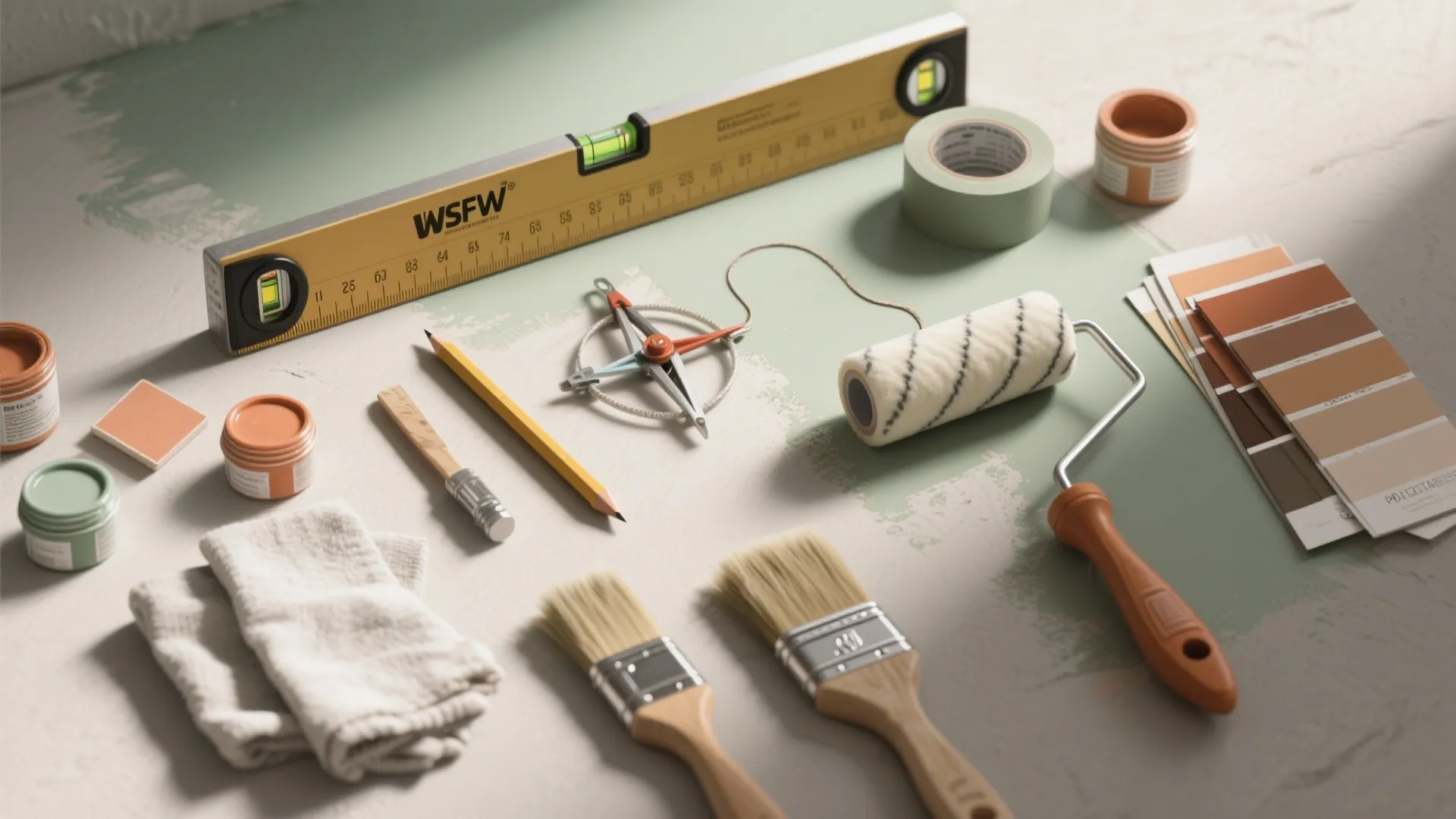

7) What tools do I need to draft and paint?

Scale ruler, pencil, tape measure, laser level, string compass, painter’s tape, rollers/brushes, and a damp cloth for blending. A few sample pots are invaluable for testing colors on your actual wall.

8) Can software help me plan before painting?

Absolutely—previewing colors, boundaries, and proportions reduces mistakes. I often mock up shapes digitally, then fine-tune on-site with tape and test swatches.
