A client once swore his 5x10 bath could fit a freestanding tub, double vanity, and a laundry closet—then we realized the door swing alone ate a quarter of the floor. I laughed, then I did what I always do: I sketched fast, built some room mockups, and proved we could have everything he wanted—just not all at once. Small spaces force big creativity, and that’s my favorite part of the job. Today I’m sharing five ideas I lean on for 5 by 10 bathroom design, pulled straight from real remodels.

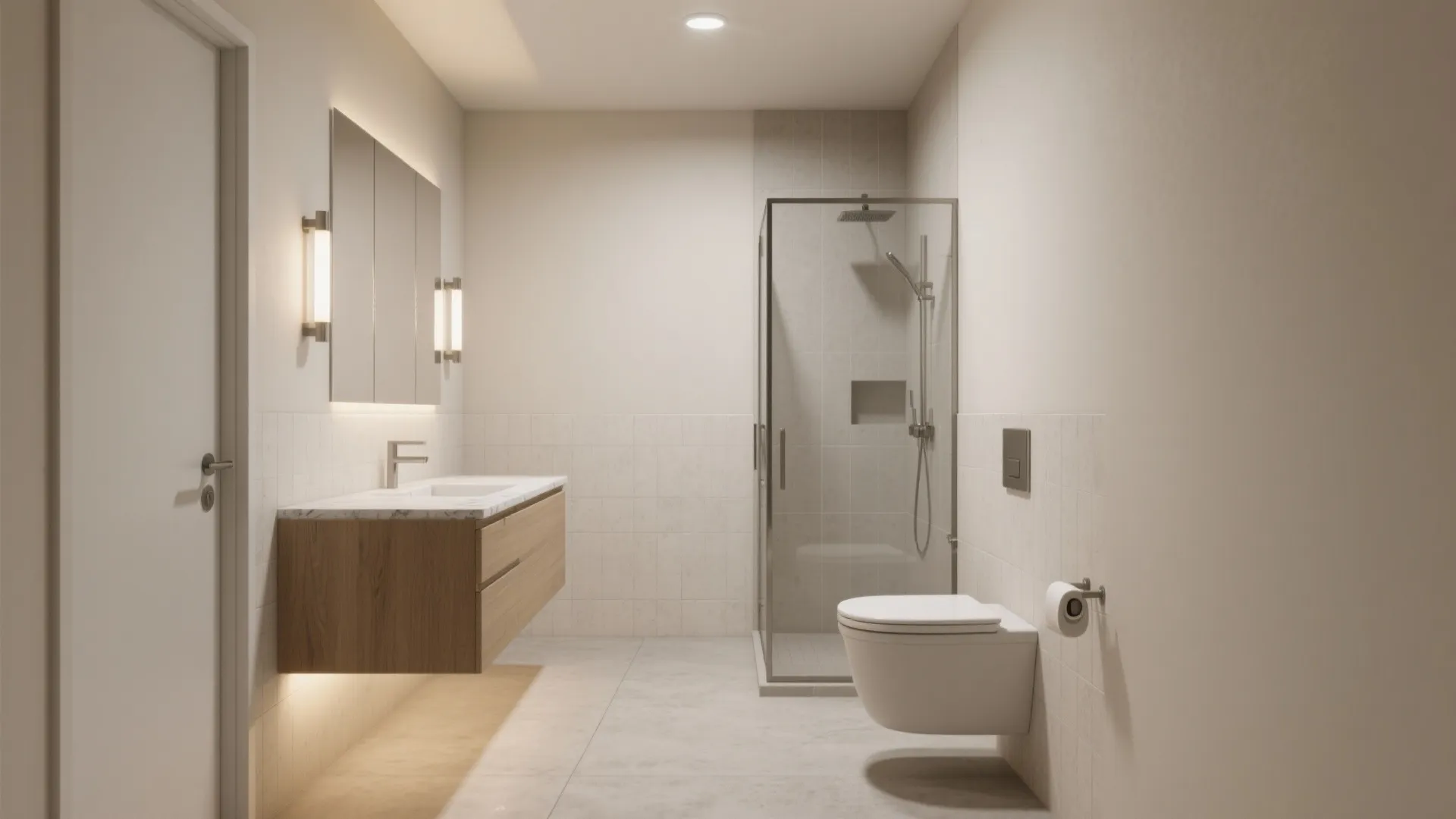

Idea 1: Line it up—vanity, toilet, shower in a row

In a 5x10, a clean linear layout keeps circulation simple and plumbing efficient. I usually place the door on the short wall, then run vanity → toilet → shower along one long side, with a 30–36 inch clear path opposite.

A frameless glass shower at the far end visually extends the room, and a wall-hung vanity frees up toe space. The trade-off is privacy at the shower end, so consider a frosted panel or a short return wall if you’re shy.

save pin

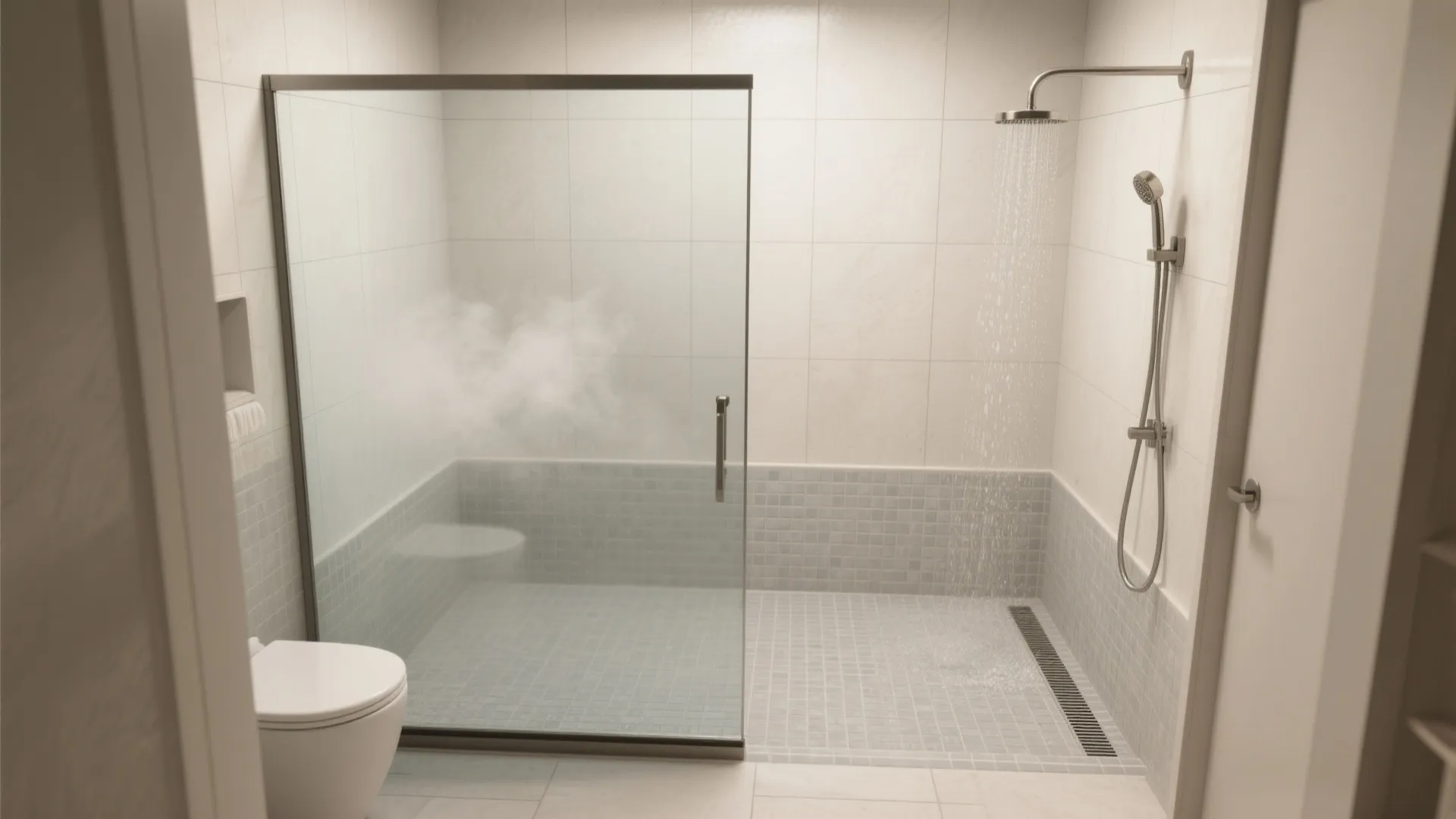

Idea 2: Go “wet room” with a single slope and linear drain

When clients love long hot showers, I turn the back third into a wet zone: same tile wall to floor, one gentle slope, and a linear drain. It feels like a hotel spa and eliminates curb trip hazards.

Use large-format tiles (say 12x24) on walls and a grippy mosaic on the floor for traction and ease of sloping. Waterproofing needs to be perfect—budget for a proper membrane system and a pro who’s done wet rooms before.

save pin

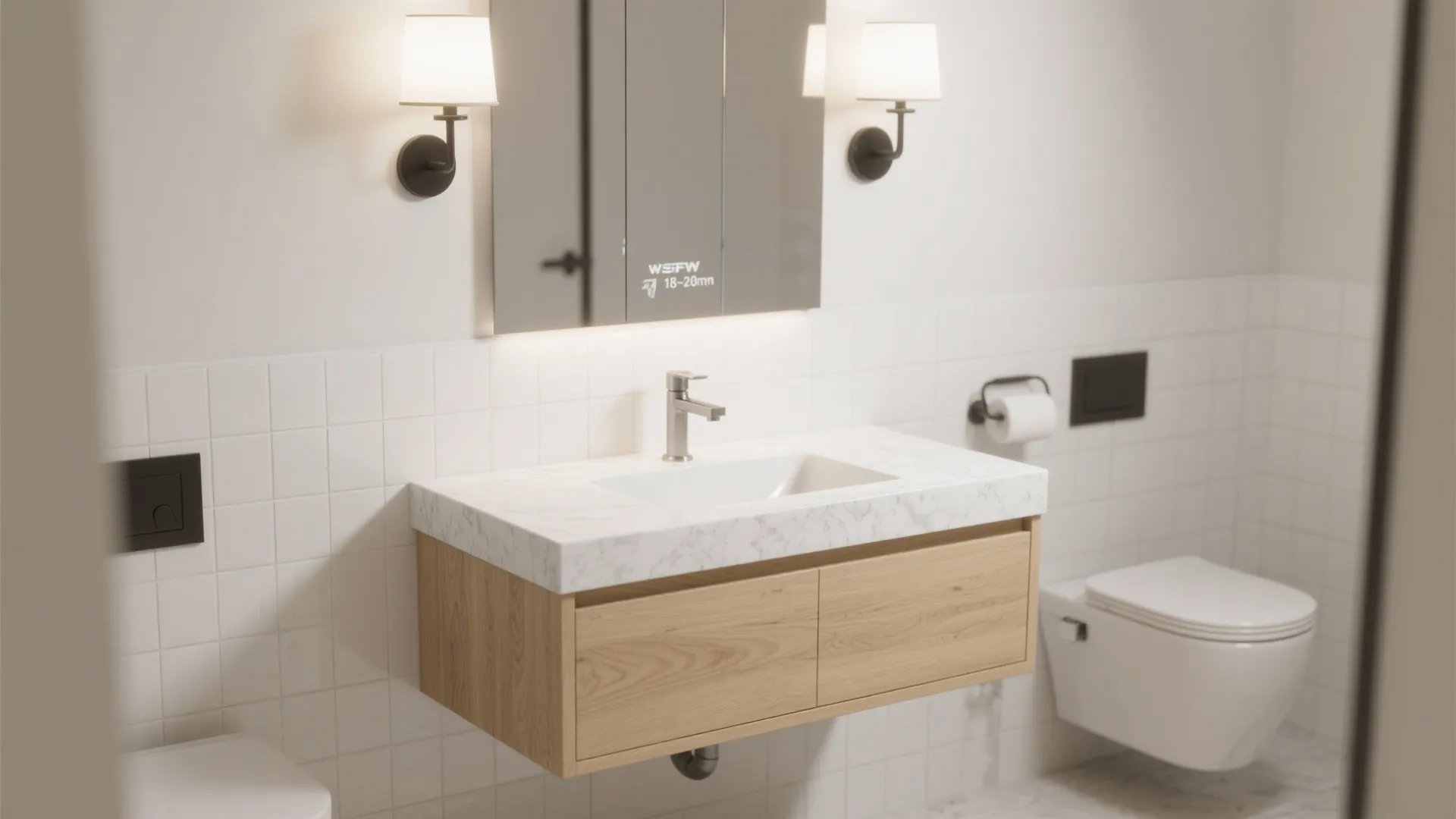

Idea 3: Shallow, floating vanity + mirrored storage

A 5x10 thrives on inches saved. A 18–20 inch deep floating vanity plus a recessed medicine cabinet gives you real storage without crowding the aisle. I center wall sconces at eye level (about 60–66 inches) for flattering light.

Wall-hung toilets help, too, moving the bulk into the wall and making mopping a breeze. I often show clients quick 3D renderings to compare a 48-inch single sink vs. a tight 60-inch double; the single with wider counter landing usually wins in daily life.

save pin

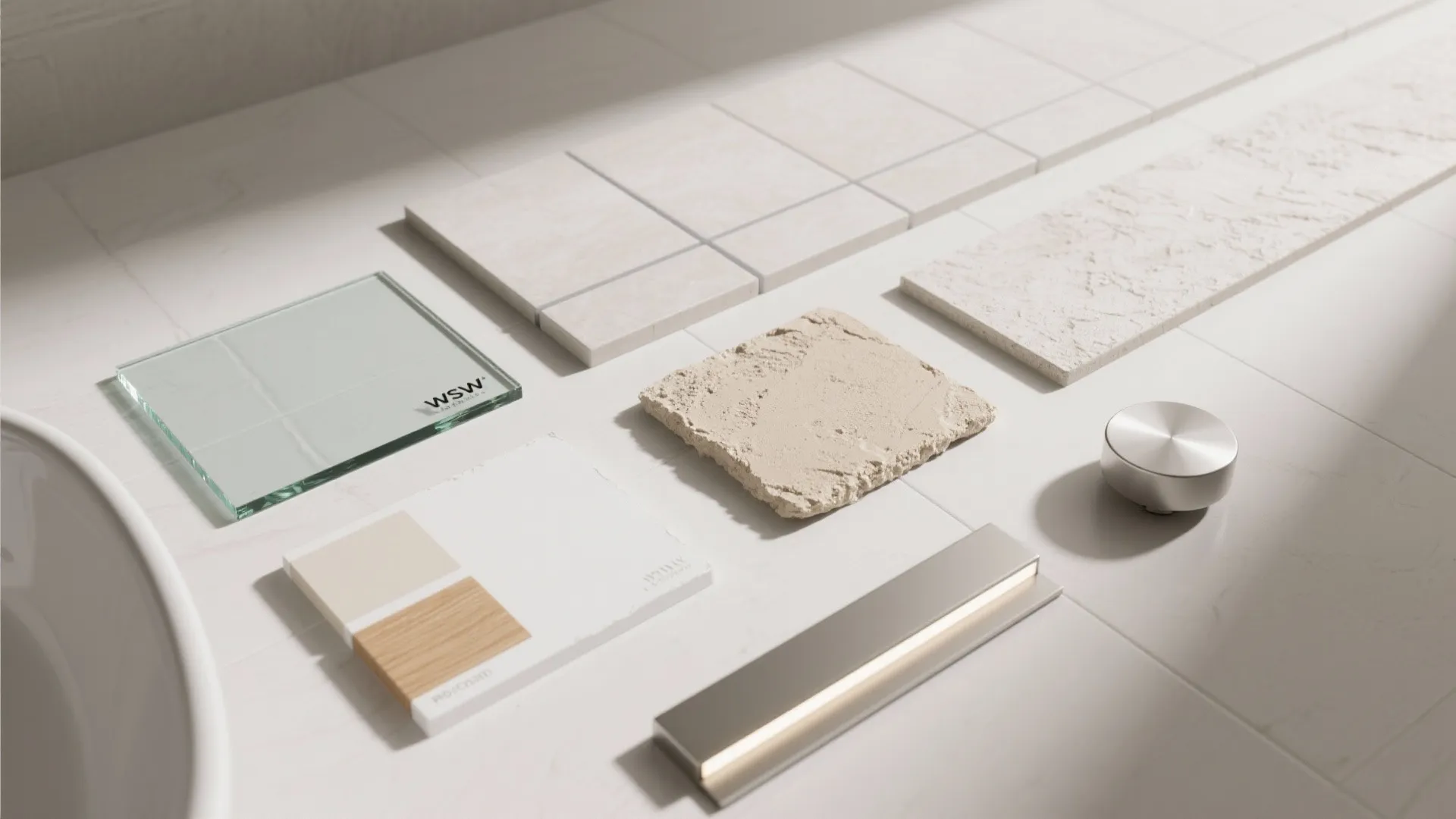

Idea 4: Light, glass, and lines that run long

Keep the palette light and low-contrast so edges blur: think soft gray grout with light porcelain, or a sandy microcement look. Run vertical tile if you want height, or a subtle horizontal stack to stretch the 10-foot length.

Layer light: one ambient source, task at the mirror, and a dimmable accent (toe-kick LED under the vanity is a small luxury). Low-iron glass for the shower avoids that green tint and keeps whites looking crisp.

save pin

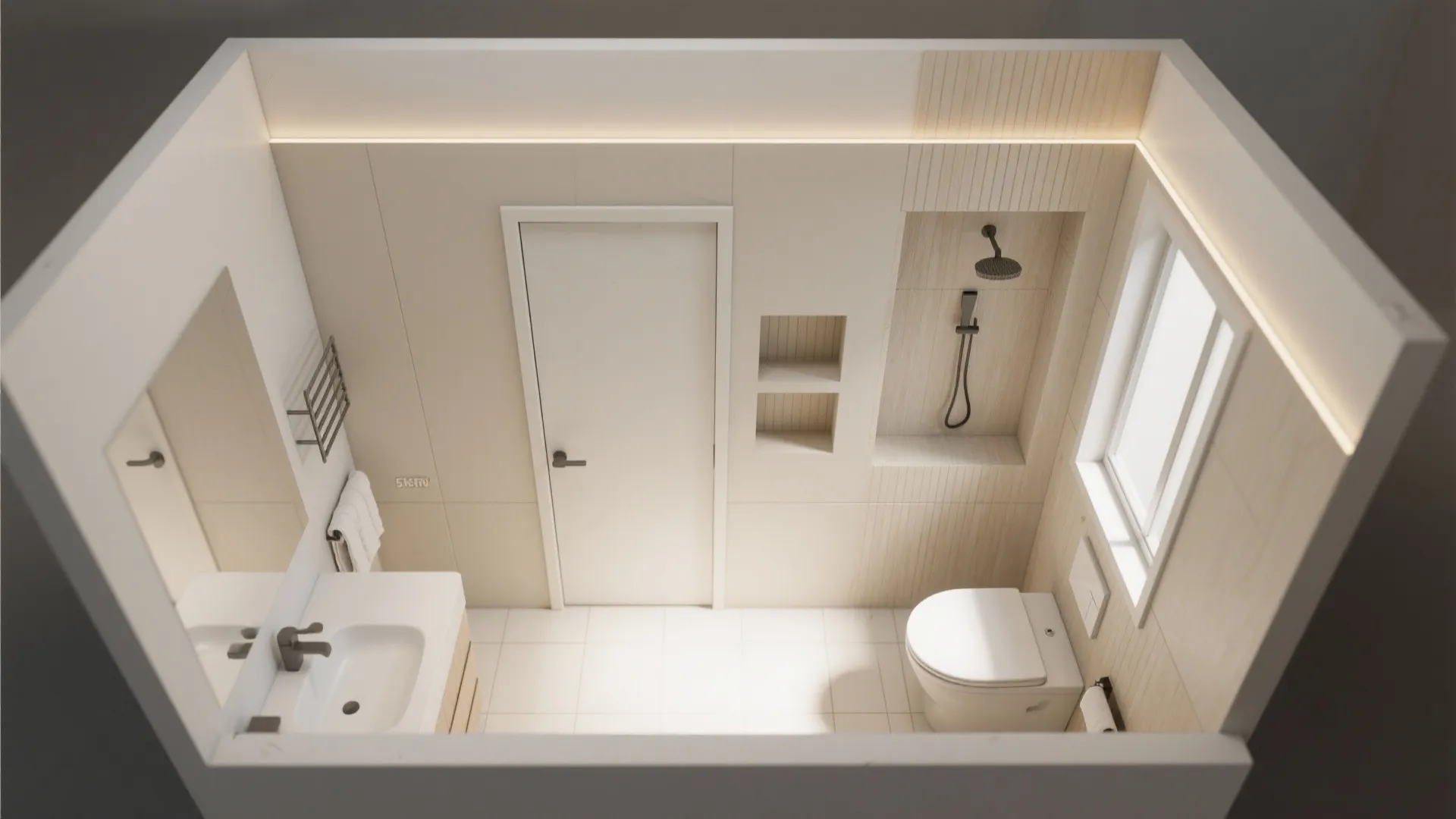

Idea 5: Niches, recesses, and doors that don’t steal space

Recess wherever you can: a 4-inch deep medicine cabinet, shower niches between studs, and even a shallow linen recess above the toilet. Swap the swing door for a pocket or barn-style slider to give back 8–10 square feet of usable area.

When clients can’t visualize storage, I sometimes play with AI interior concepts to test niche placements and shelf heights fast. Just remember to add blocking in the walls now for future grab bars—you’ll thank yourself later.

save pin

FAQ

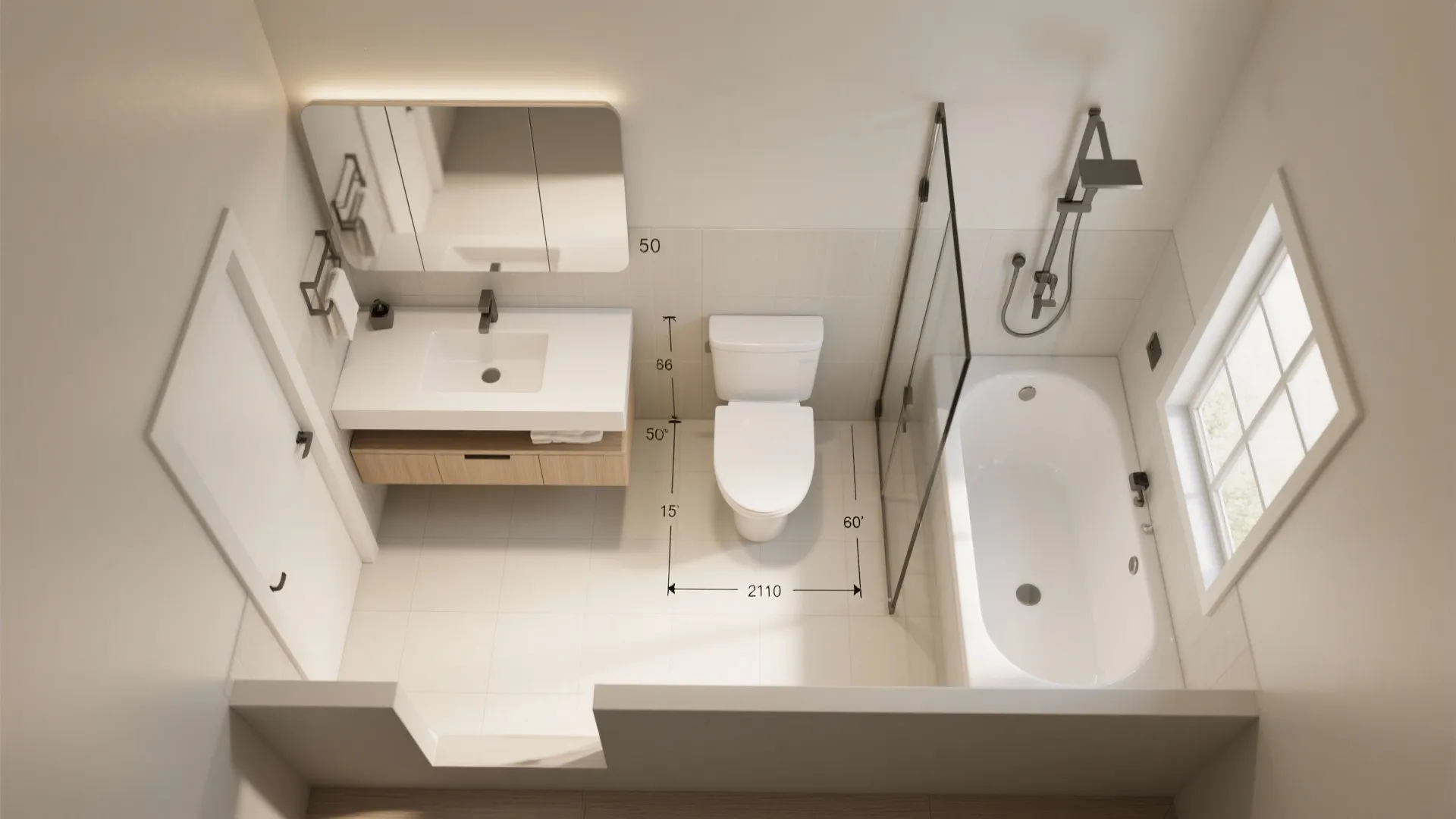

1) What’s the best layout for a 5x10 bathroom?

Typically: door on the short side, then vanity → toilet → shower/tub along one long wall. Keep at least 30 inches clear path and aim for 15 inches toilet centerline from any side wall.

2) Can I fit a double vanity in a 5x10?

Sometimes, but it’s tight. A 60-inch double can work, yet a 48–54 inch single with generous counter landing and a recessed medicine cabinet often functions better day to day.

3) Shower or tub—what fits better?

A standard tub is 60x30 inches and fits great across the 5-foot end. For showers, I like 36 inches depth if you can spare it; 32 inches is doable with a frameless glass panel.

4) What clearances should I follow?

The NKBA recommends at least 21 inches clear in front of toilets and lavatories, and 15 inches from toilet centerline to side walls. See NKBA Bathroom Planning Guidelines for specifics (National Kitchen & Bath Association).

5) What door type saves space?

A pocket door or quality barn slider frees up floor area otherwise eaten by a swing. If you keep a hinged door, swing it out or toward a non-critical area to protect circulation.

6) How should I size the exhaust fan?

As a rule of thumb, plan around 1 CFM per square foot, and no less than 50 CFM for intermittent use. ENERGY STAR echoes this and stresses quiet operation (≤1.5 sones) for regular use (U.S. EPA ENERGY STAR).

7) What’s a reasonable budget for a 5x10 remodel?

Light refreshes can land around $6–12k; midrange gut-and-rebuilds often run $15–30k depending on region and finishes. Wet rooms, custom glass, and stone can push it higher.

8) Which tile sizes work best?

Large-format tiles on walls minimize grout lines and feel calm; small mosaics on floors give grip and handle slope to drains. Keep grout close in tone to the tile to avoid visual clutter.
